Samsung WF455ARG SERIES Installationsanleitung

Washing Machine (Drum Type) ※ Basic :WF455ARG***

WF45H6***

WF42H5***

Training Manual

 The Largest Capacity

 Smart Care

 Power Foam™

 Speed Spray

 VRT plus™

 Deep Steam

 Pure Cycle™

 Stylish Design

 Diamond Drum™

 DD Motor

Contents

1. Product Introduction

Product Introduction ………...……………..…….…… 3

2. Changed Part List

Changed Part List ………...……………..…….…….… 9

3. Disassembly and Reassembly

Disassembly and Reassembly ………...…………….… 20

4. Instruction of Function

Instruction of Function ………...……………………… 31

5. Test Mode

Test Mode &

& Error Check

Error Check ………...……………..…… 34

6. PCB Diagram

PCB Diagram ………...…………………….……..…… 50

7. Reference Information

Reference Information ………...…………….…..…… 54

1/54

WF5000H Potomac

Category WF42H5700*** WF42H5200*** WF455ARG***

Main

Spec

Capacity (cu.ft.

IEC) 4.2cu.ft 4.2cu.ft 4.5cu.ft

Motor type DD Motor DD Motor DD Motor

MAX RPM 1200 1200 1300

VRT Yes (VRT+) Yes (VRT+) Yes (VRT+)

Heater (900W) Yes Yes Yes

Diamond Drum Yes Yes Yes

Washing Cycle # 13 13 13

Delay Wash 24 hrs 24 hrs 24 hrs

Tilted Drum 10° 10° 10°

(Sound Levels) Ave 58dBA↓ Ave 58dBA↓ Ave 56.3dBA↓

Target

Performa

nce

MEF 3.2 3.2 3.2

WCF 2.9 2.9 2.99

kWh/year 93 kWh/year 93 kWh/year 95 kWh/year

Design

Control Display LED LED G.LED

Dimension

(W*D*H) 27.0X 32.3X 38.7" 27.0X 32.3X 38.7" 27 X 32.3 X 38.7"

1. Product Introduction

2/54

1. Product Introduction : WF6000H / WF5000H

The Leader of Premium Laundry with Utmost Smart Features

Key Features

• Washer 4.5cu.ft. / 4.2cu.ft

• Smart Care

• Smart-Grid Ready

• SpeedSpray

• PowerFoam™

• Steam clean (Wash)

Energy Performance

• Most Efficient

• CEE Tier 3

Launch

• Dec 2013

3/54

1. Product Introduction : Key Features

Smart Care

4.2cu.ft.

Large Capacity

• Self-Diagnosis

PowerFoam technology

• Detergent penetrates more

quickly and evenly on big loads

SpeedSpray

technology

• 25% Shorter Cycle Time

• Faster Washing with

Quality Cleaning

Conventional SpeedSpray

4/54

1. Product Introduction : New Feature | SpeedSpray

5/54

1. Product Introduction : New Feature | SpeedSpray

Spend less time doing more laundry

“Introducing Samsung’s new SpeedSpray technology reduces cycle time by

25% vs. conventional machines”

-25%

Conventional SpeedSpray

New Speed Spray technology provides shooting a powerful

jet of water into clothes, speeds up the time it takes for the

washing and rinsing and reduces overall cycle time by 25% vs.

conventional washers* (Normal Cycle 60 min to 45 min).

*Based on 8 pounds loads, Normal cycle, on previous and existing 4.3 cu.ft. Samsung front loading

washers released until 2011 without SpeedSpray.

Conventional SpeedSpray

[Washing Process] [Rinsing Process]

*Images : Not final version. Work in progress. 6/54

1. Product Introduction : New Feature | Smart Care

Quick & easy solution for your problem

“Self-Diagnosis give s quick & easy solution, no need to call a repairman

whenever you have a problem with the machine.”

Smart Care, an automatic error-monitoring system, detects and diagnoses

problems at an early stage and provides a quick and easy solution through LCD

navigation. With the innovative Smart Control technology, you can also be alerted

when the problem occurs via your smart phones.

*Images : Not final version. Work in progress. 7/54

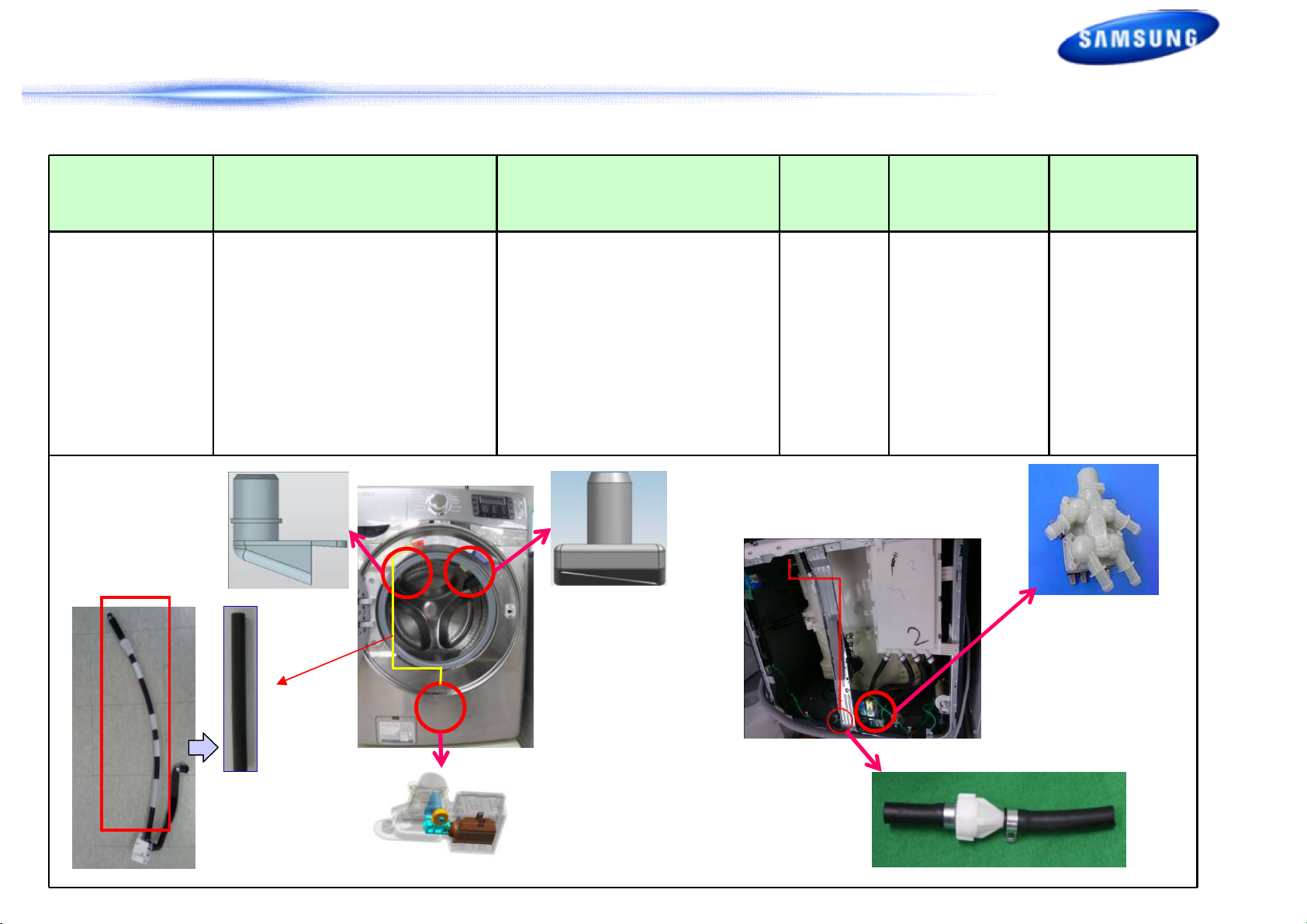

2. 변경점 List

Part Basic Model

[WF455AR]

WF6000H/WF5000H

[WF]

Cause

Changes RISK Test

Assy

Panel Control

[Best]

-Button, Jog Dial Type

-Button : Rubber Button type -Button type - Design

- USP

- Touch Malfuction

- Button Malfuction

- Water

- Button Durability

<Basic Model> <WF6000H/WF5000

8” Touch LCD

2. Changed Part List

8/54

2. 변경점 List

Part Basic Model

[WF455AR]

WF6000H

[WF]

Change

Cause RISK Test

2nd

Bubble

Shot

-3 way Water Valve

-Bubble kit

- Nozzle, Connecting Hose

- Water Inverter Valve

- 4 way Water Valve

- Diaphragm Nozzle Insert

- Hose/Frame Support Structure

- Reflux Preventing Nozzle

- USP

-Performance

-Water Intrusion

-Noise

-Performance

-Real using

-Noise

2. Changed Part List

9/54
