features
• Child Lock
The Child Lock function keeps curious little hands out of the washer. This safety feature
ensures, that children do not toy with the operation of the washer. It also alerts you when it is
activated.
• Delay Start
This function enables uses to delay the washing machine’s starting time for up to 24 hours.
• Calm Wash
We have a wash cycle that is so quiet you can do laundry while you sleep. The spin cycle is
whisper quiet as it drains away water.
• Less Iron (Option)
Less ironing is needed as Samsung’s Carefreewash safely cleans your soft, delicate
cloths and easy-care fabrics. Developed by Samsung’s globally recognized digital process
technology, the Less Iron function is a specialized laundry program that will help to reduce
wrinkles on your delicate garments, freeing up the time you would have spent on ironing.
• Quick
No time to loose! Less than 30minutes wash will give you time to run out before it’s too late.
Our 28minute Quick Wash program can be the solution to your busy life. Now you can wash
your favorite clothes in only 28minutes, guaranteed!
• Delicates & SILK Program
Special care can be determined by the appropriate temperature, the gentle wash action and
the appropriate amount of water.
• Silver Wash - Silver Nano Health System
Samsung’s silver Nano feature uses silver nano particles to sanitize and disinfect your laundry
and your machine’s drum. Delicates as well as smelly socks will get odor-free from human
sweat at temperature as low as 30˚C. That saves energy and protects color and shape of
your clothes
• Handwash
Clothes susceptible to damage, such as those made of linen or silk, can be washed just as if
they were being washed by hand.
WF7522S8-02410E_EN.indd 2 2007-03-08 ｿﾀﾈﾄ 12:00:39
Safety information _3
safety information
Throughout this manual, you’ll see Warning and Caution notes.
These warnings, cautions, and the important safety instructions that follow do
not cover all possible conditions and situations that may occur.
It’s your resposibility to use common sense, caution, and care when installing,
maintaining, and operation your washer. Samsung is not liable for damages
resulting from improper use.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
What the icons and signs in this user manual means:
WARNING
Hazards or unsafe practices that may result in severe personal injury or
death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or
property damage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury when
using your washer, follow these basic safety precautions:
BEFORE USING THE APPLIANCE
Packing materials can be dangerous to children; keep all packing material (plastic bags,
polystyrene, etc.) well out of the reach of children.
The appliance is designed for home use only.
Make sure that water and electrical connections are made by qualified technicians,
observing the manufacturer’s instructions (see “Installing the Washing Machine”) and local
safety regulations.
All packaging and shipping bolts must be removed before the appliance is used. Serious
damage may occur if they are not removed. See “Removing the shipping bolts”.
Before washing clothes for the first time, you must run a complete cycle without clothes.
See “Washing for the first time”.
SAFETY INSTRUCTIONS
Before cleaning or carrying out maintenance, unplug the appliance from the electrical outlet
or set the (On/Off ) button to Off.
Make sure that the pockets of all clothing to be washed are empty.
Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause
extensive damage to the appliance.
Always unplug the appliance and turn off the water after use.
Before you open the door of the appliance, check that the water has drained. Do not open
the door if you can still see water.
Pets and small children may climb into the appliance. Check the appliance before each use.
CAUTION
WARNING
WF7522S8-02410E_EN.indd 3 2007-03-08 ｿﾀﾈﾄ 12:00:39
4_ Safety information
The glass door becomes very hot during the washing cycle. Keep children away from the
appliance while it is in use.
Do not attempt to repair the appliance yourself. Repairs made by inexperienced or
unqualified persons may cause injury and/or make more serious repairs to the appliance
necessary.
If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its
service agent or a similar qualified person in order to avoid a hazard.
This appliance should only be serviced by an authorized service center, and only genuine
spare parts should be used.
This appliance is not intended for use by young children or infirm persons unless they
have been adequately supervised by a responsible person to ensure that they can use the
appliance safely. Young children should be supervised to ensure that they do not play with
the appliance.
This appliance has to be connected to the plug endurable to proper power consumption.
This appliance has to be positioned so that the plug is accessible after installation.
Do not use processed water containing oil, cream or lotion, which is usually found in skin-
care shops or massage clinics.
• Otherwise this will cause the packing to be deformed, which causes a malfunction or
water leak.
A stainless washing tube does not usually rust. However if some metal such as a hair pin is
left in the tube for an extended time, the tube could rust.
• Do not leave water or bleach containing chlorine in the tube for an extended period of
time.
• Do not regularly use or leave water containing iron in the tube for an extended period of
time.
• If rust starts appearing on the surface of the tube, apply a cleansing agent (neutral) to
the surface and use a sponge or soft cloth to clean it. (Under no circumstances use a
metal brush)
For washing machines with ventilation openings in the base, that a carpet must not
obstruct the openings.
Use the new hose-sets and old hose-sets should not be reused.
safety information
WF7522S8-02410E_EN.indd 4 2007-03-08 ｿﾀﾈﾄ 12:00:39
Contents _5
contents
INSTALLING THE WASHING
MACHINE
6
6 Unpacking the Washing Machine
6 Overview of the washing machine
7 Selecting a location
7 Adjusting the leveling feet
7 Removing the shipping bolts
8 Connecting the water supply hose
9 Connecting the water supply hose (Option)
9 Positioning the drain hose
WASHING A LOAD OF LAUNDRY
10
10 Washing for the first time
10 Putting detergent in the washing machine
12 Washing clothes using Fuzzy Logic
13 Washing clothes manually
14 Using delay start
14 Washing tips and hints
MAINTAINING THE WASHING
MACHINE
15
15 Draining the washing machine in an
emergency
15 Repairing a frozen washing machine
15 Cleaning the exterior
16 Cleaning the detergent drawer and recess
16 Cleaning the debris filter
17 Cleaning the water hose mesh filter
TROUBLESHOOTING
18
18 Problems and solutions
18 Understanding error messages
PROGRAMME CHART
19
19 Programme chart
APPENDIX
21
21 Fabric care chart
21 Electrical warnings
21 Protecting the environment
22 Declaration of conformity
22 Specification
WF7522S8-02410E_EN.indd 5 2007-03-08 ｿﾀﾈﾄ 12:00:39
6_ Installing the washing machine
installing the washing machine
UNPACKING THE WASHING MACHINE
Unpack your washing machine and inspect it for shipping damage. Also make sure that you have received
all of the items shown below. If the washing machine was damaged during shipping or you do not have all
of the items, contact your Samsung dealer immediately.

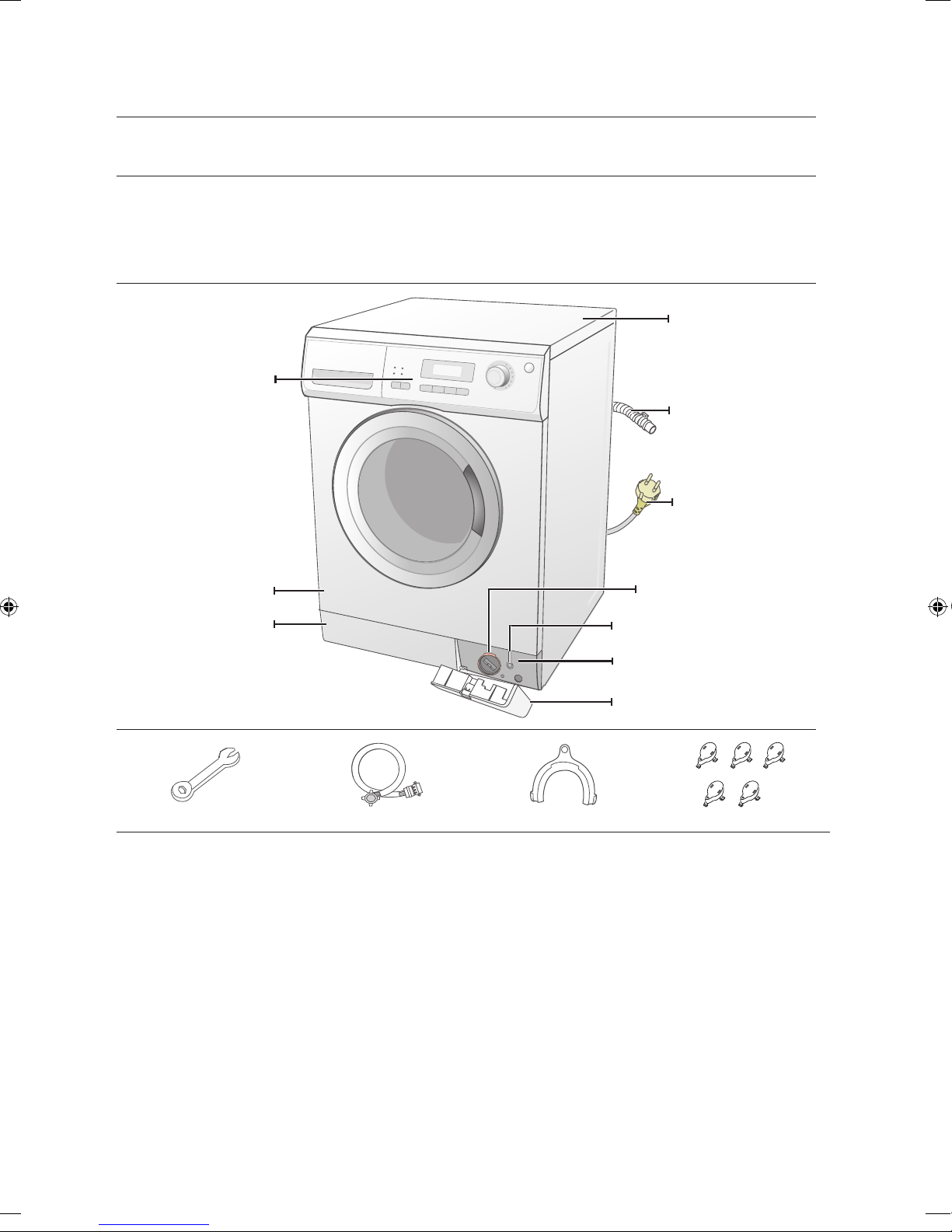

OVERVIEW OF THE WASHING MACHINE
Wrench Water supply hose Hose guide Bolt hole covers
Cover top
Drain Hose
Plug
Debris filter
Emergency drain tube
Control panel
Base cover
Adjustable feet Door release
Filter Cover
WF7522S8-02410E_EN.indd 6 2007-03-08 ｿﾀﾈﾄ 12:00:40
Installing the washing machine _7
SELECTING A LOCATION
Before you install the washing machine, select a location with the following characteristics:
• A hard, level surface (if the surface is uneven, see “Adjusting the leveling feet,” below)
• Away from direct sunlight.
• Adequate ventilation
• Room temperature that will not fall below 0 ˚C
• Away from sources of heat such as coal or gas
Make sure that the washing machine does not stand on its power cord.
Ventilation openings must not be obstructed by carpeting when the washing machine is installed
on a carpeted floor.
ADJUSTING THE LEVELING FEET
If the floor is uneven, adjust the feet (do not insert pieces of
wood or any other objects under the feet):
1. Loosen the leg bolt by turning it with your hand until it is at
the desired height.
2. Tighten the locking nut by turning it with the wrench.
If the washer is placed on an uneven or weak surface, noise or
vibration occurs. (Only a 1 degrees angle is allowed.)
REMOVING THE SHIPPING BOLTS
Before using the washing machine, you must remove all of the
shipping bolts from the back of the unit. To remove the bolts:
1. Loosen all bolts with the wrench before removing them.
2. Take each bolt head and pull it through the wide part of the
hole.
Repeat for each bolt.
3. Fill the holes with the supplied plastic covers.
4. Keep the shipping bolts for future use.
01 Installing the washing machine
loose
WF7522S8-02410E_EN.indd 7 2007-03-08 ｿﾀﾈﾄ 12:00:40
8_ Installing the washing machine

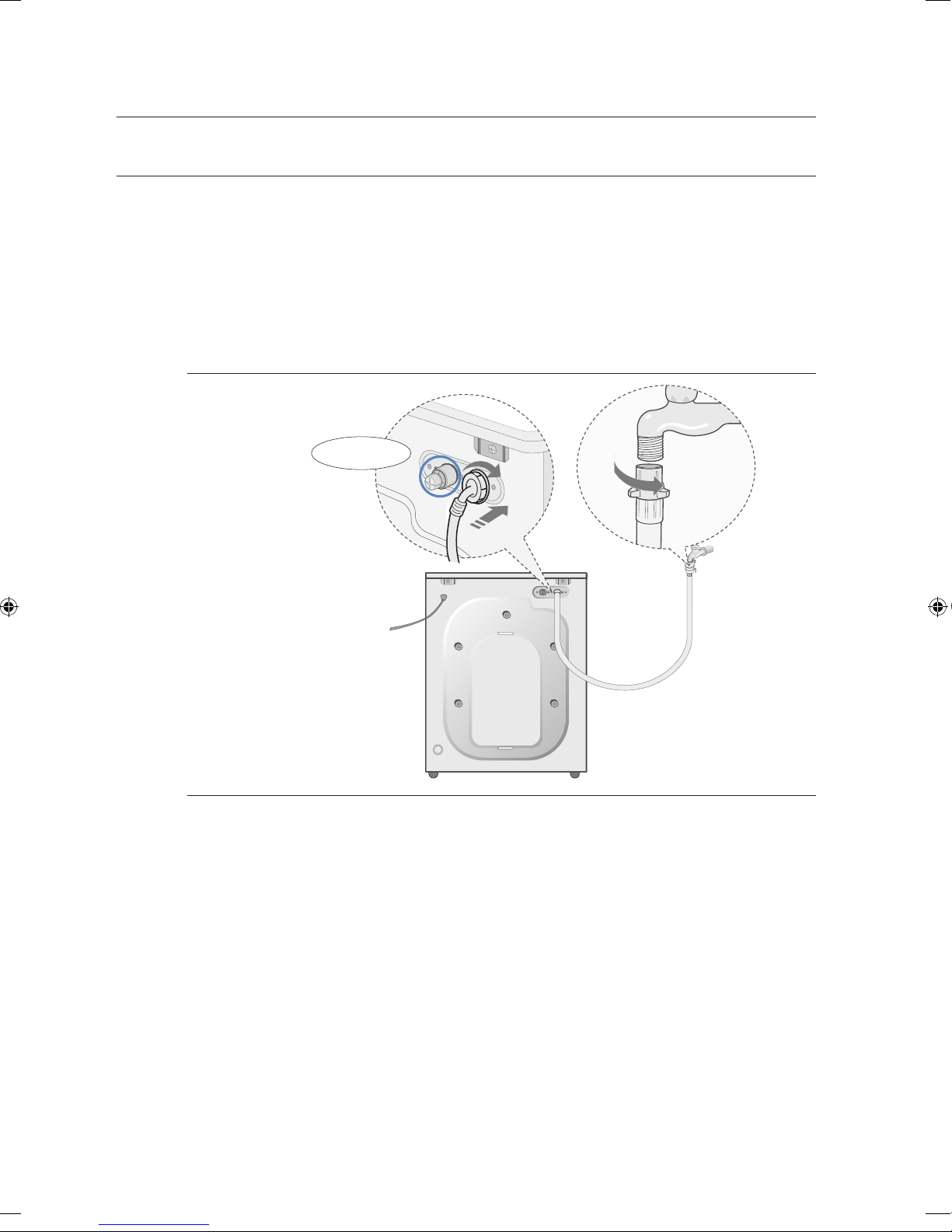

CONNECTING THE WATER SUPPLY HOSE
The water supply hose must be connected to the washing machine at one end and to the water faucet at
the other. Do not stretch the water supply hose. If the hose is too short replace the hose with a longer, high
pressure hose.
To connect the water supply hose:
1. Take the L-shaped arm fitting for the cold water supply hose and connect to the cold water
supply intake on the back of the machine. Tighten by hand.
2. Connect the other end of the cold water supply hose to your sink’s cold water faucet and
tighten it by hand. If necessary, you can reposition the water supply hose at the washing
machine end by loosening the fitting, rotating the hose, and retightening the fitting.
Option:
1. Take the red L-shaped arm fitting for the hot water supply hose and connect to the red hot
water supply intake on the back of the machine. Tighten by hand.
2. Connect the other end of the hot water supply hose to your sink’s hot water faucet and
tighten it by hand.
3. Use a Y-piece if you only want to use cold water.
installing the washing machine
Hot water supply valve
Option
WF7522S8-02410E_EN.indd 8 2007-03-08 ｿﾀﾈﾄ 12:00:40
Installing the washing machine _9
CONNECTING THE WATER SUPPLY HOSE (OPTION)

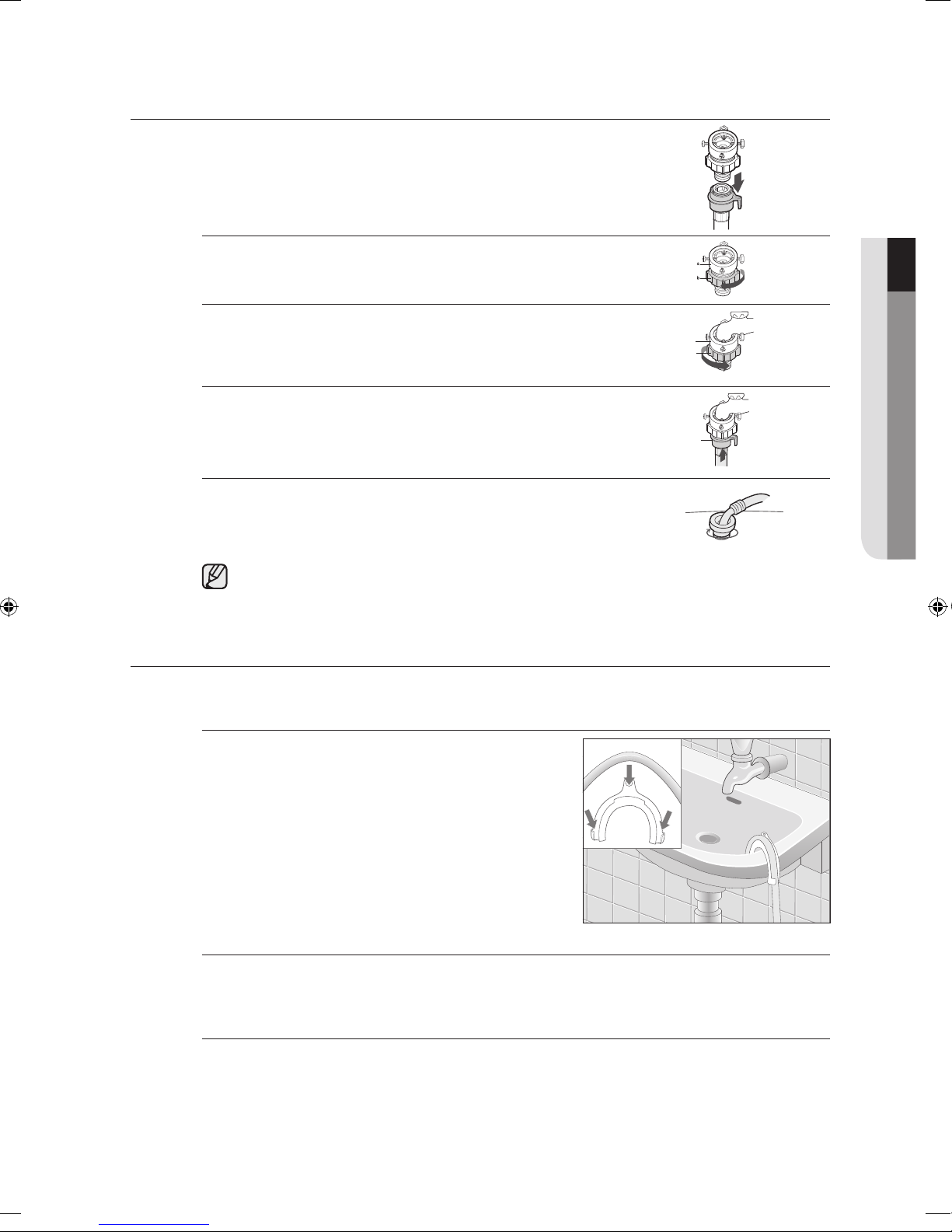

1. Remove the adaptor from the water supply hose.
2. First, using a ‘+’ type screw driver, loosen the four screws on
the adaptor. Next, take the adaptor and turn part(b) following
the arrow until there is a 5mm gap.
3. Connect adaptor to the water tap by tightening the screws
firmly.
Then, turn part (b) following the arrow and put(a) and (b)
together.
4. Connect the water supply hose to the adaptor. Pull down
part (c) of the water supply hose.
When you release part (c) the hose automatically connects
to the adaptor making a ‘click’ sound.
5. Connect the other end of the water supply hose to the
inlet water valve at the rear of the washer. Screw the hose
clockwise all the way in.
After completing connection, if water leaks from the hose, then repeat the same steps. Use
the most conventional type of faucet for water supply. In case the faucet is square or too
big, remove the spacing ring before inserting the faucet into the adaptor.
POSITIONING THE DRAIN HOSE
The end of the drain hose may be positioned in three ways:
Over the edge of a sink
The drain hose must be placed at a height of between
60 and 90 cm. To keep the drain hose spout bent, use
the supplied plastic hose guide. Secure the guide to the
wall with a hook or to the faucet with a piece of string to
prevent the drain hose from moving.
ln a sink drain pipe branch
The drain pipe branch must be above the sink siphon so that the end of the hose is at least 60
cm above the ground.
ln a drain pipe
Samsung recommends that you use a 65 cm high vertical pipe; it must be no shorter than 60
cm and no longer than 90 cm.
01 Installing the washing machine
a
b
c
WF7522S8-02410E_EN.indd 9 2007-03-08 ｿﾀﾈﾄ 12:00:41
10_ Installing the washing machine
washing a load of laundry
WASHING FOR THE FIRST TIME
Before washing clothes for the first time, you must run a complete cycle without clothes.
To do this:
1. Press the (On/Off) button.
2. Pour a little detergent into compartment ( ) in the
detergent drawer.
3. Turn on the water supply to the washing machine.
4. Press the Temperature button repeatedly until 40 ˚C is
displayed.
5. Press the Start/Pause button.
• This will remove any water from the manufacturer’s test run
remaining in the machine.
Dispenser : Detergent for prewash or starch.
Dispenser : Detergent for main wash, water softener, pre-soaking agent, bleach and stain
removal product.
Dispenser : Additives,e.g.fabric softener or former (fill no higher than lower edge of insert “ A”)
PUTTING DETERGENT IN THE WASHING MACHINE
1. Pull out the detergent drawer.
2. Add laundry detergent into compartment ( ).
3. Add softener into compartment ( ) (if you desire).
4. Add prewash detergent into compartment ( ) (if you desire).
Concentrated or thick fabric softener and conditioner must
be diluted with a little water before being poured into the
dispenser (prevents the overflow from becoming blocked.
CAUTION
WF7522S8-02410E_EN.indd 10 2007-03-08 ｿﾀﾈﾄ 12:00:41
Dieses Handbuch passt für folgende Modelle
7
Inhaltsverzeichnis
Andere Samsung Waschmaschine Handbücher
Samsung
Samsung WF8802RPZ Bedienungsanleitung
Samsung
Samsung WF50A88 A Series Bedienungsanleitung
Samsung
Samsung WF1114 Series Bedienungsanleitung
Samsung
Samsung WF431ABF/XAA Bedienungsanleitung
Samsung
Samsung WW BB Series Bedienungsanleitung
Samsung
Samsung WF1802WP series Bedienungsanleitung
Samsung
Samsung WA10J573 Series Bedienungsanleitung
Samsung
Samsung WD-Q1456 Bedienungsanleitung
Samsung
Samsung WF8604GEA Bedienungsanleitung
Samsung
Samsung WW95N6 Series Bedienungsanleitung
Samsung
Samsung WA10V5WEP/XSG Bedienungsanleitung
Samsung
Samsung WF8604AH Bedienungsanleitung
Samsung
Samsung WF448AAP/XAA Betriebsanleitung
Samsung
Samsung VRT STEAM WF419AAW Bedienungsanleitung
Samsung
Samsung WA10V9 Bedienungsanleitung
Samsung
Samsung WW11BB944DGM Bedienungsanleitung
Samsung
Samsung WF45H6300A Bedienungsanleitung
Samsung
Samsung P805J Bedienungsanleitung
Samsung
Samsung WF8804LP Bedienungsanleitung
Samsung
Samsung WW13T Series Bedienungsanleitung
