Sanav MA-19 Bedienungsanleitung
SAN JOSE TECHNOLOGY, INC.
MA-19/25/66/67
USER'S MANUAL Rev. C
Tel: 886-2-2269-4456Fax: 886-2-2269-4451
Mobile GPS Antenna
11F.,No.2,Sec.4, Jhongyang Rd. ,Tucheng City,
Taipei County ,Taiwan (R.O.C.)
I. PREFACE
This text specifies the basic operational characteristics of the active
GPS antenna modules MA-19/MA-25/MA-66/MA-67 under a standard
test condition of 3V DC (MA-19)/ 5V DC (MA-25/66/67) & 25oC/
50% R.H.
II. INTRODUCTION
MA-19/MA-25/MA-66/MA-67 is the integration of a high
performance GPS patch antenna and a state-of-the-art low noise
amplifier into a very low profile/ extremely compact/ fully waterproof
enclosure which, when connected to a GPS receiver with 3V DC or 5V
DC antenna power, provides excellent signal amplification and
out-band filtering & rejection.
1

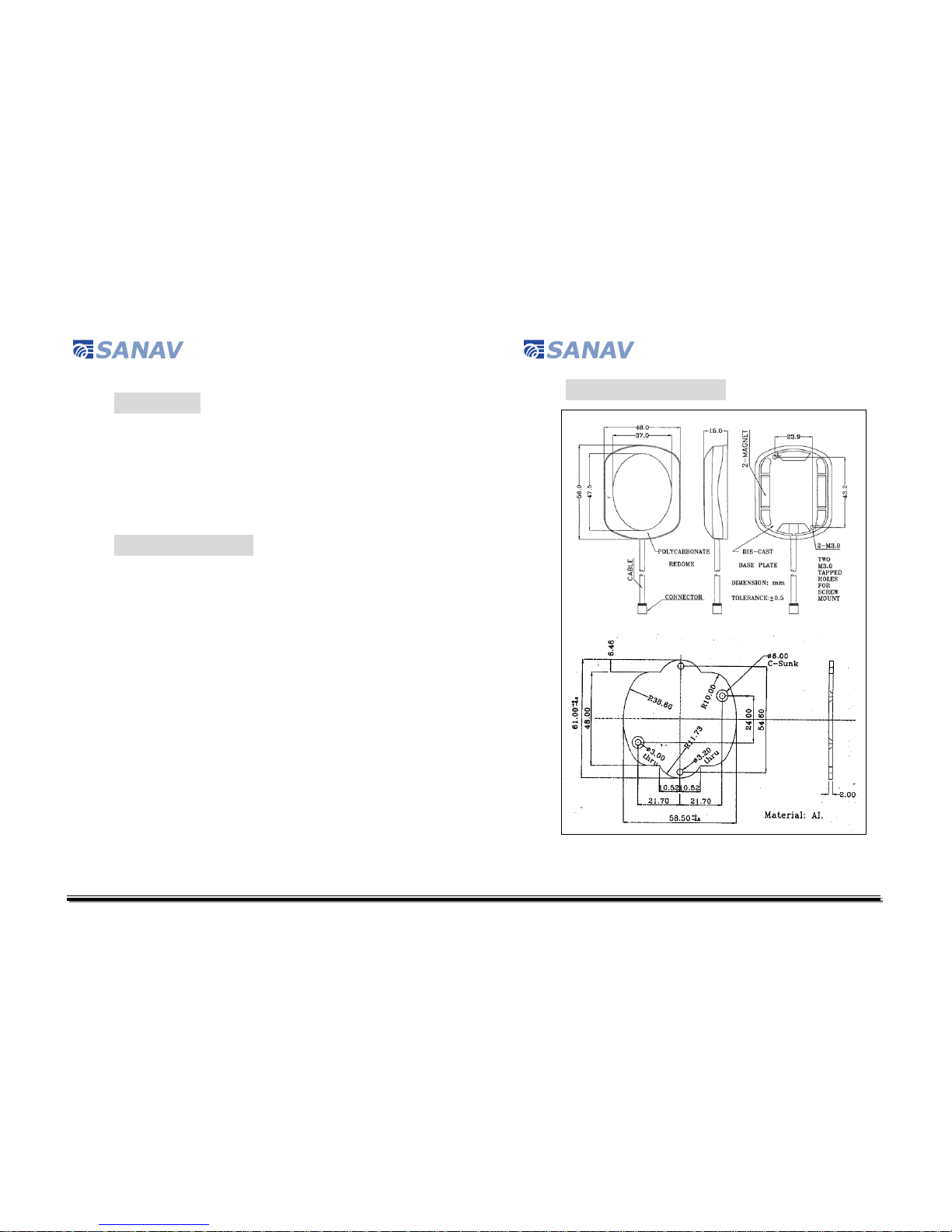

V. Technical Drawing
6
San Jose Technology,Inc. San Jose Technology,Inc.
IV. INSTALLATION
1. Secure your MA-19/MA-25/MA-66/MA-67 antenna to the top of
your vehicle and carry its cable into the vehicle.
2. Link the cable connector to your GPS receiver.
3. Start with your navigation.
5
III. SPECIFICATIONS
PHYSICAL
Construction: Polycarbonate-radome at top, die-cast
shell at bottom/ rubber gasket for water
seal in between
Dimension: 58mm (L) x 48mm (W) x 15mm (H)
Weight: 65 grams (excluding cable & connector)
Color of Radome: Standard in dark gray, other colors
available upon request
Standard Mounting: Magnet mount with two magnets
Optional Mounting 1: Screw mount with two M3 tapped holes
on the plastic flange of
MA-19/MA-25/MA-66/MA-67
Optional Mounting 2: Customized metal sheet
ANTENNA ELEMENT
Center Frequency: 1575.42 MHz +/- 1.023 MHz
Polarization: R.H.C.P. (Right Hand Circular
Polarization)
Absolute Gain at Zenith: +5 dBi typically
Gain at 10oElevation: -1 dBi typically
Axial Ratio: 3 dB max.
Output VSWR: 1.8 Max.
Output Impedance: 50 ohm
2
San Jose Technology,Inc. San Jose Technology,Inc.

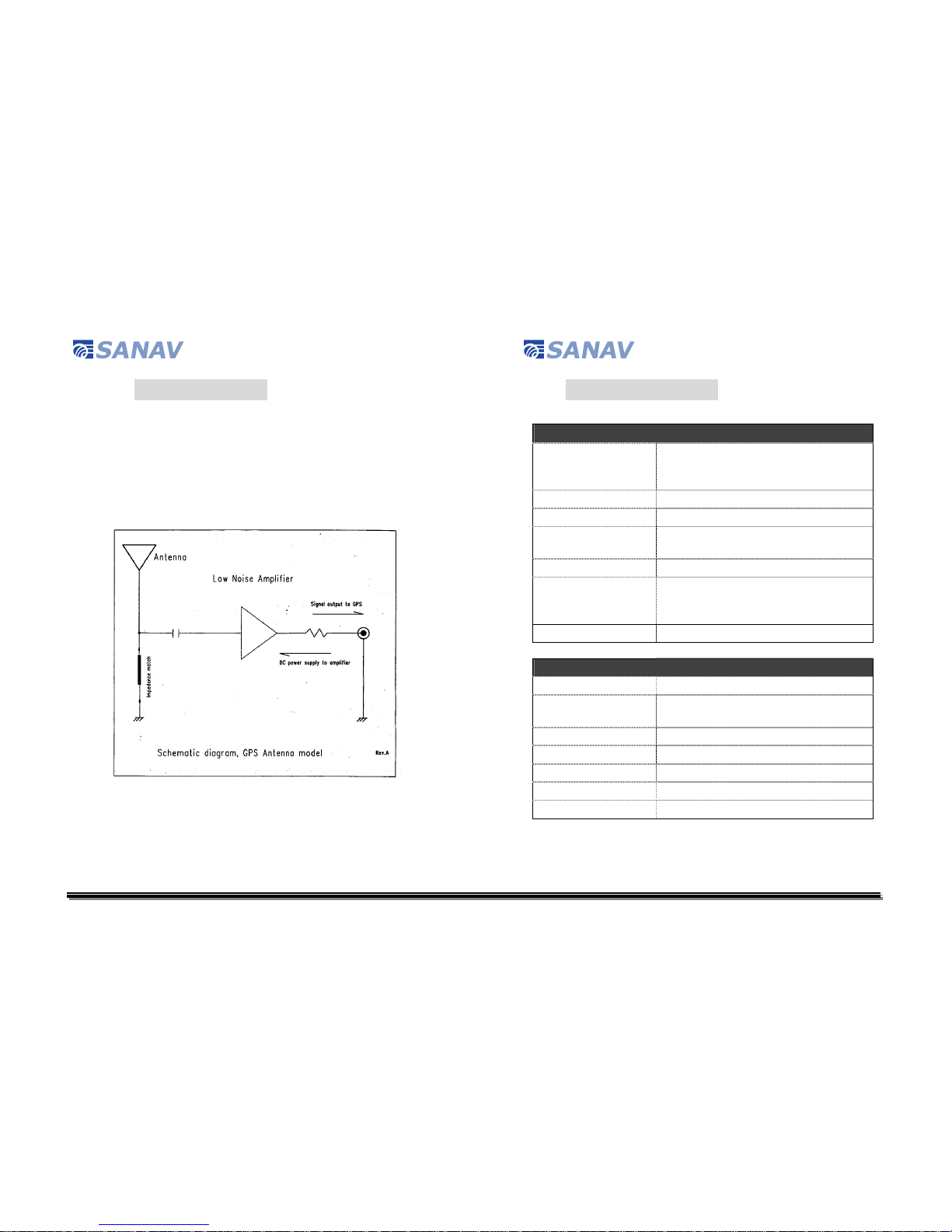

LOW NOISE AMPLIFIER
Center Frequency: 1575.42 MHz +/- 1.023 MHz
Gain:
MA-19: 27 dB typically
MA-25: 26 dB typically
MA-66: 30 dB typically
MA-67: 30 dB typically
Band Width: 2 MHz min.
Noise Figure:
MA-19: 1.3 max.
MA-25: 2.6 max.
MA-66: 1.5 max.
MA-67: 2.0 max.
Out of Band Attenuation: 20dB min. @F0 +/- 50MHz
MA-67: 30dB min. @F0 +/- 50MHz
Supply Voltage:
MA-19: 2.5~4.5V DC
MA-25: 3.0~5.0V DC
MA-66: 4.5~5.5V DC
MA-67: 4.5~5.5V DC
Current Consumption:
MA-25: 11 mA +/- 2 mA@5V
MA-66: 28 mA +/- 3 mA
MA-67: 28 mA +/- 3 mA
VSWR: 2.0 max.
Output Impedance: 50 ohm
CABLE & CONNECTOR
RF Cable: 5 meter RG174/U (standard), other length
available
Pulling Strength: 6 Kg./5 sec. with molded plastics on connector
end for strain relief
Connector Available: BNC, TNC, FME, GT5, MCX (OSX), SMA,
SMB or SMC in straight or right angle type
Optional Adapters: FME~MCX, FME~BNC, FME~SMA,
FME~SMB, FME~TNC
3
OVERALL PERFORMANCE (Antenna Element, LNA& Cable)
Center Frequency: 1575.42 MHz
Gain:
MA-19: 20 dB typically
MA-25: 25 dB typically
MA-66: 27 dB typically
MA-67: 27 dB typically
Noise Figure:
MA-19: 1.3 max
MA-25: 2.6 max.
MA-66: 2.0 max.
MA-67: 2.0 max.
Band Width: 2 MHz
Axial Ratio: 3 dB max.
VSWR: 2.0 max
Output Impedance: 50 ohm
ENVIRONMENTAL
Operating Temperature -30oC~+85oC
Storage Temperature: -40oC~+90oC
Relative Humidity: 95% non-condensing
Waterproof: 100% waterproof
4
