FT-300A

Products that have earned the ENERGY STAR are designed to

protect the environment through superior energy efficiency.

ATSC Converter Box

USER MANUAL

– 01 –

CONTENTS

ATSC Converter Box

1. Important Safety Instructions ------------------------------------------------

2. Trademarks ---------------------------------------------------------------------

3. Accessories ---------------------------------------------------------------------

4. Before Operating ---------------------------------------------------------------

4-1. Prepare the Remote Control --------------------------------------------

4-2. Antenna Connections ----------------------------------------------------

4-3. Connect to your analog signal TV display ----------------------------

5. Quick Reference Control Operation ----------------------------------------

5-1. Front Panel ----------------------------------------------------------------

5-2. Rear Panel -----------------------------------------------------------------

5-3. Remote Control -----------------------------------------------------------

5-4. Easy Setup For First Use ------------------------------------------------

5-5. Antenna Setup ------------------------------------------------------------

6. Basic Operation ----------------------------------------------------------------

6-1. Channel Scan -------------------------------------------------------------

6-2. Channel Information -----------------------------------------------------

6-3. Change Viewing Channel -----------------------------------------------

6-4. OSD Language -----------------------------------------------------------

6-5. Closed Caption -----------------------------------------------------------

6-6. Parental Control (V-CHIP) ----------------------------------------------

6-7. Mute -------------------------------------------------------------------------

6-8. Audio Menu ----------------------------------------------------------------

6-9. Screen Mode --------------------------------------------------------------

6-10. Sleep Timer---------------------------------------------------------------

7. Before Calling For Service ---------------------------------------------------

7-1. Quick Service Check List -----------------------------------------------

8. General Specifications --------------------------------------------------------

9. Remote Controller Code ------------------------------------------------------

9-1. Identify custom code: 00FF ---------------------------------------------

9-2. Remote key code ---------------------------------------------------------

- ----------------------------------

10. Limited Warranty -------------------------------------------------------------

93. Universal Remote Controller setting

English

1. IMPORTANT SAFETY INSTRUCTIONS

– 02 –

ATSC Converter Box

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the

instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding type

plug has two blades and a third grounding prong. The wide blade or the third

prong is provided for your safety. If the provided plug does not fit into your outlet

consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

Only use attachments/accessories specified by the manufacturer.

Use only with the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

The lighting flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of un-insulated “dangerous

voltage” within the product's enclosure that may be of sufficient

magnitude to constitute a risk of electric to persons.

The exclamation point within an equilateral triangle is intended to alert the

user to presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

Warning:

To reduce the risk of electric shock, do not perform any servicing other than that

contained in the operating instructions unless you are qualified to do so, and do not

expose this apparatus to rain or moisture.

Note:

English

– 03 –

ATSC Converter Box

Unplug this apparatus during lightning storms or when unused for long periods

of time.

Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.

To Reduce the Risk of Fire or Electric Shock, Do not Expose This Appliance To

Rain or Moisture.

Apparatus shall not be exposed to dripping or splashing and no objects filled

with liquids, shall not be placed on the apparatus.

The Shock Hazard Marking and Associated Graphical Symbol is provided on the

back panel of unit.

Plug the adapter into AC110V outlet, Connect the supplied adapter in the slot of

the unit marked “DC IN”, If the unit will not used for a long time, remove the

adapter from the outlet.

Before connect the adapter and the unit, make sure that all the connections

have been made.

If an outside antenna is connected to the device, be sure the antenna system is

grounded so as to provide some protection against voltage surges and built-up

static charges. Section 810 of the National Electrical Code provides information

with respect to proper grounding of mast and supporting structure, grounding of

the lead-in wire to antenna discharge unit. Size of grounding conductors,

location of antenna discharge unit, connection to grounding electrodes, and

requirements for the grounding electrode.

Example of Antenna Grounding

as per national electrical code

ANTENNA

LEAD IN

WIRE

GROUND

CLAMP ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

ELECTRIC

SERVICE

EQUIPMENT GROUNDING CONDUCTORS

(NEC SECTION 810-21)

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

NEC --NATIONAL ELECTRICAL CODE

GROUND CLAMPS

English

ATSC Conve rter Box

FT-3 00 A

USER MA NUA L

This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

device

WARNING: FCC Regulations state that any unauthorized changes or

modifications to this not expressly approved by the manufacturer

could void the user's authority to operate this .

FCC Notice

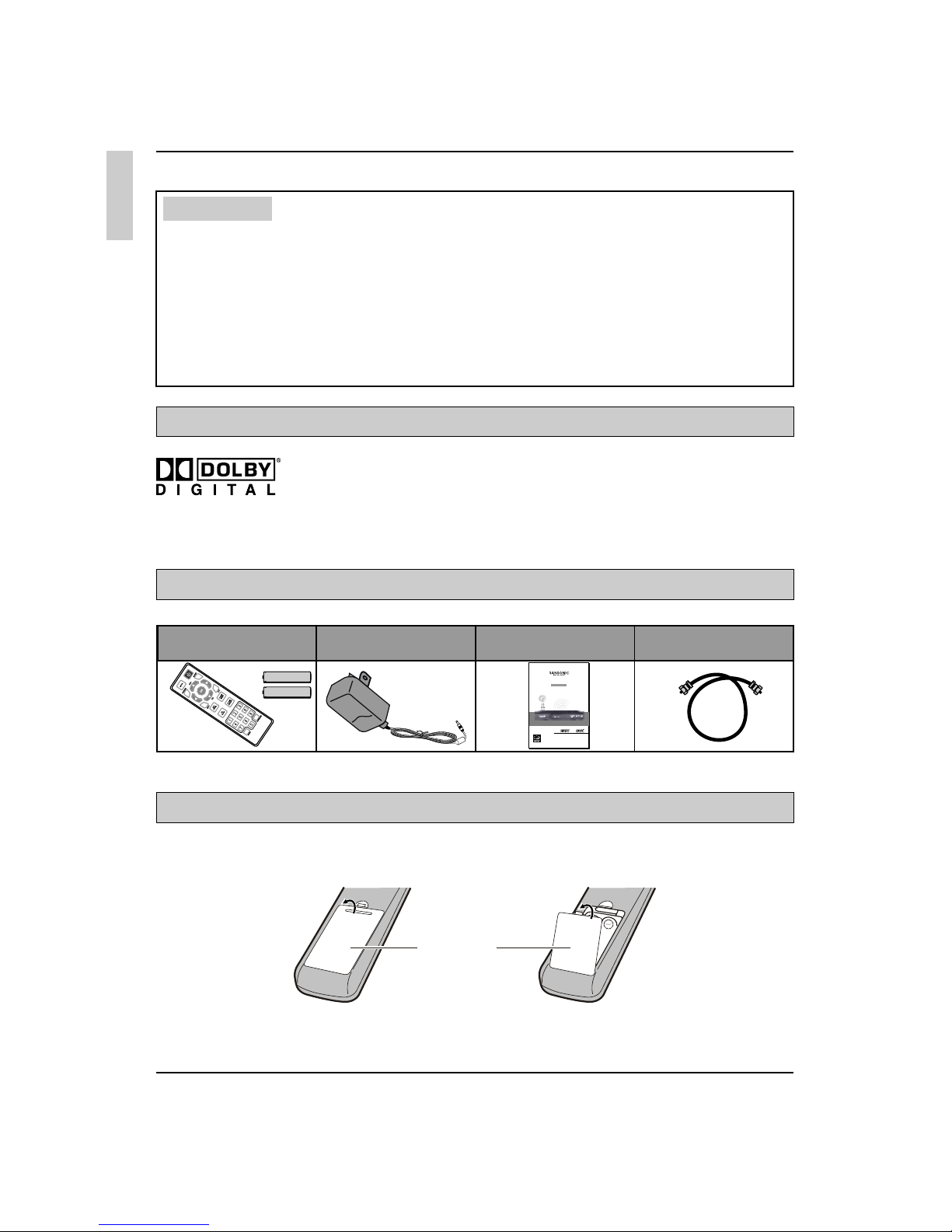

2. TRADEMARKS

– 04 –

3. ACCESSORIES

4. BEFORE OPERATING

Please insert the batteries into controller.remote

Note: Be sure to match the battery terminal with the +/- marks inside

the remote control.

4-1. Prepare the Remote Control

ATSC Converter Box

Battery

Cover

Remote Control and

Size AAA batteries AC Adapter User Manual RF Cable

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of

Dolby Laboratories. Confidential Unpublished works.

“”

Produc ts th at ha ve ea rned the E NERGY STAR are desi gned to

protec t the envi ronment throug h sup erior energ y eff ici ency.

English

ATSC Converter Box

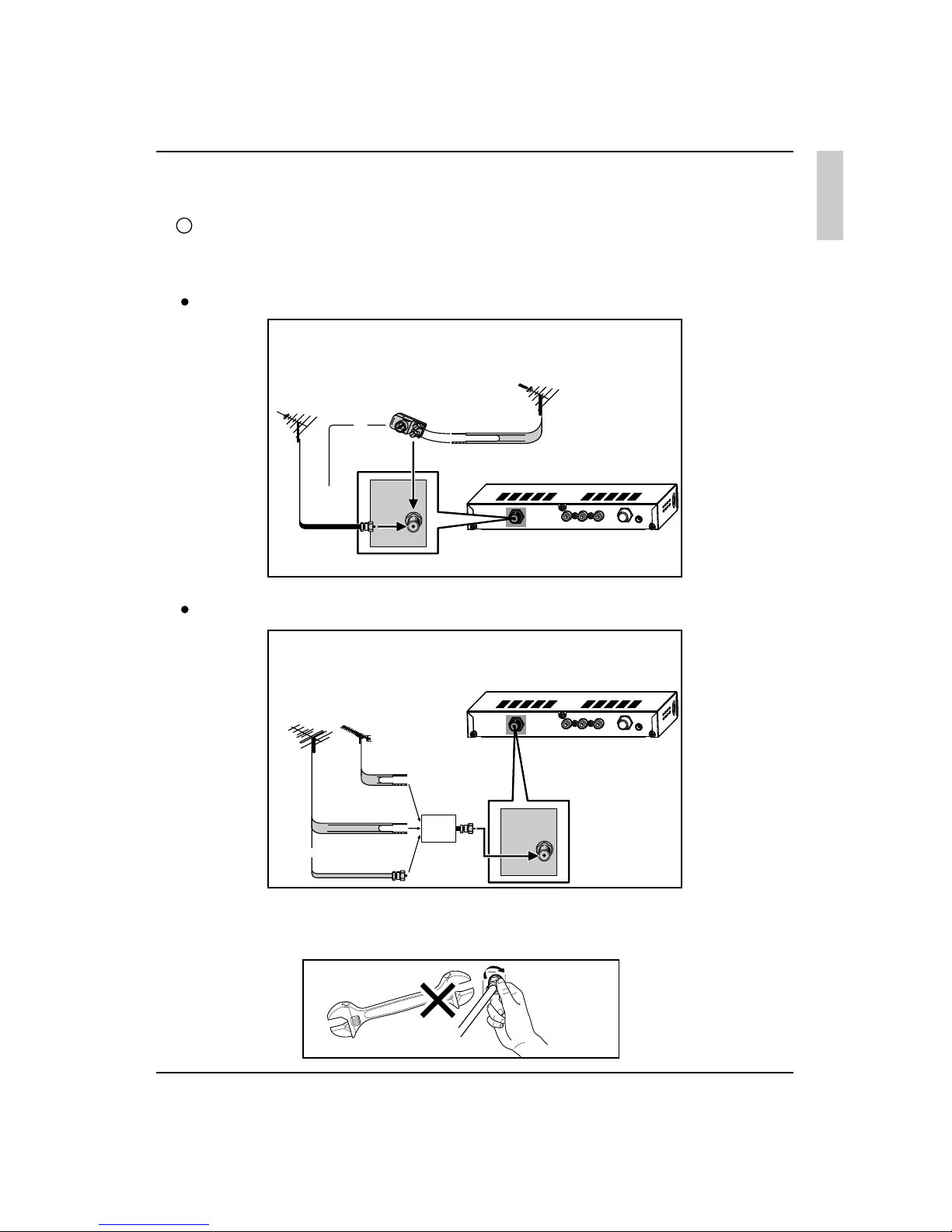

4-2. Antenna Connections

1 Outdoor Antenna Connection.

Refer to one of the following diagrams while connecting the outdoor

antenna.

Using a VHF/UHF combination outdoor antenna.

Using separate VHF and UHF outdoor antenna.

Connect an outdoor antenna cable lead-in to F-Type terminal.

(Notice: F-Type connector should be finger-tightened only.)

A. Combination VHF/UHF Antennas

VHF/UHF

ANTENNA

300/75-ohm

ADAPTOR

(Not supplied)

VHF/UHF

ANTENNA

300-ohm

twin-lead

75-ohm

coaxial

cable

ATSC Converter Box

B. Separate VHF/UHF Antenna

VHF

ANTENNA UHF

ANTENNA

300-ohm

twin-lead

COMBINER

(not supplied)

IN OUT

75-ohm

coaxial

cable

300-ohm

twin-lead

– 05 –

F-Type

connector 75-ohm

coaxial

cable

ATSC Converter Box

ANT RF IN

English

ATSC Converter Box

AV RF

OUT

ATSC Converter Box

– 06 –

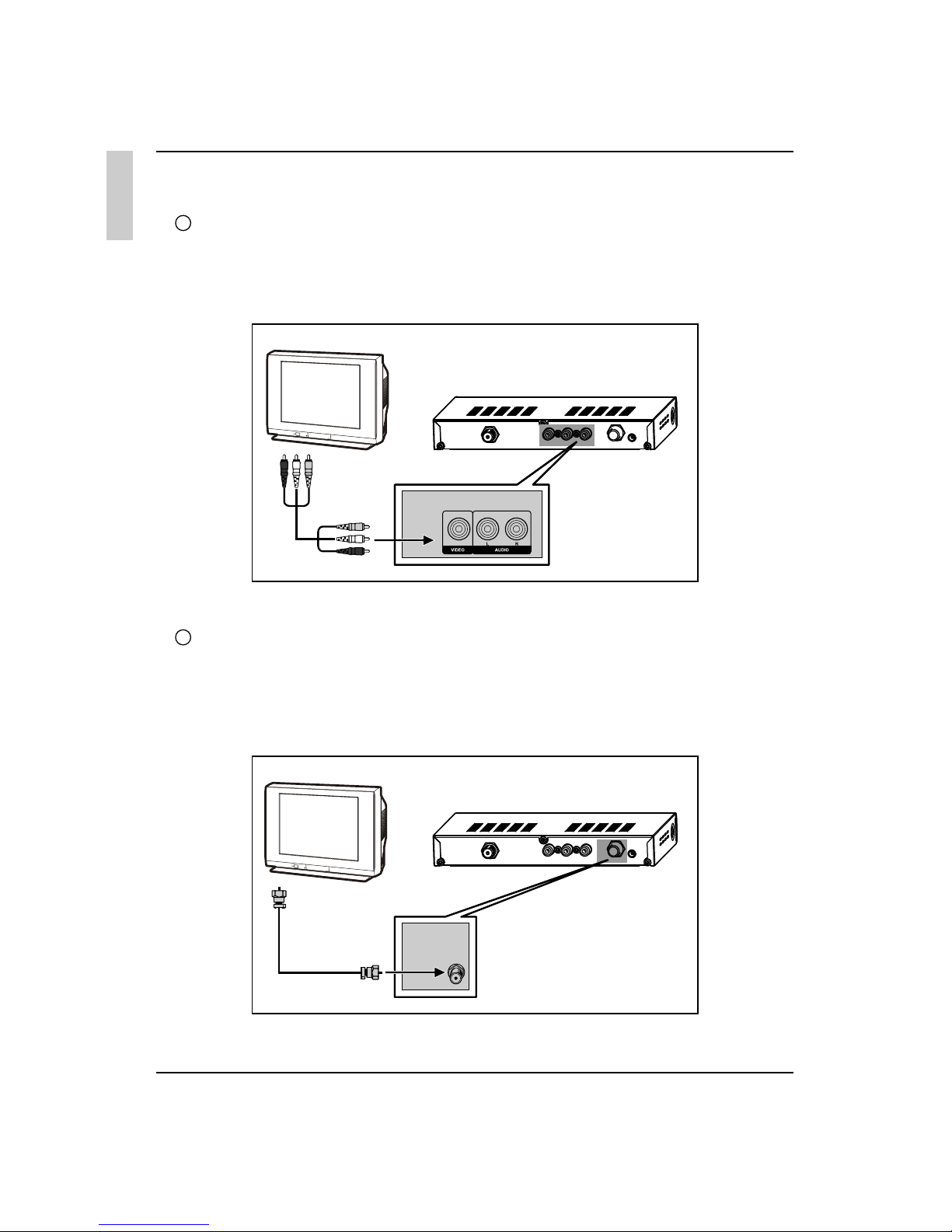

4-3. Connect to your analog signal TV display

1 AV Cable Connection.

Please plug one terminal of the RCA Cable into the device RCA

connector, and plug the other terminal into TV, YELLOW for VIDEO,

RED for AUDIO (RIGHT), WHITE for AUDIO (LEFT).

RF Cable Connection

If the TV have only RF Antenna terminal, please screw 75ohm F-Type

RF cable into AV RF OUT terminal of the , plug the other terminal

into TV set. (Please refer to your TV manual).

device

Note: RF output is modulated with current channel audio.

English

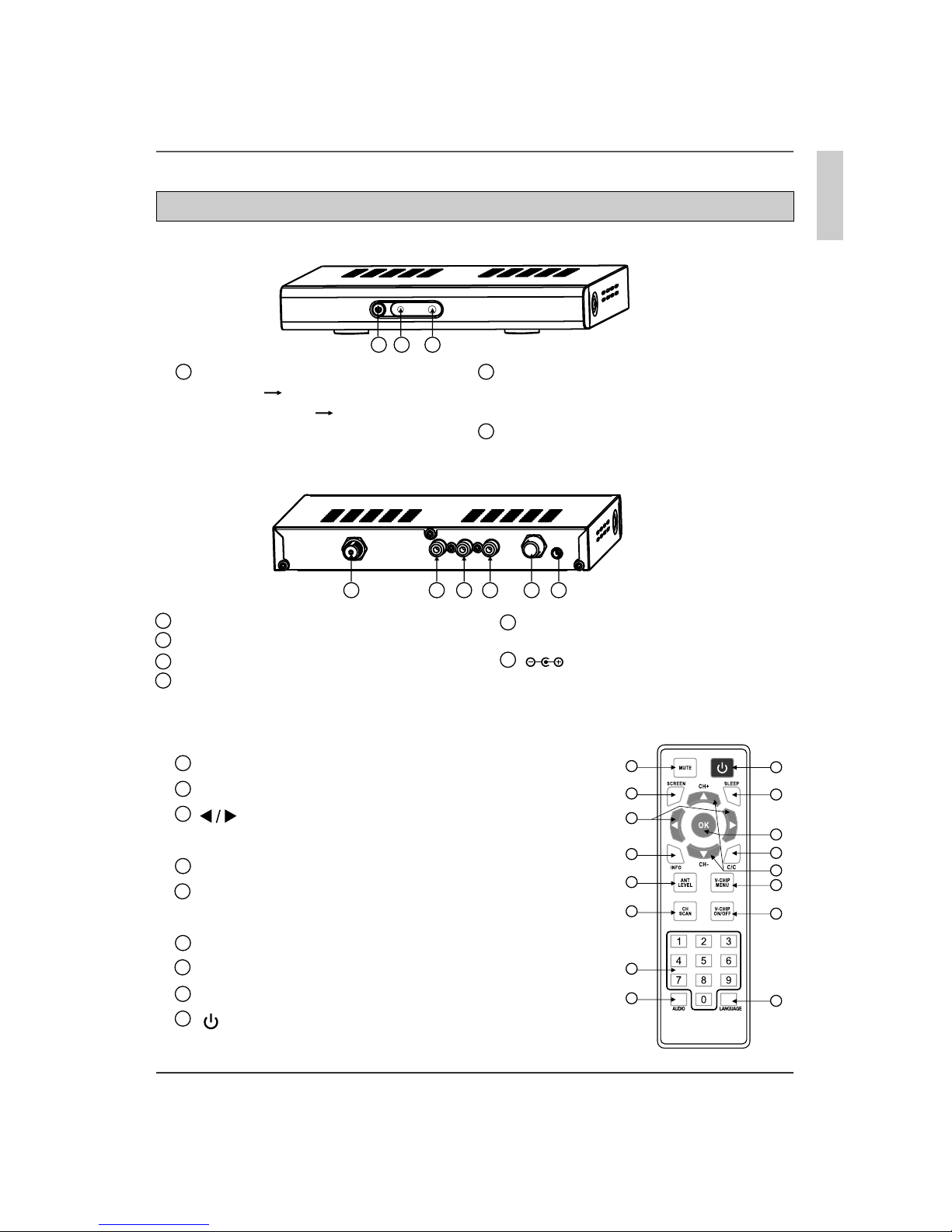

5. Quick Reference Control Operation

5-3. Remote Control

– 07 –

ATSC Converter Box

5-2. Rear Panel

1 2 5 6

ANT RF IN : Antenna RF Input.

Video : Video Output.

Audio L : Audio Left Output.

Audio R : Audio Right Output.

AV RF OUT : Audio/Video RF

Output.

: AC Adapter DC IN(+5V).

3 4

Rear Panel

1 MUTE: Mute or restore sound.

2 SCREEN: Select TV Mode: 4:3 or 16:9.

3 : Decrease/Increase audio volume.

or move cursor in menu screen.

4 INFO: Display viewing channel information.

5 ANT LEVEL: Display Antenna RF signal

strength and quality.

6 CH SCAN: Start channel auto scanning.

7 0-9: Set the channels or number keys.

8 AUDIO: Select audio language .

9 POWER : Power ON/ OFF.

5-1. Front Panel

1 Power Indicator:

On means work normally,

Off means no power or standby.

IR window:

Infrared receiving window.

1 3

Front Panel

Power Button:

Press On;

Press Again Standby.

Remote

Control

English

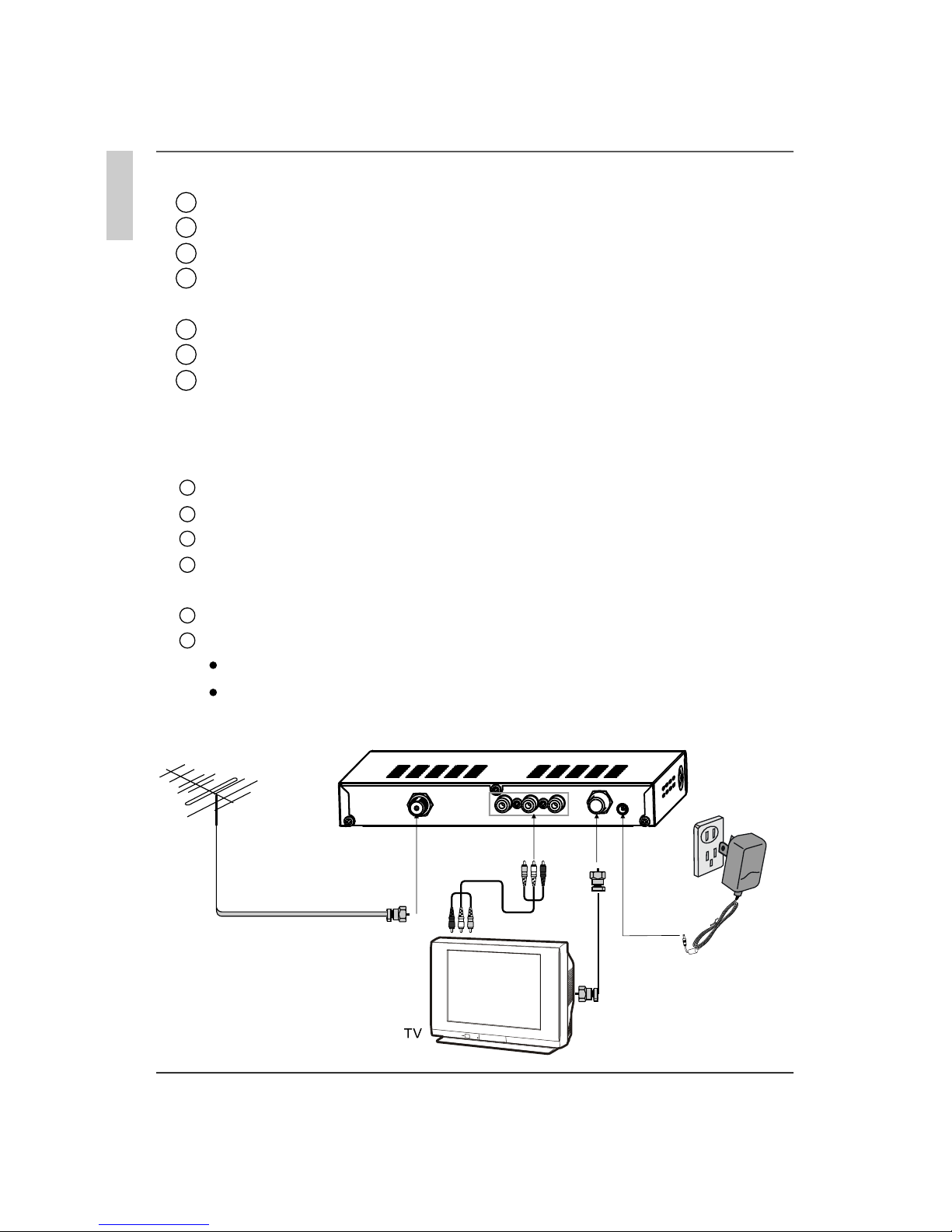

5-4. Easy Setup for first use

Please check and follow below instructions to enjoy the digital TV program.

1 Insert the batteries into remote control.

2 Connect the antenna cable into the device.

3 Connect the audio/video or RF output into your TV.

4 C

Turn on your TV, and refer to the TV manual.

If you use RCA cable, please switch to AV IN.

If you use RF cable, please rescan the TV channels.

onnect the AC adapter to DC IN Jack of the device, and then plug the

AC adapter to the outlet.

Press POWER to turn on the device, the Power LED will be lighten.

– 08 –

ATSC Converter Box

10 SLEEP: Switch the sleep timer setting.

11 OK: Use to confirm the channel selection and other operation.

12 C/C: .

1 CH+/CH-: Select next / previous channel or move the highlight for

menu item.

14 V-CHIP MENU: Enter or exit the V-CHIP setting menu.

15 V-CHIP ON/OFF: V-CHIP on / off temporarily.

16 LANGUAGE: Select OSD language: English / Spanish / French.

Switch Close Caption Service or On/Off

VHF

ANTENNA

ANT RF IN

DC IN

Power AC

Adapter

AV OUT

AV RF OUT

ATSC Converter Box

English

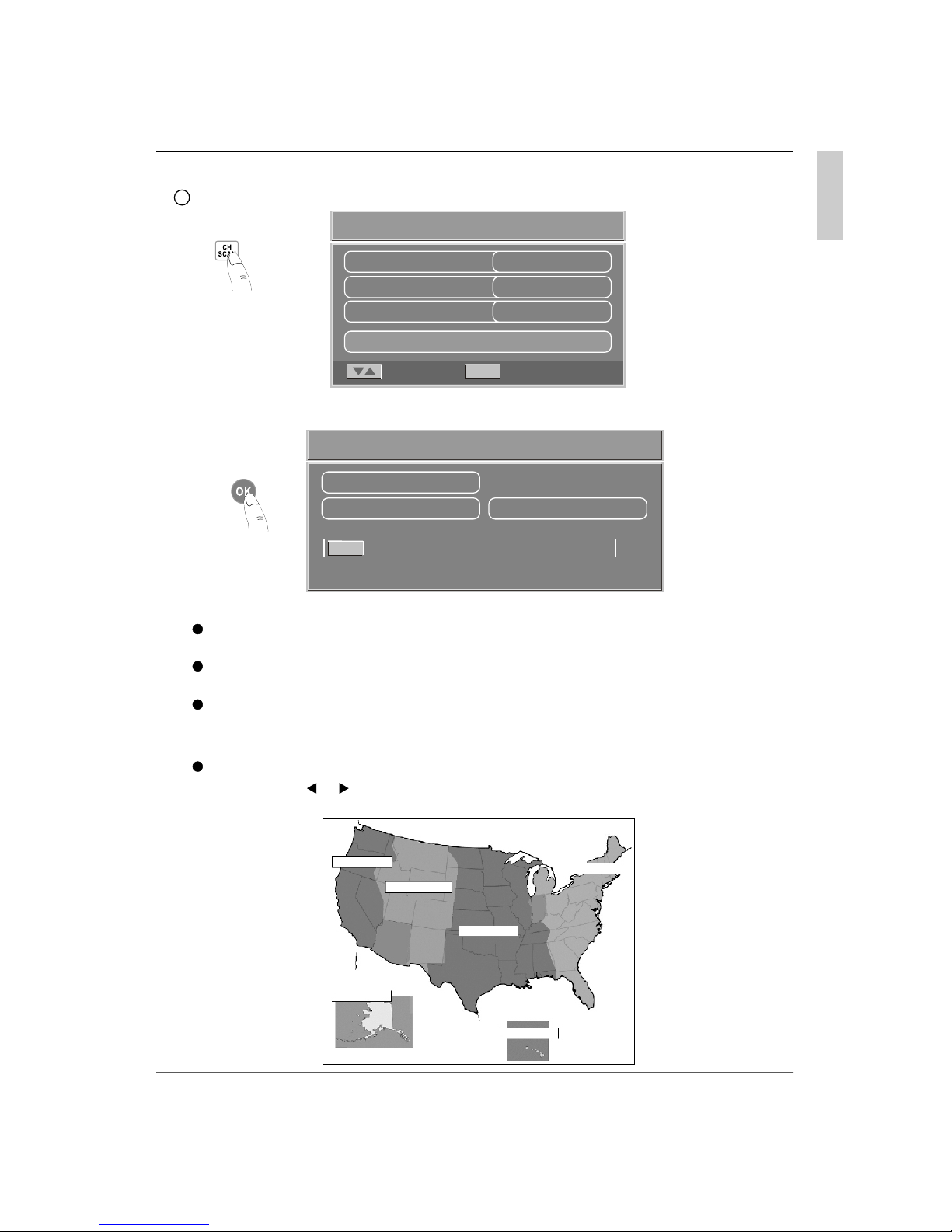

7 Press “CH SCAN” to scan ATSC .program channels

– 09 –

ATSC Converter Box

Easy Install

RF Channel RF CH-3

Audio Mode Mono

Auto Scan

Select EnterOK

Auto Scan

Range 54.0-806.0 MHz

Frequency 79.00MHz Ch No. 5

Found:

10%

Note:

If you use F-Cable to connect the equipment and the TV, please set

"Audio Mode" to 'Mono" mode.

If you change the RF Channel to CH3 or CH4, you need

While you use RCA cable to connect to your TV. If your TV only have

one jack for audio in, you can set "Audio Mode" to "Mono" mode.

Unless set "Audio Mode" to "Stereo" mode.

to rescan.

(Please refer to your TV manual.)

To Select the Time zone, use “CH+/CH- ” to focus “Time Zone”,

then use “/” to select the zone where you are located: Alaska,

Hawaii, Pacific, Mountain, Central, Eastern

Press “OK” to start Auto scan, It may take you several minutes.

Time Zone Alaska ( AKST )

Alaska

Hawaii

Pacific

Mountain

Central

Eastern

English

Andere Handbücher für FT-300A

Inhaltsverzeichnis

Sprachen:

Andere Sansonic TV-Konverterbox Handbücher

Sansonic

Sansonic FT-300A Bedienungsanleitung

Beliebte TV-Konverterbox Handbücher anderer Marken

GrandTec

GrandTec Grand ultimate XP Pro Bedienungsanleitung

Tivax

Tivax STB-T9 Bedienungsanleitung

EyeTV

EyeTV Netstream DTT Bedienungsanleitung

Apex Digital

Apex Digital DT504 Bedienungsanleitung

Naxa

Naxa NT-50 Bedienungsanleitung

Manhattan

Manhattan 150095 Bedienungsanleitung

Cypress

Cypress CM-398 Bedienungsanleitung

Cables to Go

Cables to Go TRULINK 29548 Bedienungsanleitung

Evolio

Evolio Smart TV Box Bedienungsanleitung

Gefen

Gefen EXT-3GSDI-2-HDMI1.3 Bedienungsanleitung

Black Box

Black Box VGA Converter Bedienungsanleitung

RCA

RCA 811-DTA891W030 Bedienungsanleitung

RCA

RCA DTA880 Bedienungsanleitung

RCN

RCN Motorola DCT700 Bedienungsanleitung

GrandTec

GrandTec Ultimate 2000 Bedienungsanleitung

Sewell

Sewell PC to TV Converter Bedienungsanleitung

MyGica

MyGica Supera Color Pro Bedienungsanleitung

JVC

JVC BC-D2300U Bedienungsanleitung
