F80b INSTRUCTION MANUAL

Scan for easy install video

san.us/252

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

1-888-333-9952. We’re ready to help!

Before You Begin

Please check the following items:

 Your TV and any accessories you plan to use do not exceed the speciﬁed weight limit.

 The hole pattern on the back of your TV is compatible with the hole pattern of the TV brackets.

 The wall you chose to mount your TV is wood stud, solid concrete, or concrete block.

 You read and understand these directions.

 You refer to the documentation that came with your TV for additional guidance.

 You have the tools needed for installation.

If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact

Customer Service or call a qualiﬁed contractor.

CAUTION: Avoid potential personal injuries and property damage!

●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone

●The wall must be capable of supporting ﬁve times the weight of the TV and mount combined

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

NOTE: Para instrucciones en Español, ver páginas 20-23.

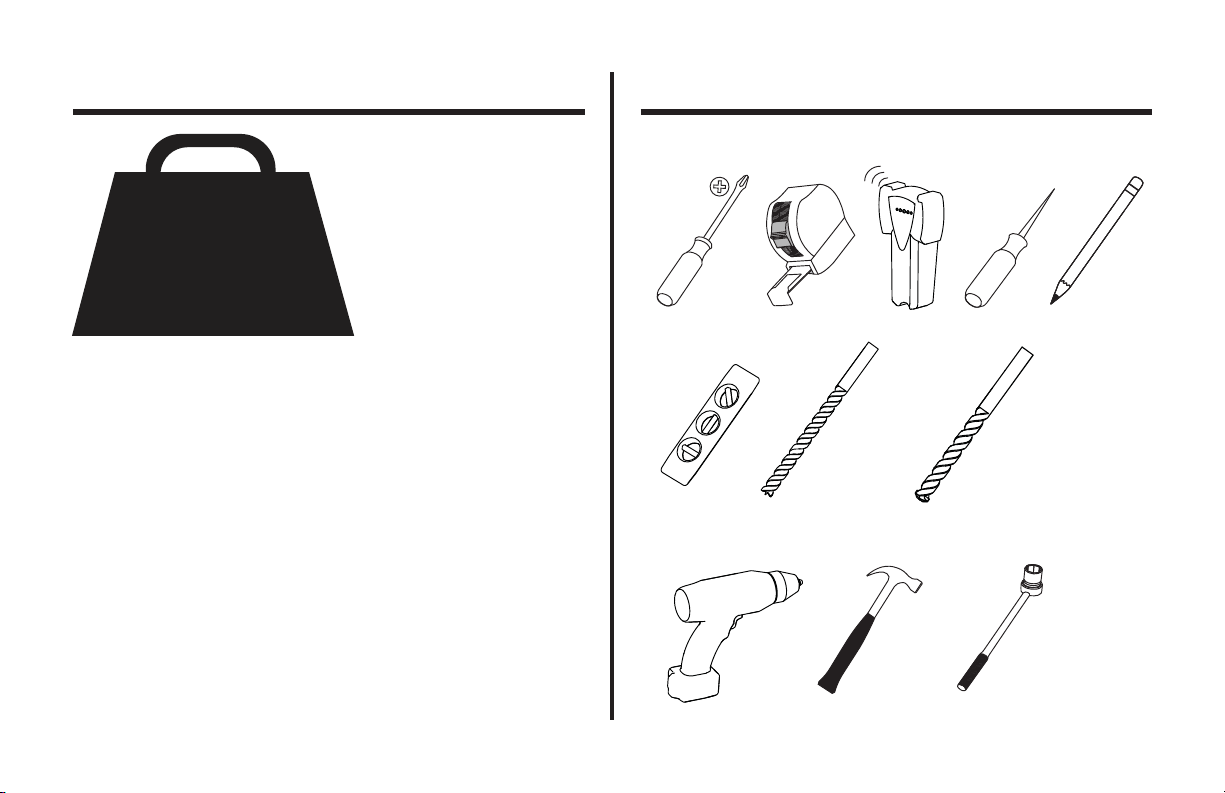

Weight Limit Tools Needed

175 lb (79.4 kg)

DO NOT EXCEED!

(includes TV and any

accessories)

5.5 mm

(7/32 in.)

10 mm

(3/8 in.)

13 mm

(1/2 in.)

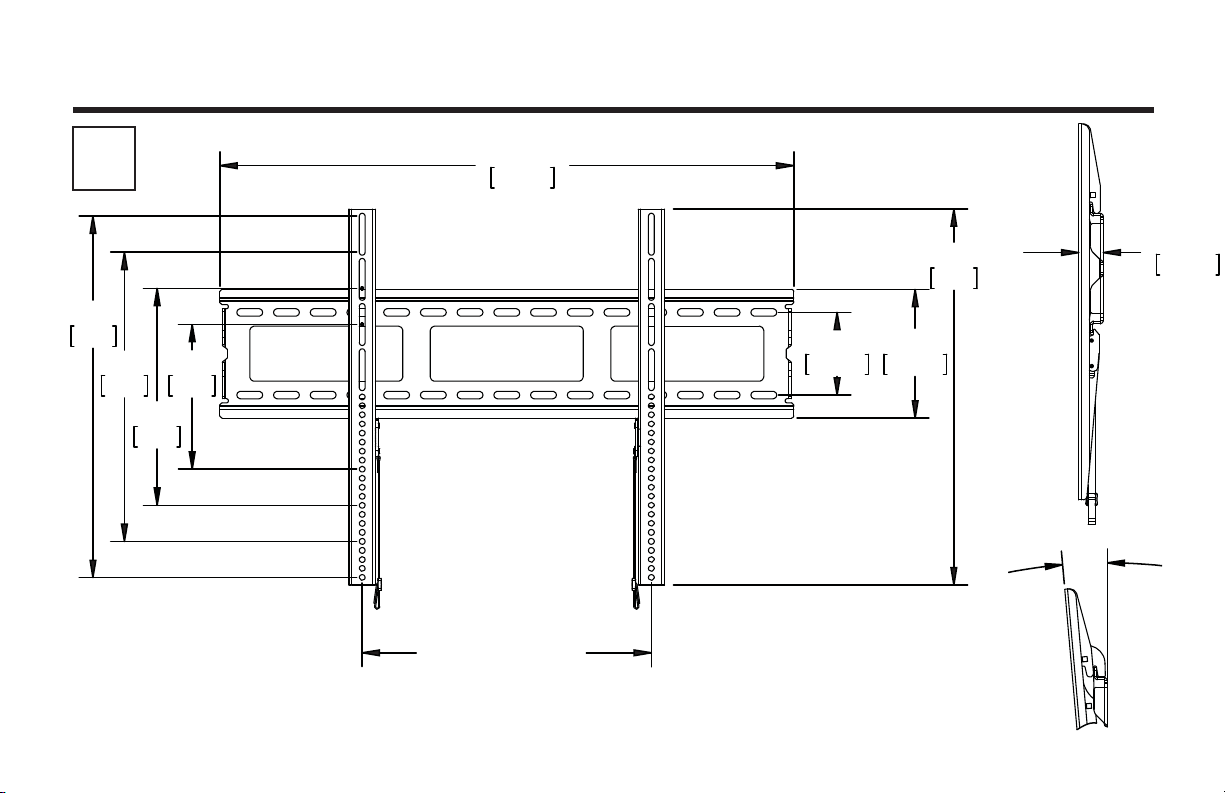

Dimensions

in.

[mm]

19.7

500

15.7

400

20.5

520

31.26

794.0

7.01

178.0

4.50

114.3

810mm

ADJUSTABLE TO

11.8

300

7.9

200

5°

1.324

33.63

NOTE: Not all hardware included will be used.

Supplied Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged

item to your dealer; contact Customer Service. Never use damaged parts!

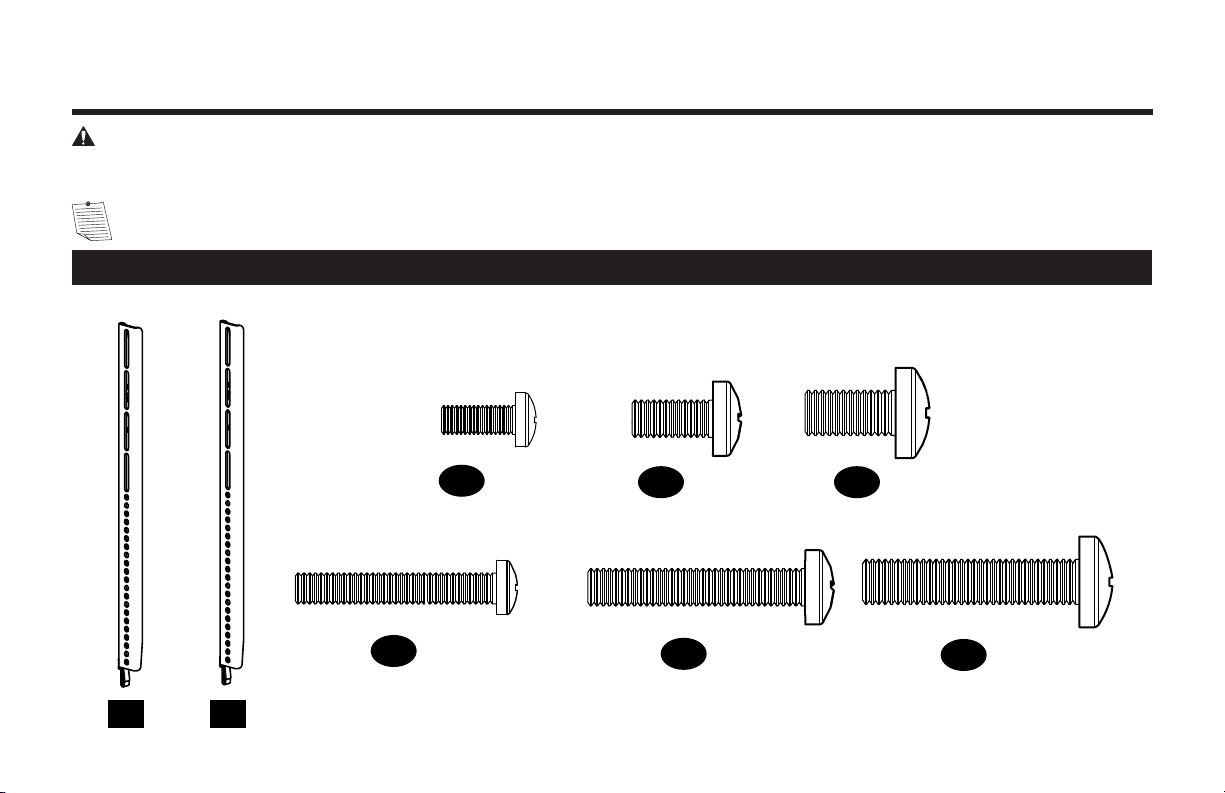

Parts and Hardware for STEP 1

TV Interface Brackets

01 02

M6 x 12mm M8 x 16mm

M6 x 35mm M8 x 35mm

03 04 05

06 07

(4) (4) (4)

(4)

TV Screws

08 (4)

(4)

M5 x 12mm

M5 x 35mm

⁄ x2 ⁄ in.

⁄ in.

Wall Plate Template Wall Plate

Lag Bolts Washers

Concrete Anchors

1312

(4)

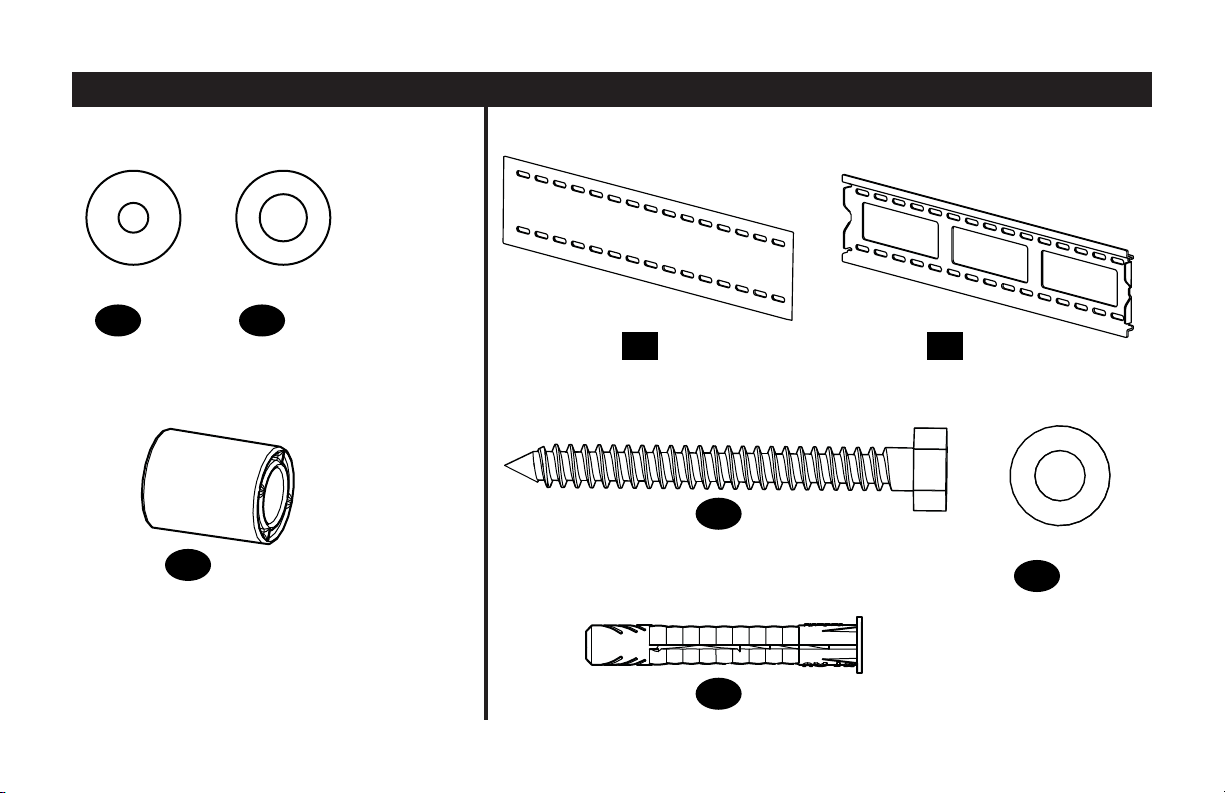

Parts and Hardware for STEP 1 Cont.

Washers

Spacers

M5 M6/M8

09 10

(4) (4)

(4)

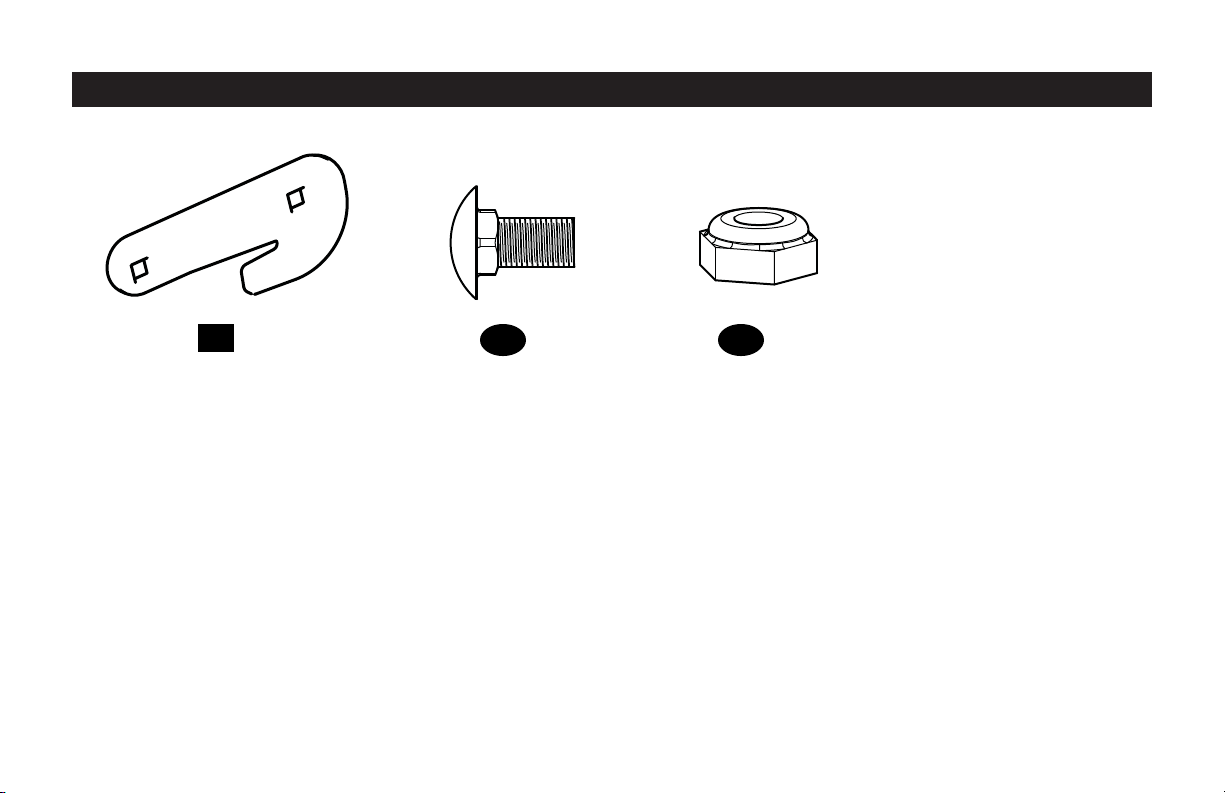

Parts and Hardware for STEP 2

Tilt Brackets Screws Nuts

17 18 19

(4)

(2) (4)

Parts and Hardware for STEP 3

1/4-20 x 1/2 in.

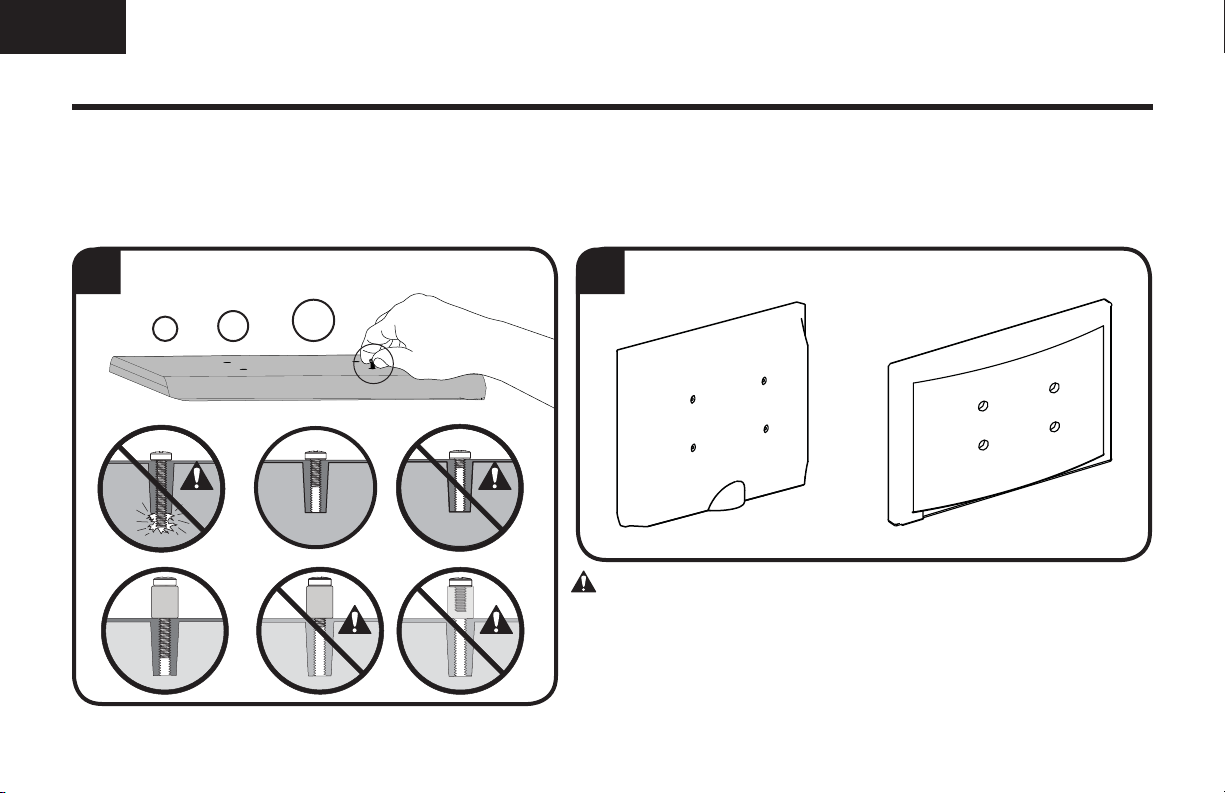

STEP 1

1 2

M6 M8

1. Hand thread screws into the threaded inserts on the back of your TV to determine the correct screw diameter (M5, M6, or M8).

2. Determine what kind of TV you have and if you require extra space between the wall and the TV to accommodate cables.

• If you have a flat back TV and do not require extra space for cables, see STEP 1-A

• If you have an irregular back TV or need extra space to accommodate cables, see STEP 1-B

Select TV Hardware and Attach Interface Brackets to TV

CAUTION: Avoid potential personal injuries and property damage!

Verify that there are adequate threads to secure the brackets to the

monitor. If you encounter resistance, stop immediately and contact

customer service. Use the shortest screw and spacer combination to

accommodate your needs. Using hardware that is too long may damage

your TV.

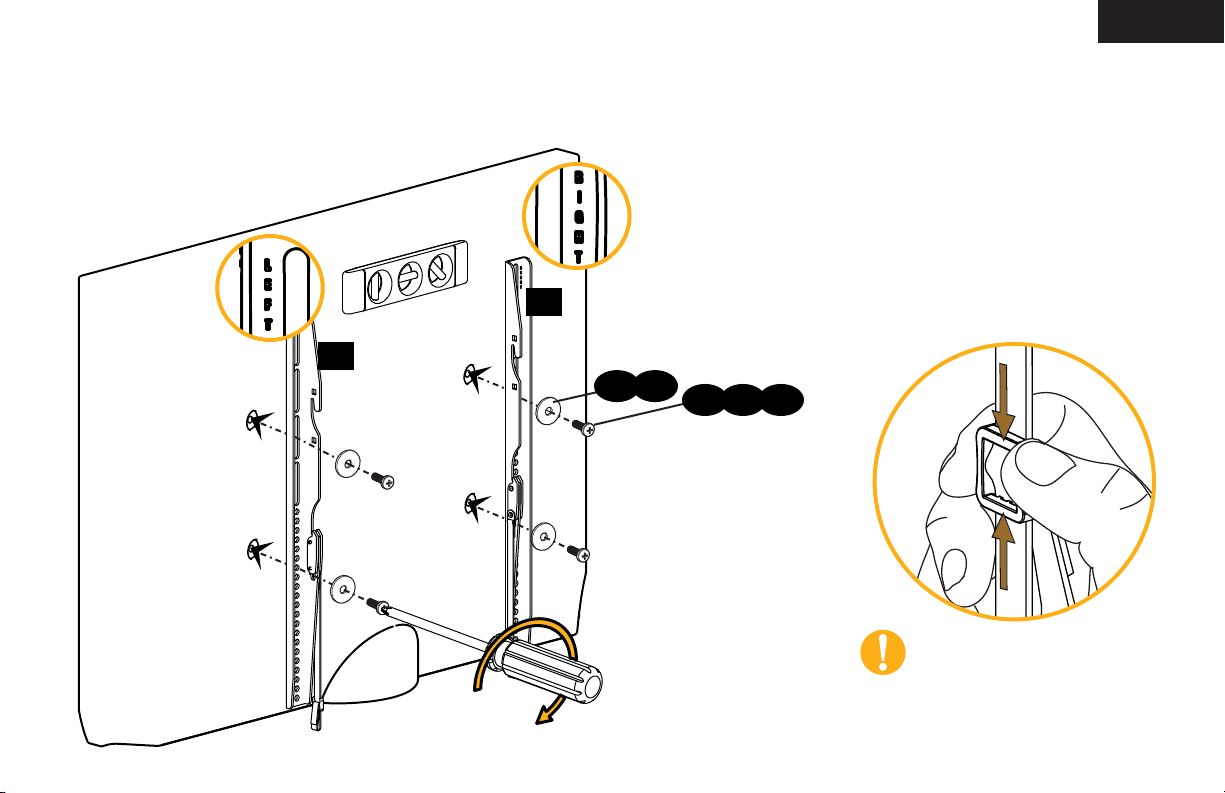

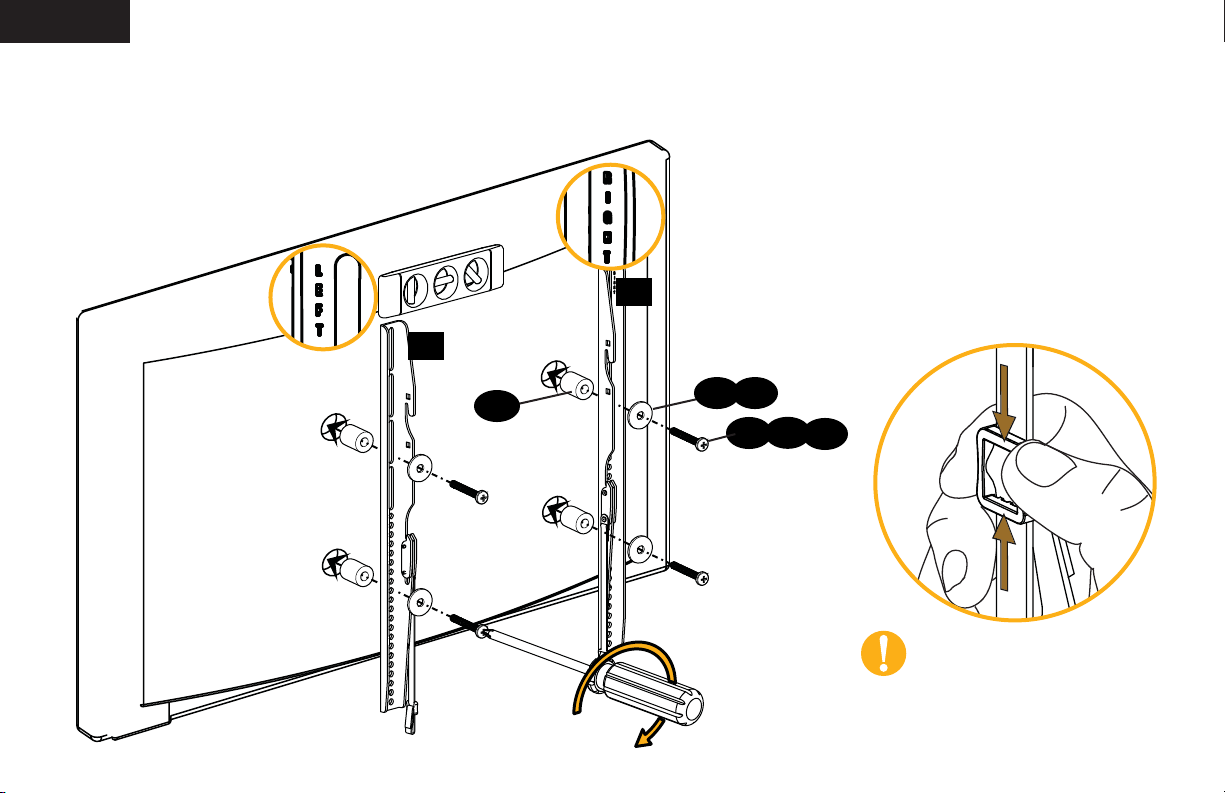

STEP 1-A

IMPORTANT: After attaching

the brackets, adjust the

straps so they are level with

the bottom of the TV.

Ensure that your brackets are level on the back of the TV. If you need extra space to accommodate cables, recesses, or protrusions;

use spacers (see the irregular back option on the next page).

03 04 05

09 10

STEP 1-B

IMPORTANT: After attaching

the brackets, adjust the

straps so they are level with

the bottom of the TV.

Ensure that your brackets are level on the back of the TV. Standard conﬁgurations are shown. For special applications, or if you are

unsure about your hardware selection, contact Customer Service.

06 07 08

11 09 10
