Sanyo VA-80LAN Bedienungsanleitung

This option board supports bi-directional communication, allowing you to transfer video and voice data between the camera and PC.

■Cautions on Connecting Microphone/Speakers for Bi-directional Voice Communication

●Howling may occur if microphone and speakers are put too close. Move them apart or change the speakers orientation to

prevent howling. Also adjust the microphone sensitivity as well as the speaker volume.

●For speakers on the camera side, use speakers with built-in amplifier.

■System Requirements

The system requirements for camera operation via network are as follows:

•PC:IBM PC/AT and compatibles

•OS:Windows 2000/Windows XP Home Edition/Windows XP Professional

•CPU:Pentium III (800MHz or higher)

• Memory: 128MB or more

• Network interface: 10Base-T/100Base-TX

• Display card: 1024 x 768 pixels or higher, 16 million colors or higher

• Web browser: Internet Explorer Ver.6.0 or higher

INSTALLATION MANUAL

Option Board (Network)

About this manual

Please read this installation manual before installing this unit, and always follow the instructions in it for proper use. VA-80LAN

English Deutsch Français Español 中文简体日本語

L9EBF_WA(VA-80LAN_INSTALLATION).book 1 ページ２００６年１２月１１日　月曜日　午前１０時３８分

Connection - 1

Connect the camera to the LAN through a switching hub using LAN cables (straight type).

Switching hub PC

Speaker

Microphone

LAN cable (straight type)

Max. 100 m

LAN cable

(straight type)

Voice signal transmission to camera

Voice signal check at PC

Video output

(BNC connector)

Voice output (black)

3.5 φ mini jack

(supplied with the option board)

External microphone input

(white)

3.5 φ mini jack

(supplied with the option board)

Microphone

Speaker

TV monitor

Video/voice data

Max. 100 m

When directly connecting the camera to a PC, use the

LAN cable (cross type).

To prevent electromagnetic interference,

attach the LAN cable to the supplied

clamping core, wrapping it once around the

core.

* Use shielded LAN cables.

L9EBF_WA(VA-80LAN_INSTALLATION).book 2 ページ２００６年１２月１１日　月曜日　午前１０時３８分

Connection - 1

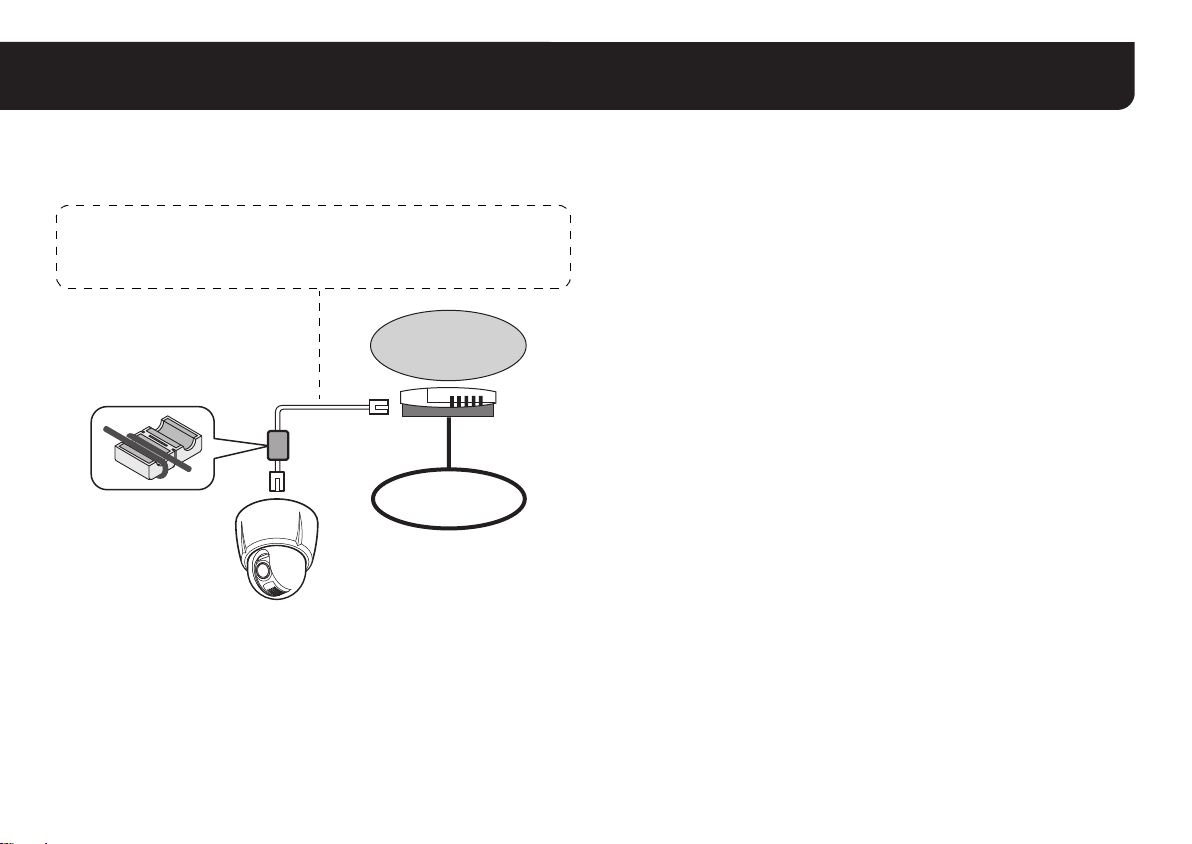

■Internet connection

Connect the camera to a router or ADSL modem with LAN interface

using LAN cables.

■About the internet connection

Port forwarding must be set on two of the router ports (camera side).

For details on how to set port forwarding, please refer to your router's

instruction manual.

• Video port number

Conduct the following port forwarding settings with respect to the

router:

IP address on the LAN side: Camera IP address (default:

192.168.0.2)

Port number on the LAN side: Camera video port number

(default: 80)

Port number on the WAN side: Optional

For communication, use TCP/IP.

• Voice port number

Conduct the following port forwarding settings with respect to the

router:

IP address on the LAN side: Camera IP address (default:

192.168.0.2)

Port number on the LAN side: Camera voice port number

(default: 34341)

Port number on the WAN side: Camera voice port number

(default: 34341)

For communication, use UDP.

When installing multiple cameras on the LAN side, change the voice port

number for the second camera onwards accordingly (default: 34341),

and make the port forwarding setting for the corresponding router.

When connecting to a router, use the straight type LAN cable.

When connecting to an ADSL modem or other devices, refer to the

instruction manual for the device.

Router or

ADSL modem

Internet

To prevent

electromagnetic

interference,

attach the LAN

cable to the

supplied clamping

core, wrapping it

once around the

core.

L9EBF_WA(VA-80LAN_INSTALLATION).book 3 ページ２００６年１２月１１日　月曜日　午前１０時３８分

1. Installing the Option Board

1Use the three supplied screws to install the

option board on the power board unit (see the

figure on the left).

2Pass the LAN cable through the cable hole and

plug it into the LAN port.

Note:

When it is difficult to plug in or pull out the LAN cable, we

recommend that you either use a LAN cable that has no plug cover

at the cable end, or displace the cover if there is one.

3When using the voice interface, connect the two

supplied cables to the option board.

Connect the red connector cable to the CN893 (red) terminal for

voice output and the white connector cable to the CN892 (white)

terminal for microphone input. These connector cables should be

fixed firmly by wrapping once around the fixer.

4Configure the network settings (see page 5).

CN893 CN892

L9EBF_WA(VA-80LAN_INSTALLATION).book 4 ページ２００６年１２月１１日　月曜日　午前１０時３８分

2. Configuring the Network Settings

On the NETWORK SETTING screen, specify the options required for connecting the camera to the network (LAN).

• The NETWORK SETTING screen appears only when the camera is equipped with this option board.

• For displaying the menu screen, refer to the instruction manual supplied with the camera.

• In the following instructions, the lever operations of the system controller (VSP-9000) are shown using xy for vertical operation and vw for horizontal

operation.

1Use the lever (xy) to select “IP ADDRESS”, use

the lever (vw) to select the IP address assignment

option, and press the [ENTER] button.

2Use the lever (xy) to select the setting item you

want to change, and press the lever to the right

(vw).

ROnly the selected option is displayed on the screen, and “x”

appears below the address.

CAMERA

LENS

PAN/TILT

AUTO MODE

PASSWORD

LANGUAGE

OPTION

ADVANCED MENU

SET

ENTER

OPTION

INFORMATION

AUTO FLIP

NETWORK

SET

OFF

SET

ENTER

NETWORK SETTING

IP ADDRESS

PORT

ALARM

MAC ADDRESS

08-00-7I-81-25-J2

FIX

00080

OUT1/2

Menu screen

Use the lever (xy) to select “OPTION”.

OPTION screen NETWORK SETTING screen

Use the lever (xy) to select “NETWORK”. Perform the network settings.

FIX : Manual assignment (default: 192.168.0.2)

Go to step 2(IP ADDRESS SETTING).

AUTO :Automatic assignment (DHCP)

Confirm the information in the screen, and go to step

MEMO: The “MAC ADDRESS” cannot be changed.

NETWORK SETTING

IP ADDRESS

PORT

ALARM

MAC ADDRESS

08-00-7I-81-25-J2

FIX

00080

OUT1/2

ENTER

IP ADDRESS SETTING

IP ADDRESS

192.168.000.002

SUBNETMASK

255.255.255.000

GATEWAY

192.168.000.001

IP ADDRESS SETTING

IP ADDRESS

192.168.000.002

L9EBF_WA(VA-80LAN_INSTALLATION).book 5 ページ２００６年１２月１１日　月曜日　午前１０時３８分

2. Configuring the Network Settings

3Select the digit to be changed, and specify the

value.

• Use the lever (vw) to move “x” to the digit you want to change,

and use the lever (vw) to select the number.

• If you change the setting item, use the lever vw) to move “x” to

either end, and press the lever (vw) toward the same end. This

displays the IP ADDRESS SETTING screen, returning you to

step 2.

4Use the lever (xy) to select “MENU” – “BACK”,

and press the [ENTER] button.

RReturns to the NETWORK SETTING screen.

5To change the port number, use the lever (xy) to

select “PORT”, and press the lever to the right (w).

RUse the same procedure as step 3to change the port number

to your desired value (between 1 and 65535).

6Use the lever (xy) to select “ALARM” and then

use the lever (vw) to select the alarm output

option.

•OFF: Disables alarm output from the camera to the

network.

•OUT1: Enables alarm output 1 to be sent to the network.

•OUT2: Enables alarm output 2 to be sent to the network.

• OUT1/2: Enables alarm outputs 1 and 2 to be sent to the

network (default setting).

7Use the lever (xy) to select “MENU”, use the

lever (vw) to select “END”, and press [ENTER].

RCloses the settings screen and returns to the normal monitoring

screen.

• To return to the previous screen, select “BACK” and press the

[ENTER] button.

IP ADDRESS SETTING

IP ADDRESS

192.168.000.052

NETWORK SETTING

IP ADDRESS

PORT

ALARM

MAC ADDRESS

08-00-7I-81-25-J2

FIX

00080

OUT1/2

NETWORK SETTING

IP ADDRESS

PORT

ALARM

MAC ADDRESS

08-00-7I-81-25-J2

FIX

00090

OUT1/2

L9EBF_WA(VA-80LAN_INSTALLATION).book 6 ページ２００６年１２月１１日　月曜日　午前１０時３８分

2. Configuring the Network Settings

■Screen Sequence

IP ADDRESS SETTING

IP ADDRESS

192.168.000.002

SUBNETMASK

255.255.255.000

GATEWAY

192.168.000.001

MENU BACK

NETWORK SETTING

IP ADDRESS

PORT

ALARM

MAC ADDRESS

08-00-7I-81-25-J2

FIX

00080

OUT1/2

BACK

CAMERA

LENS

PAN/TILT

AUTO MODE

PASSWORD

LANGUAGE

OPTION

ADVANCED MENU

PRESET

SET

OFF

END

OPTION

INFORMATION

AUTO FLIP

NETWORK

PRESET

SET

OFF

SET

OFF

BACK

AUTO

FIX

OFF

OUT1

OUT2

OUT1/2

1-65535

L9EBF_WA(VA-80LAN_INSTALLATION).book 7 ページ２００６年１２月１１日　月曜日　午前１０時３８分

3. Flow of Camera Operation through to Network Operation

Perform the following procedures according to the detailed instructions given in the INSTRUCTION MANUAL [VA-SW3050LITE] contained in the

supplied CD-ROM.

Refer to

1Accessing the Camera

Enter your user name and password, and then select a language you want to display on the screen.

User name: admin

Password: admin

2Monitoring The Live Video In The Main Screen 8

3Selecting the Operating Conditions

Using the [MAIN SETTINGS] screen for an administrative user, configure the detailed settings for administration.

When you access the camera for the first time, be sure to perform the settings on the [CLOCK SETTINGS] screen. 12

4Changing the Camera Settings

Changes in the camera settings can be made through the network connection. 26

MEMO: • After you turn on the power, wait approximately one minute before network connection is established.

• If you have to configure TCP/IP settings for your PC, refer to the INSTRUCTION MANUAL from page 4 onward.

L9EBF_WA(VA-80LAN_INSTALLATION).book 8 ページ２００６年１２月１１日　月曜日　午前１０時３８分

4. Software Setup Procedure for VA-SW3050LITE

The VA-SW3050LITE software achieves multiple monitoring by using up to 128 cameras and allows you to switch the monitoring screen

between single, 4-part split and 16-part split viewing.

Perform the following procedures according to the detailed instructions given in the INSTRUCTION MANUAL [VA-SW3050LITE] contained in the

supplied CD-ROM.

1Installing the VA-SW3050LITE Software

5Refer to

2Starting and Logging in to the VA-SW3050LITE Software

Double-click the “Network Recorder” shortcut icon created on the desktop.

USER ID: admin

PASSWORD: admin

3Registering the Cameras with the Software

4Viewing the Live Video 11

MEMO: • After you turn on the power, wait approximately one minute before you can login.

• To view the INSTRUCTION MANUAL contained in the supplied CD-ROM, you need Adobe®Reader®application. If your PC has not

been installed with it, you can download it for installation from the following web site at Adobe Systems Incorporated.

http://www.adobe.com

L9EBF_WA(VA-80LAN_INSTALLATION).book 9 ページ２００６年１２月１１日　月曜日　午前１０時３８分

4. Installing the VA-SW3050LITE Software

Start the installation program from the software CD, and use the interactive dialog boxes to advance the installation process.

1Double-click “Setup.exe” contained in the supplied

CD-ROM.

2The “Welcome to the InstallShield Wizard for

VA-SW3050LITE” dialog appears.

Click [Next].

3The “License Agreement” dialog appears.

Select the “I accept the agreement” option and then click [Next].

4The “Select Destination Location” dialog appears.

Click [Next].

• To change the destination folder in which you want to save the

VA-SW3050LITE software, click [Browse] and select the

desired folder. You may also type the folder name directly in the

box.

5The “Select Start Menu Folder” dialog appears.

Click [Next].

• To change the start menu folder, click [Browse] and select the

desired folder. You may also type the folder name directly in the

box.

6The “Ready to Install” dialog appears.

Click [Install].

☞Installing

7The “Completing the VA-SW3050LITE Setup Wizard”

dialog appears.

Click [Finish].

☞Now you have installed the VA-SW3050LITE software

successfully.

You will find the “Network Recorder” short cut icon on the

desktop.

MEMO:

• Microsoft .NET Framework 1.1 is required to use the

VA-SW3050LITE software. If your PC has not been installed

with it, an automatic installation program will show you a

confirmation dialog box to start its setup process, when

you double-click “Setup”. It will be about two minutes

before the installation program finishes.

• Once the installation is finished, you may be prompted to

restart the PC. Follow the instructions that may appear on

the screen.

L9EBF_WA(VA-80LAN_INSTALLATION).book 10 ページ２００６年１２月１１日　月曜日　午前１０時３８分

Andere Handbücher für VA-80LAN

Inhaltsverzeichnis

Sprachen:

Andere Sanyo Kamerazubehör Handbücher

Sanyo

Sanyo Cadnica N-4U Bedienungsanleitung

Sanyo

Sanyo KR-4400D Cadnica Bedienungsanleitung

Sanyo

Sanyo HR-AAC Bedienungsanleitung

Sanyo

Sanyo CR2430 Bedienungsanleitung

Sanyo

Sanyo Cadnica N-4000DL Bedienungsanleitung

Sanyo

Sanyo Lithium ion Bedienungsanleitung

Sanyo

Sanyo CR-1/3N Bedienungsanleitung

Sanyo

Sanyo VA-80BP Bedienungsanleitung

Sanyo

Sanyo CR2032 Bedienungsanleitung

Sanyo

Sanyo KR-900AAEC Cadnica Bedienungsanleitung

Sanyo

Sanyo KR-MH Bedienungsanleitung

Sanyo

Sanyo N-1300SCR Cadnica Bedienungsanleitung

Sanyo

Sanyo ML414 Lithium Bedienungsanleitung

Sanyo

Sanyo VA-84SA Bedienungsanleitung

Sanyo

Sanyo Cadnica N-50AAAS Bedienungsanleitung

Sanyo

Sanyo Twicell HR-3UR Bedienungsanleitung

Sanyo

Sanyo ML2016 Lithium Bedienungsanleitung

Sanyo

Sanyo UPF385374 Bedienungsanleitung

Sanyo

Sanyo UPF383450 Bedienungsanleitung

Sanyo

Sanyo Cadnica N-4000DRL Bedienungsanleitung

Sanyo

Sanyo Twicell HR-4/3FAUC Bedienungsanleitung

Sanyo

Sanyo Cadnica KR-2000C Bedienungsanleitung

Sanyo

Sanyo N-270AA Cadnica Bedienungsanleitung

Sanyo

Sanyo Cadnica KR-1200AUL Bedienungsanleitung

Beliebte Kamerazubehör Handbücher anderer Marken

Viltrox

Viltrox EF-NEX Montageanleitung

Calumet

Calumet 7100 Series CK7114 Bedienungsanleitung

Ropox

Ropox 4Single Series Bedienungsanleitung

Cambo

Cambo Wide DS Digital Series Betriebsanleitung

Samsung

Samsung SHG-120 Bedienungsanleitung

Ryobi

Ryobi BPL-1820 Bedienungsanleitung

Aegis

Aegis ABL-36020P Bedienungsanleitung

Pentax

Pentax Data Back Fc Bedienungsanleitung

Fantasea

Fantasea EyeGrabber F Series Bedienungsanleitung

Honeywell

Honeywell HDZ20HD Bedienungsanleitung

EGO

EGO BA1400T Bedienungsanleitung

Sima

Sima SRW-62 Bedienungsanleitung

Shape

Shape A7SSMKIT Bedienungsanleitung

Slide Kamera

Slide Kamera HST-2 Bedienungsanleitung

Power works

Power works 2902613 Bedienungsanleitung

SES

SES SE-2047-2 Bedienungsanleitung

Olympus

Olympus PT-EP05L Bedienungsanleitung

Starlite

Starlite OctoDome nxt Bedienungsanleitung
