Safety Information

WARNING: Never let people (including

children) with reduced physical, sensory or

mental capabilities or lack of experience and / or

knowledge use electrical devices unsupervised.

•For ventilation purposes, leave a free space of at

least 10 cm all around the set.

•Do not block ventilation holes.

•Do not place the TV on sloping or unstable surfaces,

the TV may tip over.

•Use this device in moderate climates.

•The power cord plug should be easily accessible. Do

not place the TV, furniture, etc. on the power cord.

Adamagedpowercord/plugcancausereorgive

you an electric shock. Handle the power cord by the

plug, do not unplug the TV by pulling the power cord.

Never touch the power cord/plug with wet hands

as this could cause a short circuit or electric shock.

Never make a knot in the power cord or tie it with

other cords. When damaged it must be replaced,

thisshouldonlybedonebyqualiedpersonnel.

•Do not use this TV in a humid or damp environment.

Do not expose the TV to liquids. In case the cabinet

contacts any liquids unplug the TV immediately

andhaveitcheckedbyqualiedpersonnelbefore

operating it any further.

IMPORTANT - Please read these instructions fully before installing or operating

Safety Information.......................................... 1

Getting Started............................................... 2

Notications&Features&Accessories.................. 2

Inserting the Batteries into the Remote .................. 2

Connect Power ...................................................... 3

Antenna Connection............................................... 3

Features ................................................................. 4

Remote Control ..................................................... 5

Connections............................................................ 6

Media Browser Menu.............................................. 9

Quick Menu ............................................................ 9

TV Menu Features and Functions ........................ 10

General TV Operation .......................................... 12

Using the Channel List ......................................... 12

ConguringParentalSettings............................... 12

Electronic Programme Guide (EPG) .................... 12

Software Upgrade................................................. 13

Troubleshooting&Tips......................................... 13

AV and HDMI Signal Compatibility ...................... 14

Important Instruction............................................. 15

To operate your TV in extreme ambient conditions

may cause the damage of the device.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO

NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

Note: Follow the on screen instructions for operating the

related features.

In extreme weather (storms, lightning) and long

inactivity periods (going on holiday) disconnect

the TV set from the mains. The mains plug is

used to disconnect the TV set from the mains

and therefore it must remain readily operable.

This sign is present wherever there is very

important information regarding the operation

and maintenance of the appliance in the literature

accompanying it.

•Do not expose the TV to direct sunlight,

openamesorplaceitnearintenseheat

sources such as electric heaters.

• Listening in excessive volumes from earphones and

headphones may cause hearing loss.

•Ensurethatnoopename sources,such

as lit candles, are placed on top of the TV.

• To prevent injuries, this TV must be securely

attached to a wall carefully by following the instructions (if

the option is available).

• Occasionally, a few non-active pixels may appear on the

screen as a xed blue, green or red point. Please note

that this does not affect the performance of your product.

Takecarenottoscratchthescreenwithngernailsorother

hard objects.

• Specicationsshownabovearesubjecttochangewithout

notice

• Before cleaning, unplug the TV from the wall socket. Only

use a soft, dry cloth while cleaning.

Warning Serious injury or death risk

Risk of electric shock Dangerous voltage risk

Caution Injury or property damage risk

Important Operating the system correctly

Notice Additional notes marked

English - 2 -

Environmental Information

This television is designed to consume less energy

to help save the environment. To reduce energy

consumption, you should take the following steps:

If you set the Power Save Mode as Eco, the TV will

switch to energy-saving mode. The Power Save Mode

settings can be found in the ‘Picture’ section of the

Main Menu. Note that some picture settings will be

unavailable to be changed.

If Picture Off is selected, “Screen will be off in

3 seconds.” message will be displayed. Select

PROCEED and press OK to continue. The screen

will be off immediately.

When the TV is not in use, please switch off or

disconnect the TV from the mains plug. This will also

reduce energy consumption.

StandbyNotications

1) If the TV does not receive any input signal (e.g.

from an aerial or HDMI source) for 5 minutes, the TV

will go into standby. When you next switch-on, the

following message will be displayed: “Standby Cause

No Signal” Press OK to continue.

2) If the TV has been left on and not been operated

for a while, the TV will go into standby. When you next

switch-on, the following message will be displayed.

“Standby Cause No Operation” Press OK to

continue.

Accessories Included

•Remote Control

•Batteries: 2 x AAA

•Instruction Book

•Quick Start Guide

TV Control Switch & Operation

1. Up direction

2. Down direction

3. Programme/Volume / AV / Standby-On selection

switch

The Control button allows you to control the Volume/

Programme/ Source and Standby-On functions of

the TV.

To change volume: Increase the volume by pushing

the button up. Decrease the volume by pushing the

button down.

To change channel: Press the middle of the button,

the channel information banner will appear on screen.

Scroll through the stored channels by pushing the

button up or down

To change source: Press the middle of the button

twice, the source list will appear on screen. Scroll

through the available sources by pushing the button

up or down.

To turn the TV off: Press the middle of the button

down and hold it down for a few seconds, the TV will

turn into standby mode.

Inserting the Batteries into the Remote

Lift the cover on the back of the remote upward

gently. Install two AAA batteries. Make sure to

match the + and - ends of the batteries in the

battery compartment (observe the correct polarity)

Replace the cover.

Getting Started

Notications&Features&Accessories

English - 3 -

Connect Power

IMPORTANT: The TV set is designed to operate on

220-240V AC, 50 Hz socket. After unpacking, allow

the TV set to reach the ambient room temperature

before you connect the set to the mains. Plug the

power cable to the mains socket outlet.

Antenna Connection

Connect the aerial or cable TV plug to the AERIAL

INPUT (ANT) socket or satellite plug to SATELLITE

INPUT (LNB) socket located on the back of the TV.

satellite

aerial

cable

REAR

THE TV

Notication

Manufactured under license from Dolby Laboratories.

TRADEMARK ACKNOWLEDGMENT

“Dolby” and the double-D symbol are trademarks of

Dolby Laboratories.

“HDMI,theHDMIlogoandHigh-DenitionMultimedia

Interface are trademarks or registered trademarks of

HDMI Licensing LLC.”

Information for Users on Disposal of Old

Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these

symbols should not be disposed of as general

household waste. If you want to dispose of the

product or battery, please consider the collection

systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates

that this battery contains lead.

Products

Battery

English - 4 -

Specication

TV Broadcasting PAL B/G D/K K I/I’

Receiving Channels VHF (BAND I/III) - UHF

(BAND U) - HYPERBAND

Number of Preset

Channels 10000

Channel Indicator On Screen Display

RF Aerial Input 75 Ohm (unbalanced)

Operating Voltage 220-240V AC, 50Hz.

Audio German+Nicam Stereo

Audio Output Power

(WRMS.) (10% THD) 2 x 6 W

Power Consumption (W) 65 W

Weight (Kg) 6,55 Kg

TV Dimensions DxLxH

(with foot) (mm) 185 x 735 x 478 mm

TV Dimensions DxLxH

(without foot) (mm) 77/97 x 735 x 438 mm

Operation

temperature and

operation humidity:

0ºC up to 40ºC, 85%

humidity max

Features

•Remote controlled colour LED TV.

•Fully integrated digital/cable/satellite TV (DVB-T/C/

S2)

•HDMI inputs are for connecting a device that has

a HDMI socket.

•USB input.

•OSD menu system.

•Scart socket for external devices (such as DVD

Players, PVR, video games, etc.)

•Stereo sound system.

•Teletext.

•Headphone connection.

•Automatic programming system.

•Manual tuning.

•Automatic power down after up to six hours.

•Sleep timer.

•Child lock.

•Automatic sound mute when no transmission.

•NTSC playback.

•AVL (Automatic Volume Limiting).

•PLL (Frequency Search).

•PC input.

•Plug&Play for Windows 98, ME, 2000, XP, Vista,

Windows 7.

•Game Mode (Optional).

English - 5 -

Teletext

Press “ ” button to enter. Press again to activate mix

mode. Press once more to exit. Follow the instructions

displayed on digital teletext screen.

Digital Teletext (for UK only)

Press “ ” button to view digital teletext information.

Operate it with the coloured buttons, cursor buttons

and the OK button. The operation method may differ

depending on the contents of the digital teletext. Follow

the instructions displayed on the digital teletext screen.

When the “ ” button is pressed again, the TV returns

to television broadcast.

Getting Started

Remote Control

ZOOM REPEAT

LANG.

123

456

789

EXIT

BACK

.,/@

SOURCE

PRESETS

Using My button 2 (**)

This button's main function is to switch between DVB-T,

DVB-C and DVB-S broadcasts. However, if you press MY

BUTTON2forveseconds,youcansetafunctiontoit

as described in My Button 1.

Notethatifyouperformrsttimeinstallation,MYBUTTON

2 will return to its default function, switching between

DVB-T, DVB-C and DVB-S broadcasts.

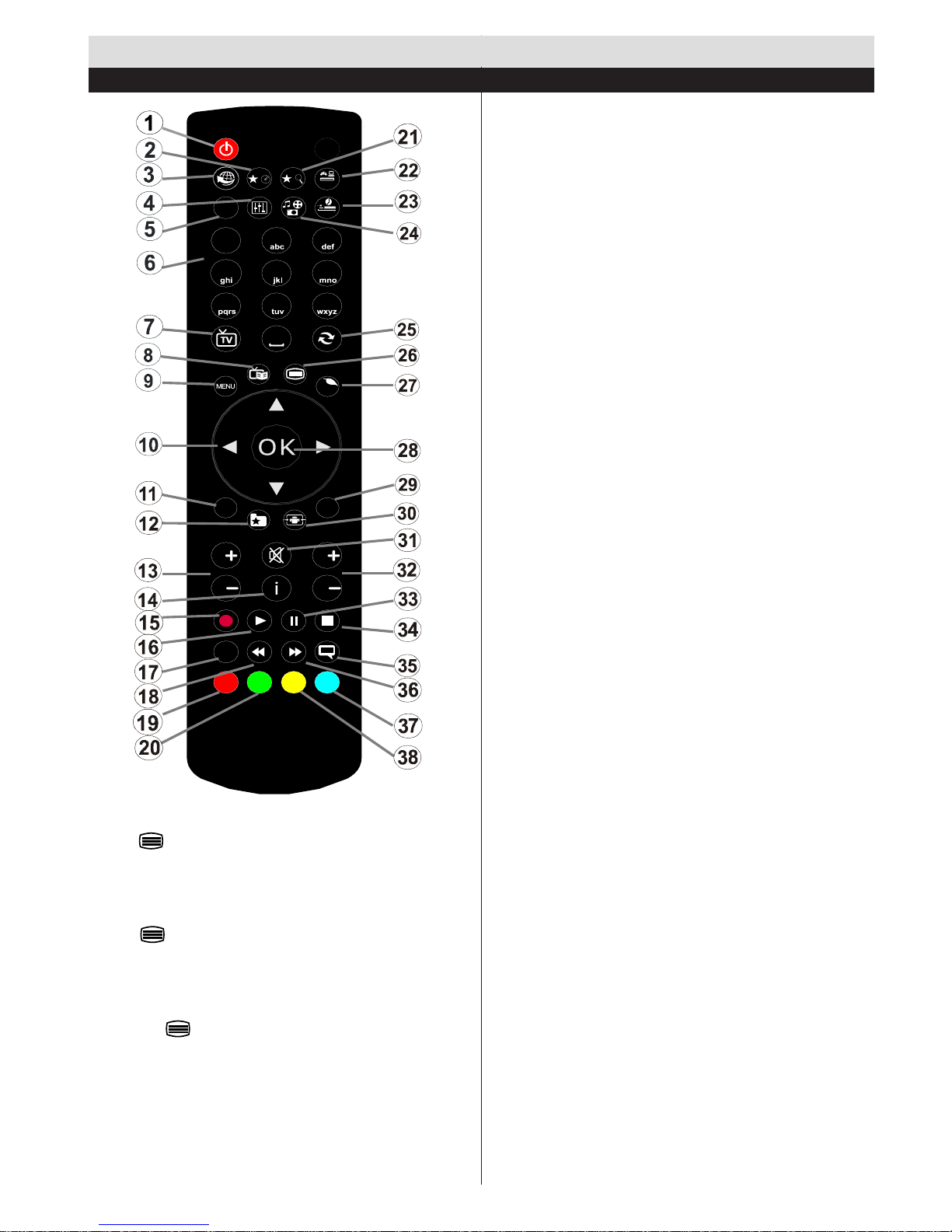

1. Standby

2. My button 1

3. No Function

4. Changes equalizer modes

5. Picture mode selection

6. Numeric buttons

7. TV Button

8. Electronic programme guide

9. Menu

10. Navigationbuttons(Up/Down/Left/(Right-TXT

Subpage)

11. Back

12. Favourites

13. Volume Up / Down

14. Info

15. Record programme

16. Play

17. Current language

18. Rapid reverse

19. Red button / IDTV Page up

20. Green button / IDTV Page down

21. My button 2

22. Source selection

23. Sleep timer

24. Media browser

25. Channel swap

26. Teletext

27. Q. Menu

28. OK/Select/Hold(inTXTmode)/ChannelList

(DTV mode)

29. Exit/Return/Indexpage(inTXTmode)

30. Image size

31. Mute

32. Program Up / Down

33. Pause

34. Stop

35. Subtitles

36. Rapid advance

37. Blue button

38. Yellow button

Using My button 1 (*)

PressMYBUTTON1forvesecondswhenonadesired

source, channel or link, until the “MY BUTTON IS SET”

messageisdisplayedonthescreen.Thisconrmsthat

the selected MY BUTTON is now associated with the

selected function.

English - 6 -

NOTE: When connecting a device via the YPbPr or Side AV input, you must use a connection cable

to enable connection. See the illustrations above. |To enable PC audio, you will need to use the SIDE AV

CONNECTION cable’s WHITE & RED inputs. |If an external device is connected via the SCART socket, the TV

will automatically switch to AV mode.|When receiving DTV channels (Mpeg4 H.264) or while in Media Browser

mode, output will not be available via the scart socket. |When using the wall mounting kit (optional), we recommend

that you plug all your cables into the back of the TV before mounting on the wall. |Insert or remove the CI module

only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings.

Connector Type Cables Device

Scart

Connection

(back)

VGA

Connection

(back)

SIDE AV PC/YPbPr

Audio

Connection

(side) Side Audio

YPbPr or PC Connection Cable (Not

supplied)

HDMI

Connection

(back)

SPDIF

Connection

(back)

SIDE AV Side AV

(Audio/Video)

Connection

(side) (Not supplied)

HEADPHONE

Headphone

Connection

(side)

YPbPr Video

Connection

(side) PC to YPbPr Connection Cable (Not supplied)

USB

Connection

(side)

Connection

(side)

CAM

module

Getting Started

Connections

English - 7 -

Switching On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC, 50 Hz.

To switch on the TV from standby mode either:

Press the “ ” button, P+ / P- or a numeric button on

the remote control.

Press the side function switch until the TV comes on

from standby.

To Switch the TV Off

Press the “ “ button on the remote control or press the

side function switch until the TV switches into standby mode.

To power down the TV completely, unplug the power

cord from the mains socket.

Note: When the TV is switched to standby mode, the standby

LED can blink to indicate that features such as Standby Search,

Over Air Download or Timer is active. The LED can also blink

when you switch on the TV from standby mode.

First Time Installation

When turned on for the first time, the language

selection screen is displayed. Select the desired

language and press OK.

The First Time Installation (FTI) screen will be

displayed next. Set your preferences using the

navigationbuttonsandwhen nished, press OK to

continue.

You can activate Store mode option to be available

in “Other settings” menu and your TV’s features will

beillustratedonthetopofthescreen.Aconrmation

screen will be displayed. Select YES to proceed.

If Home Mode is selected, Store mode will not be

available after the First Time Installation. Press OK

button to continue.

Aerial Installation

If you select AERIAL option from the Search Type screen,

the television will search for digital terrestrial TV broadcasts.

NOTE: You can press MENU button to cancel.

After all the available stations are stored, the Channel

List will be displayed on the screen. If you like how the

channels are sorted according to the LCN (*), please

select “Yes” and than press OK.

Press MENU button to quit channel list and watch TV.

(*) LCN is the Logical Channel Number system that

organizes available broadcasts in accordance with a

recognizable channel sequence (if available).

Cable Installation

If you select CABLE option and press OK button on the

remote control. To continue, please select YES and

press OK. To cancel operation, select NO and press

OK. You can select frequency ranges from this screen.

Enter the frequency range manually by using the

numeric button.

Note: Searching duration will change depending on

the selected search step.

Satellite Installation

If you select Satellite option from the Search Type

screen, you can set a satellite and watch the satellite

channels. When you select Satellite installation,

Antenna Type menu will be displayed.

There are three types of antenna selection. You can

select Antenna type as Direct, Unicable or DiSEqC

switch by using “ ” or “ ” buttons.

Direct: If you have a single receiver and a direct

satellite dish, select this antenna type. After selecting

Direct, another menu screen will be displayed. Select

an available satellite and press OK to scan for services.

Unicable: If you have multiple receivers and a

unicable system, select this antenna type. Press OK to

continue.Conguresettingsbyfollowinginstructions

on the screen. Press OK to scan for services.

DiSEqC switch: If you have multiple satellite dishes

and a DiSEqC switch, select this antenna type. After

selecting DiSEqC switch, another menu screen will

be displayed. You can set four DiSEqC options (if

available). Press GREEN button to scan all satellites

or press YELLOW button to scan only the highlighted

satellite. To save and exit press OK button.

Media Playback via USB Input

You can connect a 2.5” and 3.5” inch (hdd with

external power supply) external hard disk drives

or USB memory stick to your TV by using the USB

inputs of the TV.

IMPORTANT! Back up your files before making

any connections to the TV. Manufacturer will not be

responsibleforanyledamageordataloss.Certain

types of USB devices (e.g. MP3 Players) or USB hard

disk drives/memory sticks may not be compatible

with this TV. The TV supports FAT32 and NTFS disk

formatting but recording will not be available with NTFS

formatted disks.

While formatting a USB hard disk that has 1TB (Tera

Byte) or more file capacity, you can experience

problems with the formatting process. Do not

repeatedly quickly plug and unplug the drive. This

may cause physical damage to the USB player and

Getting Started

First Time Installation - USB Connections

English - 8 -

USB device itself. Do not pull out USB module while

playingale.

Some USB harddisk drives might not be supported

Recording a Programme

IMPORTANT: When using a new USB hard disk drive,

itisrecommendedthatyourstformatthediskusing

your TV’s “Format Disk” option.

Note : To record a programme, you should first

connect a USB disk to your TV while the TV is

switched off. You should then switch on the TV to

enable the recording feature.

To use the recording function, you need to connect

a USB disk or an external hard disk drive to the TV

and the connected USB disk should have at least 1

GB capacity and should have 2.0 speed compatibility.

If the connected USB device does not support 2.0

speed, an error message will be displayed.

Note: Recorded programmes are saved into the

connected USB disk. If desired, you can store/copy

recordingsontoacomputer;however,theseleswill

not be available to be played on a computer. You can

play the recordings only via your TV.

Note: Lip Sync delay may occur during the timeshifting.

Radio record is supported. The TV can record

programmes up to ten hours.

Recorded programmes are split into 4GB partitions.

If the writing speed of the connected USB disk is not

sufcient,therecordingmayfailandthetimeshifting

feature may not be available.

It is recommended to use USB hard disk drives for

recording HD programmes.

Do not plug out the USB/HDD during a recording. This

may harm the connected USB/HDD.

Multipartition support is available. The maximum of

twodifferentpartitionsaresupported.Therstpartition

of the USB disk is used for PVR ready features. It also

must be formatted as the primary partition to be used

for the PVR ready features.

Some stream packets may not be recorded because

of signal problems, so sometimes video may freezes

during playback.

Record, Play, Pause, Display (for PlayListDialog)

keys can not be used when teletext is ON. If a

recording starts from timer when teletext is ON,

teletext is automatically turned off. Also teletext usage

is disabled when there is an ongoing recording or

playback.

Timeshift Recording

Press (PAUSE) button while watching a broadcast

to activate timeshifting mode.In timeshifting mode, the

programme is paused and simultaneously recorded

to the connected USB disk. Press (PLAY) button

again to resume the paused programme from where

you stopped. Press the STOP button to stop timeshift

recording and return to the live broadcast.

Note: Timeshift cannot be used while in radio mode.

Note : You cannot use the timeshift fast reverse

feature before advancing the playback with the fast

forward option.

Instant Recording

Press (RECORD) button to start recording an

event instantly while watching a programme. You can

press (RECORD) button on the remote control

again to record the next event on the EPG. In this

case, an OSD will be displayed, indicating the

programmed events for recording. Press (STOP)

button to cancel instant recording.

Note: You can not switch broadcasts or view the Media Browser

during the recording mode. While recording a programme or

during the timeshifting, a warning message appears on the

screen if your USB device speed is not sufcent.

Watching Recorded Programmes

Select the Recordings Library from the Media

Browser menu. Select a recorded item from the list (if

previously recorded). Press the OK button to view the

Play Options. Select an option then press OK button.

Note: Viewing main menu and menu items will not be available

during the playback.

Press the (STOP) button to stop a playback and

return to the Recordings Library.

Slow Forward

If you press (PAUSE) button while watching recorded

programmes, the slow forward feature will be available.

You can use button to slow forward. Pressing

button consecutively will change slow forwarding speed.

RecordingConguration

Select the Recording Conguration item in the

Settingsmenutoconguretherecordingsettings.

Format Disk: You can use Format Disk feature

for formatting the connected USB disk. Your pin is

required to use the Format Disk feature (default pin

is 0000).

IMPORTANT: Note that ALL the data stored on the

USB disk will be lost and the disk format will be

converted to FAT32 if you activate this feature. If

your USB disk malfunctions, you can try formatting

the USB disk. In most cases formatting the USB disk

will restore normal operation; however, ALL the data

stored on the USB disk will be lost in such a case.

English - 9 -

Note: If “USB is too slow” message is displayed on

the screen while starting a recording, try restarting the

recording. If you still get the same error, it is possible that

your USB disk does not meet the speed requirements. Try

connecting another USB disk.

Media Browser Menu

You can play photo, music, and movie les stored

on a USB disk by connecting it to your TV. Connect

a USB disk to one of the USB inputs located on the

side of the TV. Pressing the Menu button while in the

Media Browser mode will access the Picture, Sound

and Settings menu options. Pressing the Menu button

again will exit from this screen. You can set your Media

Browser preferences by using the Settings Menu.

Loop/Shufe Mode Operation

Start playback with and

activate

TV plays next file and loop

the list.

Start playback with OK and

activate

Thesamelewillbeplayedin

a loop (repeat).

Start playback with OK/and

activate

The file will be played in a

shufe.

Quick Menu

Quick Settings menu allows you to access some

options quickly. This menu includes Power Save

Mode, Picture Mode, Equalizer Settings, Favourites

and Sleep Timer options. Press Q.MENU button

on the remote control to view quick menu. See the

following chapters for the details of the listed features.

Inhaltsverzeichnis

Andere Saorview Fernseher Handbücher

Saorview

Saorview WP40LEDSM Merkblatt

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
