SATO M-8460Se Series Bedienungsanleitung

Page 1-1

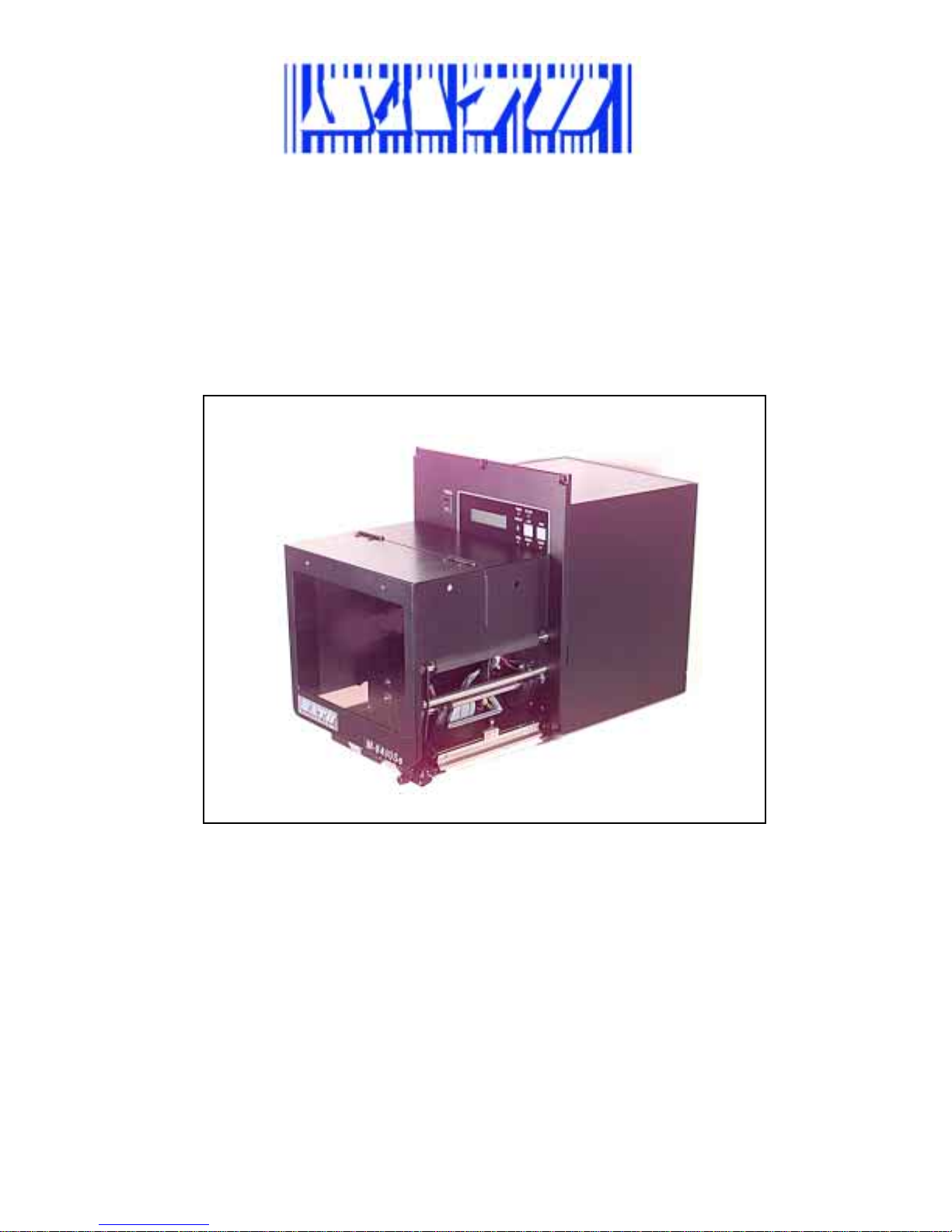

M-8460Se Printer

Standard Unit

Parts List

P/N 9001090

Rev. B

Rev.B

Page 2

SATO M-8460Se Printer Parts List

SATO Industrial Bar Code Printers

Table of Contents

M-8460Se Page

Spare Parts List

Frame Assembly........................................................................................................3

Print Head Assembly ................................................................................................8

Ribbon Assembly ....................................................................................................11

Platen Frame Assembly..........................................................................................14

Cover Assembly ......................................................................................................21

Cont PCB Assembly................................................................................................24

Check PCB Assembly .............................................................................................25

Interface Option.......................................................................................................26

Memory Option ........................................................................................................27

Rev.BPage 3

SATO Industrial Bar Code Printers

SATO M-8460Se Printer Parts List

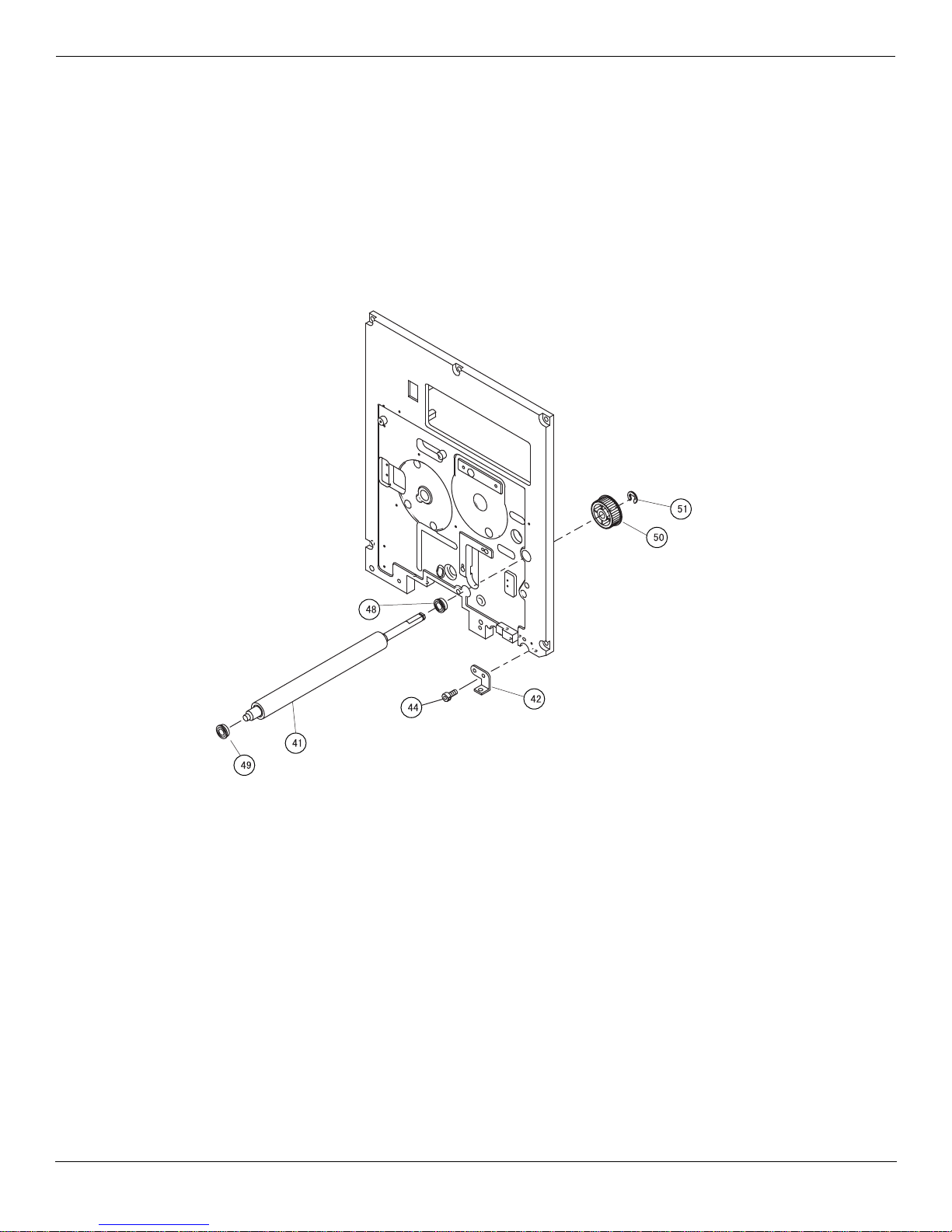

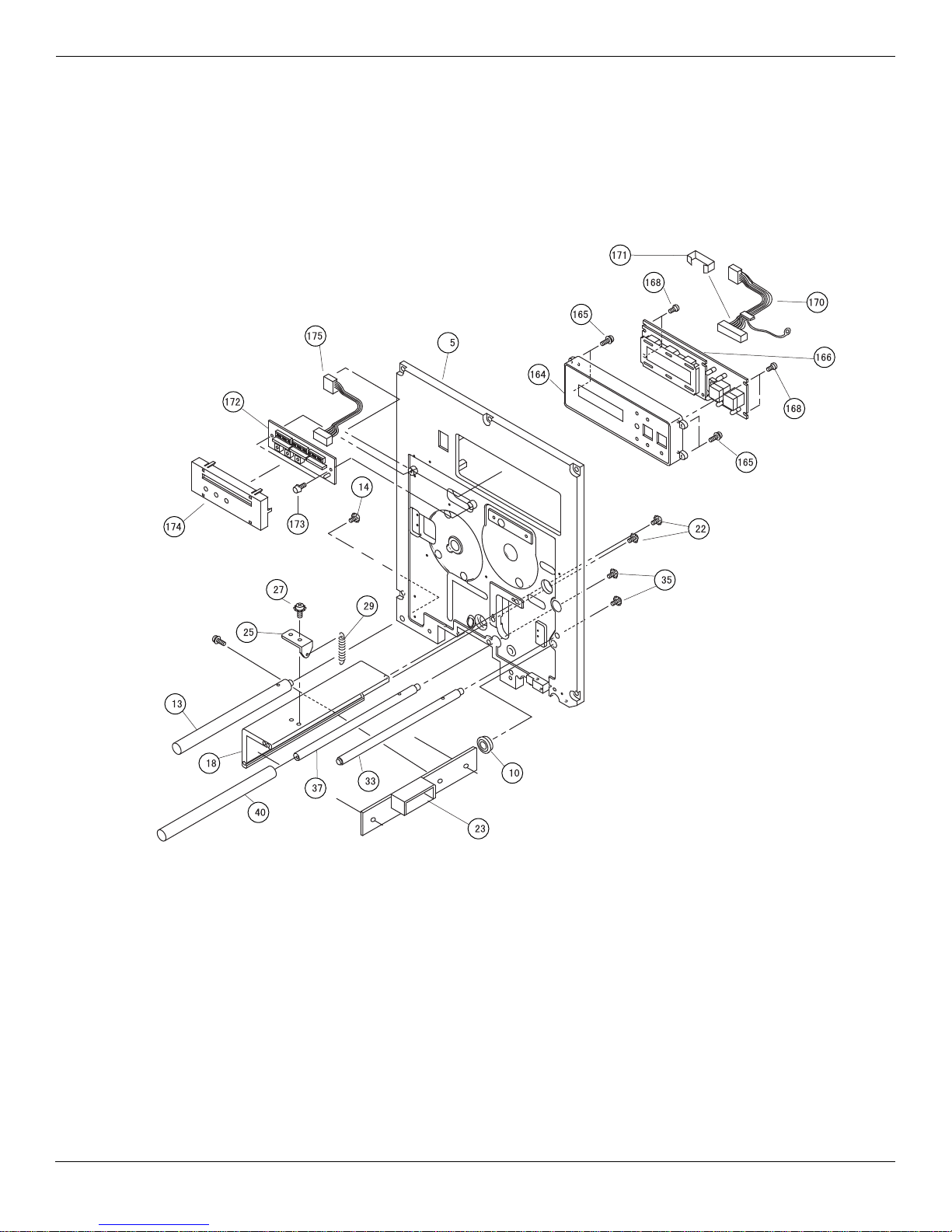

Frame Assembly

Rev.B

Page 4

SATO M-8460Se Printer Parts List

SATO Industrial Bar Code Printers

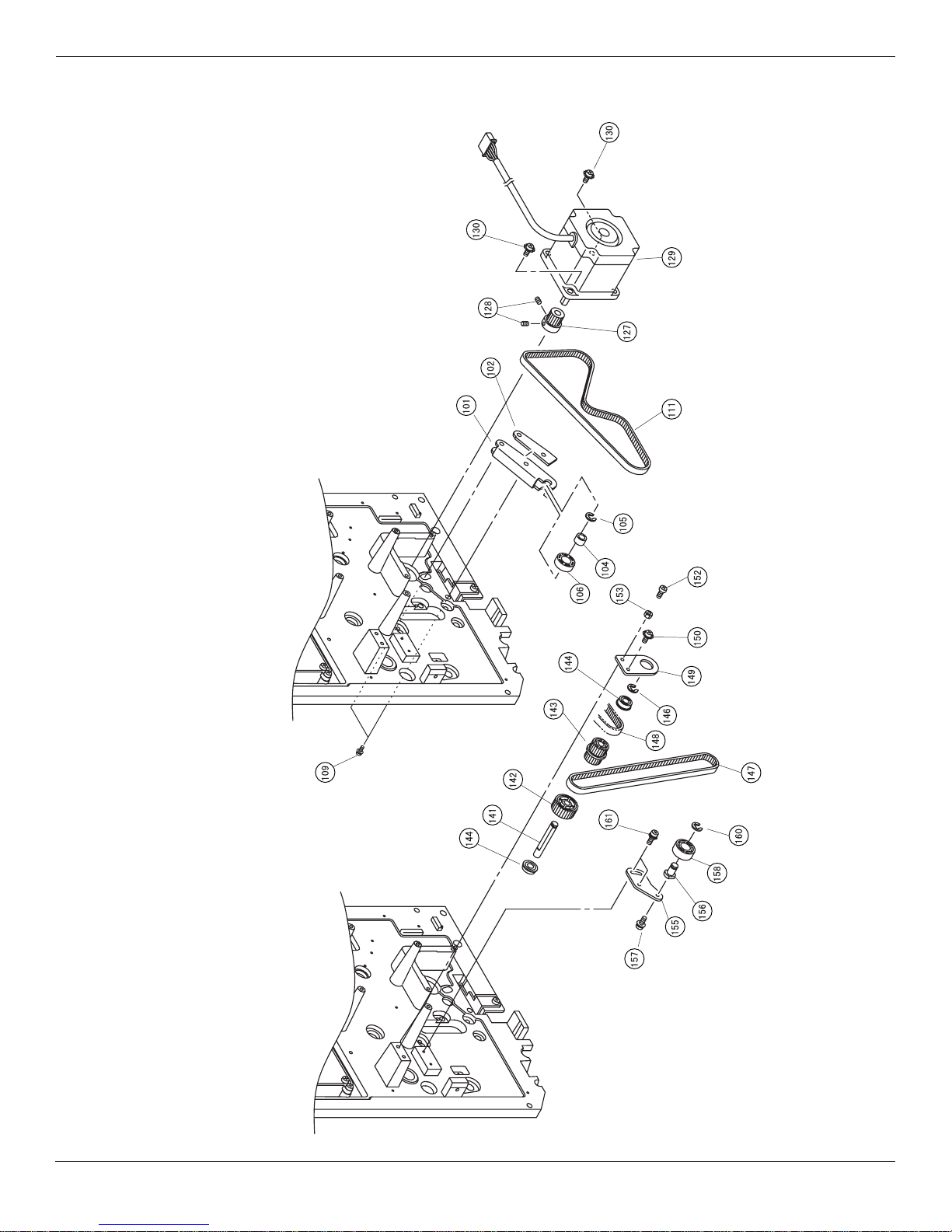

Frame Assembly

Rev.BPage 5

SATO Industrial Bar Code Printers

SATO M-8460Se Printer Parts List

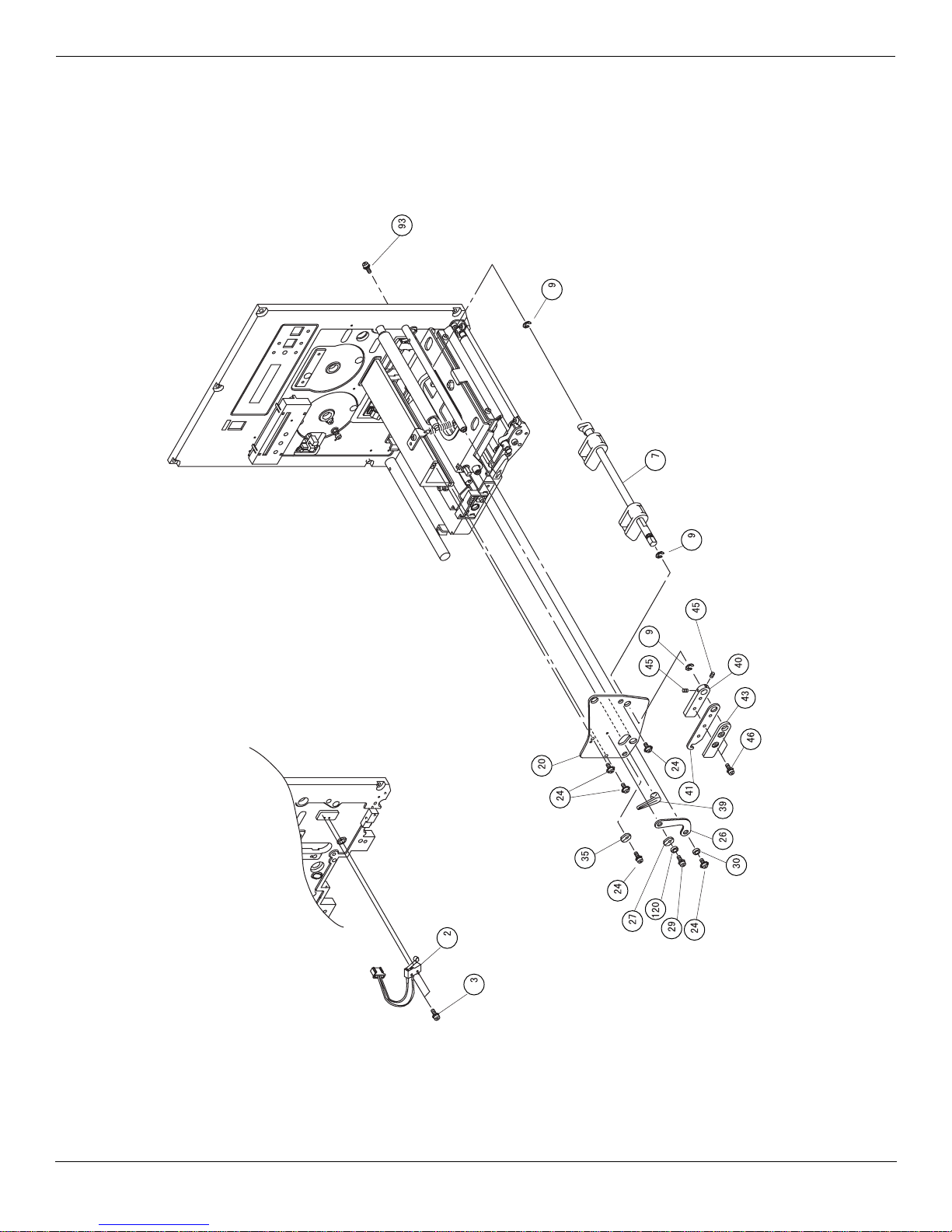

Frame Assembly

Rev.B

Page 6

SATO M-8460Se Printer Parts List

SATO Industrial Bar Code Printers

Frame Assembly

5 PL1733500 ENGINE FRAME 1

10 MT1300522 HEX NUT 1

13 PB0734200 GUIDE POST 1

14 MC0401022 PAN HEAD SCREW 1

18 PR1733600 STAY 1

22 MN0401224 HEX SOCKET BOLT 2

23 PA3737200 GUIDE PLATE (HEAD BR) 1

25 PA3732500 SPRING BRACKET 1

27 MC0301022 PAN HEAD SCREW 1

29 PC0730200 SPRING (OPEN) 1

33 PB0734300 SHAFT(SUPPORT) 1

35 MN0401024 HEX SOCKET BOLT 2

37 PB0734400 SHAFT (RIBBON ADJUST) 1

40 PR1733900 ROLLER 1

41 PR0731600 FEED ROLLER 1

42 PA3736200 DISPENSE BAR BRACKET 1

44 MN0300824 HEX SOCKET BOLT 1

48 PT1112060 BALL SUPPORTER 1

49 PT1109050 BALL SUPPORTER 1

50 PE8730100 GEAR 1

51 ND0040030 E-RING 1

101 PA3734800 PULLEY BRACKET 1

102 PA2730700 PLATE NUT 1

104 PB0731600 SHAFT (ROLLER) 1

105 ND0040030 E-RING 1

106 PR1732600 TENSION ROLLER 1

109 MD4402022 PAN HEAD SCREW 2

111 PT8190064 TIMING BELT 1

127 PL1720100 MOTOR PULLEY 1

128 MJ1400524 HEX SOCKET SET SCREW 2

129 RH1730600 STEPPER MOTOR ASSY 1

130 MC0401222 PAN HEAD SCREW 2

141 PB0731701 SHAFT (IDLE) 1

NO. CODE DESCRIPTION QTY

Rev.BPage 7

SATO Industrial Bar Code Printers

SATO M-8460Se Printer Parts List

Frame Assembly

142 PE8730100 GEAR 1

143 PE8730300 PULLEY 1

144 PT1112060 BALL SUPPORTER 2

146 ND0040030 E-RING 1

147 PT8150064 TIMING BELT 1

148 PT8085048 TIMING BELT 1

149 PA1730500 SHAFT BRACKET 1

150 MC0401022 PAN HEAD SCREW 2

152 MA0401622 PAN HEAD SCREW 1

153 MT1400722 HEX NUT 1

155 PA1730700 TENSION BRACKET 1

156 PB0730600 POST (TENSION) 1

157 MD4400822 PAN HEAD SCREW 1

158 PR1730600 TENSION ROLLER 1

160 ND0040030 E-RING 1

161 MD4300822 PAN HEAD SCREW 2

164 PR4730501 KEYBOARD COVER 1

165 MD4301222 PAN HEAD SCREW 4

166 RJ2730200 KEY PCB SET 1

168 MH0300821 PAN HEAD P TITE SCREW 4

170 RH1731300 PSW CABLE 1

171 PA3739900 CONNECTOR LOCK 1

172 RJ2730100 DSW PCB SET 1

173 MD3300822 PAN HEAD SCREW 2

174 PH0730200 DIP SWITCH COVER 1

175 RH1731600 DSW CABLE SET 1

NO. CODE DESCRIPTION QTY

Rev.B

Page 8

SATO M-8460Se Printer Parts List

SATO Industrial Bar Code Printers

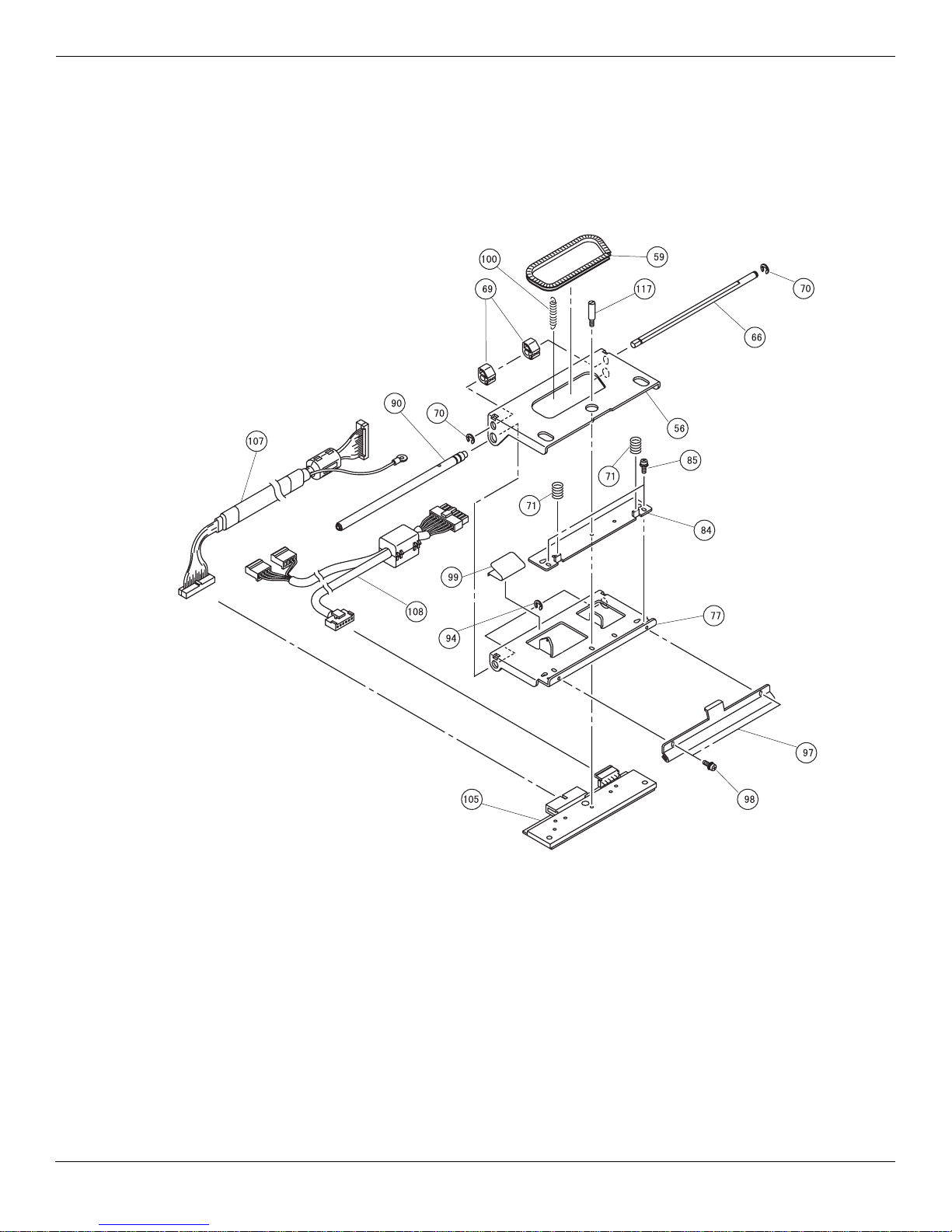

Print Head Assembly

Rev.BPage 9

SATO Industrial Bar Code Printers

SATO M-8460Se Printer Parts List

Print Head Assembly

Rev.B

Page 10

SATO M-8460Se Printer Parts List

SATO Industrial Bar Code Printers

2 RH1731100 SEN5 CABLE 1

3 MD3201221 PAN HEAD SCREW 2

7 PR1733700 PRESSURE CAM 1

9 ND0060030 E-RING 3

20 PA2730800 HEAD FRAME 1

24 MN0401024 HEX SOCKET BOLT 5

26 PA1730300 PLATE (ADJUST) 1

27 PL2720100 ADJUST COLLAR 1

29 MN0400824 HEX SOCKET BOLT 1

30 NA0040022 PLAIN WASHER 1

35 PL2730100 ADJUST COLLAR 1

39 PE1730400 HANDLE (B) 1

40 PD1730600 HANDLE (A) 1

41 PA2730600 LATCH HANDLE (C) 1

43 PE1730800 HANDLE (B) 1

45 MJ1300424 HEX SOCKET SET SCREW 2

46 MN0301024 HEX SOCKET BOLT 2

56 PA3737300 HEAD BRACKET (TOP) 1

59 PV9730200 BUSHING 1

66 PB0734900 SHAFT (ADJUST CAM) 1

69 PE1730300 ADJUST CAM 2

70 ND0050030 E-RING 2

71 PC1730200 SPRING (HEAD) 2

77 PA3737400 HEAD BRACKET (BOTTOM) 1

84 PR1733800 ADJUST PLATE 1

85 MD4300622 PAN HEAD SCREW 2

90 PB0734800 SHAFT (HEAD BRACKET) 1

93 MN0401024 HEX SOCKET BOLT 1

94 ND0070030 E-RING 2

97 PA3737600 RIBBON PLATE 1

98 MD3250522 PAN HEAD SCREW 2

99 PA4730401 PLATE SPRING (HEAD CAM) 1

100 PC0730200 SPRING (HEAD OPEN) 1

105 GH000661A PRINT HEAD 1

107 RH1731200 HDS CABLE 1

108 RH1727100 POWER & HEAD CORD SET 1

117 PB5730400 SCREW (HEAD) 2

NO. CODE DESCRIPTION QTY

Print Head Assembly
