SATO MB400 Bedienungsanleitung

PN 9001118A

MB400

Direct Thermal Printer

PARTS LIST

SATO America, Inc.

10350A Nations Ford Road

Charlotte, NC 28273

Main Phone: (704) 644-1650

Technical Support Hotline: (704) 644-1660

Technical Support Fax: (707) 644-1661

E-Mail: satosale[email protected]

www.satoamerica.com

ATTENTION

SOME COMPONENTS IDENTIFIED WITHIN THIS DOCUMENT HAVE DUAL PART NAMES. THE FIRST

(ON THE LEFT) IS THE PART NAME AS ASSIGED BY CORPORATE AND IS THE ONE THAT SHOULD

BE USED WHEN PLACING AN ORDER FOR REPLACEMENT PARTS.

THE SECOND (IN PARENTHESIS) IS THE PART NAME THAT IS USED IN THE OPERATOR AND

SERVICE MANUALS. THESE INCORPORATE TERMINOLOGY MORE COMMONLY APPLIED IN THE

UNITED STATES.

THE ABOVE MENTIONED NAMES MAY BE FOUND IN THE “PART DESCRIPTION” COLUMN OF THE

TABLES WITHIN THIS DOCUMENT.

THIS DOCUMENT IS PROVIDED FOR GENERAL IN FORMATION AND IS SUBJECT TO CHANGE

WITHOUT NOTICE. SATO AMERICA, INC. MAY NOT BE HELD REPSONSIBLE FOR ERRORS THAT

MAY APPEAR.

WARNING

THE EQUIPMENT REFERENCED IN THIS DOCUMENT COMPLIES WITH THE REQUIREMENTS IN

PART 15 OF FCC RULES FOR A CLASS B COMPUTING DEVICE. OPERATION OF THIS EQUIPMENT

IN A RESIDENTIAL AREA MAY CAUSE UNACCEPTABLE INTERFERENCE TO RADIO AND TV

RECEPTION REQUIRING THE OPERATOR TO TAKE STEPS TO CORRECT THE INTERFERENCE.

SATO MB400 Parts List PN: 9001118A Page 1

HOUSING COVER & CHASSIS ASSEMBLY

ITEM PART NUMBER PART DESCRIPTION QTY

1 R00815010 F PRINT COVER (TOP HOUSING COVER) 1

2 PR7A50101 PLATEN ROLLER ASSEMBLY 1

4 PE8A50300 DRIVE GEAR, 0.5*41/0.5*14 1

5 PE8A50400 DRIVE GEAR, 0.5*47/0.5*15 1

7 R00031000 DRIVE MOTOR BRACKET 1

9 P00004000 COVER STAY 1

10 MH2200622 P-TIGHT SCREW, PAN HEAD 1

11 PE6A50102 MOTOR COVER 1

12 MH2200622 P-TIGHT SCREW, PAN HEAD 1

13 KB200581A DRIVE MOTOR, STEPPER 1

14 PE6A51000 CABLE COVER 1

15 MH2200622 BIND P TIGHT (P-TIGHT SCREW, PAN HEAD) 1

16 MH2200622 BIND P TIGHT (P-TIGHT SCREW, PAN HEAD) 3

17 MD3300622 P-TIGHT SCREW, PAN HEAD 2

20 PE6A50300 LABEL GUIDE (MEDIA GUIDE) 1

21 PE3A50100 SENSOR ADJUSTMENT SHAFT, AUGER 1

22 MH2200622 BIND P TIGHT (P-TIGHT SCREW, PAN HEAD) 2

23 R00039000 GAP/EYE-MARK SENSOR ASSEMBLY 1

24 PE1A50500 LH LABEL GUIDE (MEDIA GUIDE, RIGHT) 1

25 PE1A50400 RH LABEL GUIDE (MEDIA GUIDE, LEFT) 1

26 PE4A50100 BOSS 2

27 PE2A50200 COLLAR 2

28 PE4A50200 CORE 2

29 PE1A50300 HOLDER 1

30 PE3A50200 LABEL GUIDE SHAFT (MEDIA GUIDE BAR) 1

32 PA1A50600 LABEL GUIDE PLATE (MEDIA GUIDE PLATE) 2

33 MH2200622 P-TIGHT SCREW, PAN HEAD 2

34 PT9A50100 O-RING 1

35 PE1A50100 RACK, RATCHET 2

36 PE8A50600 MEDIA GUIDE GEAR, 0.8*16 1

37 PC1A50101 MEDIA GUIDE SPRING 1

38 MH2200622 P-TIGHT SCREW, PAN HEAD 1

39 PE2A50300 COLLAR, 4*6.4*3.5 1

40 PR3A50100 TOP COVER LATCH 1

41 PE2A50400 STOPPER (COLLAR) 1

42 PC2A50401 LATCH SPRING 1

43 PE1A51700 LATCH HOLDER (LATCH BRACKET) 2

SATO MB400 Parts List PN 9001118A Page 2

44 MH2200622 BIND P TIGHT (P-TIGHT SCREW, PAN HEAD) 2

45 R01148000 DISPENSER BAR SHAFT 1

46 PB0A50100 COVER LOCK SHAFT (LATCH PIN) 2

47 ND0020030 SNAP RING, TYPE E 2

49 PH0A51110 TOP COVER (FRONT HOUSING COVER) 1

50 MH2200622 P-TIGHT SCREW, PAN HEAD 4

52 PE0A50300 OPERATION KEY (KEYPAD PLATE) 1

54 RJ2A50001 KB PCB ASSY (CONTROL PANEL CIRCUIT BOARD) 1

55 PH2A50100 KB PANEL (CONTROL PANEL IDENTIFICATION PLATE) 1

56 MH2200622 BIND P TIGHT (P-TIGHT SCREW, PAN HEAD) 2

57 PE6A50400 IrDA COVER (IrDA LENS) 1

59 PE1A50700 IrDA LEVER 1

60 MH2200622 BIND P TIGHT (P-TIGHT SCREW, PAN HEAD) 1

62 PE1A51001 COVER OPEN LEVER (TOP HOUSING COVER LATCH

LEVER)

64 PH0A50701 RIGHT HOUSING COVER 1

65 MH2200622 P-TIGHT SCREW, PAN HEAD 4

67 PH0A50901 RH COVER (LEFT HOUSING COVER) 1

68 MH2200622 BIND P TIGHT (P-TIGHT SCREW, PAN HEAD) 4

70 PE6A21900 MICRO DRIVER, PHILLIPS 1

72 PH0A51200 DC COVER (POWER SUPPLY CONNECTOR COVER) 1

73 PH0A50400 BATTERY COVER 1

74 PE6A50900 RMD COVER (INNER COVER, RIGHT) 1

75 MH2200622 BIND P TIGHT (P-TIGHT SCREW, PAN HEAD) 1

76 PE1A50200 BATTERY LOCK (BATTERY LATCH) 1

77 PE1A51100 BATTERY LOCK BRACKET (LATCH BRACKET) 1

78 P00015000 BATTERY SPRING (LATCH SPRING) 1

79 MH2200622 P-TIGHT SCREW, PAN HEAD 1

80 PE1A50800 OPEN SWITCH LEVER 1

81 PE1A50900 OPEN SWITCH BRACKET 1

82 MH2200622 P-TIGHT SCREW, PAN HEAD 1

83 PR4A50100 DIP SWITCH COVER 1

84 PR1A50301 FRAME 1

86 MH2200622 P-TIGHT SCREW, PAN HEAD 8

87 PH0A50300 R COVER (CHASSIS) 1

88 PF0A50500 PAD (BOOT,RUBBER) 1

89 R00040001 IrDA ASSEMBLY 1

ITEM PART NUMBER PART DESCRIPTION QTY

SATO MB400 Parts List PN 9001118A Page 3

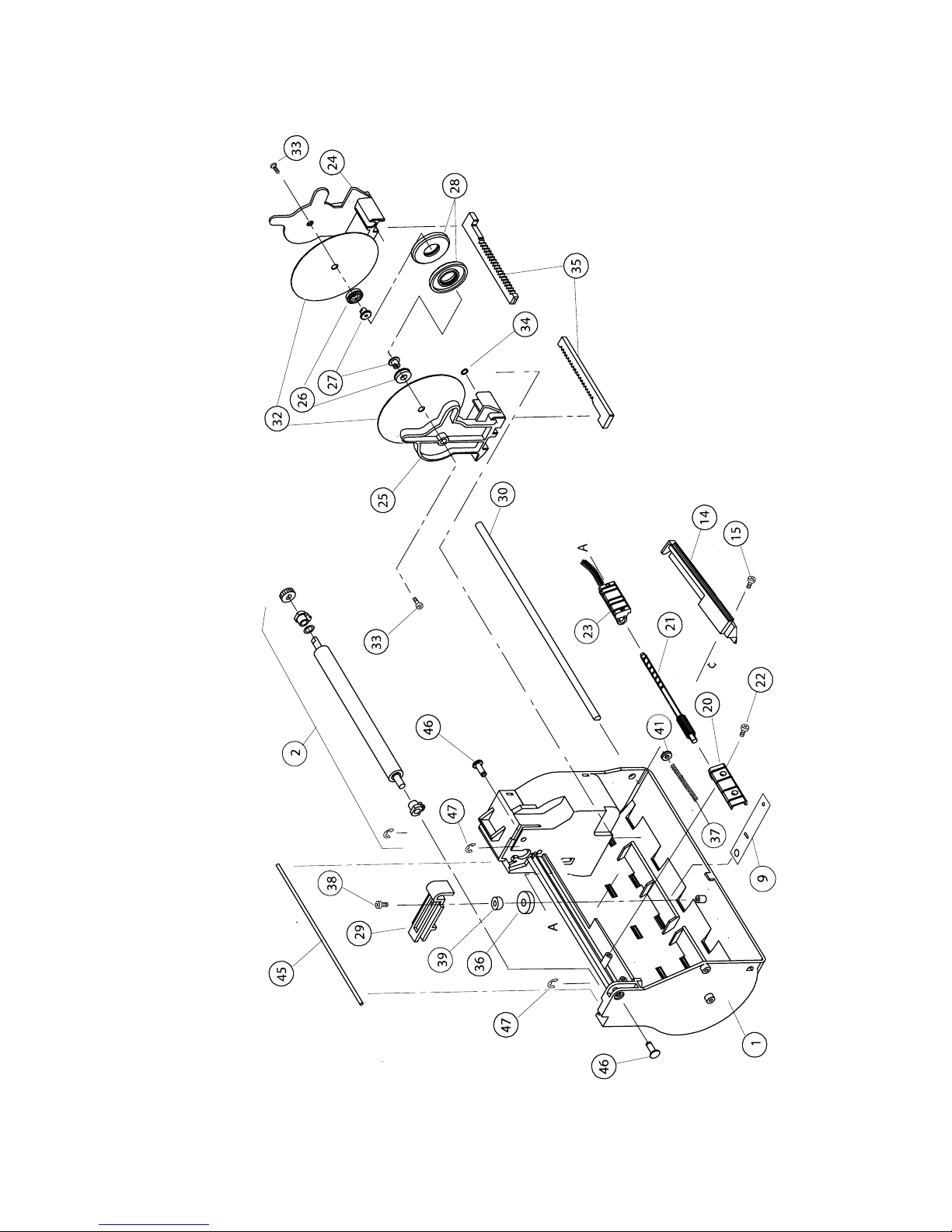

Figure PL1a, Cover & Chassis Assembly

SATO MB400 Parts List PN 9001118A Page 4

Figure PL1b, Cover & Chassis Assembly

SATO MB400 Parts List PN 9001118A Page 5

Figure PL1c, Cover & Chassis Assembly

SATO MB400 Parts List PN 9001118A Page 6

Figure PL1d, Cover & Chassis Assembly

SATO MB400 Parts List PN 9001118A Page 7

Figure PL1e, Cover & Chassis Assembly

SATO MB400 Parts List PN 9001118A Page 8

PRINT HEAD ASSEMBLY

Figure PL2, Print Head Assembly

ITEM PART NUMBER PART DESCRIPTION QTY

1 PE1A51400 PRINT HEAD BRACKET 1

2 PC1A50300 HEAD SPRING (BALANCE SPRING) 2

4 GH000761A PRINT HEAD, THERMAL 1

5 MD4300822 SCREW W/FLAT WASHER & SPRING WASHER, PAN HEAD 2

7 PE1A51500 ADJUSTMENT PLATE 1

8 MH2200622 P-TIGHT SCREW, PAN HEAD 2

10 PE6A50501 PRINT POSITION SENSOR BRACKET 1

11 MD3300622 SCREW W/FLAT WASHER & SPRING WASHER, PAN HEAD 2

20 RH1A50201 HDS CABLE SET (WIRING HARNESS, DATA) 1

21 RH1A50300 HDP CABLE SET (WIRING HARNESS, POWER) 1

24 RH1A50500 GAP CABLE SET (GAP SENSOR TRANSMITTER) 1
