Saxby Lighting 73721 Handbuch

Instruction leaflet

Sirio Suspension Kit

73721

www.saxbylighting.com Saxby Lighting Ltd. BH23 3PE

Thank you for purchasing this accessory. Please read the instructions carefully before use to ensure safe and satisfactory

operation of this product. Please retain these instructions for future reference.

This surface mount kit is designed only for use with

Sirio fittings - 71708, 71710, 73986. Please refer to the

installation instructions supplied with the fitting for wiring

and connection details.

• Checkyouhaveallnecessaryparts:

- 6 x plastic plugs

- 6 x screws

- 2 x ceiling discs

- 2 x cable boss sets with clips

- 2 x cables

• Using the metal ceiling discs as a template, mark the

fixing holes with the two discs 480mm apart. Once

marked, drill fixing holes and fit supplied fixings.

Plastic plugs are suitable for masonry only.

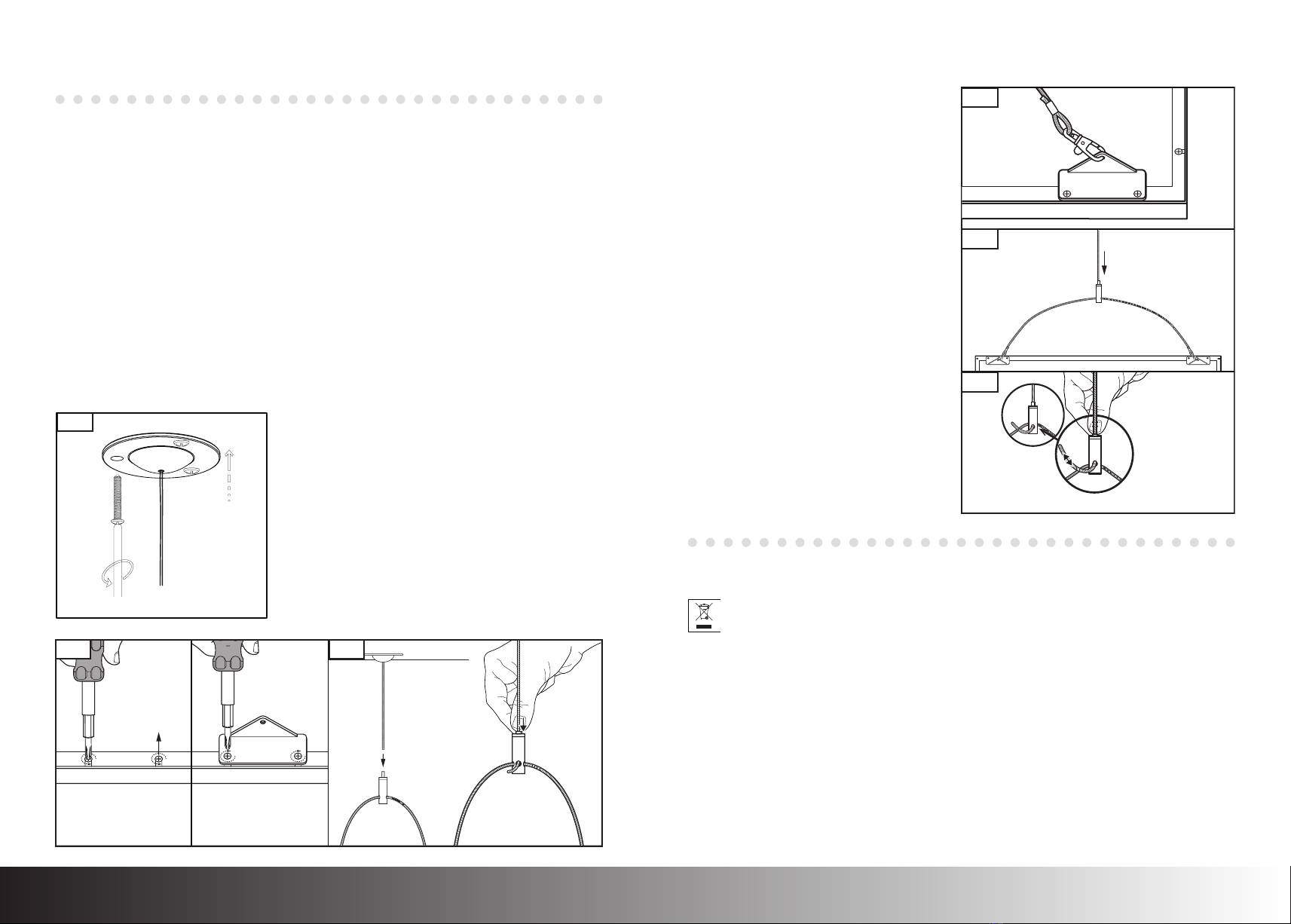

• See Figure 1. Pull the cable through the top of the

metal ceiling discs. Attach discs to the ceiling with

the supplied fixings.

• SeeFigure2.Removefoursetsoftwoscrewsfrom

corners located on the back of panel. Place fixing

bracketsoverremovedscrewholesandtightenfixing

bracketsinplaceusingremovedscrews.

• See Figure 3. Depress metal button on boss

and feed cable through until secure. This can be

re-adjusted later

Installation

For your safety, always switch off the supply before cleaning.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

CheckwithyourLocalAuthorityorretailerforrecyclingadvice.

Recycling advice

Safety information

Commissioning

Iss.1 13042017

Fig 6.

Fig 5.

Fig 4.

• See Figures 4 & 5. Attach clips on wire to fixing

brackets.

• See Figure 6. Should you wish to adjust the height

of the fitting, pull the wire through boss on both

endsofproductuntildesiredlengthisachieved.

Fig 1.

Fig 3.Fig 2.
