SB
Arya Kit
User Manual
1 Manual | Arya Kit
Technical speci!cation :
Frequency range : 44-28000 Hz +/-3 dB
Sensitivity (2.83V / 1m) :87.5 dB
Nominal impedance : 4©
Max SPL : 107 dB
Recommended ampli!er : 50-200W
Cross-over frequency :3000 Hz
Speaker type : 2½-way Floor Stand
Enclosure type :Bass re"ex
Port tuning frequency :41 Hz
Drive Units:
- High frequency driver : SB29RDC-C000-4
Low frequency drivers :2 x 6” SB17MFC35-8-
Cabinet:
18 mm MDF
Dimensions (H x W x D) : 1076 x 195 x 310 mm / 42.36 x 7.68 x 12.2 inch
Net weight (pair):
abinet only : 18.73 kg / 41.29 lb- C
Full assembly : 22.54 kg 49.69 lb- /
Special Features:
-High quality drivers
- Diffraction optimized cabinet proportions
- Internal bracing to reduce and distribute cabinet vibrations
- Dual vents and slanted internal bottom plate for reduction of standing
wave resonances
100
95
90
85
80
75
70
65
60
55
50
45
40
40.0
36.7
33.3
30.0
26.7
23.3
20.0
16.7
13.3
10.0
6.7
3.3
0.0
dB
Ohm
20 20 50 100 200 500 1k 2k 5k 10k 20kHz
Frequency response
Response Curve :
(Blue) : on axis ( Green ) : 15° off-axis ( Red ) : 30° off-axis
------ ------ ------
Manual |Arya Kit 2

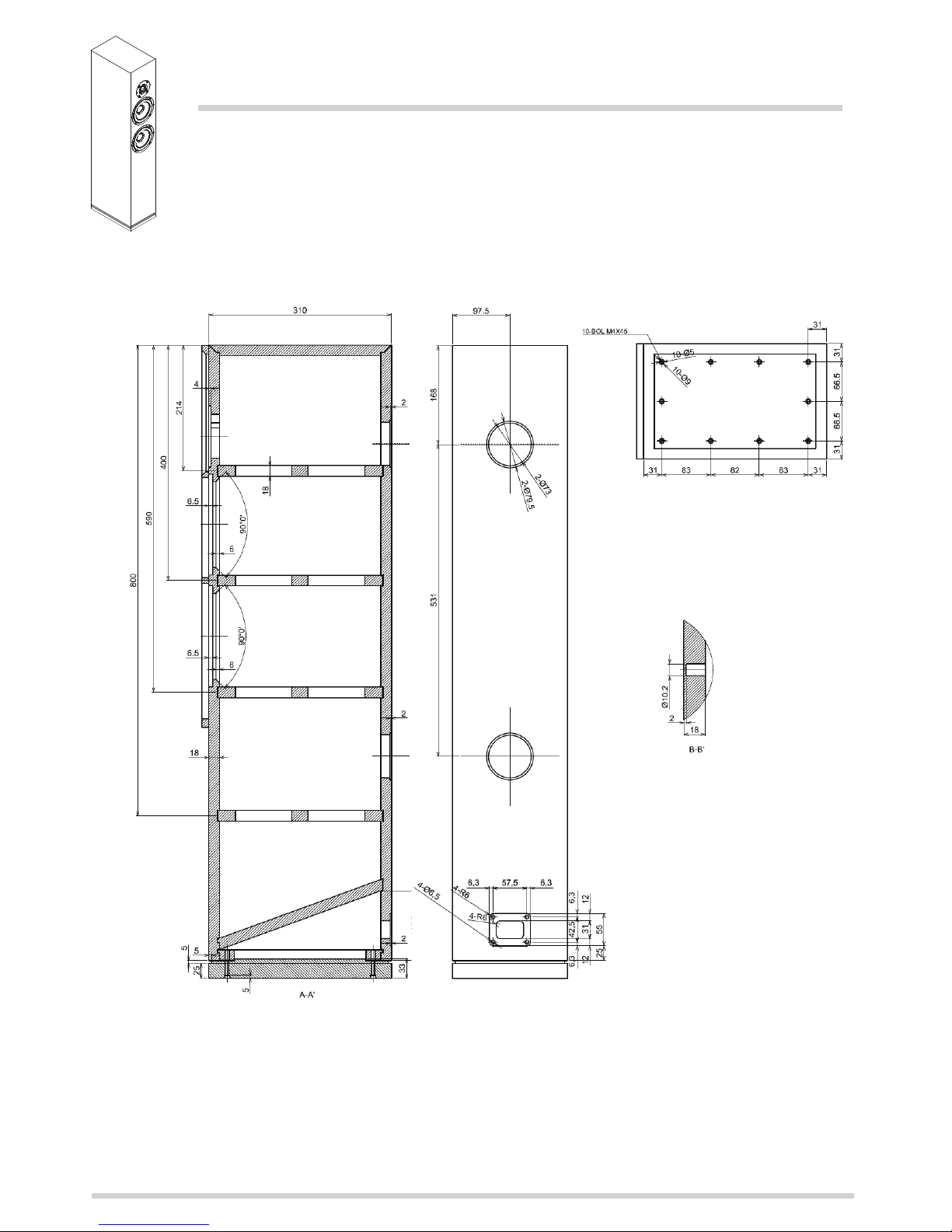

Mechanical drawing (size in mm)
3 Manual | Arya Kit
Manual | Arya Kit 4
5 Manual | Arya Kit
Manual | Arya Kit 6
Damping Material Cut Pattern (Size in mm)
7 Manual | Arya Kit
Damping material position (size in mm)
Manual | Arya Kit 8
Crossover Schematic
9 Manual | Arya Kit
Assembling instruction
Part list (each cabinet):
- High frequency driver SB29RDC-C000-4 (sold separately).............
- Low frequency drivers 6” SB17MFC35-8 (sold separately).............
- Arya kit crossover (sold separately) ...............................................
- Hex socket screw M4 x 20mm (for drivers)....................................
- Hex socket screw M4 x 30mm (for pedestal) .................................
- Countersunk screw M4 x 20mm (for terminal plate) .....................
- Wood screw 4 x 16 mm for crossover (from kit crossover) ............
- Insert nut M4 (Installed on cabinet) ..............................................
- Stainless Terminal plate .................................................................
- Binding post .................................................................................
- Seal gasket (for terminal plate) .....................................................
- Seal gasket (for pedestal, installed on cabinet) .............................
- Port "are (installed on cabinet) .....................................................
- Port paper tube (installed on cabinet) ...........................................
- Damping .......................................................................................
- Name plate ...................................................................................
- Speaker grill ..................................................................................
Tools needed:
- Hex key 3mm size (for driver and pedestal screw)
- Hex key 2.5mm size (for terminal plate screw)
- Philips screwdriver no. 2 (for crossover screw)
- Soldering iron + tin (for soldering input wire to terminal)
- Multipurpose glue (for attaching the damping and sealing the wire hole)
1 pc
2 pcs
1 pc
12 pcs
10 pcs
4 pcs
6 pcs
26 pcs
1 pc
1 pair
1 pc
1 pc
2 pcs
2 pcs
1 pc
1pc
1 pc
