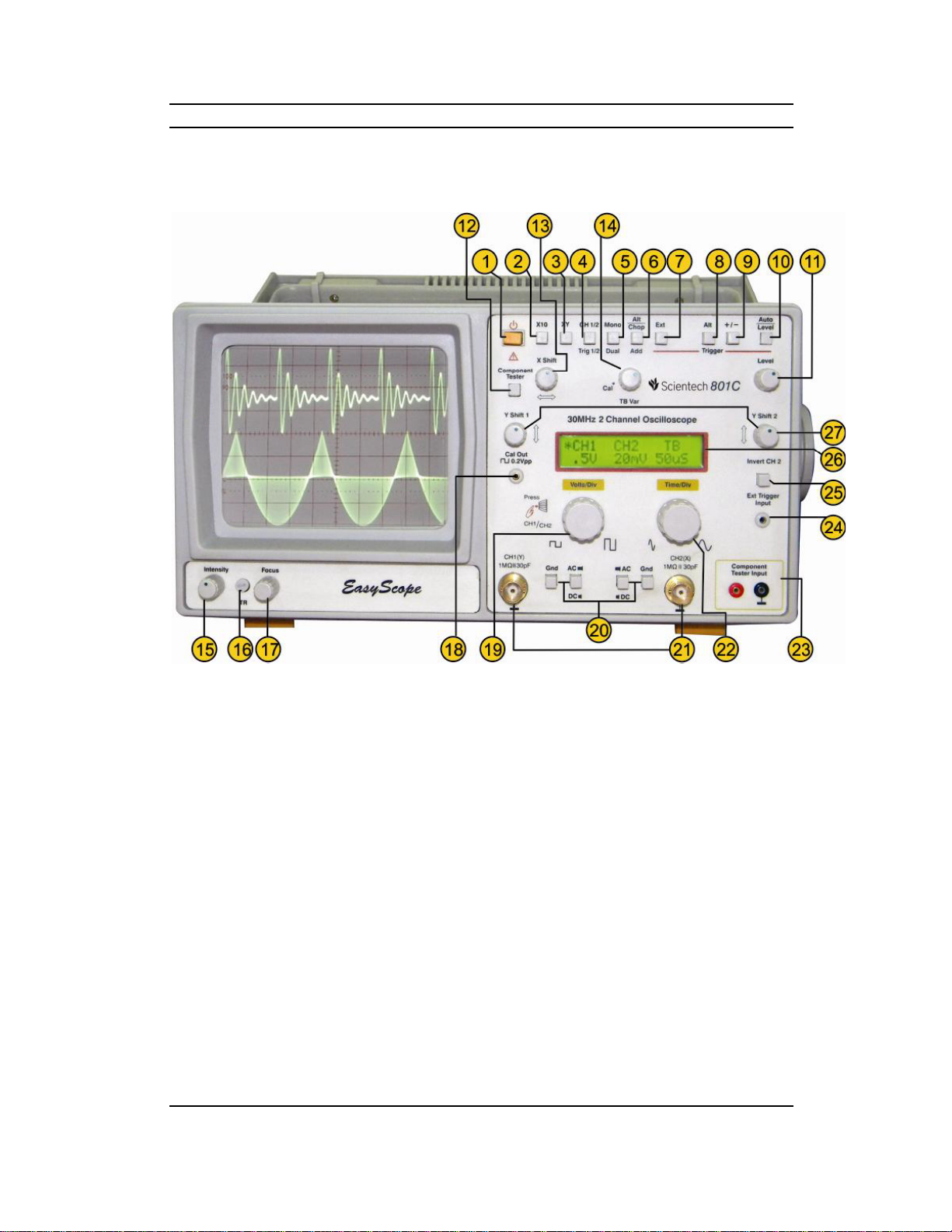

Scientech 801C
Scientech Technologies Pvt. Ltd. 8
Technical Specifications
Operating Modes:
Channel 1, Channel 2, Channel 1 & 2
alternate or chopped (approximately
350KHz), X - Y (Ratio 1:1 Input via
CH2), Add/ Sub CH1± CH2, Invert
CH2.
Vertical deflection (Y):
(Identical channels)
Bandwidth: DC - 30MHz (-3dB)
Rise Time: 12ns (approximately).
Deflection coefficients:
Micro-controller based 12 calibrated steps
5 mV/Div–20 V/Div (1-2-5 sequence).
Electronic Control Display on 32 character
backlit Alphanumeric LCD.
Accuracy: ± 3%
Input Impedance: 1M | | 30pF
(approximately)
Input: Gold plated BNC
Input coupling: DC-AC-GND
Maximum Input voltage: 400V (DC
+ Peak AC).
Time Base:
Time coefficients: Micro-controller based
18 calibrated steps, 0.5s/Div - 0.2 s/Div
(1-2-5 sequence) with magnifier x10 to 50
ns/Div, with variable control to 20ns/Div.
Electronic control display on 32 character
backlit Alphanumeric LCD.
Accuracy: ± 3% (in cal position)
Trigger System:
Modes: Auto / Level
Source: CH1, CH2, Alt CH1/CH2,
External.
Slope: Positive or Negative
Coupling: AC
Sensitivity: Internal 5mm, External 0.8V
(Approximately).
Trigger Bandwidth: 40MHz.
Horizontal Deflection (X):
Bandwidth: DC - 2.5MHz (-3 dB).
X-Y mode: Phase Shift < 3° at 60KHz.
Deflection coefficients: Micro-controller
based 12 calibrated steps 5 mV/Div-20
V/Div (1-2-5 sequence). Electronic
Control Display on 32 character backlit
Alphanumeric LCD.
Input Impedance: 1M ||30pF
(approximately)
Input: Gold plated BNC
Built-in Single Touch Component
Tester
Test Voltage: Max 8.6Vrms Open
Test Current: Max 8mArms Shorted
Test Frequency: 50 Hz, Test circuit
grounded to chassis
Continuity Tester: Beeper sounds
<75 approx.
General Information:
Cathode Ray Tube: 140mm Rectangular
tube with internal graticule. P31 Phosphor
Accelerating potential: 2KV
(approximately)
Display: 8 x 10cm
Trace Rotation: Adjustable on front panel
Calibrator: Square Wave Generator
1KHz (approximately), 0.2Vpp ± 1% for
probe compensation.
Stabilized Power Supply: All operating
voltages including the EHT
Mains Voltage: 230V ±15%, 50Hz. 60Hz
on request
Power Consumption: 45VA
(approximately)
Weight (approx): 7.5Kg. (approximately)
Dimensions (mm): W325 x D370 x H155
Operating Temperature: 0-40C°; 90% RH
(Subject to change)
