WebSTAR™ DPR2320™ and

EPR2320™ Gateway Cable

Modems User’s Guide

WebSTAR™ DPR2320™and EPR2320™ Gateway Cable

Modems User’s Guide

Introduction

Welcome to the exciting world of home and office networking. Your new WebSTAR™ DPR2320™ or EPR2320™

Gateway Cable Modem allows several users to share one high-speed broadband connection across multiple PCs,

laptops, digital cameras, personal data assistants (PDAs), and Internet devices. The WebSTAR DPR2320 and

EPR2320 Gateway Cable Modems make sharing files and photos with your family and friends hassle free. With a

WebSTAR Gateway Cable Modem, your Internet enjoyment and business productivity will surely soar.

This guide provides procedures and recommendations for placing, installing, configuring, operating, and

troubleshooting your gateway cable modem for Internet access and for high-speed wired or wireless broadband

networking for your home or office. Refer to the appropriate section in this guide for the specific information you

need for your situation. Contact your cable service provider for more information about subscribing to these

services.

Benefits and Features

Your new gateway cable modem offers the following outstanding benefits and

features:

•Provides a high-speed broadband Internet connection that energizes your

online experience, and makes downloading and sharing files and photos with

your family and friends hassle free

•Allows you to attach multiple devices in your home or office to the gateway

cable modem for high-speed networking and sharing of files and folders

without first copying them onto a CD or diskette

•Facilitates high-speed wireless networking of PCs, laptops, and PDAs

•Offers an integrated router (gateway) to simplify setting up a home or office

network

•Features Plug and Play operation for easy set up and installation

•Provides parental control and advanced firewall technology

•Includes both USB and Ethernet connections

•Allows vertical, horizontal, or wall-mount placement

•Allows automatic software upgrades by your cable service provider

•Assures a broad range of interoperability with most cable service providers

by complying with Data Over Cable System Interface Specifications

(DOCSIS) 1.0, 1.1, and 2.0 standards along with CableHome 1.0

specifications

WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide

In This Guide

IMPORTANT RULES FOR SAFE OPERATION..........................................................................................................3

What’s In the Carton?...................................................................................................................................................6

Front Panel Description................................................................................................................................................7

Back Panel Description ................................................................................................................................................8

Where is the Best Location for My Gateway Cable Modem.........................................................................................9

What are the System Requirements for Internet Service?...........................................................................................9

How Do I Set Up My High-Speed Internet Access Account?.......................................................................................10

How Do I Connect My Devices to Use the Internet?....................................................................................................11

How Do I Configure TCP/IP Protocol? .........................................................................................................................13

How Do I Install USB Drivers?......................................................................................................................................16

How Do I Troubleshoot My Internet Service Installation? ............................................................................................18

What are the Requirements for Ethernet Network Devices?........................................................................................20

How Do I Select and Place Ethernet Network Devices?..............................................................................................21

How Do I Connect Ethernet Network Devices?............................................................................................................22

What are the Requirements for USB Network Devices?..............................................................................................24

How Do I Select and Place USB Network Devices?....................................................................................................25

How Do I Connect USB Network Devices?..................................................................................................................26

What are the Requirements for Wireless Network Devices? .......................................................................................28

How Do I Select and Place Wireless Network Devices?..............................................................................................29

How Do I Install Wireless Network Devices? ...............................................................................................................30

How Do I Configure the Gateway Cable Modems?......................................................................................................32

Having Difficulty?..........................................................................................................................................................72

Tips for Improved Performance....................................................................................................................................74

How Do I Renew the IP Address on My PC?...............................................................................................................75

Front Panel Status Indicator Functions ........................................................................................................................76

Notices..........................................................................................................................................................................78

FCC Compliance ..........................................................................................................................................................79

For Information……………………………………………………………………………………………..………...Back Cover

Important Rules for Safe Operation

IMPORTANT RULES FOR SAFE OPERATION

Note to Installer

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

AVIS

Note to CATV System Installer

This reminder is provided to call the CATV

system installer’s attention to Article 820-40

of the NEC (Section 54, Part I of the Canadian

Electrical Code), that provides guidelines for

proper grounding and, in particular,

specifies that the CATV cable ground shall

be connected to the grounding system of

the building, as close to the point of cable

entry as practical.

CAUTION: To reduce the risk of electric

shock, do not remove cover (or back).

No user-serviceable parts inside. Refer

servicing to qualified service personnel.

This symbol is intended to alert you of the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying this product.

This symbol is intended to alert you that

uninsulated voltage within this product may

have sufficient magnitude to cause electric shock.

Therefore, it is dangerous to make any kind of

contact with any inside part of this product.

WARNING

TO PREVENT FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS UNIT TO RAIN OR

MOISTURE.

Read and Retain These Instructions

•Read all of the instructions before you operate this equipment. Give

particular attention to all safety precautions. Retain the instructions for future

reference.

•Comply with all warning and caution statements in the instructions. Observe

all warning and caution symbols that are affixed to this equipment.

•Comply with all instructions that accompany this equipment.

Cleaning the Equipment

Before cleaning this equipment, unplug it from the electrical outlet. Use a damp

cloth to clean this equipment. Do not use a liquid cleaner or an aerosol cleaner.

Do not use a magnetic/static cleaning device (dust remover) to clean this

equipment.

Placement

Place this equipment in a location that is close enough to an electrical outlet to

accommodate the length of the power cord. Place this equipment on a stable

surface. The surface must support the size and weight of this equipment. Place

this equipment either horizontally or vertically.

WARNING:

Avoid personal injury

and damage to this

equipment. An

unstable surface may

cause this equipment

to fall.

WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide

Accessories

Do not use accessories with this equipment unless recommended by your cable

service provider.

Ventilation

This equipment has openings for ventilation that protect it from overheating. To

ensure the reliability of this equipment, do not obstruct the openings.

•Do not place other equipment, lamps, books, or any other object on the top

of or beside this equipment.

•Do not place this equipment in any of the locations that follow:

−On a bed, sofa, rug, or similar surface

−Over a radiator or a heat register

•In an enclosure, such as a bookcase or equipment rack, unless the

installation provides proper ventilation

Overloading

Do not overload electrical outlets, extension cords, or integral convenience

receptacles, as this can result in a risk of fire or electric shock. For equipment

that requires battery power or other sources to operate, refer to the operating

instructions for that equipment.

Object and Liquid Entry

Never push objects of any kind into this product through openings as they may

touch dangerous voltage points or short out parts that could result in a fire or

electric shock. Do not expose this equipment to liquid or moisture. Do not place

this equipment on a wet surface. Do not spill liquids on or near this equipment.

Lightning and Power Surges

Plug your equipment into a surge protector in order to reduce the risk of damage

from lightning strikes and power surges. If you are unsure of the type of surge

protector to use, contact your cable service provider.

Servicing

Do not open the cover of this equipment. If you open the cover, your warranty will

be void. Refer all servicing to qualified personnel only. Contact your cable service

provider for instructions.

Important Rules for Safe Operation

Power Cord Protection

Arrange all power cords so that people cannot walk on the cords, place objects

on the cords, or place objects against the cords, which can damage the cords.

Pay particular attention to cords that are at plugs, at electrical outlets, and at the

places where the cords exit the equipment.

Power Sources

A label on the AC power adapter that is supplied with this equipment indicates

the correct power source for this equipment. Operate this equipment only from an

electrical outlet that has the voltage and frequency that the label indicates.

If you are unsure of the type of power supply to your residence, consult

Scientific-Atlanta, Inc., or your local power company.

Grounding

This equipment may be provided with a three-prong plug. Properly ground (earth)

this equipment by inserting the plug into a grounded electrical, three-socket outlet.

If you are unable to insert this plug fully into the outlet, contact an electrician to

replace your obsolete outlet.

Damage that Requires Service

For damage that requires service, unplug this equipment from the electrical outlet.

Contact your cable service provider when any of the following situations occur:

•There is damage to the power cord or plug

•Liquid enters the equipment

•A heavy object falls on the equipment

•There is exposure to rain or water

•Operation is not normal (the instructions describe the proper operation)

•If you drop this equipment, or damage the cabinet of this equipment

•If this equipment exhibits a distinct change in performance

Upon completion of any service or repairs to this equipment (cable modem), ask

the service technician to perform safety checks to determine that the equipment

is in proper operating condition.

WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide

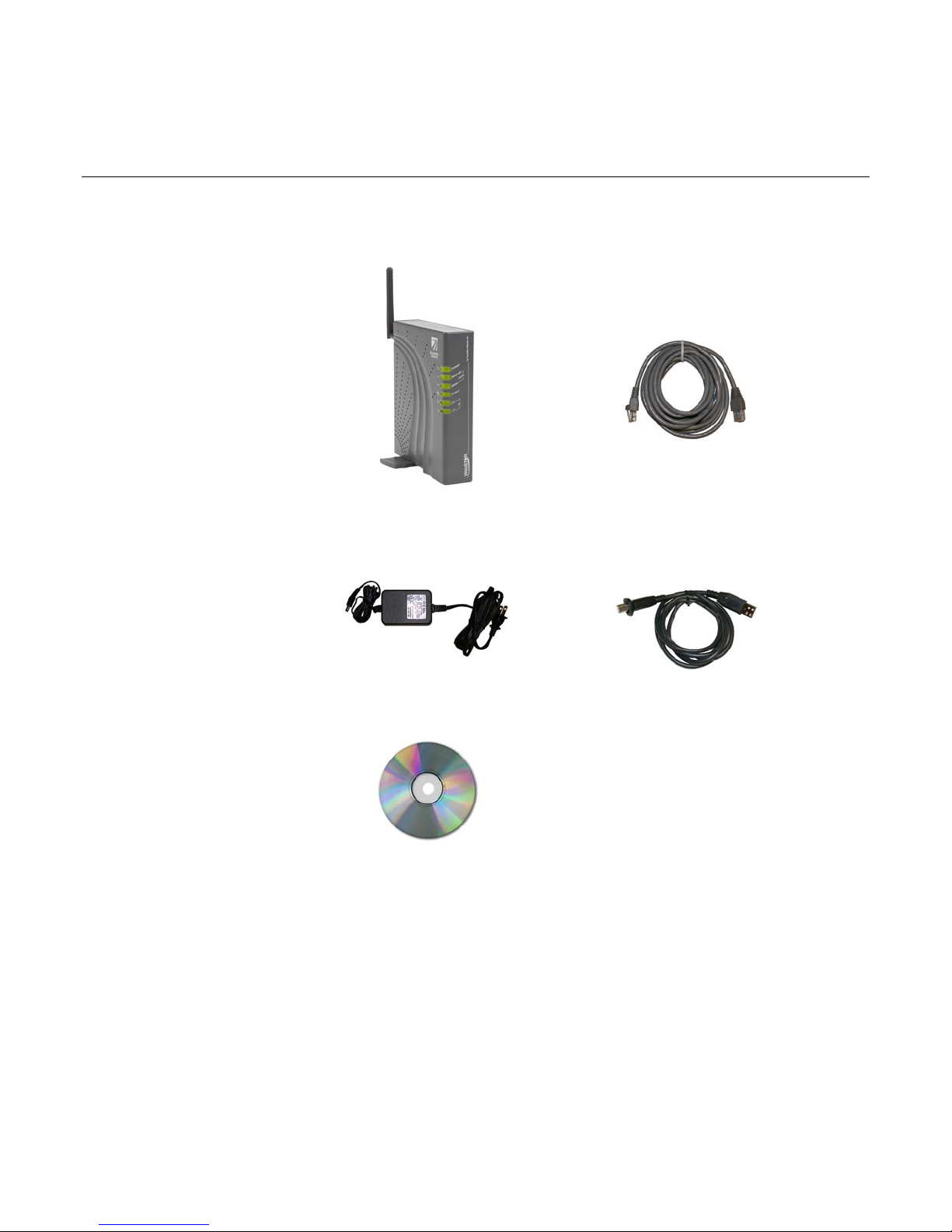

What’s In the Carton?

When you receive your gateway cable modem, you should check the equipment and accessories to verify that

each item is in the carton and that each item is undamaged. The carton contains the following items:

One Model DPR2320 or EPR2320

Gateway Cable Modem with

detachable antenna

One Ethernet cable (CAT5/RJ-45)

One power adapter with power cord

One USB cable

One CD-ROM containing the user’s

guide and the USB drivers

If any of these items are missing or damaged, please contact your cable service

provider for assistance.

You will need an optional cable signal splitter and additional standard RF coaxial

cables if you want to connect a VCR, a Digital Home Communications Terminal

(DHCT) or a set-top converter, or a TV to the same cable connection as your

cable modem.

Front Panel Description

The front panel of your cable modem provides status lights that indicate how well and at what state your cable

modem is operating. After the cable modem is successfully registered on the network, the POWER and CABLE

status indicators illuminate continuously to show that the cable modem is active and fully operational. See Front

Panel Status Indicator Functions, later in this guide, for more information on front panel status indicator

functions.

by Scientific-Atlanta, Inc.

POWER

RECEIVEDATA

SEND

CABLE

T10948

1 POWER—Illuminates solid green to indicate that power is

being applied to the cable modem

2 RECEIVE DATA—Blinks to indicate that the cable modem is

receiving data from the cable network

3 SEND DATA— Blinks to indicate that the cable modem is

sending data to the cable network

4 CABLE—Illuminates solid green when the cable modem is

registered on the network and fully operational. This indicator

blinks to indicate one of the following conditions:

•The cable modem is booting up and not ready for data

•The cable modem is scanning the network and attempting

to register

•The cable modem has lost registration on the network and

will continue blinking until it registers again

5 PC—Illuminates solid green to indicate that an Ethernet/USB

carrier is present and blinks to indicate that Ethernet/USB

data is being transferred between the PC and the cable

modem

6 PC Wireless—Illuminates solid green to indicate that a

wireless access point is enabled and blinks to indicate that

wireless data is being transferred over the wireless

connection

Note: After the cable modem is successfully registered on

the network, the POWER (LED 1) and CABLE (LED 4)

indicators illuminate continuously to indicate that the cable

modem is online and fully operational.

WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide

Back Panel Description

The following illustration describes the back panel components of the DPR2320 and the EPR2320.

T10947

POWER

ANTENNA

12 VDC RESET ETHERNET CABLE

USB

1 ANTENNA— Provides a communication connection for the

built-in wireless access point (WAP) to allow wireless devices

to communicate with the cable modem

2 POWER—Connects the cable modem to the DC output of the

AC power adapter that is provided with your cable modem

3 RESET—Activating this switch resets the gateway to factory

default values and reboots the cable modem

This switch is for maintenance purposes only.

Do not use unless directed to do so by your service provider.

4 ETHERNET—RJ-45 Ethernet port connects to the Ethernet

port on your PC or your home network

5 USB—12 Mbps USB port connects to the USB port on your

6 CABLE—F-Connector connects to an active cable signal

from your cable service provider

CAUTION:

Avoid damage to your equipment. Only use the AC

power adapter and power cord that is provided with

your cable modem.

Where is the Best Location for My Gateway Cable Modem?

The ideal location for your gateway cable modem is where it has access to outlets and other devices. Think about

the layout of your home or office, and consult with your cable service provider to select the best location for your

gateway cable modem.

Consider these recommendations:

•Position your PC and gateway cable modem so that they are located near an

AC power outlet.

•Position your PC and gateway cable modem so that they are located near an

existing cable input connection to eliminate the need for an additional cable

outlet. There should be plenty of room to guide the cables away from the

modem and the PC without straining or crimping them.

•Airflow around the gateway cable modem should not be restricted.

•Choose a location that protects the gateway cable modem from accidental

disturbance or harm.

•Read this user’s guide thoroughly before you decide where to place your

gateway cable modem.

What are the System Requirements for Internet Service?

To ensure that your gateway cable modem operates efficiently for high-speed Internet service, verify that all of the

Internet devices on your system meet or exceed the following minimum hardware and software requirements.

You will also need an active cable input line and an Internet connection.

Minimum System Requirements for a PC

•A PC with a Pentium MMX 133 processor or greater

•32 MB of RAM

•Web browsing software (Netscape or Internet Explorer)

•CD-ROM drive

Minimum System Requirements for Macintosh

•MAC OS 7.5

•32 MB of RAM

System Requirements for an Ethernet Connection

•A PC with Microsoft Windows 95 operating system (or later) with TCP/IP

protocol installed, or an Apple Macintosh computer with TCP/IP protocol

installed

•An active 10/100BaseT Ethernet network interface card (NIC) installed PC

System Requirements for a USB Connection

•A PC with Microsoft Windows 98SE, ME, 2000, or XP operating system

•A master USB port installed in your PC

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Scientific Atlanta Modem Handbücher

Scientific Atlanta

Scientific Atlanta WebSTAR DPC2100 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta WebSRTAR DPX213 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta DPX2203CTM Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta WebSTAR DPX110 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta WebSTAR DPX110 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta WebSTAR DPX110 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta WebSTAR DPX130 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta CME090W Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta WebSTAR DPX2100 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta DPC2505TM Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta DPX2213 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta WebSTAR DPX100 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta WebSTAR DPR300 Series Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta WebSTAR DPC2100 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta DPC2203 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta WebSTAR DPX100 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta WebSTAR DPR2320 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta WebSTAR DPX2203 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta WebSTAR DPX100 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta WebSTAR EPR2320 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta WebSTAR DPC2223 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta WebSTAR DPC2100 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta WebSTAR DPX2203 Bedienungsanleitung

Beliebte Modem Handbücher anderer Marken

Davicom

Davicom DM562AP Bedienungsanleitung

EpiValley

EpiValley TATA indicom SXC-1080 Bedienungsanleitung

Zte

Zte WiMAX Bedienungsanleitung

Intelimax

Intelimax MA-2060 Bedienungsanleitung

SMC Networks

SMC Networks D3CM1604V Gebrauchs- und Pflegehandbuch

Telstra

Telstra Wi-Fi 4G Advanced Pro X Bedienungsanleitung

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Bedienungsanleitung

Samsung

Samsung AceLink SAM-335A Bedienungsanleitung

Enfora

Enfora Enabler-G Kurzanleitung zur Einrichtung

iRZ

iRZ ATM2-232 Bedienungsanleitung

Zhone

Zhone 6310 Bedienungsanleitung

Paradyne

Paradyne Hotwire 7976 Bedienungsanleitung

US Robotics

US Robotics 3453C Bedienungsanleitung

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Bedienungsanleitung

Zte

Zte MF823 Bedienungsanleitung

Four-Faith

Four-Faith F1403 Bedienungsanleitung

Sierra Wireless

Sierra Wireless AIRLINK MP595W Bedienungsanleitung

Gemtek

Gemtek WiMAX WIXFBR-103 Bedienungsanleitung
