Scientific Atlanta AllTouch AT6400 Bedienungsanleitung

Sound Control

Note: These keys are assigned to the TV when the

TV mode key is programmed with a valid code.

Adjusts volume

Mutes sound

Numeric Keys

Enters channel numbers, text, and

remote codes. Also use to enter your

parental control PIN

Clears text and numbers in text fields

Enters and saves (stores) an entry

What Devices Can I Control?

The four mode keys arched across the top of the

remote tell the remote which device you want to

operate.

Each mode key is associated with different types of

devices. You can use each mode key to control one of

its associated devices:

Mode Key Associated Devices

STB IP gateway set-top

TV* TVs (including HDTVs)

DVD* DVD players

AUX* VCRs, receivers, tuners, and Home

Theater in a Box (HTIB)

*These keys can be reassigned to control different

devices. Go to the Reassign Mode Keys section of

this guide for instructions.

Viewing and Browsing Control

Accesses the phone menu

Opens or closes the Main Menu

Accesses the On Demand Menu

Accesses the DVR list of recordings

Views live TV

Moves through selections

Selects and deselects screen items

Returns from menu screens to viewing

TV or video

Accesses the search menu

Accesses iNTERACT (Internet and

interactive content

Turns MultiScreen mode on or off

Displays or removes program information

for the currently selected program. Obtains

Info about a highlighted program or channel

while in the program guide

Displays or closes the program guide

Jumps to next section or switches to last

channel

Selects channel, up or down, when watching

TV. Moves up or down one page in the

program guide and in some menu screens

AT6400™

AllTouch®

IR Universal

Remote Control

User’s Guide

1 2

ABC

DEF

4 5

JKL

MNO

7 8

TUV

GHI

PQRS

WXYZ

MUTE

VOL CH

JUMP

DVR

INTERACT

MULTISCREEN

SPACE

STB

AUX

DVD

CLEAR ENTER

GUIDE

MUTE JUMP

VOD

Welcome to the Ultimate

Control Experience!

Your new AT6400™AllTouch®Infrared (IR)

Universal Remote Control (remote) is a true

universal remote, functioning as four remotes in

one. As one example, you can use this remote to

operate your set-top box, your TV, and two other

devices, such as a DVD player and VCR.

Important Information About

Your Remote

Your remote is initially programmed to only

operate your set-top box. Therefore, you must

program the remote to operate your TV, VCR,

or other devices. See Program the Remote to

Control My Devices to learn how to enter

device codes and program your remote.

Note: You must use the IR remote within line of

sight of the set-top box to operate the

set-top box correctly.

How Does A Universal Remote

Control Work?

You tell the remote which type of device you

want to operate using the four keys arched

across the top of the remote. These keys, known

as mode keys, are labeled STB, TV, DVD, and

AUX. Each mode key is associated with a specific

device. As an example, after programming the

remote, if you want the remote to operate your

TV, you simply press the TV key. Other keys you

press on the remote, thereafter, should operate

your TV. Want to switch the remote to operate a

different device? Just press the mode key for the

next device you want to operate. In this guide, you

will learn which types of devices you can control

and how to program the remote to control your

specific devices.

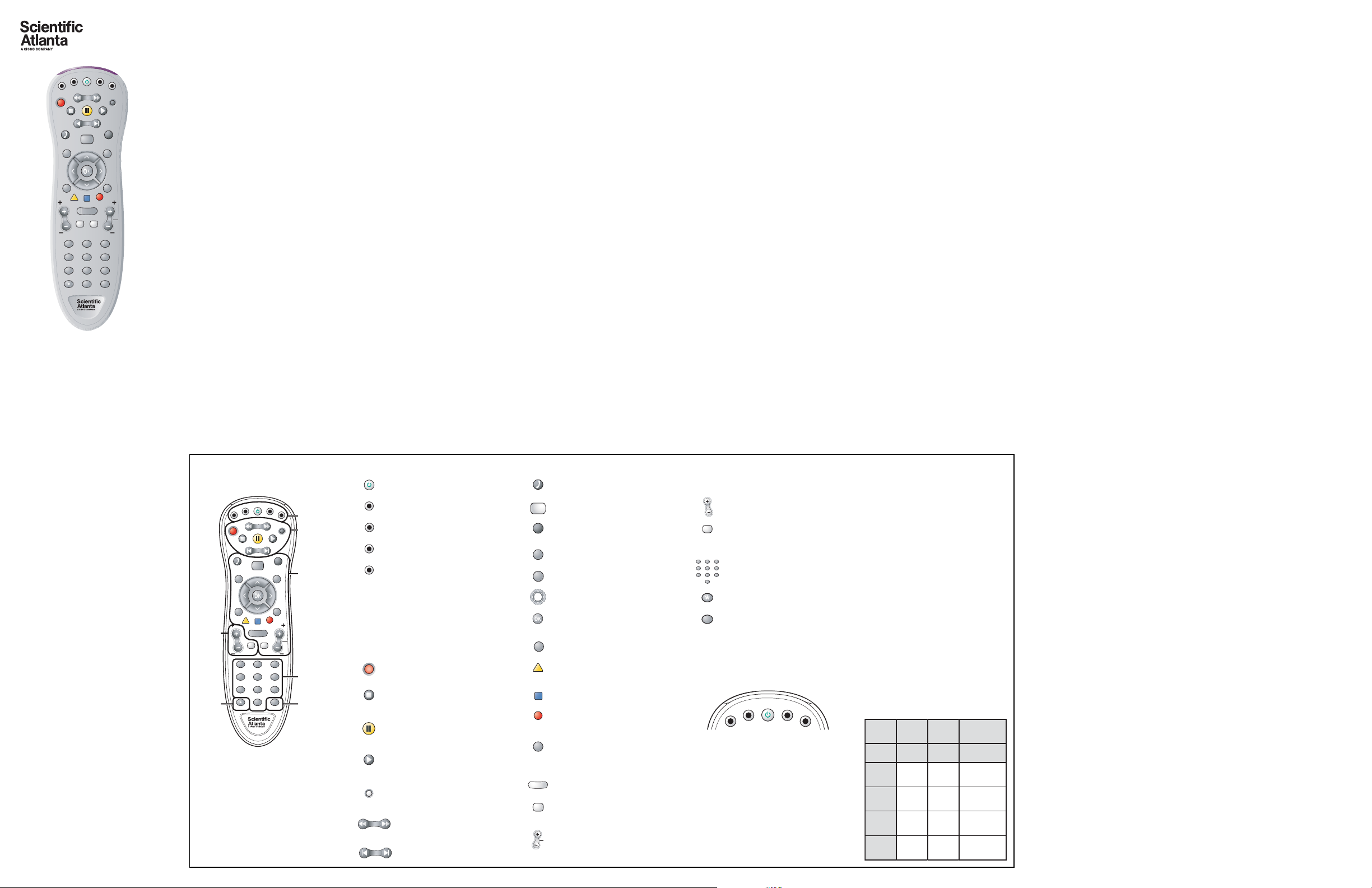

Quick Reference

Where Do I Start?

Before you begin using your remote, complete the

following initial setup tasks.

Install the Batteries

The remote requires two AA batteries (alkaline

recommended). A diagram in the battery compartment

of the remote indicates proper placement of the

batteries. When batteries are properly installed, the

light on the remote blinks each time a key is pressed.

Visit the Quick Reference Section

Use the Quick Reference section of this guide to

familiarize yourself with the remote and the functions

of its various keys. Knowing the function and location

of the keys on the remote will assist you when you

are programming the remote.

Program the Remote

To learn how to program your remote, refer to the

sections What Devices Can I Control, What Devices

Do I Want to Control, and Program the Remote to

Control My Devices for further instructions.

Find a Place to Store Your Remote

Keeping up with one remote is much easier than

keeping up with four or five remotes. However, it is

still a good idea to find a storage location for your

remote. The AT6400 is not a toy. It should be kept

out of the reach of children under the age of 6 years.

Program the Remote

to Control My Devices

Your remote is initially programmed to only operate

your set-top box. You will need to set up the remote to

operate your other devices using its TV, DVD, and AUX

modes. The TV key may be programmed to operate a

standard or high-definition television (HDTV). The

DVD key may be programmed to operate a DVD player.

The AUX key may be programmed to operate a VCR,

a receiver, an amplifier, or an HTIB system. If the

remote provides only limited functionality for a device,

you can look for a code that provides more functionality.

Refer to the code tables at the end of this guide locate

additional codes to program your remote.

Note: You have the option to assign some remote keys

to operate one device type only. For example, you may

want to assign volume control to the TV only. If this is

the case, you can reprogram power, volume, and channel

control using procedures found later in this guide.

Assigning a Device Code to a Mode Key

1. Refer to the code tables at the end of this guide to

locate the information for the device you want to

program.

Note: If your device is not listed, you may be able to

program the remote using the Auto-Search function.

Go to What If None of the Codes Work for

instructions.

2. Turn on the device that you want to assign to a

mode key.

3. Press and hold the appropriate mode key (TV, DVD,

or AUX) on the remote, and then press and hold the

OK key.

4. Release both keys and the mode keys will flash twice.

5. Enter the first 4-digit setup code for the device using

the number keys (0-9) on the remote. The mode key

will flash three times to indicate that the code entry

was accepted.

Notes:

• When an invalid code is entered, the selected

mode key will display a long flash to indicate that

you have not entered the code correctly.

• Should the remote time-out before you complete

the code setup, you will need to start over. This is

indicated by one long flash of the red LED.

6. Point the remote at the device, and press POWER

to test the device.

Device Control

Turns devices on or off

Enables set-top mode functions

Enables TV mode functions

Enables DVD mode functions

Enables AUX mode functions

DVR, VOD, DVD, VCR Control

Notes:

•InSTB mode, these keys control DVR and VOD

functions.

• In DVD and AUX modes, these keys may control

your DVD or VCR depending on how you have

programmed the remote.

Records the selected program

Stops DVD, VCR, VOD, or recorded

content

Pauses DVD, VCR, VOD, or recorded

content

Plays DVD, VCR, VOD, or recorded

content

Scrolls through available TV or video input

sources

Moves back or forward through

recorded or On Demand content

Skips back or forward through

recorded or On Demand content

7. Did the device power off?

• If yes, write down the code that worked on the

cover of this guide. You may need it again if the

device code is accidentally erased.

• If no, repeat this procedure from step 3 using a

different setup code.

Note: If none of the codes listed for your brand

of device operate the device correctly, go to

What If None of the Codes Work for

instructions.

8. Repeat this procedure for each mode key you want

to program.

What If None of the Codes Work?

If none of the codes listed for your brand of device

operate the device correctly, or if your device is not

listed in the codes table, you can use the Auto-Search

function to search through the code library for a valid

code. This section provides a procedure for using the

Auto-Search function to search the code library for TV

or DVD mode codes as well as a procedure for using

the Auto-Search function to search for AUX mode

codes.

Note: Read the procedures in this section thoroughly

before beginning. You need to be prepared to observe

the behavior of the remote.

Auto-Search Features

Consider the following items when using Auto-Search:

• The Auto-Search function begins searching from the

first code.

• If a valid code is not found, the green backlight will

flash twice and the remote will return to normal

operation.

• If any other key is pressed except PLAY, ENTER,

POWER, EXIT, REW, FF, or NUMBER KEYS 1

through 4 (when programming the AUX mode key),

the mode key will display a long red flash (error

message) and the remote returns to normal operation.

• Should the remote time-out before you complete

the Auto-Search function you will need to start over.

This is indicated by one long red flash of the red

LED.

• If the device is not listed and the Auto-Search

function is unable to find a usable code, you may

need to use the original remote provided with the

device.

Auto-Searching the Code Library for

TV or DVD Mode Codes

(Program Code 922)

Note: This procedure will not work for devices other

than TVs or DVDs.

1. Turn on the device you that you want to assign to

the TV or DVD key.

2. Point the remote at the device.

3. Press and while holding a selected mode key (TV

or DVD), press the OK key. For example, to search

for a TV code, press and hold TV and OK at the

same time.

4. Release both keys and all the mode keys will blink

twice.

5. Enter the programming code 922by pressing the

number keys on the remote. The mode key you

selected in step 3 blinks twice indicating a

successful entry.

6. Point the remote toward the device, and press and

hold PLAY. The remote automatically tests each

code in its library, beginning with the most common

codes.

7. Without releasing the PLAY key, observe the device.

When a usable code is found, the device will respond

by turning off. As soon as the device powers off,

release the PLAY key to temporarily pause the auto-

search function until you choose one of the following

actions:

•Save code and exit – Press the ENTER key on

the remote to program the code in the remote

and the mode key will flash three times

indicating successful entry.

•Step forward – Press the fast-forward (FF) key

on the remote to step ahead through the codes

one at a time. Then, return to step 6.

•Step backward – Press the rewind (REW) key

on the remote to step back through the codes one

at a time. Then, return to step 6.

•Exit without saving the code – Press the EXIT

key on the remote. The selected mode key will

flash three times and return to normal operation.

•Send the current code – Press the POWER key

on the remote to send the current code. If the

device turns back on, press the ENTER key. If

the device does not turn on, return to step 6.

•Continue with auto-search function – Press the

PLAY key on the remote to continue with the

auto-search function. Then, return to step 6.

Auto-Searching the Code Library for

AUX Mode Codes (Program Code 922)

1. Turn on the device that you want to assign to the

AUX key.

2. Point the remote at the device.

3. Press and while holding the AUX key, press the

OK key.

4. Release both the AUX key and the OK key and all

the mode keys will blink twice.

5. Enter the programming code 922by pressing the

number keys on the remote. The AUX key blinks

twice indicating a successful entry.

6. Press the PLAY key, choose one of the following

device categories and then, using the number keys

on the remote, press its assigned number (1 – 4)

based on the following list:

1 = VCRs

2 = Receiver/Tuners

3 = Amplifiers

4 = HTIB

Note: The device categories are number-coded to

provide a more direct programming method.

7. Point the remote toward the device, and press and

hold PLAY. The remote automatically tests each code

in its library, beginning with the most common codes.

8. Without releasing the PLAY key, observe the device.

When a usable code is found, the device will respond

by turning off. As soon as the device powers off, release

the PLAY key to temporarily pause the auto-search

function until you choose one of the following

actions:

•Save code and exit – Press the ENTER key on

the remote to program the code in the remote and

the mode key will flash three times indicating

successful entry.

•Step forward – Press the fast-forward (FF) key

on the remote to step ahead through the codes

one at a time. Then, return to step 7.

•Step backward – Press the rewind (REW) key

on the remote to step back through the codes one

at a time. Then, return to step 7.

•Exit without saving the code – Press the EXIT

key on the remote. The selected mode key will

flash three times and return to normal operation.

•Send the current code – Press the POWER key

on the remote to send the current code. If the

device turns back on, press the ENTERkey. If the

device does not turn on, return to step 7.

•Continue with auto-search function – Press the

PLAY key on the remote to continue with the

auto-search function. Then, return to step 7.

Reassign Mode Keys

You can reassign a mode key to operate a different

device. For example, you can reassign the AUX key to

operate a DVD player or a TV. If you reassign a key,

be sure you update the table found earlier in this

guide.

Reassigning Mode Keys

(Program Code 944)

1. Press and hold the STB mode key on the remote.

2. Without releasing the STB key, press and hold the

OK key.

3. Release both the keys and all mode keys will flash

twice.

4. Enter the programming code 9 4 4 by pressing the

number keys on the remote. The STB mode key

blinks twice indicating a successful entry.

5. Press and release the mode key associated with the

type of device you want to control, and then press

and release the mode key that you want to change.

The newly assigned mode key blinks one time

indicating a successful entry.

Some common examples:

• To program the AUX key to operate your DVD

player, press DVD and then AUX.

• To program the DVD key to operate your TV,

press TV and then DVD.

Change Volume Control

By default, once the TV mode key has been programmed

with a valid code, the volume and mute buttons will

always control your TV. They will adjust the volume of

your TV higher, lower, or temporarily switch the volume

off (Mute), regardless of whether the remote is in STB,

TV, DVD, or AUX mode.

If you prefer, you can choose to have the volume and

mute buttons always control a different device rather

than your TV, such as a home theater receiver. (See

Controlling Volume for One Device below.) Note

that you must first program one of the mode keys,

such as AUX, with a valid code for that device.

Alternatively, you can choose to have the volume and

mute buttons control different devices when the

remote is in different modes. For example, you might

want to control the volume on your TV when in TV

mode, but the volume on your home theater receiver

when in AUX mode. (See Controlling Volume for

Different Devices below.) Note that not all devices

have volume controls, so if you choose this option, the

volume and mute buttons may do nothing in some

modes, such as STB and DVD.

Controlling Volume for One Device

(Program Code 955)

1. Press and hold the STB mode key on the remote.

2. Without releasing the STB key, press and hold the

OK key.

STB

DVD

AUX

T12121

STB

AUX

DVD

VOL

MUTE

1 2

ABC

DEF

4 5

JKL

MNO

7 8

TUV

GHI

PQRS

WXYZ

SPACE

CLEAR

ENTER

LED Indicators

There are red LEDs underneath each of the four mode

keys (STB, TV, DVD, and AUX) that flash each time

a key is pressed to show which device the key is

currently controlling.

There are also green LEDs that illuminate several

keys whenever the remote is in use. They stay

illuminated for a short time after a key is pressed.

During programming, if the remote times out before

you complete the code setup, you will need to start

over. This is indicated by one long flash of the red

LED.

What Devices Do I Want to

Control?

To help you keep track of the devices you want to

control, list the type of devices you have (including

brand) in the following table. Then, use the code tables

at the end of this guide to locate the codes for your

device. For example, look under TV Group if you

need to program the remote to operate your TV. If

you have two devices that use the same key, you

must reassign the TV, DVD, or the AUX key. The

STB key cannot be reassigned. Go to Reassign

Mode Keys. Otherwise, go to Program the

Remote to Control My Devices for additional

instructions.

Mode

Key

Device

Type Brand Codes

Example:

DVD DVD Sony 2066, 2193

STB

DVD

AUX

Device

Control

DVR/VOD/

DVD/VCR

Control

Viewing

and

Browsing

Control

Numeric

Keys

Enter

Sound

Control

Clear

T12129

1 2

ABC

DEF

4 5

JKL

MNO

7 8

TUV

GHI

PQRS

WXYZ

MUTE

VOL CH

JUMP

DVR

INTERACT

MULTISCREEN

SPACE

STB

AUX

DVD

CLEAR ENTER

GUIDE

MUTE JUMP

VOD

3. Release both keys and all mode keys will blink

twice.

4. Enter the programming code 9 5 5 by pressing the

number keys on the remote. The STB mode keys

blinks twice indicating a successful entry.

5. Press and release the mode key for the device you

want the volume keys to control. For example, if

you want to control volume through your TV, press

and release TV. The selected mode key blinks three

times indicating a successful entry.

The volume keys now control only one device whether

you are in STB, TV, DVD, or AUX mode.

Controlling Volume for Different

Devices (Program Code 955)

1. Complete steps 1 through 4 of the previous

procedure.

2. Press and release the Enter key. The STB mode key

blinks three times indicating a successful entry.

After you press the Enter key, the volume keys control

the device assigned to that mode. For example, in TV

mode, the volume keys control volume for the TV only.

Notes:

• If any other key is pressed except the Mode keys

and the ENTER key, the remote will not accept any

changes or updates. The STB mode key will display

a long red flash and the remote returns to normal

operation.

• If the remote times out before you complete

programming volume control, the remote will not

accept any changes. You will have to start over from

step 1 of this procedure.

Change Channel Control

The remote is set by default to control channel

selection on the set-top. You can also program channel

control to control any of the TV, DVD,

or AUX mode devices provided the device allows for

channel control assignment. Or, you can set the

channel selection control programming to control

channels (or page up or down) for all of the devices

programmed in the four mode keys. Otherwise, you

will only be able to control channels (or page up or

down) on a specific device, for example, the TV or

DVD.

Note: The channel control keys include CH / Page,

Jump, and the number keys 0 through 9.

Controlling Channels for One Device

(Program Code 966)

1. Press and hold the STB mode key on the remote.

2. Without releasing the STB key, press and hold the

OK key.

3. Release both keys and all mode keys will blink

twice.

4. Enter the programming code 9 6 6 by pressing the

number keys on the remote. The STB mode key

blinks twice indicating a successful entry.

5. Press and release the mode key for the device you

want the channel key to control. For example, if you

want to control channels on your TV, press and

release TV. The selected mode key blinks three times

indicating a successful entry.

The channel key now always controls the device

associated with the mode you selected in this step,

whether in STB, TV, DVD, or AUX mode.

Controlling Channels for Different

Devices (Program Code 966)

1. Complete steps 1 through 4 of the previous procedure.

2. Press and release the Enter key. The STB mode key

blinks three times indicating a successful entry.

After you press the Enter key, the channel key now

controls the device associated with the mode key you

select. For example, in TV mode, the channel key

controls the TV, but in STB mode, the channel key

controls the set-top box.

Notes:

• If any other key is pressed except the Mode keys

and the ENTER key, the remote will not accept any

changes or updates. The STB mode key will display

a long red flash and the remote returns to normal

operation.

• If the remote times out before you complete

programming channel selection control, the remote

will not accept any changes. You will have to start

over from step 1 of this procedure.

VOD

DVR

JUMP

INTERACT

MULTISCREEN

Change Power Control

The POWER button on the remote is set by default to

control the power switch on one device at a time,

depending on the mode (STB, TV, DVD, or AUX).

When in STB mode, the remote will switch the set-top

from OFF (standby mode) to ON, or from ON to OFF

(standby mode). However, you can alternatively

program the POWER button to control the power

switch on up to four devices at the same time, instead

of controlling one device at a time. It is highly

recommended that you set up the Power button to turn

on and off your set-top and your TV at the same time.

Turning off the set-top saves electricity and extends

the life of the box. When turned off, the set-top box

can still record scheduled programs on its DVR and

perform any other necessary functions.

Controlling Power for Multiple

Devices at Once (Program Code 977)

1. Press and hold the STB mode key on the remote.

2. Without releasing the STB key, press and hold the

OK key.

3. Release both keys and all mode keys will blink

twice.

4. Enter the programming code 9 7 7 by pressing the

number keys on the remote. The STB mode key

blinks twice indicating a successful entry.

5. For the first device, press the STB key. The STB

mode key blinks twice.

6. For the second device, press the applicable mode

key (TV, DVD, or AUX). The selected mode key

blinks twice.

7. Repeat step 6 for up to two more devices (total of

four devices).

8. Press the ENTER key to complete the power switch

control programming. The last selected mode key

blinks 3 times indicating a successful entry.

Example: In an example scenario where you press

only TV in steps 6 and 7, the POWER key will always

control both the set-top and the TV at the same time,

regardless of which mode the remote is in (STB, TV,

DVD, or AUX).

Controlling Power for One Device at a

Time (Program Code 977)

1. Complete steps 1 through 4 of the previous

procedure.

2. Press the ENTER key to complete the power switch

control programming. The last selected mode key

blinks 3 times indicating a successful entry.

After you select a mode, the POWER key controls the

device assigned to that mode. For example, in TV

mode, the remote controls power for the TV only.

Notes:

• If any other key is pressed except the Mode keys

and the ENTER key, the remote will not accept any

changes or updates. The STB mode key will display

a long red flash and the remote returns to normal

operation.

• If the remote times out before you complete

programming power switch control, the remote will

not accept any changes. You will have to start over

from step 1 of this procedure.

Put It Back the Way I Got It

You can return all advanced functions back to their

original settings by resetting the remote to factory

default settings. Resetting the remote to factory

default settings removes all of the programming you

have entered for the remote. You will need to

reprogram the remote to restore your original settings.

Resetting the Remote to Factory

Default Settings (Program Code 900)

1. Press and hold the STB mode key on the remote.

2. Without releasing the STB key, press and hold the

OK key.

3. Release both keys and all mode keys will blink

twice.

4. Enter the programming code 9 0 0 by pressing the

number keys on the remote. The STB mode key

blinks four times indicating you have successfully

reset the remote to factory default settings.

Notes:

• If any other key is pressed except the number keys,

the remote will not accept any changes or updates.

The STB mode key will display a long red flash

andthe remote returns to normal operation.

• If the remote times out before you complete the

factory default reset procedure, the remote will not

accept any changes. You will have to start over

from step 1 of this procedure.

Device Program Codes

If you program codes to control devices, record your

codes here for easy reference:

STB: ____________________

TV: _____________________

DVD: ____________________

AUX: ____________________

DVD

AUX

STB

the United States of America. Scientific Atlanta and

AllTouch are registered trademarks of Scientific-Atlanta,

Inc. AT6400 is a trademark of Scientific-Atlanta, Inc. Cisco,

Cisco Systems, and the Cisco Systems logo are registered

trademarks of Cisco Systems, Inc. and/or its affiliates in the

U.S. and certain other countries. All other trademarks

shown are trademarks of their respective owners. Product

and service availability subject to change without notice.

Scientific-Atlanta, Inc.

5030 Sugarloaf Parkway

P.O. Box 465447

Lawrenceville, GA 30042

www.scientificatlanta.com

August 2006

Remote Control Part Number 4012519 (Linux version)

User’s Guide Part Number 4013053 Rev B

TV/DVD Combo Codes

Brand TV DVD

Apex 1163 2095

Broksonic 1114 2053

RCA 1115, 1162 2063, 2099

Sansui 1122 2071

Sylvania 1150 2092

Toshiba 1116 2054

TV/VCR Combo Codes

Brand TV VCR

Broksonic 1121 3081

GE 1164 3090

Quasar 1165, 1166 3091, 3092

RCA 1167, 1168 3093, 3094

Samsung 1161 3089

Sylvania 1145 3095

Toshiba 1006 3096

Zenith 1118 3097

TV/DVD/VCR Combo Codes

Brand TV DVD VCR

Panasonic 1123, 1152 2075, 2076 3087, 3086

RCA 1151 2077 3106

Sharp 1153 2086 3100

Sylvania 1027, 1124 2064, 2078 3105, 3088

Toshiba 1154, 1158 2093, 2094 3099, 3098

DVD/VCR Combo Codes

Brand DVD VCR

Broksonic 2072 3082

Daewoo 2062 3076

Emerson 2073 3083

Go Video 2046, 2127, 2129 3066, 3110, 3109

Hitachi 2126 3117

JVC 2047, 2097 3067, 3118

Panasonic 2066 3078

Philips 2051 3071

Polaroid 2007 3111

RCA 2048 3068

Samsung 2049, 2074, 2085 3069, 3084, 3101

Sanyo 2050 3070

Sony 2065, 2067 3104, 3085

Toshiba 2080, 2084 3103, 3102

Zenith 2052, 2128 3072, 3119

TV Group

TV Codes

Abex 1098

Admiral 1001, 1099

Advent 1005, 1053, 1110, 1113

Adventura 1100

Aiko 1015

Aiwa 1034

Akai 1002

Alleron 1044

Amtron 1036

Anam National 1003, 1036

AOC 1004, 1005

Apex 1111, 1119, 1163

Audiovox 1036

Belcor 1004

Bell & Howell 1001, 1045

Benq 1042

Bradford 1036

Broksonic 1114, 1121

Brokwood 1004

Candle 1004, 1007, 1100

Celebrity 1002

Citizen 1004, 1007, 1015, 1036, 1073, 1097, 1100

Colortyme 1004

Concerto 1004

1036

Craig 1036

Crosley 1000, 1053

Crown 1036, 1053

Curtis Mathes 1000, 1004, 1014, 1045, 1073, 1097

CXC 1036

Daewoo 1004, 1005, 1013, 1015, 1016, 1097, 1106

Daytron 1004, 1097

Dimensia 1000

Dumont 1160

Dynatech 1004

Electroband 1002

Electrohome 1002, 1003, 1004, 1018, 1021

Emerson 1004, 1011, 1013, 1025, 1028, 1031, 1033, 1036, 1044,

1045, 1080, 1097, 1101, 1102, 1107

Envision 1004

Fisher 1043, 1045, 1047, 1103

Fujitsu 1044, 1029

Funai 1036, 1044

Futuretec 1036

Gateway 1038

GE 1000, 1003, 1004, 1008, 1021, 1048, 1049, 1063, 1068,

1094, 1144, 1164

Gibralter 1160

Goldstar 1004, 1005, 1011, 1018, 1050, 1090, 1091, 1097, 1098

Grunpy 1036, 1044

Hallmark 1004

Harvard 1036

TV Codes, continued

Hisense 1112

Hitachi 1004, 1011, 1012, 1051, 1052, 1084, 1085, 1086, 1087,

1102

MA 1036

Infinity 1053

Janeil 1100

JBL 1053

JCB 1002

JC Penney 1000, 1004,1005, 1007, 1012, 1021, 1048, 1049, 1058,

1063, 1068, 1072, 1073, 1075,1097, 1098

Jensen 1004

JVC 1011, 1012,1026, 1049, 1052,1054, 1055, 1080, 1092,

1117, 1131

Kawasho 1002, 1004

Kenwood 1004, 1018

Kloss Novabeam 1036, 1056, 1057, 1100

KTV 1036, 1097, 1101

LG 1005

Loewe 1053

Logik 1001

Luxman 1004

LXI 1000, 1004, 1045, 1053, 1058, 1068, 1075

Magnavox 1004, 1007, 1018, 1053, 1056, 1057, 1059, 1060, 1083,

1110, 1147

Majestic 1001

Marantz 1004, 1051, 1053

Megatron 1004, 1051

Memorex 1001, 1004, 1005, 1022, 1045

MGA 1004, 1005, 1018, 1021, 1047, 1061, 1062

Midland 1049, 1068, 1097, 1098, 1160

Minutz 1048

Mitsubishi 1004, 1005, 1018, 1021, 1047, 1061, 1062, 1081

Montgomery Ward 1001

Motorola 1003, 1099

MTC 1004, 1005, 1073

Multitech 1036

NAD 1004, 1058, 1075, 1085

NEC 1003, 1004, 1005

Net-Tv 1040

Nikko 1004, 1015

NTC 1015

Onwa 1036

Optimus 1085

Optonica 1064, 1099

Orion 1023, 1033, 1107

Panasonic 1003, 1010, 1049, 1053, 1096, 1123, 1152

Philco 1003, 1004, 1005, 1007, 1011, 1018, 1053, 1056, 1057,

1059

Philips 1003, 1004, 1007, 1011, 1017, 1018, 1053, 1056, 1057,

1059, 1060, 1063, 1110, 1126, 1129, 1148, 1155

Pilot 1097

Pioneer 1004, 1085, 1102

Portland 1004, 1005, 1015, 1097

Price Club 1073

Prima 1113

Prism 1049

Proscan 1000, 1008, 1068, 1108

Proton 1004, 1011

Pulsar 1160

Pulser 1004

Quasar 1003, 1039, 1049, 1096, 1165, 1166

Radio Shack 1000, 1045, 1098

Radio Shack/Realistic 1004, 1011, 1036, 1045, 1064, 1097, 1098

RCA 1000, 1003, 1004, 1005, 1008, 1018, 1049, 1065, 1066,

1067, 1068, 1069, 1070, 1071, 1082, 1102, 1104, 1106,

1108, 1115, 1151, 1162, 1167, 1168

Runco 1160

Sampo 1004, 1097, 1098, 1120

Samsung 1004, 1005, 1011, 1014, 1018, 1019, 1072, 1073, 1074,

1097, 1098, 1156, 1161

Sansui 1023, 1107, 1122

Sanyo 1045, 1062, 1095, 1103

Scotch 1004

Scott 1004, 1011, 1033, 1036, 1044

Sears 1000, 1004, 1012, 1018, 1044, 1045, 1047, 1055, 1058,

1068, 1075, 1076, 1103, 1105

Sharp 1004, 1009, 1011, 1025, 1064, 1077, 1078, 1097, 1099,

1153, 1157

Shogun 1004

Signature 1001

Simpson 1007

Sony 1002, 1109, 1137,

Soundesign 1004, 1007, 1036, 1044

Squareview 1105

SSS 1036

Starlite 1036

Supre-Macy 1100

Supreme 1002

Sylvania 1004, 1007, 1018, 1027, 1053, 1056, 1057, 1059, 1060,

1124, 1145, 1150

Symphonic 1024, 1031, 1036, 1105

Tandy 1099

Tashiko 1058

Tatung 1003

Technics 1049

Techwood 1004, 1049

Teknika 1001, 1004, 1005, 1007, 1011, 1012, 1015, 1036, 1044,

1060, 1073, 1096, 1097

Tera 1004, 1011

TMK 1004

Toshiba 1006, 1045, 1058, 1073, 1075, 1079, 1093, 1116, 1154,

1158, 1159

Totevision 1097

Universal 1048, 1063

Victor 1055

Vidtech 1004, 1005

Viking 1100

Wards 1000, 1001, 1004, 1005, 1018, 1031, 1044, 1048, 1053,

1056, 1057, 1059, 1060, 1063, 1064

White Westinghouse 1013

Yamaha 1004, 1005, 1018

Zenith 1001, 1089, 1118, 1125, 1161

HDTV Codes

Apex 1088

Daewoo 1135

Dell 1141, 1142, 1146

Mitsubishi 1032

Philips 1126, 1129

Proscan 1000

RCA 1143

Sampo 1038

Samsung 1019

Sony 1037, 1128, 1137

Zenith 1020, 1139

LCD TV Codes

Benq 1136

NET-TV 1040

Sharp 1138

Sylvania 1046

Plasma TV Codes

Acer 1041

Fujitsu 1029

Gateway 1038

Pioneer 1035

Viewsonic 1038, 1149

Projection TV Codes

Hitachi 1030, 1132, 1133, 1134

JVC 1130, 1131

Panasonic 1140

Toshiba 1127

DVD Group

DVD Codes

Aiwa 2026, 2131

Apex 2001, 2056, 2057, 2061, 2095, 2098

Audiovox 2132

Blaupunkt 2136

BOSE 2122, 2130

Broksonic 2053, 2072

Clarion 2100

Classic 2101

Cyberhome 2083

(Portable DVD)

Daewoo 2058, 2062, 2137, 2138

Denon 2110, 2133, 2040

Emerson 2002, 2059, 2073

Fisher 2112, 2134

Funai 2002

GE 2079, 2118, 2041

Go Video 2046, 2127, 2129

Go Video 2124

(Network DVD)

GPX 2114

Harmon Kardon 2125

Hitachi 2000, 2027, 2126

Irradio 2149

JVC 2017, 2028, 2047, 2090, 2096, 2097, 2115

Kenwood 2142, 2148

Konka 2029, 2030

Koss 2060

Lasonic 2081

Magnavox 2002, 2018, 2033, 2089

Marantz 2143

Memorex 2003

Mintek 2004

Mitsubishi 2019, 2123, 2145, 2147

NAD 2059, 2139

Nakamichi 2116

Nexxtech 2140

Norcent 2005, 2117

Onkyo 2006

Oritron 2009

Panasonic 2031, 2066, 2075, 2076, 2104, 2105, 2106, 2111

Philips 2018, 2032, 2033, 2045, 2051, 2091, 2109

Pioneer 2008, 2021

Polaroid 2007

Proscan 2010, 2118, 2144

Qwestar 2009

RCA 2010, 2048, 2063, 2077, 2099, 2107, 2118

RCA 2055

(Portable DVD)

Sampo 2119

Samsung 2012, 2049, 2074, 2085, 2102

Sansui 2071

Sanyo 2034, 2050, 2120

Sharp 2013, 2015, 2044, 2086

Sharp 2082

(Portable DVD)

Sherwood 2121

Sony 2014, 2020, 2022, 2065, 2067, 2068,2069, 2070, 2087,

2103, 2108, 2113

Sylvania 2002, 2064, 2078, 2092

Techwood 2141

Toshiba 2023, 2025, 2037, 2038, 2040, 2041, 2054, 2080, 2084,

2088, 2093, 2094

Toshiba 2135

(Portable DVD)

Venturer 2011

Yamaha 2106, 2146

Zenith 2039, 2052, 2128

AUX Group

Amplifier Codes

Aiwa 6003, 6020

Carver 6002

Citizen 6026

Denon 6014

Fisher 6002

GE 6028

Goldstar 6016, 6021

Harman Kardon 6013

Hitachi 6034

JVC 6018, 6024

Kenwood 6015, 6022

Maganvox 6035

Marantz 6000

Nakamichi 6012

NEC 6033

Onkyo 6005, 6006, 6017

Optimus 6008

Panasonic 6001

Pioneer 6004, 6009, 6010, 6023, 6036

Proton 6035

Quasar 6001

RCA 6025

Sharp 6029, 6030, 6031, 6032

Sherwood 6011

Sony 6020

Teac 6019

Technic 6001

Technics 6001

Toshiba 6027

Victor 6024

Yamaha 6007

Home Theater in a Box (HTIB) Codes

Brand Audio DVD

Bose 4000 2130

JBL 4001 2043

JVC 4002 2035

Koss 4003 2060

Onkyo 4004 2024

Panasonic 4005 2104

Philips 4006 2036

Pioneer 4007 2016

RCA 4008 2042

Sony 4009, 4010 2113, 2108

Venturer 4011 2011

Receiver/Tuner Codes

Aiwa 5000, 5001, 5002, 5004, 5005, 5006

Bose 5007

(Tuner/CD Combo)

Carver 5000

Denon 5008

Harman Kardon 5000, 5009

JBL 5009

JVC 5010

Kenwood 5011, 5012, 5013

Linn 5000

Maganvox 5000

Marantz 5000

Onkyo 5018

Panasonic 5019, 5020

Philips 5000

Pioneer 5021, 5022

RCA 5024, 5025, 5026

Sansui 5000

Sherwood 5027

Sony 5017, 5023, 5028,5029, 5030, 5031, 5032, 5033

Technics 5016, 5019, 5020

Wards 5000, 5021

Yamaha 5003, 5014, 5015,5021

VCR Codes

Admiral 3001

Adventura 3021

Aiwa 3021

Akai 3003, 3055, 3058

Audio Dynamics 3005, 3006

Bell & Howell 3007

Broksonic 3081, 3082

Candle 3011, 3013, 3014

Canon 3016

Carver 3036

Citizen 3011, 3013, 3014

Colortyme 3005

Curtis Mathes 3000, 3005, 3014

Daewoo 3011, 3013, 3021, 3076

DBX 3005, 3006

Dimensia 3000

Dynatech 3021

Electrohome 3023

Emerson 3003, 3011, 3021, 3023, 3038, 3083

Fisher 3007, 3029, 3030

Fuji 3058

Funai 3002, 3021

Garrard 3021

GE 3000, 3059, 3090

Go Video 3066, 3073, 3109, 3110

Goldstar 3005, 3014

Gradiente 3021

Harley Davidson 3021

Harman Kardon 3005

Headquarter 3007

Hitachi 3052, 3055, 3059, 3117

JC Penney 3005, 3006, 3007, 3030, 3036, 3052

Troubleshooting

If there is no response when you press the keys on the

remote, please check the following items before

calling for service.

Check the Batteries

• Are the batteries inserted correctly?

• Check the battery condition for leakage.

• Replace with new alkaline batteries.

Check the Device

• Is the device’s power cord connected to the power

outlet?

• Is the device switched on?

Check the IR Database Codes List

Is the device brand name for the device listed in the

code list?

• If yes and there is more than one code listed, try

using a different code to provide more functionality

• If no, try the following:

- Use the Auto-Search function to find a usable code.

- If the Auto-Search function is unable to find a

usable code, you may need to use the original

remote provided with the device.

Code Tables

If the remote does not recognize your device, you can

find codes for your device by brand name. With

combination devices (such as a TV with a built-in DVD

player), there are separate codes for each device

component. Therefore, for ease of use, the combination

device codes are listed first. All other code tables in

this section are organized by the devices assigned to

each mode (TV, DVD, and AUX).

Combination Device Codes

If you have a combination device, you may need to

reassign the AUX key to operate one of the devices,

for example, the VCR. The following tables provide

some examples of combination devices. If your

combination device is not listed, simply look for the

codes for each separate device.

VCR Codes, continued

Jensen 3055

JVC 3005, 3006, 3007, 3014, 3055, 3060, 3067, 3118

Kenwood 3005, 3006, 3007, 3014, 3055, 3060

Lloyd’s 3021

Magnavox 3036, 3037, 3051, 3061

Marantz 3005, 3006, 3007, 3014, 3036

Memorex 3001, 3004, 3007, 3021, 3051

MGA 3023, 3038

Minolta 3052

Mitsubishi 3023, 3038, 3039, 3060, 3108

Montgomery Ward 3001

Motorola 3001

Multitech 3021

NEC 3005, 3006, 3007, 3014, 3055, 3060

Optimus 3001

Optonica 3047

Orion 3004

Panasonic 3053, 3062, 3063, 3077, 3078, 3079, 3086, 3087, 3107

Pentax 3052, 3059

Pentex Research 3014

Philco 3036, 3037

Philips 3036, 3047, 3061, 3071

Pioneer 3006, 3060

Polaroid 3111

Portland 3013

Proscan 3000

Pulsar 3051

Quarter 3007

Quartz 3007

Quasar 3062, 3091, 3092

Radio Shack 3001, 3047

Radio Shack/Realistic 3007, 3021, 3023, 3029, 3047,

RCA 3000, 3003, 3040, 3041, 3042, 3052, 3059, 3062, 3068,

3075, 3093, 3094, 3106

Realistic 3001, 3007, 3011, 3021, 3023, 3029, 3047

Ricoh 3064

Runco 3051

Samsung 3011, 3069, 3084, 3089, 3101

Sanky 3001, 3051

Sansui 3004, 3006, 3055, 3060

Sanyo 3007, 3070

Scott 3011, 3038

Sears 3007, 3029, 3030, 3052,

Sharp 3001, 3013, 3023, 3047, 3080, 3100

Shintom 3048, 3058

Signature 3001

Singer 3064

Sony 3048, 3049, 3058, 3085, 3104

STS 3052

Sylvania 3021, 3036, 3037, 3038, 3061, 3088, 3095, 3105

Symphonic 3002, 3021

Tandy 3007

Tatung 3055

Teac 3021, 3042, 3055

Technics 3053

Teknika 3021, 3050

Tivo 3074

Toshiba 3011, 3029, 3030, 3038, 3096, 3098, 3099, 3102, 3103

Vector Research 3005, 3006, 3011

Victor 3006

Video Concepts 3005, 3006, 3011

Wards 3001, 3011, 3021, 3023, 3047, 3052

White Westinghouse 3002

XR-1000 3021

Yamaha 3005, 3006, 3007, 3014, 3055

Zenith 3048, 3051, 3058, 3064, 3072, 3097, 3119

FCC Compliance

United States FCC Compliance

This device has been tested and found to comply with the limits

for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable

protection against such interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency

energy. If not installed and used in accordance with the

instructions, it may cause harmful interference to radio

communications. However, there is no guarantee that

interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment OFF and ON, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna, if applicable.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the cable company or an experienced radio/television

technician for help.

Any changes or modifications not expressly approved by

Scientific-Atlanta, Inc., could void the user’s authority to

operate the equipment.

The information shown in the FCC Declaration of Conformity

paragraph below is a requirement of the FCC and is intended to

supply you with information regarding the FCC approval of this

device. The phone numbers listed are for FCC-related questions

only and not intended for questions regarding the connection or

operation for this device. Please contact your cable service

provider for any questions you may have regarding the

operation or installation of this device.

Declaration of Conformity

This device complies with Part 15 of FCC Rules. Operation is

subject to the following two conditions: 1) the device may not

cause harmful interference, and 2) the device must accept any

interference received, including interference that may cause

undesired operation.

AllTouch RF and IR Universal Remote Control

AT6420

Scientific-Atlanta, Inc.

5030 Sugarloaf Parkway

Lawrenceville, Georgia 30044 USA

Telephone: 770-236-1077

Canada EMI Regulation

This Class B digital apparatus complies with Canadian

ICES-003.

Cet appareil numérique de la class B est conforme à la norme

NMB-003 du Canada.

20060628FDC

Andere Scientific Atlanta Fernbedienung Handbücher

Scientific Atlanta

Scientific Atlanta AT8420TM Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta 8600 Series Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta ER1 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta ER1 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta AT8560 AllTouch Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta AT8560 AllTouch Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta AT6420 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta AllTouch AT2400 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta AllTouch AT8400 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta AllTouch AT8400 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta AllTouch AT2400 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta AllTouch AT2300 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta AllTouch AT8550 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta AllTouch AT8550 Referenzhandbuch

Scientific Atlanta

Scientific Atlanta AT8550TM Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta AllTouch AT8400 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta AllTouch AT8400 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta AT8450 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta AllTouch 2000 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta AllTouch 2000 Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta AT8400TM Bedienungsanleitung

Scientific Atlanta

Scientific Atlanta AllTouch 573480 Bedienungsanleitung

Beliebte Fernbedienung Handbücher anderer Marken

Panasonic

Panasonic EUR7622KB0 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen Beo4 Bedienungsanleitung

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Bedienungsanleitung

Multiplex

Multiplex PROFI TX 9 Bedienungsanleitung

One Remote

One Remote RMB4 Bedienungsanleitung

FUTABA

FUTABA 9ZAP - PART2 Bedienungsanleitung

HR Matic

HR Matic HR MULTI 3 Bedienungsanleitung

Yamaha

Yamaha ACC-GNRST-30-20 Bedienungsanleitung

EisSound

EisSound KBSOUND Bedienungsanleitung

Marantz

Marantz RC101 Bedienungsanleitung

Conrad

Conrad FS20 TC6 Bedienungsanleitung

Anritsu

Anritsu MP1777A Bedienungsanleitung

Niles

Niles WVC100 Fehlerbehebungshandbuch

RCA

RCA RCU1300 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen BEO6 Bedienungsanleitung

GE 94901 Bedienungsanleitung

Onbon

Onbon YQ1-75 Bedienungsanleitung

FUTABA

FUTABA R7108SB Montageanleitung
