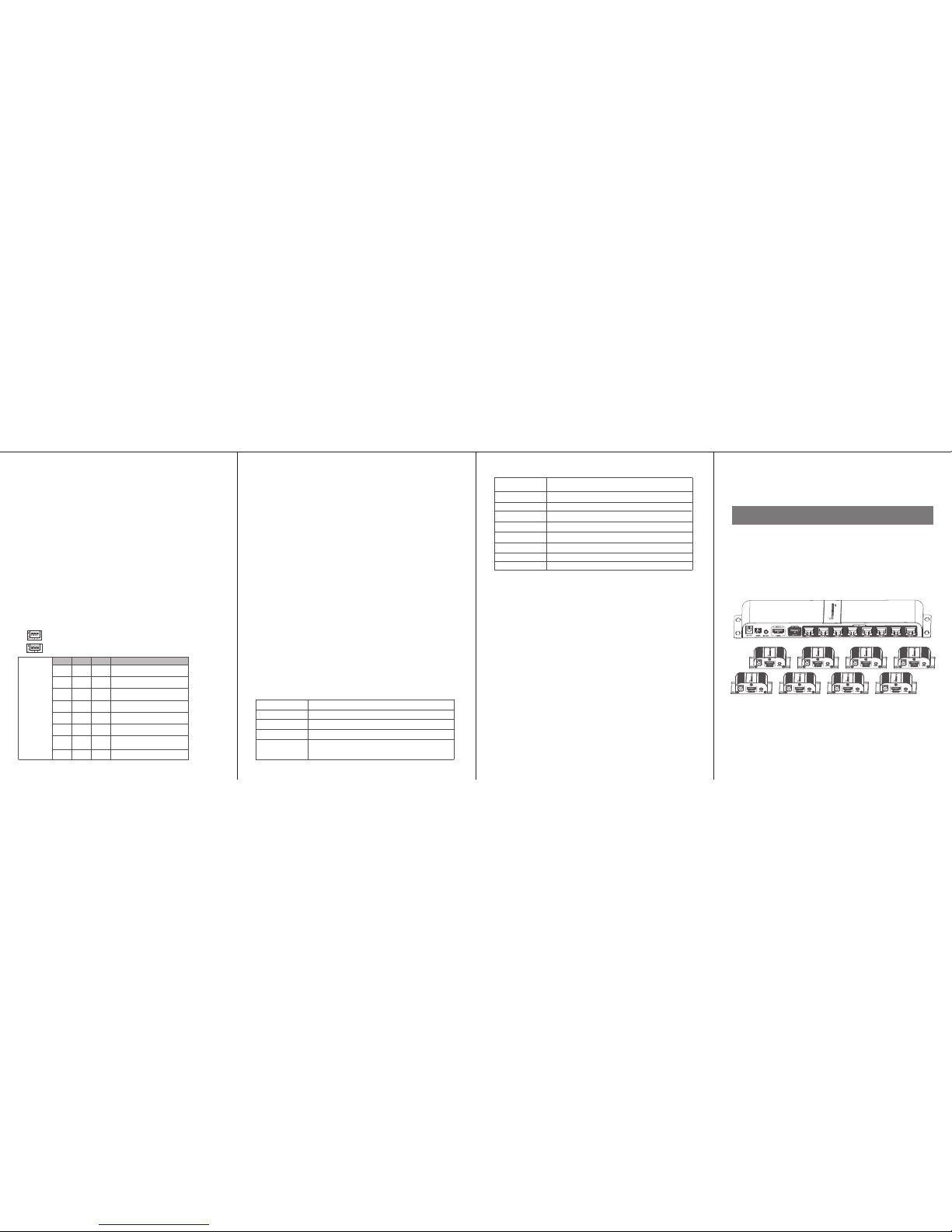

· PACKAGE CONTENTS
· INTRODUCTION
· IMPORTANT SAFETY INSTRUCTIONS
1. Distribute 1 HDMI source to 8 HDMI displays over network cable
simultaneously.
2. Support one HDMI Loop-out.
3. Compatible with CAT6/6a/7 network cables.
4. The transmission distance is up to 40m/131f t.
5. The highest resolution suppor ted is .1920x1080@60Hz
6. Support 20~60Hz IR pass back.
7. Support EDID Setting function.
8. Support power from transmitter to receiver unit over the CAT6 cable.
9. Plug and play.
10. Wall-mounted function, easy installation.
· INSTALLATION REQUIREMENTS
· PANEL DESCRIPTION
· INSTALLATION PROCEDURES
1. How to make a CAT5/5E/6 network cake
Transmitter unit ×1pcs
DC12V/3A ×1pcs
User Manual ×1pcs
· FEATURES
Follow the standard of IEEE-568B:
1- Orange/white 2- Orange
3- Green/white 4- Blue
5- Blue/white 6- Green
7- Brown/white 8- Brown
1
2
3
4
5
6
7
8
Power input（DC12V）
RJ45 signal output
HDMI output
Power/ signal indicator
IR blaster extension cable
EDID switch
Reset button
2. Connection
1. Do not mix up the Transmitter and Receiver, and the IR blaster and
IR receiver.
2. Do not plug-in/out the cables, when it is in using.
3. Use DC 12V power supply only. Make sure the specification matched
if using 3rd party DC adapters.
4. Support power from transmitter to receiver unit over the CAT6 cable.
This HDMI extender splitter works with 8 HDMI CAT6 extender receivers
to split and extend 1 HDMI source to 8 HDMI displays over single
CAT6/6A/7 cable up to 40m/131ft. The highest resolution supported is
1920x1080@60Hz, and it supports IR passback, EDID pass through and
only one power adapter for the transmitter is needed, the receivers are
powered by the transmitter over CAT6 cable. Ideal solution for HDMI
exhibition, video conference and show center, etc.
IR blaster extension
cable x1pcs
Receiver uni t ×8pcs
IR rece iver extension
cable ×8pcs
1. HDMI source device(computer graphics card, DVD, PS3, HD
monitoring equipment etc).
2. HDMI display device like SDT V, HDTV, and projector with HDMI por t.
3. UTP/STP CAT6/6A/7 cable, follow standard IEEE-568B.
1. Transmitter unit (TX)
2. Receiver unit (RX)
LENGTH: for adjusting to the length
of network cable
RJ45 signal input
RJ45 indicator led: it lights on all the
time when HDMI signal transmission,
flashes when no signal transmission
HDMI signal output
DV5V power input (OPTIONAL)
IR receiver extension cable
LENGTH
12 3 4 5
78
HDMI input
6
12
Receiver
power
HDMI Input HDMI extender splitter
Cable
HDMI Out
DVD
HDMI Display
HDMI Display
HDMI Display
HDMI Display
HDMI Display
HDMI Display
HDMI DisplayHDMI Display
HDMI Display
12
Remarks:
Users can press button”Length”to adjust transmittion distance of
this device automatically or manually. If users do not press this button
when power on, then the device will work like last time because of
memory function. If users press this button after power, on the first two
press will make the device adjust the distance according to the network
cable length automatically. After this two press, if users continue to press
this button, then will go to the mode of adjusting transmittion distance
manually. There is 12 levels to tally and adding one more press means a
new level. When users finish the 12 levels adjusting manually it will be
back to adjust transmittion distance automatically mode and into the
new loop. Remarks: Ple ase do not remote control two or more RX unit s' IR signal at the sa me time,
which to avoid interference.
