SCION xA

!Aword about safe vehicle operations

This Pocket Reference Guide is a summary of

basic vehicle operations. It contains brief

descriptions of fundamental operations so you

can locate and use the vehicle’s main

equipment quickly and easily.

The Pocket Reference Guide is not intended

as a substitute for the Owner’s Manual

located in the vehicle’s glove box. We

strongly encourage you to review the Owner’s

Manual and supplementary manuals so you

will have a better understanding of the

vehicle’s capabilities and limitations.

Your dealership and the entire staff of Scion,

amarque of Toyota Motor Sales, U.S.A., Inc.,

wish you many years of satisfied driving in

your new SCION xA.

This Pocket Reference Guide is not a full

description of SCION xA operations. Every

xA owner should review the Owner’s

Manual that accompanies this vehicle.

Pay special attention to the boxed

information highlighted in yellow

throughout the Owner’s Manual.Each box

contains safe operating instructions to

help you avoid injury or equipment

malfunction.

All information in this Pocket Reference

Guide is current at the time of printing.

Toyota reserves the right to make changes

at any time without notice.

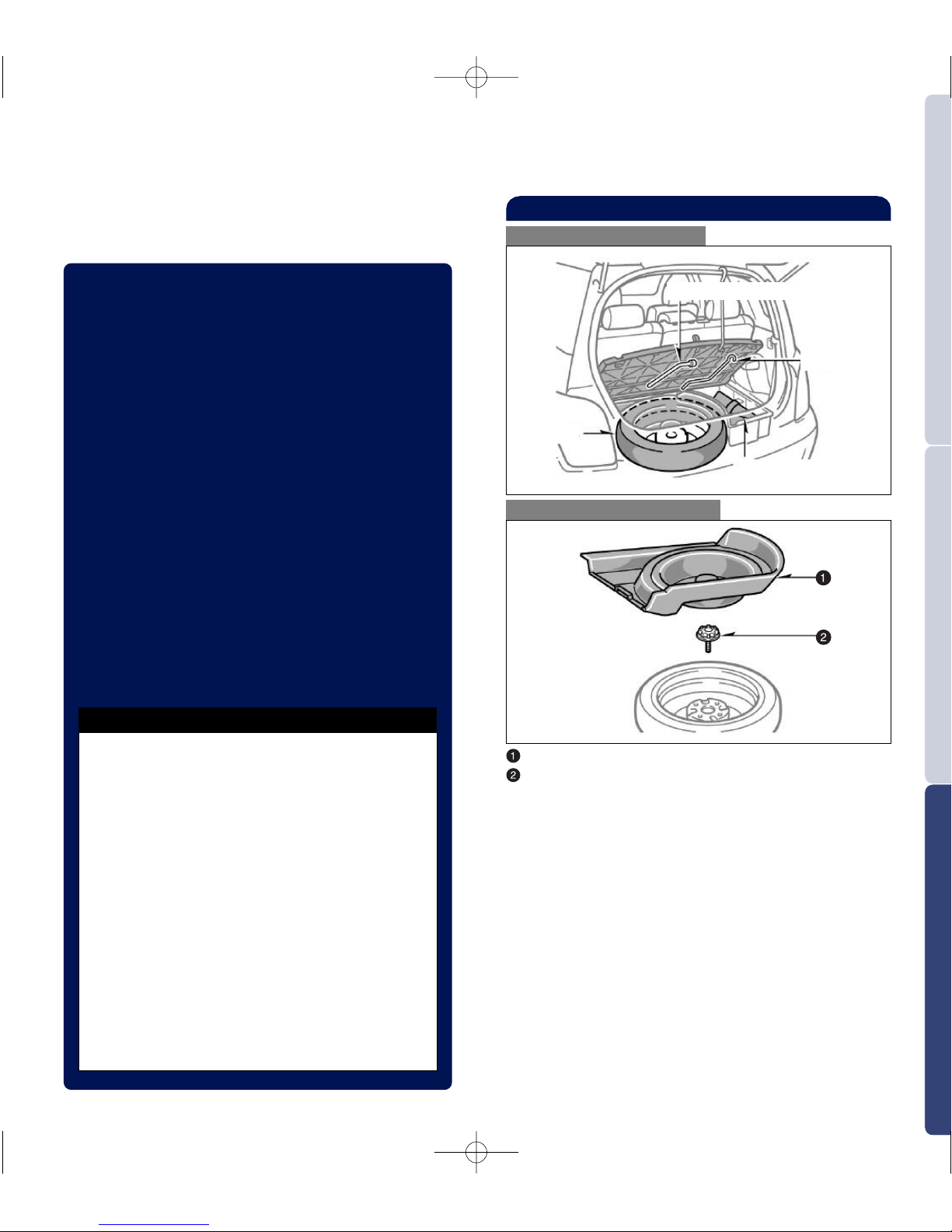

Spare tire & tools

Tool location

Removing the spare tire

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Remove the spare tire cover.

Loosen and remove the bolt.

Refer to the Owner’s Manual for jack positioning and

tire changing procedures.

Wheel nut wrench

Jack handle

Spare tire

Tool bag

06 Scion xA_Ins Cvr.qxd 6/28/05 6:05 PM Page 1

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

INDEX

Item Page no.

OVERVIEW

Engine maintenance 7

Fuel tank door release and cap 6

Hood release 6

Indicator symbols 4-5

Instrument cluster 4

Instrument panel 2-3

FEATURES/OPERATIONS

Air conditioning/Heating 13

Automatic transmission 8

AUX jack 15

Clock 13

Cup holders 14

Door locks 9

Grocery bag hooks 14

Light control-Instrument panel 14

Lights & turn signals 11

Luggage strage box 14

Manual transmission 8

Parking brake 8

Seat adjustments-Front 9

Seat adjustments-Rear 10

Seats-Head restraints 10

Steering wheel switches 15

Tilt steering wheel 10

Windows 12

Windshield wiper & washer 12

SAFETY AND EMERGENCY FEATURES

Doors-Child safety locks 16

Seat belts 16

Seat belts-shoulder belt anchor 16

Spare tire & tools 17

06 Scion xA_Ins.qxd 6/28/05 6:07 PM Page 1

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

Headlight and turn signal controls

Steering wheel switches

Wiper and washer controls

Rear window defogger switch

Emergency flasher switch

Air conditioning controls

Front passenger seat belt reminder light

Auxiliary box

12V DC Power outlet/Cigarette lighter

Ashtray

Ignition

Tilt steering lock release

Power rear view mirror controls

Instrument panel light control

Instrument panel

06 Scion xA_Ins.qxd 6/28/05 6:07 PM Page 2

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

Driver seat belt reminder1

Front passenger seat belt reminder1

Brake system warning1

Battery warning1

Low engine oil pressure warning1

Anti-lock Brake System warning1

Malfunction/Check Engine indicator1

1For details, refer to “Service reminder indicators and warning

buzzers,” Section 1-6, 2006 Owner’s Manual.

2For details, refer to “Engine coolant temperatureindicator and

warning light” Section 1-6, 2006 Owner’

sManual.

When the Anti-lock Brake System (ABS) function is in

action, you may feel the brake pedal pulsating and

hear a noise. In this situation, to let the Anti-lock

Brake System work for you, just hold the brake pedal

down more firmly. Do not pump the brake as this will

result in reduced braking performance.

Indicator symbols

Low fuel level warning1

Blue: Low engine coolant temperature

indicator2

Red: High engine coolant temperature warning1

Turn signal indicators

Headlight high beam indicator

Open door warning1

Airbag SRS warning1

Speedometer

Service indicator and reminder

Tachometer

Clock/trip meter reset knob

Clock

Odometer and two trip meters

Fuel gauge

Instrument cluster

Engine oil replacement reminder1

MAINT

REQD

06 Scion xA_Ins.qxd 6/28/05 6:07 PM Page 4

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

Hood release

Pull

Pull up to release

then raise hood

Fuel tank door release and cap

Turn

Pull up

Driver seat

NOTE: If the cap is not tightened enough, Check

Engine “ ” indicator may illuminate.

Engine maintenance

Windshield washer fluid tank

Power steering fluid reservoir

Engine oil filler cap

Engine oil level dipstick

Engine coolant reservoir

Note: Regularly scheduled maintenance, including

oil changes, will help extend the life of

your vehicle and maintain performance.

Please refer to the “Owner’s Warranty

Information Booklet,” “Scheduled

Maintenance Guide” or “Owner’s Manual

Supplement.”

06 Scion xA_Ins.qxd 6/28/05 6:07 PM Page 6

Seat adjustments-Front

Position

Seatback angle

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

Automatic transmission (if equipped)

Park1

Reverse

Neutral

Drive

Second gear

First gear

1The ignition switch must be ON, and the brake

pedal depressed.

Downshifting increases power going uphill, or

provides engine braking downhill. For best fuel

economy during normal driving conditions, always

drive with the shift lever in the “D” position.

For safety, the engine will not start unless the clutch

pedal is FULLY depressed.

Parking brake

Pull

(2) Push

(1) Pull slightly

(3) Lower

Set Release

Manual transmission (if equipped)

Lock

Unlock

Door locks

Overdrive switch

To turn “ON” or “OFF” Depress the overdrive switch

to choose either three-speed (“OFF”) or four-speed

(“ON”) operation. During normal driving conditions,

always drive with overdrive “ON,” this allows the

transmission to shift automatically into four-speed

operation at higher speeds, improving fuel economy.

If the indicator light on the instrument cluster is

illuminated, overdrive is “OFF.”

Overdrive switch

06 Scion xA_Ins.qxd 6/28/05 6:07 PM Page 8

Seats-Head restraints

Height Height Height

Lock release button Lock release button

Front Rear

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

Tilt steering wheel

Lock release

lever

Angle

Hold wheel, push lever down, set angle then return

lever.

Note: Do not attempt to adjust while the vehicle

is in motion.

Lights & turn signals

Headlights

Turn signals

Parking lights

High beams

Low beams

Headlights

Right turn

Left turn

Lane change

High beam flasher

Seat adjustments-Rear

(1) Push

(2) Lower

(3) Pull up

(4) fold down

06 Scion xA_Ins.qxd 6/28/05 6:07 PM Page 10

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Turn to “H”-Set hour

urn to “M”-Set minutes

Air conditioning/Heating

Air Conditioning ON/OFF

Rear defogger

Fresh or recirculate cabin air

Vent selector1

Fan speed

Temperature

1“ ” or “ ,” use fresh air to reduce window

fogging.

FEATURES/OPERATIONS

Windshield wiper & washer

Interval wipe

Slow

Fast

Pull to wash and wipe

Single wipe

Windows

Window operation

Window

lock switch

Driver side

Automatic down operation (Driver side only) Push

the switch completely down and release to fully

open. To stop window mid-way, lightly pull up on the

switch.

Down Up

Down

Light control-Instrument panel

Brightness control

Clock

Rear

Wash and wipe

Wipe

Wash and wipe

Front

06 Scion xA_Ins.qxd 6/28/05 6:07 PM Page 12

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

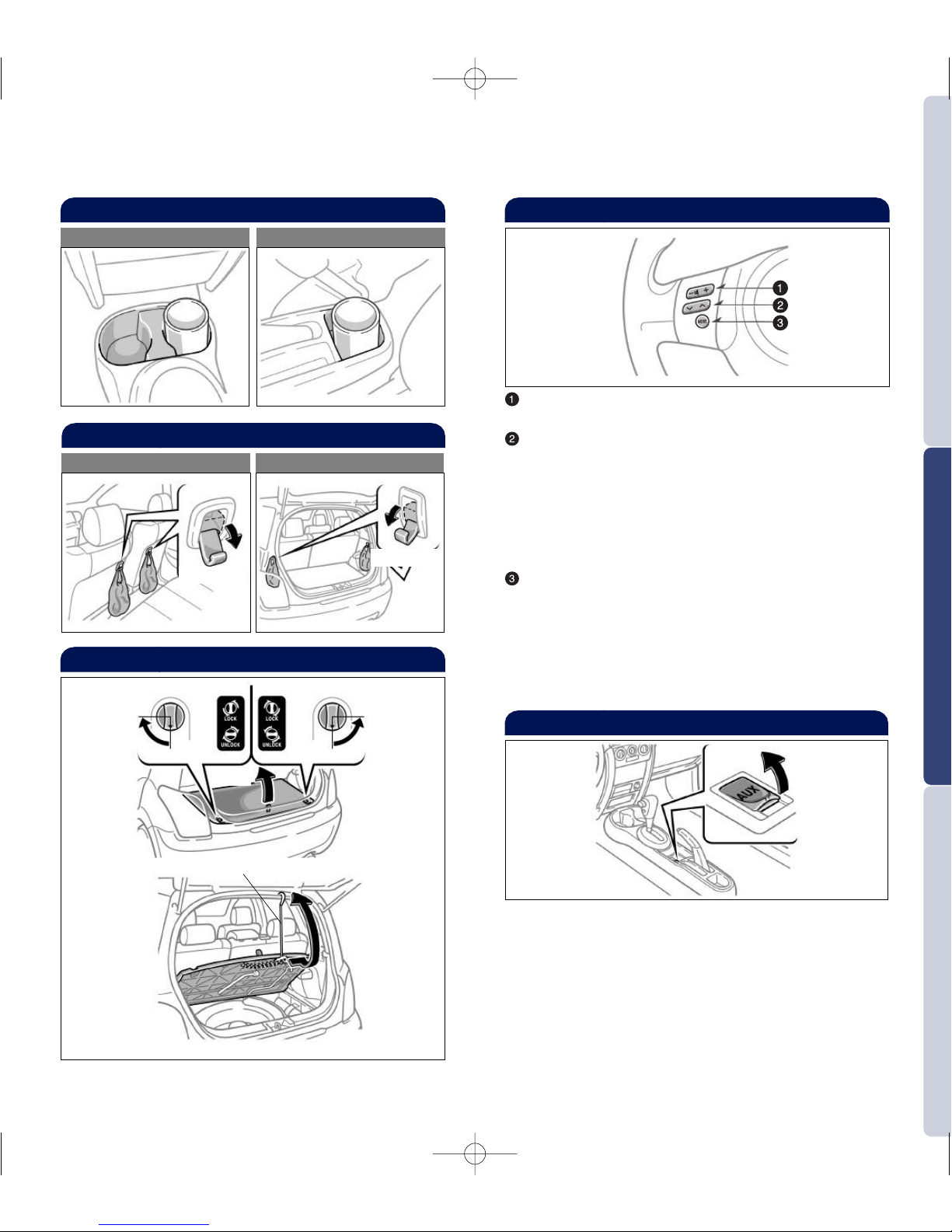

Steering wheel switches

“- +”

Volume control

“ ”

-In radio mode Push to select a preset station,

push and hold to seek the next strong station.

-In tape mode Push to skip up or down to the

next/previous track, push and hold to fast

forward or reverse.

-In CD mode Push to skip up or down to a

next/previous track.

“MODE”

Push to turn audio “ON” and select an audio

mode. Push and hold to turn the audio system

“OFF.”

AUX jack

Refer to the SCION Audio System Owner’s Manual for

more details.

ClockLuggage storage box

Grocery bag hooks

Front seatbacks

Luggage compartment

Pull down

Unlock Unlock

Lock Lock

Open

Hook

Pull down

Cup holders

Front Rear

olisten to a portable audio component, connect

the mini plug of a commericially available

component to the AUX jack.

06 Scion xA_Ins.qxd 6/28/05 6:07 PM Page 14
