Objectives

You

will learn how to perform the following

•

Recording required MAC ID of PURELL PAN Module

•

Installing PAN Module into CXR Dispenser

•

Provisioning the PAN Module to the ONVATION Hub

•

Validating PAN Module connectivity

•Troubleshooting setup issues

Equipment

•

PURELL ONVATION CXR PAN Modules

•Recording device for MAC ID

•ONVATION Installer App

Module

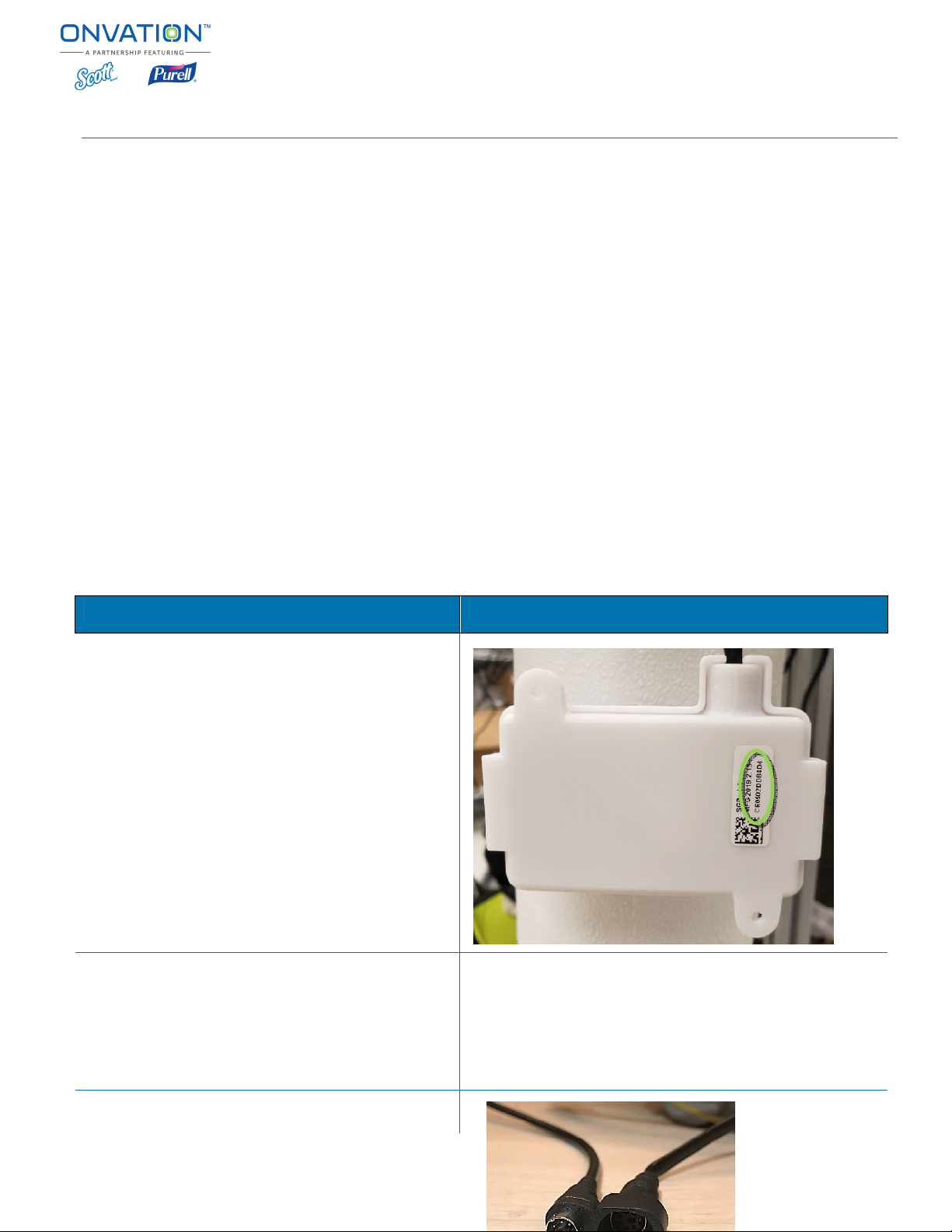

MAC ID Identification and Recording

Step

Open module static bag and record MAC ID onto

recorder with association to dispenser location

Record Dispenser location on the static bag

Using recorded MAC ID’s enter them into the

ONVATION Installer App.

Install the Dispenser per the Dispenser

Installation Guidelines.

5. Plug the PAN

Module into the SMARTLINK

ONVATION CXR

PAN Module Setup

and Validation

will learn how to perform the following

system setup procedures:

Recording required MAC ID of PURELL PAN Module

Installing PAN Module into CXR Dispenser

Provisioning the PAN Module to the ONVATION Hub

Validating PAN Module connectivity

PURELL ONVATION CXR PAN Modules

MAC ID Identification and Recording

Illustration

Open module static bag and record MAC ID onto

recorder with association to dispenser location

Record Dispenser location on the static bag

Using recorded MAC ID’s enter them into the

Install the Dispenser per the Dispenser

Module into the SMARTLINK

Page 1of 7

and Validation

Step Illustration

Connector on the dispenser.

6. Verify that the pins have connected correctly and

that the connector is fully seated. The flat side of

the module connector end should align with the

flat edge of the CXR Connector end. If it is fully

seated, the blue light will be blinking on the

module, indicating it is ready to be setup if the

CXR is connected to a power source.

7. If space is available, attach the PAN module to

the CXR pumphouse by the module mount. If

space is not available, the module can be affixed

via screw to the wall.

8. Once the module is installed, and power is

connected, the module should blink 3 LEDs at

the same time, Red, Green, and Blue. Please

reference the PAN Module Light Patterns section

on page 4 for an explanation of all light patterns.

9. Confirm on the ONVATION Installer App that the

module has ‘checked-in” with the ONVATION

Hub.

10. Install the Refill into the Reservoir by inserting

the key into the hole in the top of the spout and

sliding the spout forward.

Step Illustration

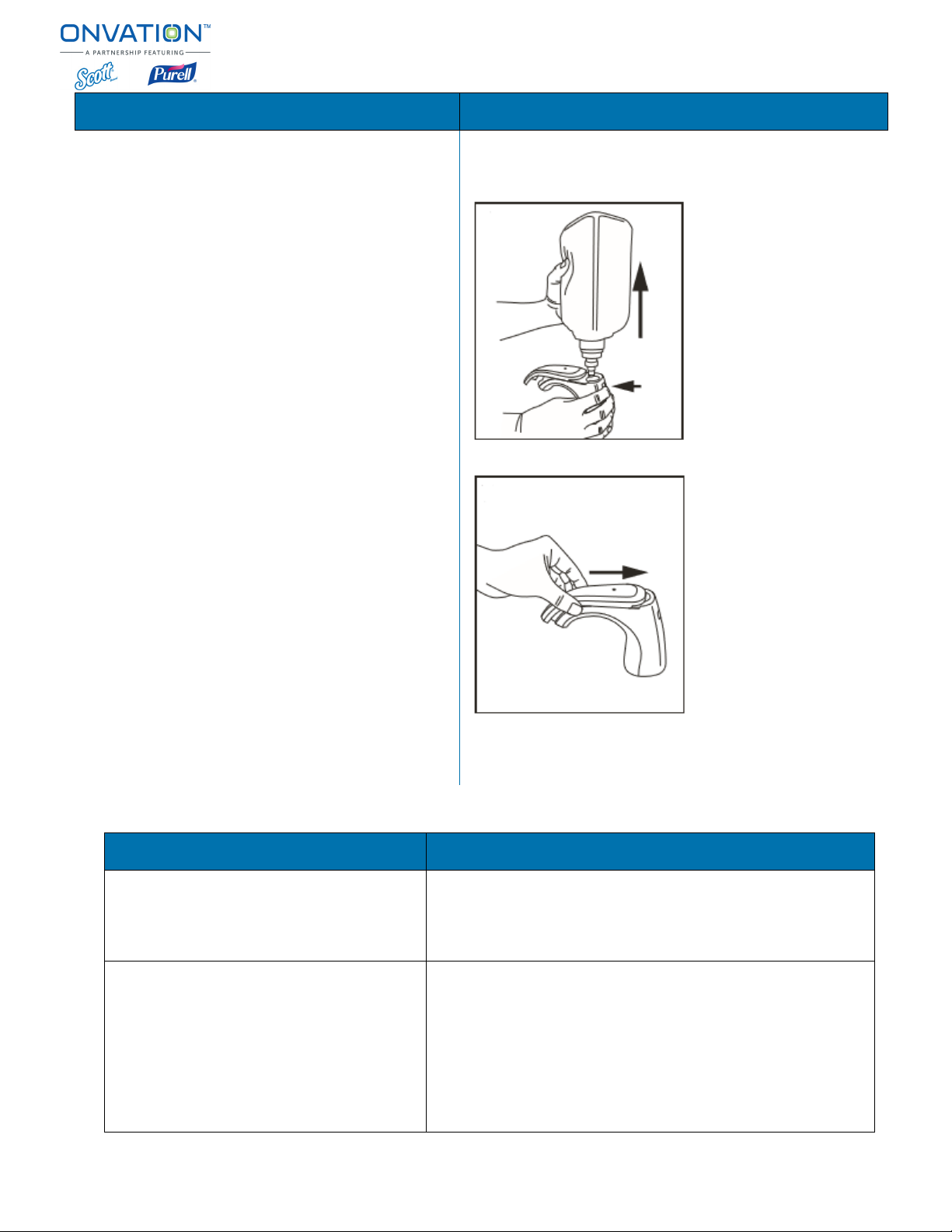

11. Remove the dust cap from the soap refill, then

insert the spout opening until the refill clicks into

place. An Orange light will indicate the soap is

flowing into the dispenser. If the orange light

doesn’t illuminate, adjust the position of the refill

until it comes on.

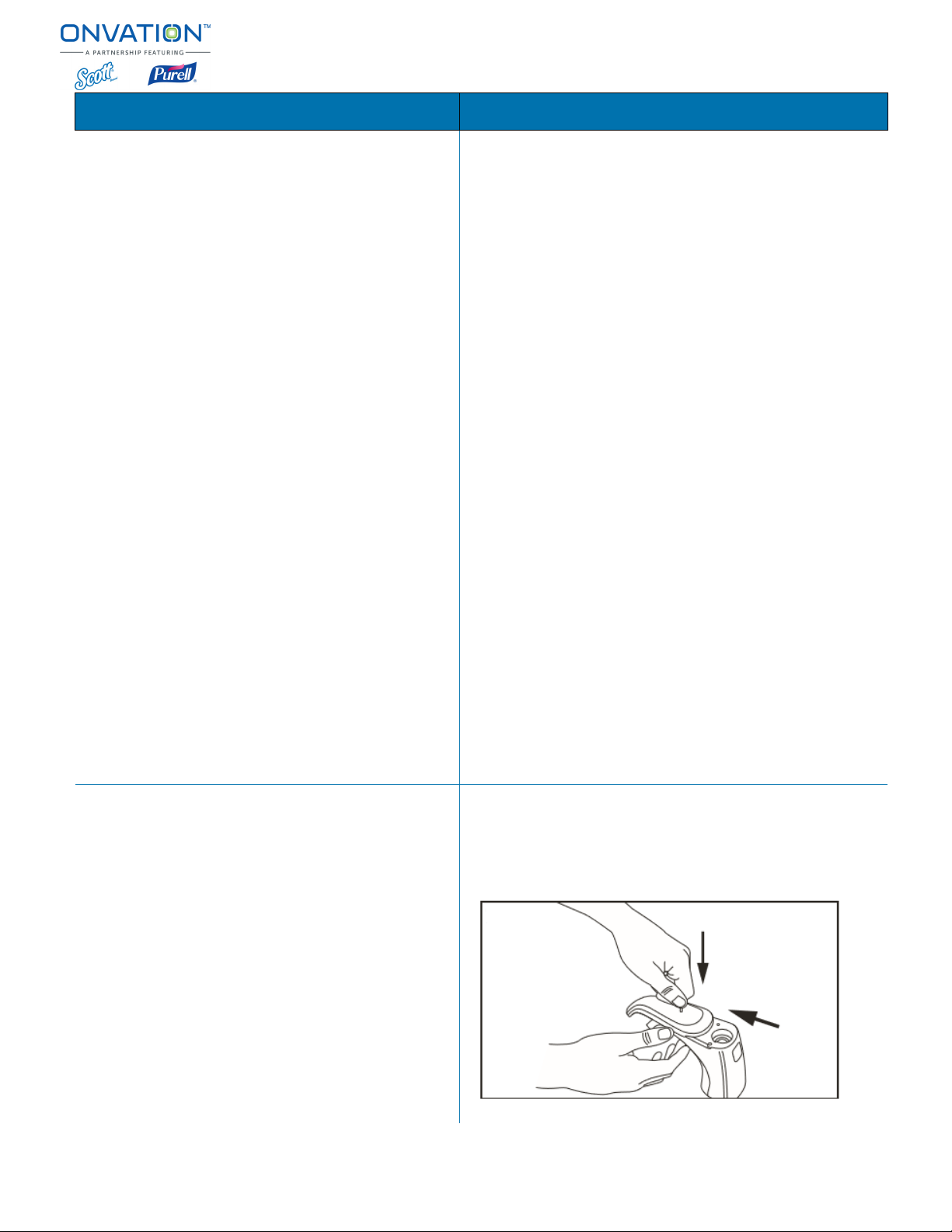

12. Depress the refill release button on the back of

the spout to release the refill and remove it.

13. Push spout door back into the locked position.

14. Pass your hand under the spout to dispense. 4

activations are required at startup to dispense

foam soap.

Wi-Fi/BLE Provisioning Exceptions

Issue Code

Module Not Configured

All 3 LEDs on module will blink until a dispense has occurred.

If you’ve performed a dispense and the LEDs are continuing to

blink, then perform 1 more dispense. If the 3 LEDs are still

blinking, then replace the module.

Dispenser Not Communicating with

Onvation

If the dispenser is not communicating with Onvation, then try

the following steps:

1. Hold a magnet near the {Special Location} on the

module. The Red and Green LEDs will turn on.

Remove the magnet immediately when the LEDs turn

on.

If the magnet is held for a short period of time, the

module will enter pairing mode. Once paired, the

module will connect to Onvation.

2. Alternately a factory reset may be performed:

If the magnet is held for a long period of time, all LEDs

will turn on. This means a factory reset of the module is

performed. All parameters are erased. The module

enters a “Dispenser Detect” state where a dispense

must be performed after a factory reset.

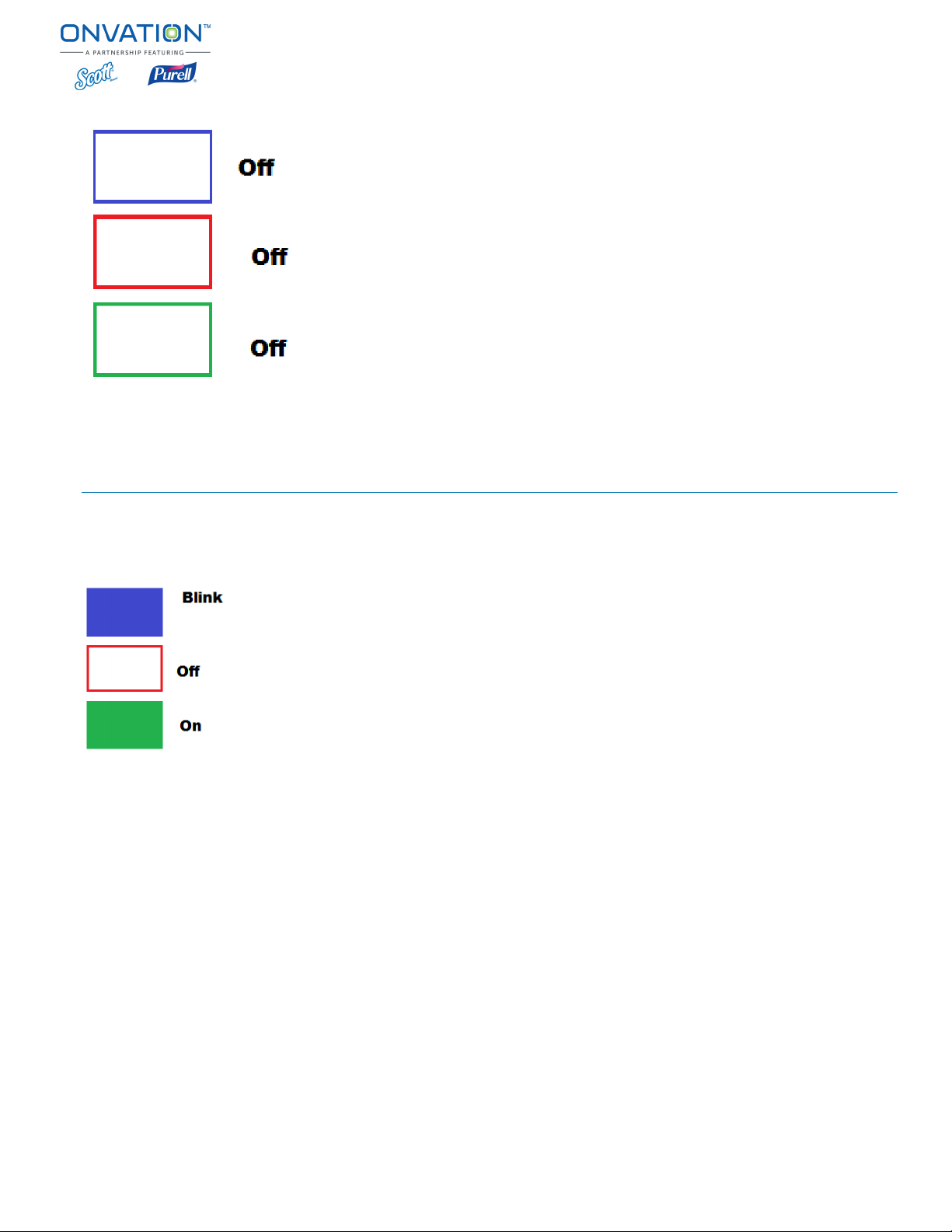

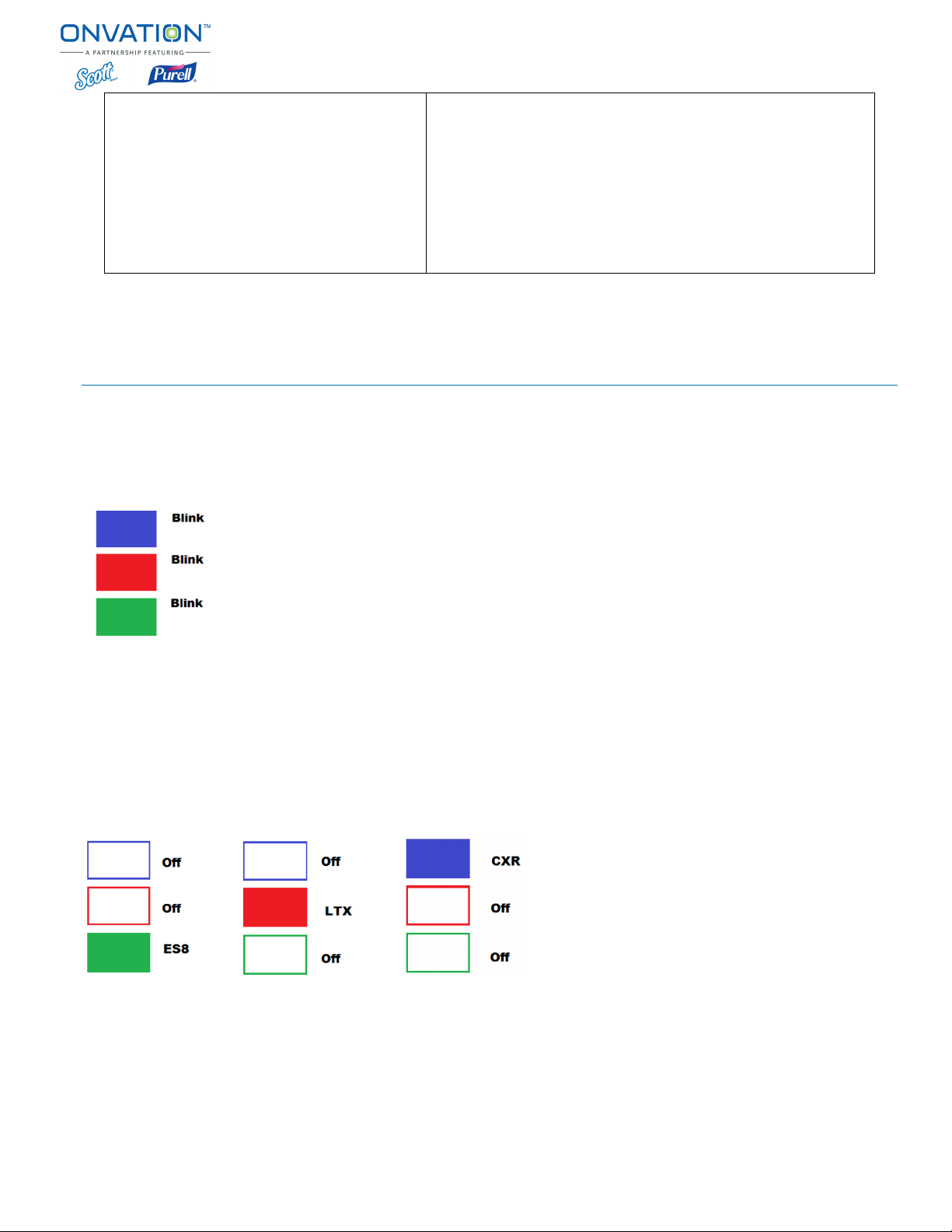

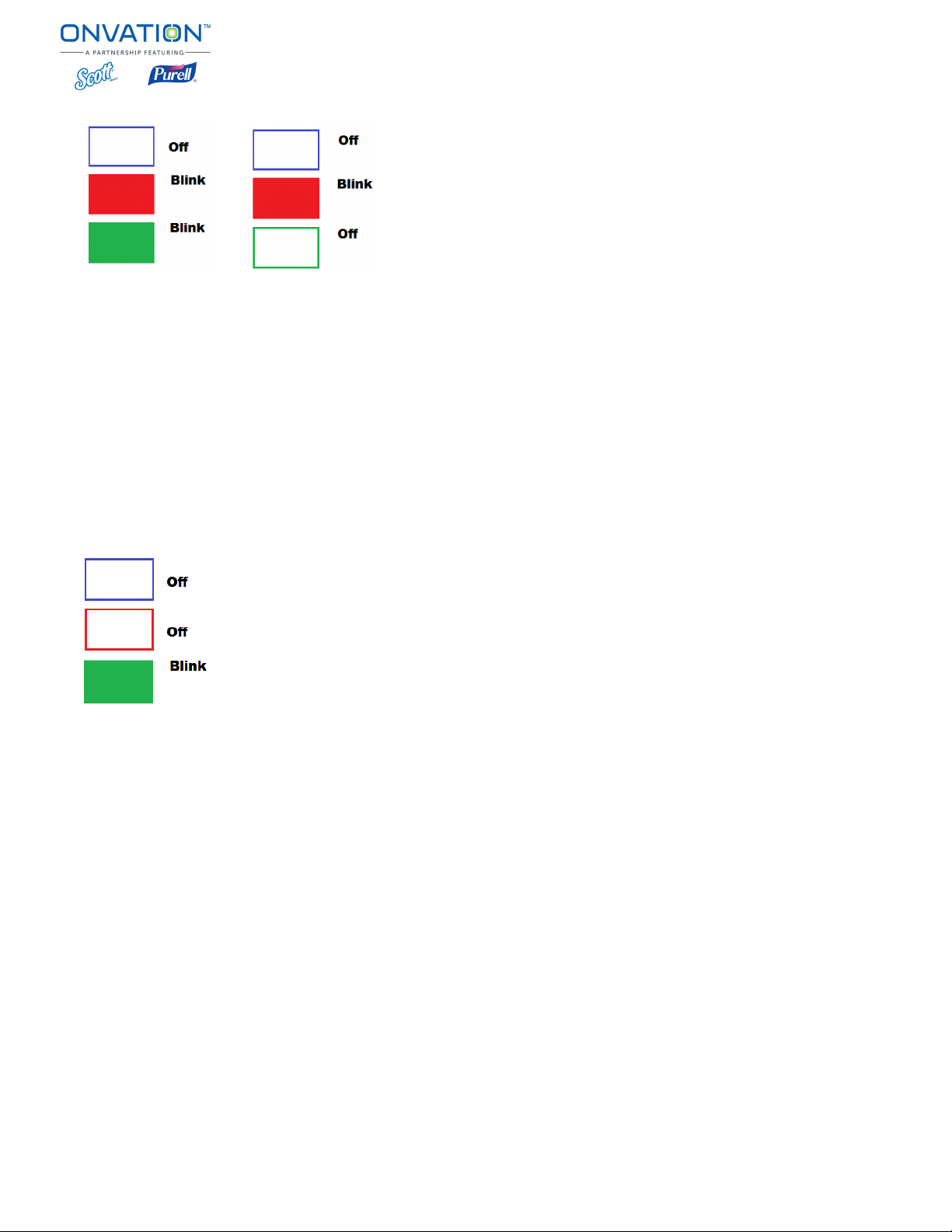

PAN Module Light Patterns

Status

The 2 module board options function in consistent ways.

There are 3 LEDs on installed on the board. Red, Green, and Blue. These LEDs are turned on with specific patterns

to indicate the board’s status.

State: Unconfigured – Waiting for Dispenser

In this state, the module has not yet been configured for a specific dispenser type. It will blink 1X per second until the

dispenser type is determined.

The module determines dispenser type when a dispense is performed. The Dispense (EOS) signal is toggled, and

then status is sent to the module. Once the dispenser type is determined, it is saved and is only cleared upon a

factory reset.

IMPORTANT: Once installed and powered in a dispenser, the module should not be left indefinitely in this state- as it

will consume significantly more power than if it transitions out of this mode.

State: Dispenser Type Confirmation

OR OR

At startup, the dispenser enters the dispenser type confirmation state once it determines the dispenser type

configuration for the module. The LED is turned on solid for a 1.5 second period to confirm the dispenser type. After

the module enters this state, it will query the dispenser for its state, if possible, and then will begin initially advertising.

State: Advertising

In advertising mode, either the Green and Red LED or only the Red LED blinks at a rate of 2X per second. If the

green LED is blinking, this means that the module is in pairing mode and that it will accept a new bond.

This state transitions to a new state when advertising mode times out or when the module enters a connected state

due to a connection.

On the first advertising state after a boot of the module, the timeout for advertising mode is 30 minutes. For

subsequent advertising states, it times out after 1 minute. If advertising times out, it will not advertise for 2 minutes,

and then will begin advertising again. If after 5 retries for advertising, the module will wait until the next scheduled

advertising interval before advertising again.

In Production Firmware, this LED sequence is disabled for advertising without pairing. When pairing, this LED

sequence is enabled.

State: Connected

In the connected state, the Green LED will flash at a rate of 2X per second.

In this state, parameters are sent to a hub and this normally occurs within a 10 second period. This state will timeout

after 5 minutes and will attempt to reconnect at the next scheduled advertising interval. This state transitions to the

“Synchronization Complete” state if the synchronization is completed. It reschedules advertising if the central

disconnects from the module without completing the synchronization process.

Once the Connected state is completed, the dispenser will wait until the next scheduled synchronization interval

before synchronizing again. This synchronization interval may be scheduled immediately depending on the dispenser

state.

In Production Firmware, this LED sequence is disabled.

All Other States

In all other states, the LEDs are OFF to conserve power.

User Interface

Pairing Mode

If the magnetic switch is engaged for 500ms (1/2 second), the device will enter pairing mode. In this case, the LEDs

will confirm the selection by blinking the Blue LED and turning the Green LED ON solid.

When the button is released, the module will enter pairing mode and will attempt to make a connection to the hub.

Note: We have seen instances where on the first connect to the hub, the hub will determine that it no longer has bond

information and will automatically disconnect before parameters are sent. The module will then re-attempt a

connection attempt 1 minute later and this time, the connection will succeed.

Pairing mode will be ignored in certain modes such as the connected mode.

Factory Reset

If the button or magnetic switch is engaged for 4 seconds, the device will perform a factory reset. When a factory

reset is performed, any settings and bond information are erased from the module. In addition, the module will restart

in a mode where it attempts to detect the dispenser type.

When the button or magnetic switch is held for 4 seconds, all 3 LEDs will turn solid, letting the technician know that

when released, the module will perform a factory reset.

Defaults

The default settings for the mod

ule board are as follows:

Synchronization Interval: 60 minutes (may be set to any value [30

Dispense Count Threshold: 50 dispenses (may be set to any value [5

Device Compliance

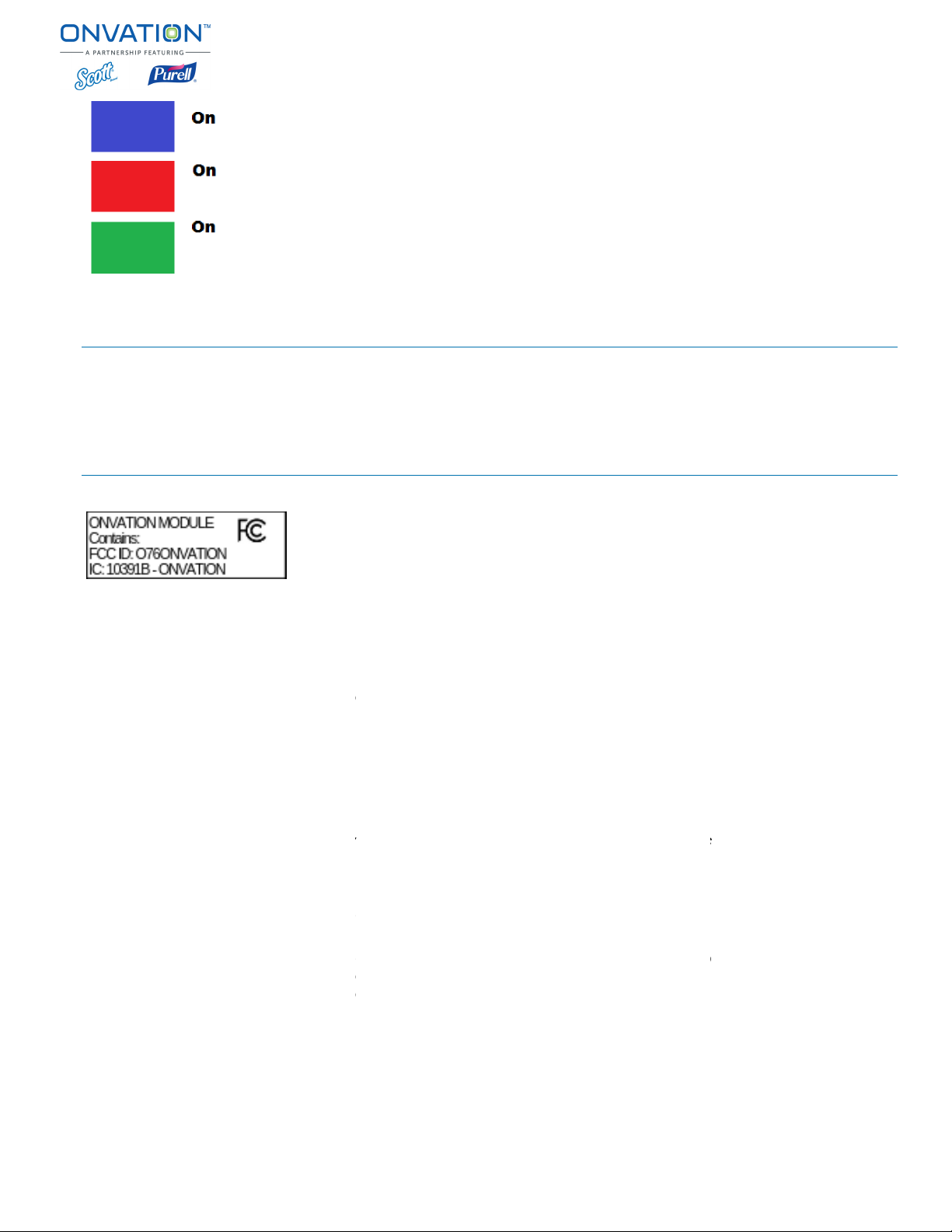

Onvation Module FCC/IC Label

Please include on dispenser packagin

g or enclosure the following:

"Contains FCC ID: O76ONVATION, IC: 10391B

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of

the FCC rules. These limits are designed to provide re

equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction manual, ma

interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

This device complies wit

h Part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This

device may not cause harmful interference, and (2) This device must accept any interference received, including

interference that may cause undesired operation.

Cha

nges or modifications not expressly approved by the party responsible for compliance could void the user's

authority to operate the equipment

This device complies with Industry Canada license

conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux

L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2)

l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage

compromettre le fonctionnement.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This

device may not cause harmful interference, and (2) This device must accept any interfe

interference that may cause undesired operation.

ule board are as follows:

Synchronization Interval: 60 minutes (may be set to any value [30

-720])

Dispense Count Threshold: 50 dispenses (may be set to any value [5

-255])

g or enclosure the following:

"Contains FCC ID: O76ONVATION, IC: 10391B

-ONVATION"

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of

the FCC rules. These limits are designed to provide re

asonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction manual, ma

interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

h Part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This

device may not cause harmful interference, and (2) This device must accept any interference received, including

interference that may cause undesired operation.

nges or modifications not expressly approved by the party responsible for compliance could void the user's

This device complies with Industry Canada license

exempt RSS standard(s). Operation is subject to the following tw

conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux

appareils radio exempts de licence.

L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2)

l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This

device may not cause harmful interference, and (2) This device must accept any interfe

rence received, including

interference that may cause undesired operation.

Page 7of 7

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of

asonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction manual, ma

y cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

h Part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This

device may not cause harmful interference, and (2) This device must accept any interference received, including

nges or modifications not expressly approved by the party responsible for compliance could void the user's

exempt RSS standard(s). Operation is subject to the following tw

conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including

appareils radio exempts de licence.

L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2)

l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage

est susceptible d’en

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This

rence received, including

Inhaltsverzeichnis

Andere Scott Spender Handbücher

Scott

Scott 47604 Bedienungsanleitung

Beliebte Spender Handbücher anderer Marken

Silver King

Silver King Majestic SK12MAJ Kurzanleitung

Franke

Franke F3Dn Twin Bedienungsanleitung

STIEBEL ELTRON

STIEBEL ELTRON UltraHot Plus Bedienungsanleitung

DAN DRYER

DAN DRYER 282 Bedienungsanleitung

Essity

Essity Tork 473208 Bedienungsanleitung

CBS

CBS SD300BU-88 Einrichtungshandbuch

Sealey

Sealey MK77 Bedienungsanleitung

Fluid Management

Fluid Management Accutinter 1600 Bedienungsanleitung

Franke

Franke DVS SD99-010 Bedienungsanleitung

Graco

Graco Dispensit 1053-10C Fehlerbehebungshandbuch

ITALTINTO

ITALTINTO i50 Bedienungsanleitung

Coca-Cola

Coca-Cola FREESTYLE 9000 Bedienungsanleitung

Graco

Graco ProMix 2KE Bedienungsanleitung

TECHCON SYSTEMS

TECHCON SYSTEMS TS1251 Bedienungsanleitung

Wayne

Wayne GLOBAL VISTA CNG Bedienungsanleitung

clarsen

clarsen H133 Bedienungsanleitung

PicoBrew

PicoBrew Zymatic Bedienungsanleitung

BOWMAN

BOWMAN BP-007 Bedienungsanleitung
