Screen Research ClearPix Bedienungsanleitung

ClearPix

Integrated Type J

Fixed-Frame Screen

Installation Manual

ClearPix Integrated Type J Fixed Frame Screen - Installation Manual

Revision A, 2005.03.10

Introduction / Contents

The ClearPix Integrated Type J Fixed Frame screen is shipped as a kit for on-site assembly. The kit contains

the frame, the projection screen fabric, and the tools and accessories necessary for assembly.

All Fixed-Frame screens include:

Extrusion bar 1.15m

(45”)

(quantity depends on

screen size)

ClearPix projection

Screen Material

(1 piece)

Pi-Grip clipping

extrusion 1.15m (45”)

(quantity depends on

screen size)

Wood screws

(60 pieces)

Screens with the optional black backing layer also include:

Black Backing

Material

Pi-Grip clipping

extrusion 1.15m (45”)

(quantity depends on

screen size)

Extrusion bar 1.15m

(45”)

(quantity depends on

screen size)

ClearPix Integrated Type J Fixed Frame Screen - Installation Manual

Revision A, 2005.03.10

Introduction / Contents

All screens include the following tools for assembly:

Mallet

(1 piece)

Gloves

(1 pair)

Fabric cutting tool

(1 piece)

Installation Manual

(1 piece)

ClearPix Integrated Type J Fixed Frame Screen - Installation Manual

Revision A, 2005.03.10

Frame Assembly

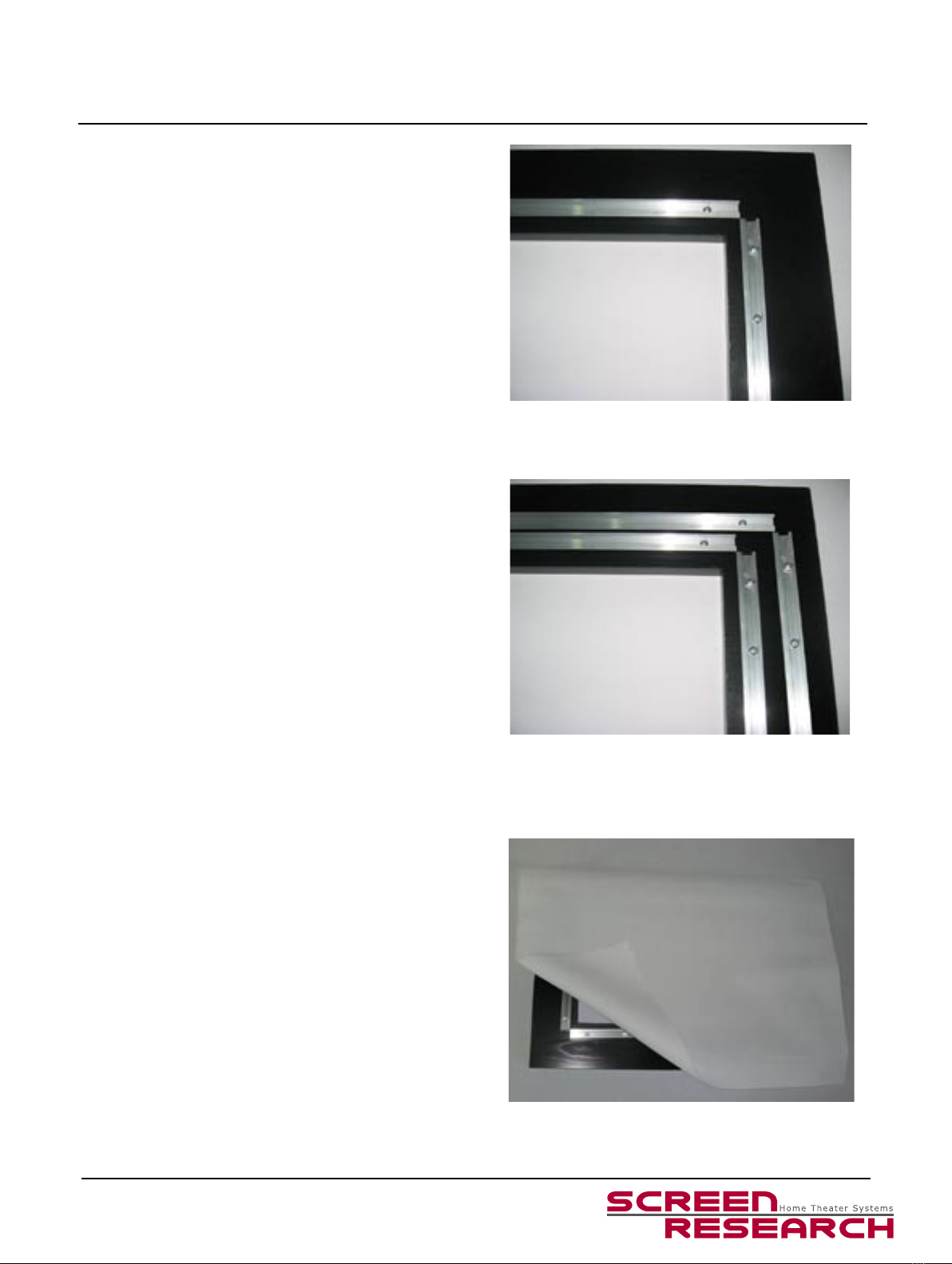

1. Screw the extrusion bars on the support you choose.

The bars are delivered 1.15M (45”) long so you may

need to cut the bars so that you can adjust their

length to your screen length.

Make sure you position the ends of the bars as

shown on the picture for the fabric to be installed

easily.

2. IF YOUR SCREEN INCLUDES THE CLEARPIX2

OPTIONAL BLACK BACKING MATERIAL.

Fix a second row of extrusion bars parallel to the rst

one.

3. Unroll the projection screen fabric over the frame,

projection side down. The projection side is

indicated by a sticker in one corner of the fabric.

IF YOUR FRAME CAME WITH CLEARPIX1 FABRIC AND

BLACK BACKING, unroll the black backing now and

place it over the projection screen material.

ClearPix Integrated Type J Fixed Frame Screen - Installation Manual

Revision A, 2005.03.10

Projection Screen Material Installation

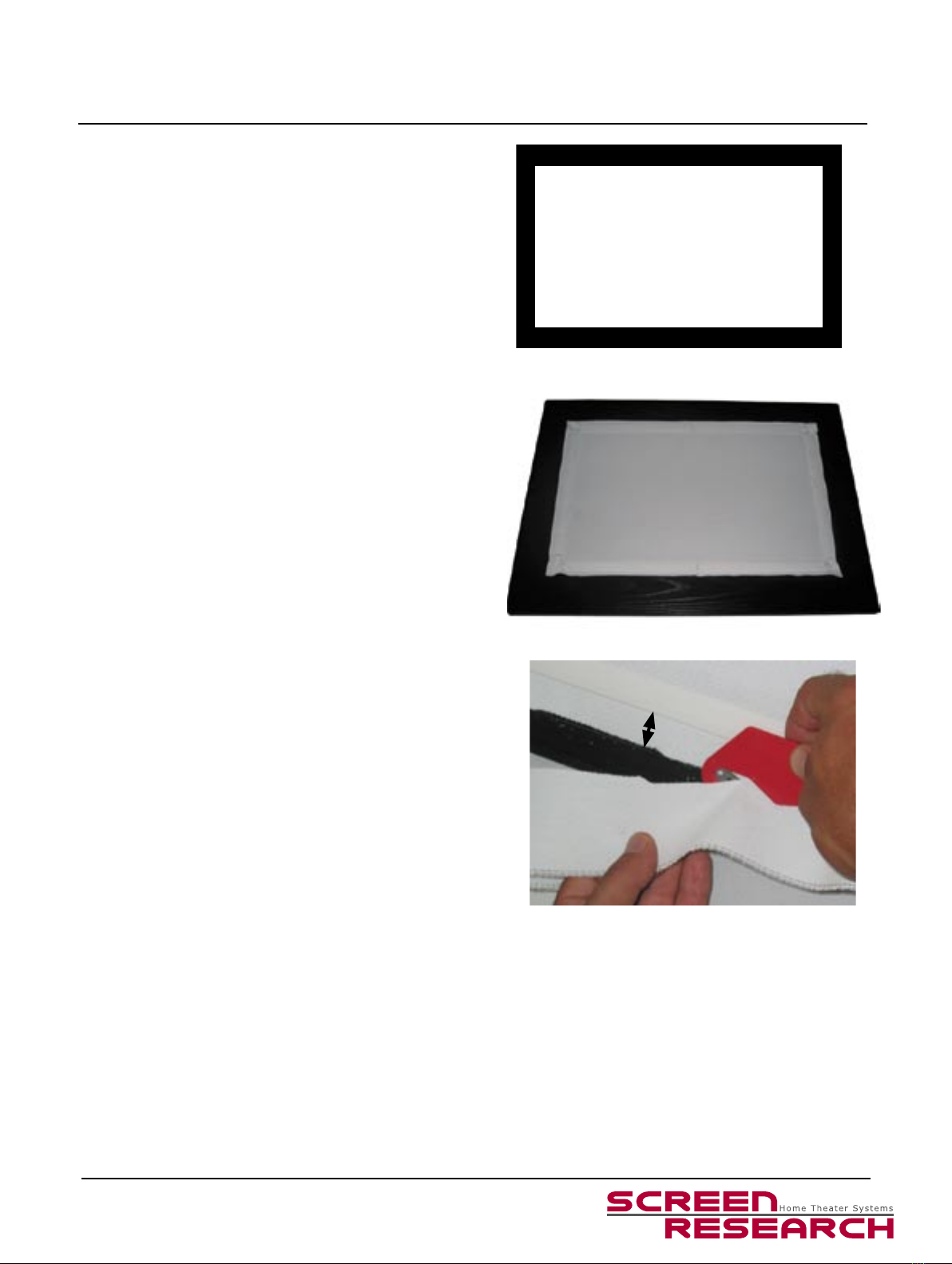

4. Position the projection screen material using the

short (2” / 50mm) pieces of Pi-Grip. Place them in

the order shown. Tension the fabric only slightly at

this time.

IF YOUR FRAME CAME WITH CLEARPIX1 FABRIC AND

BLACK BACKING, clip both the projection screen

material and the Black Backing together.

5. Tension the fabric using the long pieces of Pi-Grip.

Remove the short piece of Pi Grip and insert the

long piece of Pi-Grip in its place. Begin at one end

of the Pi-Grip and work your way towards the other

end. You should be able to insert it by hand, but you

may use the included mallet if necessary. As you

insert the Pi-Grip, apply gentle tension on the fabric

along the axis of the Pi-Grip that you are inserting.

6. Once you have  nished clipping the fabric, verify

that the tension is even and suf cient. You may

want to lift the frame and inspect the front side. If

necessary, retension the fabric by removing and

reinserting the Pi-Grip.

Once you are satis ed with the tension, trim the

excess fabric with the fabric cutting tool. Leave

about 1.5” (40mm) of spare fabric outside of the

edge of the PI-Grip for future potential retensioning.

7. IF YOUR FRAME CAME WITH CLEARPIX2 OPTIONAL

BLACK BACKING, repeat the operations as explained

steps 3 to 6 but clipping your Black Backing in the

second groove.







1.5”

40 mm

ClearPix Integrated Type J Fixed Frame Screen - Installation Manual

Revision A, 2005.03.10

Screen Research

Rue du Finistere

ZAC Erdre Active

44240 La Chapelle sur Erdre, France

Tel. +33 (0) 2 40 77 87 89 Fax +33 (0) 2 40 77 86 78

http://www.screenresearch.com

info@screenresearch.com

Screen Care

Your cinema-quality viewing surface is delicate. Special attention to these instructions should be

followed when cleaning.

Cleaning your ClearPix Integrated Type J Fixed Frame Screen surface

NEVER attempt to use solvents, chemicals or abrasive cleaners on the screen. A soft cloth or brush may

be used to lightly whisk away any loose dirt or particles. Do not use a sharp instrument to remove any

particles. Softly brush from the center to the edges. An upholstery brush attachment on a vacuum

cleaner may be used, but only if it is perfectly clean. We encourage you to keep your screen clean. Avoid

getting any foreign materials on it, as cleaning it may prove very difcult or even impossible (paint, ink,

etc.). Never paint in the vicinity of the screen unless the fabric is completely protected.
