Sea Breeze

PTAC Air Conditioners

Installation and Operation Manual

Sea Breeze

Model Description

PTAC09CH3ZX 9,000 BTU, cooling with 3,000 Watt PTC heater, 240 VAC

PTAC09HP3ZX 9,000 BTU, heat pump with 3,000 Watt PTC heater, 240 VAC

PTAC12CH3ZX 12,000 BTU, cooling with 3,000 Watt PTC heater, 240 VAC

PTAC12CH5ZX 12,000 BTU, cooling with 5,000 Watt PTC heater, 240 VAC

PTAC12HP3ZX 12,000 BTU, heat pump with 3,000 Watt PTC heater, 240 VAC

PTAC15CH3ZX 15,000 BTU, cooling with 3,000 Watt PTC heater, 240 VAC

PTAC15CH5ZX 15,000 BTU, cooling with 5,000 Watt PTC heater, 240 VAC

PTAC15HP3ZX 15,000 BTU, heat pump with 3,000 Watt PTC heater, 240 VAC

950-0094revF - 1 - November 26, 2008

Table of Contents

Air Conditioner Safety ------------------------------------------------------------------------------------ 2

Safety Instructions to End Users ---------------------------------------------------------------------- 3 – 4

Names and Descriptions of Parts --------------------------------------------------------------------- 4 – 5

Installation Procedures ----------------------------------------------------------------------------------- 5 – 7

Names of Parts ----------------------------------------------------------------------------------------- 5

Wall Sleeve and Outdoor Grille ------------------------------------------------------------------- 6

Installation ----------------------------------------------------------------------------------------------- 6 – 7

Drain ------------------------------------------------------------------------------------------------------- 7

Test Operation ------------------------------------------------------------------------------------------ 7

Operating Instructions ------------------------------------------------------------------------------------ 7 – 11

Unit Control Panel Operation ---------------------------------------------------------------------- 7

Fresh Air Exchange ----------------------------------------------------------------------------------- 8

Self Diagnostics Functions ------------------------------------------------------------------------ 8

Wall Mounted Control (Optional) ----------------------------------------------------------------- 9

Hand Held Remote Control (Optional) ---------------------------------------------------------- 10 – 11

Periodic Maintenance ------------------------------------------------------------------------------------- 12

Troubleshooting -------------------------------------------------------------------------------------------- 13

Wall Sleeve Installation ----------------------------------------------------------------------------------- 13 – 18

Electric Heaters --------------------------------------------------------------------------------------------- 18

Specifications ------------------------------------------------------------------------------------------------ 19

Schematic diagrams --------------------------------------------------------------------------------------- 20 – 27

Warranty ------------------------------------------------------------------------------------------------------- 28

TECHNICAL SUPPORT

IF YOU NEED TECHNICAL SUPPORT, PLEASE CALL 704-504-8590 BETWEEN THE HOURS

OF 8:00 A.M. AND 5:00 P.M.

PLEASE HAVE YOUR EQUIPMENT MODEL NUMBER AND SERIAL NUMBER AVAILABLE

WHEN YOU CALL.

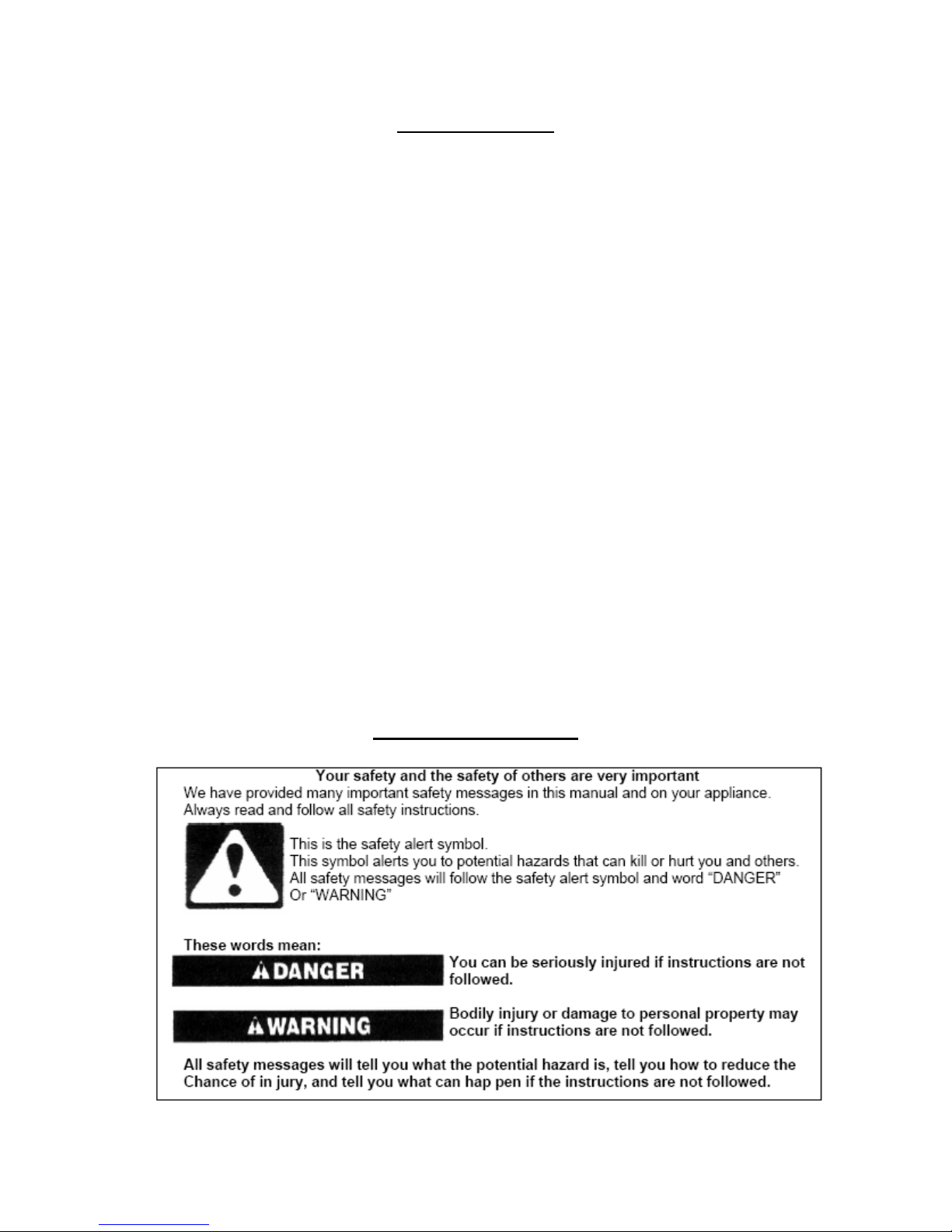

AIR CONDITIONER SAFETY

950-0094revF - 2 - November 26, 2008

SAFETY INSTRUCTIONS TO END-USERS

Read this manual carefully before using the packaged terminal air

conditioner to ensure proper operation of the unit.

Installation Safety Instructions

Be sure that the correct breaker is installed. If a breaker is not

installed, it may result in electric shock or other hazards!

Do not install the unit where there might be leakage of

inflammable gasses. In the case that the gasses are leaked out and accumulated

around the unit, it may result in fire hazards or other accidents.

Be sure that the power source of the unit is properly grounded.

The grounding wire of the packaged terminal air conditioner must be firmly connected to

the grounding wire of the power source. Improper grounding will lead to possible electric

shock or other hazards.

Operating Safety Instructions

Do not pinch, stretch, damage, heat, or modify the power cord.

It may result in electric shock, overheating, fire hazard or other accidents. In case the

power cord is damaged or that a replacement for the power cord is required due to some

other reason, contact our company dealer or an authorized maintenance technician.

Do not use a fuse or breaker with the wrong capacity, or

substitute wires in place of fuses. Improper use of wires or fuses or circuit breakers

of the wrong capacity may result in faulty performance of the unit or fire hazards.

Do not insert sticks, tools, or other objects into the air inlet or

outlet. The high-speed rotation of the fan blades may cause accidents.

Do not place such articles as insecticides, paints, or other

flammable spraying agents near the packaged terminal air conditioner or

spray them against the air conditioner. It could result in a fire hazard.

Do not wash the air conditioner with water. It may cause electric

shock or other accidents.

950-0094revF - 3 - November 26, 2008

Do not disconnect the power cable to turn the unit off. This could

result in electric shock, fire hazard or other accidents.

Do not sit on the unit or place heavy objects on it. If the unit falls it

could cause bodily injuries or other accidents.

Check to see if the supporting parts of the units are properly

installed and secure. If the supporting parts are damaged, repair them at once so as to

prevent the unit from falling down which could cause bodily injuries.

If the air conditioner is not to be used for an extended period of time,

disconnect the air conditioner from the power socket to ensure safety. Turn

off the air conditioner before pulling out the plug.

Instructions for removal and repairs

•If the unit needs to be removed for installation elsewhere or for

repairs, please contact your dealer or an authorized technician.

•In the case of occurrence of abnormal operation (burning smell for

example), please turn the unit off, disconnect power, and contact

your dealer or an authorized technician.

Names and Descriptions of Parts

FRONT VIEW:

950-0094revF - 4 - November 26, 2008

REAR VIEW:

Installation Procedure

To ensure that the unit operates safely and efficiently, it must

be installed by qualified or experienced technicians.

•The unit must be installed in accordance with all local codes and

national wiring regulations.

•If the supply cord is damaged, it must be replaced by the

manufacturer’s service agent or a qualified technician.

1. Names of Parts

2. Wall Sleeve and Outdoor Grille

•The wall sleeve must be properly installed according to the wall sleeve installation

instructions.

950-0094revF - 5 - November 26, 2008

•When installing the outdoor grille, the mounting screws should be tightened from

the inside of the Wall Sleeve. If replacing an old chassis with an existing grille or

using a specialized grill in a new installation, contact your dealer to determine if

the new chassis should be used with the nonstandard specialized grille.

3. Installation

•Front cover removal

Remove the front cover by pulling out at the bottom to release it, then lift it up to

clear the rail along the chassis top.

•Chassis Installation

Slide the chassis into the wall sleeve until the chassis flanges contact the front

edge of the wall sleeve, and then secure with four screws through the chassis

flange holes.

•Connect the Wall Mounted Controller (if used).

Firmly connect the electrical connector of the wall mounted controller to the

electrical connector of the unit. (Located near the right bottom of the chassis)

•Front Cover Installation

Reinstall the front cover by hooking the top over the rail along the chassis top,

then pushing it in at the bottom.

950-0094revF - 6 - November 26, 2008

4. Drain

For cooling or cooling with PTC heaters, the condensate water is blown past the

condenser and will be evaporated. It is not necessary to use any drain kit or

assembly for these models.

For heat pump units, we have provided a valve that will open when the temperature

reaches 50°F (10°C). This drain is located in the pan between the compressor and

the condenser. A drain kit maybe connected to the hole in the wall sleeve if needed.

The condensate water will be blown past the condenser eliminating as much

condensate as possible.

5. Test Operation

Connect unit to power source, check to see if the operational mode buttons work

properly.

Check to see if the room temperature control and the function control work

properly.

Check if there are abnormal sounds during operations.

Check the cool air at the outlet, the unit is operating normally when the

temperature of air outlet is 10 °F and 18 °F below the outdoor temperature.

OPERATING INSTRUCTIONS

UNIT CONTROL PANEL OPERATION

WARM button

Each pressing of this button will

raise the temperaturesettingby

1°C or 1°F Receiver of remotecontroller signal

COOLbutton

Each pressing of this button will

decreasethetemperaturesetting

by 1°Cor 1°F

ON/OFF button

Press this button to turn the

unit ONor OFF

Operationrunningindicator lamp

WARM

COOL

COOL FAN HEAT LOW MID HIGH POWER

FANMODE ON/OFF

FAN SPEED button

Press this button to select the desired fan

speed (low- Med- High).

When in the "FAN" mode the fan will operate

continuously at theselectedfanspeed.

MODEbutton

Press this button to select the operations

amongCOOL, FAN, or HEAT.

Fanspeedindicator lamp

Operationmodeindicator lamp

Digital display

Normal operationwillindicateroom

temperature. Whenchangingthetemperature

setting the display will indicate the selected

temperatureset point.

When using the timer function it will indicate

the time selected.

Failurecodewillindicatedindisplay.

NOTES:

•Control panel lock:

Pressing both the “WARM” and “COOL” buttons at the same time locks the control

panel. Only the “ON/OFF” button is functional when the control panel is locked. To

unlock the control panel, press both the “WARM” and “COOL” buttons at the same

time again.

950-0094revF - 7 - November 26, 2008

•Random Time Delay Start-up

In order to prevent large electrical surges in installations where multiple units are

installed, after a power failure the unit(s) will start back up automatically after a

random time delay of 120 to 240 seconds. The unit will start back up in the

operating modes and temperature settings that were in effect prior to the power

failure.

•The fan running continuously after the temperature is satisfied.

•When changing functions, unit has a 3 minute time delay for the compressor start

up operation.

•The Compressor will NOT operate in Heating when the outside temperature is

below 45°F and in Cooling when the outside temperature is below 57°F.

FRESH AIR EXCHANGE

1. Remove the front cover by pulling out at the bottom to release it, then lift it up to clear

the rail along the top of the chassis (Fig a).

2. Move the air exchange lever to the right for the OPEN position, to the left for the

CLOSED position (Fig B).

Note: The air exchange lever is normally placed in the CLOSED position. When it is moved

to the OPEN position, the unit will draw in fresh air, but the efficiency of the unit will be

lower.

SELF DIAGNOSTIC FUNCTIONS

The unit has a self diagnosis system that displays error codes on the display in case of

system failures. Please refer to the chart below for the error code definitions:

Failure Code Content of defect

E1 Communication failure of wall thermostat

E2 Indoor coil temperature sensor failure

E3 Indoor temperature sensor failure

E4 System abnormality protection

E5 Outdoor coil temperature sensor failure

E8 Overheating protection/Defrosting

DF Defrosting

950-0094revF - 8 - November 26, 2008

WALL MOUNTED CONTROL

The wall mounted control (when connected)

FAN MID MODE

ON/OFF

WARM

COOL

WARM button

Each pressing of this button will raise

thetemperaturesettingby 1°C or 1°F.

Thehighest TEMP is 31°C or 88°F.

FAN HIGH

FAN LOW

COOLbutton

Eachpressingof this buttonwilldecrease

thetemperaturesettingby 1°C or 1°F.

The lowest TEMP is 16°C or 61°F.

ON/OFF button

Press this button to turn the

unit ONor OFF

MODEbutton

Press this button to select the

operationsamongcool, fan, orheat.

Fan speed indicator

Set temperature indicator

Heating indicator

Room temperature indicator

Cooling indicator

Fan indicator

FAN (Medium speed) Button

Press this button to select air flow

rateinmiddlespeed

FAN (High speed) Button

Press this button to select air flow

rateinhighspeed

FAN (Low speed) Button

Press this button to select air flow

rateinlowspeed

Notes:

•When the optional wall mounted control is installed, the buttons on the front panel

of the PTAC unit are disabled. The indicator lamps and the digital display on the

front panel will continue to indicate the operating modes and temperatures.

•Control panel lock: Pressing both the “WARMER” and “COOLER” buttons at the

same time locks the control panel. Only the “ON/OFF” button is functional when

the control panel is locked. To unlock the control panel, press both the “WARM”

and “COOL” buttons at the same time again.

•This Wall Mounted Control does not sense the room temperature. The room

temperature sensor is in the PTAC unit return air section.

950-0094revF - 9 - November 26, 2008

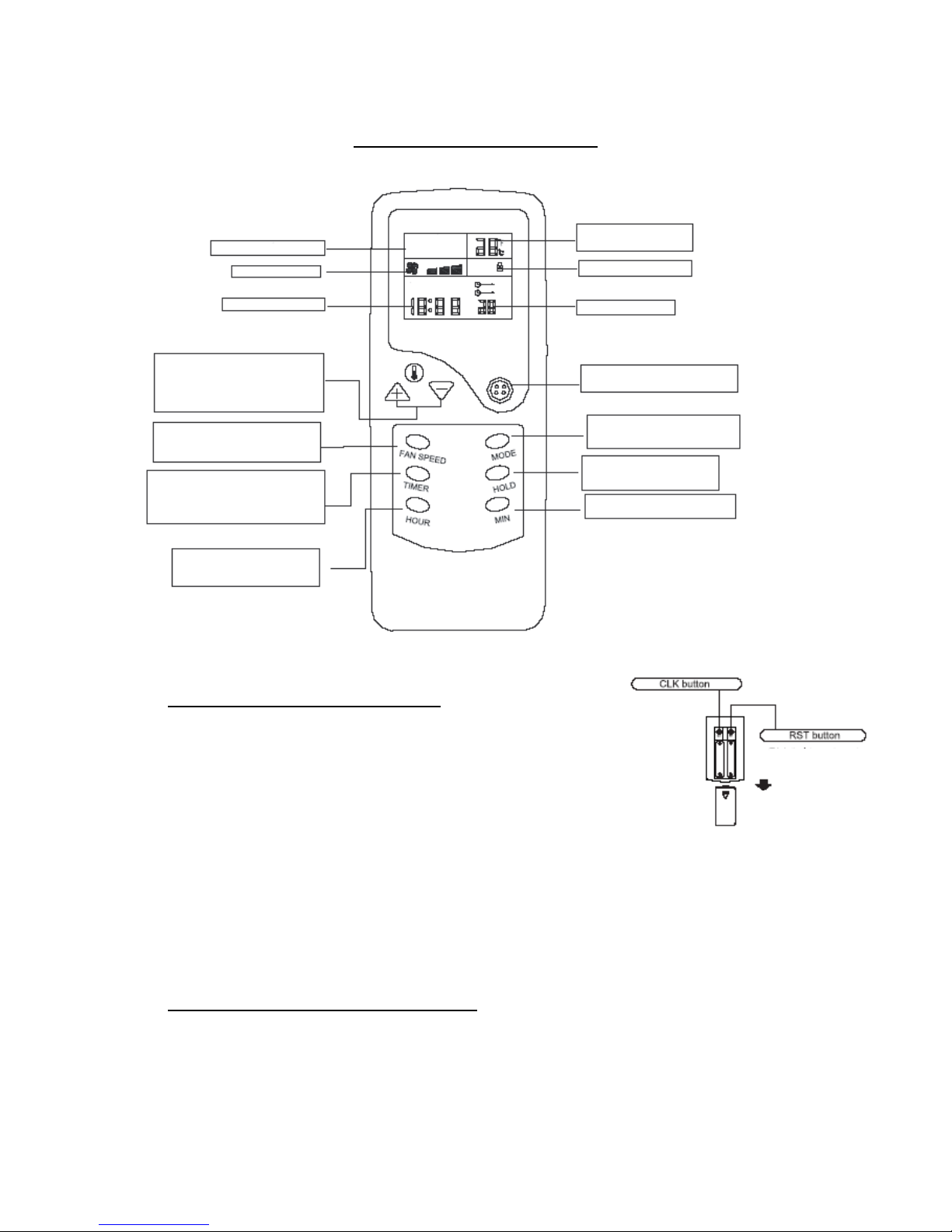

HAND HELD REMOTE CONTROL

Operation Mode Indicator HEAT

COOL FAN

TEMPindicator

Indicates set temperature

KeyboardLockedindicator

HTIMER time indicator

ON/OFFButton

Press this button to turnthe unit

on or off

MODE Button

Press this buttontoselect the

cooling, fan, or heating mode

HOLD Button

Press this button to lock or unlock

the remote control keyboard

MIN Button

This button is only used to set the

time of day clock

AM PM ON

OFF

ON/OFF

Fan Speed Indicator

Time of day indicator

Temp Set Buttons

These buttons are usedtoset the

room temperature. Eachpress of the “+”

or“-”buttonincreases or decreases the

room temperature setting by 1° F.

FANSPEEDButton

Use this buttontoselect between

HIGH, MED(ium), or LOW

fanspeeds

TIMER Button

This button is used to select the Automatic

TURN ON or Automatic TURN OFF mode.

Used together with the “HOUR” button, the

time setting can be made within the range of

1 to 12 hours in 1 hour increments

HOUR Button

This button is used to set the time of day

clock, or the time interval for the

automatic turn on or automatic

turn off mode.

Battery installation and replacement: Press this button to set clock

Remove the rear cover and install two “AAA” alkaline cells

into the remote control observing correct battery polarity. Press this button to reset to factory

settings or clear settings.

Set the time of day clock by depressing the “CLK” button with Slide to remove.

the tip of a pencil or pen, then pressing the “HOUR” button until

the correct hours and “AM” or “PM” are indicated on the display.

Press the “MIN” button until the correct minutes are indicated on the display.

Depress the “CLK” button again to lock the time setting into the remote control.

Reinstall the rear cover of the remote control.

Note: the TIMER function will not operate correctly unless the correct time of day is set

on the remote control.

COOLING/FAN/HEATING mode operation:

•Press the ON/OFF button with the remote control pointing toward the front

panel of the packaged terminal air conditioner.

•Press the MODE button to select the desired mode of operation

(COOL/FAN/HEAT).

950-0094revF - 10 - November 26, 2008

Andere Handbücher für PTAC

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Seabreeze Klimaanlage Handbücher

Seabreeze

Seabreeze SMZ18H46ZOGX Bedienungsanleitung

Seabreeze

Seabreeze 420-0075 Betriebsanleitung

Seabreeze

Seabreeze SHE9H4ZIGX Bedienungsanleitung

Seabreeze

Seabreeze 9A23YGX Bedienungsanleitung

Seabreeze

Seabreeze HIGH EFFICIENCY Series Bedienungsanleitung

Seabreeze

Seabreeze PTAC09CH3ZX Bedienungsanleitung

Seabreeze

Seabreeze STW412AEZRB Technisches Datenblatt

Seabreeze

Seabreeze SMZ42H46ZOGX Bedienungsanleitung

Seabreeze

Seabreeze WH12ZM Bedienungsanleitung

Seabreeze

Seabreeze PAHS127 Bedienungsanleitung

Seabreeze

Seabreeze 24A43ZCX Bedienungsanleitung

Seabreeze

Seabreeze SHE9H4ZIGB Bedienungsanleitung

Seabreeze

Seabreeze HIGH EFFICIENCY Series Bedienungsanleitung

Seabreeze

Seabreeze PTAC09CH3ZX Bedienungsanleitung

Seabreeze

Seabreeze WA18ZR Bedienungsanleitung

Seabreeze

Seabreeze MZ18H424ZMO Bedienungsanleitung

Seabreeze

Seabreeze 9A23YGX Bedienungsanleitung

Seabreeze

Seabreeze PTAC Bedienungsanleitung

Seabreeze

Seabreeze SHE9A423ZGX Bedienungsanleitung

Seabreeze

Seabreeze PTAC49CH3ZX Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
