Seagate Barracuda ATA Family Bedienungsanleitung

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Barracuda ATA Family

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ST328040A, ST320430A

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ST313620A, ST310220A

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ST36810A

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation Guide

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Publication Number: 21200135-001, Rev. A, July 1999

Seagate, Seagate Technology, the Seagate logo and Barracuda

are registered trademarks of Seagate Technology, Inc. DiscWiz-

ard, SeaFAX, SeaFONE, SeaTDD and SeaBOARD are either

trademarks or registered trademarks of Seagate Technology,

Inc. or one of its subsidiaries. All other trademarks or registered

trademarks are the property of their respective owners.

Barracuda ATA Family Installation Guide, Rev. A -1

Contents

The easiest way to install your drive.................................... 1

What you need........................................................................ 2

Ultra ATA/66 requirements..................................................... 2

Before you begin .................................................................... 2

Handling precautions............................................................. 3

Master/slave jumpers............................................................. 4

Attaching cables and mounting the drive............................ 6

Configuring your computer................................................... 8

BIOS settings...................................................................... 9

Addressing drive-capacity limitations ............................... 10

Preparing your drive for use ............................................... 12

Installation using Disk Manager........................................ 12

Standard DOS installation ................................................ 14

Loading the Operating System......................................... 15

Additional installation options............................................ 16

Non-ATA compatible slave jumper.................................... 16

Cable-select jumper.......................................................... 16

Advanced Disk Manager options........................................ 17

Troubleshooting ................................................................... 20

Alternate capacity jumper................................................. 22

Seagate Technology support services............................... 28

Storing and shipping your drive......................................... 35

iii

0 Barracuda ATA Family Installation Guide, Rev. A

Barracuda ATA Family Installation Guide, Rev. A 1

The easiest way to install your drive

DiscWizard is Seagate’s exclusive Windows program that is

included with your drive for easy drive installation.

DiscWizard helps you configure your new drive and your com-

puter. It analyzes your system, lets you select various installation

options and creates customized step-by-step instructions. It also

allows older computers to access the full capacity of large hard

drives. Run this software

before

installing your drive.

You can run DiscWizard to install your new hard drive if:

•You already have an existing, bootable hard drive in your com-

puter with at least 3 Mbytes of available disc space,

and

•You are running Windows 95 or Windows 98.

To run DiscWizard:

•Select Run from the Windows Start menu and type

:\setup,

where

is the drive letter of your diskette or CD-ROM.

If you cannot run DiscWizard, follow the instructions in this

installation guide to install and configure your new drive.

2 Barracuda ATA Family Installation Guide, Rev. A

What you need

•Straight-edge and Phillips screwdrivers

•Four 6-32 UNC drive mounting screws

•A standard 40-pin ATA interface cable,

an 80-conductor

cable to run Ultra ATA 66 (max length: 18 inches)

•An unused drive power cable for your new drive

Ultra ATA/66 Requirements

The drive can support transfer rates up to 66 Mbytes per second

in Ultra ATA/66 mode. For your drive to run in this mode you

need the following:

•A computer that supports UDMA modes 3 and 4

•A 40-pin 80-conductor cable (maximum length 18 inches)

•A software utility to activate Ultra ATA/66. Seagate provides a

utility called UTA66.exe that is included on your CD, or you can

download it from our Web site at www.Seagate.com.

•The Windows 98 operating system

Before you begin

•Make sure your computer is turned off before you open the

case.

•Read the handling precautions at the right and inspect the

drive to make sure that it is not damaged.

•Save your foam-lined Seagatedisc drive box. This box has

been approved by Seagate for shipping a Seagate disc drive.

Using any other container or packing material voids your drive

warranty.

Barracuda ATA Family Installation Guide, Rev. A 3

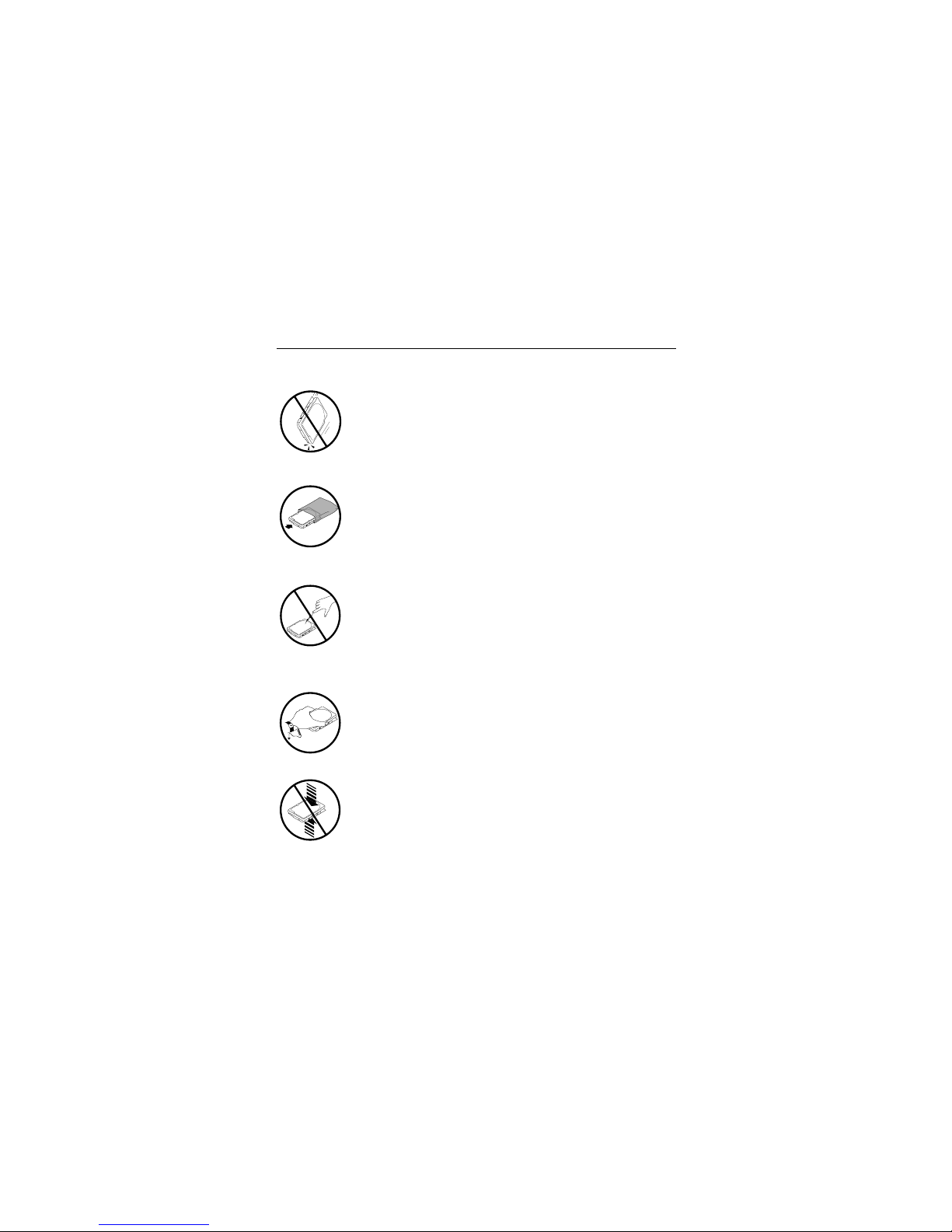

Handling precautions

Disc drives are extremely fragile. Do not drop or jar

your drive.

Keep the drive in its antistatic bag until you are

ready to install it.

Protect your drive from static discharge by making

sure you are well grounded before touching the

drive. We recommend wearing a grounded wrist

strap throughout the installation process. Do not

touch the connectors or any part of the printed cir-

cuit board.

Always handle the drive by its edges or frame.

Do not apply pressure or attach labels to the circuit

board or the top of the drive.

4 Barracuda ATA Family Installation Guide, Rev. A

Master/slave jumpers

If you already have one hard drive in your computer and you are

installing a second drive, you must configure one drive as a mas-

ter and the other as a slave.

Note. If you need to change the jumpers on your existing hard

drive, see the Disk Manager online manual, look on the

drive label, or contact the drive manufacturer.

Installing a master or one drive only:

•The drive is shipped configured for a master or single-drive

installation with a jumper set on pins 7 and 8.

Note. The master drive usually defaults to being the “boot” drive

(drive C), from which the computer loads system soft-

ware when it first starts up.

Installing a slave drive:

•If you are installing your drive as the second drive on the

cable, remove all the jumpers.

Barracuda ATA Family Installation Guide, Rev. A 5

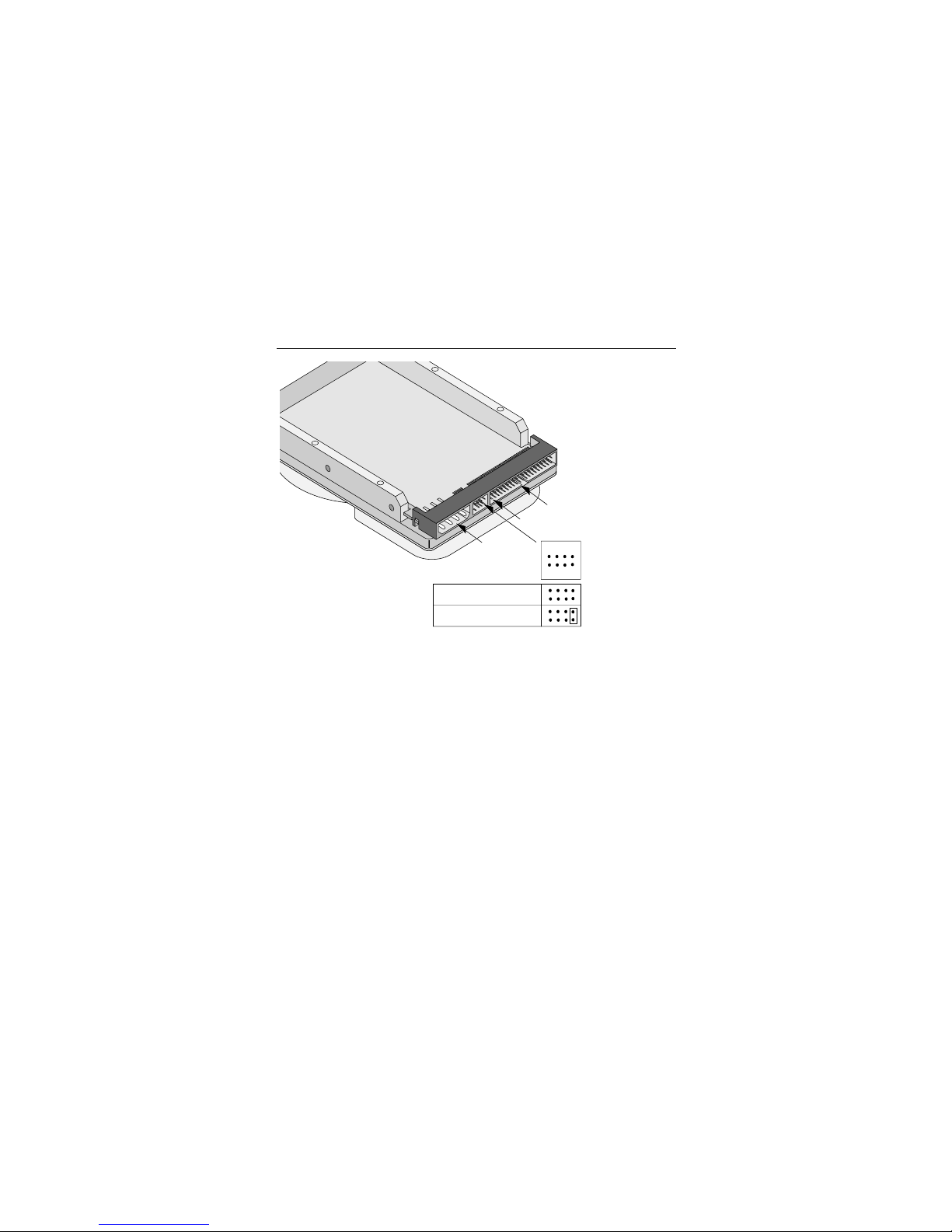

Figure 1. Master and slave jumper settings

pin 1

ATA interface

connector

135

246

Slave

Master or single drive

4-pin power

connector

6 Barracuda ATA Family Installation Guide, Rev. A

Attaching cables and mounting the drive

1. Attach one end of the drive interface cable to the interface

connector on your motherboard (See your computer manual

for connector locations).

Caution. Align pin 1 on the motherboard connector with

pin 1 on your drive connector. Pin 1 on is marked by a

stripe on one side of the cable.

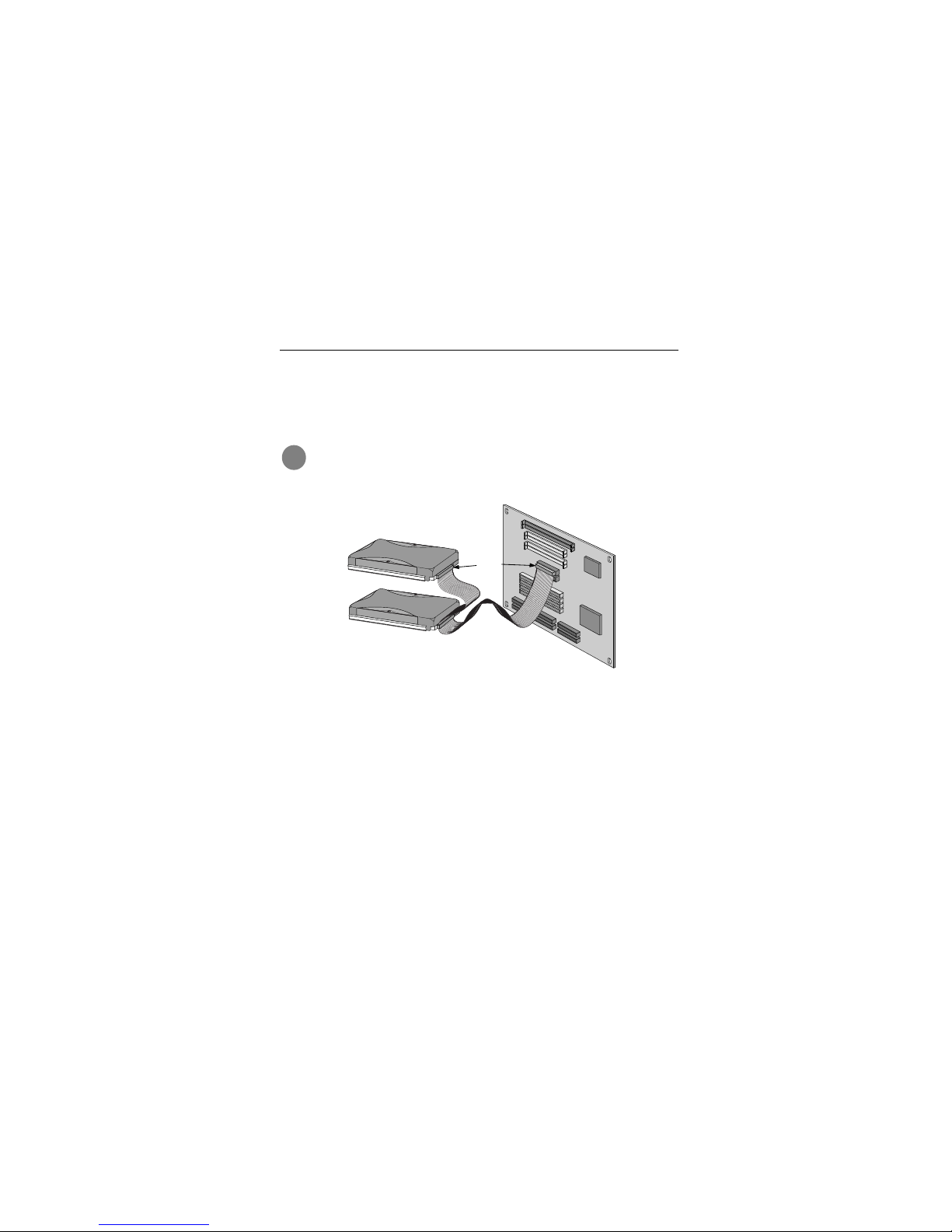

Figure 2. Attaching the cables

Note. A 40-pin 80-conductor cable is required to run in Ultra

ATA/66 mode. Attach the

blue

connector to the mother-

board, the

black

connector to the master or single drive,

and the

grey

connector to the slave.

2. Attach the interface cable and the power connector to the

new drive.

Computer

Motherboard

Pin 1
