SED-902

Remote & Master

Wireless Wiegand / Cardax System

& I/O

Jan 2019

WARNING: PLEASE READ

INSTALLATION INSTRUCTIONS

FIRST

PRODUCT WARRANTY

This product is covered by a 12 month, back to base warranty from date of purchase,

and proof of purchase should be supplied. The warranty does not cover damage that

has resulted in the improper installation or improper use of this product.

The warranty does not cover lightning damage, product misuse, electrical surges or acts of God.

LIMITATION OF LIABILITY

Sec Eng Systems Pty Ltd does not accept any liability for the loss or damage to property

or persons in relation to goods supplied. This disclaimer is only limited to the warranty

of the goods supplied and the intended use.

NOTE: THIS MANUAL IS SUBJECT TO COPYRIGHT

PLEASE READ FIRST

Do’s and Don'ts of installing the SED-902 System

1. Always install the supplied SED-902 antennas outside.

2. The antennas must be installed at least 3 metres away

from any other antenna or transmitting device.

3. If installing multiple SED-902 systems in one location,

call Sec.Eng Systems for assistance on how to best

configure.

4. The SED-902 system supplied is ready to use out of the

box - No programming required.

Failing to follow the installation instruction may void the

warranty of the system.

INSTALLATION - START HERE 3

INTRODUCTION

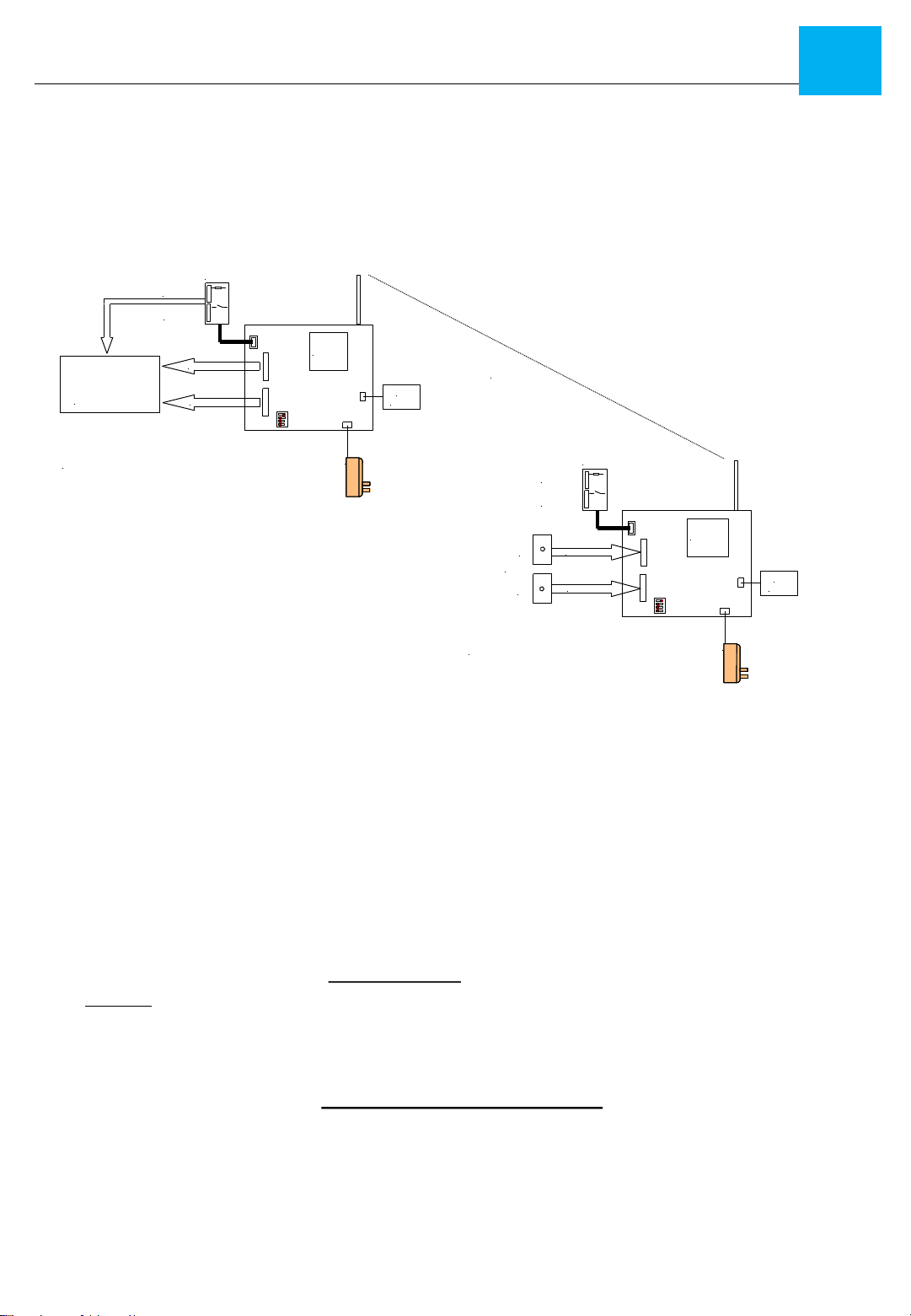

The SED-902 wireless Wiegand / Cardax system is a combination of 2 devices -

SED-902 Master and SED-902 Remote. This allows Wiegand / Cardax card and control

information to pass over a 915 MHz low power link

The SED-902 series will accept only card

information such as a Wiegand data

stream from 23 to 80 bits and Cardax

Mifare / 125 data.

This will be processed and passed over

the 915 MHz link. As well as the

transposition of the 4 x normally open

inputs crossed over to the 4 x dry relay

contacts on the remote, and vice versa.

This can be used for separate control of

devices, and works as, Input to follow

Output.

NOTE: YOU MUST ALWAYS WIRE ALL CABLES SHOWN FROM THE SED-902

TO THE ACCESS CONTROL SYSTEM - FAILURE TO DO SO, WILL RESULT

IN THE WIRELESS UNIT NOT WORKING CORRECTLY.

Inputs 1-4 N.o

Relay ouputs 1 - 4

@ 1.5amp 12V

Relay

board

12v

Battery

READER 1 WEIGAND OUT

READER 2 WEIGAND OUT

Access

Control

Inputs 1-4 N.o

Relay ouputs 1 - 4

@ 1.5amp 12V

Relay

board

12v

Battery

READER 1 WEIGAND IN

READER 2 WEIGAND IN

Wiegand card readers

900m line of sight

SED-902 Remote

SED-902 Master

Master

Remote

SED-902 REMOTE CONNECTION

DIP SWITCHES

NOTE: Mode switch sets Master or Remote

and Wiegand or Cardax

1 A off = Remote

2 B off = Wiegand

3 C off = not used

4 D off = on for programing via Serial 8n115k

NOTE: Address switch used for expanders

READER 1 Connections

BEEP= card reader YELLOW

LED = card reader LED BROWN

CLOCK= card reader CLOCK / D0 WHITE

DATA= card reader DATA / D1 GREEN

COM= card reader GND or COMMON

+12V= DC power for card reader RED

READER 2 Connections

BEEP= card reader YELLOW

LED = card reader LED BROWN

CLOCK= card reader CLOCK / D0 WHITE

DATA= card reader DATA / D1 GREEN

COM= card reader GND or COMMON

+12V= DC power for card reader RED

•Battery in = 12v back battery 7 amp hr

•16v AC in plug pack where required

•RS 485 Port not used

Fault relay

Used for RF signal link when in Range

DB 9 Serial

for PC configuration 8,n,1 @115k

RJ 45 EXPANDER Port

Used to link boards via RJ 12 jumper cable

Relay Board Operation

The Relay System is simple - inputs on the

Relay board follow outputs

Example: If you trigger Input 1 on either

Relay board, it will then trigger Relay 1

on the opposite board

INSTALLATION - SED 902 Wiegand Remote 4

SED-902 MASTER Board Layout & Connections

Note: The SED-902 has dual markings for MASTER & REMOTE

Sec-Eng

RF Module

CTx1

CRx1

CTx2

CRx2

xxxx Reader

BEEP

LED

CLOCK

DATA

COM

+12V

Wiegand

readers

16 vac in

ADDR

LEDS

Expand Port

SED-902 REMOTE

WIEGAND

Reader 1

BEEP

LED

CLOCK

DATA

COM

POWER

MODE

D 9

POWER

CHARGE

LINK

MEMORY

COPY PROG TEST

Signal

RS232

@115k in

batt Volts

N0 C NC

Battery in

RS 485 Port

IN range relay

xxxx Reader

BEEP

LED

CLOCK

DATA

COM

+12V

BEEP

LED

CLOCK

DATA

COM

POWER

Reader 2

4 way i/o

board

+12 A B GND + --

SED-902 MASTER CONNECTION

DIP SWITCHES

NOTE: Mode switch sets Master or Remote

and Wiegand or Cardax

1 A off = Remote

2 B off = Wiegand

3 C off = not used

4 D off = on for programming via Serial 8-n-115k

NOTE: Address switch used for expanders

ACCESS CONTROL 1 Connections

DATA= DATA / D1 GREEN

CLOCK= CLOCK / D0 WHITE

LED = LED BROWN

BEEP= YELLOW

COM= GND or COMMON

+12V= DO NOT WIRE

ACCESS CONTROL 2 Connections

DATA= DATA / D1 GREEN

CLOCK= CLOCK / D0 WHITE

LED = LED BROWN

BEEP= YELLOW

COM= GND or COMMON

+12V= DO NOT WIRE

•Battery in = 12v back battery 7 AHr

•16v AC in = plug pack where required

•RS485 Port not used

RF Link Relay

Used for RF signal link when in range

DB 9 Serial

for PC configuration 8,n,1 @115k

RJ11 EXPANDER Port

Used to link boards via RJ11 jumper cable

Relay Board Operation

The Relay System is simple - inputs on the

Relay board follow outputs

Example:If you trigger Input 1 on either

Relay board, it will then trigger Relay 1

on the opposite board.

INSTALLATION - SED-902 Wiegand Master 5

SED-902 MASTER Board Layout & Connections

Note: The SED-902 has dual markings for MASTER & REMOTE

Sec-Eng

RF Module

CTx1

CRx1

CTx2

CRx2

16 vac in

ADDR

LEDS

Expand Port

SED-902 MASTER

WIEGAND

MODE

D 9

POWER

CHARGE

LINK

MEMORY

COPY PROG TEST

Signal

RS232

@115k in

batt Volts

N0 C NC

Battery in

RS 485 Port

RF Link Relay

4 way i/o

board

+12 A B GND + --

OUTPUT XXXX

DATA

CLOCK

LED

BEEP

COM

------

Access

Control

Reader 1

Reader 2

OUTPUT XXXX

DATA

CLOCK

LED

BEEP

COM

------

SED-902 REMOTE CONNECTION

DIP SWITCHES

NOTE: Mode switch sets Master or Remote

and Wiegand or Cardax

1 A off = Remote

2 B off = Wiegand

3 C off = not used

4 D off = Programming via Serial 8n115k

NOTE: Address switch used for expanders

Cardax READER 1 Connections

BEEP= Cardax BLUE

LED = N/A

CLOCK= N/A

DATA= Cardax white

COM= card reader GND or COMMON

+12V= DC power for card reader RED

•Battery in = 12v back battery 7 amp hr

•16v AC in plug pack where required

•RS 485 Port not used

Fault relay

Used for RF signal link when in Range

DB 9 Serial

for PC configuration 8,n,1 @115k

RJ 45 EXPANDER Port

Used to link boards via RJ 12 jumper cable

Relay Board Operation

The Relay System is simple - inputs on the

Relay board follow outputs

Example: If you trigger Input 1 on either

Relay board, it will then trigger Relay 1

on the opposite board

INSTALLATION - SED-902 Cardax Remote 6

SED-902 MASTER Board Layout & Connections

Note: The SED-902 has dual markings for MASTER & REMOTE

Cardax READER 2 Connections

BEEP= Cardax BLUE

LED = N/A

CLOCK= N/A

DATA= Cardax white

COM= card reader GND or COMMON

+12V= DC power for card reader RED

Sec-Eng

RF Module

CTx1

CRx1

CTx2

CRx2

Cardax

readers

16 vac in

ADDR

LEDS

Expand Port

SED-902 REMOTE

CARDAX

MODE

D 9

POWER

CHARGE

LINK

MEMORY

COPY PROG TEST

Signal

RS232

@115k in

batt Volts

N0 C NC

Battery in

RS 485 Port

IN range relay

4 way i/o

board

+12 A B GND + --

xxxx Reader

beep

Led

Clock

Data

Comm

Power

reader 1

reader 2

blue

white

black

red

blue

white

black

red

xxxx Reader

beep

Led

Clock

Data

Comm

Power

SED-902 MASTER CONNECTION

DIP SWITCHES

NOTE: Mode switch sets Master or Remote

and Wiegand or Cardax

1 A off = Remote

2 B off = Wiegand

3 C off = not used

4 D off = on for programming via Serial 8n115k

NOTE: Address switch used for expanders

ACCESS CONTROL 1 Connections

DATA= DATA0 on Cardax (White)

CLOCK= N/A

LED = N/A

BEEP= OUT 1 on Cardax (Blue)

COM= GND or COMMON

+12V= DO NOT WIRE

•Battery in = 12v back battery 7 amp hr

•16v AC in plug pack where required

•RS 485 Port not used

Fault relay

Used for RF signal link when in Range

DB 9 Serial

for PC configuration 8,n,1 @115k

RJ 45 EXPANDER Port

Used to link boards via RJ 12 jumper cable

Relay Board Operation

The Relay System is simple - inputs on the

Relay board follow outputs

Example: If you trigger Input 1 on either

Relay board, it will then trigger Relay 1

on the opposite board

INSTALLATION - SED 902 Wiegand Master 7

SED-902 MASTER Board Layout & Connections

Note: The SED-902 has dual markings for MASTER & REMOTE

ACCESS CONTROL 2 Connections

DATA= DATA 1 on Cardax (White)

CLOCK= N/A

LED = N/A

BEEP= OUT 2 on Cardax (Blue)

COM= GND or COMMON

+12V= DO NOT WIRE

Sec-Eng

RF Module

CTx1

CRx1

CTx2

CRx2

16 vac in

ADDR

LEDS

Expand Port

SED-902 MASTER

CARDAX

MODE

D 9

POWER

CHARGE

LINK

MEMORY

COPY PROG TEST

Signal

RS232

@115k in

batt Volts

N0 C NC

Battery in

RS 485 Port

IN range relay

4 way i/o

board

+12 A B GND + --

Output XXXX

Data

clock

led

beep

com

------

Output XXXX

Data

clock

led

beep

com

------

CARDAX CONTROLLER

reader 1

reader 2

data 1

out 2

com

------

data 0

out 1

com

------

WHITE

BLUE

WHITE

SED-902 MASTER GUIDE 8

LED’S

Power LED = power on

Charge LED indicates battery charging (if fitted)

Link LED indicates that it can see RF link

Memory LED indicated SD card fitted

TX = packet being transmitted

RX= packet being received

CTX1= reader 1 transmitting data

CRX1= reader 1 receiving data

CTX2= reader 2 transmitting data

CRX2= reader 2 receiving data

Signal LED's = 1-5 lowest to highest

CTX1

CRX1

CTX2

CRX2

LEDS

Power

Charging

Link

Memory

Signal

MODE SWITCH / TOP OF BOARD

NOTE:Mode switch sets if the unit is a Master or Remote

Switch 1 = ON - 902 Master

= OFF - 902 Remote

Switch 2 = OFF - Wiegand

ON - Cardax

Switch 3 = not used

Switch 4 = ON - Program mode via serial port @115k 8n1

= OFF - GPS port data mode where fitted output 9600@8n1

ADDRESS SWITCH

See page 7 for expander setup

PUSH BUTTON SWITCHES

COPY not used

PROG used to program

TEST N/A

TO DEFAULT

(HOLD ALL 3 BUTTONS DOWN TOGETHER FOR 5 SECONDS)

INSTALLATION - SED-902 Adding Expanders 9

The SED-902 system can support expanders please read Setup

1/ Ensure you set the mode switch on the SED-902 on your expander

2/ Set the address switch according to the number of expanders you have hanging off

each SED-902 Remote or SED-902 Master see below

NOTE : POWER RESET IF YOU CHANGE OR SET DIP SWITCHES

Expand Port

Battery in

RS 485 Port

12+ A B Gnd + --

SED-902 Master

Flipped RJ 12 6P4C

Expand Port

Battery in

RS 485 Port

12+ A B Gnd + --

SED-902 Expander

Use RJ to RJ Cable

Connection Between

Expander

dip switch Address settings

ADDR

switch

Expander

Expander 4

Expander

INSTALLATION - SED-902 Expander Programming 10

The Sed 902 Master & Remote Expanders

To enrol a board for self learning

1/ Ensure they are all wired and configured and set up also check dip

switches

2/ On the (Master Expander) board the press the Copy & Prog buttons until

the signal leds begin to flash. The unit is now in self learning and is waiting

to link with a remote.

3/ Press and hold the Copy & Prog buttons on your remote expander until its

Signal led's begin to flash The unit is now in self learning and is waiting to

link with a Master.

Both the Master expander board and the Remote expander board should

now communicate and link with one another. If not repeat the process.

Inhaltsverzeichnis

Andere SecEng Mikrofonsystem Handbücher

SecEng

SecEng SED-901 Bedienungsanleitung

Beliebte Mikrofonsystem Handbücher anderer Marken

Paso

Paso R824 Bedienungsanleitung

Naxa

Naxa NAM-982 Bedienungsanleitung

Motorola

Motorola PMNN4461 Bedienungsanleitung

Xvive

Xvive U3 Bedienungsanleitung

Tekon

Tekon DUOS Bedienungsanleitung

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Bedienungsanleitung

Devine

Devine WMD-IE Bedienungsanleitung

LG LF-D7150 Bedienungsanleitung

GE S768DAV Bedienungsanleitung

LD U305 HBH 2 Bedienungsanleitung

Chainway

Chainway URA8 Bedienungsanleitung

ORATOR

ORATOR D860TD Bedienungsanleitung

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Bedienungsanleitung

Alpha Technologies

Alpha Technologies RBMS Bedienungsanleitung

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Bedienungsanleitung

Shure

Shure UA844 Bedienungsanleitung

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Bedienungsanleitung

Pyle

Pyle PDWM5000 Bedienungsanleitung
