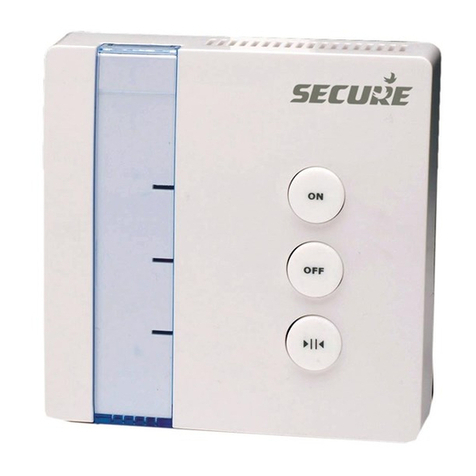

Fitting the Receiver
Installation and connection of the receiver should
only be carried out by a suitably qualified person.
WARNING: ISOLATE MAINS SUPPLY BEFORE
COMMENCINGINSTALLATION
To remove the backplate from the receiver, undo the
two retaining screws located on the underside; the
backplate should now be easily removed. Once the
backplate has been removed from the packaging,
ensure the receiver is re-sealed to prevent damage
fromdust,debrisetc.
The backplate should be fitted with the wiring terminals
at the top and in a position which allows a total
clearanceofatleast50mmaroundthereceiver.
Direct Wall Mounting
The receiver should ideally be
located near an existing power
supply within an easy wiring
location to the items being
switched. Offer the plate to the
wall inthepositionwherethereceiver istobemounted,
rememberingthatthebackplatefitstothelefthandside
of the receiver. Mark the fixing positions through the
slots in the backplate, drill and plug the wall, then
secure the plate in position. The slots in the backplate
willcompensateforanymisalignmentofthefixings.
