INSTALLATION MANUAL AND USERS GUIDE

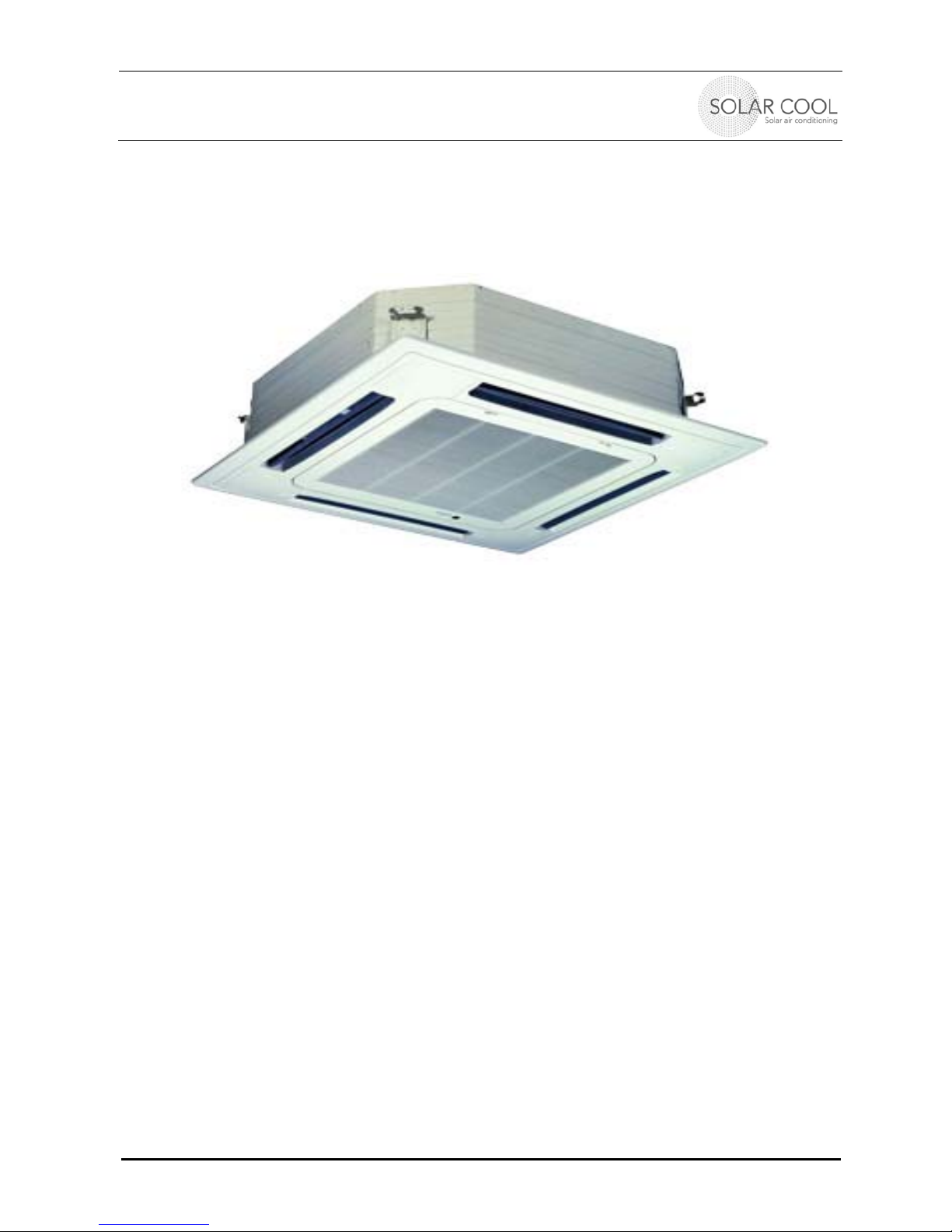

Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 6 10/2012
2. REMOTE CONTROL DESCRIPTION AND MANUAL
Actual remote control may vary, but functionality remains
1 Turns unit on and off
2 Adjusts Temperature setting: (not in
Auto mode)
+ to increase temperature, hold 2 sec.
for fast change
- to decrease temperature
3 Change operation mode:
press the mode button until you see the
desired mode
- Auto, sets automatically
- Cool
- Dry
- Fan
- Heat
4 “I Feel” Enhanced Comfort:
Press the button to switch this function
on or off: Then the temperature sensor
in the remote control and not in the wall
unit will master the control.
5 Air Function:
Press to turn on or off
6 Swing Function: Press to set up&down swing
angle of air guide louvers. Various static
angles or a dynamic oscillating angle of the
louver may be chosen: The first sign on the
upper left row indicates the oscillating mode,
while the others install a static angle.
7 24 Hour timer: Switch TIMER ON/TIMER OFF
on or off. After pressing disappears and
“ON” blinks. 00:00 is displayed. Press within 5
sec. “+” or “-“ to set time. Every press changes
time by 1 min. Holding down the “+” “-“ buttons
rapidly changes the time setting by 1 min. and
then 10 min. After having set, press TIMER-
ON/TIMER OFF within 5 sec. to confirm your
input
8 Display light on/off: Switch display light on/off
9 Displays set temperature, room temperature or
outdoor temperature. The temperature control
range for the indoor unit is 16°C to 30°C.
10 “One Touch” sleep function: Press to set the
unit to sleeping mode or wake it up again (in
Cool, Dry, Heat mode)
11 Turbo Fan
Press the button to cool or heat faster
12 Indoor fan delay: Press to set a fan delay ( )
of 10 min. after you have turned off unit in
order to dry unit (only COOL& DRY mode)
13 Clock setting - to set current time
When pressed once, the clock setting mode
appears and blinks. Same logic as for the
timer setting. After having set, confirm your
choice by pressing “CLOCK” and then will
be constantly displayed
14 Plasma Ion Generator (if available)
Press the button to switch on or off
15 Adjustable 3-speed fan
Press the button and “+” or “-“ to increase or
decrease the desired fan speed
Lock: Press “+” and “-“ simultaneously to lock or
unlock. If locked, is displayed. When you press
any button, blinks 3 times
°F ↔°C: Switch unit off and press simultaneously
MODE and “-“
