Seiki SC-600AU9FLMK2 Bedienungsanleitung
6KG
FRONT LOAD
WASHING MACHINE
SC-600AU9FLMK2
INSTRUCTION MANUAL
Please read this manual carefully before using, and keep it for future reference.
General Safety 4
Product Overview 8
Accessories 8
Control Panel 9
Getting Started 10
Unpackaing 10
Transportation and removal of Transport Bolts 10
Levelling the appliance 11
Connecting the water inlet hose 12
Connecting the Drain Hose 13
Instructions
Before First Use 14
Wash Care Symbols 16
Detergent Dispenser 17
Wash Programs 18
Cleaning and Maintenance 20
FAQs 24
ERROR CODES 25
Specifications 26
Customer Helpline Last Page
CONTENTS
4
Read this manual thoroughly before you start using the Front Load Washing Machine.
The safety precautions instructions reduces the risk of fire, electric shock and injury when
correctly complied to.
Please follow all instructions and take notice of all warnings.
Pay close attention to messages that follow this safety alert symbol or the words
DANGER, WARNING or CAUTION. These words will be used to alert you of potential
hazards that and injure you and others. Following these instruction will tell you how to
reduce the chance of injury and the possible dangers if
instructions aren’t followed.
This symbol indicates when there is a serious risk of
injury if you do not pay attention to the warnings.
WARNING
CAUTION This symbol indicates when to be careful to
avoid a serious risk of injury to oneself or
damage to property.
IMPORTANT INFORMATION
GENERAL SAFETY
5
ELECTRICAL SAFETY
• Voltage: Plug the appliance to a 220-240V, 50Hz, properly earthed power
outlet, it must be in good working order.
• Power connection: Do not use an adaptor or an extension cord.
Plug the power plug directly into a separate power point that cannot be
accidentally turned o, and that is easily accessible so you can switch it o
if needed.
• Power cord: Do not kink or damage the power supply cord. Make sure it is
behind the appliance so no one can step on or place anything on the power
supply cord or against it. A damaged power plug may overheat and cause a fire.
• Damaged cord: Do not use a cord that shows cracks or damage. Any damage
to the cord may cause a short circuit, fire and/or electric shock.
Contact our support centre on info@ayonz.com for advice
•Disconnection: Never pull the power cord to unplug appliance. Grip the plug and
pull straight out from the power point.
• Electrical work: If the installation of this appliance requires any electrical work,
make sure it is carried out by an electrician.
To reduce risk of fire, electric shock or injury, always follow these basic precautions and
accident prevention measures when using this appliance, including the below:
NOTE: This appliance should be installed by an authorised technician else warranty
will be void.
INSTALLATION
• The product is heavy, be careful when moving it. To avoid back or other
injury, have 2 people lift or mechanical aid when installing.
• When unboxing, thoroughly inspect the appliance carefully for any
damage. If there is any damage, do not install the appliance. Contact our
support centre on info@ayonz.com for advice.
• While installing the appliance make sure that the power cord is not bent
or flattened.
• Make sure to remove all packaging materials such as foams and tapes
before installing the appliance.
• Make sure if the machine is to be placed on carpet that the ventilation openings
in the base are not obstructed
• Install the washing machine on a flat level and stable ground.
GENERAL SAFETY INSTRUCTIONS (Cont.)
6
GENERAL SAFETY INSTRUCTIONS (Cont.)
USAGE CONDITIONS AND RESTRICTIONS
• Supervision over children is to ensure that they do not play with the
appliance. Never allow them to use, play with or crawl inside the appliance.
Cleaning and maintenance must not be done by children.
• This appliance is not to be used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they are being supervised or been given instructions on how to use of the
appliance in a safe way and understand the hazards with using this
appliance incorrectly.
• Only for indoor domestic use only. It is not to be used for industrial or
commercial use.
• Do not use this product for anything other than its intended purpose, and only
use it as described in this manual. Do not attempt to alter or modify
this appliance.
• In the process of a hot wash, the door window can become hot. Make sure not to
touch it or that no children or pets come into contact with the door window.
• Ensure that emptying all pockets of every item to make sure that there is no
hard, sharp objects such as coins, safety pins, bra wires, nails or screws can cause
damage to the appliance and has a chance to block the pump.
• Damage or malfunction caused from foreign objects is not covered by your
warranty to the appliance.
• Do not operate this appliance outdoors.
• Incorrect use can result in property damage, injury or death. We assume no
liability for misuse of the appliance or noncompliance with these instructions.
• Maximum load of dry clothes is 6kg
7
GENERAL SAFETY INSTRUCTIONS (Cont.)
CLEANING AND MAINTENANCE
• Before cleaning or maintenance, always unplug the appliance from the power
socket. Make sure you pull by the plug, not the cord as this can damage the
power cord and cause a hazard.
• Only the filter requires regular cleaning, everything else is non user-serviceable
parts. Do not try to repair, disassemble or modify the appliance.
• Check and clean the lint filter on a regular basis
• Service: Never try to repair, modify or replace any part of the appliance, unless
this manual says you can do so. All other servicing is to be done by a qualified
technician, or contact our support centre on info@ayonz.com for advice.
8

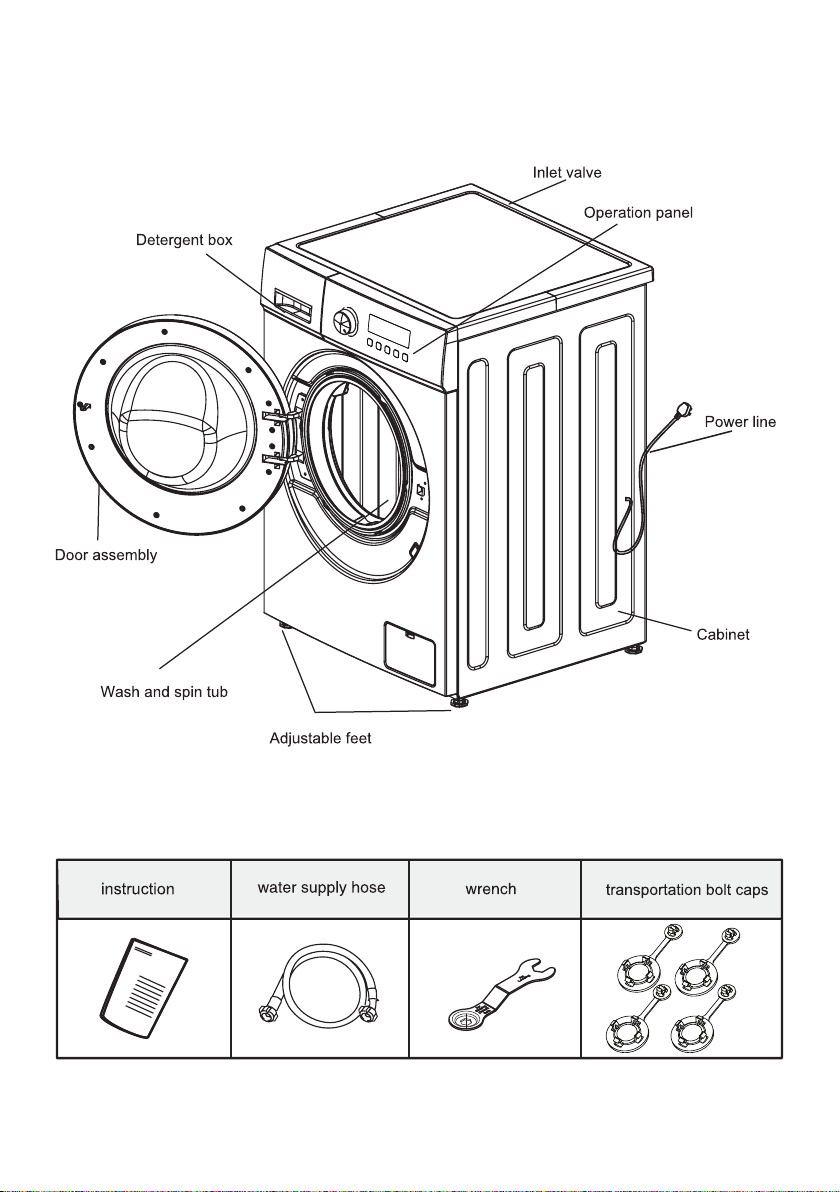

PRODUCT OVERVIEW
ACCESSORIES
9
PRODUCT OVERVIEW (Cont.)
CONTROL PANEL
1. START/PAUSE
2. FUNCTION
Select between extra rinse or standard.
3. PRE DELAY
When using Pre-Delay, you can delay washing of up to 24 hours.
4. SPEED SETTINGS
5. WASH PROGRAM DIAL
6. OFF (located at top of dial)
CHILD LOCK
Press and hold *Pre Delay for 3 seconds to activate child lock, follow same
sequence to unlock.
12345
6
10
Before installing your appliance, read all safety instructions in this manual,
especially the sections on electrical safety and installation.
GETTING STARTED
UNPACKING
• When unpacking the appliance, be sure to keep all the packaging materials until
you have made sure your new appliance is undamaged and in good working
order. Plastic can be a suffocation hazard for babies and young children,
make sure the materials are out of their reach.
TRANSPORTATION
• CAUTION: VERY HEAVY! Be sure to team lift the appliance with someone or
mechanical aid is required when moving the appliance. Keep the appliance
upright as possible when moving the appliance.

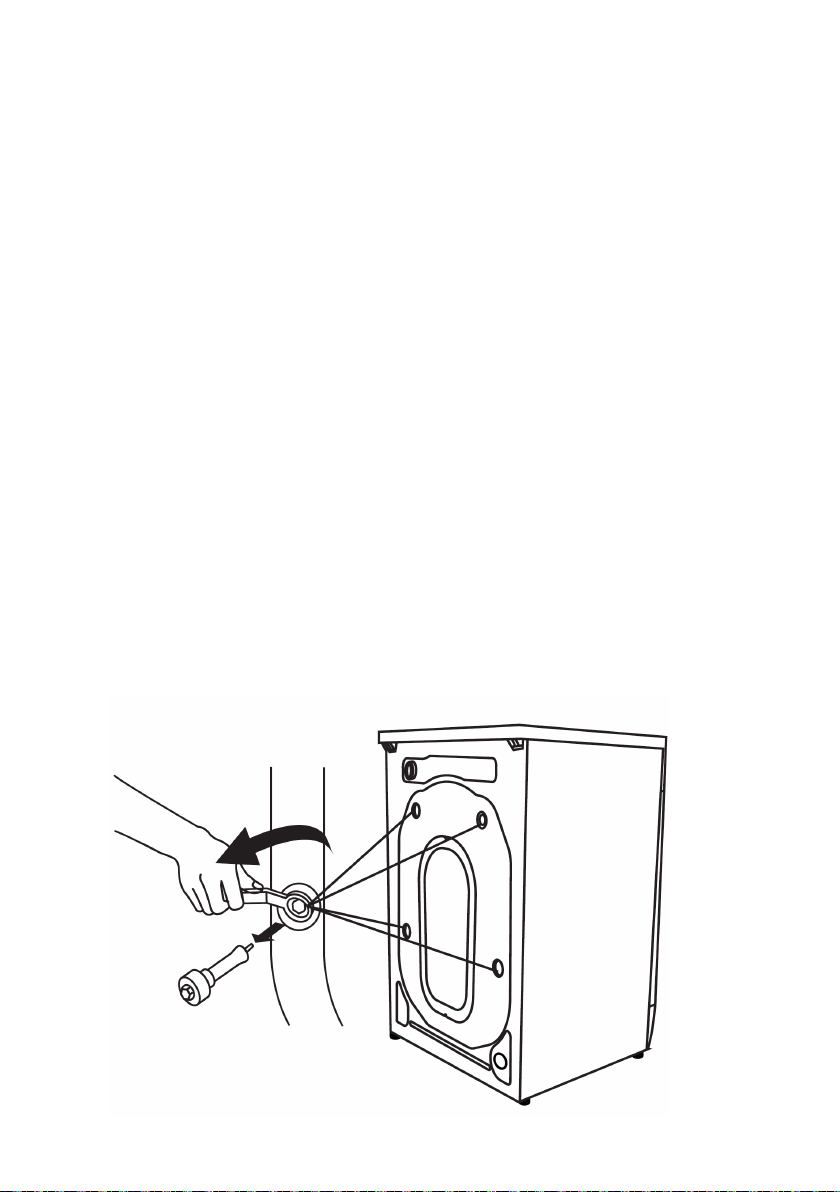

REMOVE TRANSPORT BOLTS
• IMPORTANT! Make sure before you install the appliance, you must remove the transit
bolts from the back of the appliance and cover the holes with the hole
covers provided. A spanner is required to remove the bolts.
NOTE: Keep the transit bolts for future needs if you are going to move the
appliance again to another location. The bolts hold the drum in place during
transportation but MUST be removed before use so the drum can move during a wash.
Leaving the bolts in can result in strong shock, noise and malfunction.
