You are now the proud owner of a SEIKO KINETIC

Cal. 5D22/5D44. For best results, please

read the instructions in this booklet carefully before using your SEIKO KINETIC

. Please keep

this manual handy for ready reference.

Sie sind jetzt stolzer Besitzer einer SEIKO KINETIC®Kal. 5D22/5D44. Lesen Sie diese

Bedienungsanleitung vor der Verwendung Ihrer SEIKO KINETIC®aufmerksam durch, um die

optimale Nutzung dieser Uhr zu gewährleisten. Heben Sie diese Bedienungsanleitung gut auf,

um jederzeit wieder nachlesen zu können.

Vous voici l’heureux propriétaire d’une montre SEIKO KINETIC®Cal. 5D22/5D44. Pour en obtenir

de bonnes performances, veuillez lire attentivement les explications de ce mode d’emploi avant d’

utiliser votre montre SEIKO KINETIC®. Conservez ce mode d’emploi pour toute référence ultérieure.

Grazie di aver acquistato questo orologio SEIKO KINETIC® Cal. 5D22/5D44. Per ottenerne i migliori

risultati leggere attentamente le istruzioni di questo libretto prima di passare all'uso dell'orologio

stesso. Tenere poi il manuale a portata di mano, per ogni eventuale futura, ulteriore consultazione.

Usted es ahora un orgulloso propietario de un Reloj SEIKO KINETIC®Cal. 5D22/5D44. Para los

mejores resultados, por favor lea las instruciones de este librito cuidadosamente antes de utilizar

su Reloj SEIKO KINETIC®. Le rogamos que guarde este conveniente manual para pronta referencia.

Você pode sentir-se orgulhoso de ter adquirido um SEIKO KINETIC®Cal. 5D22/5D44. Para obter

dele os resultados máximos, solicitamos-lhe que, antes de usar o seu SEIKO KINETIC®, leia

atentamente as instruções contidas neste opúsculo. E guarde este manual para referências futuras.

1_KINETIC 5D22 5D44_E.indd 2 07.8.22 1:13:30 PM

English

IFor the care of your watch, see "TO PRESERVE THE QUALITY OF YOUR

WATCH" in the attached Worldwide Guarantee and Instruction Booklet.

CONTENTS

Page

FEATURES................................................................................................................................................... 4

DISPLAY AND BUTTON OPERATION ......................................................................................................... 5

CROWN WITH DRIVING WHEEL................................................................................................................ 7

HOW TO CHARGE AND START THE WATCH............................................................................................. 8

HOW TO READ THE DIRECT DRIVE INDICATOR ...................................................................................... 10

TIME/CALENDAR SETTING. ....................................................................................................................... 17

IMPROPER FUNCTION ............................................................................................................................... 19

AUTOMATIC HAND ALIGNMENT............................................................................................................... 20

POWER SOURCE (KINETIC E.S.U.) ............................................................................................................ 21

SPECIFICATIONS ........................................................................................................................................ 22

1_KINETIC 5D22 5D44_E.indd 3 07.8.22 1:13:30 PM

English

❖THE KINETIC E.S.U. is an abbreviation for KINETIC ELECTRICITY STORAGE UNIT,

which is the name of the power source employed in the KINETIC movements.

FEATURES

Unlike the conventional quartz watch powered by the button-type battery, the

KINETIC is an analog quartz watch equipped with an Automatic Generating

System, the unique technology developed by SEIKO, which generates electrical

energy to power the watch by utilizing the movement of the arm or wrist, and

stores it in the KINETIC ELECTRICITY STORAGE UNIT (KINETIC E.S.U.) The watch

is equipped with a direct drive indicator that constantly displays how long the

watch will keep operating. The direct drive indicator also dynamically displays

the electric power generation status while charging the watch.

CAUTION

●The movement of your arm while the watch is worn generates electrical

energy to power the watch. Even if the watch is worn on your arm, it will

not be charged while your arm is not in motion.

●It is recommended that the watch be worn on your wrist daily for at least

10 hours.

●If you do not wear the watch for more than the continuous operating time

that it displays, charge the watch as necessary so as not to stop operation

of the watch until the next time you wear it. Refer to “How to charge and

start the watch” for further details.

1_KINETIC 5D22 5D44_E.indd 4 07.8.22 1:13:31 PM

English

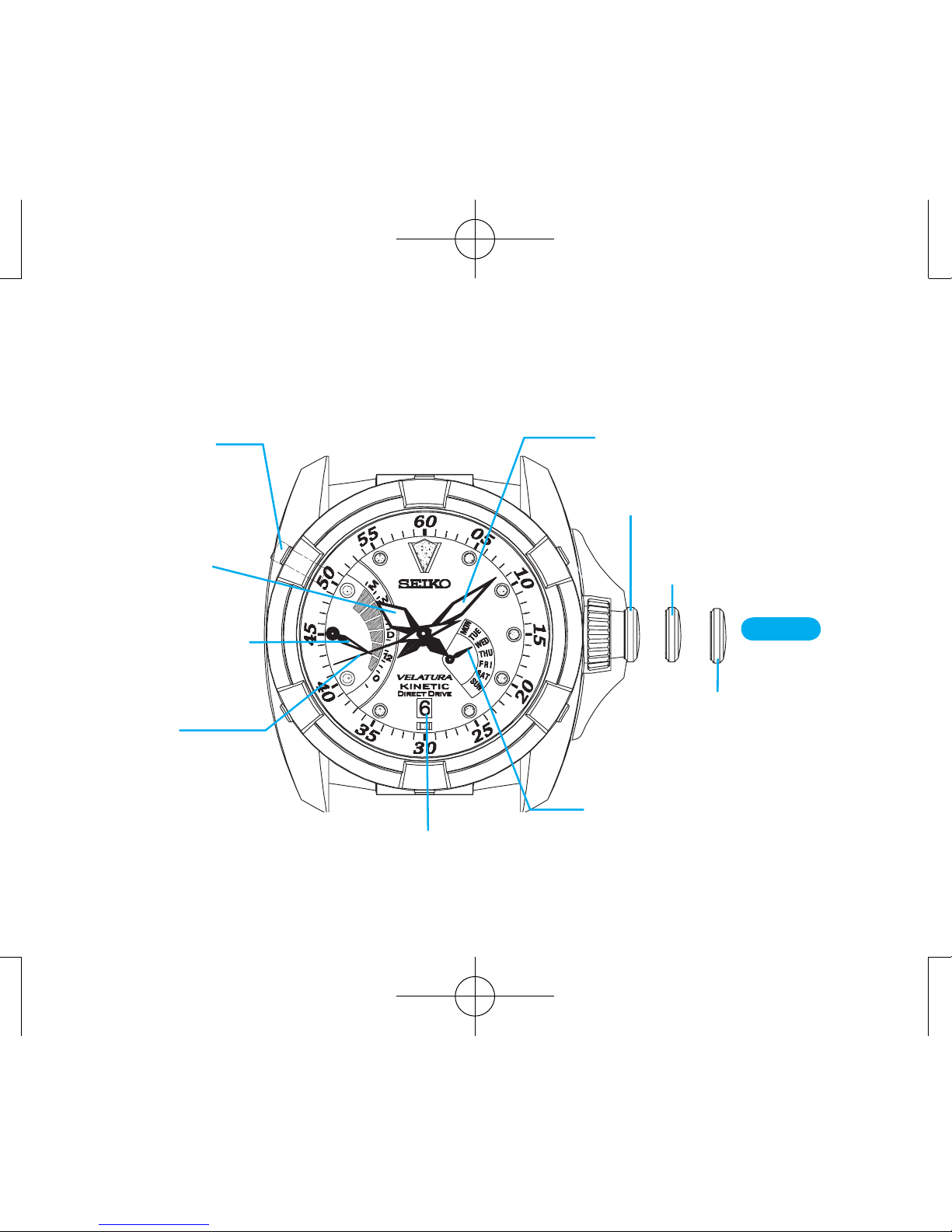

DISPLAY AND BUTTON OPERATION

First click position: Date

and day setting

Second click position:

Time setting

Hour hand

Direct drive indicator hand

(for indicating amount of

power reserved, power

generation status and

amount of generated

power)

Date

Day hand (retrograde day indicator)

Minute hand

❖The position of the date window and day hand may differ depending on the model.

Normal position: Electric power

generation by manual winding

Second hand

Button (only used for

special operations)

● CAL. 5D44

CROWN

1_KINETIC 5D22 5D44_E.indd 5 07.8.22 1:13:38 PM

English

First click position: Date

setting

Second click position:

Time setting

Hour hand

Direct drive indicator

hand (for indicating

amount of power

reserved, power

generation status and

amount of generated

power)

Date

Minute hand

Normal position: Electric power

generation by manual winding

Second hand

Button (only used for

special operations)

● CAL. 5D22

CROWN

❖The position of the date window may differ depending on the model.

1_KINETIC 5D22 5D44_E.indd 6 07.8.22 1:14:00 PM

English

uSome models may have a crown with a special structure as illustrated

below. Refer to the following instructions when operating this type of

crown, as it should be operated in a different way from that of ordinary

ones.

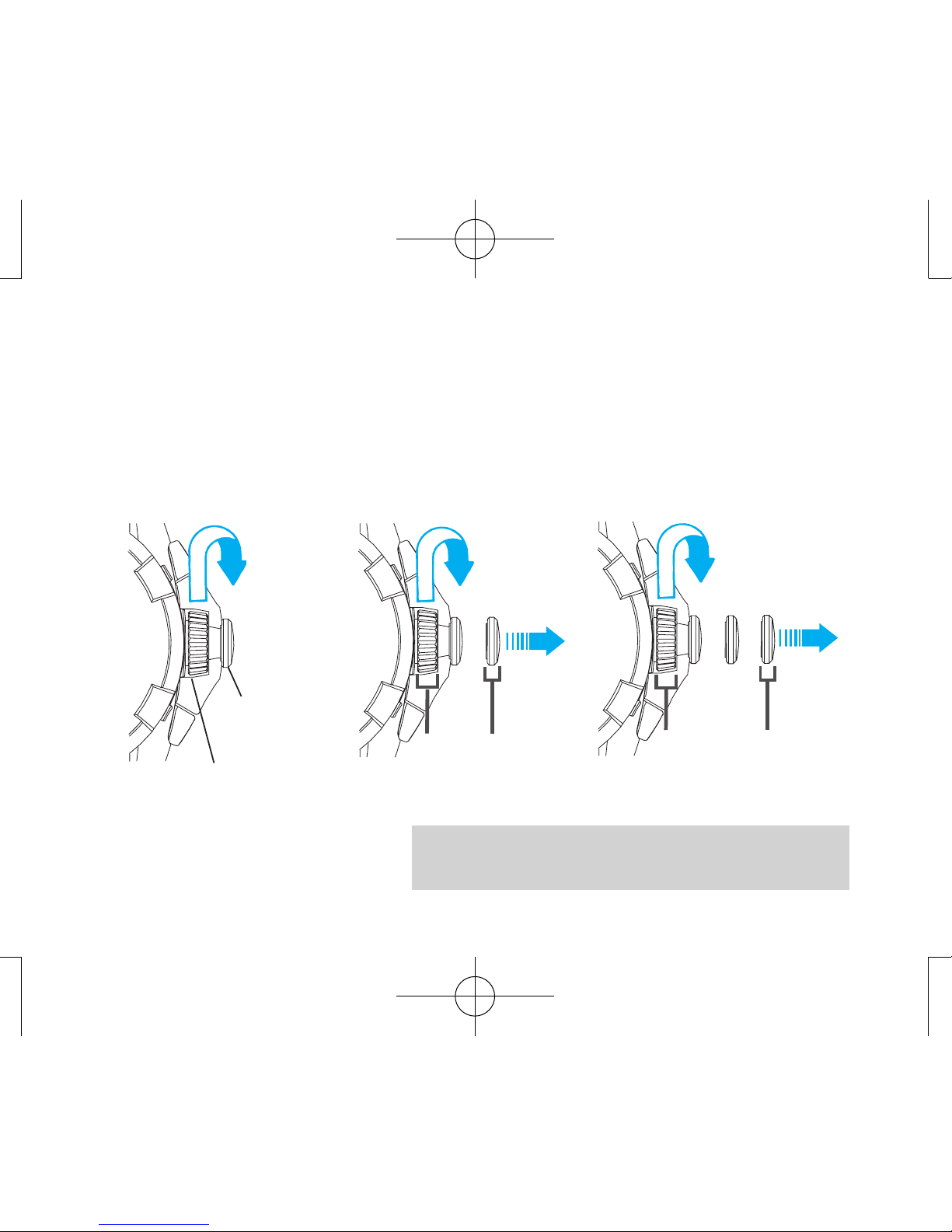

CROWN WITH DRIVING WHEEL

To pull out the crown, pull out the A portion (crown).

To turn the crown, turn the B portion (driving wheel).

Normal position First click position Second click position

Driving wheel

Crown

1_KINETIC 5D22 5D44_E.indd 7 07.8.22 1:14:01 PM

English

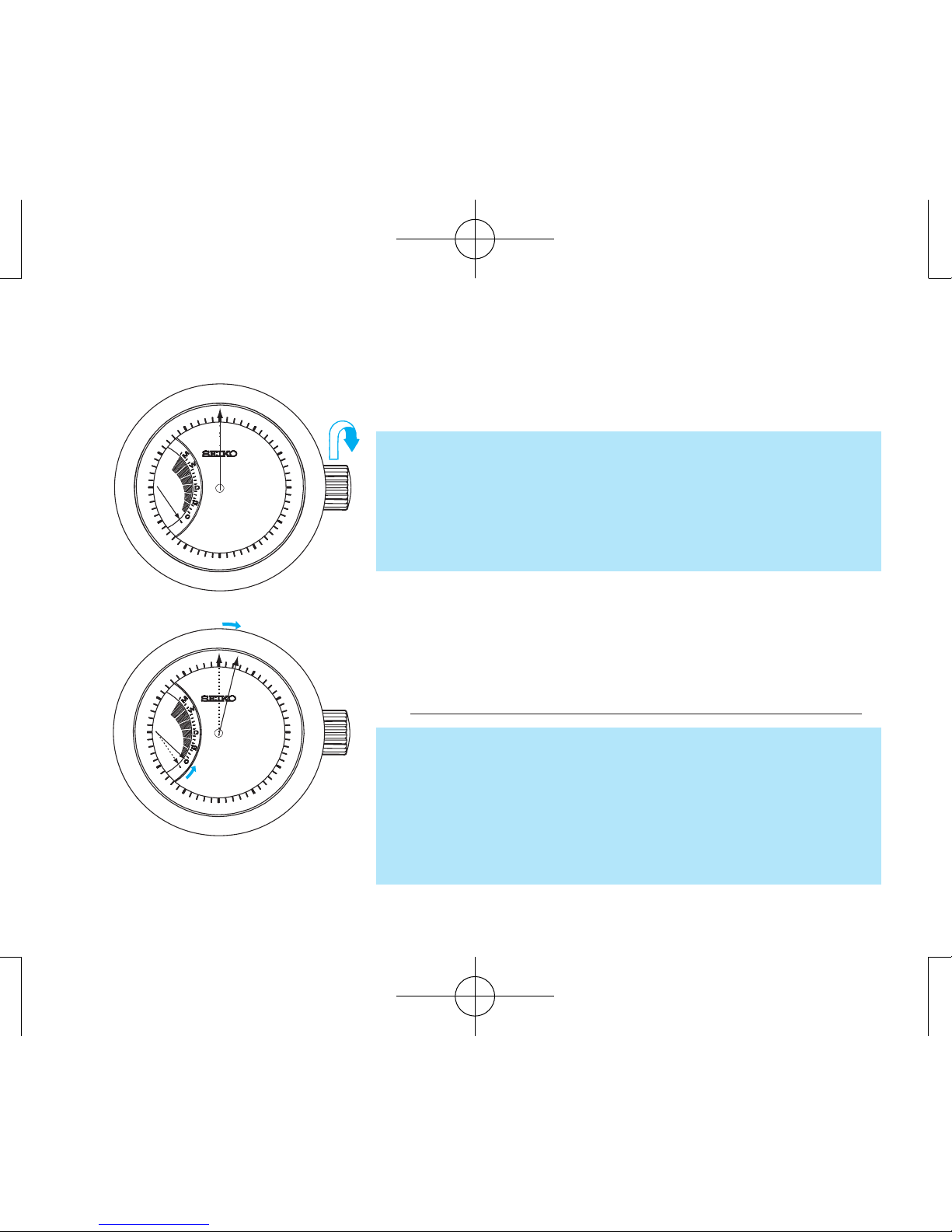

HOW TO CHARGE AND START THE WATCH

1. Turn the crown clockwise repeatedly to charge

the watch.

2. After electric power generation by turning the

crown continues for a certain period, the direct

drive indicator hand moves to point at scale

marking 0 and the second hand starts moving.

Make sure to stop turning the crown to check it.

✽The manual winding mechanism for generating the

electric power functions when the crown is turned

clockwise. The watch can also be charged when the

crown is turned in a reciprocating motion.

✽When the watch is completely stopped, the direct

drive indicator hand points at scale marking 1 under

the 0 position (standby position).

✽If the second hand does not move even though the

crown is turned, turn the crown more quickly.

✽If the watch has been left untouched for several years,

the second hand starts moving in 2-second intervals

after the crown is turned. This is not a malfunction.

Charge the watch by turning the crown until the direct

drive indicator hand moves from the standby position to

the 0 position. It may take approximately 5 to 6 minutes.

1_KINETIC 5D22 5D44_E.indd 8 07.8.22 1:14:03 PM

English

✽The direct drive indicator hand moves up and down to display the electric power generation

status.

✽When you stop turning the crown, the indicator hand displays the amount of power generat-

ed by the current manual winding for approximately 4 seconds, and then the hand returns to

display the total amount of power reserve. Charge the watch until the indicator hand points

at the second marking above "0"(approximately 6 hours of power reserve).

✽This watch will keep on operating for approximately 1 month (30 days) if it is fully charged.

However, it is not necessary to charge the watch fully, as it is charged automatically while it

is worn on your wrist.

✽Refer to "How to read the direct drive indicator” for further details.

3. Continue to turn the crown to sufﬁciently charge the watch.

Power generation

status display

Generated power

amount display Power reserve display

1_KINETIC 5D22 5D44_E.indd 9 07.8.22 1:14:06 PM

English

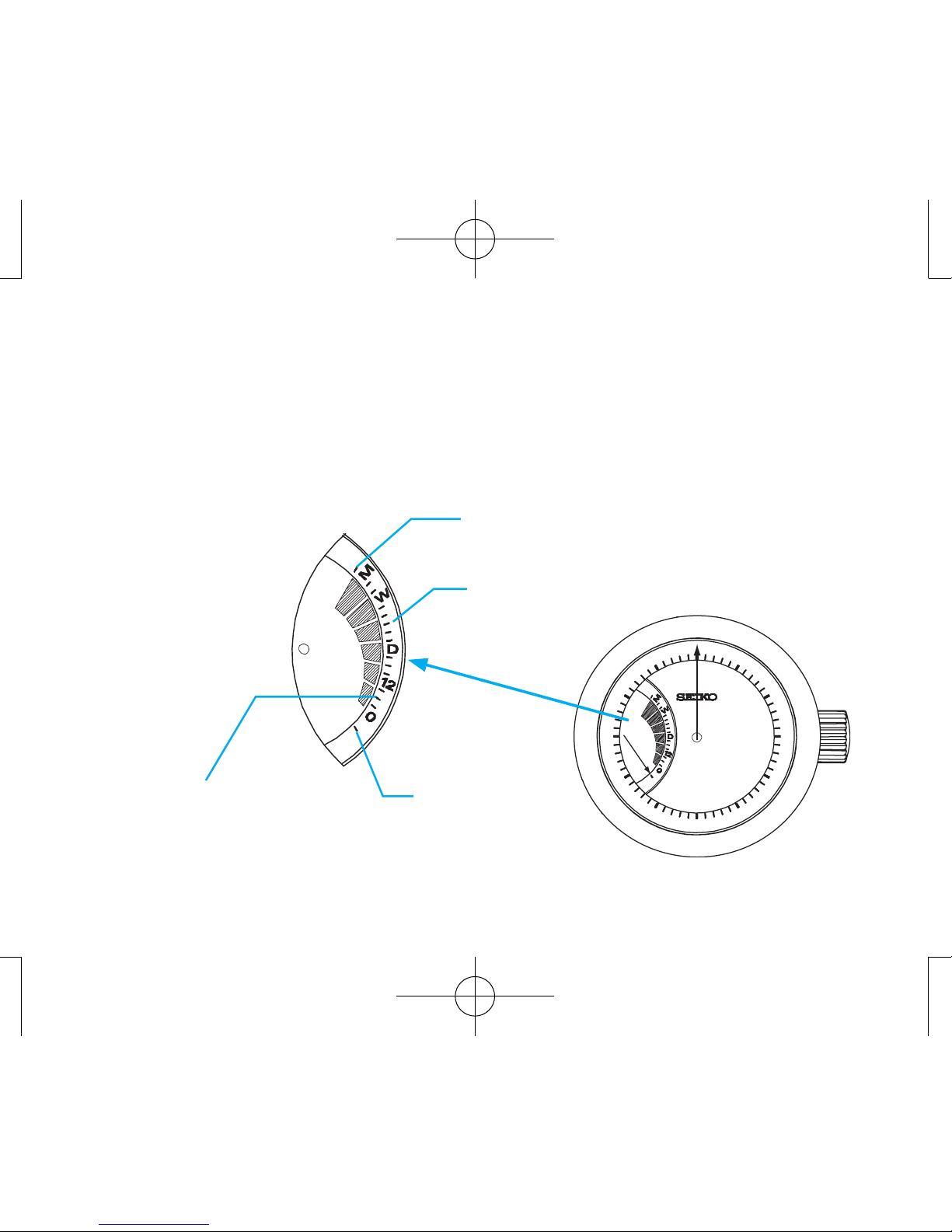

HOW TO READ THE DIRECT DRIVE INDICATOR

The direct drive indicator can be used to check the following:

(1) Power reserve amount (continuous operating time)

(2) Real-time power generation status and newly generated amount of power

while charging the watch

“M+1” position

Power reserve/

generated power scale

Standby position

Scale marking

1_KINETIC 5D22 5D44_E.indd 10 07.8.22 1:14:07 PM
