Seiko 6A32 Installationshandbuch

PARTS CATALOGUE /TECHNICAL GUIDE

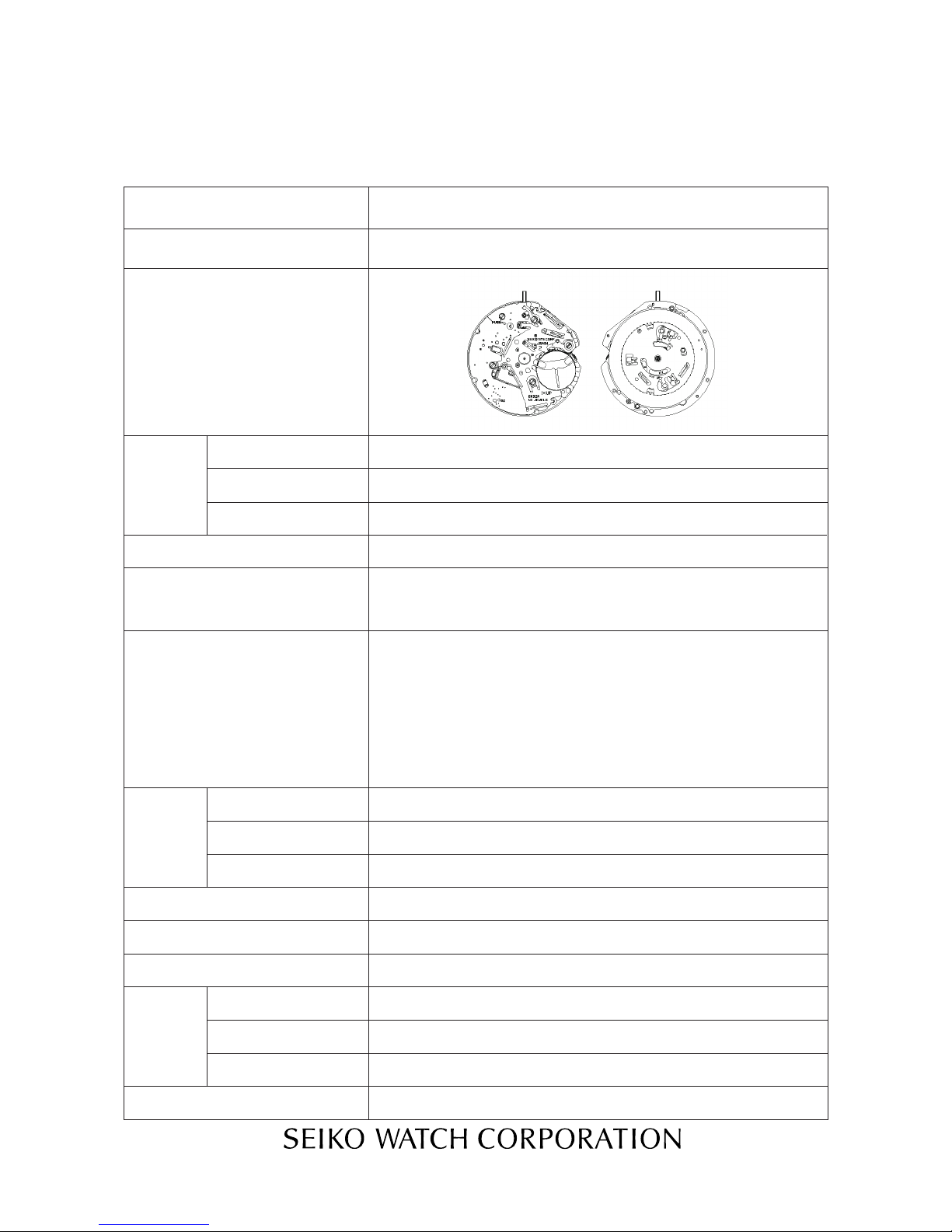

Cal. 6A32A

Cal. No. 6A32A

Movement

size (mm)

Time indication

Outside diameter

Casing diameter

Height )

Including

battery portion

(

Driving system

Additional mechanism

Loss/gain

Regulation system

Measuring gate by quartz tester

Battery

Battery No.

Voltage

Battery life

Jewels

SEIKO

Brand

Ø 27.8

Ø 27.3

3.69

3 hands (hour, minute and second hands)

Step motor (hour, minute and second hands)

Electronic driving motor for calendar indication

●Fully automatic calendar (No calendar adjustment required at the

end of a month, nor for a leap year)

●Initial position adjustment (Position adjustment for the second hand

and date)

●Train wheel setting device

●Electronic circuit reset switch

●Battery life indicator

Crown

Operation

Normal position

First click position

Second click position

Free

Monthly rate at normal temperature range: less than 20 seconds

Nil.

Use 10-second gate.

Silver Oxide Battery SB-AP (SR927SW)

1.55 V

Approximately 4 years

Nil.

Date, month, year adjustments (by turning the crown either clockwise

or counterclockwise) (electronic system)

Hand position adjustments, Second regulation, Reset switch

Cal. 6A32A

PARTS CATALOGUE

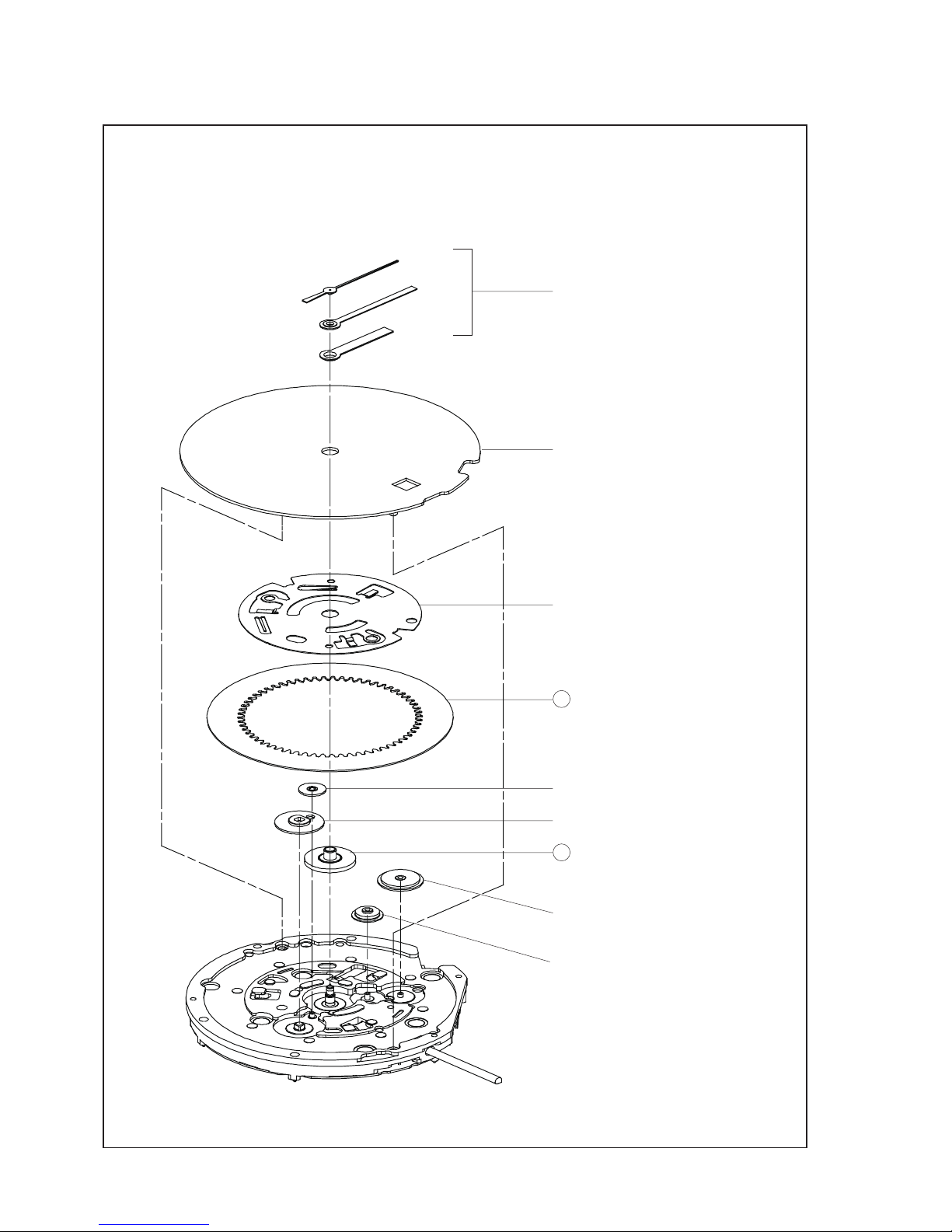

●Order of disassembly for the hands, dial and wheels on the back side

1HOUR, MINUTE AND SECOND HANDS

2DIAL

3DATE DIAL GUARD

0808 051

4DATE DIAL

5INTERMEDIATE 24-HOUR WHEEL

0817 046

624-HOUR WHEEL

1019 001

7HOUR WHEEL

0273 031

(for models of the medium hand installation

height)

8DATE DRIVING WHEEL

0802 035

9INTERMEDIATE DATE DRIVING WHEEL C

0817 045

Cal. 6A32A

PARTS CATALOGUE

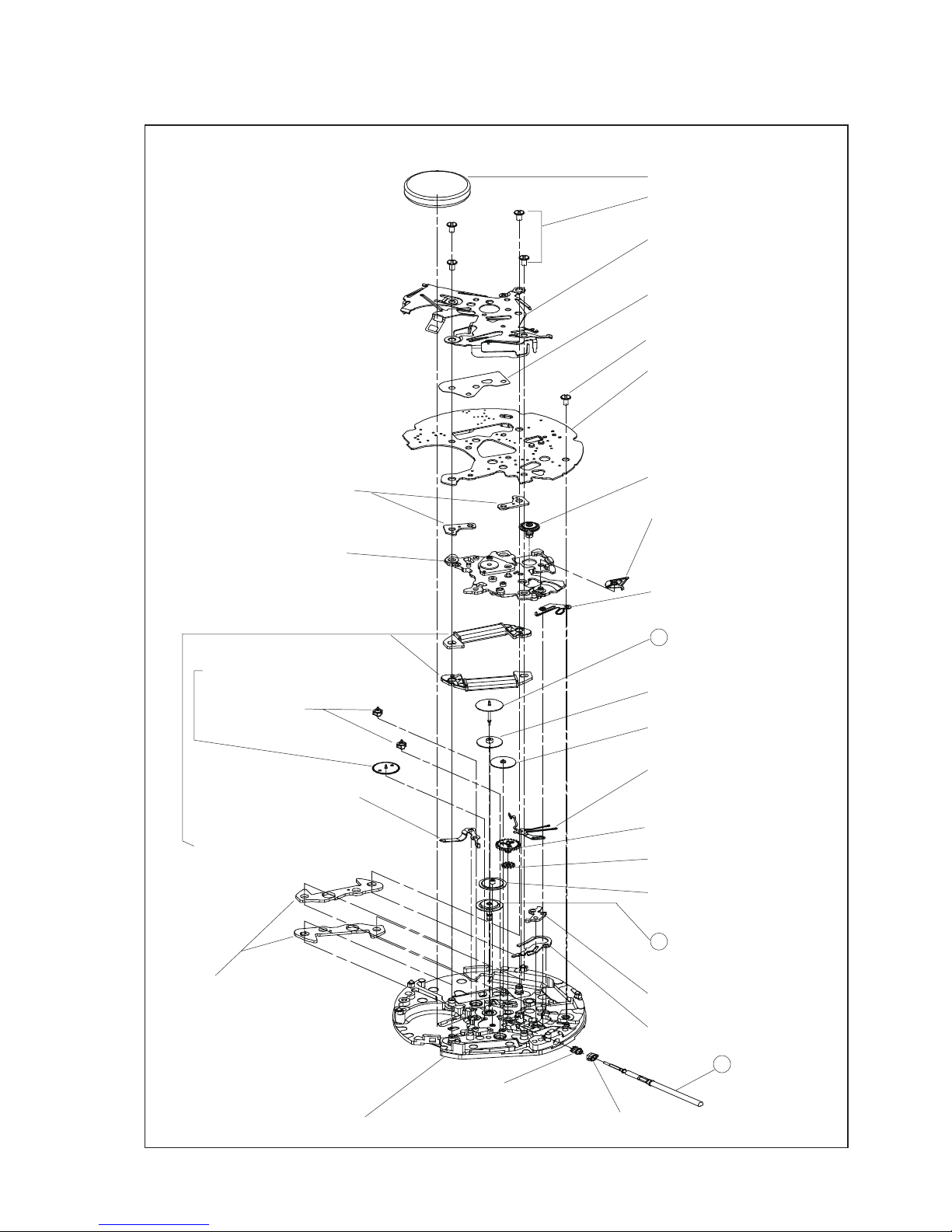

●Order of disassembly for the battery, circuit block, wheels on the front side and switching mechanism

10 SILVER OXIDE BATTERY

POWER SWITCH SPRING SCREWS

0016 121

12 POWER SWITCH SPRING

4245 492

(for models of the medium

hand installation height)

13 INSULATOR FOR CIRCUIT

BLOCK

4216 101

16 CIRCUIT BLOCK SPACER

4408 137

17 24-HOUR ARBOR

1014 023

18 WINDING STEM SWITCH

LEVER

4450 016

19 TRAIN WHEEL BRIDGE

0125 266

14 CIRCUIT BLOCK SCREW

0016 121

15 CIRCUIT BLOCK

4004 104

20 WINDING STEM SWITCH

LEVER SPRING

4238 003

21 FOURTH WHEEL AND PINION

0241 214

(for models of the medium

hand installation height)

22 THIRD WHEEL AND PINION

0231 454 23 FIFTH WHEEL AND PINION

0701 450

24 INTERMEDIATE DATE

DRIVING WHEEL A

0817 043

25 STEP ROTORS

4146 453

26 TRAIN WHEEL SETTING LEVER

0391 027

27 BATTERY CONNECTION(-)

4270 239

28 MINUTE WHEEL AND PINION

0261 451

29 SETTING WHEEL

0281 452

30 INTERMEDIATE DATE

DRIVING WHEEL B

0817 044

31 CENTER WHEEL AND PINION

0221 064

(for models of the medium

hand installation height)

32 COIL BLOCKS

4002 923

34 SETTING LEVER

0383 891

35 YOKE

0384 452

36 WINDING STEM

0351 071

37 CLUTCH WHEEL

0282 452

38 SWITCH CAM

4295 006

39 MAIN PLATE

33 ROTOR STATORS

4239 450

Cal. 6A32A

PARTS CATALOGUE

[Parts list]

There are different types of parts which are determined based on the case design or hand installation height.

To choose the appropriate one, refer to “WATCH PARTS CATALOGUE CD-ROM.”

For models of the medium

hand installation height

For models of the medium

hand installation height

For models of the medium

hand installation height

For models of the medium

hand installation height

Inprinted mark "2"

PARTS NAME

DATE DIAL GUARD

DATE DIAL (INCOMPLETE)

INTERMEDIATE 24-HOUR WHEEL

24-HOUR WHEEL

HOUR WHEEL

DATE DRIVING WHEEL

INTERMEDIATE DATE DRIVING WHEEL C

SILVER OXIDE BATTERY

POWER SWITCH SPRING SCREW

POWER SWITCH SPRING

INSULATOR FOR CIRCUIT BLOCK

CIRCUIT BLOCK SCREW

CIRCUIT BLOCK

CIRCUIT BLOCK SPACER

24-HOUR ARBOR

WINDING STEM SWITCH LEVER

TRAIN WHEEL BRIDGE

WINDING STEM SWITCH LEVER SPRING

FOURTH WHEEL AND PINION

THIRD WHEEL AND PINION

FIFTH WHEEL AND PINION

INTERMEDIATE DATE DRIVING WHEEL A

STEP ROTOR

TRAIN WHEEL SETTING LEVER

BATTERY CONNECTION(-)

MINUTE WHEEL AND PINION

SETTING WHEEL

INTERMEDIATE DATE DRIVING WHEEL B

CENTER WHEEL AND PINION

COIL BLOCK

ROTOR STATOR

SETTING LEVER

YOKE

WINDING STEM

CLUTCH WHEEL

SWITCH CAM

MAIN PLATE

TOTAL NUMBER OF PARTS (TO BE ASSEMBLED)

Refer to WATCH PARTS

CATALOGUE CD-ROM.

PARTS CODE

0808 051

0817 046

1019 001

0273 031

0802 035

0817 045

0016 121

4245 492

4216 101

0016 121

4004 104

4408 137

1014 023

4450 016

0125 266

4238 003

0241 214

0231 454

0701 450

0817 043

4146 453

0391 027

4270 239

0261 451

0281 452

0817 044

0221 064

4002 923

4239 450

0383 891

0384 452

0351 071

0282 452

4295 006

0100 293

SB-AP (SR927SW)

(11)(12)(13)(14)

(33)

Refer to WATCH PARTS

CATALOGUE CD-ROM.

No.

REMARK

Number

of parts

TECHNICAL GUIDE Cal. 6A32A

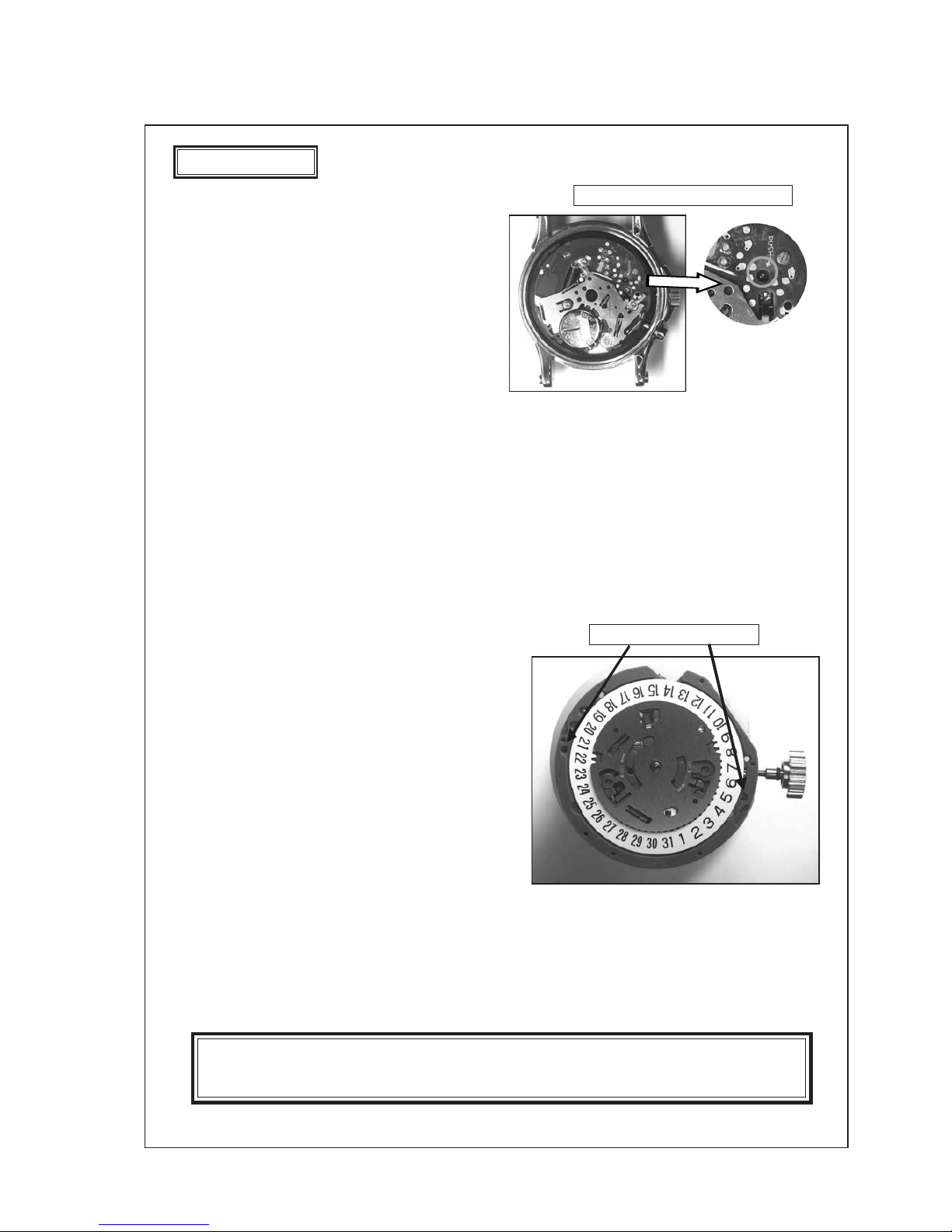

1. How to pull out the winding stem

With the crown at the normal position, using a tool

such as a pair of tweezers, press down the

designated area indicated by “PUSH” (as shown in

the illustration on the right) of the setting lever. And

then, pull out the winding stem to which the crown

is attached.

DISASSEMBLY

2. How to remove the hands

Reassemble the winding stem. Turn the hour, minute and second hands to align them pointing in the

same direction, and then remove them all together.

When using a tool such as a hand remover, exercise care so as not to damage the calendar frame or the

dial with the tool during the hand removing process. Align the hands together at a position where you

can avoid touching the calendar frame with the tool, in consideration of the orientation of the calendar

frame on the dial.

To prevent damage to the surface of the hands and dial, slip a thin plastic sheet between the dial and

remover.

3. How to remove the dial

From the lateral side at the foot positions of the dial

(indicated in the illustration on the right), insert the

tip of a driver or tweezers into the gap between the

lower surface of the dial and main plate to gradually

lift up the dial and remove it.

While doing this, make sure to lift the dial up

gradually one side after another. Lifting the dial up

only from one side may break the foot of the dial.

For disassembly and reassembly, make sure to use the all-purpose

movement holder.

Designated area of the setting stem

Foot positions of the dial

TECHNICAL GUIDE Cal. 6A32A

Installation positions • Lubrication points • Remarks

Reassembly (1)

Lubricate the main plate.

❇Make sure to lubricate the exact lubrication points with an adequate

amount of the correct type of oil.

normal quantity

Main plate (back side)

1Center pipe (AO-3)

2Lower guide hole of the minute wheel

and pinion (AO-3)

3Guide pin of the train wheel setting

lever (AO-3)

4Pinofthe setting lever (AO-3)

5Pin of the setting wheel (AO-3)

6 & 7 Lower holes of the rotor (AO-2)

TECHNICAL GUIDE Cal. 6A32A

Reassembly (2)

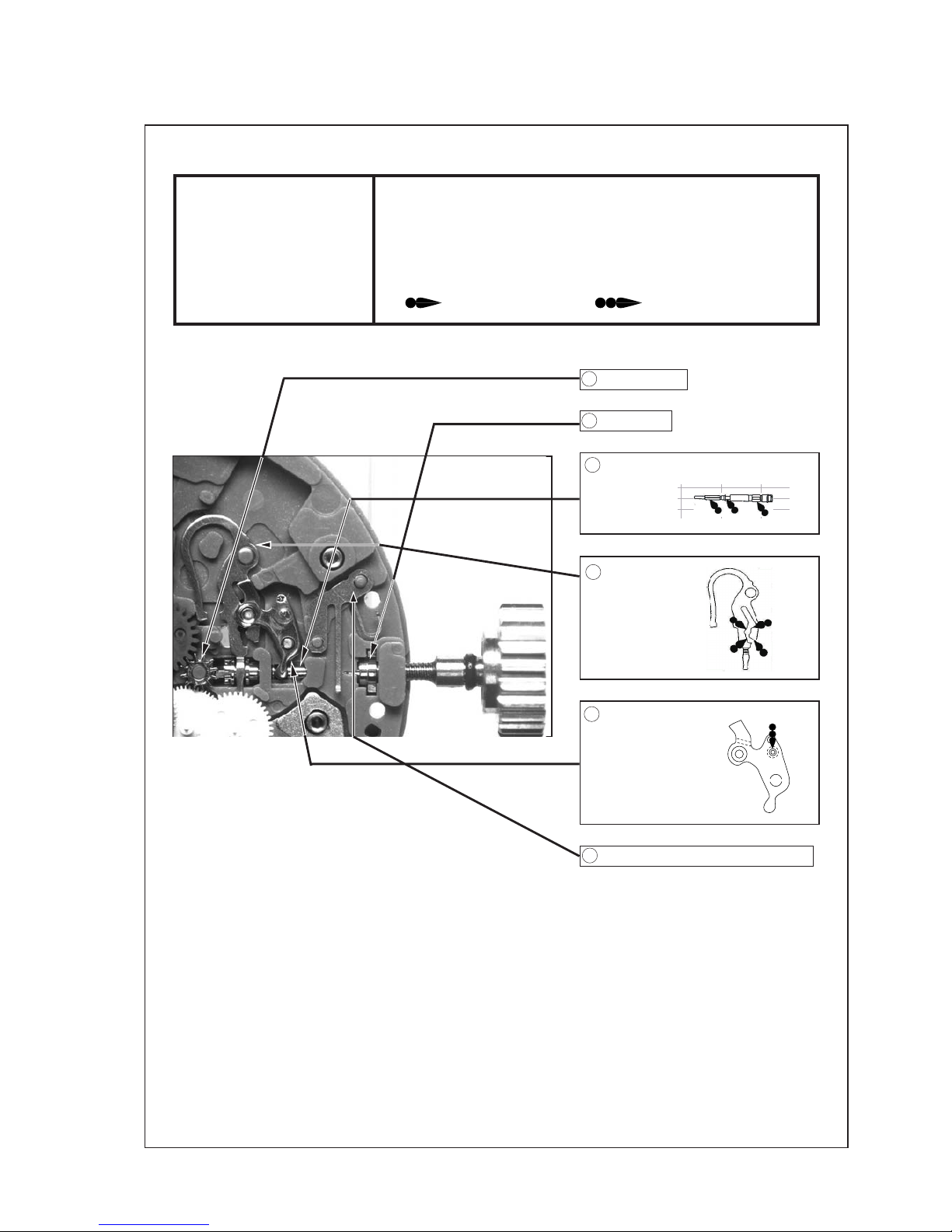

Lubricate the switching

mechanism.

❇Install the parts in the number order shown in the illustration below,

paying attention to the following:

mounting positions,

direction of mounting,

type of oil, lubrication point(s) and amount of lubrication.

normal quantity liberal quantity

Installation positions • Lubrication points • Remarks

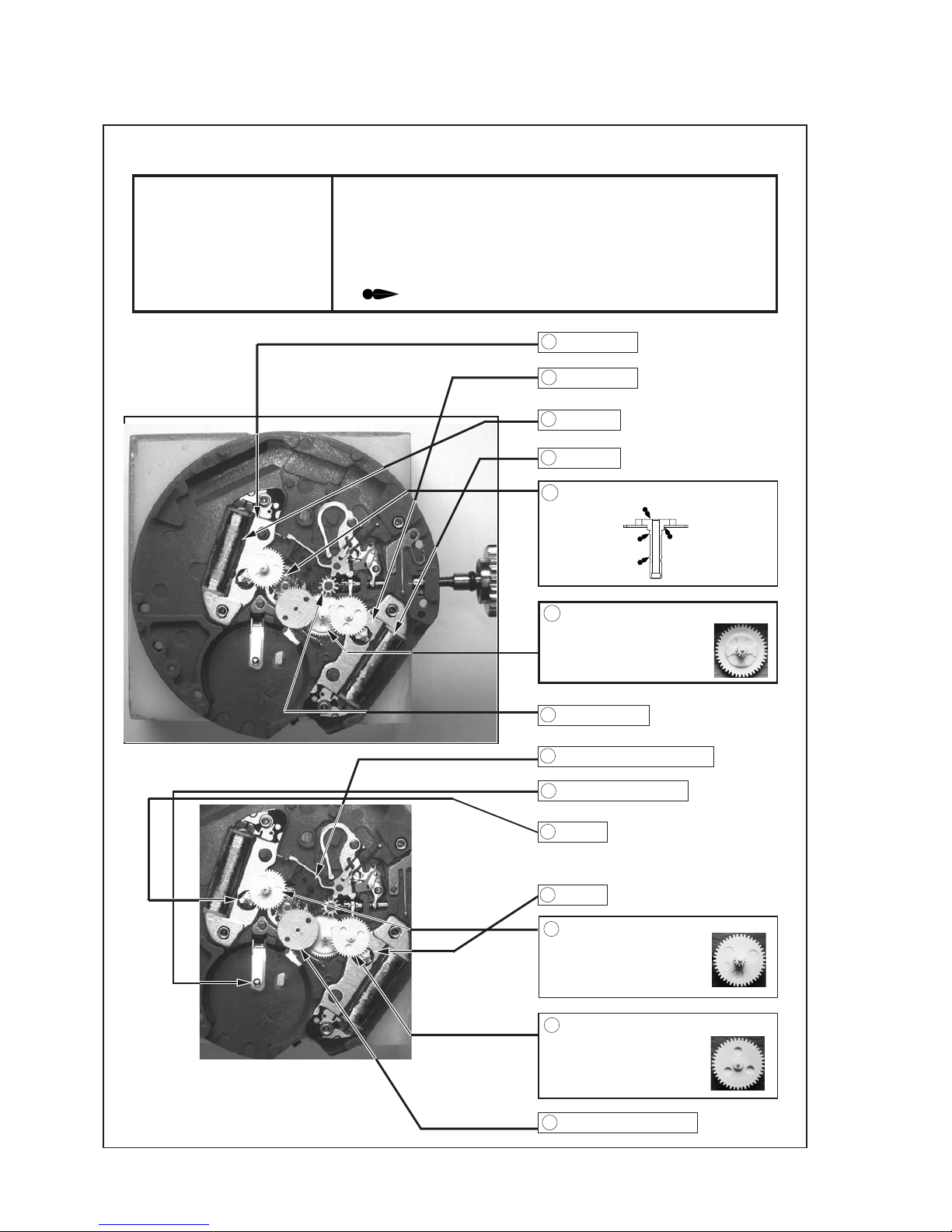

1Clutch wheel

5Setting lever (AO-3)

2Switch cam

6Winding stem switching lever spring

3Winding stem (AO-3)

4Yoke (AO-3)

TECHNICAL GUIDE Cal. 6A32A

Installation positions • Lubrication points • Remarks

Reassembly (3)

Reassemble the wheels and

train wheel bridge.

❇Install the parts in the number order shown in the illustration below,

paying attention to the following:

mounting positions,

direction of mounting,

type of oil, lubrication point(s) and amount of lubrication.

normal quantity

7Setting wheel

8Minute wheel and pinion

10 Rotor

11 Rotor

9Battery connection (-)

1Rotor stator

2Rotor stator

3Coil block

4Coil block

12 Fifth wheel and pinion

13 Intermediate date driving wheel A

14 Third wheel and pinion

6 Intermediate date driving wheel B

5Center wheel and pinion (AO-3)

TECHNICAL GUIDE Cal. 6A32A

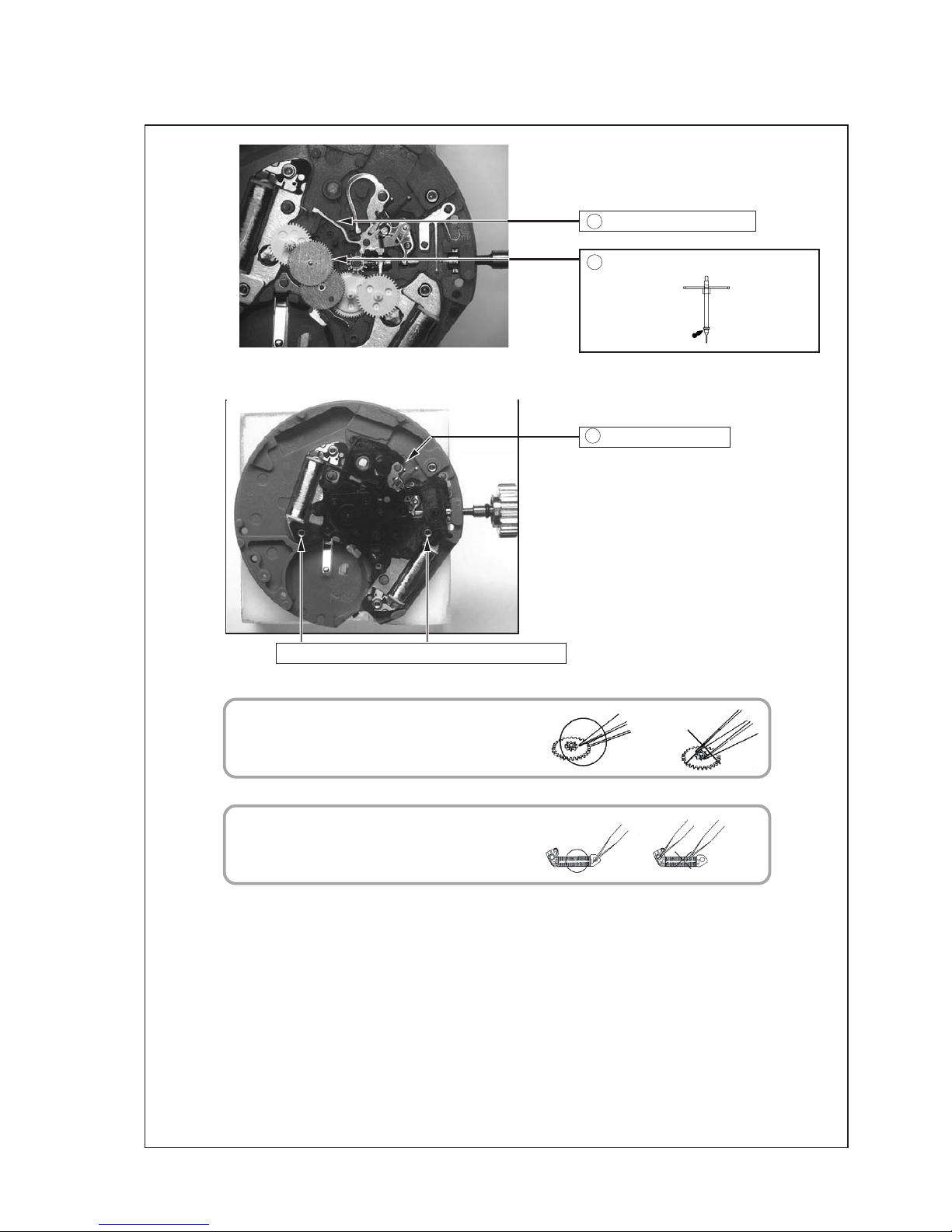

When holding the coil block, be careful not to

touch the coil board or coil wire.

15 Train wheel setting lever

16 Fourth wheel and pinion (AO-3)

When handling the plastic parts, use a pair of

tweezers to securely hold them, paying attention

not to damage the teeth or pinions.

Positions of the guide pins for train wheel bridge

17 Train wheel bridge

TECHNICAL GUIDE Cal. 6A32A

Reassembly (4)

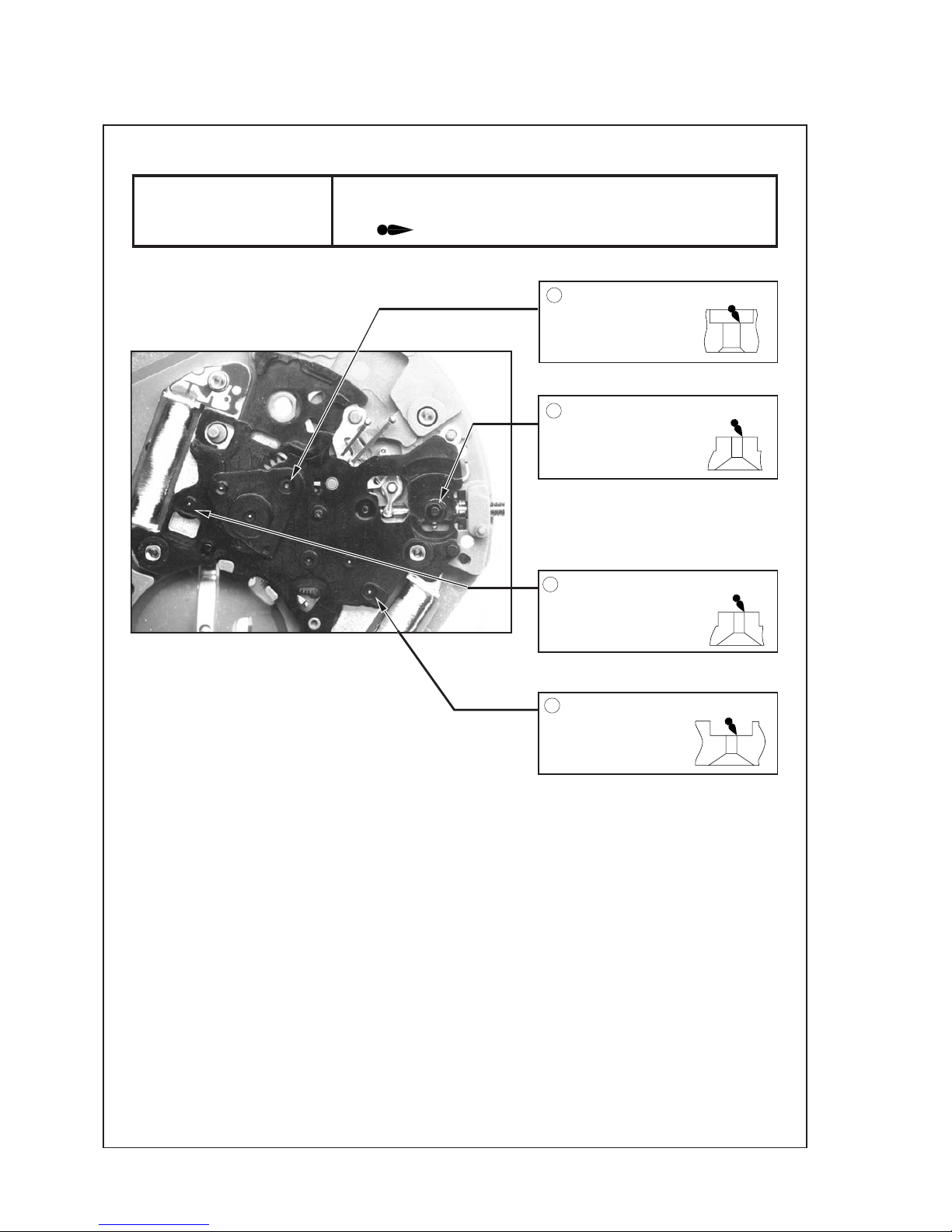

Lubricate the train wheel

bridge.

❇Make sure to lubricate the exact lubrication points with an adequate

amount of the correct type of oil.

Installation positions • Lubrication points • Remarks

normal quantity

1Minute wheel and pinion (AO-3)

4Upper pivot of the rotor (AO-2)

3Upper pivot of the rotor (AO-2)

2Pin for crown switch (AO-3)
