Self-Sat MWR 5550 Bedienungsanleitung

SELFSAT MWR 5550

4G / LTE / 5G & WiFi internet router set with up to 3,3 Gbps

incl. 5G roof antenna

Installation and User Manual

Contents

1. General Information 4

1.1 Intended use 4

1.2 Safety instructions 5

2. Installation 6

2.1 Scope of supply 6

2.2 Optional accessories and spare parts available 7

2.3 Connections, signals and controls 9

2.4 Installation of external antenna 10

2.5 Installation of router 12

2.6 Connecting the external antenna with the router 13

2.7 Connecting the WiFi inside antenna with the router 14

3. Starting up 15

3.1 Connecting with the WiFi of the router 16

3.2 Accessing the user interface of the router 18

3.3 Connecting with a WiFi 24

3.4 Using a SIM card 27

3.5 Using a second SIM card or a foreign SIM card 30

3.6 Connecting devices to LAN by Ethernet cable 36

4. Tracking your motor home or caravan 36

5. Rebooting or resetting the router 36

5.1 Rebooting the router 36

5.2 Resetting the router to factory settings 37

6. Technical Specifications 38

7. Disposal information 39

8. Warranty and service 39

9. Conformity 39

1. General Information

Thank you for selecting the SELFSAT MWR 5550 Internet Router Set.

Please carefully read this user guid before installing and starting up the

product. Follow the described steps when operating the user interface of your

internet router accordingly.

Keep this user guide at hand. The latest version of this user guide can be found

here www.selfsat-service.de. If the version there is newer than this one could

be seen when comparing the number of the version on the back of this user

manual with the one online.

On the back side of your router you will find a serial number and an IMEI

number. Please take a note of them here. If the router is installed in your

mobile home or caravan this helps if these information is required.

SERIAL: IMEI:

1.1 Intended use

This product is considered to be used in motor homes or caravans. It could also

be used in trucks, busses or on boats. It is intended to set up an internet

connection with a 2,4 GHz WiFi or with the 4G / LTE / 5G mobile network.

The body of a motor home or caravan shields radio signals from outside.

Therefore the SELFSAT MWR 5550 internet solution uses an external antenna

which could either receive WiFi signals or mobile network signals as well as a

GPS signal.

The router could be powered by 12 Volts or 24 Volts direct current (DC) or 230

Volts alternating current (AC).

The manufacturer assumes no liability for damage due to assembly or

operating errors.

1.2 Safety instructions

Please handle the product and its accessories with care and protect them from

moisture and dust.

The product and its accessories contain small parts. Make sure that small

children do not have access to it, so as not to swallow it or injure themselves on

it.

Mount the router only in places where sufficient heat dissipation or ventilation

can take place, since the product may heat up.

Do not make any modifications to the product and do not disassemble it. This

means that warranty claims are lost.

As this is an electronic device we ask that you always use electricity with care.

Only connect the product to power sources that meet the technical

requirements of the product.

Because the product connects to the Internet via wireless networks, the signal

availability of which may vary, the device must not be used if death, personal

injury, property damage, loss of data, or other losses have to be avoided.

Use only the accessories included in the scope of delivery or optional

accessories available from the manufacturer.

Observe the operating temperature information under technical specs.

2. Installation

2.1 Scope of supply

A) SELFSAT MWR 5550

B) EU 2-pin power supply 100 –240 Volts AC

C) 12 Volts DC car power supply

D) Surface mounting kit

E) 2 SIM card adapters for Micro SIM or Nano SIM to Mini SIM incl. SIM

card removal tool

F) 1,5 m Ethernet cable

G) SELFSAT external antenna (see front page for picture)

H) Thread extension

I) WiFi interior antenna

J) Hook-and-loop self-adhesive dots for the WiFi interior antenna

K) Installation and user manual

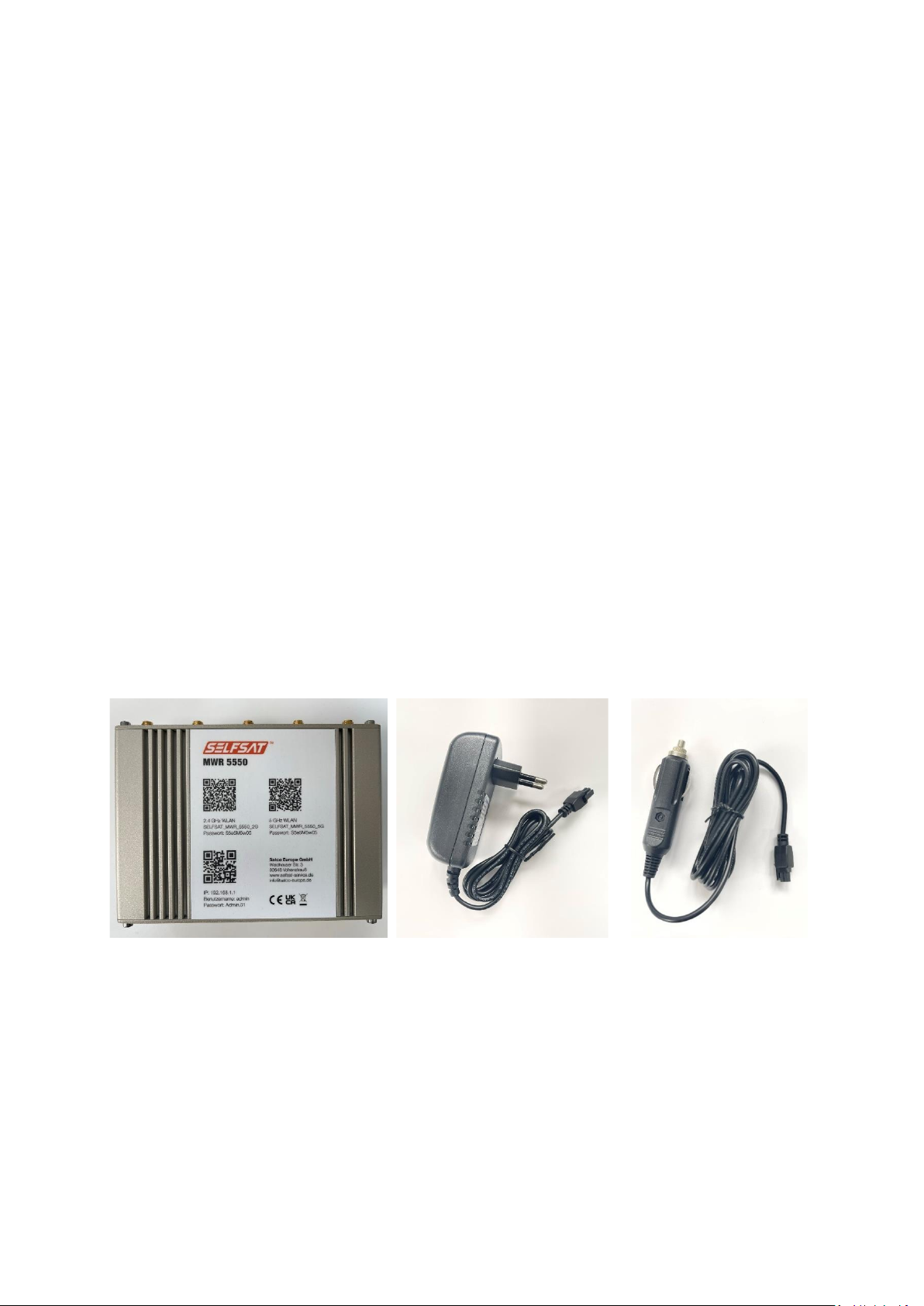

A) SELFSAT MWR 5550 B) EU 2-pin power supply C) 12 Volts DC

100 –240 Volts AC car power supply

D) Surface montage-Kit E) 2 SIM card adapters E) 1,5 m Ethernet cable

for Micro SIM or Nano

SIM to Mini SIM incl.

SIM tray removal tool

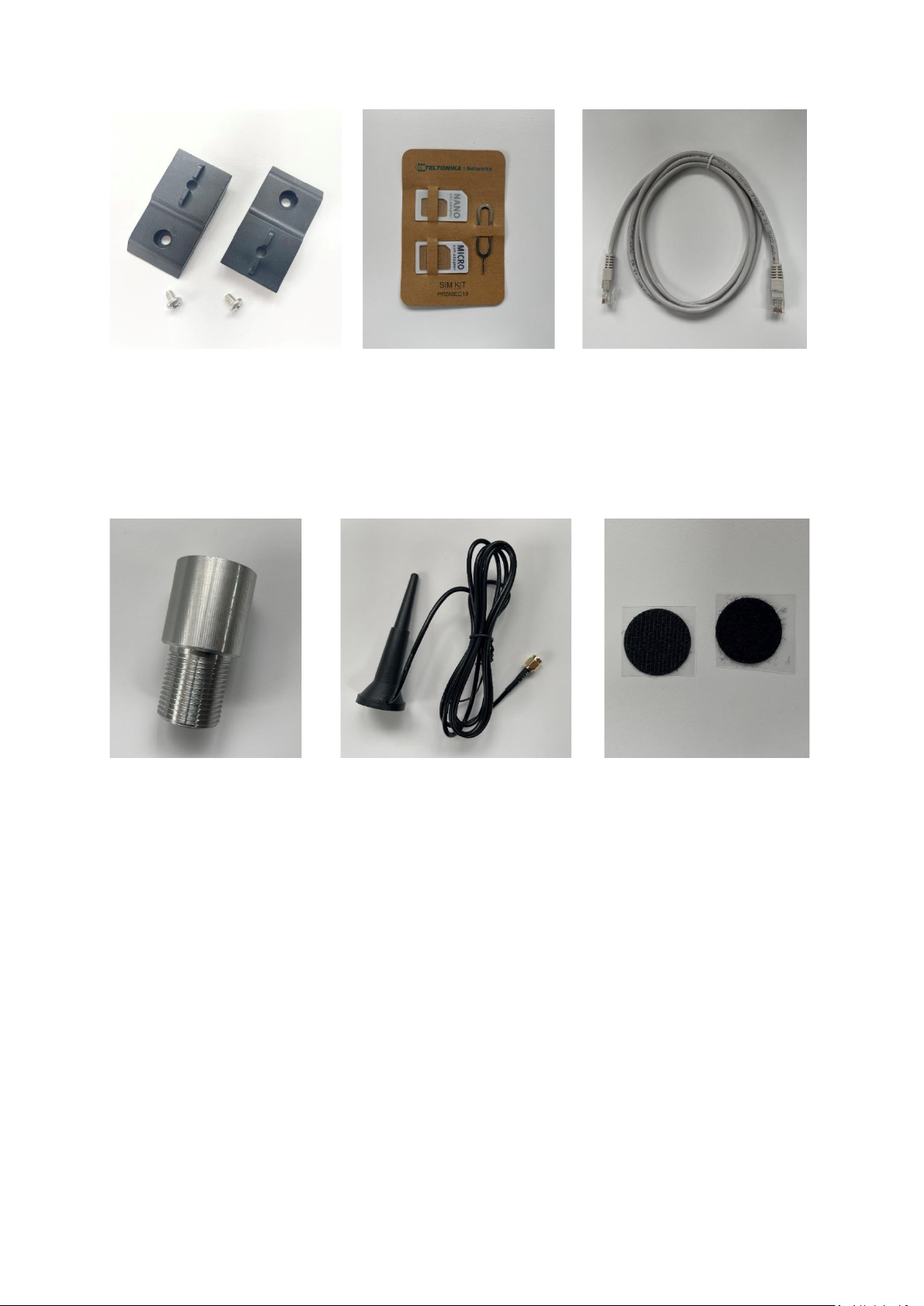

H) Thread extension I) WiFi interior antenna J) Hook-and-loop self-

adhesive dots for WiFi

interior antenna

2.2 Optional accessories and spare parts available:

- Roof mounting plate for external antenna (art. no. 13825)

- Roof cable entry gland (art. no. 13850)

- Roof mounting plate and cable entry gland for ext. antenna (art. no. 13853)

- Cable extension 1 m (art. no. 13826)

- Cable extension 2 m (art. no. 13827)

- Roof mounting plate, cable entry gland, cable extension 1 m (art. no. 13831)

- Roof mounting plate, cable entry gland, cable extension 2 m (art. no. 13832)

- 12 Volts DC car power supply (art. no. 13841)

- EU 2-pin power supply 100 –240 Volts AC (art. no. 13843)

- WiFi interior antenna (art. no. 13848)

- 1,5 m Ethernet cable (art. no. 13842)

- 2 SIM card adapters incl. SIM tray removal tool (art. no. 13846)

- Thread extension (art. no. 13830)

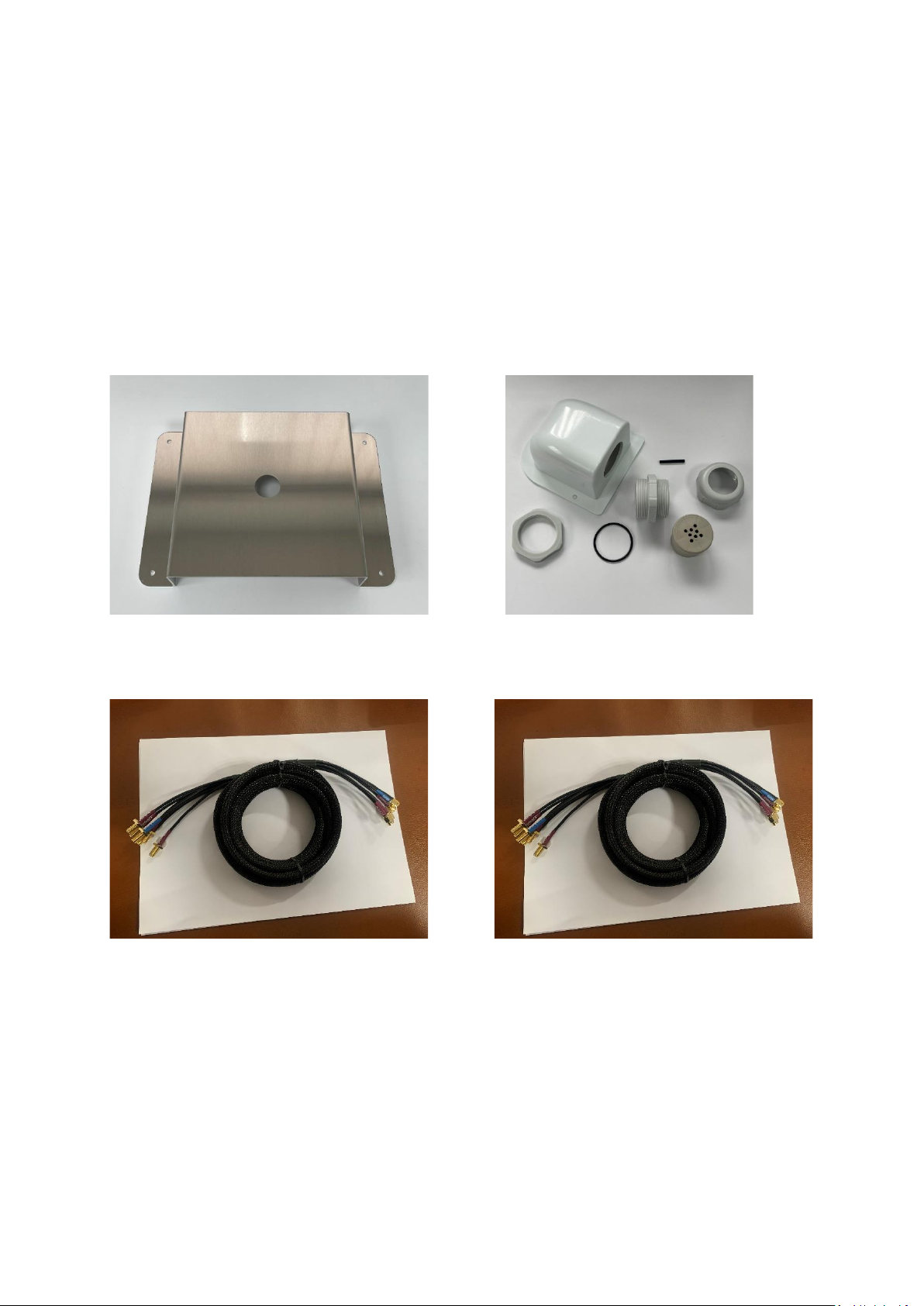

Roof mounting plate Roof cable entry gland

Cable extension 1 m Cable extension 2 m

2.3 Connections, signals and controls

Upside

Downside

Assignment power connector

2.4 Installation of external antenna

In principle, the assembly of the external antenna can be carried out by

yourself with a little manual skill and the right tools. However, if you do not

have sufficient knowledge, we recommend that you have the product installed

by a suitable specialist company (e.g. where you bought your motorhome or

caravan). Above all, this ensures that the antenna installation on the roof is

reliably sealed and that no water can penetrate into the mobile home or

caravan, for which Satco Europe GmbH assumes no liability.

The outdoor antenna is intended for roof mounting. It can be mounted directly

on the roof by placing it on a pre-drilled hole through which the antenna thread

and the antenna cables are routed directly inside. Alternatively, it can be

mounted on a roof mounting plate including a roof cable entry gland

(optionally available, SELFSAT article number 13853). When installing on the

roof mounting plate, please check whether you need an extension cable set for

the antenna, which is optionally available with a length of 1 m or 2 m (SELFSAT

item number 1 m: 13826; SELFSAT item number 2 m: 13827). The roof

mounting plate including roof cable entry gland is also available as a set with

the 1 m extension cable (SELFSAT item number: 13831) or as a set with the 2 m

extension cable (SELFSAT item number: 13832).

In the case of direct installation on the roof of the mobile home or caravan, we

ask that you consider the thickness of your roof. If it is installed on a metal roof

(e.g. van), the length of the thread on the external antenna is usually sufficient

to screw it from the inside. In this case, you must drill a 2.7 cm hole in the

metal roof in a suitable position (preferably directly above the spot where you

want to mount the router later, e.g. in an overhead storage cupboard) in order

to insert the thread of the external antenna and the antenna cable into the

interior of the mobile home or caravan.
