Senix GTX2-M Bedienungsanleitung
20V MAX LITHIUM ION
CORDLESS GRASS TRIMMER
Operator’s manual
Model: GTX2-M
GTX2-M-0
For customer support, please call 1-800-261-3981 or send email to:
senix.service@yat.com
SAVE THIS MANUALFOR FUTURE REFERENCE.
ORIGINALINSTRUCTIONS
TM
EN - 2 WWW.SENIXTOOLS.COM

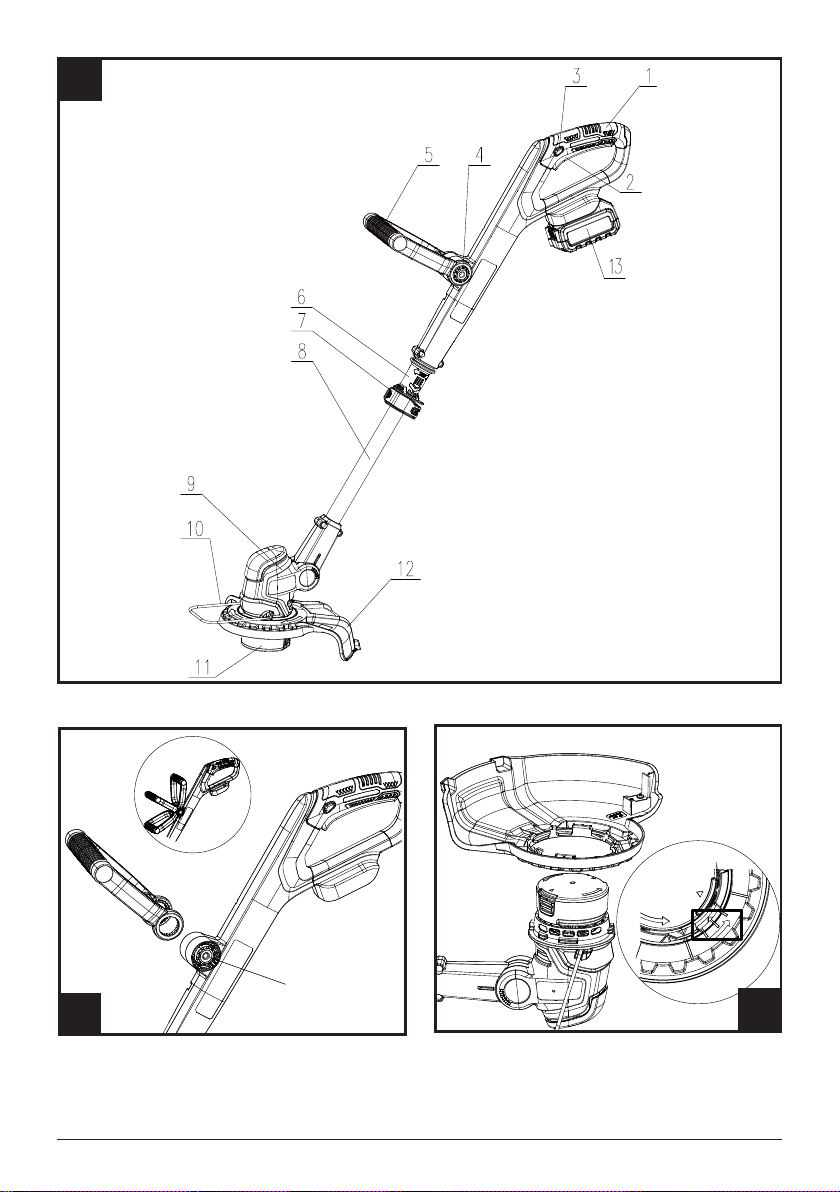

1
23
Auxiliary Handle Button
WWW.SENIXTOOLS.COM 3 - EN

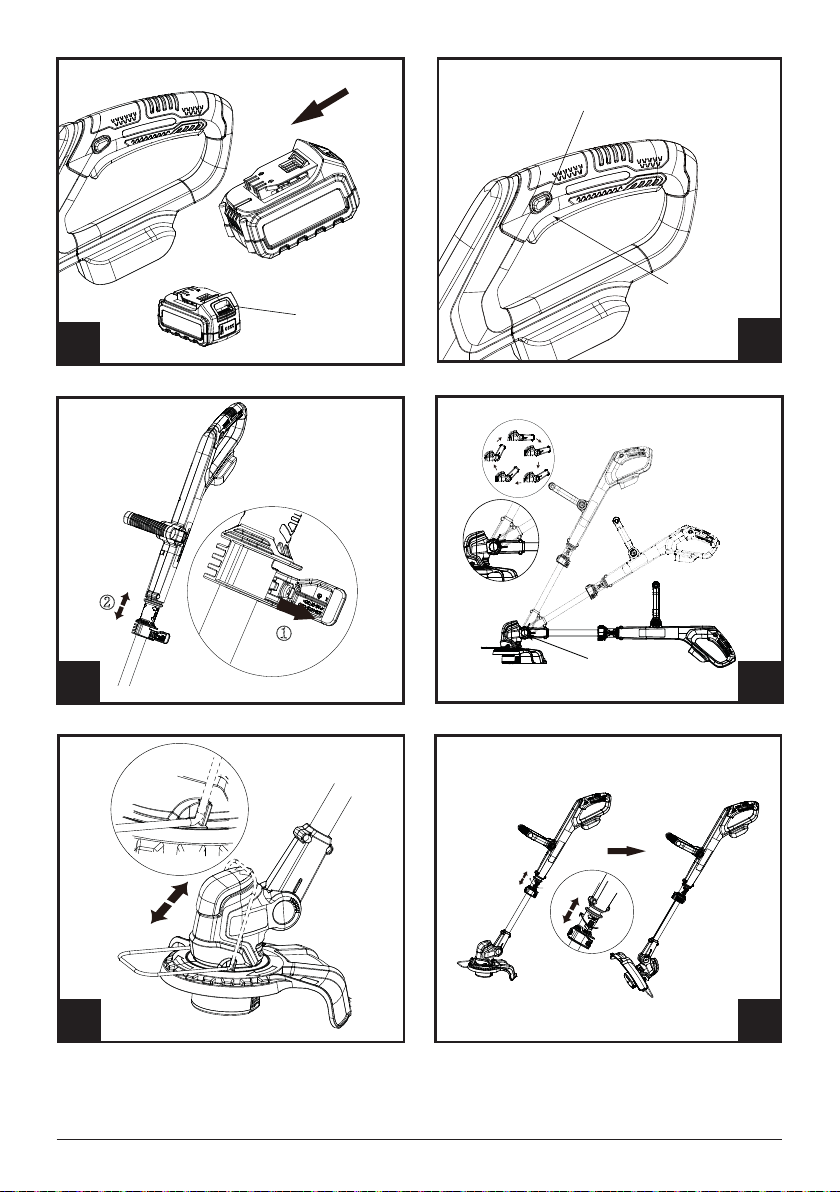

①
②
4
6
98
7
5
①
②
Unlock Button
Safety Switch
AngleAdjustment Button
Switch Trigger
Edging Trimming
EN - 4 WWW.SENIXTOOLS.COM
10
12
11
13
14 15
Spool Cover
Spool
Light Button
Line-Feed Button
WWW.SENIXTOOLS.COM 5 - EN
TABLE OF CONTENTS
SAFETY & INTERNATIONAL SYMBOLS ...........................5
SAFETY INSTRUCTIONS...................................................6
KNOW YOUR UNIT............................................................11
SPECIFICATIONS*............................................................11
ASSEMBLY.........................................................................12
OPERATION.......................................................................12
MAINTENANCE.................................................................14
TROUBLESHOOTING.......................................................16
PARTS................................................................................17
WARRANTY........................................................................18
SAFETY & INTERNATIONAL
SYMBOLS
Explanation of Safety & international symbols describes
safety and international symbols and pictographs that may
appear on this product. Read the operator’s manual for
complete safety, assembly, operating and maintenance and
repair information.
Caution / Warning.
To reduce the risk of injury, user must read
instruction manual.
Always wear eye protection, ear protection
and head protection meetingANSI Z87.1
standards.
Wear protective gloves.
Wear sturdy, non-slip footwear.
Beware of foot injury by cutting attachment.
Beware of objects flung by cutting
attachments.
Never use without properly mounted
protection guard.
Beware of objects flung by cutting
attachments..
Never use without properly mounted
protection guard.
Keep all bystanders at least 50 ft. away.
Don’t install or use any type of blade on the
unit displaying this symbol.
Do not use in rain or wet conditions.
Do not dispose of battery packs in rivers or
immerse in water.
Do not dispose of battery packs in fire. They
will explode and cause injury.
Use andstore thebatterywithin antemperature
below122°F(50°C).
Do not disassemble, crush, heat above
212°F(100°C); Never expose the battery to
microwaves or high pressures.
ClassII equipment (Charger).
EN - 6 WWW.SENIXTOOLS.COM
SAFETY INSTRUCTIONS
GENERAL POWER TOOL SAFETY
WARNINGS
WARNING:
When using electric gardening
appliances, basic safety precautions
should always be followed to
UHGXFHULVNRI¿UHHOHFWULFVKRFN
and personal injury, including the
following:
SAVE THESE INSTRUCTIONS AND
REVIEW FREQUENTLY PRIOR
TO USEAND IN INSTRUCTING
OTHERS.
• Keep ChildrenAway –All visitors
should be kept at a distance from
work area.
• Dress Properly – Do not wear
loose clothing or jewelry. They can
be caught in moving parts. Use
of rubber gloves and substantial
footwear is recommended when
working outdoors. Wear protective
hair covering to contain long hair.
• Use Safety Glasses –Always use
face or dust mask if operation is
dusty.
• WearAppropriate Personal
Hearing Protection During Use
– Under some conditions and
duration of use, noise from this
product may contribute to hearing
loss.
• Use RightAppliance – Do not use
appliance for any job except that
for which it is intended.
• DisconnectAppliance –
Disconnect the appliance from the
power supply when not in use,
before servicing, when changing
accessories such as blades, and
the like.
• Check Damaged Parts – Before
further use of the string trimmer,
a guard or other part that is
damaged should be carefully
checked to determine that it will
operate properly and perform
its intended function. Check
for alignment of moving parts,
binding of moving parts, breakage
of parts, mounting and any
other condition that may affect
its operation.Aguard or other
part that is damaged should be
properly repaired or replaced call
our customer service help line for
assistance.
• Lighting – Only operate trimmer in
GD\OLJKWRUJRRGDUWL¿FLDOOLJKW
• Don’t overreach – Keep proper
footing and balance at all times.
• Don’t Use In Rain.
• Avoid Dangerous Environments
– Don’t use trimmer in rain, damp
or wet locations. Do not operate
WWW.SENIXTOOLS.COM 7 - EN
trimmer in gaseous or explosive
atmospheres. Motors in these
tools normally spark, and the
sparks might ignite fumes.
• Avoid Unintentional Starting –
Don’t carry the string trimmer with
¿QJHURQVZLWFK%HVXUHVZLWFK
trigger is in the locked or off
position before inserting battery
pack.
• Don’t ForceAppliance – It will
do the job better and with less
likelihood of a risk of injury at the
rate for which it was designed.
• StayAlert – Watch what you are
doing. Use common sense. Do not
operate appliance when you are
tired.
• Store Idle String Trimmer Indoors
– When not in use, your string
trimmer should be stored indoors
in a dry and high or locked-up
place, out of reach of children.
• Maintain Trimmer With Care –
Keep guard and handles clean for
best performance and to reduce
the risk of injury. Keep handles dry
and free from oil and grease.
WARNING:
California Proposition 65: This
product contains chemicals known
to the State of California to cause
cancer, birth defects or other
reproductive harm.
WARNING:
Some dust created by this product
could contain chemicals known
to the State of California to
cause cancer and birth defects or
other reproductive harm. Some
examples of these chemicals are:
-chemicals in fertilizers-compounds
in insecticides, herbicides and
pesticides-arsenic and chromium
from chemically treated lumber.
Your risk from exposure to these
chemicals varies, depending on
how often you do this type of work.
To reduce your exposure to these
chemicals, wear approved safety
equipment such as dust masks that
DUHVSHFLDOO\GHVLJQHGWR¿OWHURXW
microscopic particles.
LAWN TRIMMER SAFETY
WARNINGS
• Prevent unintentional starting.
Ensure the switch is in the
off-position before connecting
to battery pack, picking up or
carrying the appliance. Carrying
WKHDSSOLDQFHZLWK\RXU¿QJHURQ
the switch or energizing appliance
that have the switch on invites
accidents.
• Disconnect the battery pack from
the appliance before making
any adjustments, changing
EN - 8 WWW.SENIXTOOLS.COM
accessories, or storing appliance.
Such preventive safety measures
reduce the risk of starting the
appliance accidentally.
• Never allow children, persons
with reduced physical, sensory
or mental capabilities or lack
of experience and knowledge
or people unfamiliar with these
instructions to use the machine,
local regulations may restrict the
age of the operator.
• Inspect the entire machine for
loose parts (nuts, bolts, screws,
etc.) and any damage before start
and operation. Repair or replace
as necessary before using the
machine.
• Never replace the non-metallic
cutting means with metallic cutting
means.
• Do not touch moving hazardous
parts before the battery pack
is removed and the moving
hazardous parts have come to a
complete stop.
WARNING:
DO NOTATTEMPT to remove cut
material or hold material to be cut
when lines are moving. Make sure
trimmer switch is off when clearing
jammed material from guard. Do
not grasp the guard or lines when
picking up or holding the trimmer.
WARNING:
Lines coast after turned off.
• Always wear eye and ear
protection. Wear protective mask
if necessary.
• Never operate the machine with
defective guards or shields, or
without safety device.
• Inspect the area to be cut and
remove all debris that could
become entangled in the nylon
cutting head.Also remove any
objects that the unit may throw
during cutting.
• Keep hands and feet away from
cutting area.
• Have servicing performed by a
TXDOL¿HGUHSDLUSHUVRQXVLQJRQO\
identical replacement parts. This
will ensure that the safety of the
product is maintained.
WARNING:
Do not use the string trimmer with
any type of accessory or attachment.
Such usage might be hazardous.
BATTERY PACK AND BATTERY
CHARGER SAFETY WARNING
• Recharge only with the charger
VSHFL¿HGE\WKHPDQXIDFWXUHU$
WWW.SENIXTOOLS.COM 9 - EN
design that differs from these,
then the correct advice may be
substituted.)
• Do not use a battery pack or
appliance that is damaged
RUPRGL¿HG'DPDJHGRU
PRGL¿HGEDWWHULHVPD\H[KLELW
unpredictable behavior resulting in
¿UHH[SORVLRQRUULVNRILQMXU\
• Do not expose a battery pack
RUDSSOLDQFHWR¿UHRUH[FHVVLYH
WHPSHUDWXUH([SRVXUHWR¿UHRU
temperature above 266°F(130°C)
may cause explosion.
• Follow all charging instructions
and do not charge the battery
pack or appliance outside of the
WHPSHUDWXUHUDQJHVSHFL¿HGLQWKH
instructions. Charging improperly
or at temperatures outside of the
VSHFL¿HGUDQJHPD\GDPDJHWKH
battery and increase the risk of
¿UH
• Do not modify or attempt to repair
the appliance or the battery pack
(as applicable) except as indicated
in the instructions for use and
care.
EMERGENCY
Familiarize yourself with the use
of this product by means of this
instruction manual. Memorize the
safety directions and follow them to
charger that is suitable for one
type of battery pack may create a
ULVNRI¿UHZKHQXVHGZLWKDQRWKHU
battery pack.
• Use appliances only with
VSHFL¿FDOO\GHVLJQDWHGEDWWHU\
packs. Use of any other battery
packs may create a risk of injury
DQG¿UH
WARNING:
Use only the following type and size
battery: B25X2/B50X2.
• When battery pack is not in use,
keep it away from other metal
objects, like paper clips, coins,
keys, nails, screws or other small
metal objects, that can make a
connection from one terminal
to another. Shorting the battery
terminals together may cause
EXUQVRUD¿UH
• Under abusive conditions,
liquid may be ejected from the
battery; avoid contact. If contact
DFFLGHQWDOO\RFFXUVÀXVKZLWK
water. If liquid contacts eyes,
additionally seek medical help.
Liquid ejected from the battery
may cause irritation or burns.
(This advice is considered correct
for conventional NiMh, NiCd, lead
acid and lithium-ion cell types. If
this advice is incorrect for a cell
EN - 10 WWW.SENIXTOOLS.COM
the letter.This will help to prevent
risks and hazards.
1.Always be alert when using this
product, so that you can recognize
and handle risks early. Fast
intervention can prevent serious
injury and damage to property.
2. Switch off the product and
remove the battery pack if there
are malfunctions. Have the
SURGXFWFKHFNHGE\DTXDOL¿HG
professional and repaired, if
necessary, before you operate it
again.
RESIDUAL RISKS
Even if you are operating this
product in accordance with all
the safety requirements, potential
risks of injury and damage remain.
The following dangers can arise in
connection with the structure and
design of this product:
1. Health defects resulting from
vibration emission if the product
is being used over long periods of
time or not adequately managed
and properly maintained.
2. Injuries and damage to property
due to broken attachments or the
sudden impact of hidden objects
during use.
3. Danger of injury and property
GDPDJHFDXVHGE\À\LQJREMHFWV
4. Prolonged use of this product
expose the operator to vibrations
DQGPD\SURGXFHµZKLWH¿QJHU¶
disease. In order to reduce the
risk, please wear gloves and keep
your hands warm. If any of the
µZKLWH¿QJHU¶V\PSWRPVDSSHDU
seek medical advice immediately.
µ:KLWH¿QJHU¶V\PSWRPVLQFOXGH
numbness, loss of feeling,
tingling, pricking, pain, loss of
strength, changes in skin colour
or condition. These symptoms
QRUPDOO\DSSHDULQWKH¿QJHUV
hands or wrists. The risk
increases at low temperatures.
WARNING:
This product produces an
HOHFWURPDJQHWLF¿HOGGXULQJ
RSHUDWLRQ7KLV¿HOGPD\XQGHU
some circumstances interfere with
active or passive medical implants!
To reduce the risk of serious or fatal
injury, we recommend persons with
medical implants to consult their
doctor and the medical implant
manufacturer before operating this
product!
SAVE THESE INSTRUCTIONS
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Sprachen:
Andere Senix Trimmer Handbücher
Senix
Senix HTX2-M Bedienungsanleitung
Senix
Senix HT4QL-L Bedienungsanleitung
Senix
Senix GTSX5-M-0 Bedienungsanleitung
Senix
Senix HTE3.8-L Bedienungsanleitung
Senix
Senix HTX5-M Bedienungsanleitung
Senix
Senix HTPX2-M Bedienungsanleitung
Senix
Senix GTS4QL-M2 Bedienungsanleitung
Senix
Senix GTC4QL-L Bedienungsanleitung
Senix
Senix GTE2.5-L-EU Bedienungsanleitung
Senix
Senix GTBCU4QL-M Bedienungsanleitung
