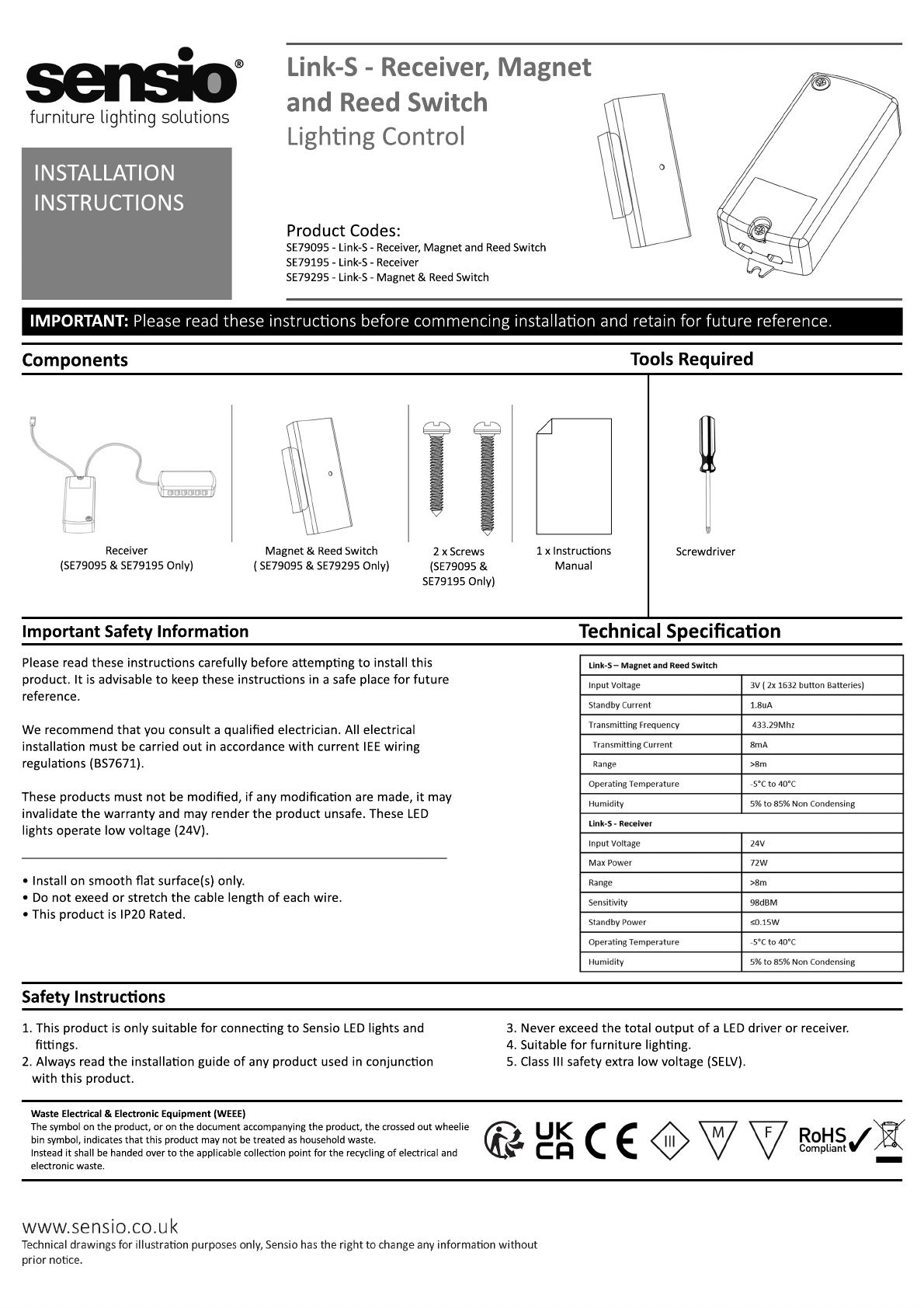

Sensio Link-S SE79095 Bedienungsanleitung

Sensio House, Unit 7, Speedwell Road, Whitwood, Castleford, West Yorkshire, WF10 5PY

www.sensio.co.uk

Technical drawings for illustraon purposes only, Sensio has the right to change any informaon without

prior noce.

Waste Electrical & Electronic Equipment (WEEE)

The symbol on the product, or on the document accompanying the product, the crossed out wheelie

bin symbol, indicates that this product may not be treated as household waste.

Instead it shall be handed over to the applicable collecon point for the recycling of electrical and

electronic waste.

3. Never exceed the total output of a LED driver or receiver.

4. Suitable for furniture lighng.

5. Class III safety extra low voltage (SELV).

1. This product is only suitable for connecng to Sensio LED lights and

ngs.

2. Always read the installaon guide of any product used in conjuncon

with this product.

Safety Instruc�ons

Please read these instrucons carefully before aempng to install this

product. It is advisable to keep these instrucons in a safe place for future

reference.

We recommend that you consult a qualied electrician. All electrical

installaon must be carried out in accordance with current IEE wiring

regulaons (BS7671).

These p

These products must not be modied, if any modicaon are made, it may

invalidate the warranty and may render the product unsafe. These LED

lights operate low voltage (24V).

• Install on smooth at surface(s) only.

• Do not exeed or stretch the cable length of each wire.

• This product is IP20 Rated.

Important Safety Informa�on

Technical Speciﬁca�on

Screwdriver

1 x Instrucons

Manual

2 x Screws

(SE79095 &

SE79195 Only)

Magnet & Reed Switch

( SE79095 & SE79295 Only)

Receiver

(SE79095 & SE79195 Only)

Tools Required

Components

IMPORTANT: Please read these instruc�ons before commencing installa�on and retain for future reference.

INSTALLATION

INSTRUCTIONS

Product Codes:

SE79095 - Link-S - Receiver, Magnet and Reed Switch

SE79195 - Link-S - Receiver

SE79295 - Link-S - Magnet & Reed Switch

Link-S - Receiver, Magnet

and Reed Switch

Lighng Control

Sensio V3

UK Address: Sensio Ltd, Unit 7, Speedwell Road, Castleford, West Yorks, WF10 5PY

EU Rep.: Sensio Lighting Dublin Ltd, The Black Church, St. Mary's Place, Dublin, Ireland, D07 P4AX

Sensio - V4

Technical drawings for illustraon purposes only, Sensio has the right to change any informaon

without prior noce.

Sensio V3

www.sensio.co.uk

Sensio House, Unit 7, Speedwell Road, Whitwood, Castleford, West Yorkshire, WF10 5PY

• Ensure that the power is disconnected prior to cleaning.

• To keep the nish of this product, wipe over with socloth periodically.

• Do not use harsh chemical solvents, this may dis-colour or damage the nish.

• Do not over-ghten screws on the terminal block.

Maintenance & Care

Connect your light to the receiver by inserng

the male-ended JB4 cable into the female-end.

Receiver - Underside View

Synchronizaon BuonSignal LED

To clear the memory of the

receiver, press the

synchronizaon buon with

a sharp object for ve

seconds. The signal LED will

icker once.

Move the magnet apart

from the reed switch

and then touch them

again. The signal LED

will icker once when

pairing is complete.

Press the synchronizaon

buon on the underside of

the receiver with a sharp

object. The signal LED will

icker once.

Each receiver can connect with up to ve

magn

magnets and reed switches. The recommended

scenario for this setup would be to have a

magnet and reed switch on a series of cabinet

doors. Opening each cabinet door would then

trigger all the lights connected to the receiver.

For example, a series of in-cabinet lights.

Each magnet and reed switch can be connect

with up to ve dierent receivers. The

recommended scenario for this setup would be

to install the magnet and reed switch on the

door to a room. Opening the door will then

trigger all the lights connected to the receivers.

For example, all of the lighng in that room.

Opera�on

Driver

Receiver

Secure the receiver in posion using the screws

included. Finally, connect the driver to the

mains supply.

Receiver

Connect the male-ended cable from the

receiver into the LED Driver.

Driver

Receiver

Peel the adhesive backing tape oof the

magnet and sck it into a posion where it will

make contact with the Reid switch when the

doors are closed. Note: The magnet can make

contact with the side of the Reid switch.

Reid

Switch Magnet

Magnet

Peel the adhesive backing tape oof the Reid

switch and sck it in your desired locaon.

Note: The product is suitable for installaon in

many scenarios, please ensure that you

measure and plan before installaon.

Reid Switch

Installa�on

Link-S - Receiver, Magnet and Reed Switch

If you are installing a Sensio Wireless Magnec

Contact and Receiver with mulple Reid switch-

es and magnets, simply follow stages 1 and 2

for installaon. Once installed, each switch will

trigger the lighng when the two components

break contact.

UK Address: Sensio Ltd, Unit 7, Speedwell Road, Castleford, West Yorks, WF10 5PY

EU Rep.: Sensio Lighting Dublin Ltd, The Black Church, St. Mary's Place, Dublin, Ireland, D07 P4AX

Sensio - V4
