Sensio SA10372 Bedienungsanleitung

Installation

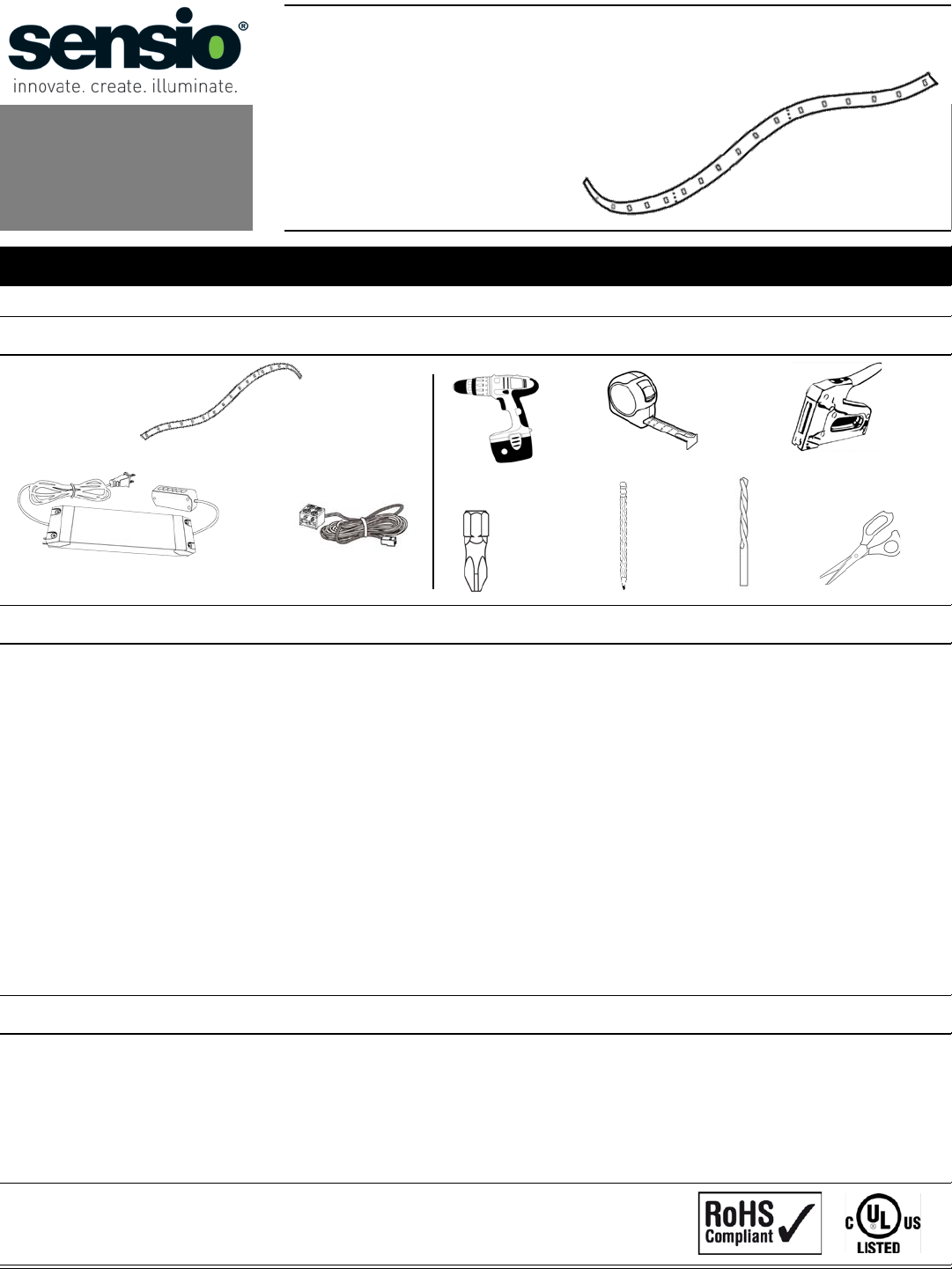

Instructions Product #: SA10372

IMPORTANT: Please read these instructions before starting installation and retain for future reference.

Required Materials: Required Tools :

Important Safety Information

Drill

Bit

Driver

(Sold Separately)

Scissors

Pencil

Please read these instructions carefully before attempting to install this product.

It is advisable to keep these instructions in a safe place for further reference. These products must not be modified; if

any modifications are made, it may invalidate the warranty and may render the product unsafe. These LED lights

operate on low voltage (24V). Do not wire the individual LED light fixtures directly to line power. This product is for

indoor use only. Keep out of moisture and use only in dry rooms.

The National Electrical Code (NEC) does not permit cords to be concealed where damage to insulation may go

unnoticed. To prevent fire danger, do not run cord behind walls, ceilings, soffits, or cabinets where it may be

inaccessible for examination. Cords should be visually examined periodically and immediately replaced when any

damage is noted.

CAUTION -To reduce the risk of fire, electric shock, or injury to persons:

a) Use only insulated staples or plastic ties to secure cords

b) Route and secure cords so that they will not be pinched or damaged when the cabinet is pushed to the wall

c) Not intended for recessed installation in ceilings, or soffits.

Driver Lead

(Sold Separately)

Staple Gun

(optional)

Screwdrive

r Bit

Flexible 16.4’ (5 meter)

24W 300 Diode IP65

Strip Light

Flexible Strip

Safety Instructions

1. Turn off the main electrical supply for the appropriate circuit

at the fuse board.

2. This product is only suitable for connecting to a 24V DC power

source.

3. Position lights where they will not be exposed to persistent

steam, splashes, etc.

4. The LEDs in this fixture cannot be replaced.

5. Suitable for under cabinet lighting, attached to a mounting

surface such as wood or laminate.

6. Failure to use surge protection in problem areas will void the

warranty.

7. Use only approved accessories.

8. IMPORTANT: Fixture must NOT be covered by insulation.

Measuring

Tape

Flexible 16.4’ (5 Meter) 24W 300 Diode

IP65\Strip Light

Installation

Sensio America

877-501-5337

www.sensioamerica.com

•Ensure that the power is disconnected prior to cleaning.

•To keep the finish of this product, wipe over with soft cloth

periodically.

•Do not use harsh chemical solvents, it may discolor or

damage the finish.

Maintenance & Care Support

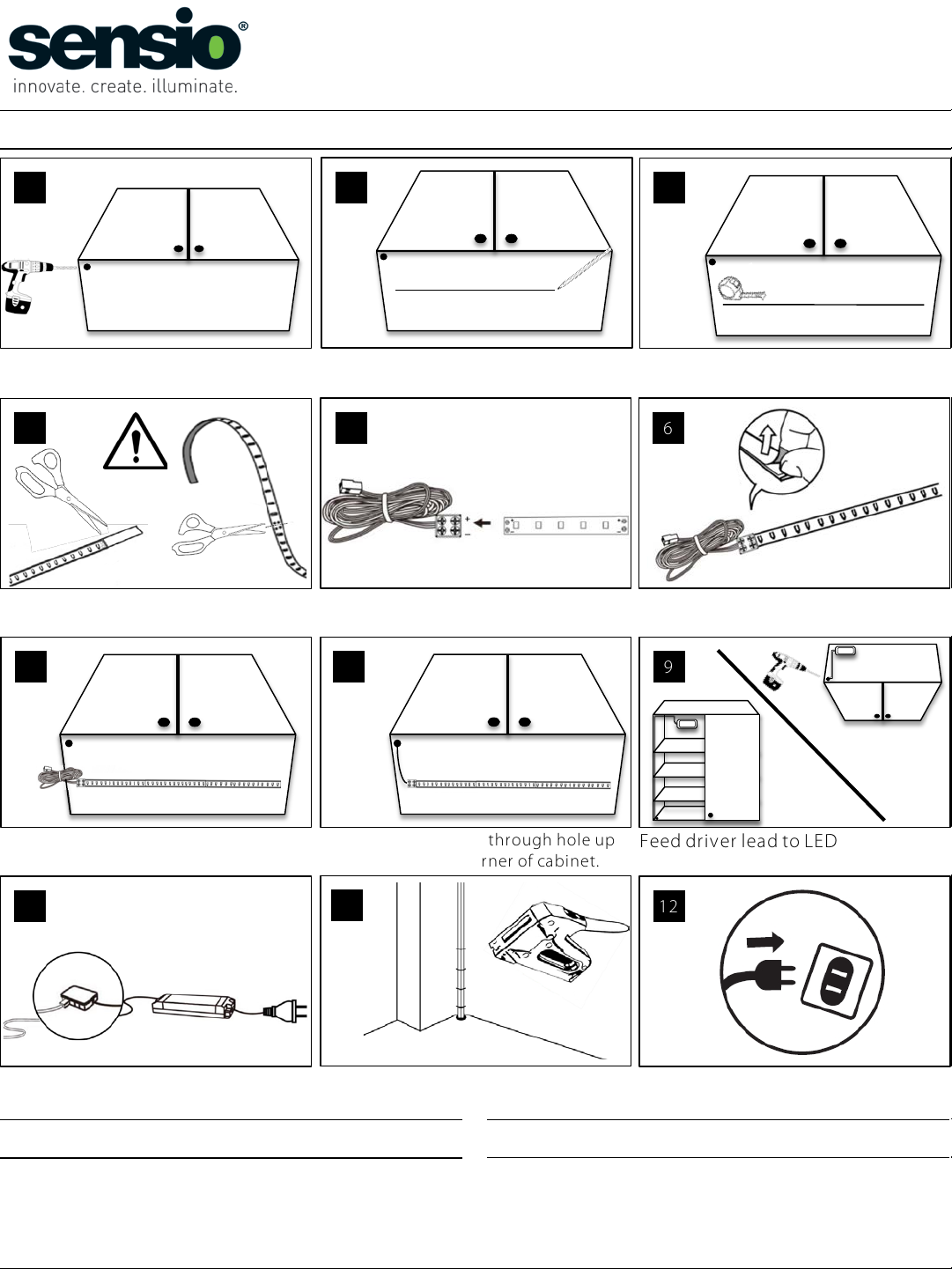

Drill 5/16" hole in bottom front

corner.

Connect driver to power.

Connect to driver.

Staple wire in place along inside

front edge of cabinet (optional).

Determine placement (front,

center, or back) and use pencil to

draw line.

Measure line drawn. Clean surface

with rubbing alcohol and let dry.

Feed driver lead wire through hole up

along inside front corner of cabinet.

Adhere strip along line, driver lead

on side of drilled hole.

Feed driver lead to LED driver.

Attach driver lead into strip.

Cut excess plastic off, cut strip on

scissor line indicator.

Peel off backing.

(FRONT OF CABINET)
