Serioux SRX-WR150WH Bedienungsanleitung

SRX-WR150WH

TABLE OF CONTENTS

1. ABOUT THIS GUIDE.......................................................................................................3

1.1 Navigation of the User’s Guide ............................................................................................ 3

2. PRODUCT OVERVIEW...................................................................................................3

2.1 Introduction............................................................................................................................ 3

2.2 Features.................................................................................................................................. 3

2.3 Panel Layout.......................................................................................................................... 4

2.3.1 Front Panel........................................................................................................................................ 4

2.3.2 Rear Panel........................................................................................................................................ 5

3. HARDWARE INSTALLATION.........................................................................................6

3.1 Hardware Installation ............................................................................................................ 6

3.2 Check the Installation............................................................................................................ 6

3.3 Set up the Computer............................................................................................................. 6

4. CONNECTING TO INTERNET........................................................................................8

4.1 Accessing Web page............................................................................................................. 8

4.2 Changing Password.............................................................................................................. 9

4.3 Setup Wizard........................................................................................................................ 10

4.3.1 WAN Type....................................................................................................................................... 10

4.3.1.1 Dynamic IPAddress..................................................................................................................11

4.3.1.2 Static IPAddress.......................................................................................................................11

4.3.1.3 PPPoE...................................................................................................................................... 12

4.3.2 Wireless Setting.............................................................................................................................. 12

5. ADVANCED SETTINGS................................................................................................13

5.1 System Status...................................................................................................................... 13

5.2 Network Settings................................................................................................................. 14

5.2.1 WAN Interface................................................................................................................................. 14

5.2.2 LAN Interface.................................................................................................................................. 15

5.2.3 DHCP Server .................................................................................................................................. 15

5.2.4 TCP/IP Status.................................................................................................................................. 17

5.3 Wireless................................................................................................................................17

5.3.1 Wireless Status............................................................................................................................... 17

5.3.2 Wireless Basic Settings .................................................................................................................. 18

5.3.3 Wireless Security Settings.............................................................................................................. 19

5.3.3.1 WEP......................................................................................................................................... 19

5.3.3.2 802.1x....................................................................................................................................... 20

5.3.3.3 WPA/WPA2 .............................................................................................................................. 21

5.3.4 WDS Settings.................................................................................................................................. 22

5.3.5 WPS Configuration Setup............................................................................................................... 23

5.3.6 Repeater Settings........................................................................................................................... 24

5.3.7 Advanced Settings .......................................................................................................................... 24

5.4 Firewall................................................................................................................................. 26

5.4.1 Access Control................................................................................................................................27

5.4.2 IP/Port Filtering ............................................................................................................................... 28

5.4.3 MAC Filtering .................................................................................................................................. 28

5.4.4 URL Filtering ................................................................................................................................... 29

5.4.5 Port Trigger ..................................................................................................................................... 29

5.4.6 Virtual Server .................................................................................................................................. 30

5.4.7 DMZ ................................................................................................................................................ 31

5.5 Management......................................................................................................................... 31

5.5.1 Traffic Statistics............................................................................................................................... 31

5.5.2 DDNS.............................................................................................................................................. 32

5.5.3 Time Zone Settings......................................................................................................................... 33

5.5.4 System Log..................................................................................................................................... 34

5.5.5 Upgrade Firmware.......................................................................................................................... 35

5.5.6 Save/Reload Settings ..................................................................................................................... 35

5.5.7 Password ........................................................................................................................................ 36

5.5.8 Reboot............................................................................................................................................. 36

All the photos and product specifications mentioned in this manual are for references only, as the

upgrading of software and hardware. They are subject to change without notice.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as translation, transformation, or adaptation without permission from Network One

Distribution. If you want to know more about our products information, please visit our website at

http://www.serioux.com

1.ABOUTTHISGUIDE

Thank you very much for purchasing this Wireless Router. This guide will introduce the

features of this device and tell you how to connect, use and configure the Router to connect

with Internet. Please follow the instructions in this guide to avoid affecting the Router’s

performance by improper operation.

1.1 Navigation of the User’s Guide

Product Overview. Describes the router, its features and appearance.

Hardware Installation. Describes the packaging, the hardware installation and settings on

computer.

Connecting to Internet. Tells how you can connect your computer to Internet successfully

using the Router.

Advanced Settings. Lists all technical functions including Wireless, Network Settings,

Firewall and Management of the Router.

2. PRODUCT OVERVIEW

2.1 Introduction

This Router is a combined wired/wireless network connection device that integrates with

internet-sharing router and 4-port switch. It complies with the most advanced IEEE 802.11n

technology and supports multiple security encryptions, including wireless LAN 64/128-bit

WEP, WPA and 802.1X. Besides, IP, URL and MAC address filtering function makes it easy

for user management. The WPS (Wi-Fi Protected Setup) will allow you to connect to secure

network simple and fast. In view of the above, it is really a high performance and

cost-effective solution for home and small offices.

2.2 Features

¾Complies with IEEE 802.11n and IEEE 802.11g/b standards for 2.4GHz Wireless LAN.

¾Supports PPPoE, Dynamic IP and static IP broadband functions.

¾Supports 64/128-bit WEP, WPA/WPA2 and 802.1X encryption.

¾Supports Virtual Server, Special Application and DMZ host.

¾Supports IP, MAC, URL filtering and Port Forwarding.

¾Built-in DHCP server/client.

¾Supports WMM for improved audio and video streaming.

¾Connects to secure network easily and fast using WPS.

¾Supports port bandwidth control.

¾Easy setup.

2.3 Panel Layout

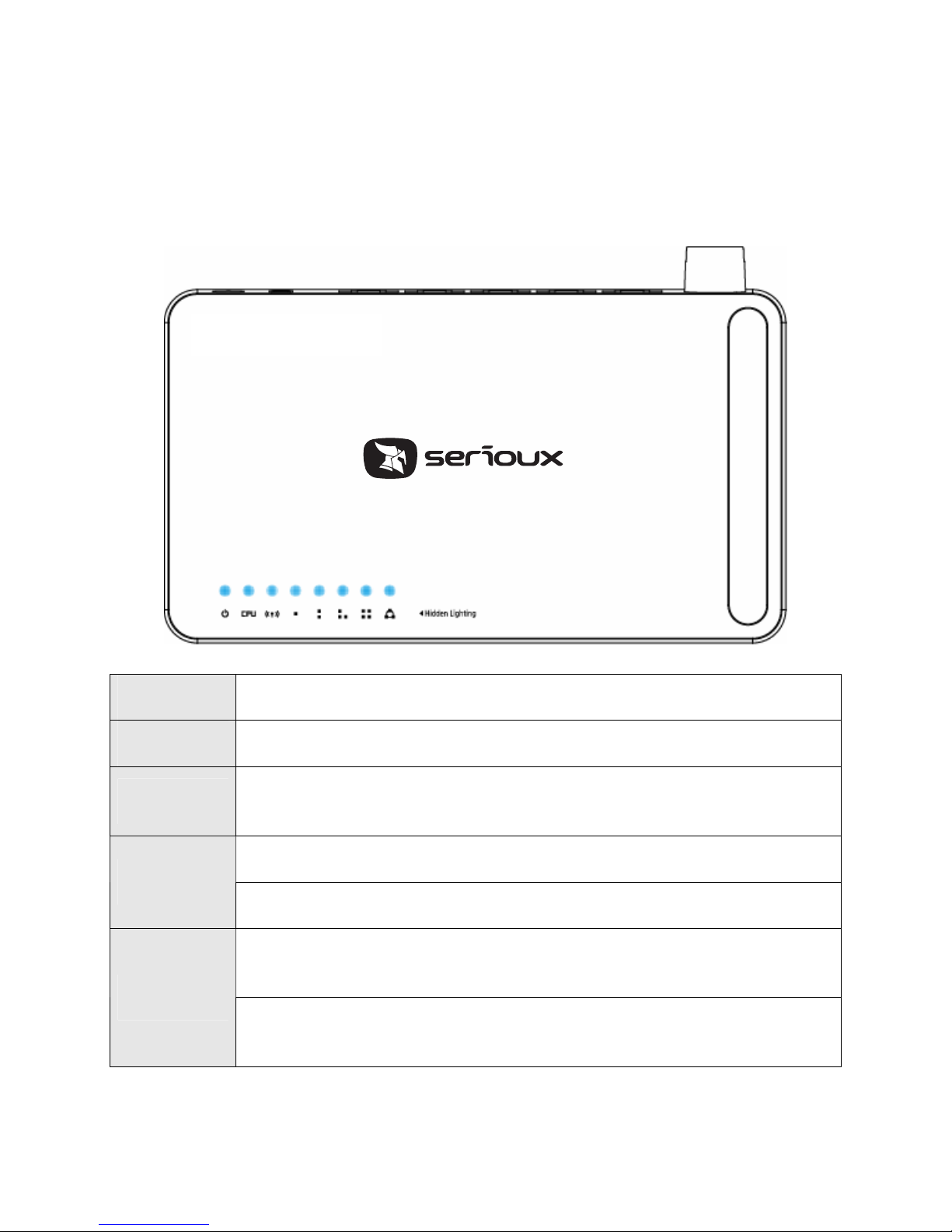

2.3.1 Front Panel

The front panel of the Router consists of 8 LEDs, which is designed to indicate connection

status.

POWER This indicator lights blue when the hub is receives power, otherwise it is off.

CPUThis indicator blinks blue when Router powered on.

WLANThis indicator lights blue when there are wireless devices connected and

transmitting data to WLAN Router.

When the WAN port is connected successfully the indicator lights blue.

WAN During transmitting or receiving data through the WAN port the indicator

blinks blue.

When one of the LAN ports has a successful connection, the corresponding

indicator lights blue.

1/2/3/4 LAN

During transmitting or receiving data through the LAN port the indicator

blinks blue.

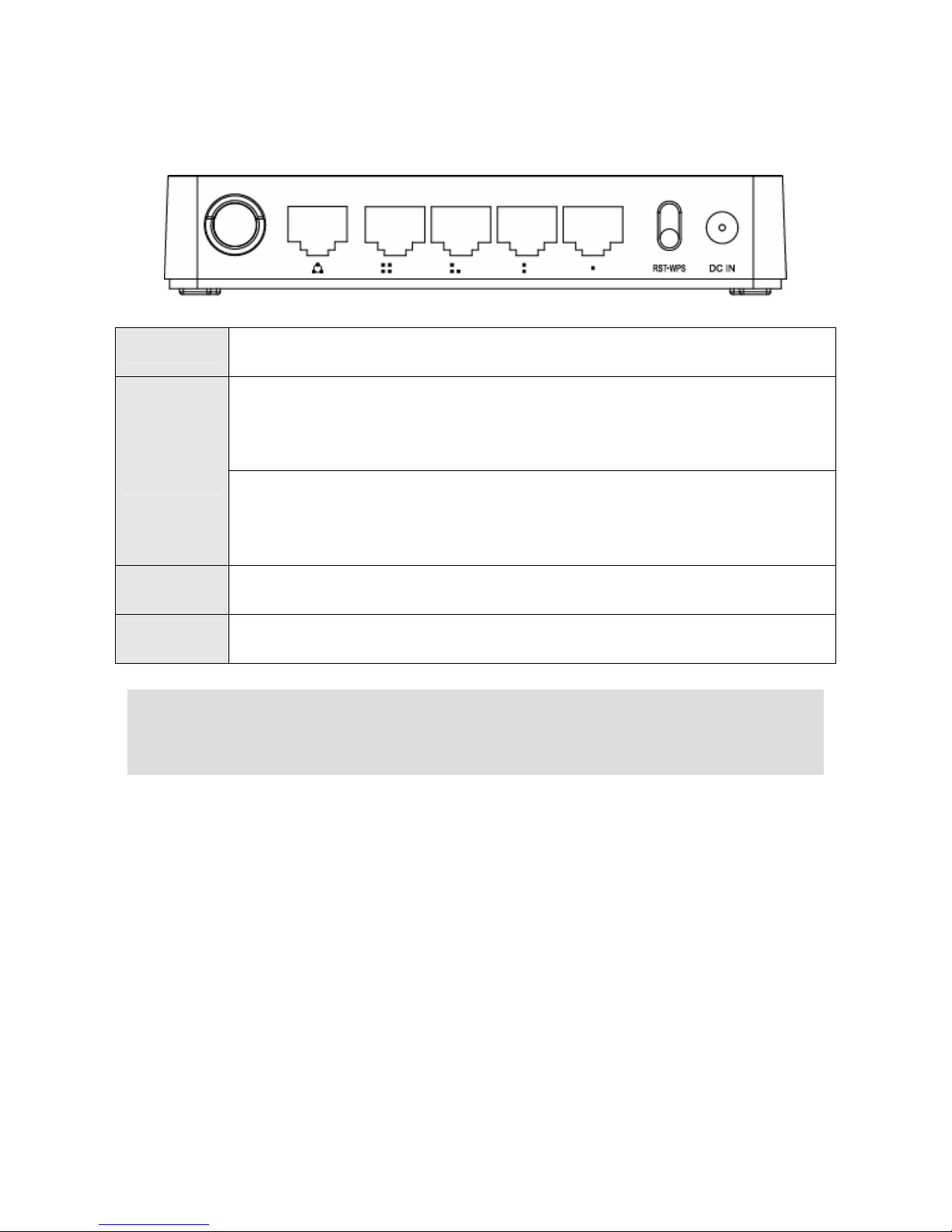

2.3.2 Rear Panel

The figure below shows the rear panel of the router.

DC IN The Power socket is where you will connect the power adapter.

RST: With the router powered on, press

and hold the button until the CPU

LED becomes

quick-flash from slow-flash. And then release the button and

wait the router to reboot to its factory default settings.

RST/WPS WPS: If you have client devices you can press this button to quickly establish

a router and client devices and automatically configure wireless security for

your wireless network.

WAN This port is where you will connect the DSL/cable Modem, or Ethernet.

1/2/3/4 LAN This port connects the router to local PC.

Note: Press and hold RST/WPS button for about less than 5 seconds and the CPU LED indicator

changes its lighting, it is WPS working. If more than 5 seconds and the CPU LED not response, the

router will reboot to default factory settings.

3.HARDWAREINSTALLATION

3.1 Hardware Installation

For those computers you wish to connect with Internet by this router, each of the computers

must be properly connected with the router through provided UTP LAN Cables.

1. Connect the provided UTP LAN cable to one of the router’s LAN port.

2. Connect the other end of the UTP LAN cable to your computer’s LAN port.

3. Connect the second UTP LAN cable to router’s WAN port.

4. Connect the other end of the UTP LAN cable toADSL or Modem port.

5. Plug the Power Adapter into the Router and then into an outlet.

6. Turn on your computer.

7. Check and confirm that the Power LED and LAN LED on the router are ON.

3.2 Check the Installation

The control LEDs of the WLAN Router are clearly visible and the status of the network link

can be seen instantly:

1. With the power source on, once the device is connected to the broadband modem, the

Power, CPU, LAN, WLAN and WAN port LEDs of the WLAN Router will blinks for one

second indicating a normal status.

2. When the WAN Port is connected to the ADSL/Cable modem, the WAN LED will light up.

3. When the LAN Port is connected to the computer system, the LAN LED will light up.

3.3 Set up the Computer

The default IP address of the Router is 192.168.1.1, the default Subnet Mask is

255.255.255.0. Both of these parameters can be changed as you want. In this guide, we

will use the default values for description.

Connect the local PC to the LAN port on the Router. There are then two ways to configure

the IP address for your PC.

Configure the IP address manually

1. Set up the TCP/IP Protocol for your PC.

2. Configure the network parameters. The IP address is 192.168.1.xxx (“xxx” range from 2

to 254). The Subnet Mask is 255.255.255.0 and Gateway is 192.168.1.1 (Router’s

default IP address).

Obtain an IP address automatically

1. Set up the TCP/IP Protocol in Obtain an IP address automatically mode on your PC.

2. Power off the Router and PC. Then turn on the Router and restart the PC. The built-in

DHCP server will assign IP address for the PC.

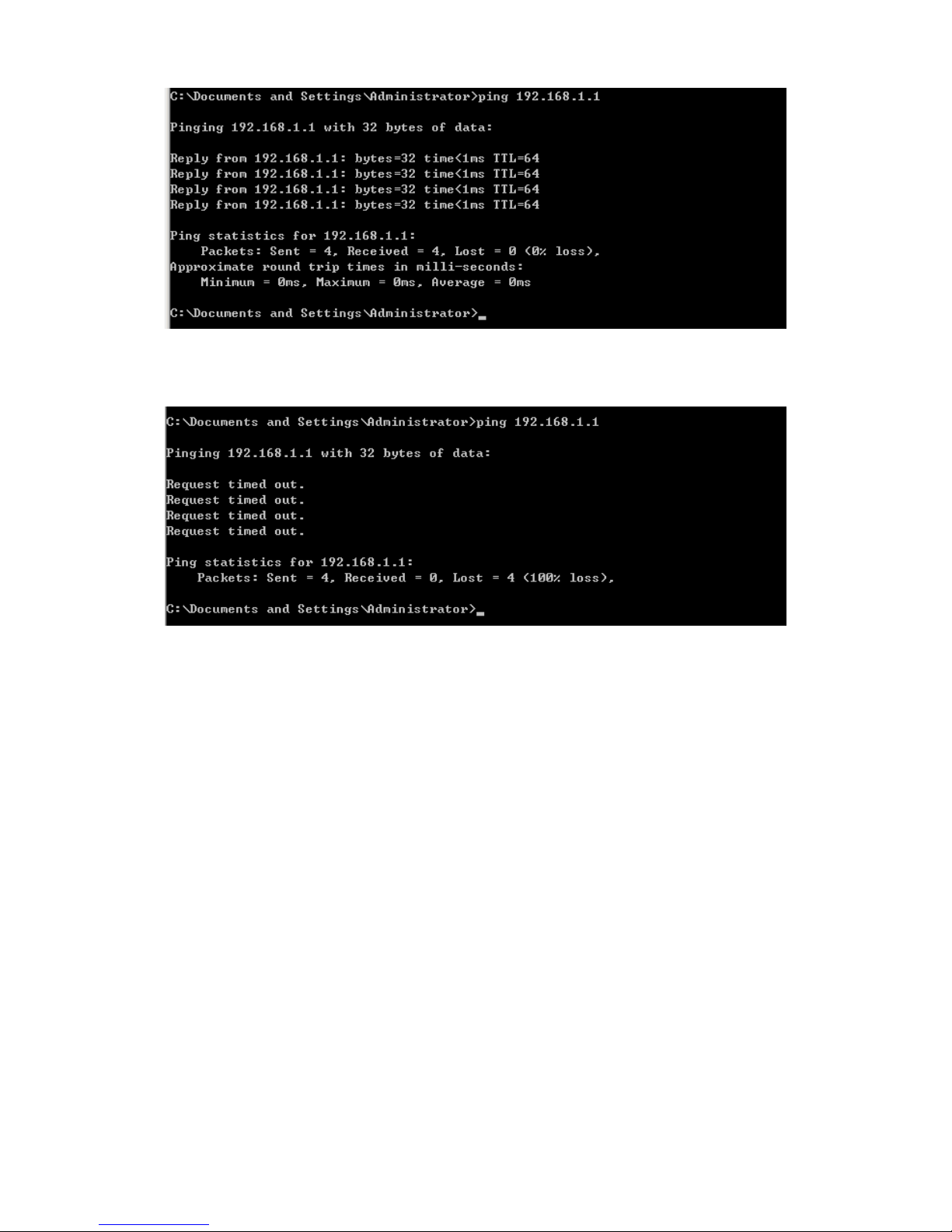

Now, you can run the Ping command in the command prompt to verify the network

connection between your PC and the Router. Open a command prompt, and type in ping

192.168.1.1, then press Enter.

If the result displayed is similar to that shown in above figure, it means that the connection

between your PC and the Router has been established.

If the result displayed is similar to that shown in the above figure, it means that your PC has

not connected to the Routersuccessfully. Please check it following below steps:

1. Is the connection between your PC and the Router correct?

If correct, the LAN port on the Router and LED on your PC’s adapter should be lit.

2. Is the TCP/IP configuration for your PC correct?

Since the Router’s IP address is 192.168.1.1, your PC’s IP address must be within the

range of 192.168.1.2 ~ 192.168.1.254, the Gateway must be 192.168.1.1.

4.CONNECTINGTOINTERNET

This chapter introduces how to configure the basic functions of your router to access

Internet.

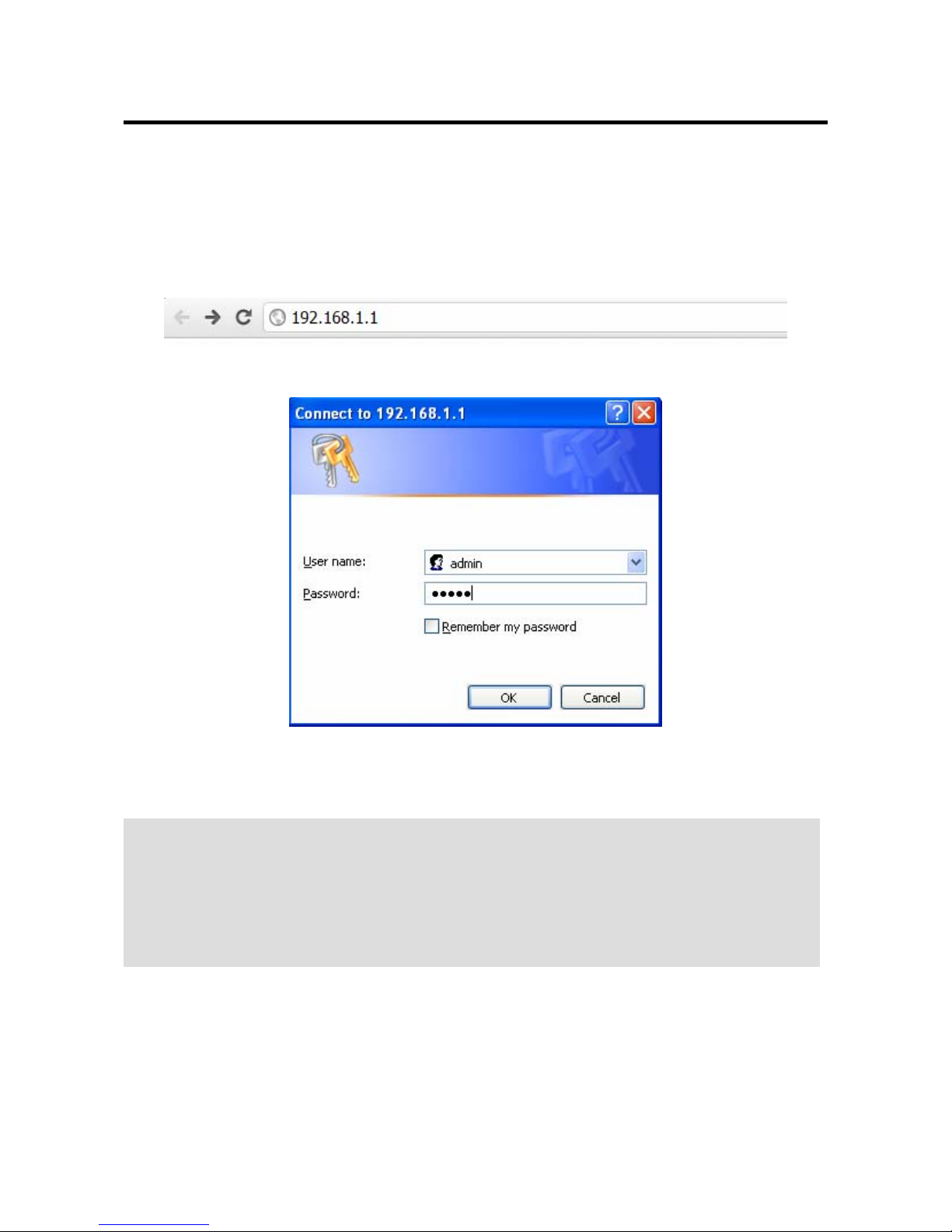

4.1 Accessing Web page

Connect to the Router by typing 192.168.1.1 in the address field of Web Browser. Then

press Enter key.

It will show up the following page that requires you to enter valid User Name and Password:

Enter admin for User Name and Password, both in lower case letters. Then click OK

button or press Enter key.

Now you will get into the web interface of the device. The Main screen will appear.

Note: If the above screen does not prompt, it means that your web-browser has been set to using a

proxy. Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that

appears, cancel the Using Proxy checkbox, and click OK to finish it.

If the User Name and Password are correct, you can configure the router using the web browser.

Please click the Setup Wizard link on the left main menu and the Setup Wizard screen will

appear.

Now you have logged into the web interface of the router.

Inhaltsverzeichnis

Andere Serioux WLAN-Router Handbücher

Serioux

Serioux SRX-WR150 Bedienungsanleitung

Beliebte WLAN-Router Handbücher anderer Marken

Milesight

Milesight UG67 Bedienungsanleitung

Airlogic

Airlogic AirSync Class 1 Betriebsanleitung

Samsung

Samsung WCH730B Bedienungsanleitung

TELEFONICA

TELEFONICA USB Adapter Bedienungsanleitung

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Bedienungsanleitung

Askey

Askey RAC2V1K Bedienungsanleitung

Alloy

Alloy WLF2454AP-S Bedienungsanleitung

TP-Link

TP-Link TL-WR542G Bedienungsanleitung

NETGEAR

NETGEAR WNR2000v4 Bedienungsanleitung

Hama

Hama 53120 Bedienungsanleitung

Intellinet

Intellinet 524582 Bedienungsanleitung

Asus

Asus RT-N10P Bedienungsanleitung

D-Link

D-Link DIR-506L Bedienungsanleitung

Sapido

Sapido GR297n Bedienungsanleitung

Asus

Asus DSL-N55U Bedienungsanleitung

AMTC

AMTC WR7502 Bedienungsanleitung

Compaq

Compaq CP-2W - iPAQ Connection Point Bedienungsanleitung

SMC Networks

SMC Networks WBR14-N2 FICHE Bedienungsanleitung
