Serpent 950 Bedienungsanleitung

Instruction Manual

Overview

Congratulations with your newly acquired Serpent 950.

You have chosen for the highest quality and ultimate

performance combined with ease of use in assembling

and set-up as well as superior technical support.

Serpent has a tradition with instruction manuals, and

with the new Serpent 950 manual we have yet again

gone a step further. The new lay-out has easy to

follow step-by-step assembly instructions and building

tips, richly illustrated with 3-D rendered images and

printed in full color. Following the steps in the manual

will result in a well built high performance racing car

that will soon be able to unleash its full potential on

the racing track.

Instructions

This manual has 9 sections that will lead you through

the assembly process of each of the sections of your

Serpent 950. Following this order will ensure that no

problems occur during assembly.

Each of the steps includes an area where all the

screws, fasteners and ball bearings are shown which

are used in that particular step. When a bag number is

shown at the top of the left box, you will need to open

the bag that is labeled with that number.

Set-up

In certain assembly steps you need to make basic

adjustments. These basic adjustments will give you a

good rough set-up for your Serpent 950 once the car

is completed. Fine-tuning the basic set-up is necessary

however, this is an essential part of the process of

building a high performance mode racing car like the

Serpent 950.

The Set-up Guidelines in section 9 of this manual help

you to adjust your Serpent 950. It is very important to

follow this procedure and to be accurate with your

adjustments, not only now, but every time you are

preparing the car to go practicing or racing. This is

how the best drivers in the world do it, simple,

straight forward and accurate!

Exploded views and parts list

The parts list and the exploded views for the Serpent

950 are separate from the Instruction manual. The

exploded views show all the parts for a particular

assembly step, together with the Serpent part number.

In the parts list at the back of the Reference Guide

you will find, with the part number, the name of the

part for easy reference when re-ordering.

Safety precautions

We have enclosed a document with safety precautions

concerning the assembly and use of this product,

named 'Read this first'. In your own interest, read this

document and follow the precautions.

Description Page

1.0 Shock Assembly 4

2.0 Front Assembly 7

3.0 Rear Assembly 10

4.0 Radio Plate Assembly 14

5.0 Radio Plate Mounting 17

6.0 Gearbox Assembly 20

7.0 Centax Assembly 22

8.0 Final Assembly 25

9.0 Setup Guidelines 29

Introduction

Contents

PERFORMANCETHROUGHEVOLUTION

Length measured after assembling between the two black lines.

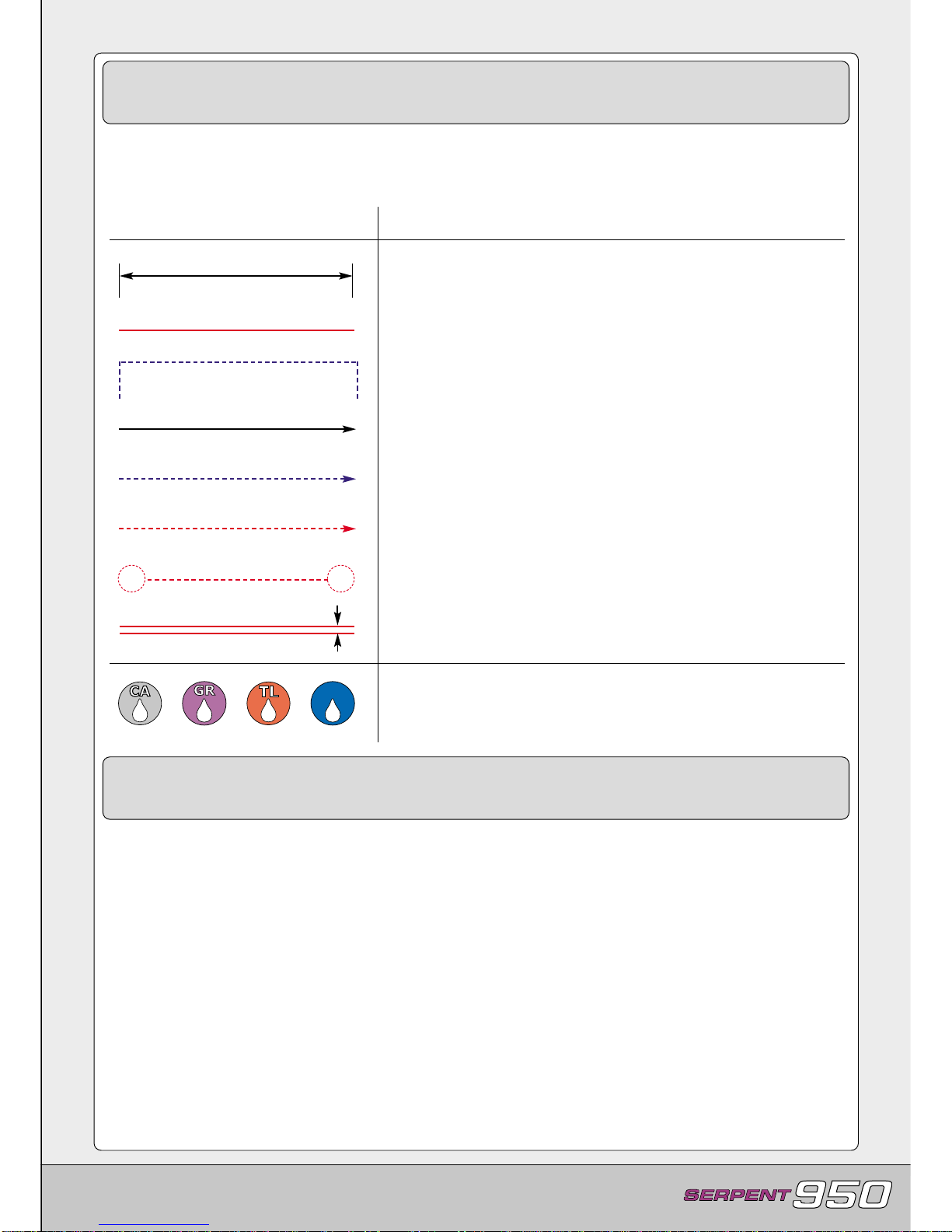

How to use

In every step you will see a selection of lines and numbers. The numbers represent the order in which the

step should be assembled. The lines and symbols are listed below each with their own explanation as to

their use.

Key Description

To display the path of one element into another.

The parts within the lines should be assembled first.

The direction the item should be moved.

Shows where one element should be glued to another.

Shows where one part should be pressed / inserted into another.

Displays where two elements should be connected to each other.

The gap between two elements.

Displays where either CA glue / Graphite Grease / Thread Lock / or

Serpent’s Oneway lube should be applied (items not included).

myTSN.com

The manual that comes with your Serpent 950 is

very complete. However, as development is a

continuous process, up-to-date information about

the Serpent 950 is provided on our web portal:

myTSN.com, the state-of-the-art r/c technology

portal where Serpent racers from all over the world

meet and exchange their ideas and share useful

information about, and experiences with, their

Serpent cars.

All information about the Serpent 950 is grouped

around the product page on myTSN.com. This page

can be accessed directly by going to the Products

section and type Serpent 950 in the product search

box.

Here you will find the very latest information about

your Serpent 950: reports by Team racers and

other experts with the latest tips and tricks, FAQ,

forums, set-ups, image gallery, downloadable files,

and even streaming video about the Serpent 950

on how to further improve the car. The latest

version of the manual including team and racer

tips, as well as part lists and option lists will be

made available as both downloadable PDF-files and

viewable online under i-Manual in the Serpent 950

product page.

So make sure to visit myTSN and the Serpent 950

page. There is a world of up-to-date information

about your 950 waiting for you, and it is just a few

mouse clicks away… If not yet a member of

myTSN, we strongly suggest to sign up as a

member immediately so you can experience and

enjoy an even wider range of services from Serpent

and other myTSN partners.

www.myTSN.com/Serpent950

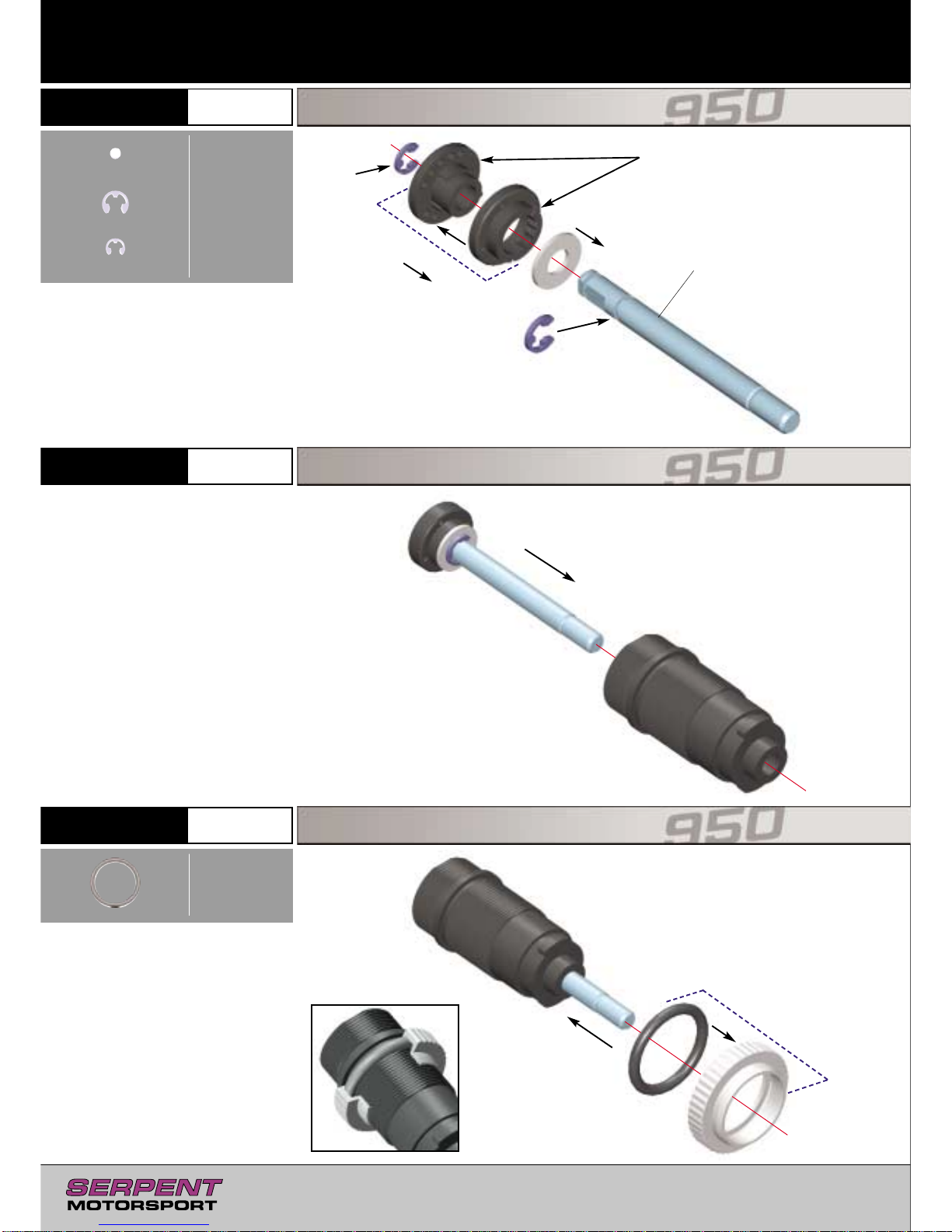

Step 1.1 Bag 01 Shock Assembly

3x6x0.3mm

2.3mm

1.9mm

Step 1.2 Shock Assembly

Step 1.3 Shock Assembly

Y17

12.1x1.6mm

1.0 Shock Assembly

3Long shock shaft goes into

long shock body (rear)

Remove plastic flashing for

smooth movement of pistons

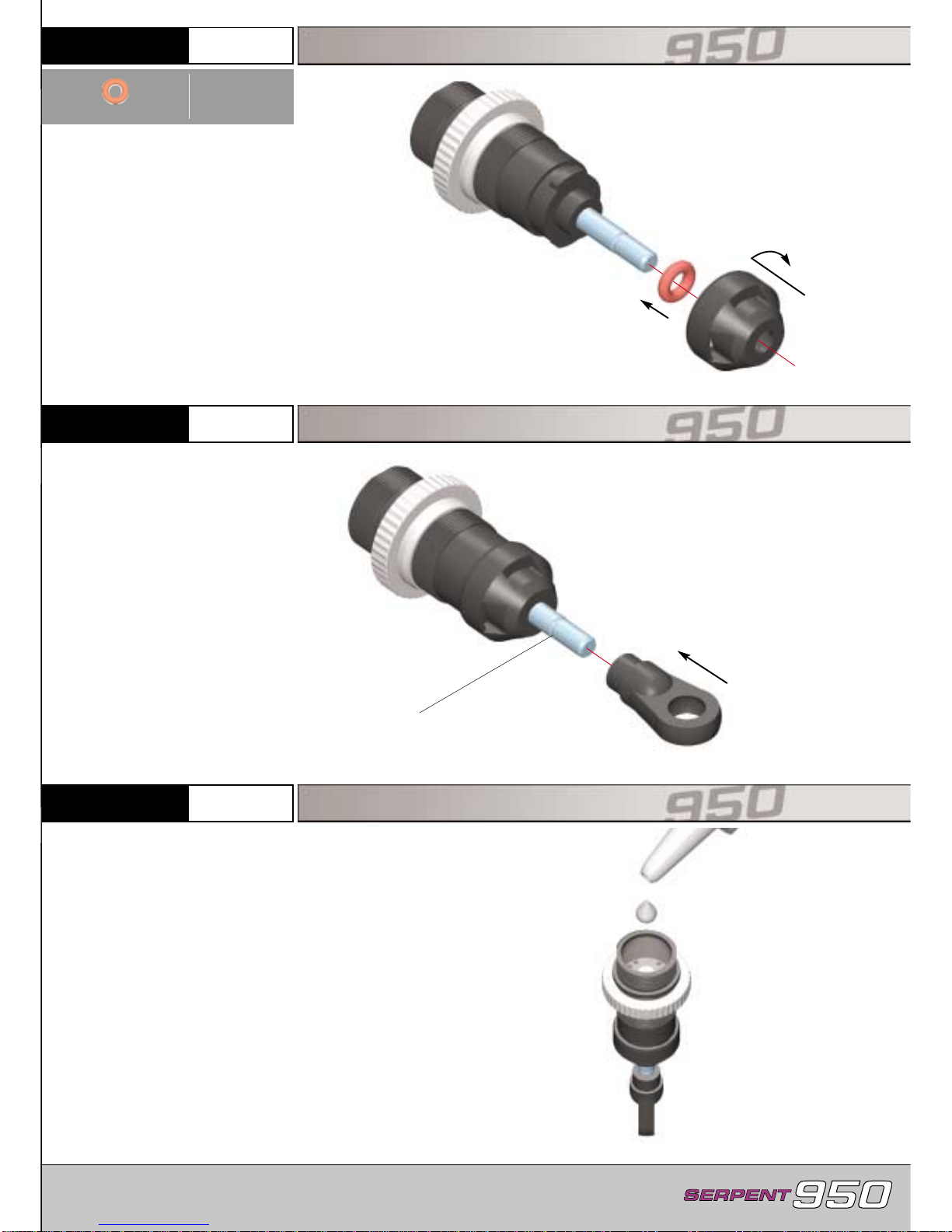

Step 1.4 Shock Assembly

3.1x1.6mm

Step 1.5 Shock Assembly

Step 1.6 Shock Assembly

Fill the cylinder with shock oil, with the piston in the

bottom position.

Bleeding sequence: Let the oil settle and allow the air

to escape. Slowly move the piston up and down until

no more bubbles appear.

Hold the shock rod firm using plyers, grip on the

part where the thread begins, do not damage the

shock rod. Turn the ball-joint on to the shock rod.

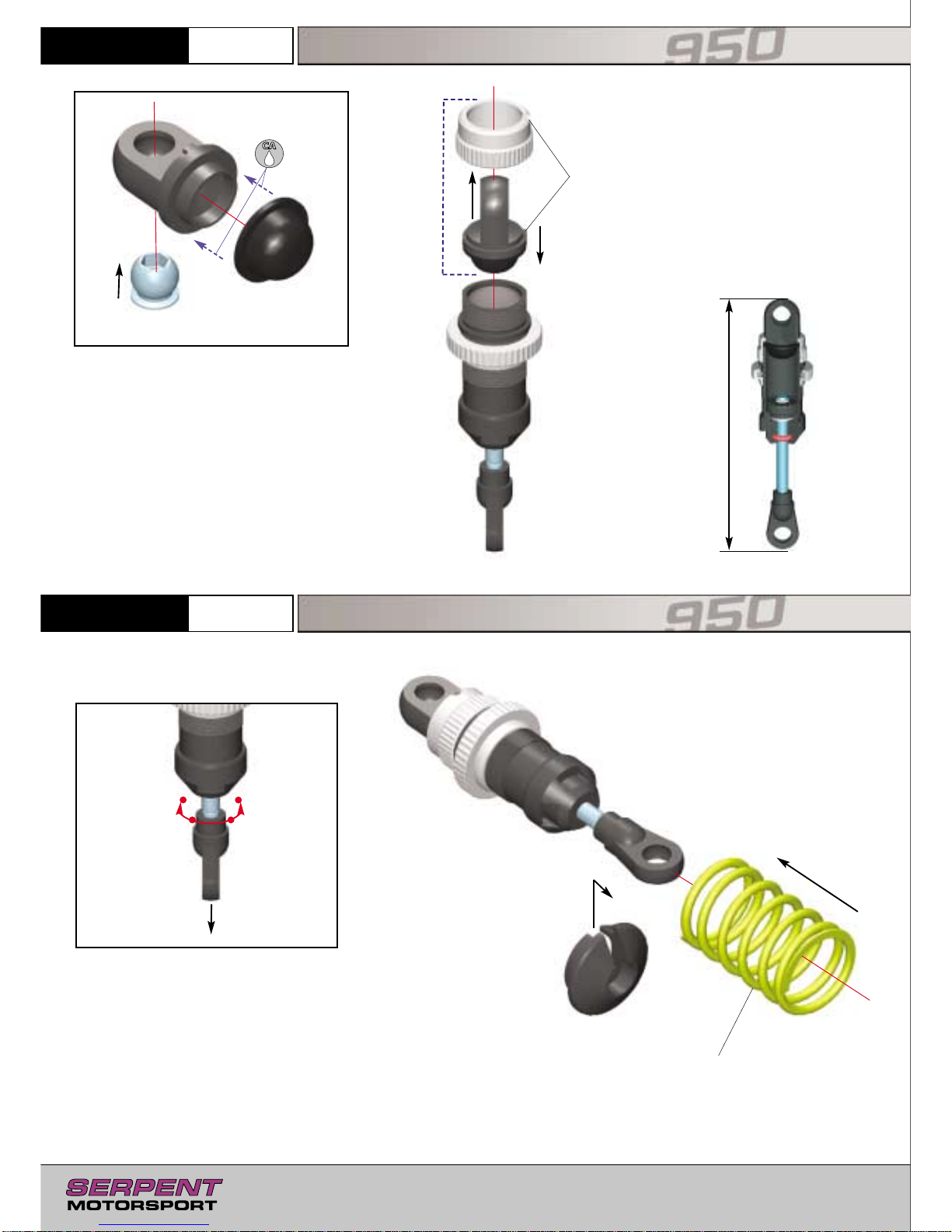

Step 1.7 Shock Assembly

Step 1.8 Shock Assembly

1hardsoft

Dampening adjustment

Pull the piston rod all the way down, turn

slightly to lock the position of the cylinder.

You can then adjust the shocks by rotating

the shaft in clockwise and counter clock-

wise clicks from position 1-4. Short Springs (on short shock)- Front

Long Springs (on long shock)- Rear

Shock length adjustment

Check the length of the shocks,

adjust with the ball-joint.

Shock Front: 67,5mm

Shock Rear: 76,5mm

In full extended, locked position.

Line up

notch

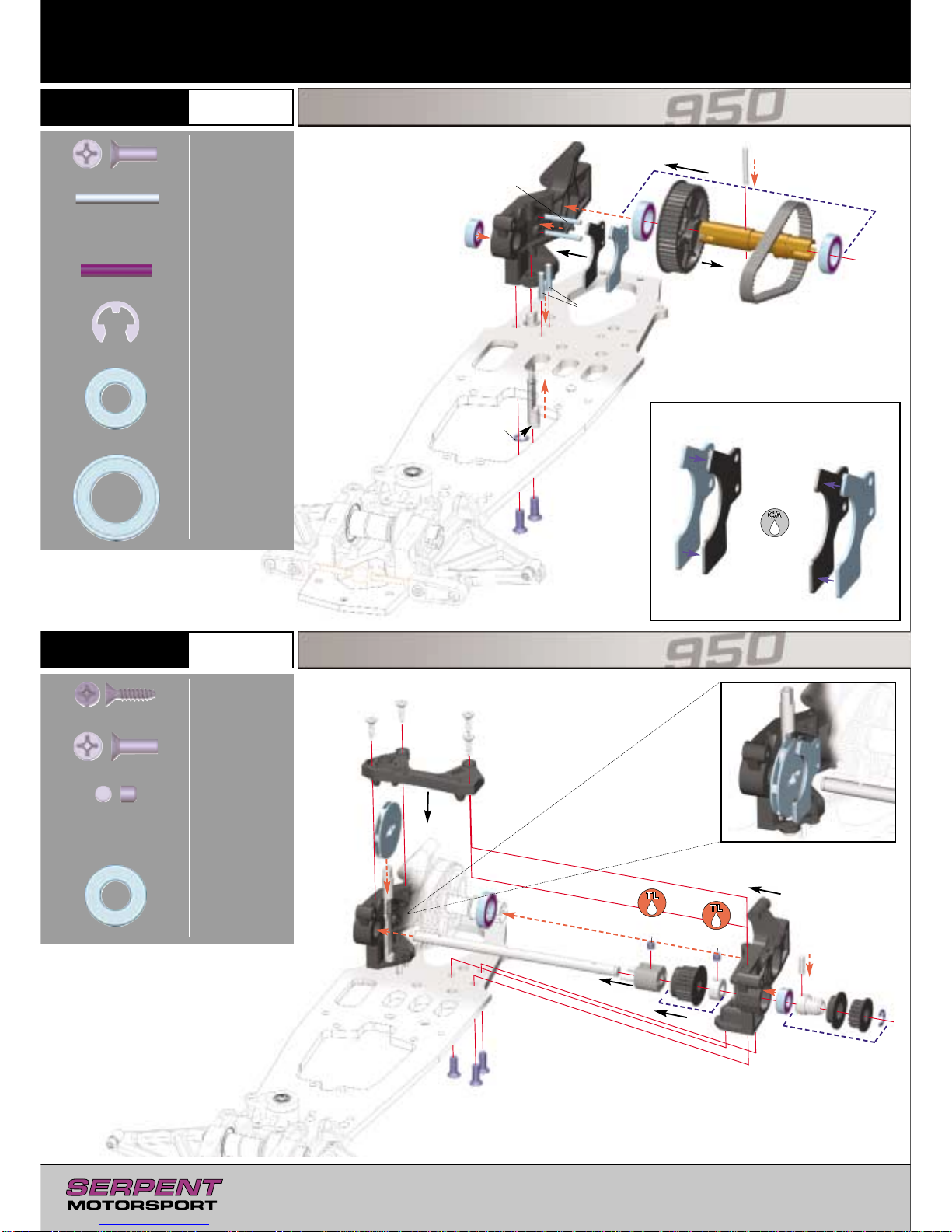

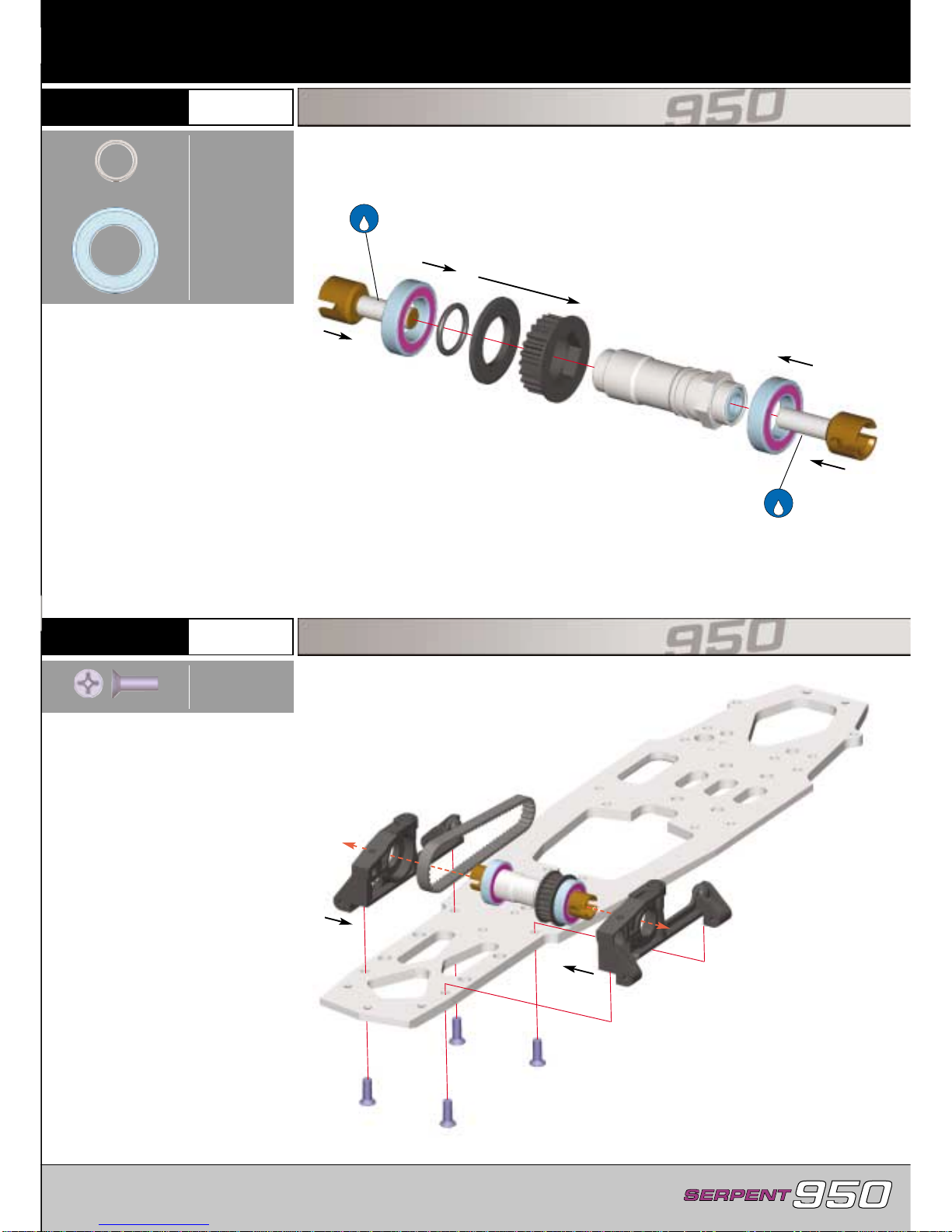

Step 2.1 Bag 02,U Front Assembly

Y12

10.3x1.8mm

Step 2.2 Bag 03,G20 Front Assembly

G20

M4x12mm

2.0 Front Assembly

U14

12x21mm

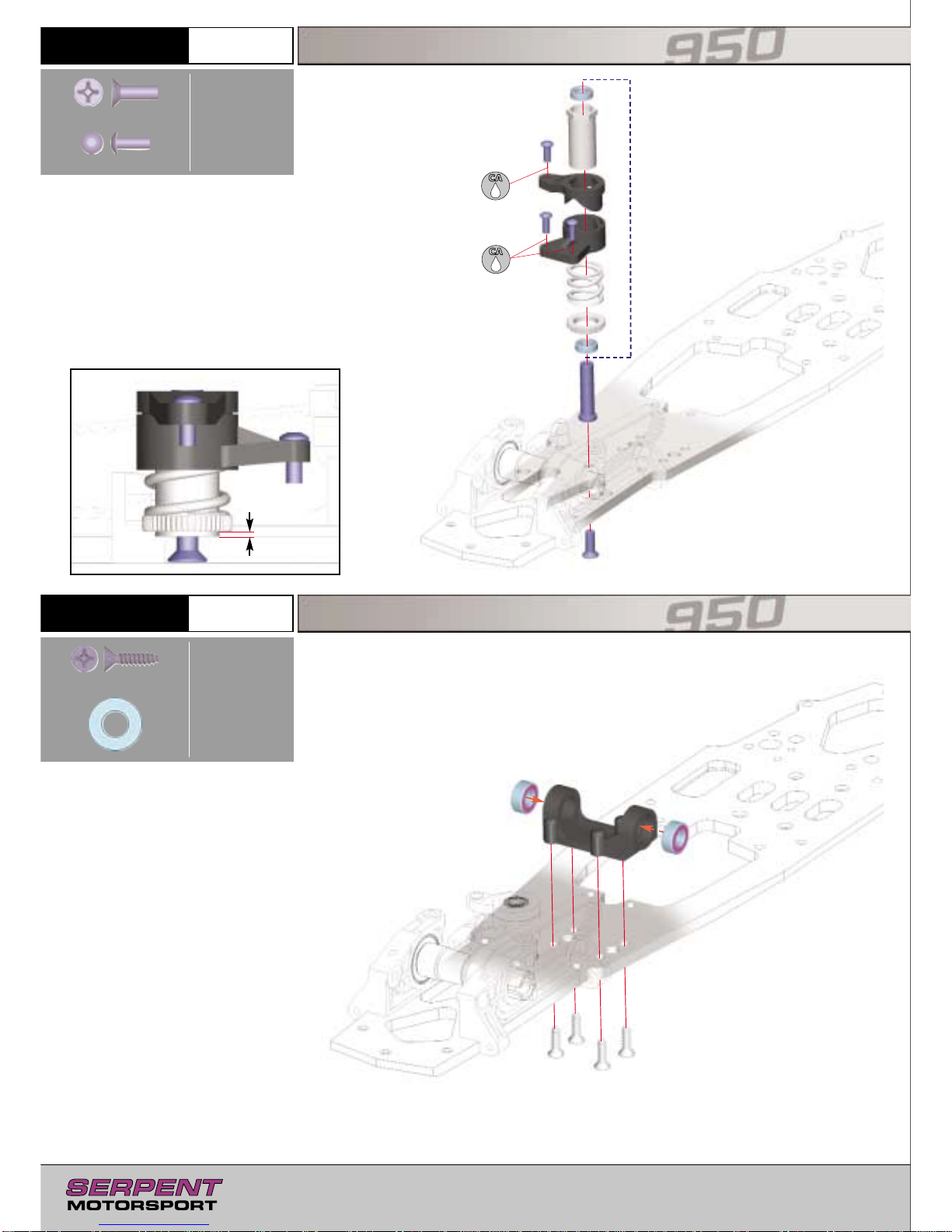

Step 2.3 Bag 04 Front Assembly

G20

M4x12mm

E11

M3x8mm

Step 2.4 Bag B13,05 Front Assembly

B13

3.5x13mm

6x13mm

1mm

Step 2.5 Front Assembly

J16

4x4mm

5mm

7mm

Step 2.6 Bag 06 Front Assembly

H13

3x12mm

H19

4x10mm

J16

4x4mm

Step 2.7 Bag 07 Front Assembly

E13

3x12mm

H17

4x6mm

Step 3.1 Bag 08,09 Rear Assembly

G20

M4x12mm

P10

2.5x22mm

Q14

3x16mm

5mm

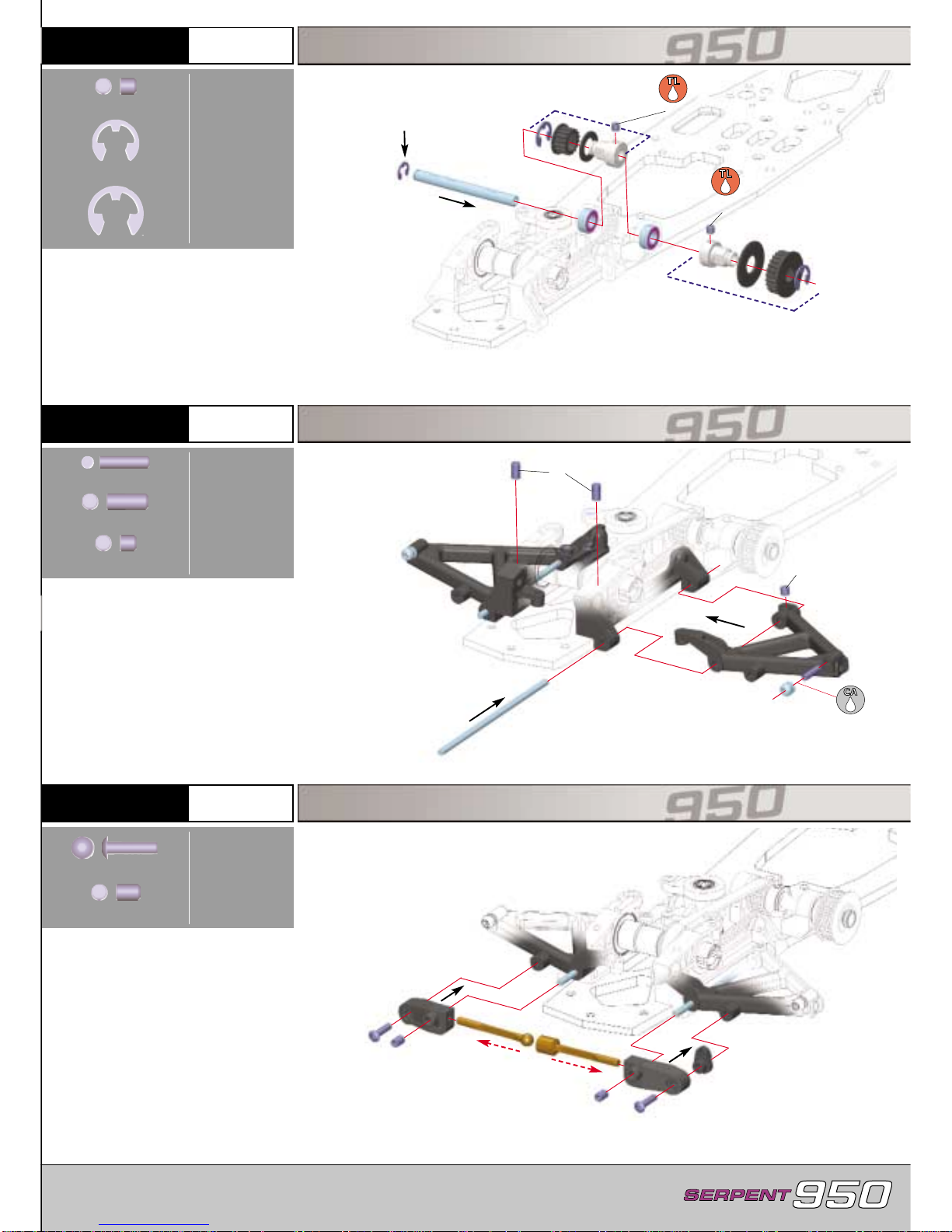

Step 3.2 Bag 10,11 Rear Assembly

B13

3.5x13mm

G20

M4x12mm

J16

4x4mm

P12

3x12mm

3.0 Rear Assembly

Roughen the metal plates with

sandpaper before gluing

6x15mm

U14

12x21mm

6x15mm

Q14

P9 P10

2.5x20mm
