Serpent 9*50r Bedienungsanleitung

Instruction Manual

Congratulations on your newly-acquired Serpent

950R. You have chosen the highest quality, ulti-

mate-performance racecar that is easy to use,

assemble, and set up. As part of the worldwide

team of Serpent drivers, you will also get superior

technical support. Serpent has a tradition of excel-

lence with instruction manuals, and with the new

Serpent 950R manual we have yet again gone a

step further. The new layout has easy to follow

step-by-step assembly instructions and building

tips, richly illustrated with 3D rendered full-color

images. Following the instructions will result in a

well-built, high-performance racecar that will soon

be able to unleash its full potential at the racetrack.

Instructions

This instruction manual has nine sections that will

lead you through the assembly process of your

Serpent 950R. Follow the assembly steps in the

order presented to ensure that no problems occur

during assembly. Each step indicates all the fasten-

ers and small parts used. Bag numbers are also

shown to identify the kit bag that contains the

appropriate parts for the step.

Set-up

In certain assembly steps you need to make basic

adjustments, which will give you a good initial set-

up for your Serpent 950R. Note that fine-tuning the

initial set-up is an essential part of building a high-

performance racecar like your Serpent 950R.

The Set-up Guidelines in Section 9 of this instruc-

tion manual will help you to adjust your Serpent

950R. It is very important to follow these proce-

dures, and be accurate with your adjustments not

only now, but every time you prepare the car for

practicing or racing. This is how the best drivers in

the world do it - simple, straight forward, and accu-

rate!

Exploded views and parts list

The exploded views and parts lists for the Serpent

950R are contained in a separate Reference Guide.

The exploded views show all the parts of a particu-

lar assembly step, together with the Serpent part

number. The parts lists at the end of the Reference

Guide indicate the part number and name of each

part for easy reference when re-ordering.

Safety precautions

Included with your Serpent 950R kit is a document

entitled “Read This First” that covers safety precau-

tions for the assembly and use of this product. We

strongly recommend that you thoroughly read and

understand that document, and follow all the pre-

cautions.

Section Page

1.0 Shock Assembly 4

2.0 Front Assembly 7

3.0 Rear Assembly 12

4.0 Radio Plate Assembly 16

5.0 Radio Plate Mounting 18

6.0 Gearbox Assembly 21

7.0 Centax Assembly 23

8.0 Final Assembly 26

9.0 Set-up Guidelines 29

Introduction

Contents

PERFORMANCE THROUGH EVOLUTION

Length after assembly.

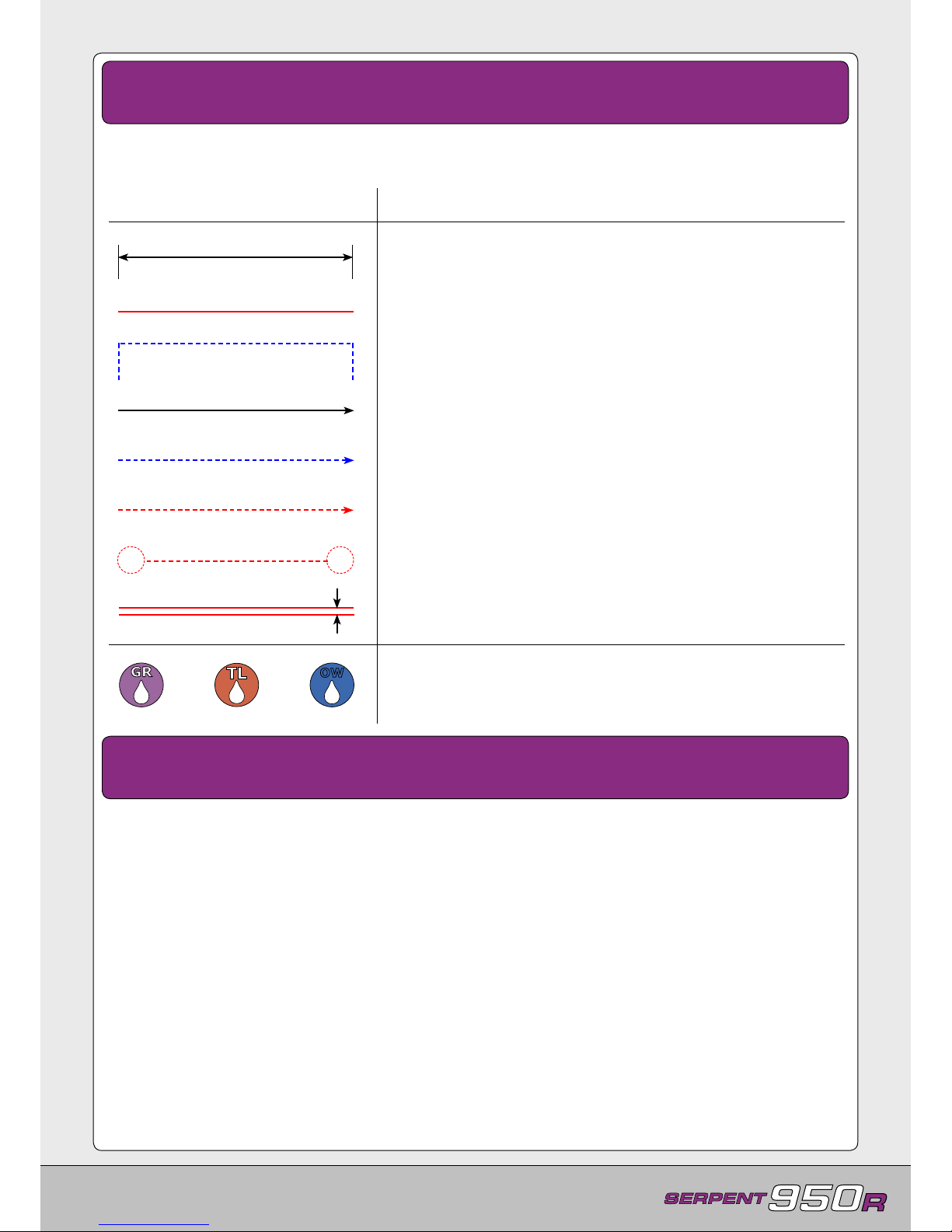

Using the manual

Each step contains a variety of numbers, lines, and symbols. The numbers represent the order in which

the parts should be assembled. The lines and symbols are described below.

Line/Symbol Description

Assembly path of one item into another.

Group of items (within lines) should be assembled first.

Direction the item should be moved.

Glue one item to another.

Press/Insert one item into another.

Connect one item to another.

Gap between two items.

Apply graphite grease (GR), threadlock (TL) or Serpent’s One-way Lube

(OW). (items not included).

myTSN.com

The printed instruction manual included with your

Serpent 950R kit is very complete, though due to

continuous product development, more up-to-date

information is provided at our myTSN.com web

portal. This state-of-the-art R/C technology portal

is where Serpent racers from all over the world

meet and exchange their ideas, and share useful

information and experiences about their Serpent

cars.

All information about the Serpent 950R is acces-

sible from the Serpent 950R product page on

myTSN.com. You can access this page by going to

the Products section, then search for the ‘Serpent

950R’ product name.

From the Serpent 950R product page you will find

the very latest information about your Serpent

950R: reports by team drivers and other experts,

tips and tricks, FAQ, forums, setups, image gal-

lery, downloadable files, and even streaming video

of the Serpent 950R on how to further improve the

car. The latest version of the instruction manual

(including team and racer tips, and part lists and

option lists) will be made available as download-

able PDF-files and online viewable pages under ‘i-

Manual’.

So be sure to visit myTSN.com and the Serpent

950R page. There is a world of up-to-date informa-

tion about your Serpent 950R waiting for you, and

it is just a few mouse clicks away! If you are not

yet a member of myTSN, we strongly recommend

that you sign up immediately so you can experi-

ence and enjoy an even wider range of services

from Serpent and other myTSN partners.

www.myTSN.com/Serpent950R

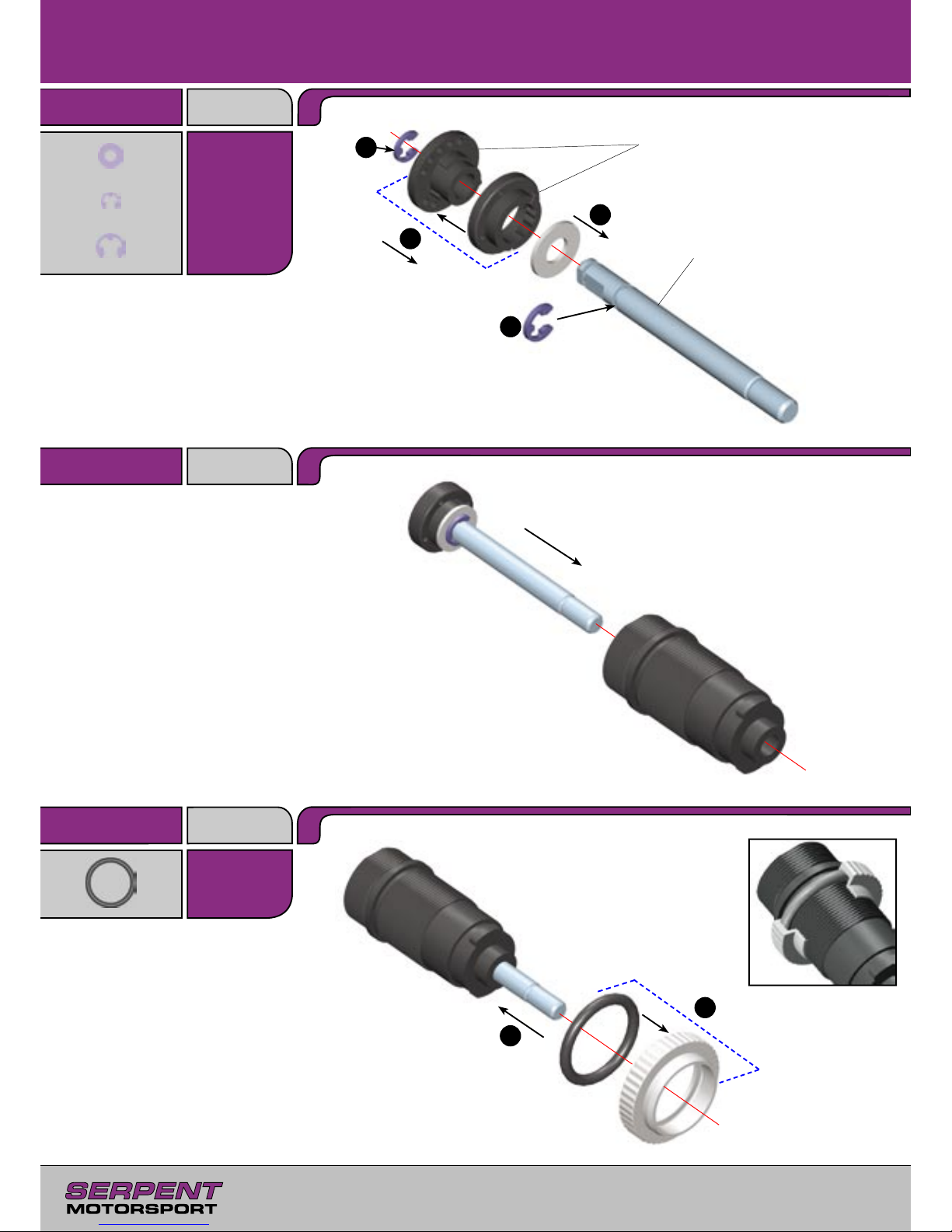

Step 1.1 Bag 01

1.9mm

3x6x0.3mm

2.3mm

Y17

12.1x1.6mm

1.0 Shock Assembly

Front shocks: short shock shaft and body

Rear shocks: long shock shaft and body

Remove plastic flashing for smooth

movement of pistons. Tab in upper piston

fits in notches in lower piston

Y17

Step 1.2

Step 1.3

Lubricate shock shaft with shock oil

before inserting in shock body.

3x1.5mm

Fill the shock body with shock oil, with the piston at

the bottom.

Bleeding

Let the oil settle and allow the air to escape. Slowly

move the piston up and down to release any trapped

air bubbles. Repeat as necessary until no bubbles

appear.

Grip shock rod at top of exposed threads with side

cutting pliers. Be sure not to damage the shock rod.

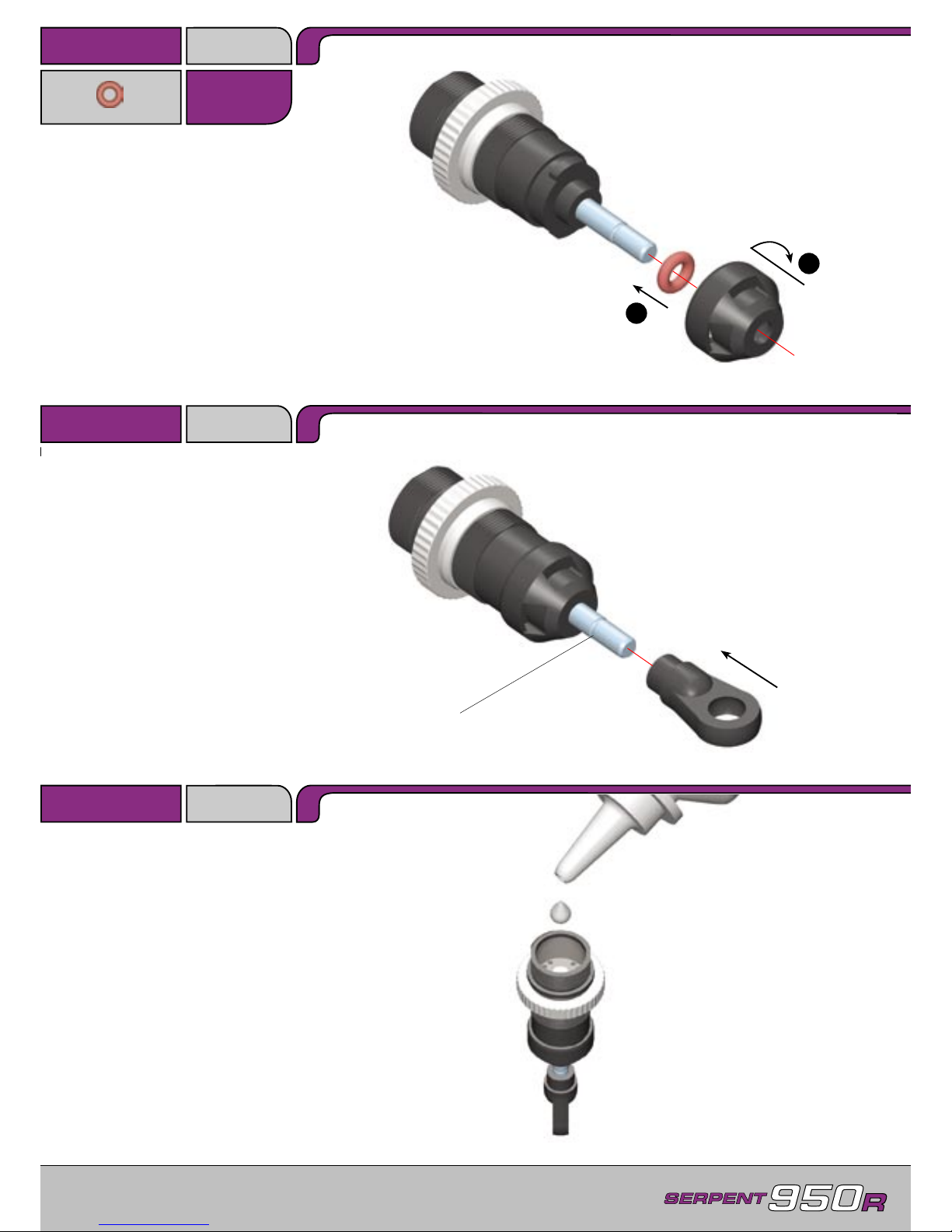

Step 1.4

Step 1.5

Step 1.6

Lubricate O-ring with shock oil before

sliding onto shock shaft.

Hint: Pre-thread ball-joint with M3

screw for easy assembly

hardest

softest

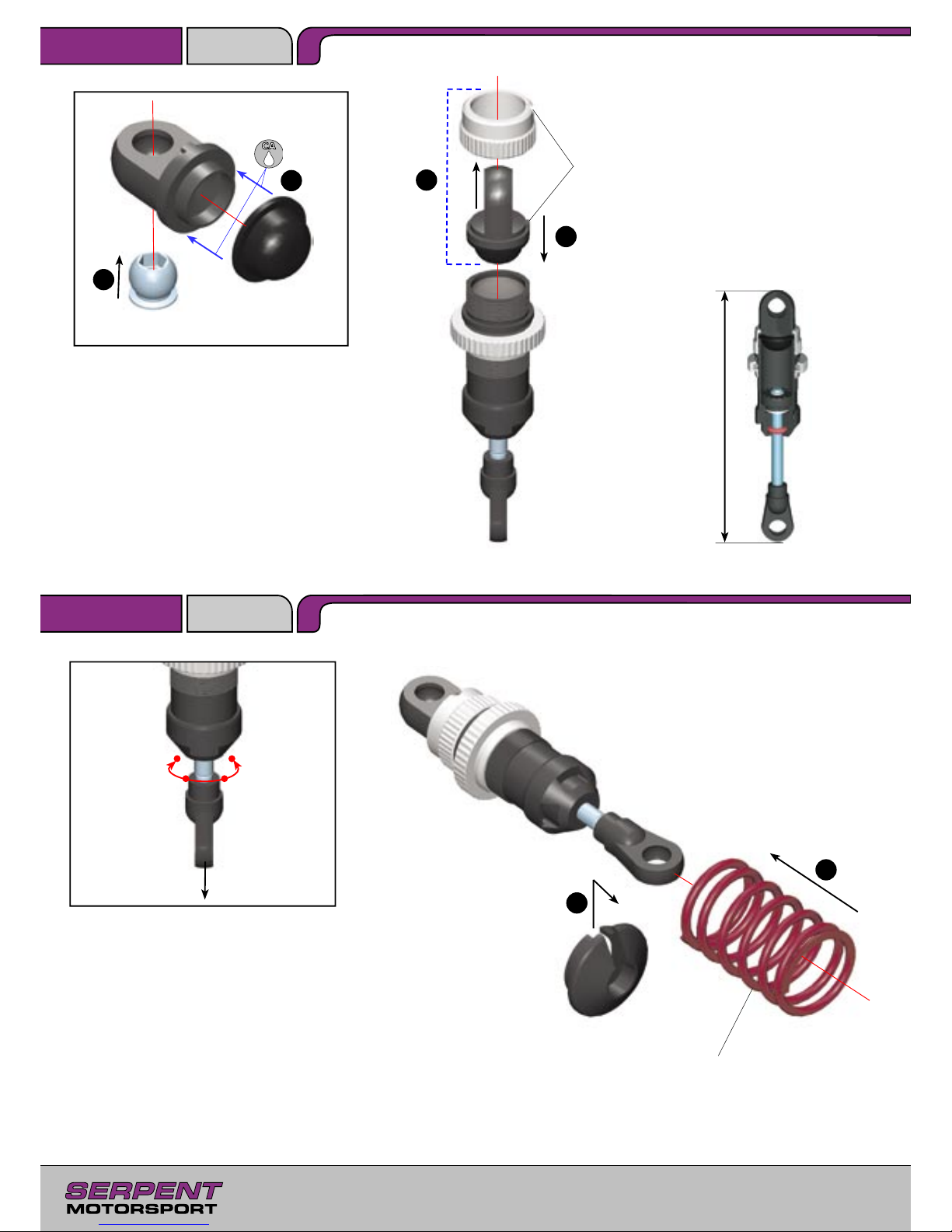

Damping adjustment

Pull the shock shaft all the way out, turn

slightly to lock it in the shock body.

Adjust the shock damping by rotating the

shock shaft CW or CCW to positions 1-4.

Each setting can be felt by a slight “click”.

IMPORTANT! Each pair of front and rear

shocks must have the same damping set-

ting.

Front Shocks: short shocks and springs

Rear Shocks: long shocks and springs

Shock length adjustment

Check the length of the shocks in the

extended, fully locked position.

Front shocks: 67.5mm

Rear shocks: 76.5mm

Adjust shock length with the ball-

joint.

IMPORTANT! Each pair of front and

rear shocks must be the same length.

Line up

notch

Step 1.7

Step 1.8

2 Holes

3 Holes

4 Holes

5 Holes

Y13

10.3x1.8mm

G19

M4x10mm

2.0 Front Assembly

U13

12x18mm

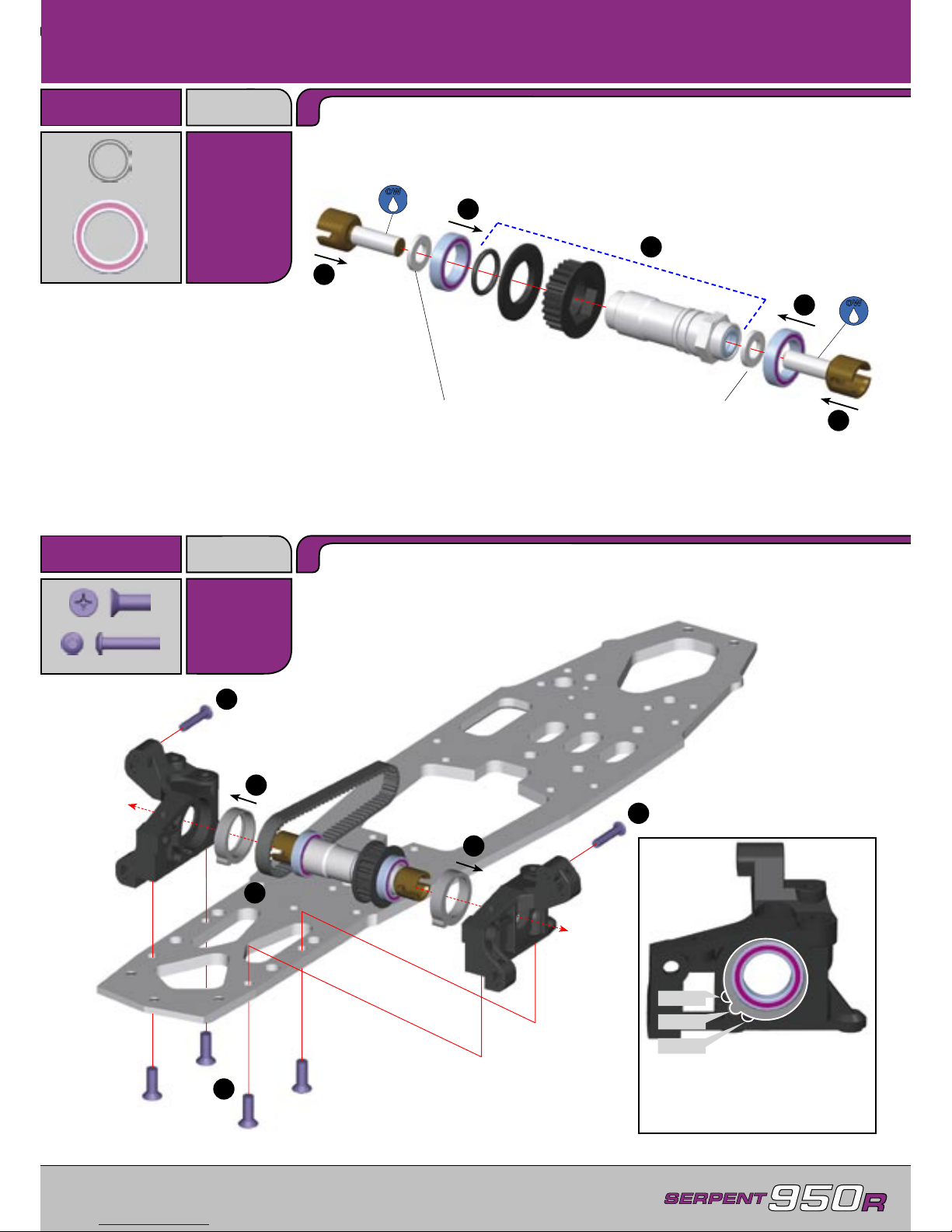

Step 2.1

Step 2.2

Bag 02, UI,

Tools D938

Bag 03

G19

Looser

Default

Tighter

Change the position of BOTH

eccentric hubs to adjust front belt

tension. Both hubs should have

the same position.

E28

3x14mm

Depending on the set front track width ensure

that there is no excessive play in the drive-

shafts by placing these spacers.

E28

U13 Y13

U13

G19

M4x10mm

E11

M3x8mm

B13

3.5x13mm

6x13mm

1.2mm

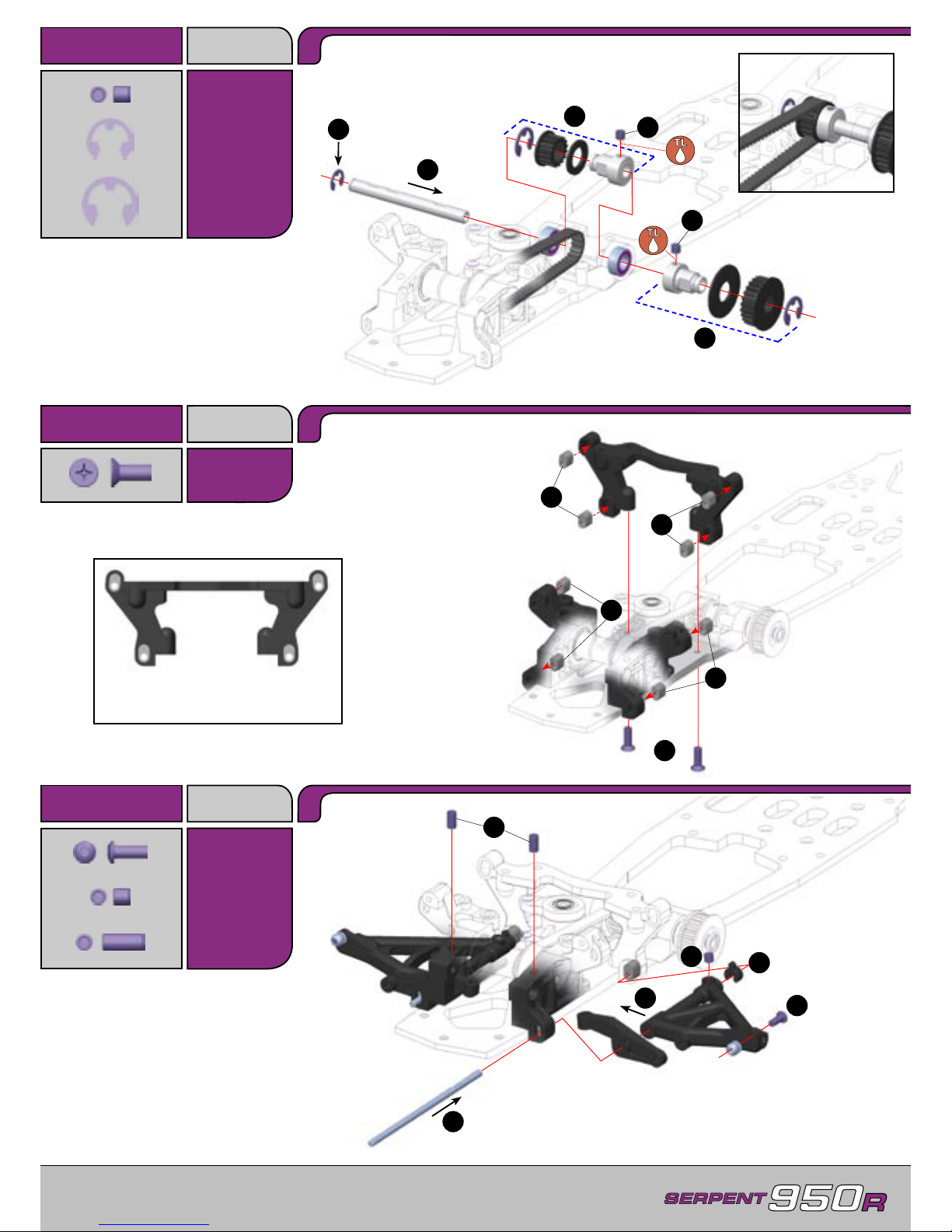

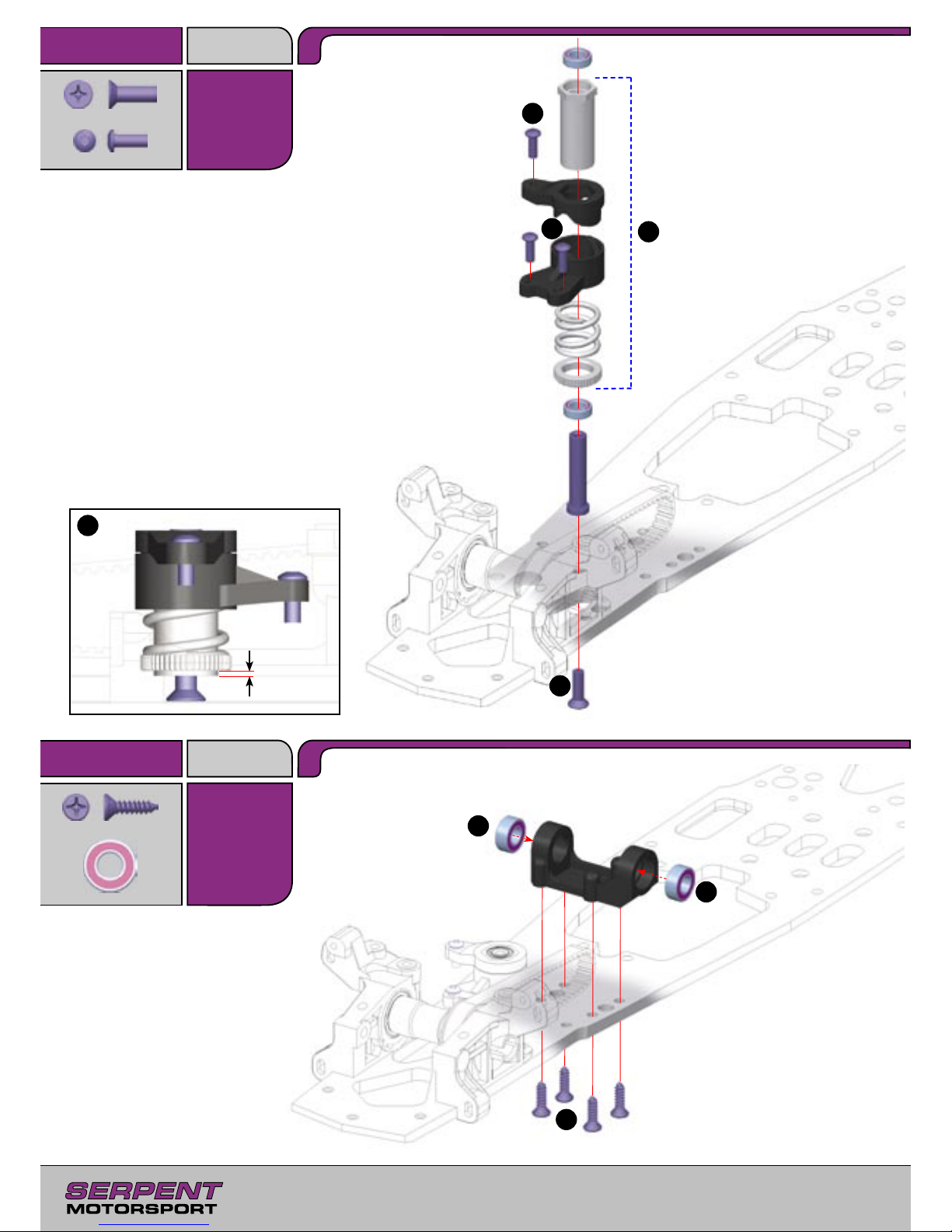

Step 2.3

Step 2.4

Bag 04

E11

G19

B13

Bag 05

H16

4x4mm

5mm

7mm

G19

M4x10mm

E10

3x6mm

H16

4x4mm

Step 2.5

Step 2.6

Step 2.7

Bag 06

Bag 07

H16

G19

H19

E10

H16

H19

4x10mm

Firmly press all eight inserts

into both bulkheads.

Assemble both front lower arms using the indicated steps.

Note the orientation of the inserts,

ensure that the front and back are the

same top and bottom.

4mm

E15

3x20mm

H17

4x6mm

E10

3x6mm

P10

2.5x22mm

U14

12x21

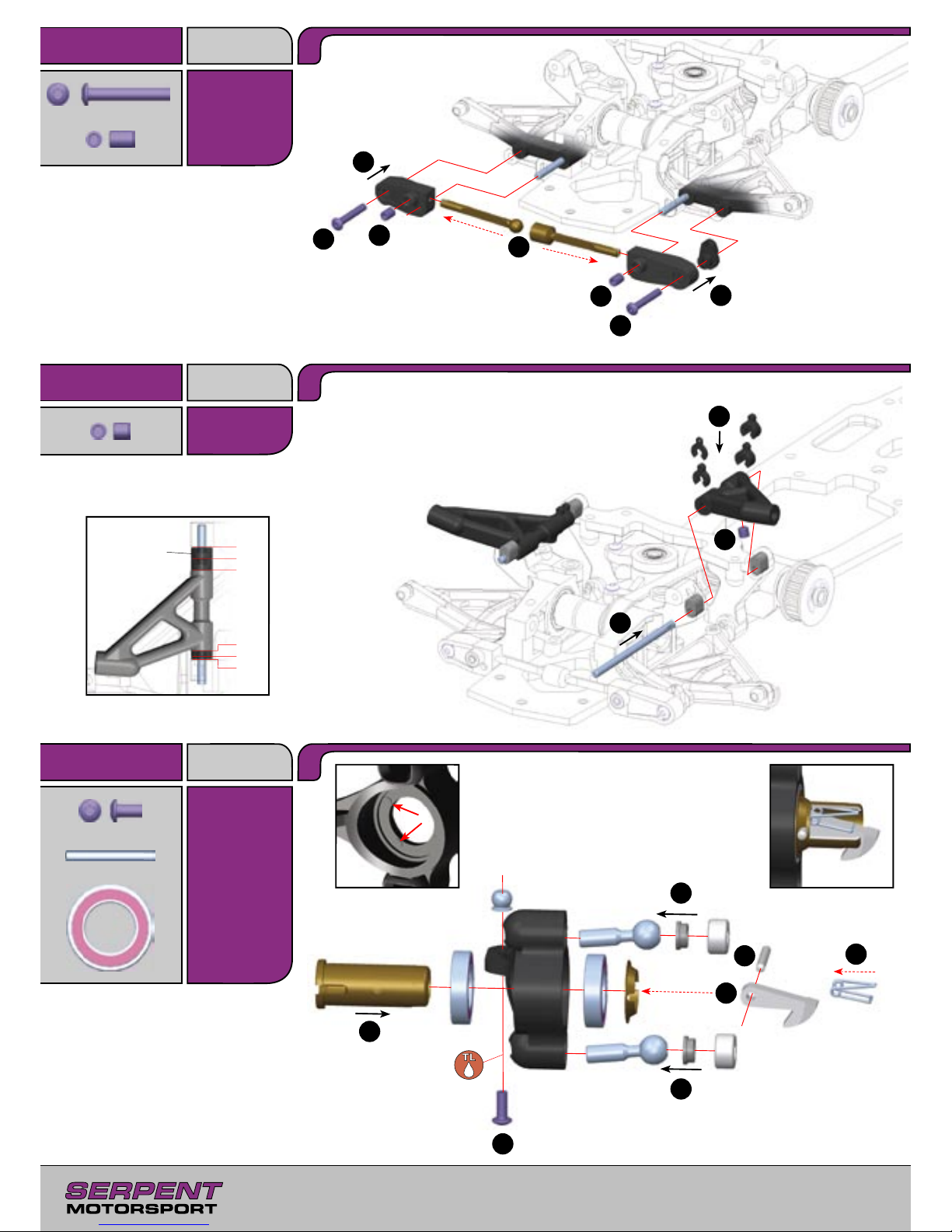

Step 2.8

Step 2.9

Step 2.10

Bag 08

Bag 09,10

E15

H17

H16

P10

U14 U14

E10

H16

4x4mm Assemble both front upper arms using the indicated steps.

Press spring into end

of front axle until it

snaps into place.

Assemble both steering blocks using the indicated steps.

4mm

2mm

1mm

Caster Spacer placement

The left steering block

can be distinguished

by 4 dots.

*Used to set

wheelbase
