SEVIC SV071101 Bedienungsanleitung

USER MANUAL

CLEAR

VOLUME

ZOOM

PROGRAM

MUTE

MO/ST

LOUD

ALL IN 1 IN DASH

MONITOR 6.5”

SV071101 (Pal BG + SecamL)

SV071101-BG (Pal BG)

SV071101-I (Pal I)

Features

Compatible with PAL DVD (Video CD)

This player can play discs recorded in

either PAL or NTSC format.

A single LSI chip now integrates all

major DVD playback circuit

functions including MPEG2 decoder,

video D/A converter, and audio

decoders.

L/R stereo analog audio outputs for

connection to existing head unit aux

inputs. Video output is composite

video.

Supplied remote handles

multi-function software

(multi-language audio-track/subtitle,

multi-angle, multi-story, etc.), plus

all basic functions.

Use This Product Safely

This set has been designed and

manufactured to assure personal safety.

Improper use can result in electric

shock or fire hazard. The safeguards

incorporated in this unit protect you if

you observe the following procedures

for installation, use and servicing. This

unit doesn’t contain any parts that can

be repaired by the user.

When Driving

Keep the volume level low enough to be

aware of road and traffic conditions.

When Car Washing

Do not expose the product to water or

excessive moisture. This could cause

electrical shorts, fire or other damage.

When Parked

Parking in direct sunlight can produce

very high temperatures inside your

vehicle. Give the interior a chance to

cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with

a 12 volt DC, negative ground battery

system the regular system in a North

American car).

Protect the Disc Mechanism

Avoid inserting any foreign objects into

the slot of this player.

Failure to observe this may cause

malfunction due to the precise

mechanism of this unit.

Use Authorized Service Centers

Do not attempt to disassemble or adjust

this precision product. Please refer to

the Warranty Terms and Conditions for

more details on after sales servic.

For Installation

The unit should be installed in a

horizontal position with the front end up

at a convenient angle, but not more

than 300.

Protect the Monitor Mechanism

The monitor is operated

automatically. Do not draw the

monitor out or turn it upward or

downward manually. Otherwise, the

mechanism construction may be

harmed to some degree.

When you operate the monitor with

the remote handset, do not touch

the monitor by your hands. It may

harm your fingers.

CONTENTS

Safety Information ...............................................................................4

Disc Notes ............................................................................................5

Installation.............................................................................................7

The Player ..........................................................................................10

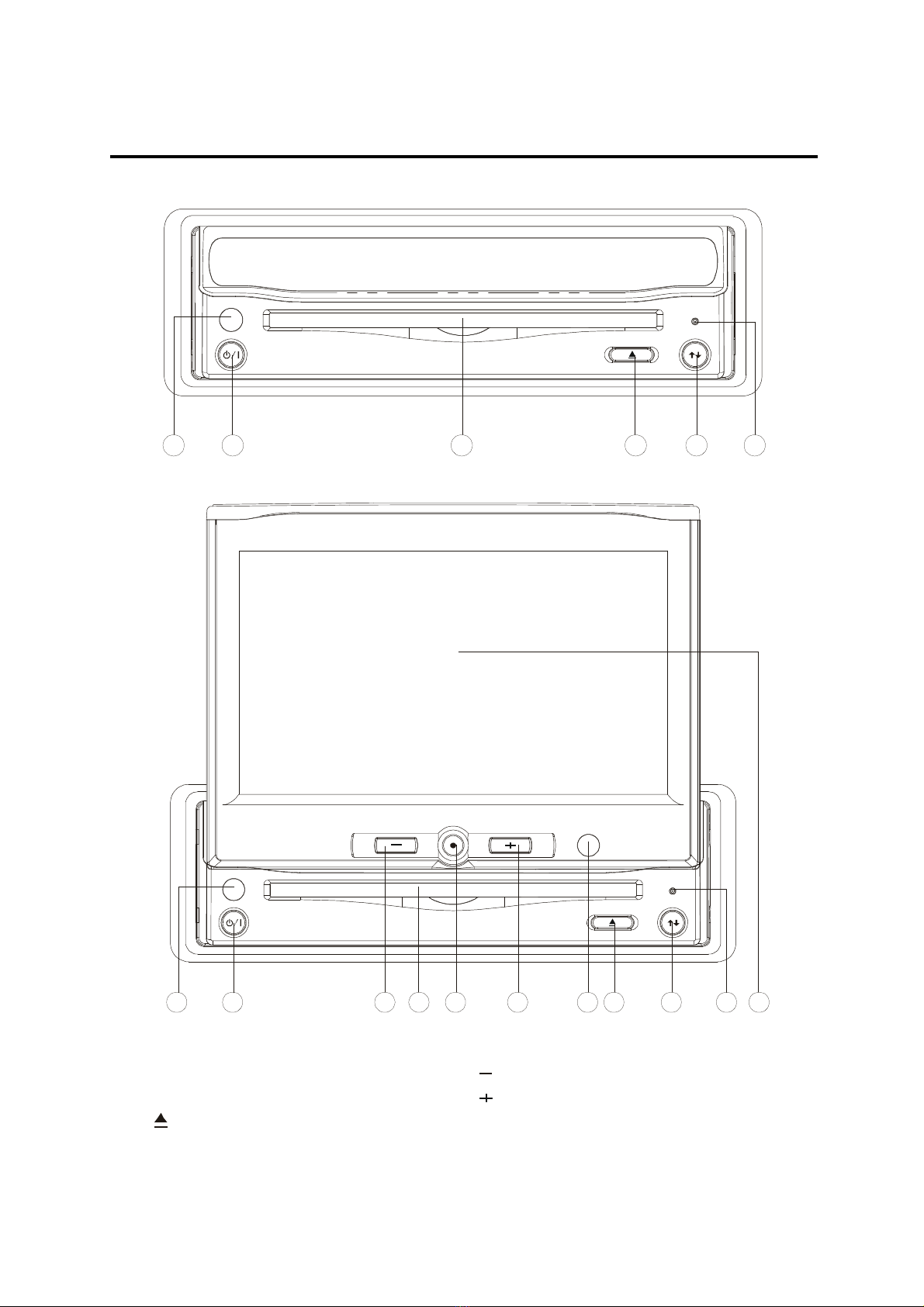

Front View ..........................................................................................................10

Back View...........................................................................................................11

The Radio Box ...................................................................................12

Electrical Connection .........................................................................13

Remote Control ...................................................................................16

Location and Function of Keys...........................................................................16

Preparing the Remote Control............................................................................19

Loading/Ejecting a disc......................................................................20

Loading a disc....................................................................................................20

Ejecting a disc....................................................................................................20

Operation.............................................................................................21

Basic Operation..................................................................................................21

Disc ( DVD, VCD, CD, MP3) Operation..............................................................23

Radio Operation .................................................................................................27

TV Operation......................................................................................................28

AV Operation ......................................................................................................30

RGB Operation...................................................................................................31

Setup....................................................................................................32

Initial Setup.........................................................................................................32

General Setup....................................................................................................32

Speaker Setup....................................................................................................34

Audio Setup........................................................................................................34

Preferences Setup..............................................................................................35

Defaults Table.....................................................................................................37

Trouble Shooting.................................................................................38

Specifications......................................................................................40

SAFETY INFORMATION

CAUTION:

MOBILE DVD PLAYER IS A CLASS I

LASER PRODUCT. HOWEVER THIS

MOBILE DVD PLAYER USES A

VISIBLE/INVISIBLE LASER BEAM

WHICH COULD CAUSE HAZARDOUS

RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE THE MOBILE

DVD PLAYER CORRECTLYAS

INSTRUCTED.

USE OF CONTROLS OR

ADJUSTMENTS OR PERFORMANCE

OF PROCEDURES OTHER THAN

THOSE SPECIFIED HEREIN MAY

RESULT IN HAZARDOUS RADIATION

EXPOSURE.

DO NOT OPEN COVERS AND - DO

NOT REPAIR YOURSELF. REFER

SERVICING TO QUALIFIED

PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT

EXPOSE THIS EQUIPMENT TO

RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE

RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR

CONTINUOUS OPERATION.

This product incorporates copyright

protection technology that is protected by

method claims of certain U.S. patents

and other intellectual property rights

owned by Macrovision Corporation and

other rights owners. Use of this copyright

protection technology must be

authorized by Macrovision Corporation,

and is intended for home and other

limited viewing uses only unless

otherwise authorized by Macrovision

Corporation. Reverse engineering or

disassembly is prohibited.

Region Management Information

Region Management Information: This

Mobile DVD Player is designed and

manufactured to respond to the Region

Management Information that is

recorded on a DVD disc. If the Region

number described on the DVD disc does

not correspond to the Region number of

this Mobile DVD Player, this Mobile DVD

Player cannot play this disc.

DISC NOTES

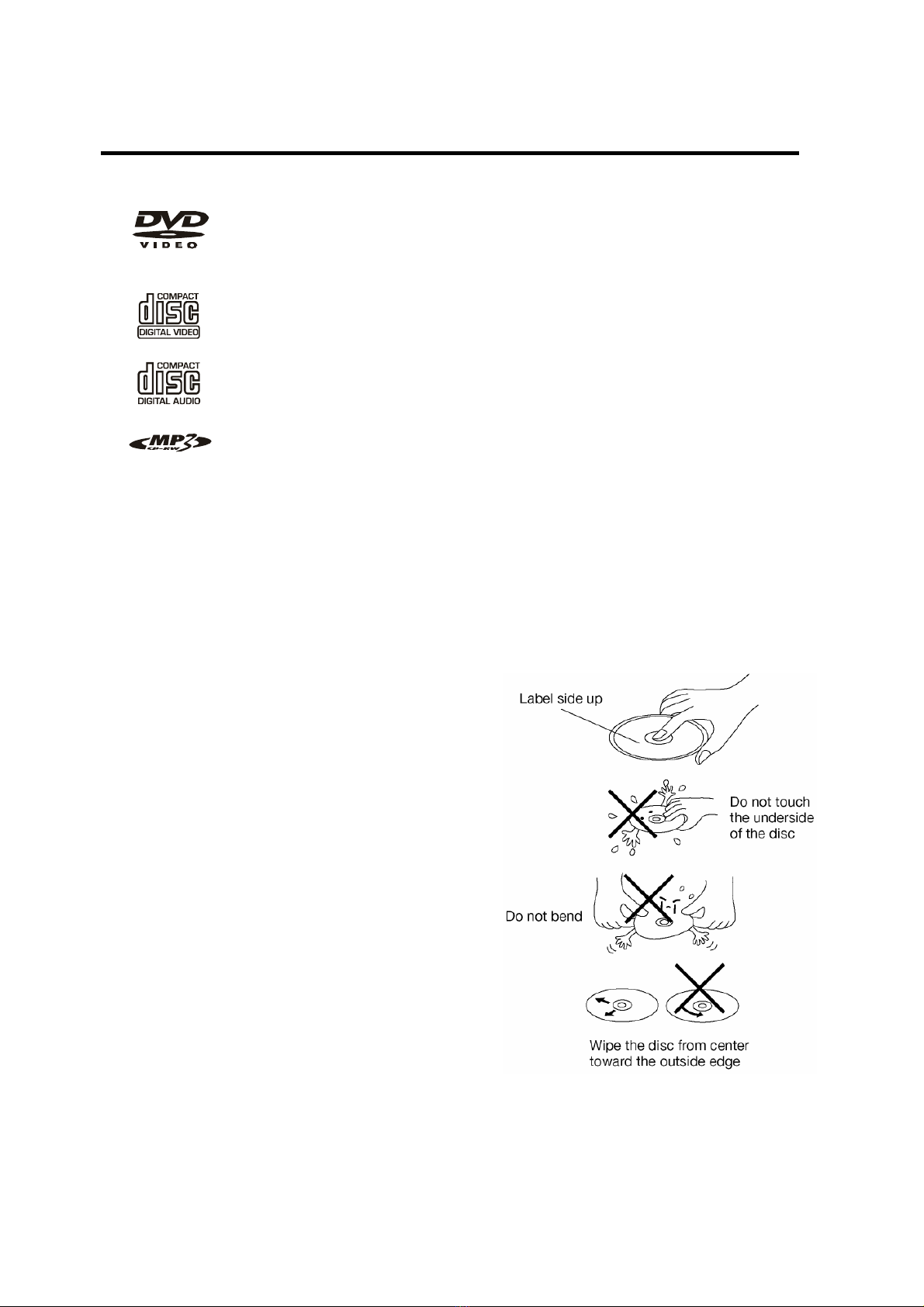

Disc formats supported by this player

DVD

12 cm disc

(Single-sided disc only)

Video CD

12 cm disc

MP3

12 cm disc

Discs which cannot be played with

this player

DVD-ROM

DVD-R/ DVD-RAM

CDV

CD-G

Handling and Cleaning

Dirt, dust, scratches and warping

discs will cause misoperation.

Do not place stickers ormake

scratches on discs.

Do not warp discs.

A disc should always be kept in its

case when not in use to prevent from

damage.

Do not place discs in the following

places:

1. Direct sunlight.

2. Dirty, dusty and damp areas.

3. Near car heaters.

4. On the seats or dashboard.

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl

(rubbing) alcohol. Never use solvents

such as benzine, thinner or

conventional record cleaners as they

may mar the surface of the disc.

Note:

A disc may become somewhat

scratched (although not enough to

make it unusable) depending on the

way it is handled and conditions in the

usage environment. Note these

scratches are not an indication of any

problem with the player.



DISC NOTES

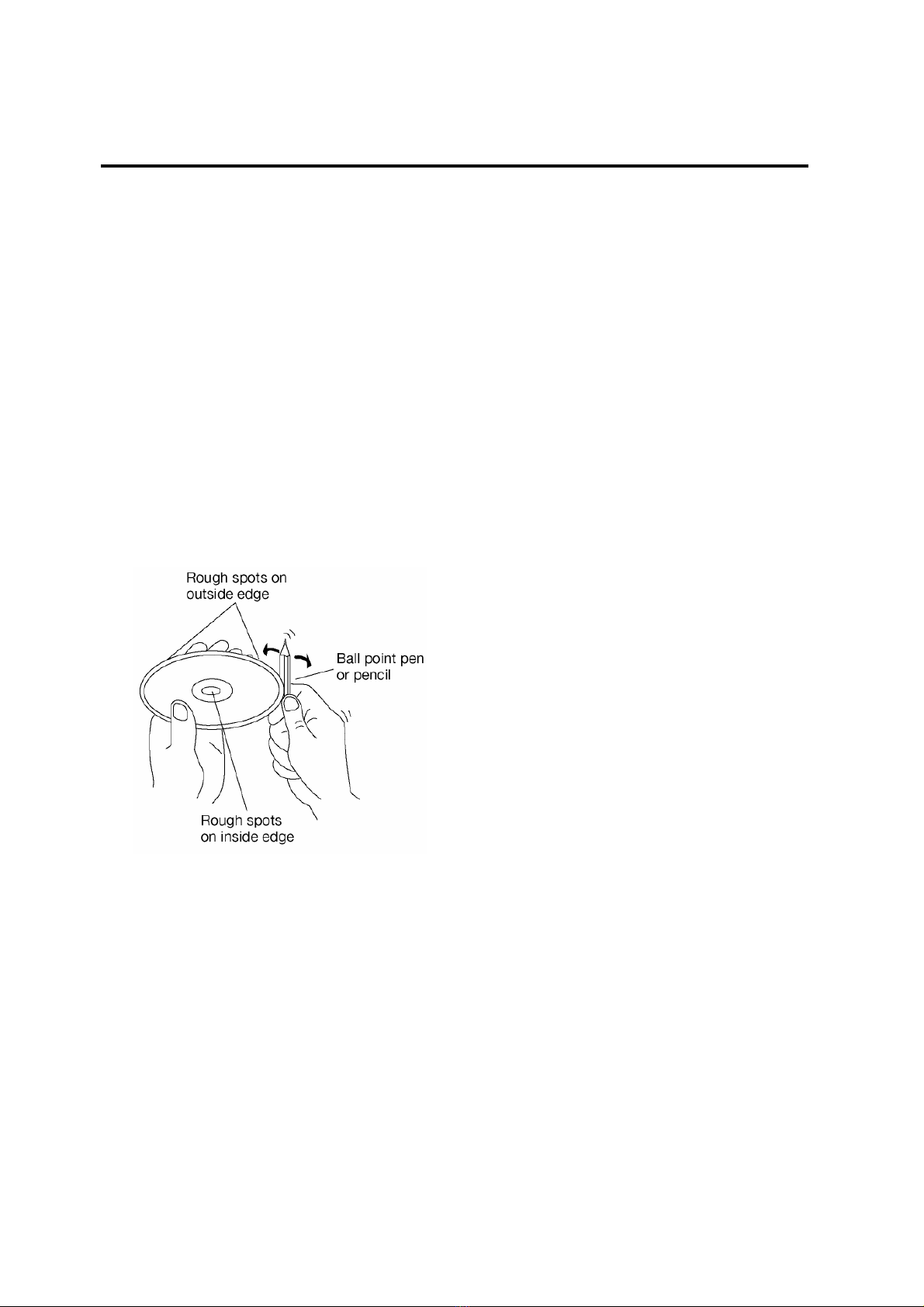

Preparing New Discs with

Rough Spots

A new disc may have rough edges on

its inside and outside edges. If a disc

with rough edges is used, the proper

setting will not be performed and the

player will not play the disc.

Therefore, remove the rough edges

in advance by using a ballpoint pen

or pencil as shown on the right. To

remove the rough edges, press the

side of the pen or pencil against the

inside and outside edges of the disc.

INSTALLATION

Notes:

Choose the mounting location where

the unit will not interfere with the

normal driving function of the driver.

Before finally installing the unit,

connect the wiring temporarily and

make sure it is all connected up

properly and the unit and the system

work properly.

Use only the parts included with the

unit to ensure proper installation. The

use of unauthorized parts can cause

malfunctions.

Consult with your nearest dealer if

installation requires the drilling of

holes or other modifications of the

vehicle.

Install the unit where it does not get

in the driver’s way and cannot injure

the passenger if there is a sudden

stop, like an emergency stop.

If installation angel exceeds 30°from

horizontal, the unit might not give its

optimum performance.

Avoid installing the unit where it

would be subject to high temperature,

such as from direct sunlight, or from

hot air, from the heater, or where it

would be subject to dust, dirt or

excessive vibration.

DIN FRONT/REAR-MOUNT

This unit be can properly installed either

from “Front”(conventional DIN

Front-mount) or “Rear”(DIN Rear-mount

installation, utilizing threaded screw holes

at the sidesof the unit chassis). For

details, refer to the following illustrated

installation methods.

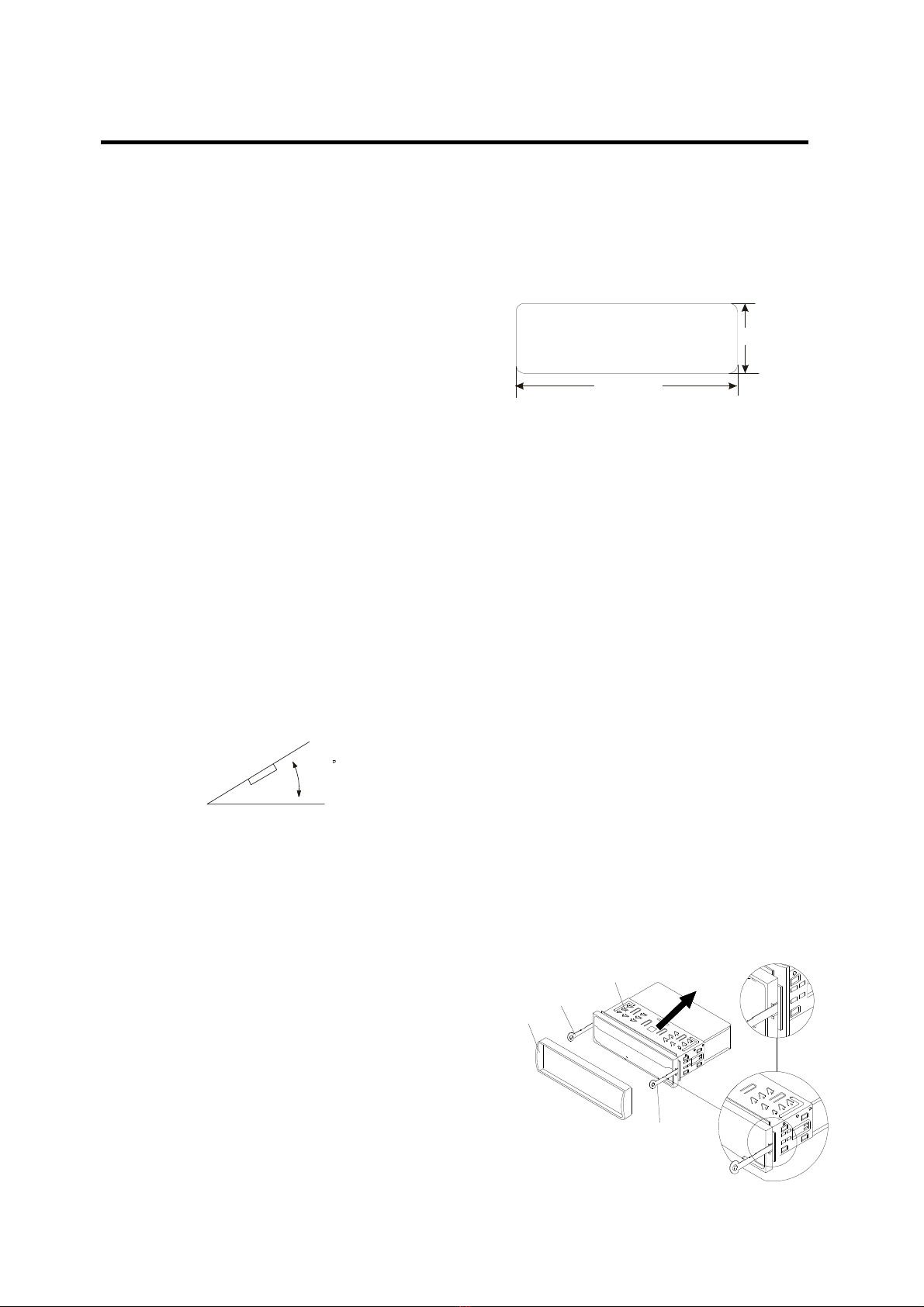

DIN FRONT-MOUNT (Method A)

Installation Opening

This unit can be installed in any

dashboard having an opening as shown

below:

Installing the unit

Be sure you test all connections first, and

then follow these steps to install the unit.

1. Make sure the ignition is turned off,

and then disconnect the cable from

the vehicle battery’s negative (-)

terminal.

2. Disconnect the wire harness and the

antenna.

3. Lift the top of the outer trim ring then

pull it out to remove it.

4. The two supplied keys release tabs

inside the unit’s sleeve so you can

remove it. One key is for the right side

and the other is for the left side. Insert

the keys as far as they will go (with

the notches facing up) into the

appropriate slots at the middle left and

right sides of the unit. Then slide the

sleeve off the back of the unit.

53mm

182mm

Outer Trim Ring

L Key Sleeve

R Key

INSTALLATION

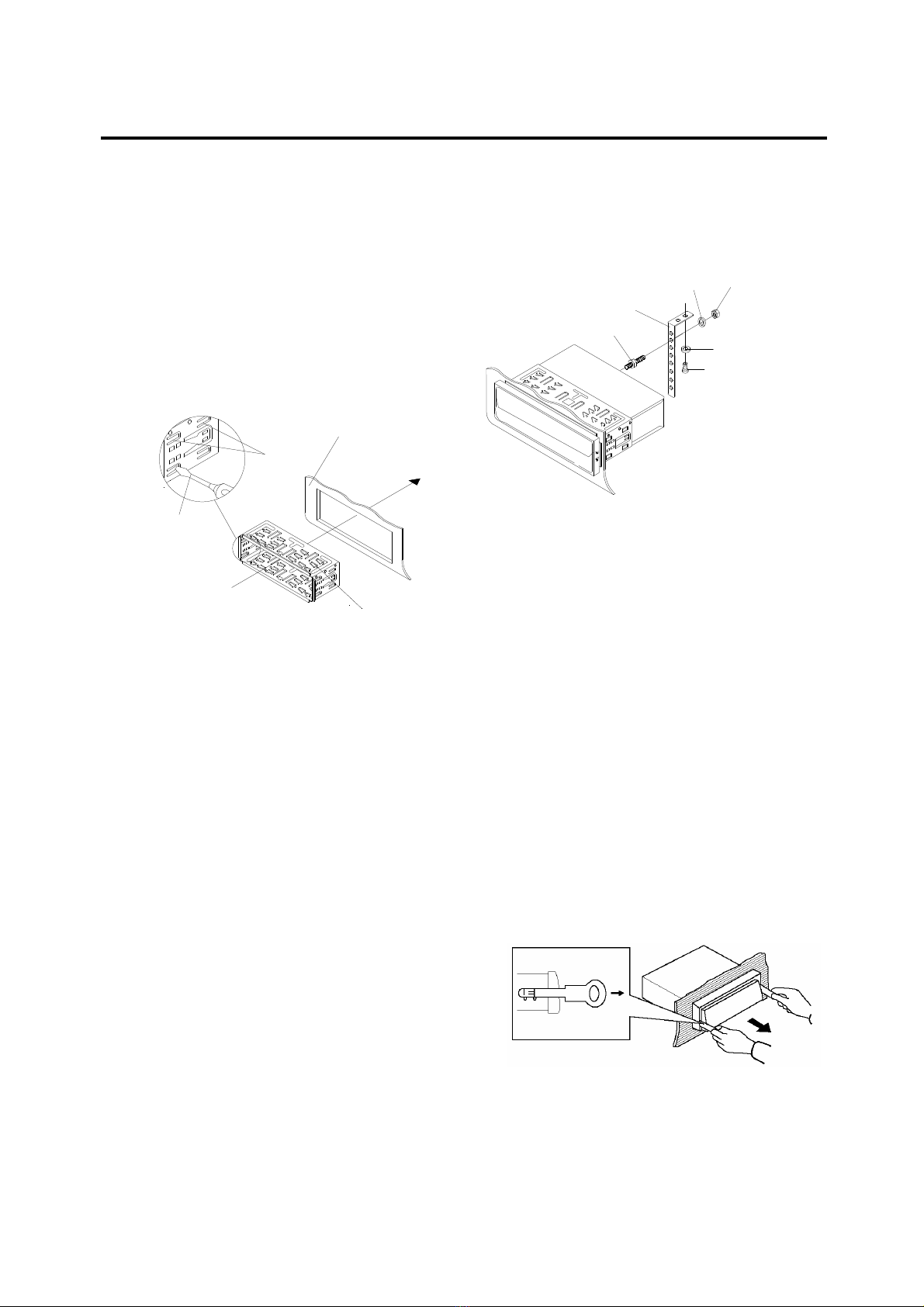

5. Mount the sleeve by inserting the

sleeve into the opening of the

dashboard and bend open the tabs

located around the sleeve with a

screwdriver. Not all tabs will be able to

make contact, so examine which ones

will be most effective. Bending open

the appropriate tabs behind the

dashboard to secure the sleeve in

place.

Tabs

Screwdriver

Sleeve

Dashboard

6. Reconnect the wire harness and the

antenna and be careful not to pinch

any wires or cables.

7. Slide the unit into the sleeve until it

locks into place.

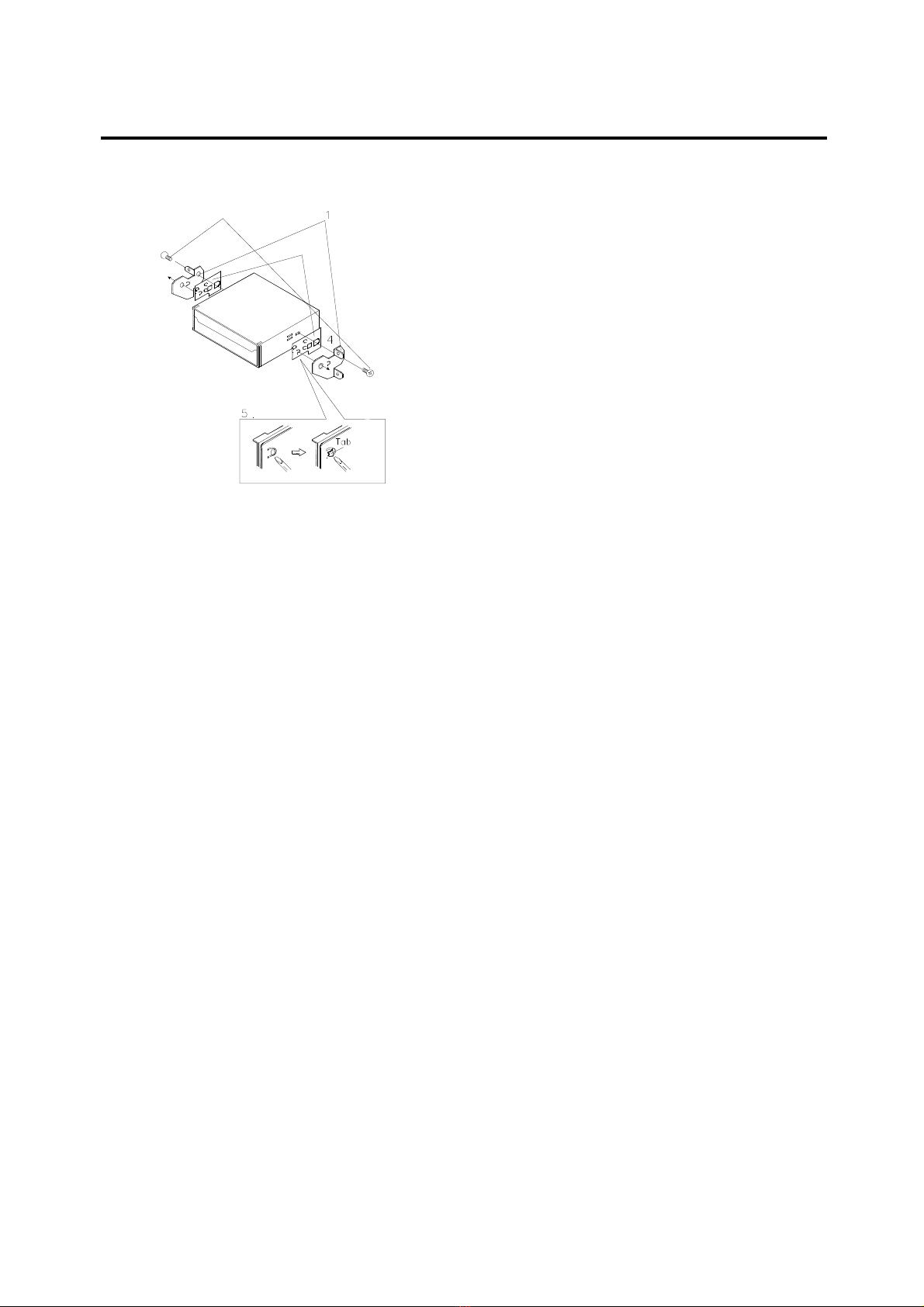

8. To further secure the unit, use the

supplied metal strap to secure the

back of the unit in place.Use the

supplied hardware (Hex Nut (M5mm)

and Spring Washer) to attach one end

of the strap to the mounting bolt on

the back of the unit. If necessary,

bend the metal strap to fit your

vehicle’s mounting area. Then use the

supplied hardware (Tapping Screw

(5x25mm) and Plain Washer) to

attach the other end of metal strap to

a solid metal part of the vehicle under

the dashboard. This strap also helps

ensure proper electrical grounding of

the unit.

Note to install the short threading

terminal of the mounting bolt to the

back of the unit and the other long

threading terminal to the dashboard.

Mounting Bolt

Plain Washer

Tapping Screw

Metal Strap

Spring Washer Hex Nut

9. Reconnect the cable to the vehicle

battery’s negative (-) terminal. Then

replace the out trim ring.

Removing the unit

1.Make sure the ignition is turned off,

then disconnect the cable from the

vehicle battery’s negative (-) terminal.

2.Remove the metal strap attached the

back of the unit (if attached).

3.Lift the top of the outer trim ring then

pull it out to remove it.

4.Insert both of the supplied keys into the

slots at the middle left and right sides

of the unit, then pull the unit out of the

dashboard.

INSTALLATION

DIN REAR-MOUNT (Method B)

1. Factory radio mounting bracket

2. Car radio mounting bracket

3. Screw

4. After aligning the car radio mounting

bracket with the factory radio

mounting bracket, tighten the screws

(5x5mm) at 2 places on each side.

5. When fixing factory radio mounting

bracket with the screws, use a

standard-tipped screwdriver to bend

open the tabs of the car radio

mounting bracket to make them fit into

the holes in the factory radio mounting

bracket.

THE PLAYER

FRONT VIEW Open Position

Closed Position

1. POWER

2. IR (on the front panel)

3. OPEN/CLOSE

4. (EJECT button)

5. Disc Slot

6. Reset button

7. PICTURE CONTROL

10. IR (on the monitor panel)

11. 6.5 INCH COLOR TFT MONITOR

12 7

35 68

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere SEVIC Auto-Videosystem Handbücher

SEVIC

SEVIC BLUE LASER SBL0401MP4 Bedienungsanleitung

Beliebte Auto-Videosystem Handbücher anderer Marken

Stinger

Stinger HEIGH10 RB10RAM13B Bedienungsanleitung

Eonon

Eonon E1057 Bedienungsanleitung

Milion

Milion D2223 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8153 Bedienungsanleitung

Voxx Electronics

Voxx Electronics HR8MA1 Bedienungsanleitung

Axxera

Axxera AV604Bi Bedienungsanleitung

Clarion

Clarion NX706E Bedienungsanleitung

Pyle view

Pyle view PLDN74BTi Bedienungsanleitung

Clarion

Clarion NX602 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5850N Bedienungsanleitung

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Benutzerhandbuch

Lanzar

Lanzar SVDVD5 Bedienungsanleitung

Kia

Kia MTXM100YPPE Bedienungsanleitung

Eonon

Eonon E1060 Bedienungsanleitung

Macrom

Macrom M-AN900 Bedienungsanleitung

Hyundai

Hyundai BAPE-L3000N Bedienungsanleitung

r.LiNK

r.LiNK RL2-UCON8-SM Bedienungsanleitung

Blaupunkt

Blaupunkt DVP 01C Bedienungsanleitung
