Shadowspec UNITY Square Uno Bedienungsanleitung
SHADOWSPEC UNITY™
THE EVOLUTION OF SHADE
BEST-IN-CLASS WARRANTY
10 YEAR Fabric
Warranty 6 YEAR Frame
Warranty
Trusted for
over 25 years Hand built in
New Zealand Marine
Grade
SHADOWSPEC UNITY™
THE EVOLUTION OF SHADE

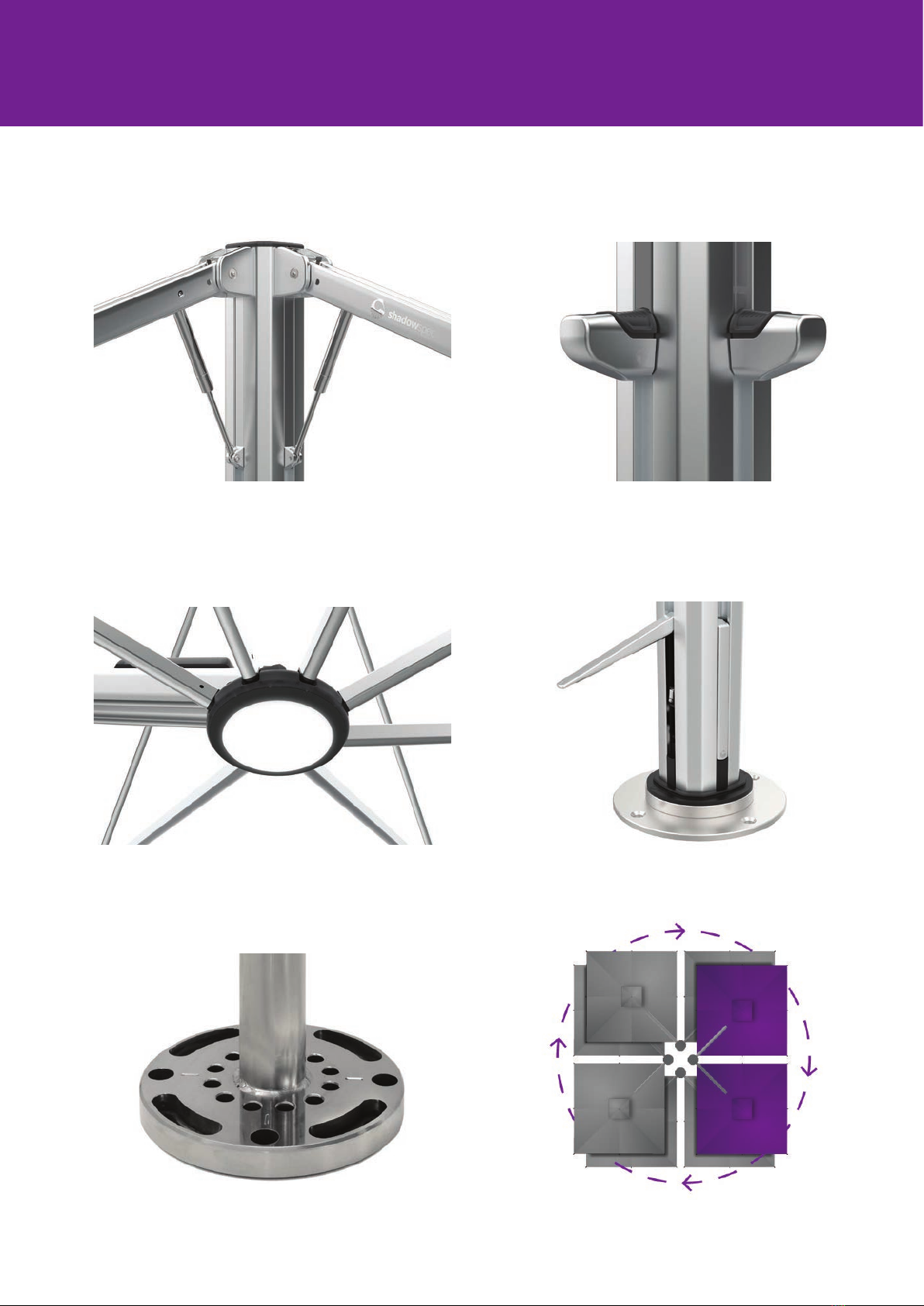

PATENT-PENDING TECHNOLOGY
SHADOWLOCK™SHADOWHUB™
SHADOWGLIDE™
SHADOWLIFT™
Size & Conguraon
• 100% Sunbrella™ Marine
soluon-dyed fabric
• All fabrics can be cleaned,
washed and are replaceable
• UV & fade resistant
• 10 year Sunbrella™ warranty
• Mould and mildew resistant
• Weight: 314 g/m2
• Sun protecon - Skin Cancer
Foundaon’s seal of approval
Canopy
Features
Stock Colours Trend Colours - Summer 20/21*
(Non-stock)
*Trend colours are non-stock and lead mes
may vary for these colours. Full Sunbrella range
is available as a custom colour opon.

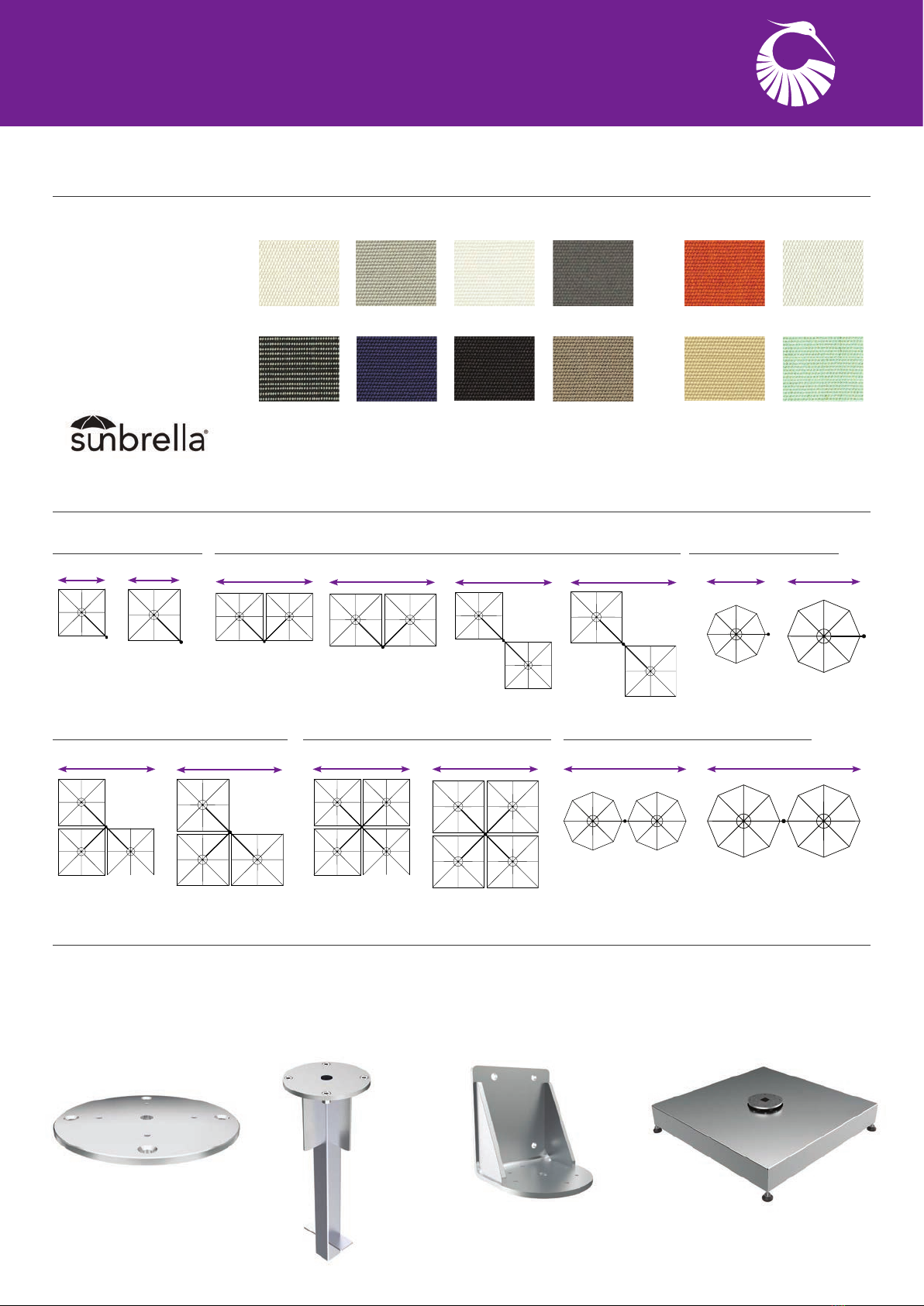

Square Uno
Square Trio Square Quaro Octagon Duo
Square Duo Octagon Uno
2.5m | 8’2’’ 5.0m | 16’5’’ 3.5m | 11’6”
3.0m | 9’10’’ 5.0m |16’5’’6.0m | 19’8’’ 6.0m | 19’8’’
5.0m | 16’5’’ 6.0m | 19’8’’ 7.0m | 23’0” 8.0m | 26’3”5.0m | 16’5’’ 6.0m | 19’8’’
4.0m | 13’2”
Mounng Opons
In-Ground Anchor
Free-Standing Base
Surface Plate
(316 Stainless Steel)
Wall Fixings
(316 Stainless Steel)

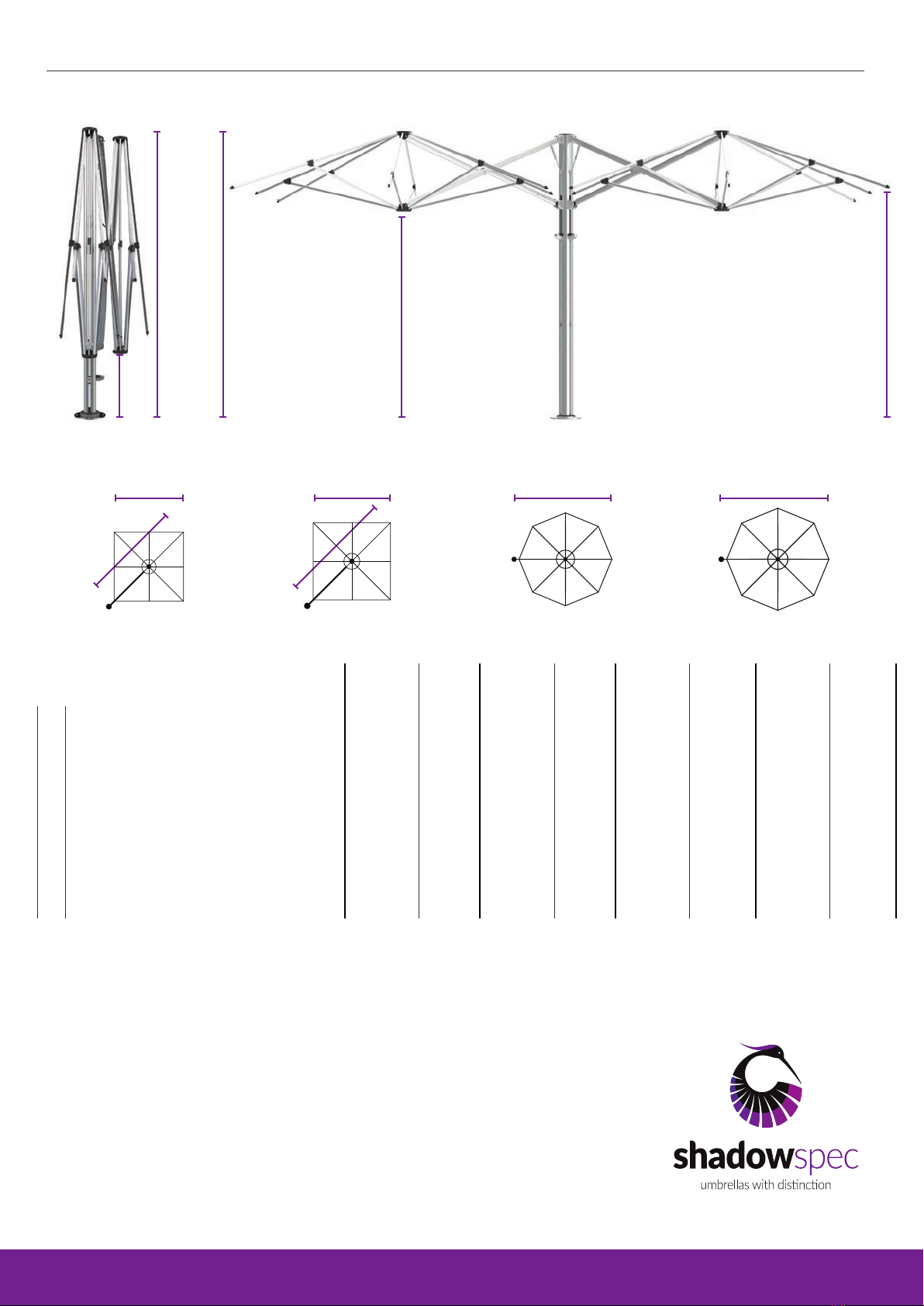

Umbrella Dimensions
A
BCDE
Diagram Legend 2.5m 8'2'' 3.0m 9'10'' 3.5m 11'6'' 4.0m 13'2''
A
B
C
D
E
F
G
F
F F F
G
G
CSK Hex Socket 316 Stainless Steel
Not Included
Shadowspec Unity™
UM-110312
UM - 110068
Unity Spigot
UM - 110114
M10/M12 Countersunk Barrel Nut with
Threaded Rod. Recomended for Chemical
Anchor systems or where non standard
thread length are required.
4x M10 x 20 CSK Screw
316 Stainless Steel
UM - 110312
316 Stainless Steel
Not Included
Nut and Washer to suit
Galvanized/316 SS
To Suit Expansion Bolts
Not Included
Shadowspec Unity™

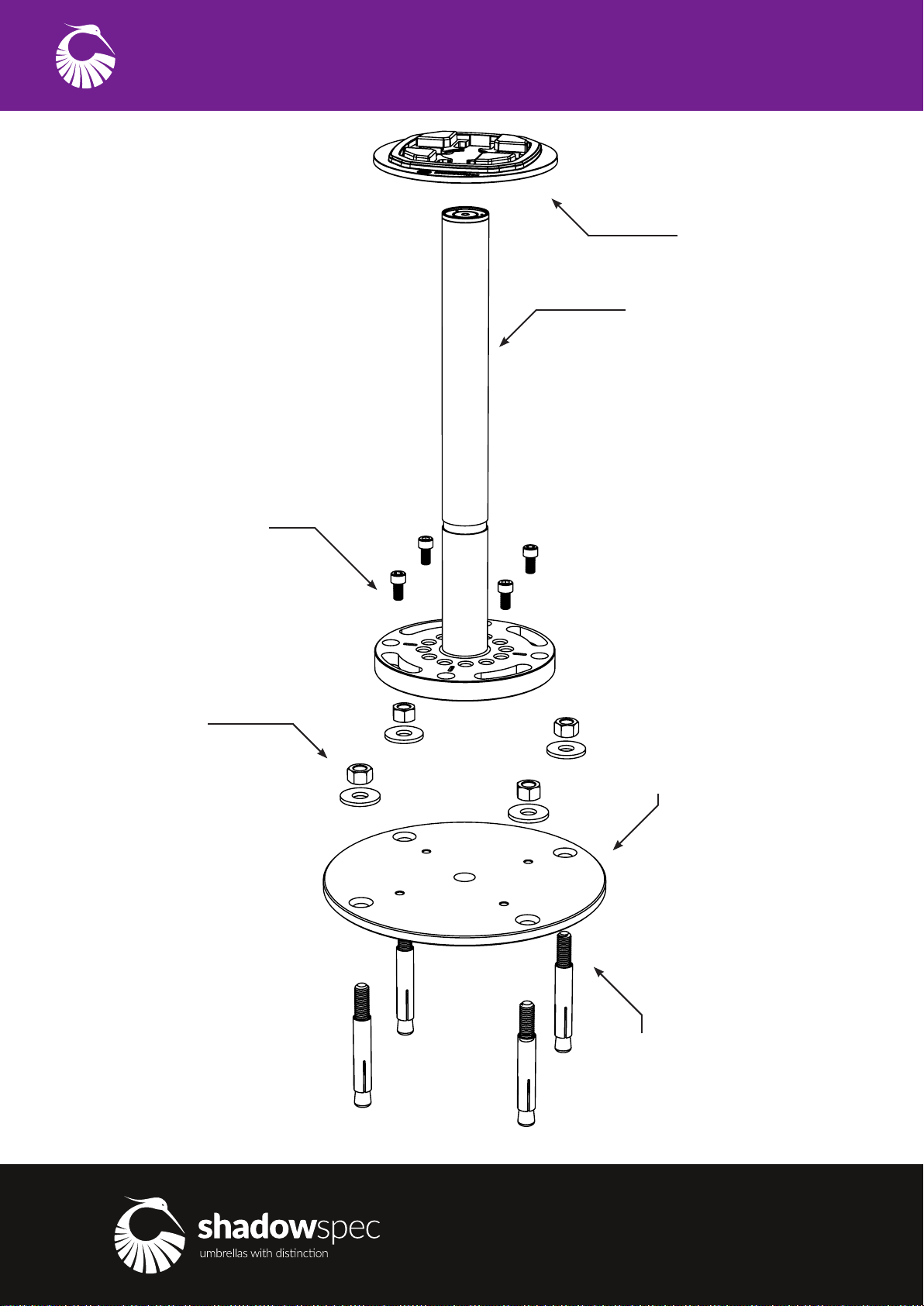

Mounng Opon - Surface Plate - Concrete Install
UM-110312
www.shadowspec.com
Unity Rotaon plate
UM - 110068
Unity Spigot
UM - 110114
12mm/16mm Expansion Bolts.
Recomended for suitable
Concrete Surfaces
M10 x 20 Cap Screw
316 Stainless Steel
Included with Umbrella
UM - 110312
Surface plate - 316 Stainless Steel
12mm/16mm Expansion bolts
Galvanized/ 316 Stainless Steel
Minimum length 100mm
Not Included
NB: It is the responsibility of the installer to ensure that any xings used in the installaon of the umbrella surface plate are suitable for the applicaon
Shadowspec Unity™
UM-110044
Adjustable
- Hot-dipped galvanised steel
- Hot Dipped Galvanized Steel
Shadowspec Unity™
UM-110289
Shadowspec Unity™
Umbrella Dimensions
Codes: UM - 010031 | UM - 010033 | UM - 010035 | UM - 010037
A
BCDE
F FF
G
F
G
Diagram Legend 2.5m 8'2'' 3.0m 9'10'' 3.5m 11'6'' 4.0m 13'2''
A
B
C
D
E
F
G
