INDOOR UNIT

SPLIT TYPE

ROOM AIR CONDITIONER

OPERATION MANUAL

AU-A9FF

AU-A12FF

AH-A9FEF

AH-A12FEF

OUTDOOR UNIT

• SPECIFICATIONS ....................................2

•

IMPORTANT SAFETY INSTRUCTIONS

...3

• ADDITIONAL NOTES ON OPERATION ..5

• TIPS ON SAVING ENERGY.....................5

• PART NAMES...........................................6

• USING THE REMOTE CONTROL ...........9

• BASIC OPERATION .................................10

•

ADJUSTING THE AIR FLOW DIRECTION ..

• TIMER OPERATION.................................12

• TURBO COOLING OPERATION..............14

• ONE-HOUR OFF TIMER ..........................14

• AUXILIARY MODE ...................................15

• MAINTENANCE ........................................16

• BEFORE CALLING FOR SERVICE .........17

CONTENTS

Thank you for purchasing a SHARP air

conditioner. Please read this manual care-

fully before operating the product.

R22

SPECIFICATIONS

Model AH-A9FEF AH-A12FEF

Cooling capacity (kJ/h) 9495 12660

Rated freqency (Hz) 60 60

Rated voltage (V) 230 230

Rated current (A) 3.6 4.8

Rated input (W) 825 1100

External dimensions (mm) Indoor unit 810x270x184 790x280x200

(WxHxD) Outdoor unit 730x540x250

Weight (kg) Indoor unit 8 10

Outdoor unit 28 31

We reserve the right to change the materials and apecifications without notice.

IMPORTANT SAFETY INSTRUCTIONS

WARNINGS FOR USE

1Donotpullordeformthepowersupplycord.Pullingandmisuseofthepowersupplycord

can result in damage to the unit and cause electrical shock.

2Be careful not to expose your body directly to the outlet air for a long time. It may affect

your physical conditions.

3Whenusingtheairconditionerforinfants,children,elderly,bedridden,ordisabledpeople

make sure the room temperature is suitable for those in the room.

4Never insert objects into the unit. Inserting objects can result in injury due to the high

speed rotation of internal fans.

5Ground the air conditioner without fail. Do not connect the grounding wire to gas pipe,

waterpipe,lightningrodortelephonegrounding wire. Incomplete groundingmaycause

electric shock.

6If anything is abnormal with the air conditioner (ex. a burning smell), stop the operation

immediately and turn the circuit breaker OFF.

7Theapplianceshallbeinstalledinaccordancewithnationalwiringregulations.Improper

cable connection can cause the power supply cord, plug and the electrical outlet to

overheat and cause fire.

8Ifthesupplycordisdamaged,itmustbereplacedbythemanufactureroritsserviceagent

or a similarly qualified person in order to avoid a hazard. Use only the manufacture-

specified power cord for replacement.

WARNINGS FOR INSTALLATION / REMOVAL / REPAIR

• Donotattempttoinstall/remove/repairtheunitbyyourself.Incorrectworkwillcauseelectric

shock, water leak, fire etc. Consult your dealer or other qualified service personnel for the

installation/removal/repair of the unit.

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS FOR USE

1Open a window or door periodically to ventilate the room, especially when using gas

appliances. Insufficient ventilation may cause oxygen shortage.

2Do not operate the buttons with wet hand. It may cause electric shock.

3For safety, turn the circuit breaker off when not using the unit for an extended period of

time.

4Check the outdoor unit mounting rack periodically for wear and to make sure it is firmly

in place.

5Do not put anything on the outdoor unit nor step on it. The object or the person may fall

down or drop, causing injury.

6This unit is designed for residential use. Do not use for other applications such as in a

kennel or greenhouse to raise animals or grow plants.

7Do not place a vessel with water on the unit. If water penetrates into the unit, electrical

insulations may deteriorate and cause electric shock.

8Do not block the air inlets nor outlets of the unit. It may cause insufficient performance

or troubles.

9Be sure to stop the operation and turn the circuit breaker off before performing any

maintenance or cleaning. A fan is rotating inside the unit and you may get injured.

Do not splash or pour water directly on the unit. Water can cause electrical shock or

equipment damage.

This appliance is not intended for use by young children or infirm persons without

supervision.

Young children should be supervised to ensure that they do not play with the appliance.

CAUTIONS FOR LOCATION / INSTALLATION

• Make sure to connect the air conditioner to power supply of the rated voltage and

frequency.

Use of a power supply with improper voltage and frequency can result in equipment

damage and possible fire.

• Do not install the unit in a place where inflammable gas may leak. It may cause fire.

Install the unit in a place with minimal dust, fumes and moisture in the air.

• Arrangethedrainhosetoensuresmoothdrainage. Insufficientdrainagemaycausewetting

of the room, furniture etc.

• Make sure a leak breaker or a circuit breaker is installed, depending on the installation

location, to avoid electrical shock.

INDOOR TEMP. OUTDOOR TEMP.

COOLING upper limit 32˚C D.B. 43˚C D.B.

23˚C W.B. -

lower limit 21˚C D.B. 21˚C D.B.

15˚C W.B. -

ADDITIONAL NOTES ON OPERATION

OPERATING TEMPERATURE RANGE

• The built-in protective device may prevent the unit from operating when used out of this

range.

• Condensation may form on the air outlet if the unit operates continuously in the COOL or

DRY mode when humidity is over 80 percent.

D.B. = Dry-bulb W.B. = Wet-bulb

TIPS ON SAVING ENERGY

Below are some simple ways to save energy when you use your air conditioner.

WHEN POWER FAILURE OCCURS

The air conditioner will stay off even when power is restored.

After power is restored, press the ON/OFF button once more.

If the timers were set before a power failure, they will need to be re-set after power is

restored.

SET THE CORRECT TEMPERATURE

• Setting the thermostat 1°C higher than the desired temperature in the COOL mode will

save approximately 10 percent in power consumption.

• Setting the temperature lower than necessary during cooling operation will result in

increased power consumption.

BLOCK DIRECT SUNLIGHT AND PREVENT DRAFTS

• Blocking direct sunlight during cooling operation will reduce power consumption.

• Close the windows and doors during cooling operation.

SET PROPER AIR FLOW DIRECTION TO OBTAIN THE BEST AIR

CIRCULATION

KEEP FILTER CLEAN TO ENSURE THE MOST EFFICIENT OPERATION

MAKE MOST OF THE TIMER OFF FUNCTION

DISCONNECT THE POWER CORD OR TURN OFF THE CIRCUIT BREAKER

WHEN THE UNIT IS NOT USED FOR AN EXTENDED PERIOD OF TIME

• The indoor unit still consumes a small amount of power when it is not operating.

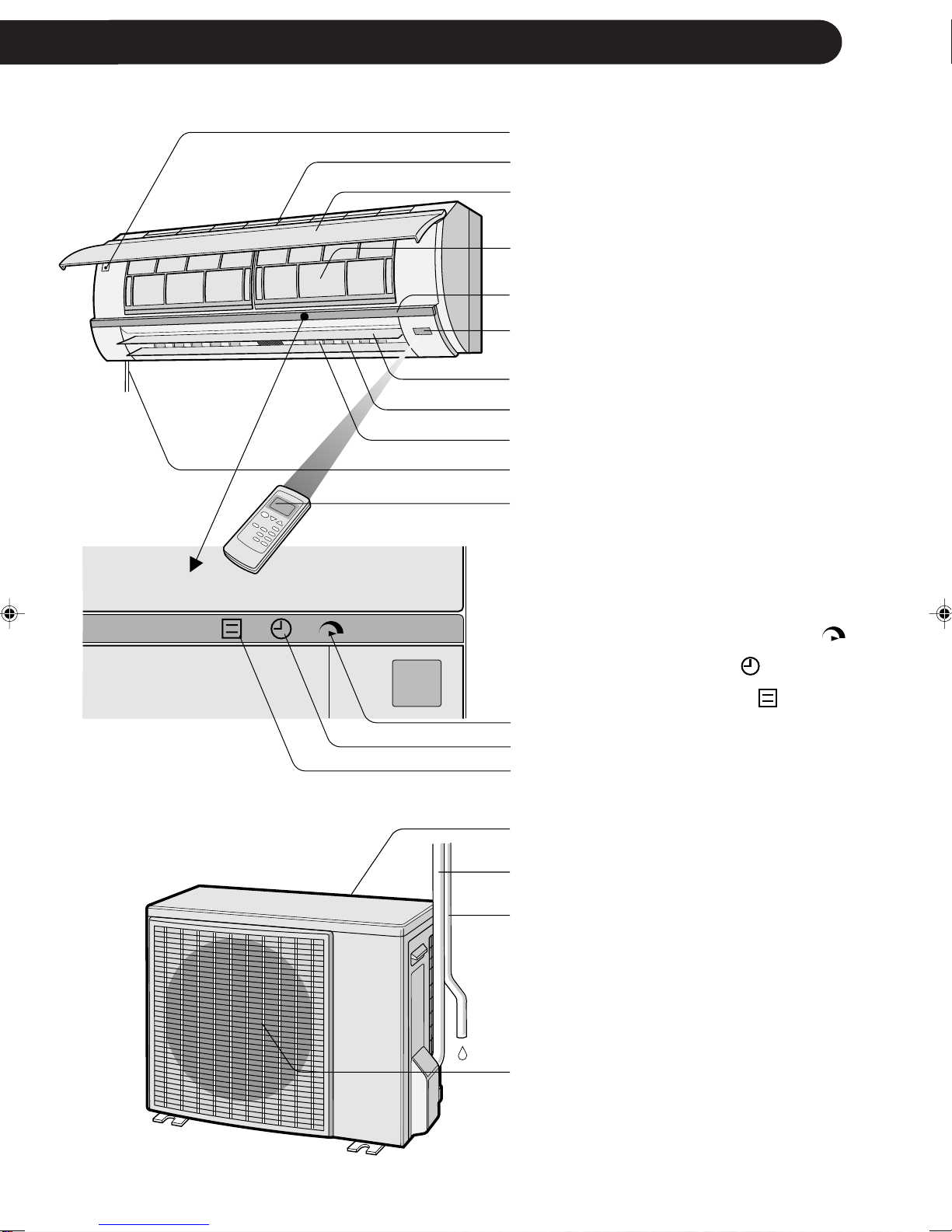

PART NAMES

1Inlet (Air)

2Open Panel

3Air Filters

4AUX. Button

5Indicator Panel

6Receiver Window

7Power Supply Cord

8Vertical Adjustment Louvres

9Horizontal Adjustment Louvres

0Outlet (Air)

qRemote Control

wTURBO COOLING Lamp (green )

eTIMER Lamp (orange )

rOPERATION Lamp (red )

OUTDOOR UNIT

NOTE: Actual units might vary slightly from those shown above.

INDOOR UNIT (AH-A9FEF)

tInlet(Air)

yRefrigerant Tube and

Interconnecting Cord

uDrainage Hose

iOutlet(Air)

1AUX. Button

2Inlet (Air)

3Open Panel

4Air Filters

5Indicator Panel

6Receiver Window

7Vertical Adjustment Louvres

8Horizontal Adjustment Louvres

9Outlet (Air)

0Power Supply Cord

qRemote Control

wTURBO COOLING Lamp (green )

eTIMER Lamp (orange )

rOPERATION Lamp (red )

OUTDOOR UNIT

NOTE: Actual units might vary slightly from those shown above.

INDOOR UNIT (AH-A12FEF)

tInlet(Air)

yRefrigerant Tube and

Interconnecting Cord

uDrainage Hose

iOutlet(Air)

REMOTE CONTROL

1TRANSMITTER

2DISPLAY (Liquid Crystal Display)

3ON/OFF Button

4TEMP. Button

5ONE-HOUR OFF TIMER Button

6MODE Button

7TIMER ON Button (for setting the timer)

8FAN Button

9TIMER OFF Button (for setting the timer)

0SWING Button

qTIMER CANCEL Button

wTURBO COOLING Button

eRESET Button

rMODE SYMBOLS

: AUTO : COOL

: DRY

tTURBO COOLING SYMBOL

yFAN SPEED SYMBOLS

: AUTO : Manual setting

uTEMPERATURE AND TIMER COUNT DOWN

INDICATOR

iTRANSMITTING SYMBOL

oTIMER ON/TIMER OFF INDICATOR

Indicates when timer on or timer off is set.

L.C.D. REMOTE CONTROL DISPLAY

PART NAMES

1Remove the battery cover at the

back of the remote control.

2Insert batteries in the compartment,

making sure the ±and —

polarities are correctly aligned.

• Lines will be indicated on the dis-

play when batteries are properly

installed.

3Reinstall the battery cover.

4Press the RESET button using a

thin stick.

USING THE REMOTE CONTROL

NOTES:

• The battery life is approximately one year in normal use.

• When you replace the batteries, always change both batteries, and make sure they are the

same type.

• If the remote control does not operate properly after replacing the batteries, press the

RESET button using a thin stick.

• If you will not be using the unit for a long time, remove the batteries from the remote

control.

Point the remote control towards

the unit’s signal receiver window

and press the desired button. The

unit generates a beep when it re-

ceives the signal.

• Make sure there is no curtain or other

object between the remote control and

the unit.

• The remote control can send signals

from up to 7 metres away.

LOADING BATTERIES Use two size-AAA (R03) batteries.

HOW TO USE THE REMOTE CONTROL

Remote control

cover

{

|

CAUTION

• Do not allow the signal receiver window to receive strong direct sunlight, since it can adversely

affect its operation. If the signal receiver window is exposed to direct sunlight, close a curtain to

block the light.

• Using a fluorescent lamp with a quick starter in the same room may interfere with transmission of

the signal.

• The unit can be affected by signals transmitted from the remote control of a television, VCR or

other equipment used in the same room.

• Do not leave the remote control in direct sunlight or near a heater. Also, protect the unit and

remote control from moisture and shock which can discolour or damage them.

Press the TEMP. button to set the

desired temperature.

AUTO/DRY MODE

The temperature can be changed in 1°C

increments within the range of 2°C higher

to 2°C lower from the temperature auto-

matically determined by the air conditioner.

COOL MODE

The temperature can be set within the

range of 18 to 32°C.

BASIC OPERATION

2Press the ON/OFF button to start

operation.

• The red OPERATION lamp ( ) on the

unit will light.

Press the MODE button to select

the operation mode.

AUTO COOL DRY

Press the FAN button to set the

desired fan speed.

AUTO SOFT LOW HIGH

• In the DRY mode, the fan speed is pre-

set to AUTO and cannot be changed.

Automatic Operation

Mode

Temperature Setting

Below 24°C

DRY

Room Temp. at start-up

24°C-26°C COOL

24°C

26°C-28°C COOL

25°C

Above 28°C COOL

26°C

Modes and Temperature Settings

Room temp.

at operation

start-up

TIPS ABOUT AUTO MODE

In the AUTO mode, the temperature set-

ting and mode are automatically selected

according to the room temperature when

the unit is turned on.

To turn off the unit, press the ON/

OFF button again.

• The red OPERATION lamp ( ) on the

unit will turn off.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sharp Klimaanlage Handbücher

Sharp

Sharp CV-P10LJ Bedienungsanleitung

Sharp

Sharp AH-MX122 Bedienungsanleitung

Sharp

Sharp AU-MP14 Bedienungsanleitung

Sharp

Sharp AF-R50CX Bedienungsanleitung

Sharp

Sharp AH-X079E Bedienungsanleitung

Sharp

Sharp AF-Q100VX Bedienungsanleitung

Sharp

Sharp CV10NH - 10,000 BTU Portable Air Conditioner Bedienungsanleitung

Sharp

Sharp AY-XP07ER Bedienungsanleitung

Sharp

Sharp Plasmacluster AE-X30EJ Bedienungsanleitung

Sharp

Sharp AH-S22AW2 Bedienungsanleitung

Sharp

Sharp AY-AP7FHR Bedienungsanleitung

Sharp

Sharp AE-X4M30PU Bedienungsanleitung

Sharp

Sharp AH-AP18DR Bedienungsanleitung

Sharp

Sharp AY-AP7FHR Bedienungsanleitung

Sharp

Sharp AH-MP20 Bedienungsanleitung

Sharp

Sharp AY-AP18CJ Bedienungsanleitung

Sharp

Sharp Plasmacluster AE-X12FR Bedienungsanleitung

Sharp

Sharp AE-A18EJ Bedienungsanleitung

Sharp

Sharp AF-A7UA Bedienungsanleitung

Sharp

Sharp AY-A129J Bedienungsanleitung

Sharp

Sharp AY-XP26FR-N Bedienungsanleitung

Sharp

Sharp AF-T908X Bedienungsanleitung

Sharp

Sharp AH-AP9SMD Bedienungsanleitung

Sharp

Sharp AH-AP5JHL Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
