Sharp ER-A520 Bedienungsanleitung

CODE : 00Z

INSTALLATION MANUAL

CONTENTS

Parts marked with "!" are important for maintaining the safety of the set. Be sure to replace these parts with specified

ones for maintaining the safety and performance of the set.

SHARP CORPORATION

This document has been published to be used

for after sales service only.

The contents are subject to change without notice.

ERA520UIME

ELECTRONIC

CASH REGISTER

ER-A520

MODEL ER-A530

(U, A version)

ER-A520

ER-A530

CHAPTER 1. GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

CHAPTER 2. DISASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

CHAPTER 3. REMOTE DRAWER: ER-03DW, ER-04DW . . . . . . . . . 3

CHAPTER 4. KEY TOP KIT (ER-A520 ONLY) . . . . . . . . . . . . . . . . . . 3

CHAPTER 5. POLE DISPLAY UNIT : UP-P16DP . . . . . . . . . . . . . . . 5

CHAPTER 6. EXPANSION RAM BOARD (UP-S02MB) . . . . . . . . . . . 6

CHAPTER 7. DRAWER POSITION CHANGE . . . . . . . . . . . . . . . . . . 6

ER-A520/A530

BATTERY DISPOSAL

This POS terminal contains a Lithium Battery. The battery must be disposed of properly.

Please contact Local Environmental Officials for disposal instructions.

CAUTION

THERE IS RISK OF EXPLOSION IF THE BATTERY IS REPLACED

BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING

TO THE "BATTERY DISPOSAL" INSTRUCTIONS.

AVOID SHORT-CIRCUITING THE BATTERY TERMINALS.

KEEP THE BATTERY AWAY FROM FIRE.

*WHEN DISPOSING THE BATTERY, FOLLOW THE LOCAL RULES

AND REGULATIONS.

“BATTERY DISPOSAL”

THIS PRODUCT CONTAINS LITHIUM BATTERY.

THIS BATTERY MUST BE DISPOSED OF PROPERLY.

REMOVE THE BATTERY FROM THE PRODUCT AND CONTACT FEDERAL OR

STATE ENVIRONMENTAL AGENCIES FOR INFORMATION ON RECYCLING AND

DISPOSAL OPTIONS.

“TRAITEMENT DES ACCUMULATEUR USAGÉS”

CE PRODUIT CONTIENT UN ACCUMULATEUR À LITHIUM.

CET ACCUMULATEUR USAGÉ DOIT ÊTRE TRAITÉ CORRECTEMENT.

ENLEVEZ L’ ACCUMULATEUR DU PRODUIT ET PRENEZ CONTACT AVEC VOTRE

AGENCE ENVIRONNEMENTALE LOCALE POUR DES INFORMATIONS SUR LES

MÉTHODES DE RECYCLAGE ET DE TRAITEMENT.

ER-A520/A530

– 1 –

CHAPTER 1. GENERAL

This manual describes the ER-A520/A530 disassembly procedures

and the option attachment procedures. For assembly procedures,

reverse the disassembly procedures. For attachment of options which

do not require special descriptions, descriptions are omitted.

Note for operations

• Before operation, ground the operator’s body and perform other nec-

essary measure against static electricity.

• During operations, disconnect the AC cord from the outlet.

• After completion of operations, connect the connectors.

• After completion of operations, be sure to perform the master reset.

■OPTIONS

NO CLASSIFICATION COMPONENT NAME MODEL NAME REMARK

1 Drawer Remote drawer ER-03DW

ER-04DW

2 Key kit 1 x 1 key top kit (30) ER-11KT7 ER-A520 only

1 x 2 key top kit (30) ER-12KT7

2 x 2 key top kit (10) ER-22KT7

1 x 1 dummy key kit (30) ER-11DK7G

5 x 1 dummy key kit (10) ER-51DK7G

3 Display Customer Pole Display UP-P16DP

4 Memory RAM board UP-S02MB

ER-A520/A530

– 2 –

CHAPTER 2. DISASSEMBLY

Caution: Before installation, be sure to turn off the power.

1. REMOVING THE TOP CABINET

1) Open the printer cover 1.

2) Lift the pop-up display unit 2.

3) Remove the two screws 3.

4) Slightly lift and slide the top cabinet, and remove the grounding

wire 4.

Note: Do not pull up the top cabinet unit the grounding wire and

connector cables from the top Cabinet are re-moved.

5) Remove the following cable 5between the top cabinet and the

main PWB.

2. REMOVING THE PRINTER UNIT

1) Remove the top 1cabinet.

2) Remove the two screws 1fixed on the printer unit.

3) Remove the screw 2fixed on the earth wire 3.

4) Remove the printer cable 4from the MAIN PWB (CN5).

3. REMOVING THE CABINET

1) Remove the cabinet fixing screw 1.

2) Slide the cabinet to the left, and remove the cabinet.

ER-A520/A530

– 3 –

CHAPTER 3. REMOTE DRAWER:

ER-03DW, ER-04DW

1. OUTLINE

The ER-A520/530 allows connection of max, two remote drawers.

2. INSTALLATION PROCEDURE

1) Remove the top cabinet.

2) Connect the remote drawer cable 1to the drawer connector on

the main PWB. (Location: CN7)

CHAPTER 4. KEY TOP KIT

(ER-A520 ONLY)

1. OUTLINE

The ER-A520 employs the following key top (option) to allow additional

installation of the key top and change in the key layout.

2. INSTALLATION PROCEDURE

CAUTION:

The drawer unit should be securely fitted to the supporting platform

to avoid instability when the drawer is open.

CN6 CN7

MODEL NAME DESCRIPTION

ER-11KT7 1 u1 Key top

ER-12KT7 1 u2 Key top

ER-22KT7 2 u2 Key top

ER-11DK7G 1 u1 Dummy key

ER-51DK7G 5 u1 Dummy key

ER-22KT7

ER-12KT7

ER-11KT7

ER-A520/A530

–4 –

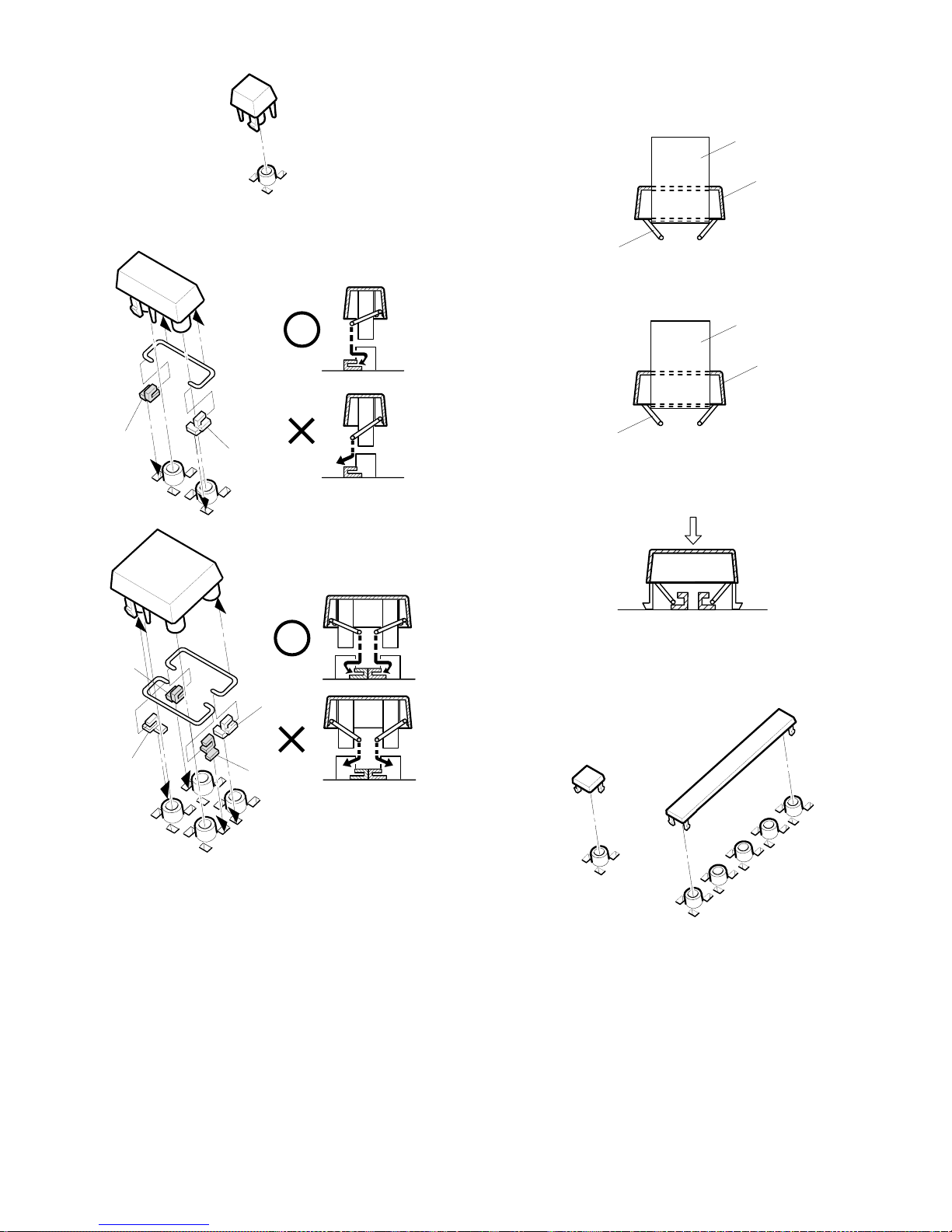

1ER-11KT7

2ER-12KT7, ER-22KT7

1) Attach two spacers to the keyboard frame.

•Attach the yellow spacer to the left lower side, and the white

spacer to the right lower side.

2) The key top of the ER-12KT7 and the ER-22KT7 includes the

guide pin. Install the key top so that the guide pin is engaged with

the spacer attached to the keyboard frame.

(When using 2 u2 key top installing jig (UKOG-6725BHZZ) for

installation)

1) Remove the key label and the key cap from the key top.

2) Attach the key top so that the guide arm is under the jig.

3) With the jig inserted in the key top, slowly press down the key top

until the guide arm is brought into contact with the guide holder A.

4) Remove the jig under the above condition 3), and press the key

top.

5) Check that the key top operates properly.

6) Install the key label and the key cap.

3ER-11DK7G, ER-51DK7G

Yellow

White

Yellow

Jig

Key top

Guide arm

Jig

Key top

Guide arm

ER-A520/A530

–5 –

CHAPTER 5. POLE DISPLAY UNIT : UP-P16DP

1) Remove the rear cover.

2) Connect the display cable 1to the POLE connector 2.

3) Fix the earth wire 3to the main chassis 4with a screw 5.

4) Install the core 6to the display cable 1and earth wire 3.

Secure the core 6with two wire bands.

Note: Install the ferrite core in a position less than 50mm from the cab-

inet.

nHow to extend display pole:

UP-P16DP

The pole can be extended by installing the attached pole to the stan-

dard pole.

COMPONENT LIST:

1) Remove the five screws 1.

2) Remove the Base angle 2.

3) Remove the two screws 6.

4) Remove the Base cabinet 4from the pole cabinet 7.

5) Turn the ratchet 9connected to the pole cabinet 7to the remov-

ing position and pull it out from the display unit 8as shown in Fig.

6) Remove the two screws F.

7) Remove the pole cabinet 7from the Ratchet 9.

No. NAME USE Q’ty

GPole cabinet Pole extension 2

HScrew (M2 x 8) Pole connection 4

IScrew (M4 x 16) Securing the UP-P16DP to the

wooden table 4

JScrew (M4 x 20) Securing the UP-P16DP to the metal

table 4

KNut Securing the UP-P16DP to the metal

table 4

Earth wire

Cabinet

MCR cable

Wire bandWire band

Core

Within 50mm

710

Fig. A

ER-A520/A530

–6 –

8) Install the attached pole cabinet Gto the pole cabinet 7to fix it

with the screw H.

9) Install the pole cabinet Gin the opposite order of the disassembly.

10) Fastening on the table:

Secure the Base cabinet 2using the screw.

Lowering the height of the UP-P16DP

Remove the standard Pole and attach the Base cabinet to the Ratch .

CHAPTER 6. E

XPANSION RAM BOARD

(UP-S02MB)

CHAPTER 7. DRAWER POSITION

CHANGE

1) Remove the cabinet fixing screw 1.

2) Slide the cabinet to the left, and remove the cabinet.

3) Insert the pawl of the cabinet into the hole Aat the back.

4) Slide the cabinet to the right.

5) Tighten the cabinet fixing screw 1.

No. NAME USE Q’ty

IScrew (M4 x 16) Securing the UP-P16DP to the

wooden table 4

JScrew (M4 x 20) Securing the UP-P16DP to the metal

table 4

KNut Securing the UP-P16DP to the metal

table 4

Display cable

11 11

13 13

14 14

15 15

memory board

main board

SHARP CORPORATION

Digital Document Systems Group

Products Quality Assurance Department

Yamatokoriyama, Nara 639-1186, Japan

2004 November Printed in Japan t

Printed in Japan.

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted.

In any form or by any means,

electronic, mechanical, photocopying, recording, or otherwise,

without prior written permission of the publisher.
