Sharp Zaurus SL-5500 Handbuch

Camera (optionally available) 1

Camera

(optionally available)

The Camera application allows you to take a photo using the specified digital

camera card (optionally available: CE-AG06) and view the picture using the Image

Viewer application. The photo file will be displayed in the icon format in the

Documents folder.

Read the separate Start-up Guide (booklet) first.

By inserting the Digital Camera Card (CE-AG06) into the CF card slot, you can take

digital photos.

Attaching the Digital Camera Card

Remove the Display protection cover.

Press (On/Off) to turn the unit on.

If a CF card is inserted into the CF card slot, carry out the Eject Operation and

remove the card. (For detailed information to remove the card, see the separate

Start-up Guide.)

Insert the Digital Camera Card (CE-AG06) into the CF card slot securely.

Lens

Shutter release button

Focus dial

2Camera (optionally available)

Make sure that the label on the card “SHARP CE-AG06 DIGITAL CAMERA

CARD” is facing up when you insert it.

Caution:

• Be sure to remove the Display protection cover before inserting the card.

• While the Digital camera Card is attached to the unit, the stylus cannot be

removed and inserted, because the card covers the stylus holder.

• Do not hold the card when moving the unit with the card inserted or wield it by

holding the card. Otherwise, the card will be removed from the unit and/or the

card will fall and get damaged.

• Do not pull out or push the card forcefully while using the camera. Otherwise,

the unit or card will be damaged.

Removing the Digital Camera Card

Be sure all applications are closed before removing the card.

If any applications are open, tap to close them.

While the card is inserted, tap the CF card icon on the taskbar in the bottom

right-hand corner of the screen.

The pop-up menu will appear.

Tap “Eject card.”

The CF card icon will disappear.

Now you are ready to remove the Digital Camera Card from the CF card slot.

Remove the Digital Camera Card straight out.

Note: Remove the Digital Camera Card in the same way as the expansion

memory card. For details, also see the separate Start-up Guide.

Camera (optionally available) 3

Caution:

• When removing the card, hold the camera on the center part and pull it out.

Holding and pulling out the camera itself may break or damage the lens or

result in incorrect operation.

• Be sure to attach the Display protection cover to the unit to protect the display.

4Camera (optionally available)

Setting up the shooting preferences

Overview

Fullscreen button Displays the image on the full screen. The Fullscreen mode is

effective only in Portrait mode. Tap anywhere on the display or

press the SELECT key to return to the normal mode screen.

Rotate button Rotates the image by 180°.

Orientation switch

button

Switches the orientation between Landscape and Portrait.

Resolution button Changes the image size to be shot.

Select “Landscape” for 240 x 160 or 480 x 320 size.

Select “Portrait” for 120 x 160, 240 x 320, 480 x 640.

Quality switch

button

Switches the image quality mode between "Fine" and

“Normal”.

“Fine” produces images of good quality and uses more

memory space. “Normal” produces poor quality and uses less

memory space.

Save to switch

button

Select the destination to save the shot.

(Main Memory or SD Card)

(Digital) Zoom

checkbox

Changes the image size to 2x.

The digital zoom is effective for the 240 x 160 image size of

Landscape mode, and for the 240 x 320 and 120 x 160 image

size of Portrait mode.

Remain indicator Indicates the remaining number to be recorded approximately.

Shutter button Tap to take a photo.

Fullscreen button

Rotate button

Orientation switch button

Resolution button

Quality switch button

Save to switch button

(Digital) Zoom checkbox

Remain indicator

Shutter button

Camera (optionally available) 5

Taking photos

Turn the unit on and pull out the stylus.

Remove the Display protection cover.

Attach the Digital Camera Card.

On the Applications folder of the Home screen, tap the “Camera” icon.

The Camera screen appears.

Configure the recording mode.

Aim the camera at your subject.

•Turn the focus dial to optimize the image of your subject appearing on the

screen, if necessary.

Tap the Shutter button or press the shutter release button of the Digital Camera

Card to take a photo.

The photo will be saved in the direction you select by the Save to button.

•Pressing also allows you to release the shutter.

The photos will be saved in the format of “pic****” (****: sequential number).

After you close the Camera application by tapping or pressing , the

photos will be displayed in the icon format in the Documents folder.

Shooting in Fullscreen mode

Use the following keys on the slide cover in Full screen mode.

•To rotate the image, press or .

•To zoom on or off, press or .

(Zooming on is not effective for the 480 x 640 image size.)

•To switch back to the normal screen mode from the Fullscreen mode, tap the

screen or press or the SELECT key.

•To take a photo, press or press the shutter release button of the Digital

Camera Card.

6Camera (optionally available)

Note:

• The images you shoot will be saved in jpeg format.

• The Remain indicator displays the approximate number because it varies

depending on the “Resolution” (image size to be shot) and “Quarity” you

select.

• While the unit is saving an image, you cannot take a photo.

• For details on handling the Digital Camera Card (CE-AG06), see its Operation

Manual.

• The unit or the Digital Camera Card may get warm during shooting. However,

it is not a malfunction.

• The photos to be saved on the SD memory card are located in the following

directory, if available: Documents/image/jpeg.

Viewing photos

For viewing photos taken by the Camera application, use the “Image Viewer”

application.

In the Applications folder of the Home screen, tap the Image Viewer application

icon.

The file names (“pic****” ) will be displayed in the Index screen.

Tap the desired photo file name.

The photo file will be opened.

For detailed procedure, see the Image Viewer chapter in the Operation Manual

(booklet).

•Tapping the photo file icon in the Documents folder also allows you to open it.

SHARP CORPORATION

Andere Handbücher für Zaurus SL-5500

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sharp PDA Handbücher

Sharp

Sharp Zaurus SL-5500 Bedienungsanleitung

Sharp

Sharp Zaurus SL-5500 Benutzerhandbuch

Sharp

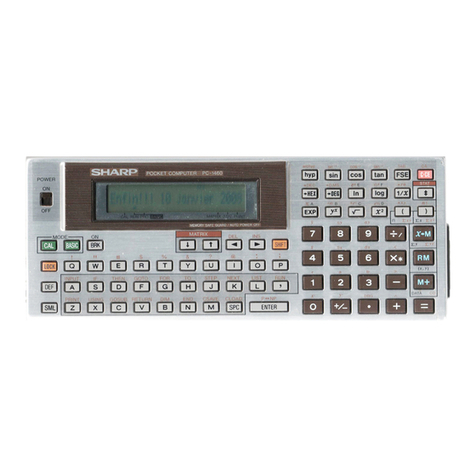

Sharp PC-1460 Bedienungsanleitung
