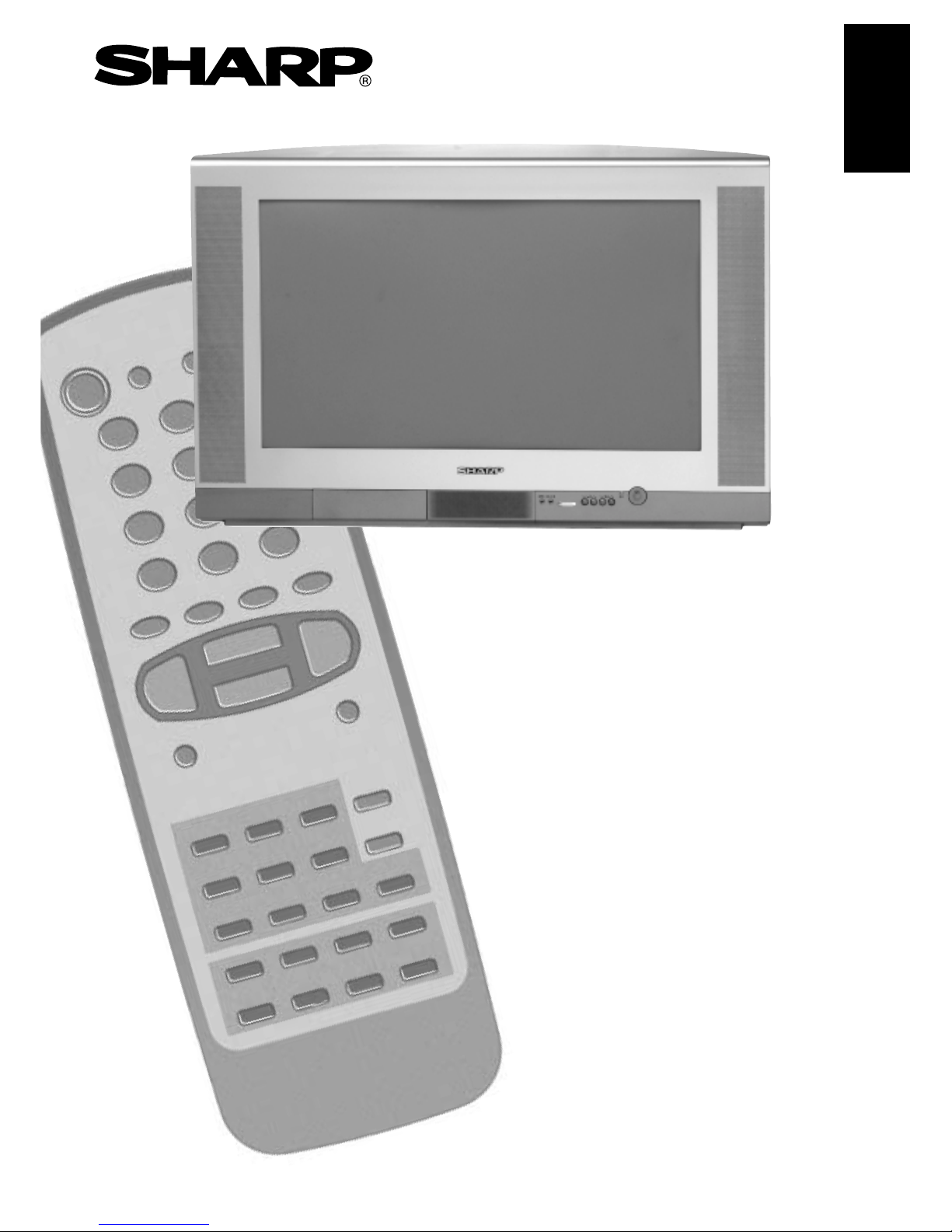

COLOUR TELEVISION

OPERATION MANUAL

28HW-57E

32HW-57E

ENGLISH

Contents

Since 1924, «SHARP» consumer electronic products have established a world-wide reputation for unsurpassed quality

and precision manufacturing techniques.

Your new SHARP Colour TV uses the very latest electronic circuitry and engineering advancements for the best possi-

ble performance. Given proper care, your new TV will provide many years of entertaining for the entire family.

Please read the following instructions before operating this set.

Dear SHARP Customers

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC

Safety precaution

Caution

The 5 cm in the drawing

indicates the minimum

ventilation distance.

CAUTION

Make sure that the

power is switched

off when going out.

Safety precaution ..................................................... ........1

Caution .............................................................. ...............1

Accessories .............................................................. ........2

Remote Control Battery Installation .......................... .......2

Antenna Connections .......................................................2

Controls & Terminals ................................................ ........5

Auto Installation ................................................................6

Switching on .....................................................................8

Menu Structures ...............................................................9

TV Operation (Channel Selection) ........................... .......11

Picture Adjustments ................................................. ......12

Wide Mode Fast Menu ................................................. ..14

100Hz Fast Menu ..................................................... ......16

Audio Adjustments ................................................... ......17

Sound Setting Mode ................................................. .....18

Features Setting Mode (ON/OFF Timer) .................. ......21

Child lock (Protection) .............................................. ......23

TV Channel Setting .........................................................26

Other features .......................................................... ......30

Teletext Mode..................................................................34

21-pin Euro-SCART and 21-pin Audio/Video ........... .....38

Typical connections .................................................. .....39

Troubleshooting ........................................................ .....41

General Specifications for Television Receiver ........ ......42

Index................................................................................43

The tube of your TV has a special coating. Do not knock or rub on the

tube face with sharp or hard surfaces, otherwise you will damage the

coating!

To prevent damaging the surface of the television screen, remove fin-

ger prints only with a soft cloth dampened with glass cleaner. Do not

use any abrasive cleaners!

Do not use thinner, benzene or other strong chemical cleaners.

NOTE: •Remove batteries if weak or if the unit is not in use for long periods.

•Do not mix old and new batteries.

•Incorrect installation of the batteries may damage the remote control.

Quick reference Guide

Antenna connections - TV set only -

Supplied Accessories

Remote Control Battery Installation

Before using the TV set for the first time, install the supplied dry batteries in the remote control.

Remote control Operation Manual Type-AA Dry Batteries

1. With your thumb nail, pull up

the slit as indicated by the arrow

to remove the back cover.

2. Insert two batteries 1.5 V (Size

«AA»). Be sure to match the bat-

tery K/Lterminals with the

K/L marks inside the compart-

ment.

3. Replace the battery cover.

COLOUR TELEVISION

BAREVNÝ TELEVIZOR

SZĺNES TELEVĺZIÓ

KOLORWY TELEWIZOR

ЦBETHOŇ TEлEBN3OP

RECEPTOR DE TELEVIZIUNE ÎN CULORI

FAREBNÝ TELEVĺZOR

OPERATION MANUAL

NÁVOD K OBSLUZE

HAS ZN ÁL ATI U TAS ĺTÁ S

INSTRUKCJA OBSŁUGI

CБOPHиK иHCTPУKЦия

INSTRUC©IUNI DE UTILIZARE

NÁVOD NA OBSLUHU

28HW-57C

32HW-57C

ENGLISHČESKYMAGYARPOLSKI

SLOVENČINA

Mains Socket Outlet

AC 220~240 V-50Hz

ENGLISH

Antenna connections - VCR and TV -

Note:See on - Typical connection - (page 39) for details of further connection possibilities.

AV-1:Connector with AV LINK

BACK OF TV

BACK OF VCR

Aerial Cable

(Not supplied)

SCART-Lead

(Not supplied)

Antenna

(Not supplied)

Antenna lead

(Not supplied)

Antenna in Audio/Video

out

Mains Socket Outlet

AC 220~240 V, 50Hz

Mains Socket Outlet

AC 220~240 V, 50Hz

Remote control

TV 1. Stand-by ON/OFF switch (TV)

Videorecorder 2. Power ON / OFF switch (VCR)

TV 3. Digit buttons 0 ~ 9

4. Flashback button

Teletext 5. Colour button (green)

6. Colour button (red)

TV 7. Volume Down/Cursor control Left

8. Menu button

Teletext 9. Reveal button

10. List selector

11. Store button

12. Cancel button

13. Top/ Bottom/Full button

14. Reset button

Videorecorder 15. Rewind/picture search/reverse

16. Play button

17. Pause / Still button

18. Stop button

TV 19. TV / VIDEO selector

20. Call button

21. Single/Double entry

Teletext 22. Colour button (yellow)

23. Colour button (cyan)

TV 24. Channel Up/Cursor control Up

25. Volume Up/Cursor control Right

26. Channel Down/Cursor control Down

27. Wide Mode Selector

TV/Teletext 28. Time button

TV 29. Sound mode selector

Teletext 30. Hold button

TV 31. Sound Mute button

Teletext 32. Text/Mix/Picture button

33. Index button

Videorecorder 34. Channel Up selector

35. Fast forward/picture search/forward

36. Channel Down selector

37. Record button

1. 19.

23.

21.

24.

25.

26.

27.

28.

29.

30.

31.

32.

34.

37.

36.

35.

33.

22.

20.

10.

11.

12.

13.

15.

18.

17.

16.

14.

ENGLISH

HOW TO OPEN THE DOOR

Press the top of the door, opening it slightly.

hook your finger inside and pull open.

FRONT TV

1. Main Power On/Off Switch

2. Power Indicator

3. Remote Control Sensor

4. Volume Button (DOWN)

5. Volume Button (UP)

6. Program Selector (DOWN)

7. Program Selector (UP)

8. Door

Controls & Terminals

REAR TV

21-pin In/Out

1. 21-pin Audio/Video (AV-2) With

PAL/SECAM/NTSC Video Input

2. 21-pin Audio/Video (AV-1)

With PAL/SECAM/NTSC/S-Video

Input & AV LINK control signal

3. 21-pin Euro SCART (RGB) with

PAL/SECAM/NTSC Video Input

RF Input

4. Aerial terminal

24 5 678

10 11 12 13 9

Behind the door

9. Headphone Socket (3,5 mm ø, 16~600 ohms)

10. S-Video input terminal

11. Video input Terminal (PAL/SECAM/NTSC)

12. Audio Input Terminal (left)

13. Audio Input Terminal (right)

Auto Installation System

Your television set is provided with an Automatic Installation System which makes Installation easier.

This new system is activated when you turn on the TV for the first time.

Procedure:

1. Put batteries into the remote control and Connect the antenna jack in the antenna input terminal on the rear side of

your TV-set, same as indicated on -Quick reference Guide- (page 2/3).

If you have a SCART lead, do not fit at this time.

2. Connect the TV power cable to a 220 ~ 240 V system.

3. Press the main power button (I), on the right hand side of the TV set, to

start the “AUTO INSTALLATION”.

4. The red power indicator will light.

5. The “AUTO INSTALLATION” message will appear on your TV screen with a

list of the languages.

6. Press the RED button to select the language of the menus.

7. Press the BLUE button to confirm.

MThe TV is ready to preset automatically all local channels for you.

MIf the TV is being used with a VCR, turn on the VCR and play back a pre-

recorded tape.

8. Now, press any button on the TV remote control and follow the instructions

on the screen, to start Auto Channel Preset.

Automatic Channel Sorting System (ASS): The TV set SEARCHES FOR FRE-

QUENCIES, memorises the channels found, and sorts them (according to techni-

cal criteria) from Pr-01 of the TV, to a maximum of 99 programmes.

Note: This tuning process may take several minutes to perform.

If you need to repeat the “AUTO INSTALLATION”, read on

-TV Channel Setting- (page 26).

Stored programmes: When the TV has finished the automatic search, the

«Stored programmes» menu will appear on screen with a list of the channels

which have been memorised and a picture of the remote control with the avail-

able options:

a) CHANNEL UP/DOWN button: Select programme to be edited.

b) YELLOW button: Delete this programme.

c) GREEN button: Go to sorting mode.

d) RED button: Edit Name mode.

e) BLUE button: EXIT.

See more explanation on next page.

Note: It is advisable to use Pr 01, Pr 02, Pr 03 and Pr 04 for the most often used prgrames

with teletext and for those which contain their own programme information and information

on other channels in the Teletext pages.

For more explanation, please go on the section entitled TV-Guide.

Auto Installation

Automatic searching and sorting.

Press the menu button to cancel.

Stored programmes:

VCR

Power indicator

Main power button

ENGLISH

Stored programmes Menu

a) Select programme to be edited.

Use this option to select a programme from the list. Each time you press

or the memorised channel will be viewed and will remain

selected on the list by means of white background.

b) Delete this programme.

Use this option for cancelling programmes which are badly tuned or repeated.

b.1 Select the programme (Pr) you wish to delete using Cursor

UP/DOWN buttons / (marked with white background).

b.2 Press the YELLOW button to see the “Delete Menu”.

When the YELLOW button is pressed, the TV will ask for confirmation

that you wish to cancel, and you must press the YELLOW button again.

The channels that follow it on the list will automatically rearrange themselves

by moving up one programme (Pr) place, to restore the space of the cancelled

channel (CH).

c) Go to sorting mode

Use this option for sorting the channels (CH) into the desired programme (Pr),

as follows:

c.1 Select the programme (Pr) you wish to change using Cursor

UP/DOWN buttons / (marked with white background).

c.2 Press the GREEN button to see the “Sorting Menu”.

c.3 Press the Cursor UP/DOWN buttons / to move the

channel (CH) to the required position.

c.2 Press the GREEN button to finish.

d) Edit this programme

Use this option for giving a name made up of four digits to the channels or for

changing the one which appears on some channels, in the following way:

d.1 Select the channel using the Cursor UP/DOWN buttons /

d.2 Press the RED button to see the “Edit Menu”.

d.3 Press the Cursor UP/DOWN buttons / to change the first

letter. Letters A to Z of the alphabet, a blank space and the numbers 0 to 9

will appear sequentially. Some of the broadcasting stations names such as

ARD or WDR are already incorporated in the TV and appear among the

alphabet to make this task easier.

d.4 Press the button for changing the position of the cursor and the

/ buttons for changing the letters (repeat this action for other

letters).

d.5 When you have finished the fourth letter, press the button to quit the

“Edit Menu”option.

e) Exit

Use this option to quit the menu by pressing the BLUE button .

Stored programmes:

Stored programmes Menu

Delete Menu

Stored programmes:

Sorting Menu

Stored programmes:

Edit Menu

Blue back off timer

If noise appears in TV or VCR mode, the screen turns blue. The blue back off-timer is then engaged and will

automatically switch the set to Stand-by mode after 15 minutes.

Switching on

Power supply on/off button

Wen the main power button (I) is pressed ON, power indicator lights and

your TV set enters: In Stand-by mode or Program Mode. This TV memorizes

the Mode which has been memorized when it was switched OFF by main

power button.

On-Off/Stand-by button

When the TV is on Stand-by mode, to turn ON the TV press the Stand-by

button (BlTV) on the remote control, or one of the four buttons on the TV

(

/\, V

). The TV will change from Stand-by mode to Program

Mode, the sound indicator will light a few moments and an image will appear

on the screen. Press the Stand-by button (BlTV) again and the TV will

return to Stand-by mode.

Real Channel Number (terrestrial/cable TV Programmes)

Channel setting is mainly performed using the remote control. Please follow the instructions with the remote control in

hand.

Television broadcasting stations have channel numbers assigned to them (real channel numbers). You can assign your

own channel number to a real channel and store it in the programme preset memory.

CORRESPONDING REAL CHANNEL

L/L’

B/G

L /L’

B / G

L / L’

B / G

UHF

In Italy

In Holland

in Switzerland

F-2~F-4

F-5~F-10

E-2~E-4

E-5~E-12

A~H

I-1(A)~I-9(J)

F-21~F-69

E-21~E-69

I-21~I-69

B~Q

17~60

61~74

M1/S1~M10/S10

U1/S11~U10/S20

S-21~S-41

M-1~M-7

B-1~B-7

S’1/S21~S’5/S25

M1/S1~M10/S10

U-1/S-11~U-10/S-20

S-21~S 41

CH-02 ~CH-04

CH-05 ~CH-10

CH 02 ~CH-04

CH-05 ~CH-12

CH-13 ~CH-20

CH-01~CH-09

CH-21 ~CH-69

CC-01 ~CC-16

CC-17 ~CC-60

CC-61 ~CC-74

CC-01 ~CC-10

CC-11 ~CC-20

CC-21 ~CC-41

CC-42 ~CC-48

CC-49 ~CC-55

CH-75 ~CH-79

CC-01 ~CC-10

CC-11 ~CC-20

CC-21 ~CC-41

CC-42 ~CC-63

CC-64~CC-68

SYST. STATION SIGNALS SPECIALLY

AVAILABLE

REAL CHANNEL

NUMBER

Power indicator

Main power button

This TV set has: a MAIN MENU with four basic menus which permit

the entrance to the different functions of the TV, and a 100 Hz FAST

MENU with three functions.

These menus are figured out as indicated below.

MEMORIZE

ENGLISH

Menu Structures

By pressing the MENU button:

MENU Button


ADJUSTMENTS

(RED button) →

AUDIO

ADJUSTMENTS

(GREEN button) →

SET

OTHER

FUNCTIONS

(YELLOW button) →

INSTALL

AND

TUNE

(BLUE button) →

PICTURE MODE: Factory settings/ Cinema / Cinema plus / Soft /

Memorized / Sport / Rich / Films/ (Personal)

LEVELS: Contrast / Colour / Brightness / Sharpness

To memorize the “Personal”

levels in the “Memorized”

position of PICTURE MODE.

OSD contrast

Tint Control: Cool/Warm

NTSC Hue control

ECO mode: On / Off

Comb filter: On / Off

Noise reductor: Off / Auto /

Medium / High

Digital scan

D.Gamma

SVM:Off/Medium/High

ADVANCED 100 Hz

LEVELS NORM. EQUALIZER STEREO

Automatic volume correction: Short / Middle / Long / Off.

Current time / Programmed switch on

Off timer status / Help

AUDIO MODE: Bypass./ Spatial expander

SPEAKER LEVELS: Volume /

Balance / Loudness mode

HEADPHONES LEVELS: Volume/

Balance / Loudness mode / Bass

/ Treble

EXTERNAL LEVELS: SCART

volume / AV volume

Type of protection: NONE

ALWAYS, TIMER /

Start/ End

Language of the menus.

Country

Auto Channel Preset

Sorting mode

Delete programme

Edit programme

System

Erase all the

adjustments to

the CHILD-LOCK

function

Normal/

Only

autoinstallation

Programme

Type of protection: NONE,

ALWAYS, AUTO (VPS), TIMER

Start / End

Normalize

audio

levels to

default

factory

setting

Personal / Classic /

Jazz / Pop /

In concert/ Sport.

100 Hz / 330 Hz /

1KHz / 3.3 KHz /

10 KHz

Speakers matrix / Headphones

matrix / AV Matrix / Identificatión

CHILD LOCK

LOCK ALL LOCK PROGRAMME CLEAR LOCK

DEMO

SECRET NUMBER

Programme:

Channel number : (Real Channel)

Mode: TV / VCR / SKIP

Channel type: Aerial / Cable

Search (Frequency Tuning)

Fine tune

INSTALLATION EDIT

MENU FUNCTIONS

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sharp Fernseher Handbücher

Sharp

Sharp LC-13S1H Bedienungsanleitung

Sharp

Sharp CX68K5 Bedienungsanleitung

Sharp

Sharp 70AS-03S Bedienungsanleitung

Sharp

Sharp LC-37D40U Bedienungsanleitung

Sharp

Sharp 29K-F200A Bedienungsanleitung

Sharp

Sharp 21HF2-SS Bedienungsanleitung

Sharp

Sharp AQUOS LC-40LE820UN Bedienungsanleitung

Sharp

Sharp 14VT10X1 Bedienungsanleitung

Sharp

Sharp Aquos LC-65UB30U Bedienungsanleitung

Sharp

Sharp 27F541 XFlat Bedienungsanleitung

Sharp

Sharp 14D1-S Bedienungsanleitung

Sharp

Sharp 32R-S60 Bedienungsanleitung

Sharp

Sharp 21M-FG1L Bedienungsanleitung

Sharp

Sharp LC-43P3000U+ Bedienungsanleitung

Sharp

Sharp Aquos LC-32LE600E Bedienungsanleitung

Sharp

Sharp AQUOS XU Series LC-70XU830X Bedienungsanleitung

Sharp

Sharp Aquos LC-52D82U Bedienungsanleitung

Sharp

Sharp 34N-WF5H Bedienungsanleitung

Sharp

Sharp LC-20SH3H Bedienungsanleitung

Sharp

Sharp 21R2BK Bedienungsanleitung

Sharp

Sharp LC-13S2U, LC-15S2U, LC-20S2U Bedienungsanleitung

Sharp

Sharp 25N21-D1 Bedienungsanleitung

Sharp

Sharp 32C241 Bedienungsanleitung

Sharp

Sharp LC-32LE630E Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
