SERVICE MANUAL
No. S38H1LC65SE94
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
TopPage
LC-65SE94U
LC-65SE94U
LCD COLOR TELEVISION
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its orig-
inal condition and only parts identical to those specified should be used.
In this Service Manual, only parts in the LCD module are shown. For the other points, refer to the LC-65SE94U
(SX7A6LC65SE94) Service Manual.
OUTLINE
SUPPLEMENT
MODEL
LC-65SE94U
i
LC-65SE94U Service Manual
OUTLINE AND ADJUSTMENT
[1] Outline
In this Service Manual, only parts in the LCD module are shown. For the other points, refer to the LC-65SE94U (SX7A6LC65SE94) Service Manual.
[2] Adjustment
When replacing the LCD control PCB, follow these steps to adjust VCOM and LUMA.
[VCOM]
1) Enter the adjustment process mode.
2) Select the item [VCOM ADJ] on the page 8/36 using the CH ( )/( ) keys on the remote controller.
3) Press the Enter key to check that the adjustment pattern is displayed.
4) Adjust the flicker in the middle of the screen to minimum using the VOL (+)/(-) keys on the remote controller.
5) Press the Enter key to turn off the pattern.
6) To exit the adjustment process mode after the adjustment is done, unplug the AC cord from the outlet to make a forced shutdown. (When the
power was turned off with the remote controller, once unplug the AC cord and plug it again. In this case, wait 10 seconds or so before plugging.)
[LUMA]
1) Enter the adjustment process mode.
2) Select the item [LCD LUMA ADJ] on the page 8/36 using the CH ( )/( ) keys on the remote controller.
3) Press the Enter key to check that the adjustment pattern is displayed.
4) Adjust the luminance gap in the middle of the screen to minimum using the VOL (+)/(-) keys on the remote controller.
5) Press the Enter key to turn off the pattern.
6) To exit the adjustment process mode after the adjustment is done, unplug the AC cord from the outlet to make a forced shutdown. (When the
power was turned off with the remote controller, once unplug the AC cord and plug it again. In this case, wait 10 seconds or so before plugging.)
CAUTION: Use due care in handling the information described here lest your users should know how to enter the adjustment process mode.
If the settings are tampered in this mode, unrecoverable system damage may result.
(3) Current selected input
(2) Current page title
(4) Current color system
(1) Current page/ (5) Destination (6) LCD Panel size/Speaker type
Total pages
1/36 [INFO] INPUT5 AUTO USA 65_UNDER
MAIN Version 1.09 (U 2007/07/19 2 A)
BOOT Version SE94 1.01
Monitor/Monitor BOOT Version
1.02
LCD Con Version 1.00
EQ DATA CHECKSUM ROM
(8) Parameters
TEMPERATURE 7B
LAMP ERROR 0
MONITOR ERR CAUSE 0
NORMAL STANDBY CAUSE
0
ERROR STANDBY CAUSE 1) 0 2) 0 3) 0
0H 0M 0H 0M 0H 0M
4) 0 5) 0
0H 0M 0H 0M
(7) Adjustment
process menu
header
Example of display
PARTS GUIDE
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and performance of the set.
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
LC-65SE94U
PartsGuide
[1] LCD MODULE Assembly
CONTENTS
No. S38H1LC65SE94
LC-65SE94U
LCD COLOR TELEVISION
MODEL
LC-65SE94U
2

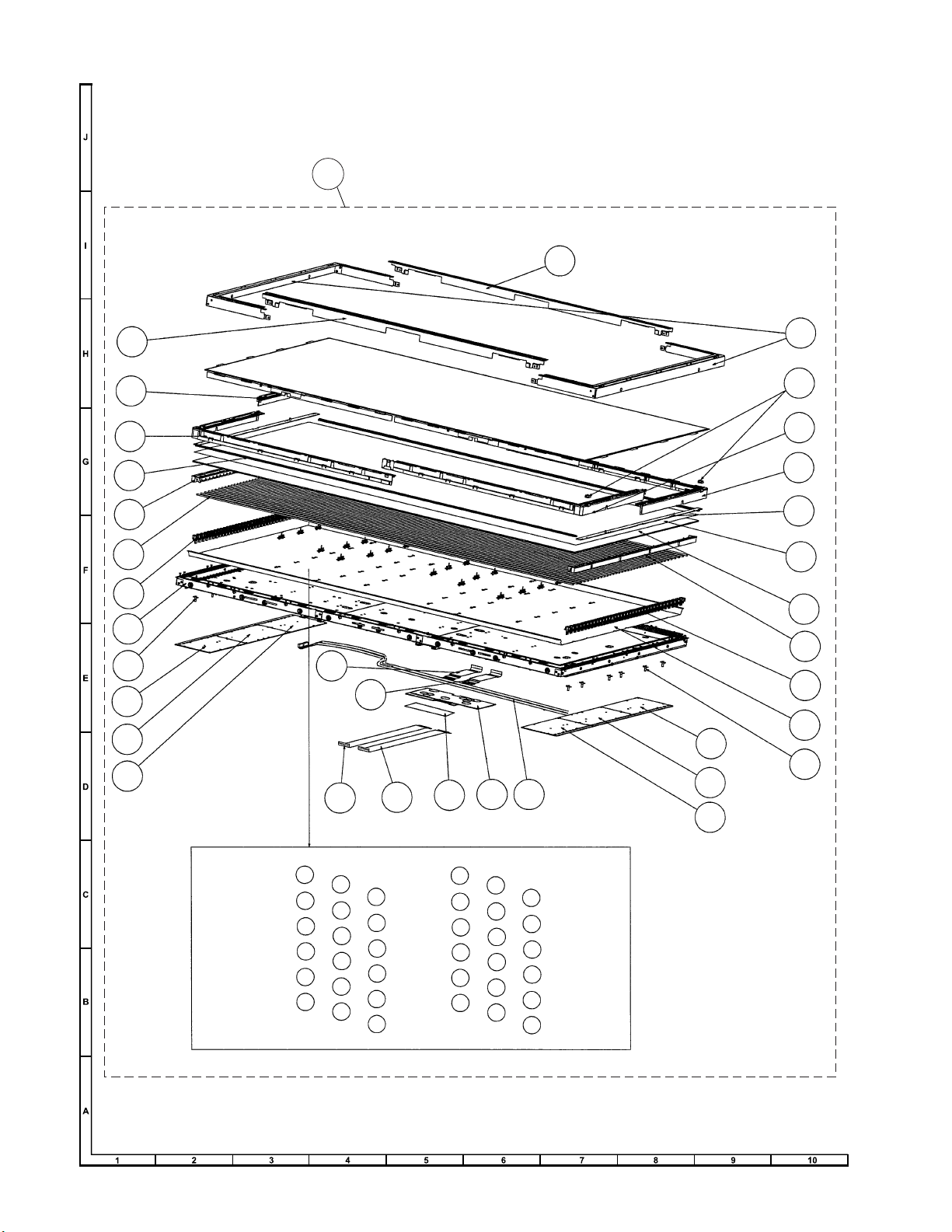

[1] LCD MODULE Assembly
1
3
2
4
9
5
7
6
8
11
10
12
13
14
14
15
16
16
23
25
26
27
28
32
33
34
37
24
25
29
30
31
22 21
21
18
18
17
17
19
17
17
17
20
20
17
19
17
17
22
22 21
21
18
18
17
17
19
17
17
17
20
20
17
19
17
17
22
TOP VIEW
Lamp Clip Correspondence chart
36
35
38
LC-65SE94U
3
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[1] LCD MODULE Assembly
1R1LK645D3LZ70Z ** J LCD Module Ass'y
2CANGK4045TP04 BA N J Bezel Ass'y (Top)
3CANGK4045TP05 BA N J Bezel Ass'y (Bottom)
4CANGK4044TP02 BE N J Bezel Ass'y (L, R), x2
5CGiDM0004TP01 AE J Panel Guide Ass'y, x2
6CHLDZ3789TP01 AW J Panel Chassis Ass'y (Top-L)
7CHLDZ3790TP01 AW J Panel Chassis Ass'y (Top-R)
8CHLDZ3790TP02 AW J Panel Chassis Ass'y (Bottom-L)
9CHLDZ3789TP02 AW J Panel Chassis Ass'y (Bottom-R)
10 CFiX-0001TP02 AN N J Sheet suppression Angle (Top, Bottom), x2
11 CFiX-0002TP03 AX N J Sheet suppression Angle (L, R), x2
12 PSHEPA677WJZZ CM N J DBEF Sheet
13 PSHEPA565WJZZ CK J Diffusion Panel
14 LHLDZ3762TPZZ AR J Lamp Holder, x2
15 RLMPLA018WJN1 AX N J Lamp Unit, x36
16 QSOCFA002WJZZ AD J Socket, x72
17 LHLDZ3769TPZZ AC J Lamp Clip A, x16
18 LHLDZ3770TPZZ AC J Lamp Clip B, x4
19 LHLDZ3771TPZZ AC J Lamp Clip C, x4
20 LHLDZ3772TPZZ AC J Lamp Clip D, x4
21 LHLDZ3773TPZZ AC J Lamp Clip E, x4
22 LHLDZ3774TPZZ AC J Lamp Clip F, x4
23 PMiR-A165WJZZ BK J Reflected Sheet
24 Not Available - - BL Chassis Ass'y
25 LHLDZA885WJKZ AC J INVERTER Spacer, x12
26 RUNTKA400WJZZ BR J INVERTER Unit A
27 RUNTKA401WJZZ BN J INVERTER Unit B
28 RUNTKA402WJZZ BR J INVERTER Unit C
29 RUNTKA403WJZZ BR J INVERTER Unit D
30 RUNTKA404WJZZ BT J INVERTER Unit E
31 RUNTKA405WJZZ BR J INVERTER Unit F
32 QCNW-G129WJQZ AU J Harness
33 CPWBY3952TPXB CK J LCD CONTROL Unit
34 PRDARA530WJFW AL N J LCD CONTROL Unit Heat Sink Bottom
35 QPWBM0622TPZZ AP N J FPC (Top)
36 QPWBM0623TPZZ AP N J FPC (Top)
37 QPWBM0624TPZZ AY N J FPC (Bottom)
38 QPWBM0625TPZZ AY N J FPC (Bottom)
-PCOVPA096WJKZ AK N J GKB Cover-1, x2
-PCOVPA097WJKZ AH N J GKB Cover-2, x2
-PCOVPA098WJKZ AK N J GKB Cover-3, x2
-LX-LZA105WJZZ AB J Rivet, x8
-PCLiCA004WJKZ AC J Rivet, x6
-LX-BZA207WJF7 AA J Screw, x30 (for INVERTER Unit, LCD CONTROL Unit)
-XBPS730P16000 AA J Screw, x10 (For Lamp Holder)
-LX-BZ2146TPZZ AB J Screw, x8 (for Sheet suppression Angle-LR)
-LX-BZA213WJF7 AA J Screw, x26 (for Bezel, BL Chassis)
-LX-HZ2066TPZZ AC J Screw, x28 (for Panel Guide, Bezel, Panel Chassis)
LC-65SE94U
COPYRIGHT © 2008 BY SHARP CORPORATION
ALL RIGHTS RESERVED.
No Part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any from or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.
SHARP CORPORATION
AV Systems Group
CS Promotion Center
Yaita,Tochigi 329-2193, Japan
Jun. 2008
TQ2527-S YK. DS
