MEAT GRINDER

INSTRUCTIONS MANUAL

6 Safety System

The Meat Grinders have been equipped with a safety system approved by

Brazilian ABNT NBR 13767:2002 Norm, in order to avoid the grinder operation

when the Pan is taken away.

SIEMSEN has developed a system to at the same time obey the Norm

and allow an easy operation of the machine.

In case the Pan is taken away the ON/OFF Switch will not be able to switch ON

the machine.

To allow the machine to operate again, it will be necessary to replace and

to fit the Pan on its due place, to restore the machine.

To withdraw the Pan, ALWAYS WITH THE ON/OFF SWITCH TURNED

OFF, just lift the front part of the Pan (Nº01), from inside the Head and drag it

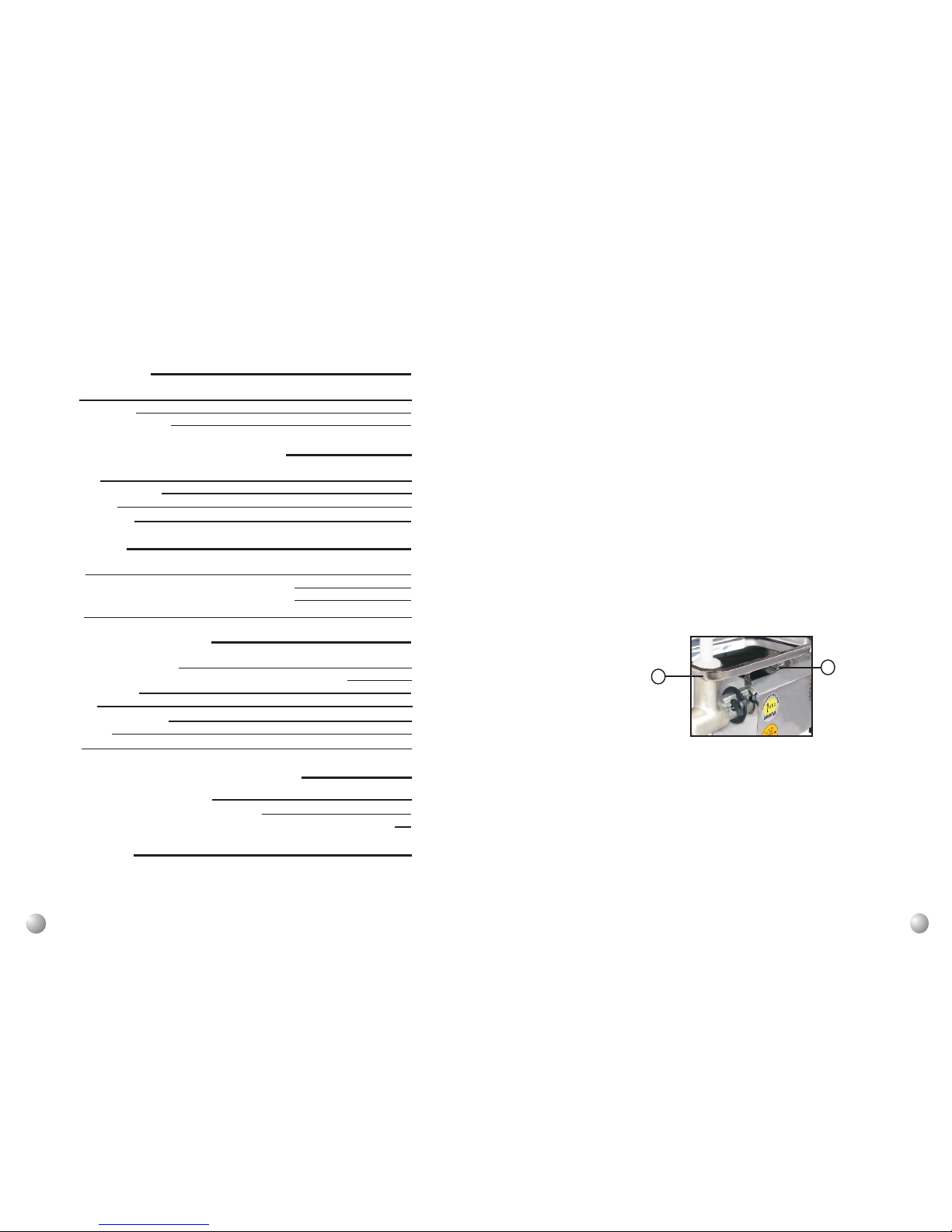

rearwards. The ON/OFF Switch will remain out of use (see picture below)

To replace the Pan, ALWAYS KEEPING THE ON/OFF SWITCH TURNED

OFF, just place the Pan support onto the activating pin, drag the Pan forward and

introduce the pan exit hole inside the Head throat.

When withdrawing or replacing the Pan, it is important to watch how the

Pan is fitted into the Head throat, as well as the fitting of the Pan Support Nº02 on

the Motor Housing (see picture below).

SUMMARY

1. INTRODUCTION

1.1 Safety

1.2 Main Components

1.3 Technical Characteristics

2. INSTALLATION and PRE OPERATION

2.1 Installation

2.2 Correct Worm Rotation

2.3 Pre Operation

2.4 Feeding Process

3. OPERATION

3.1 Starting

3.2 Head Internal Components Assembling -HEAD98

3.3 Head Internal Components Assembling -HEAD 22

3.4 Clening

4 GENERAL SAFETY RULES

4.1 Basic Operation Practices

4.2 Safety Procedures and Notes Before Switching Machine ON

4.3 Routine Inspection

4.4 Operation

4.5 After Finishing the Work

4.6 Maintenance

4.7 Advices

5 PROBLEMS ANALYSIS and SOLUTIONS

5.1 Problems, Causes and Solutions

5.2 Adjustment and Components Replacement

5.3 Electric Diagram Mod.PSEE-22HD, PSEE-98MHD and PSEE-98THD

6 Safety System

5.2 Components Adjustment and Replacement

5.2.1 Plate and knife sharpening

Well-sharpened plates and knife will make machine to work with less effort and

consequently all components will last longer. Therefore call your nearest technical

assistant to sharpen plates and knife periodically.

5.2.2 Gear Box

The Meat Grinders models PSEE-22HD, PSEE-98MHD and PSEE-98THD have

gear box lubricated with oil.

To keep your machine in good conditions for a long time check oil level at every

5.000 hours of use. Take your machine to the nearest technical assistant to do this job.

Use 250 ml of oil each time you need to refill gear box. The following oils are

recommended: SAE140, APIGL-4 or ANP1006.

ON/OFF SWITCH

110/220 SELECTOR SWITCH

Mod. PSEE-98THD

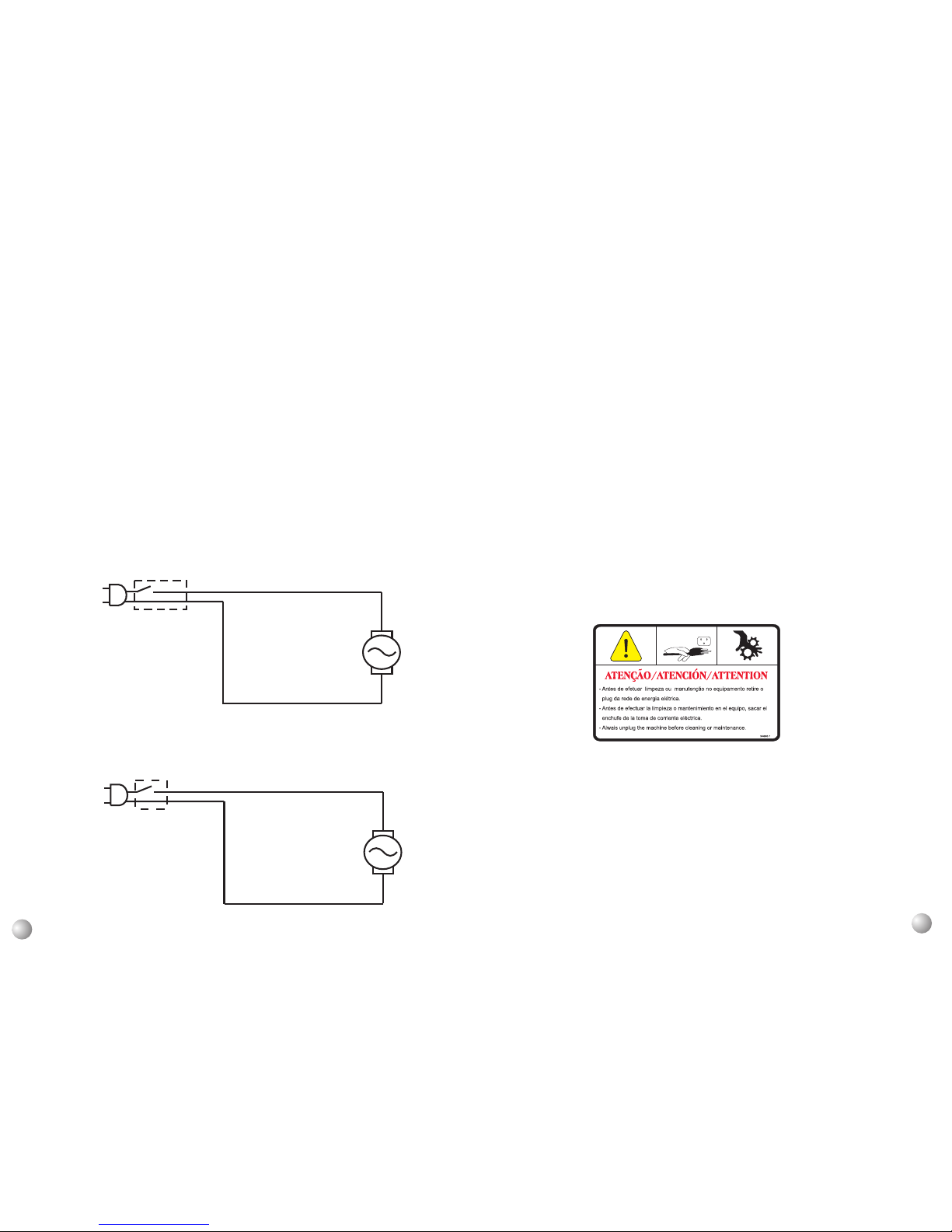

5.3 Electric Diagram PSEE-22HD, PSEE-98MHD and PSEE-98THD

Mod. PSEE-22HD and PSEE-98MHD

110/220 SELECTOR SWITCH

ON/OFF SWITCH

110/220 SELECTOR SWITCH

1. Introduction

1.1 Safety

When not properly used the Meat Grinders Models PSEE- 22 HD , PSEE-98

MHD and PSEE-98 THD can be potentially DANGEROUS. Servicing, cleaning or any

other operation shall be made by trained people.

The following instructions must be observed in order to avoid accidents:

1.1.1 Always unplug the machine when cleaning, servicing or when any other

operation is needed.

1.1.2 Never use tools that do not belong to the machine during operation.

1.1.3 Before switching the machine on check if the Head Nº06 (Pic.01) is firm in

its position, if all its internal components are assembled as well as if the Pan Nº02

(Pic.01) is duly fitted .

1.1.4 Never spray water directly at the machine.

1.1.5 Never use loosen clothes specially shirts with loosen sleeves during

operation.

1.1.6 Never put your fingers or any other object but the Stumper Nº01 (Pic.01)

inside feeding throat.

1.1.7 Keep hands off turning parts.

1.1.8 Never switch the machine on with wet clothes or wet shoes.

1.1.9 Before using the machine make use it is properly grounded.

1.2 Main Components:

All components are made with carefully selected materials, in accordance with

Siemsen experience and standard testing procedures.

The Head Nº01 (Pic.02) and the Worm Nº03 (Pic.02) receive a superficial

treatment to isolate and facilitate cleaning.

Knife and discs are made of hardened material to provide a long life cutting quality.

* The worm stops during

operation.

* Lack of power.

* Problem in the internal or

extenal electric circuit of the

machine.

* Check if machine is

plugged in and if there is

power at power supply

source.

* The processed meat comes

uot smashed.

* One of the head internal

components is missing or they

are assembled incorrectly.

* Plate or knife unsharpened. * Consul item 5.2.1 in this

manual.

* Check the correct

assembling order according

to picture-02.Or picture-03.

* Worn uot or broken gears.

* Call technical assistance.

* Burn smell and/or smoke.

* The machine starts but head

internal components take

some to start turning.

* Abnormal noises.

* Oil leaking .

* Motor or other electrical part

with problem.

* Motor capacitor damage.

* Head internal components

out of plase.

* Damaged sealing system.

* Gears faulty adjusted.

* Assemble head internal

components correctly, see

Pic.02 or Pic.03.

Problemas Causas Soluções

* Call technical assistance.

TABLE-02

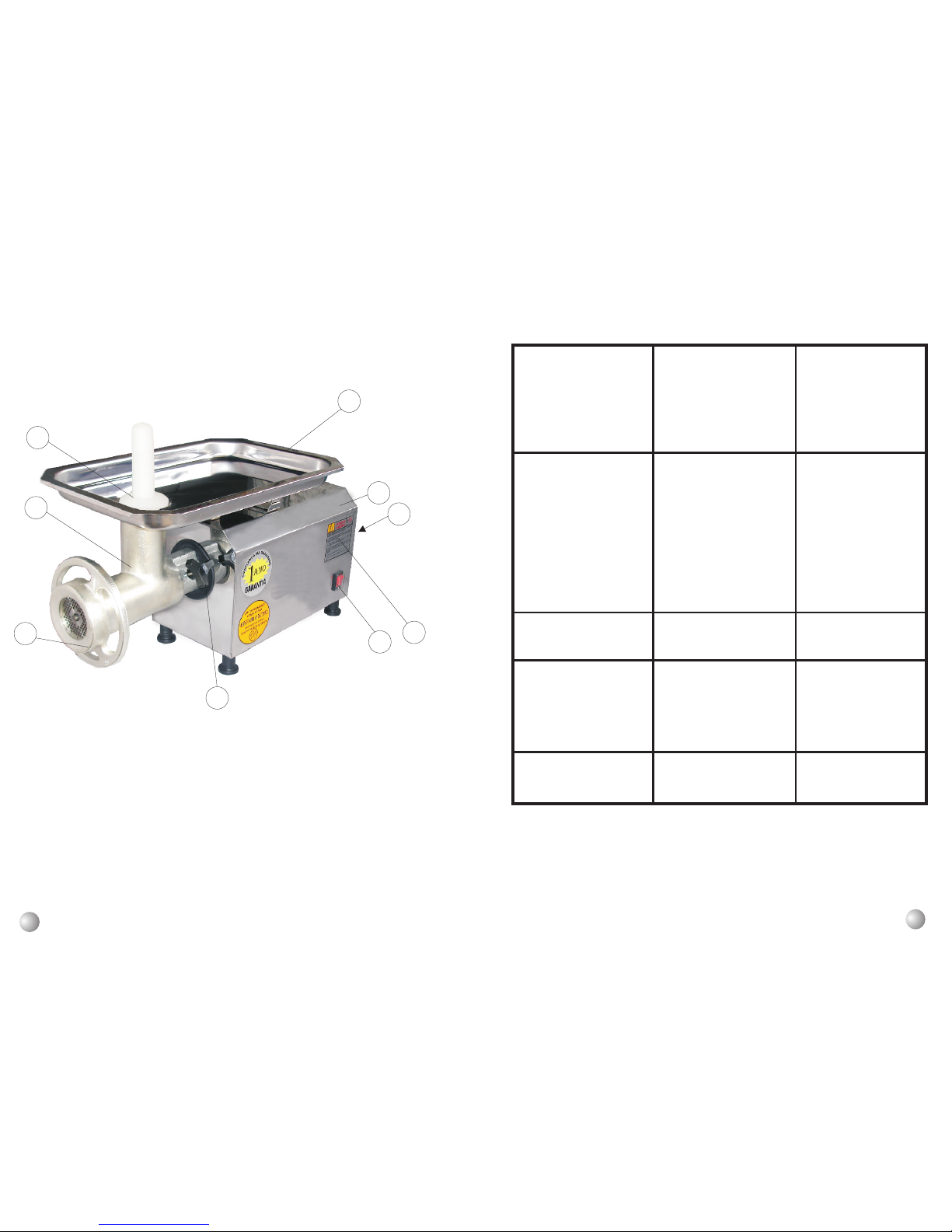

Picture - 01

01 - Stumper

02 - Pan

03 - Motor Housing

04 - Caution Label

05 - Locking Ring

06 - Head

07 - ON/OFF Switch

08 - Handle

09 - Voltage selector Switch( only

for meat grinders equipped with

three phase motors, model PSEEE-

98THD)

4.5 After Finishing The Work

4.5.1 Precautions

Always TURN THE MACHINE OFF by removing the plug from the socket before

cleaning the machine. Never clean the machine unless it has come to a complete stop.

Put all components back to their functional positions before turning it ON again. Check

level of oil. DO NOT place your fingers in between belts and pulleys nor chains and

gears.

4.6 Maintenance

4.6.1 Danger

Any maintenance with the machine in working situation is dangerous. TURN IT

OFF BY PULLING THE PLUG OFF THE SOCKET DURING MAINTENANCE.

IMPORTANT

Always unplug the machine when emergency cases arise.

4.7 Advice

Electrical or mechanical maintenance must be done by qualified personal for

such operation.

Person in charge has to be sure that the machine is under TOTAL SAFETY

conditions when working.

5 Analysis and Problems Solving

5.1 Problem, causes and solutions

The Meat Grinders were designed to operate with the need of minimum

maintenance but the natural wearing caused by longer use of the equipment may

occasionally cause some malfunctions.

If such problem occurs with your Meat Grinder refer to Table 02 in which the

most common situations are listed with recommended solutions.

1.3 Technical Characteristics

Table - 01

Avorage Production

Voltage (**)

Power Rating

[kg/h] 450 450

110 ou 220

220 ou 380

50 ou 60 (*)

2,2 2,2

440 550

350 330

700 850

42,5 58

44 73

3 3

[V]

[Hz]

[CV]

[kW/h]

[mm]

[kg]

Frecuency(*)

Consumption

Height

Width

Depth

Net Weight

Gross Weight

Characterstics Unidade PSEE-98MHD PSEE-98THD

300

110 ou 220

50 ou 60 (*)

1,5

410

315

650

33,5

PSEE-22HD

(*) Frequency will be only one, indicated on motor characteristics label.

(**) Voltage will be only one when motor is single phase .

2. Installation and Pre Operation

2.1 Installation

The Meat Grinder must be installed onto a leveled and stable surface, preferably

850mm high from floor.

Meat Grinders model PSEE-22HD and PSEE 98MHD, equipped with single

phase motors do not have a Voltage Selector Switch , therefore check the network

voltage before to plug in the machine . The voltage of the network shall be the same as

the voltage of the machine, 110 or 220 V .

Meat Grinders model PSEE 98THD equipped with a three phase motor have a

Voltage Selector Switch No. 09 (Pic.01) , therefore check the network voltage before to

plug in the machine , and , using the Voltage Selector Switch placed at the rear side of

the machine move it to adjust its voltage to the network , 220 or 380 V .

I t is mandatory the Meat Grinders to be grounded . Single phase and three phase

machine cords have a green grounding wire .

2.2 Correct Worm Rotation

Important

It is very important to have the worm right rotation inside the head , it shall be

anticlockwise .

When starting the model PSEE-98THD three phase machine check the worm

rotation inside the head .

If the worm rotation is found to be clockwise, invert the position of two wires

inside the plug , and the rotation will turn ANTICLOCKWISE.

On the side of the machine a label is stuck to warn the operator when installing the

machine .

4.2.1 Danger

An electric cable or electric wire with damaged jacket or bad insulation

could cause electrical shocks as well as electrical leak. Before use, check

conditions of all wires and cables.

4.2.2 Advices

Be sure ALL INSTRUCTIONS in this manual have been thoroughly

understood. Every function and operational procedure have to be very clear to

the operator. Contact your nearest Dealer for further questions.

Any manual command (switch, button or lever) shall be given only after

being sure it is the correct one.

4.2.3 Precautions

The electric cable has to be compatible with the power required by the

machine. Cables touching the floor or close to the machine need to be protected

against short circuits.

Oil reservoir has to be full up to the required level as indicated. Check

level and add oil if necessary.

4.3 Routine Inspection

4.3.1 Advice

When checking the tension of the belts or chains, DO NOT introduce your

fingers between the belts and the pulleys and nor between the chain and the

gears.

4.3.2 Precautions

Check if motors and sliding or turning parts of the machine produce

abnormal noises.

Check the tension of the belts and chains and replace the set when belt or

chain show signs of being worn out.

When checking tensions of belts or chain DO NOT introduce your fingers

between belts and pulleys, nor between the chains and gears.

Check protections and safety devices to make sure they are working

properly.

4.4 Operation

4.4.1 Advice

Be sure your hair is not loose in order to avoid getting caught by turning

parts which could lead to a serious accident. Tie your hair well up and/or cover

your head with a scarf.

The operation performed by not trained or skilled personnel shall be

forbidden.

Never touch turning parts with your hands or in any other way.

NEVER operate machine without all original safety devices under perfect

2.3 Pre Operation

First of all check if the machine is firm in its position. Before operation all

parts that get in contact with food must be washed with running water and neutral

soap. For doing that follow the below steps:

2.3.1 Remove the Stumper Nº01 (Pic.01) and the Pan Nº02 (Pic.01).

2.3.2 Remove the Locking Ring Nº05 (Pic.01) and then pull out of the

Head No 06 (Pic.01) all the internal components.

2.3.3 Wash the internal components and replace them inside the Head .

IMPORTANT

Do not tighten the Locking Ring too much , to avoid the internal components

to brake or being stuck .

2.4 Feeding Process

IMPORTANT

Under no circumstances do use any kind of tool to push the meat inside the

head, mainly not your hands . Only use the Stumper No.01 (Pict.01) .

The meat processing inside the head will cool and lubricate the head

internal components . Therefore do not allow the machine to run empty,

because other way it will heat to much and will damage those components .

IMPORTANT

Do not store the head with meat inside , intoreezing chambers ..

The meat grinders models PSEE-22HD, PSEE- 98MHD and PSEE-98THD

are high speed machines , therefore the have to be fed fast .

To feed them place the meat pieces on the Pan No.02 (PIC.01) and drive

them with the hand only as far as the pan mouth , then using the Stumper No.01

(PIC.01) push them inside where they will be drawn by the Worm .

3. Operation

3.1 Starting

IMPORTANT

Switch the machine OFF any time the head must be removed. Do not let on

the pan any tool , as knives hooks or other . The machine works silently .

4.1 Basic Operation Practices

4.1.1 Dangerous parts

Some parts of the electric devices are connected to high voltage points.

These parts when touched may cause severe electrical shocks or even be fatal.

Never touch commands such as buttons, switches and knobs with wet hands ,

wet clothes and/or shoes. By not following these instructions operator could be exposed

to severe electrical shocks or even to a fatal situation.

4.1.2 Warnings

The operator has to be well familiar with the position of ON/OFF Switch to make

sure the Switch is easy to be reached when necessary. Before any kind of maintenance,

physically remove plug from the socket.

Provide space for a comfortable operation thus avoiding accidents.

Water or oil spilled on the floor will turn it slippery and dangerous. Make sure

the floor is clean and dry.

Before giving any manual command (switch, buttons, turn keys or lever) be sure

the command is the correct one. Check this manual for further details if necessary.

Never use a manual command (switch, buttons, lever) unadvisedly.

If any work is to be made by two or more persons, coordination signs will have to be

given for each operation step. Every step of the operation shall be taken only if the sign

has been made and responded.

4.1.3 Advices

In case of power shortage, immediately turn the machine OFF.

Use recommended or equivalent lubricants, oils or greases.

Avoid mechanical shocks as they may cause failures or malfunction.

Avoid penetration of water, dirt or dust into mechanical or electrical components

of the machine.

DO NOT modify original characteristics of the machine.

DO NOT remove, tear off or maculate any labels stuck on the machine. If any

label has been removed or is no longer legible, contact your nearest dealer for

replacement.

READ CAREFULLY AND WITH ATTENTION THE SAFETY OR OPERATION

INSTRUCTIONS LABELS DISPLAYED ON THE MACHINE, AS WELL AS THE

INSTRUCTION MANUAL AND THE TECHNICAL CHARACTERISTICS WRITTEN

INSIDE.

4.2 Safety Procedures and Notes Before Switching Machine ON

IMPORTANT

Carefully read ALL INSTRUCTIONS of this manual before turning the machine ON.

Be sure to be familiar with the instructions and that you have well understood all

information contained in this manual. If you have any question contact your

supervisor or your nearest Dealer.

Be assured the internal components of the machine are correctly assembled , as

shown by Pict. 02 or Pict. 03..

To start the machine pull the ON/OF Switch button , on the right side of the motor

housing

3.2 Head Internal Components Assembling , using two plates and

one double cutting knife ONLY APPLICABLE TO HEAD 98 .

IMPORTANT

Note the correct position of each Head internal component. Assembling the

components in a different order could cause serious damages to the Meat Grinder.

To assemble the head internal components follow the below sequence:

Picture - 02

01- Head

02- Fiber Washer

03- Worm

04- Worm Pin

05- Pre Cutting Plate

06- Double Cutting Knife

07- Cutting Plate ( 5 mm or 8 mm )

08- Locking Ring

To disassemble follow the inverse sequence.

IMPORTANT

Do not tighten the Locking Ring too much , to avoid the internal components to

brake or being stuck .

3.3 Head Internal Components Assembling to Grind Meat , using one

plate and one knife ONLY APPLICABLE TO HEAD 22 .

IMPORTANT

Note the correct position of each Head internal component. Assembling the

components in a different order could cause serious damages to the Meat Grinder.

4. General Safety Practices

The safety rules were made to orient and to instruct users of the band

saw, and the peaple who will be responsible for its maintenance.

The band saw shall only be delivered to the user in good use conditions,

and the user shall be instructed by the dealer, obout how to use safely the band

saw.

The user shall only operate the band saw after complete knowledgement

of the cares to be taken,after reading carefully the present instruction manual.

To assemble the head internal components follow the below sequence

Picture - 03

01- Head

02- Fiber Washer

03- Worm

04- Worm Pin

05- Cutting Knife

06- Cutting Plate ( 5 mm or 8 mm )

07- Locking Ring

To disassemble follow the inverse sequence.

IMPORTANT

Do not tighten the Locking Ring too much , to avoid the internal components to

brake or being stuck .

3.4 Cleaning

To do cleaning proceed as follows:

3.4.1 Switch the machine off and unplug the machine from power supply

source.

3.4.2 Remove the Locking Ring Nº08 (Pic.02) or No.07 (Pic. 03) and all the

Head internal components.

3.4.3 Loosen the handle located on the right side of the Head Nº08 (Pic.01)

to remove the Head No 06 (Pic 01) .

3.4.4 Wash all components with running warm water and neutral soap.

3.4.5 To assemble the Head follow the above sequence inversely.

IMPORTANT

If any item from the GENERAL SAFETY NOTIONS section is not applicable

to your product, please disregard it.

3.4.6 Cautions with Stainless Steel:

The Stainless Steel may present rust signs, which ARE ALWAYS CAUSED

BY EXTERNAL AGENTS, especially when the cleaning or sanitization is not

constant and appropriate.

The Stainless Steel resistance towards corrosion is mainly due to the

presence of chrome, which in contact with oxygen allows the formation of a very

thin protective coat. This protective coat is formed through the whole surface of the

steel, blocking the action of external corrosive agents.

When the protective coat is broken, the corrosion process begins, being

possible to avoid it by means of constant and adequate cleaning.

Cleaning must always be done immediately after using the equipment. For

such end, use water, neutral soap or detergent, and clean the equipment with a soft

cloth or a nylon sponge. Then rinse it with plain running water, and dry immediately

with a soft cloth, this way avoiding humidity on surfaces and especially on gaps.

The rinsing and drying processes are extremely important to prevent stains and

corrosion from arising.

IMPORTANT

Acid solutions, salty solutions, disinfectants and some sterilizing solutions

(hypochlorites, tetravalent ammonia salts, iodine compounds, nitric acid

and others), must be AVOIDED, once it cannot remain for long in contact

with the stainless steel:

These substances attack the stainless steel due to the CHLORINE on its

composition, causing corrosion spots (pitting).

Even detergents used in domestic cleaning must not remain in contact with

the stainless steel longer than the necessary, being mandatory to remove it with

plain water and then dry the surface completely.

Use of abrasives:

Sponges or steel wool and carbon steel brushes, besides scratching the

surface and compromising the stainless steel protection, leave particles that rust and

react contaminating the stainless steel. That is why such products must not be used

for cleaning and sanitization. Scrapings made with sharp instruments or similar

must also be avoided.

Main substances that cause stainless steel corrosion:

Dust, grease, acid solutions such as vinegar, fruit juices, etc., saltern

solutions (brine), blood, detergents (except for the neutral ones), common steel

particles, residue of sponges or common steel wool, and also other abrasives.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sheffield Fleischwolf Handbücher

Sheffield

Sheffield PSA-15HD Bedienungsanleitung

Beliebte Fleischwolf Handbücher anderer Marken

Klarstein

Klarstein Mett Max Bedienungsanleitung

Grizzly

Grizzly H7778 Bedienungsanleitung

Hobart

Hobart 4822 Bedienungsanleitung

Tasin

Tasin TS-108 Bedienungsanleitung

Adler Europe

Adler Europe AD 48 Bedienungsanleitung

camry

camry CR 4802 Bedienungsanleitung

Bake Max

Bake Max BMMG001 Bedienungsanleitung

Lumme

Lumme LU-MG2113A Bedienungsanleitung

Weston

Weston 35-3201 Bedienungsanleitung

Lumme

Lumme LU-2101 Bedienungsanleitung

GoWISE USA

GoWISE USA GW88012 Bedienungsanleitung

MPM

MPM MMM-07M Bedienungsanleitung

Weston

Weston 82-0101-W Bedienungsanleitung

BIRO

BIRO 3334SS Service-Handbuch

HOFFEN

HOFFEN MG-0440 Bedienungsanleitung

Scarlett

Scarlett SC-MG45M18 Bedienungsanleitung

Adcraft

Adcraft MG-1 Bedienungsanleitung

Johnson

Johnson tomit Bedienungsanleitung
