Shimpo DMT-01 Bedienungsanleitung

Compact Electric Kiln

with Controller

Instruction Manual

ＤＭＴ -０１

Please keep this instruction manual in a location so it is always available to the user.

Please make sure to read the entire instruction

manual thoroughly before initial set-up, operation,

maintenance and inspection to ensure proper use.

DMT-01

91179A

〔How to replace heating elements〕

Maintenance 23

Assurance Provision 27

How to Dispose 27

Convenient Functions of Controller 18

Safety Precautions

Contents

1 6

2 7

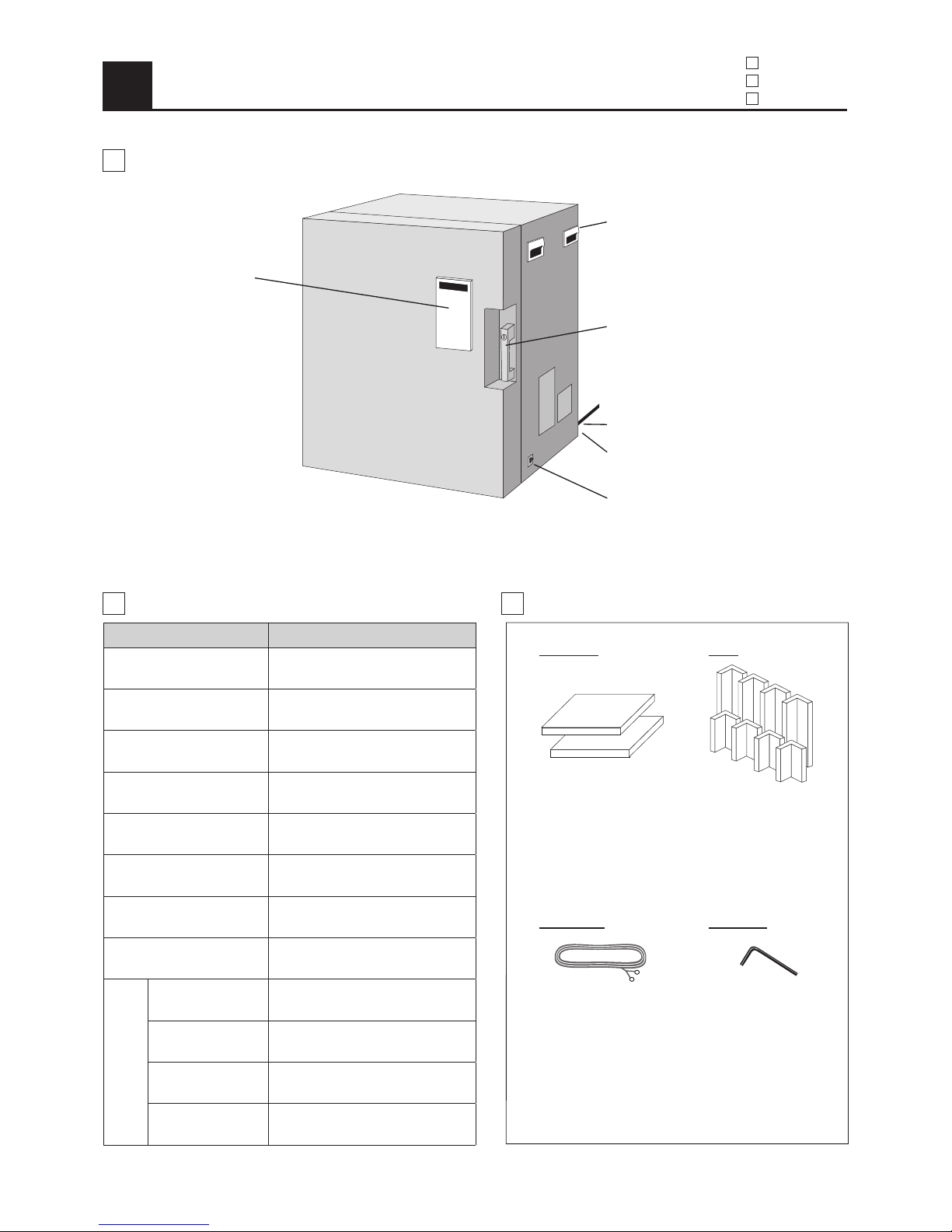

1　Kiln Diagram ............................................... 6

2　Specication ............................................... 6

3 Attachments ................................................ 6

1　Timer .......................................................... 18

2　Buzzer ........................................................ 19

3　Lock ............................................................ 20

1　Variation of Programs ................................. 11

2　Convenience and Safety Functions ........... 11

1　Installation .................................................. 7

1. Installation .............................................. 7

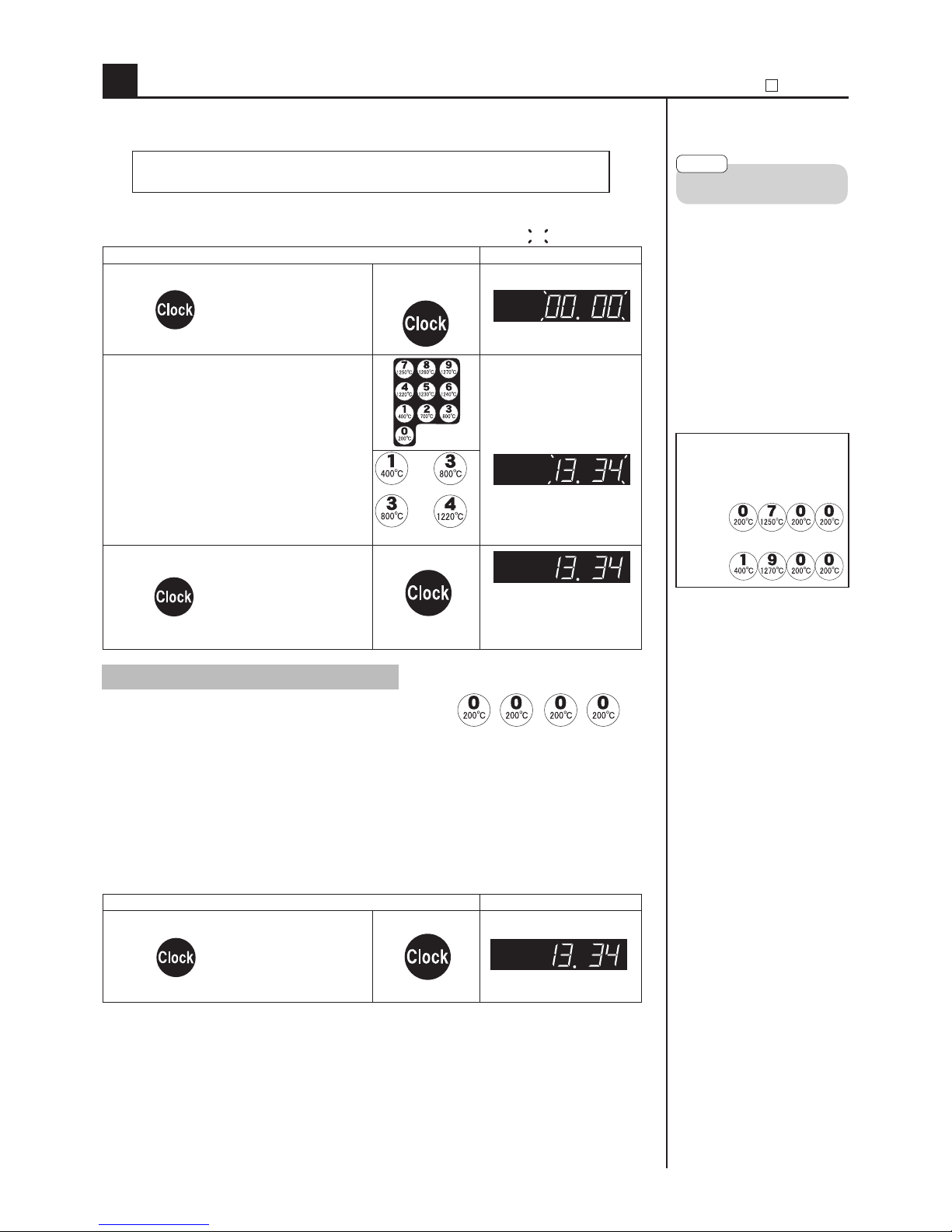

2. Setup of Timer

........................................

2　Trial Operation

...........................................

1 About Controller .......................................... 21

〔Error Message〕........................................ 21

〔When you want to make sure the content

of the program you set〕

............................

〔When you want to make sure if the ring

mode is on or off〕

....................................

〔Display panel does not light up〕.............. 22

〔Buzzers do not sound〕............................. 22

2 Others .................................................... 22

〔Power Failure〕.......................................... 22

<Simplied Chart of Controller Operation>..... 24

Examples of “Custom” Programs by Controller

>.... 25

<Temperature Chart of Basic Programs>....... 26

<Note for “Custom” Programs>...................... 26

1　Firing by “Basic Programs” ......................... 12

Variation and Contents of Basic Programs

...... 12

2. Firing by Basic programs

........................

2　Firing by “Custom” Programs ..................... 14

1. About “Custom” Programs ...................... 14

2. How to Create “Custom” Programs

........

Saving “Custom Programs” into Controller Memory

.. 15

4. Firing by “Custom” Programs .........

........

3　Firing by “Continuing Programs”

................

1. About Continuing Programs ....................... 16

2. How to Make Continuing Programs

........

3. How to save of Continuing Programs ..... 17

4. Firing by Continuing Programs .......

........

Installation Troubleshooting 21

Functions of Controller

Firing of Controller

Instruction Manual for Compact Electric Kiln with Controller (DMT - 01)

Appendix

Kiln Diagram/Specication/Attachment 6

Before Firing 10

Precaution for Setting / Taking Pottery Out of Kiln

.. 10

DANGER

Surface and inside of kiln are subject to high

temperature created by the electric heating

elements. Please be careful of burns or injury.

It may cause serious injury if you drop this product

on your feet. Please be careful in handling. Be sure

to deliver with more than 2 people since weight is

64.5 kg.

We call your attention to these warnings throughout the manual by using the following symbols:

Safety Precautions

Please be sure to read the entire instruction manual thoroughly before initial set-up, operation, maintenance

and inspection and use.

Please start using only after you have read the equipment's function and safety information and precautions.

This instruction manual provides three types of safety warnings: “Danger”, “Warning” and “Caution”.

All precautions described hereunder which pertain to safety are to be read carefully. Please be sure to follow them.

Danger symbol indicates possible death, severe injury or fire if the user

disregards the instructions.

PLEASE BE SURE TO CLOSELY FOLLOW ALL SAFETY PRECAUTIONS AND WARNINGS.

Danger

Warning symbol indicates the possibility of severe injury if the user does not

follow the instructions.

Caution symbol indicates the possibility of minor injury or damage if the user operates

the kiln improperly. However, depending on the circumstances, it is still possible to cause

severe injury. Please make sure to pay close attention to these warnings.

Warning

Caution

Warning; Pay Close Attention

Do Not

Please Follow Instructions

Be careful of high temperature!! Since this product is heavy,

please be careful in handling.

1.Operation These are safety precautions regarding operating instructions in general.

DANGER

Please do not use this product other than for ring

pottery. This may cause serious accidents such as

re, explosion or the generation of harmful gases.

Please switch the power (breaker) off and contact

us or our distributor.

Electric shock, re, explosion

or injury could occur. Please

be sure to follow the instruction

manual for maintenance and

for replacing the heating elements.

This may cause a re or change in the shape of the

kiln.Burn injury could occur or kiln may fall down if

you ride on the top of kiln or control box.

Please do not connect earth

wire to the following parts:

*Water pipe

*Gas pipe

(Electrical ash or explosion

could occur.)

Please connect earth wire into the earth

terminal in the front of the main body.

Stop using if you see smoke, smell

fumes or hear unusual noises.

Please be sure to connect

earth wire to prevent

electric shock.

Screw

Washer

Connect earth wire (Ground wire).

Do not use the kiln other than

for ring pottery.

Do not put objects on or ride on

the top of the kiln or the control

box.

Do not disassemble, repair or

modify the kiln by yourself.

earth wire

Please be sure to switch the power

(breaker) off when you touch the earth wire.

WARNING

Pay attention not to catch ngers when opening and

closing since it is heavy.

It may cause accident if kiln falls down. Do not lean

on or place a additional weight on the kiln.

This may cause electric shock or burn injury.

This product is equipped with a cooling fan on the

bottom of the main body and the bottom of the door.

Please be careful since it may cause serious injury

or accident if you touch the bottom or let objects

come in contact with the bottom.

Be careful when handling the door!

Do not put any metal objects,

foreign substances, or ngers into

the vent holes or other openings

on the kiln.

Be careful of cooling fan.

Be careful of cooling fan.(on the

bottom of the main body and the

bottom of the door）

CAUTIONS

This may cause damage to the kiln or injury.

This may cause disturbances to the TV image and

audio signals. Please keep a distance of 2 meters

or more from these devices.

Please be careful not to hit your head against the

door, lid or kiln wall when placing pottery in the kiln

or taking pottery out of the kiln.

Damage to bricks or heat insulating materials

affects the safety and performance of the kiln.

Please consult our distributor. However, cracks

on the surface due to use have no effect on the

operation of the kiln.

DANGER

Electric shock could occur if you touch the heating

elements without switching the power off.

Electric shock could occur.

This may cause an electrical shock if you operate switches

or plug/unplug the power cord into the power outlet.

Do not place kiln near a TV,

radio, or antenna wire.

Do not insert hands into or

touch electrical parts.

2.Power supply These are safety precautions regarding the electrical components of the kiln.

Be careful not to touch the

outside surfaces of the kiln when

opening or closing the door.

Be sure to switch the power (breaker)

off when opening the door.

Prepare a safe operating

environment.

Do not operate any switches with wet hands.

Repair damages to bricks and

insulating material immediately.

WARNING

It may produce excessive heat if additional

equipment is used on the same circuit.

It may cause electric shock, fire or damage to

equipment.

This may cause electric shock or fire due to

insulating degradation.

It may cause a re or electrical shock.

Use one plug independently with a

rating of more than 15 AMPS.

Do not use this product with other

than AC 220 V power supply.

Do not use damaged power cord

or plug which does not t tightly.

Unplug the kiln if you will not be

using it for a long period.

3.Installation These are safety precautions regarding the installation of the kiln.

DANGER

This may cause a re or electric shock.

Please do not twist, pull, put heavy objects on, or

plug the power cable forcibly.It may cause a re or

electrical shock due to damage to the power cord.

A re may result.Also,do not use a cord reel. This may cause a re or electric shock.

DANGER

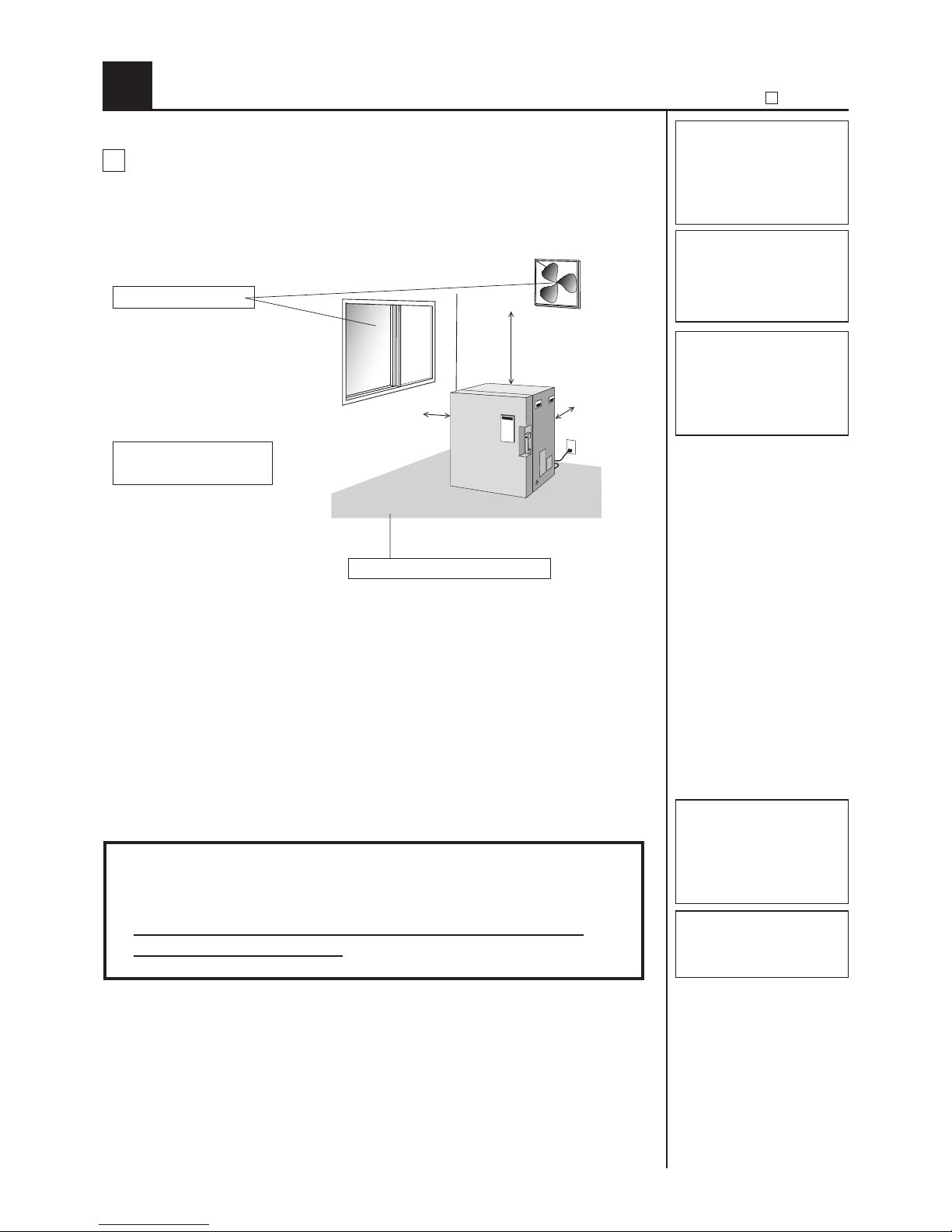

It may cause a re or other accidents if you do not

keep at least 50 cm or more between the top of the

kiln and ceiling and 15 cm between the side of the

kiln and wall.

Please do not put flammable materials such as

curtains, paint, etc. within 50 cm of the kiln. It may

cause a re.

Please pay close attention to this warning since it

may cause re, burn or serious accident if it comes

in contact with children.

It may cause a re.Please open a

window a few centimeters to allow fresh air

into the room and use a portable fan for

additional air circulation if required.

Do not place power cord

under the bottom of the kiln or

high-temperature parts.

Set up in a location which has

enough space.

Keep the power cord free from

stress and obstructions.

Do not put flammable materials

near the kiln.

Do not connect other equipment

on same electrical outlet.

Do not use extension cords.

Set up in a location that is

properly vented.

Do not use power cord that is not

extended.

Set up in a location that is out of

reach of children.

WARNING

This may cause a re or failure from electrical shock

or electrical leakage.

Please set in a location which is dry and not

susceptible to rain to prevent electrical shorts.

It may set off alarm or sprinkler due to the heat from

kiln.

Since this product is heavy, oor material may be damaged or kiln may fall.

Do not set in a location which is

susceptible to rain and water or an

area of high moisture.

Do not set under the fire-alarm

box or sprinkler.

Be careful of strength of the oor in set-up location.

DANGER

Odor occurs from heating element or insulating

material for the rst operation.

Please ventilate fully since gases that are harmful

to the human body could occur depending on the

variation of glaze or clay that is used.

This product is only for oxidized ring.

Please do not make reduction ring.

It may cause burn injury if you

touch kiln due to high temperature

of the outside of kiln. Especially,

be careful not to bring children

close to kiln.

It may cause burn injury, electrical shock or other

injury. Please do not to let children close to kiln

since the temperature of the kiln surface becomes

high during ring. Please be sure to lock the door to

prevent opening the door accidentally.

This may cause a re or electric shock.

It may cause an electrical shock or burn injury.

It may also cause disconnection or breakage of the

element.

Explosion could occur due to the sudden drop in

the temperature.

It may cause burn injury due to heated air unless

it drops down to normal temperature (under 40℃)

inside furnace.

4.Firing These are safety precautions regarding ring the kiln.

CAUTION

It may cause trouble

due to overheating.

Do not use in a place that is susceptible

to direct sunlight.

Ventilation

Please do not make reduction ring.

Never let unattended children use

kiln, or set kiln in a location that

children can reach.

Do not touch heating elements.

Do not open the door unless the

temperature has become normal.

Do not touch kiln due to high

temperature.

Do not insert or remove the

power plug during operation.

Do not pour water on the kiln

during ring.

WARNING

This may cause accident. These may catch on re.

Do not strike the heating elements

or insulating material with pottery

or kiln shelving.

Do not put clothes near the kiln.

Do not hang up cloth near the kiln.

Item Content

Outside dimension

(W ×D×H

)600 ×565 ×720 mm

Inside dimension

(W ×D×H

)270 ×270 ×300 mm

Weight 64.5 kg

Maximum temperature 1270 ℃

Electric capacity 1.9 kW

Power voltage AC220V ～, 50Hz, 9A

Firing Firing of controller

Heating elements Coil heating elements

Kiln shelf 240 ×240 ×10 mm

2 pcs.

Post L type　60 ・120mm

4 pcs. for each

Earth wire 2 m　1 pcs.

L wrench 1 pcs.

Kiln Diagram/ Specication/ Attachments

Power cord

Controller Panel

Main Switch

Attachments

Kiln shelf Post

Earth wire

240 ×240 ×10 mm

2 pcs.

L type　60 ・120mm

4 pcs. for each

2 m　1 pcs.

Handle of Side Door (with lock)

Handle

Earth Terminal

Parts to install earth wire

L wrench

1 pcs.

1　Kiln Diagram

2　Specication

3 Attachments

1　Kiln Diagram

2 Specications 3 Attachment

Do not connect many

devices on same electrical

outlet.

Do not use extension cord.

②Do not put objects

around the kiln.

③Set up kiln on a at oor.

More than

15cm

More than 50cm

More than 15cm

1.Installation

(1)For indoor

(2)For outdoor

Please set up kiln on a solid at oor in a location that is not

susceptible to rain or water.

WARNING

CAUTION

DANGER

An odor may occur from

the pottery or kiln during firing

since the temperature of the kiln

surface becomes high. Please

set up a fan for air circulation and

ventilate the area well.

Please do not put objects within

15 cm around the kiln for safety.

Please do not put flammable

materials within 50 cm around the

kiln.

①Ventilate well.

Installation

● Please be careful of the following to prevent decreased

power voltage.

Cautions about connection

・Do not connect other equipment on same electrical outlet.

・Do not use extension cord.

△

1　Installation

21　Installation

Do not set kiln in a location

that is susceptible to rain and

water.

Do not set in a location

which is susceptible to

direct sun light.

Do not set under the fire-

alarm box or sprinkler.

Operating procedure Display panel

(1)

Push　　　　　　and hold for more than

5 seconds.

for more than

5 seconds.

(2)

Input current time. (Example)

(3)

Push The indicator turns back

to show temperature

after displaying time for 5

seconds.

Operating procedure Display panel

(1)

Push

When you input incorrectly,

2.Set up of timer

You can set current time and change it.

Please set current time in advance since it is necessary for set-up of timer.

※If you do not operate any keys

for 10 seconds, the display

turns back to show the kiln

temperature.

Please operate from the

beginning of operating

procedure.

Example)13:34

①1. How to set time

②2. Display of time

Set-up of timer

P.18

Example)13:34

→

Control panel shows the temperature inside of furnace.

When you want to conrm the current time, you can do as following procedure.

please push 「0」for 4 times in a row.

Then you can start from the beginning of

operating procedure.

Before noon 7:00

　　　→

Afternoon 7:00

　　　→

shows ashing.

Installation

21　Installation

Time shows 24 hours a

day. Please be careful.

Inhaltsverzeichnis

Andere Shimpo Dunstabzugshaube Handbücher

Shimpo

Shimpo DMT-10A Bedienungsanleitung

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
