Model D4562
Extension Bed for W1836
Instruction Sheet
Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz
Installation
1. Install rubber feet into bottom of bed
extension.
2. Align mounting holes in bed extension and
tailstock end of lathe bed, then thread
included cap screws with flat washers
through bed extension and lathe. Finger
tighten only for now.
3. Center tailstock over bed extension and
lathe as shown in Figure 2,and engage
lock lever to bring bed extension and lathe
surfaces even with bottom of tailstock.
Introduction
The Model D4562 Bed Extension extends the bed
length of the Model W1836 Mini Wood Lathe to
407⁄8" between centers.
Call Technical Support at (360) 734-3482 if you
need additional help.
COPYRIGHT © MAY, 2015 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC. Printed in China
#17401WK
Inventory (Figure 1)
Description Qty
A. Bed Extension .................................. 1
B. Cap Screws M10-1.25 x 25 ................... 2
C. Flat Washers 10mm ........................... 2
D. Rubber Feet .................................... 2
A
B
D
C
Figure 1. Model D4562 inventory.
Figure 2. Tailstock centered over lathe and bed
extension, and then locked into place to align
bed surfaces. (Reference photo only, actual
machine not shown).
4. Tighten cap screws with hex wrench.
5. Slide tailstock out of the way, and use
straightedge to verify surfaces of lathe bed
and bed extension are precisely aligned.
Lathe Bed
Extension
Lever
-2-

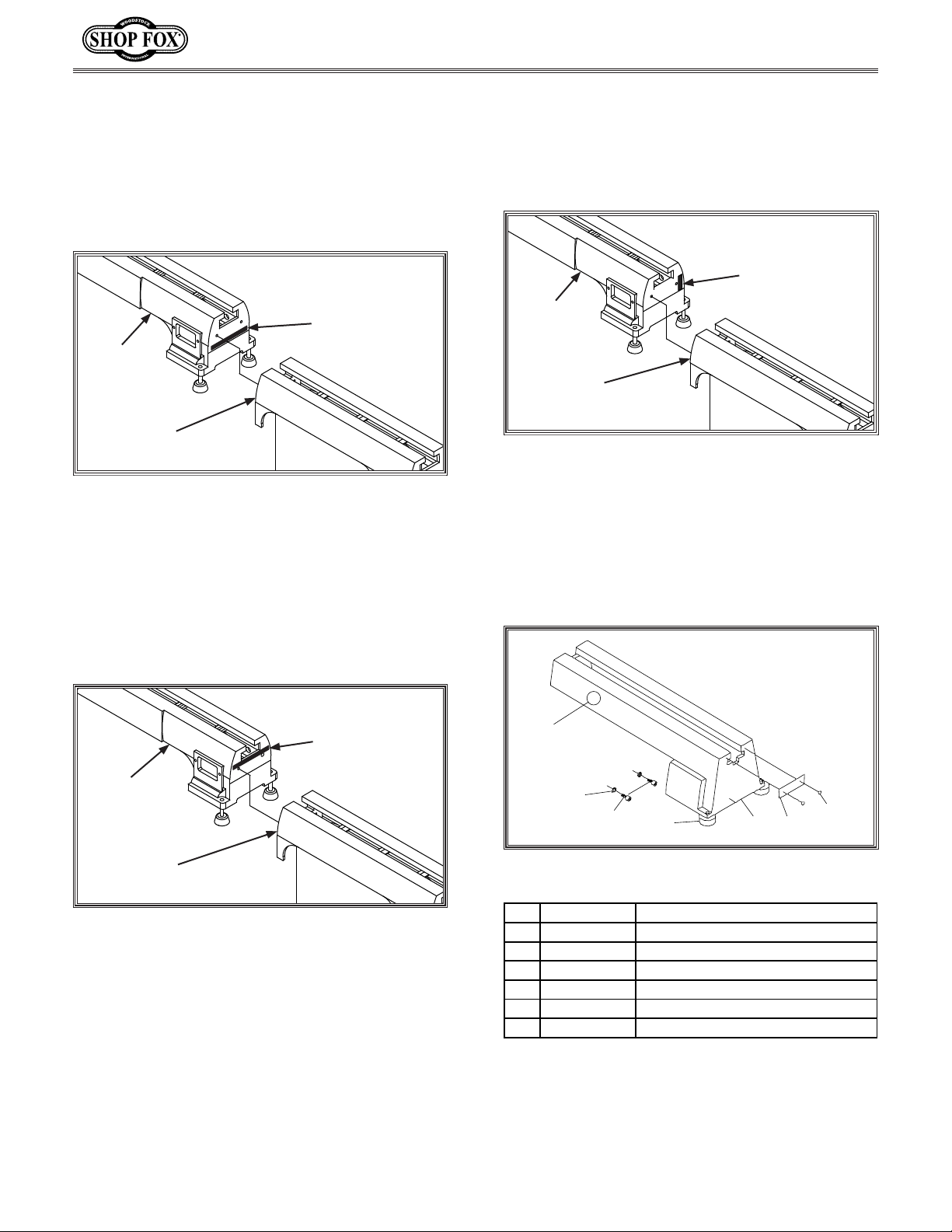

D4562 Extension Bed for W1836 Instructions
— If bed extension tilts down, use masking
tape along bottom edge of lathe to shim
bed extension up (see Figure 3).
Tip: Rotate bed extension feet to control
alignment by raising or lowering end of
extension.
— If bed extension is skewed left or right,
use vertical strips of masking tape
along corresponding edge of lathe to
make extension parallel with lathe (see
Figure 5).
Masking
Tape
Lathe
Bed
Extension
Figure 5. Shimming bed extension to left.
Customer Service
For questions contact Woodstock International
Technical Support at (360) 734-3482, or send
e-mail to: tech-support@woodstockint.com.
Parts Breakdown and List
1
2345
6
7
REF PART # DESCRIPTION
1 XD4562001 FLAT WASHER 10MM
2 XD4562002 CAP SCREW M10-1.5 X 25
3 XD4562003 FOOT (RUBBER)
4 XD4562004 BED EXTENSION
5 XD4562005 END PLATE
6 XD4562006 PHLP HD SCR M6-1 X 25
7 XD4562007 SHOP FOX WHITE TOUCH-UP PAINT
Masking
Tape
Lathe
Bed
Extension
Figure 3. Shimming bed extension up.
— If bed extension tilts up, use masking
tape along top edge of lathe to shim bed
extension down (see Figure 4).
Tip: Rotate bed extension feet to control
alignment by raising or lowering end of
extension.
Masking
Tape
Lathe
Bed
Extension
Figure 4. Shimming bed extension down.
6. Slide tailstock back and forth over
connection point.
— If tailstock catches where lathe and bed
extension meet, loosen fasteners and
repeat Steps 3-6 until tailstock slides
smoothly.
