MINI MOTORCYCLE
OWNER’S MANUAL
Read and understand this entire manual before using!
NOTE: Manual illustrations are for demonstration purposes only.
Illustrations may not reflect exact appearance of actual product.
Specifications subject to change without notice.
OFF ROAD USE ONLY!!!
NEVER OPERATE THIS VEHICLE IF YOU ARE UNDER
AGE 12!!!
INTRODUCTION
Thank you for purchasing this product. The proper care and maintenance that your vehicle
requires is outlined in this manual. Following these introduction will ensure a long trouble-free
operating life of this vehicle and your satisfaction with it.
SAFETY WARNING
SAFETY WARNINGS
This vehicle is NOT A TOY and ONLY used in closed off areas remote from public road traffic.
Never permit children under age 12 to operate this vehicle.
Adult’s supervision is required if children under age 16.
WARNING:
Riding this vehicle can be a hazardous activity. Certain conditions may cause the equipment to
fail without fault of the manufacturer. Like other vehicles, the Mini Dirt Bike can and is intended
to move, and it is therefore possible to lose control, fall off and/or get into dangerous situations
that no amount of care, instruction or expertise can eliminate. If such things occur you can be
seriously injured or die, even when using safety equipment and other precautions. RIDE AT
YOUR OWN RISK AND USE COMMON SENSE.
This manual contains many warnings and cautions concerning the consequences of failing to
maintain, inspect or properly use your mini dirt bike. Because any incident can result in serious
injury or even death, we do not repeat the warning of possible serious injury or death each
time such a possibility is mentioned.
APPROPRIATE RIDER USE AND PARENTAL SUPERVISION
This manual contains important safety information and use tips to help you and your child
operate and handle the mini dirt bike. Carefully read the manual in its entirely together with
your child before letting your child ride it for first time. The manual also contains important
information on servicing the vehicle.
It is your responsibility to review the manual and make sure that all riders understand all
warnings, cautions, instructions and safety topics and assure that the riders are able to safely
and responsibly use this product and protect your child from injury. We recommend that you
periodically review and reinforce the information in this manual with your child, and that you
inspect and maintain your children’s vehicle to insure their safety. The recommended rider
age of 12 years is only an estimate, and can be affected by the rider’s size, weight or skills.
Any rider unable to fit comfortably on this vehicle should not attempt to ride it.
It is important and necessary to conduct the technical training for your child before first
use. To get the training information, please contact the dealer who you purchase the
vehicle from. Before your child complete the training, do not let your child use this
vehicle.
Children often underestimate or fail to recognize the dangerous situation, you should make it
clear to your child that should not, under any circumstances, operate the vehicle without
supervision and that your child may only drive at speed that are commensurate with the child’s
riding ability and other road condition.
A parent’s decision to allow his or her child to ride this product should be based on the
child’s maturity, skill and ability to follow rules.
Keep this product away from small children younger than age 12 and remember that this
product is intended for use only by persons who are, at a minimum, completely comfortable
and competent while operating the vehicle
Do not exceed 135lbs (60kgs) total weight on this vehicle. Rider weight does not
necessarily mean a person’s size is appropriate to fit or maintain control of this vehicle.
Do not touch the brakes/motor/exhausts on your bike when in use as they can become very
hot.
ACCEPTABLE RIDING PRACTICES AND CONDITIONS
Always check and obey any local laws or regulations which may affect the locations
where the vehicle may be used.
Ride defensively. Watch out for potential objects that could catch your heel or force you to
swerve suddenly or lose control. Be careful to avoid pedestrians, skaters, skateboards,
scooters, bikes, children or animals who may enter your path, and respect the rights and
property of others.
This vehicle is meant to be used only in controlled environments free of potential traffic
hazards and not on public streets or sidewalks. Do not ride your vehicle in any areas where
pedestrians or product traffic is present.
Do not activate the speed control on the hand grip unless you are on the vehicle and in a safe,
outdoor environment suitable for riding.
The vehicle was manufactured for performance and durability but are not impervious to
damage. Jumping or other aggressive riding can over-stress and damage any product,
including this vehicle, and the rider assumes all risks associated with high-stress activity. Be
careful and know your limitations. Risk of injury increased as the degree of riding difficulty
increases. The rider assumes all risk associated with aggressive riding activities.
.
Never use headphones or a cell phone when riding.
Never hitch a ride with another vehicle.
Do not ride the vehicle in wet or icy weather and never immerse the vehicle in a water, as the
electrical and drive components could be damaged by water or create other possibly unsafe
conditions.
The vehicle is intended for use on flat, level ground without loose debris such as rocks or
gravel. Wet, slick, bumpy, uneven or rough surfaces may impair traction and contribute to
possible accidents. Do not ride the vehicle in mud, ice, puddles or water. Avoid excessive
speed that can be associated with downhill rides. Never risk damaging surfaced such as a
carpet or flooring by use of the vehicle in doors.
Do not ride at night or when visibility is limited
PROHIBIED ITEMS
★ Do not touch the brakes or engine when the vehicle is in use as they can become very hot.
★ This vehicle should use mixture of the unleaded gasoline and the two cycle engine oil. The
volume ratio is 25:1. Do not use any degraded fuel (which smells sour) or fuel of wrong
mixture ratio. It will cause a poor start, insufficient output or damage the engine.
★ Do not use 4 cycle engine oil. (Otherwise, it causes the plug to be degraded, the piston ring
to seize or the muffler to be clogged)
★ Do not run the engine in a room or poor ventilated area. (the exhaust gas includes odorless
but hazardous carbon monoxide.)
★ Do not put your fingers and other body parts near to the drive chain, steering system,
wheels and all other moving components.
★ Do not store, spill or use any gasoline near afire, stove, oven, boiler or other instruments
which uses a pilot light or spark. (Otherwise, it may cause an explosion. )
★ Smoking is strictly prohibited while refilling the fuel
★ While the engine is running or while it remains hot soon after stopping, do not remove the
Lid of the fuel tank or refill the fuel. (Before o refilling the fuel, stop the engine and cool it
down 2 minutes or more)
★ If any gasoline is spilt or smelled or any danger of explosion felt, do not run the engine.
★ Do not check any spark while keeping the spark plug removed.
★ Do not run the engine with the exhaust or air cleaner cover removed.
★ Do not touch any hot muffler or engine part. (Otherwise, it may cause a burn.)
★ When the engine runs, do not touch any spark plug cap or high tension cord. (Otherwise, it
may cause an electric shock and harm you body.)
★ Never use alcohol or drugs before or while operating.
★ You insurance policy may not provide coverage for accidents involving the use of this
vehicle. Consulting your insurance agent before using this vehicle.
PROPER RIDING ATTIRE
Always wear proper protective equipment such as an approved safety helmet, elbow pads and
kneepads. A helmet may be legally required by local law or regulation in your area. A
long-sleeved shirt, long pants and gloves are recommended. Always wear athletic shoes,
never drive barefooted or in sandals, and keep shoelaces tied and out of the way of the wheels,
motor and drive system.
FAILURE TO USE COMMON SENSE AND HEED THE ABOVE WARNINGS INCREASES
RISK OF SERIOUS INJURY. USE WITH APPROPRIATE CAUTION AND SERIOUS
ATTENTION TO SAFE OPERATION.
LOCATION OF WARNING STICKER
Sticker A is located on the left side of fuel tank.
Sticker B is located on the rear fender.
Sticker C is located on the rear fender
Sticker D is located on the left side of engine
PIN LOCATION
PIN is stamp marked on an aluminum plate that is riveted on the steering column .
PIN means the Product Identify Number which is unique for each unit.
MAIN PARTS
1: front brake lever 2: handlebar
3: number plate 4: mudguard
5: fork 6: front wheel & tire
7: front brake disc 8: front brake caliper
9: exhaust heat-protection 10: gear box
11: footrest 12: side stand
13: chain cover 14: rear wheel & tire
15: left plastic fairing 16: handle rubber grip
17: rear brake lever 18: throttle
19: tail plastic body 20:seat
21: plastic frame cover 22: fuel tank
23: right plastic fairing 24: engine pull starter
25: carburetor 26: air filter
27: chain 28: rear shock absorber
29:swing arm 30: rear brake caliper
31: rear brake disc 32: rear driven sprocket
33: exhaust
HAND DRIVE CONTROLS
1 :rear brake lever
2 :engine stop switch
3 :front brake lever
4 : throttle handle
BEFORE YOU BEGIN
Remove contents from box. Inspect the contents of the box for scratches in the paint, dents or
kinked cables that may occur during shipping. Because the product was 85 percent assembled
and packed at the factory, there should not be any problems, even if the box has a few scars
or dents.
Estimated Assembly and Set-Up Time
We recommend assembly by an adult with experience in motorbike or bicycle mechanics.
Allow up to 30-40 minutes for assembly.
Required Tools
Some tools may be supplied; however, we recommend the use of mechanic’s grade tools. Use
the supplied tools only as a last resort.
The list of tool required is as follows
·Open end wrench 10mm / 13mm/ 17mm / 22mm
·Allen wrench 5mm / 6mm/ 8mm
Assembly illustration and instruction
ASSEMBLY HANDLEBAR
WARNING: Failure to properly adjust and tighten the bolts that affix the handlebar can cause
you lose control and crash.
1. place the handlebar (A) in the bottom
clamp, then cover the upper clamp (B) on
the handlebar and install the 4pcs bolt (C)
2. Place the handlebar in the upright and
vertical position, then tighten all the bolts
securely with 10mm socket spanner.
A：handlebar
B：upper clamp
C：bolt M8X20 4pcs

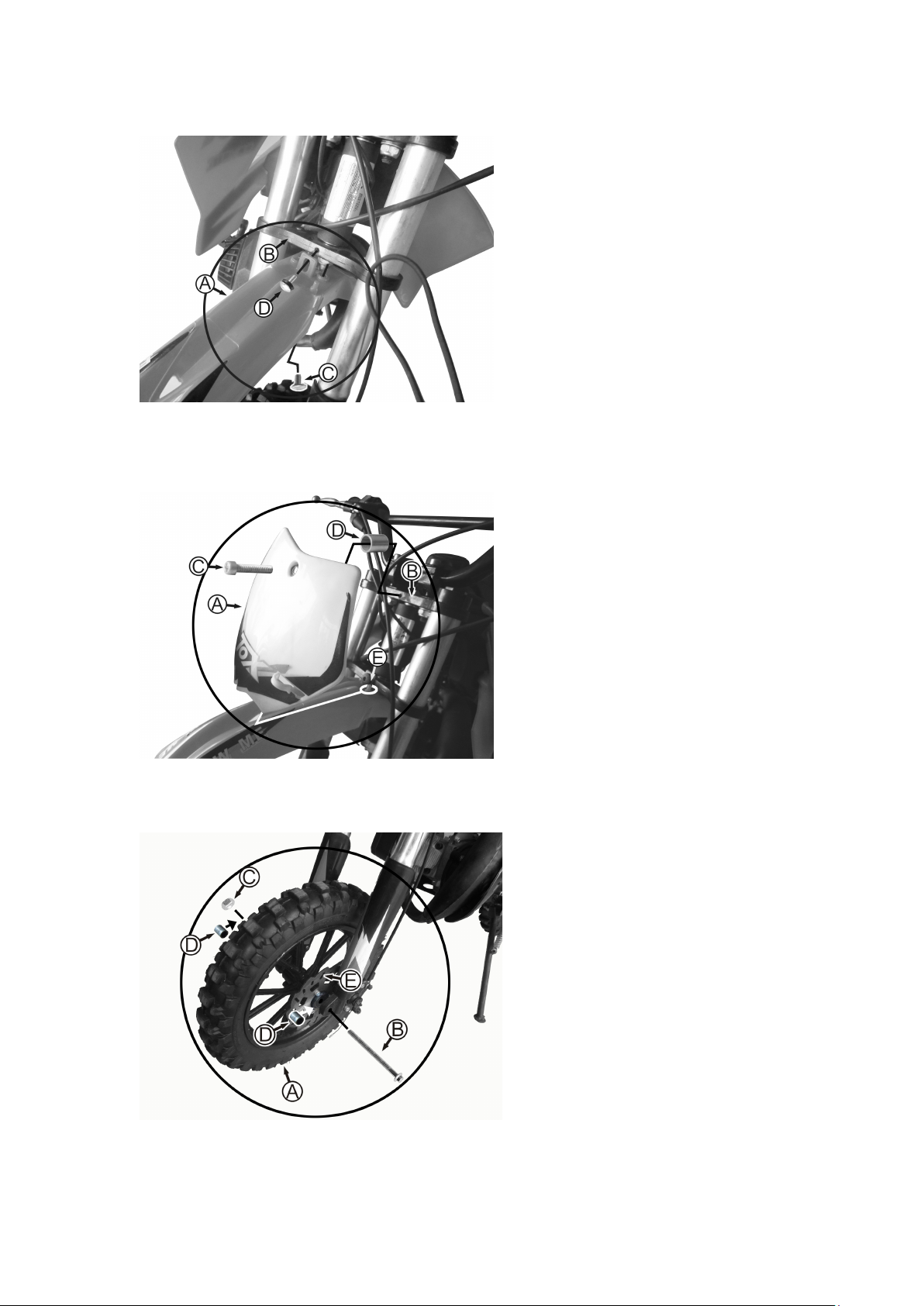

ASSEMLY MUDGUARD
1. mount the bolt (D) through the
mudguard fixing bracket into the
splintage (B) and tighten it.
2. mount the bolt (C) bottom-up through
the mudguard rear hole into the
splintage (B) and tighten it.
A：mudguard
B：down splintage
C：bolt M6X16
D: bolt M6 x16
ASSEMBLYNUMBER BOARD
1. Fix the number board (A) into the
location pillar of mudguard (E)
2. Install the bolt (C), bush (D) into the
upper splintage (B) and tighten the bolt
with 10mm socket spanner.
A：Number board
B：upper splintage
C：bolt M6X25
D：bush 8X1.0X15
E：location pillar
ASSEMLY FRONT WHEEL AND REAR SHOCK ABSORBER
1. put the wheel (A) on the right position to
place the disc (E) between the brake
caliper pad.
2. mount the axle (B) through the left fork,
bush (D), wheel, bush (D) and right fork
in sequence, and then fix the nut (C)
and tighten it.
A：wheel
B：wheel axle M12X160
C：nut M12
D：bush 16X1.2X13 2pcs
E：brake disc
