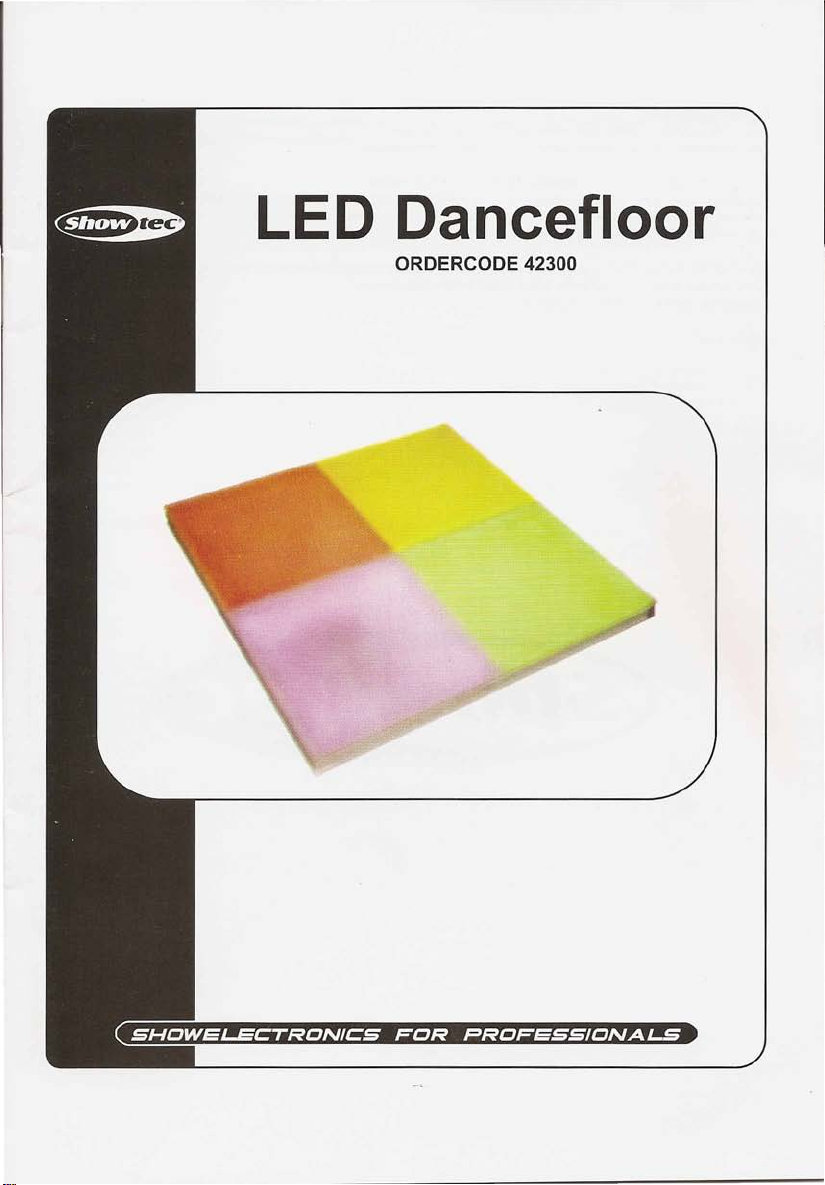

Show Tec 42300 Bedienungsanleitung

LED

Dancefloor

Congratulations

You havebought a great,innovative productfrom Showtec.

The Showtec LEDDancefloorbringsexcitement to any venue.

You canrely onShowtec,for more excellent lighting products.

We design and manufacture professional light equipment for theentertainment industry.

Newproducts are being launched regularly. We workhard tokeep you,our customer,satisfied.

For more information: iwant@showtec.info

Youcangetsomeofthe best quality,best priced productson the marketfromShowtec.

Sonext time,turn to Showtec for more great lightingequipment.

Alwaysget thebest-- withShowtec

Warning....2

Safety-instructions. 2

Operating Determinations......................................................................................... 3

Description....

Features and Overview 5

Backside.. ..................................•.................. 5

Set Up and Operation.................................................................................. 6

DMX Mode....... 6

Sound-Active Mode... 7

Master/Slave Mode.... .......•...........•.•....•.•.............•.................. .. 8

Troubleshooting......................

No Ligh ............................................................. 9

Replacing the Fuse.... 9

CAUTION

Keep this device away from rain and moisture

FOR YOUR OWN SAFETY,PLEASE READ THIS USER MANUAL

CAREFULLY

BEFORE YOUR INITIAL START-UP

SAFETY INSTRUCTIONS

Everypersoninvolved withthe installation,operation and maintenance ofthisdevice hasto:

bequalified

followtheinstructions of this manual

CAUTION Be careful with your operations.

With a dangerous voltage you can suffer

adangerous electric shockwhentouching the wires

Before your initialstart-up,please makesurethat there is nodamagecaused bytransportation.Should

therebeany, consult yourdealerand do notuse thedevice.

To maintain perfectconditionand toensure a safe operation,it is absolutelynecessaryfor theuser tofollow

the safety instructions and warning notes written in this manual.

IMPORTANT

The manufacturer will not accept liability for any resulting damages caused by thenon-observance

this manualor any unauthorized modification to the device.

Neverlet the power-cord comeinto contactwith othercables Handle the power-cord andall

connections with the mains with particular caution

Never remove warningorinformative labels from theunit.

Donotopenthedevice and donot modifythedevice.

Do notconnect thisdevice to adimmerpack.

Donot shakethe device.Avoid brute force wheninstalling or operatingthedevice.

Neverlook directlyintothelight source.

Neverleaveany cableslying around.

Do notswitch thedeviceon and off in short intervals,as this would reducethe lamp'slife.

Neveruse the deviceduringthunderstorms,unplugthedevice immediately.

Onlyuse device indoor,avoid contactwith waterorother liquids.

Avoidflames and do not put close toflammable liquids or gases.

Onlyoperate thedevice after havingfamiliarizedwith its functions.

Always allow free airspaceof at least 50 cmaround the unit forventilation.

Always disconnect power from the mains,whendevice is not usedor beforecleaning Onlyhandle

the power-cord by the plug.Neverpullout theplugbytuggingthepower-cord.

Make sure that thedevice isnot exposed to extremeheat,moisture ordust.

Make surethat the availablevoltage isnothigher thanstated ontherear panel.

Make sure that the power-cordisnever crimped or damaged.Checkthe deviceand the power-cord

fromtime to time.

The cable insert orthe female part in the device must never bestrained.There mustalways be

sufficient cable to thedevice.Otherwise,the cable may be damaged which maylead todeadly

electricalshocks.

Ifthe externalcable is damaged,it hasto be replaced by a qualified technician.

If device isdropped or struck,disconnect mainspower supplyimmediately. Have a qualified

engineer inspect forsafety beforeoperating.

If the devicehasbeenexposed to drastictemperaturefluctuation (e.g. after transportation),do not

switch it on immediately. The arisingcondensationwater might damageyour device. Leave the

device switchedoff until it has reached room temperature.

If your Showtec device failsto work properly,discontinue useimmediately. Pack theunit securely

(preferablyin the original packingmaterial),and returnit to your Showtec dealer forservice.

For adult useonly. Lighteffectmust be installed outof the reachofchildren. Neverleave theunit

running unattended.

The user isresponsiblefor correct positioning and operating of the LED Dancefloor.The

manufacturer will not acceptliability for damages caused bythe misuse or incorrect installation of

this device.

This device falls under protection class I. Thereforeit is essential to connectthe yellow/green

conductor toearth.

Repairs, servicing and electric connection must be carried out by a qualified technician.

For replacement use fuses ofsame type and rating only.

WARRANTY:Till one yearafter date of purchase.

CAUTION

EYEDAMAGES

Avoid looking directly intothe lightsource.

(meant especially for epileptics)

Thisdevice isnotdesigned for permanent operation.Consistent operationbreaks will ensure thatthe device

willserveyoufor alongtime without defects.

If thisdevice is operated in any otherway,than the onedescribed in thismanual,theproduct may suffer

damagesand the warrantybecomes void.

Anyotheroperationmaylead to dangerslike short-circuit,burns,electric shock,lampexplosion,crashetc.

You endanger yourownsafety and the safety of others

Improper installation can cause seriousdamage to people and property

Connect the device tothe mains with the power-plug.

Always payattention,that the right color cable isconnected tothe right place.

Cable Pin International

BROWN FASE L

BLUE NUL N

YELLOW/GREENEARTH @

Features

TheLED Dancefloor is a fabulousLED Lighteffect fromShowtec.

• Never changelamps again

•Each element is divided into 4 sections.

•3-channel mode (the wholeLED Dancefloorwill have the samecolour), or 12-channel mode (each

section canbe controlled separately).

•Topcoverof theLED Dancefloor ismade of 12mm. strongplastic (Lecran).

•Plug-&-Play

" I.

-aIII-------------

----IilJ-Jl-

---t

'J~-

/'\

()

,".

,.I

0000

1)XLR Output(DMXIN)

2) XLRInput (DMXOUT)

3)Powercon Output

4)Powercon Input

5) Fuse T1.5A,250V

6) ON IOFF

7) Microphone

8) Function Display

Set Up and Operation

Before plugging the unit in,always make sure that the power supply matches the product specification

voltage.Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

d L

12 Channel Mode

YR001HRSI2

DMX Mode 1 : 12-channel operation (Control each LED Dancefloor section

separately)

DMX Mode 2 : 3-channel operation (Control all 4 sections of theLED Dancefloor

as one big piece)

3. Press the F/S button to start the DMX address setting. UsetheUP and DOWN buttons toselect the DMX

address.

There are 512 DMX addresses:

4. The DMX Channel functions are: Channel 1:

Channel 2:

Channel 3:

Red (0-255)

Green (0-255)

Blue (0-255)

IchOIHch051

15001~1510ol

/sd-nl

lSd-51

3.Press the F/S button toadjust tiesPied.

You can adjust the speed from:

SOD:

_Is:ool

4.Press theF/S button to choose thedesired Chase.

.Youcan adjust the chasefrom:

khO:l-khOS;

Ich051

15001~1510ol

Ich-nl

Ich-sl

3. Press the F/S button to choose the desired Chase.

You can adjust the chase from:

lchO:

1-lCFoSi

4. Press theF/S button toadjust the Chase Fade Time.

Youcan adjust the fade from:

IFoool.IF :001

5.Press theF/Sbutton toadjust tiesPied.

Youcan adjust the speed from:

500:.151001
