Bumper Strobe V1

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Ordercode: 30873

MANUAL

ENGLISH

Ordercode: 30873

Bumper Strobe

Table of contents

Warning ...............................................................................................................................................................................2

Safety Instructions .........................................................................................................................................................2

Operating Determinations ..........................................................................................................................................4

Rigging ............................................................................................................................................................................4

Connection with the mains.........................................................................................................................................5

Return Procedure..........................................................................................................................................................6

Claims..............................................................................................................................................................................6

Description of the device.................................................................................................................................................7

Frontside..........................................................................................................................................................................7

Backside .........................................................................................................................................................................8

Installation...........................................................................................................................................................................8

Set Up and Operation .......................................................................................................................................................8

Control Modes...............................................................................................................................................................9

One Bumper Strobe (Static mode) ........................................................................................................................9

One Bumper Strobe (Strobe mode).......................................................................................................................9

Remote Control.............................................................................................................................................................9

1. Static mode ..........................................................................................................................................................10

2. Strobe mode.........................................................................................................................................................10

Maintenance....................................................................................................................................................................10

Troubleshooting ...............................................................................................................................................................11

No Light.........................................................................................................................................................................11

Product Specifications....................................................................................................................................................12

Notes ..................................................................................................................................................................................13

Ordercode: 30873

Bumper Strobe

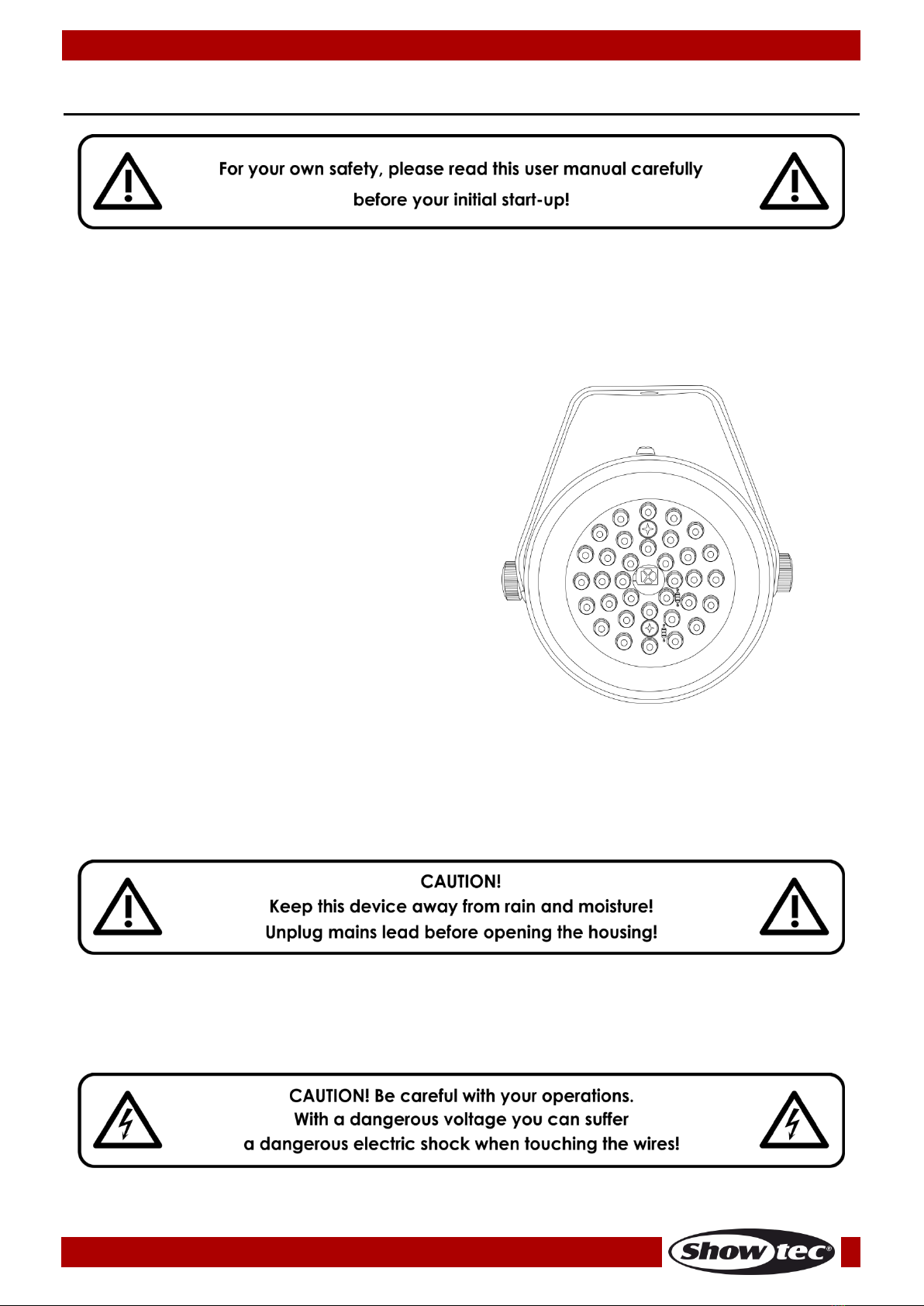

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

Showtec Bumper Strobe

DC 12V 1A power adapter (1,2 m)

IR remote control

User manual

LED Expected Lifespan

LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration

of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular

optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is

significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower

operational temperatures. This may include climatic-environmental and the reduction of overall

projection intensity.

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

be qualified

follow the instructions of this manual

Ordercode: 30873

Bumper Strobe

Before the initial start-up, please make sure that there is no damage caused by transportation.

Should there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes contained in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Never use anything to cover the ground contact.

•Never lift the fixture holding it by the projector head, as the mechanics may be damaged. Always

hold the fixture by the transport handles.

•Never place any material over the lens.

•Never look directly into the light source.

•Never leave any cables lying around.

•Do not insert objects into air vents.

•Do not connect this device to a dimmerpack.

•Do not switch the device on and off in short intervals, as this will reduce the device’s life.

•Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

Allow the fixture to cool for at least 5 minutes before handling.

•Do not shake the device. Avoid brute force when installing or operating the device.

•Only use the device indoors, avoid contact with water or other liquids.

•Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly

fastened.

•Only operate the device after having familiarized with its functions.

•Avoid flames and do not put close to flammable liquids or gases.

•Always keep the case closed while operating.

•Always allow a free air space of at least 50 cm around the unit for ventilation.

•Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power cord holding it by the plug. Never pull out the plug by tugging the power cord.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

•If the lens is obviously damaged, it has to be replaced, so that its functions are not impaired due to

cracks or deep scratches.

•If device was dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For adult use only. The fixture must be installed beyond the reach of children. Never leave the unit

running unattended.

•Never attempt to bypass the thermostatic switch or fuses.

•For replacement use fuses of same type and rating only.

Ordercode: 30873

Bumper Strobe

•The user is responsible for correct positioning and operating of the Bumper Strobe. The manufacturer

will not accept liability for damages caused by the misuse or incorrect installation of this device.

•This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

Operating Determinations

•This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

•The minimum distance between light output and the illuminated surface must be bigger than 1

meter.

•The maximum ambient temperature ta= 40°C must never be exceeded.

•The relative humidity must not exceed 50 % with an ambient temperature of 40° C.

•If this device is operated in any other way than the one described in this manual, the product may

suffer damages and the warranty becomes void.

•Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all

other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

•If the projector is lowered from the ceiling or high joists, professional trussing systems have to be used.

•Use a clamp to mount the projector, with the mounting bracket, to the trussing system.

•The projector must never be fixed swinging freely in the room.

•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety cable.

•When rigging, derigging or servicing the projector, always make sure, that the area below the

installation site is secured and that there are not any unauthorized people around.

Ordercode: 30873

Bumper Strobe

The Bumper Strobe can be placed on a flat stage floor or mounted to any kind of truss with a clamp.

Improper installation can cause serious injuries and/or damage of property!

Connection with the mains

Connect the device to the mains with the power-plug.

Always check if the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE GROUND

Make sure that the device is always properly connected to the earth!

Improper installation can cause serious injuries and/or damage of property!

Ordercode: 30873

Bumper Strobe

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to report and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

agreed otherwise in writing.

Complaints against us must be prepared in writing or sent by fax within 10 working days after receipt of

the invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement from which the obligation is resulting.

Ordercode: 30873

Bumper Strobe

Description of the device

Features

The Bumper Strobe is a light effect with high output and great effects.

•Input voltage: 100-240V AC, 60/50Hz

•Power supply: 12V 1A DC power adapter

•Power consumption: 5W

•Light source: 35 x 5 mm White LEDs

•Control modes: Static, strobe

•Control: IR remote control

•Housing: Black metal & flame-retardant plastic

•Connections: DC power adapter connector IN

•Cooling: Convection

•Dimensions: 55 x 105 x 104 mm (LxWxH)

•Weight: 0,2 kg

Frontside

Fig. 01

01) 35 x 5 mm White LEDs

Ordercode: 30873

Bumper Strobe

Backside

Fig. 02

02) Mounting bracket with inclination screw

03) 12V 1A DC power connector IN

04) Adjustment screw

Installation

Remove all packing materials from the Bumper Strobe. Check if all foam and plastic padding is removed.

Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Connect the device to the main power supply.

Ordercode: 30873

Bumper Strobe

Control Modes

There are 2 modes:

•Static mode

•Strobe mode

One Bumper Strobe (Static mode)

01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.

02) Always use a safety cable (ordercode 70140 / 70141).

03) Plug the end of the electric mains power cord into a proper electric power supply socket.

04) The Bumper Strobe functions as a stand-alone device. See page 10 for more information about

Static mode.

One Bumper Strobe (Strobe mode)

01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.

02) Always use a safety cable (ordercode 70140 / 70141).

03) Plug the end of the electric mains power cord into a proper electric power supply socket.

04) The Bumper Strobe functions as a stand-alone device. See page 10 for more information about

Strobe mode.

Remote Control

Fig. 03

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Show Tec DJ-Equipment Handbücher

Show Tec

Show Tec Performer Profile IP Q4 Bedienungsanleitung

Show Tec

Show Tec INDOOR DMX LED BAR 8 Bedienungsanleitung

Show Tec

Show Tec Polar 100 Beam Bedienungsanleitung

Show Tec

Show Tec PHANTOM 65 V1 Bedienungsanleitung

Show Tec

Show Tec Performer 2000 RGBAL Bedienungsanleitung

Show Tec

Show Tec Cameleon Spot 7 Q6 V1 Bedienungsanleitung

Show Tec

Show Tec Single WDP-1 Pro V1 Bedienungsanleitung

Show Tec

Show Tec Mirrorball Motor until 50 cm V2 Bedienungsanleitung

Show Tec

Show Tec Performer 2500 Fresnel Daylight Bedienungsanleitung

Show Tec

Show Tec 43549 Bedienungsanleitung

Show Tec

Show Tec Airstrike V2 Bedienungsanleitung

Show Tec

Show Tec Performer 2500 Fresnel Tungsten V1 Bedienungsanleitung

Show Tec

Show Tec EventLITE 7/4 Bedienungsanleitung

Show Tec

Show Tec SPECTRAL M3000 ZOOM Q4 MK II Bedienungsanleitung

Show Tec

Show Tec ColorCue 3 Bedienungsanleitung

Show Tec

Show Tec LED Octostrip Set MKII V1 Bedienungsanleitung

Show Tec

Show Tec PowerBOX 4 Bedienungsanleitung

Show Tec

Show Tec GALACTIC BEAM G40 V1 Bedienungsanleitung

Show Tec

Show Tec Astro 360 RGBW V1 Bedienungsanleitung

Show Tec

Show Tec Aircone Q6 WDMX Bedienungsanleitung

Show Tec

Show Tec Stage Blinder 4 DMX V2 Bedienungsanleitung

Show Tec

Show Tec 40392 Bedienungsanleitung

Show Tec

Show Tec Spectral PC 1800Z IP65 Bedienungsanleitung

Show Tec

Show Tec Performer Profile 700 Q6 Bedienungsanleitung

Beliebte DJ-Equipment Handbücher anderer Marken

ALPHA LITE

ALPHA LITE ALPHA 1500 Betriebsanleitung

Chauvet

Chauvet OVATION E-930VW Bedienungsanleitung

Zumtobel

Zumtobel APHRODITE Home Bedienungsanleitung

Snow Masters

Snow Masters Zig Oscillator Bedienungsanleitung

EuroLite

EuroLite 50530554 Bedienungsanleitung

Beamz

Beamz BUV243 Bedienungsanleitung

thomann

thomann Stairville DJ Lase 40-G MK-III Bedienungsanleitung

Eagletone

Eagletone 6 Eyes Flower Bedienungsanleitung

EuroLite

EuroLite FLD-1508 Bedienungsanleitung

Technical Pro

Technical Pro LG8xSEA Bedienungsanleitung

JB Systems

JB Systems Lounge Laser DMX Bedienungsanleitung

Lightmaxx

Lightmaxx Vega Halo 90 Bedienungsanleitung

Elation

Elation FUZE WASH Z350 Bedienungsanleitung

Maverick

Maverick MK3 WASH Bedienungsanleitung

Infinity

Infinity TF-260C7 Fresnel Bedienungsanleitung

Chauvet

Chauvet EVE E-50Z Bedienungsanleitung

Eliminator Lighting

Eliminator Lighting E 138 Bedienungsanleitung

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Bedienungsanleitung
