Show Tec Mirrorball Motor until 50 cm V2 Bedienungsanleitung

Mirrorball Motor until 50 cm V2

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Ordercode: 60411

MANUAL

ENGLISH

Ordercode: 60411

Mirrorball Motor until 50 cm

Table of contents

Warning ...............................................................................................................................................................................2

Safety Instructions .........................................................................................................................................................2

Operating Determinations ..........................................................................................................................................4

Rigging ............................................................................................................................................................................4

Connection with the mains.........................................................................................................................................5

Return Procedure..........................................................................................................................................................5

Claims..............................................................................................................................................................................5

Description of the device.................................................................................................................................................6

Overview ........................................................................................................................................................................6

Installation...........................................................................................................................................................................7

Installing the Mirrorball Motor .....................................................................................................................................7

Setup and Operation ........................................................................................................................................................8

Power On........................................................................................................................................................................8

Maintenance......................................................................................................................................................................8

Troubleshooting..................................................................................................................................................................8

Product Specifications......................................................................................................................................................9

Ordercode: 60411

Mirrorball Motor until 50 cm

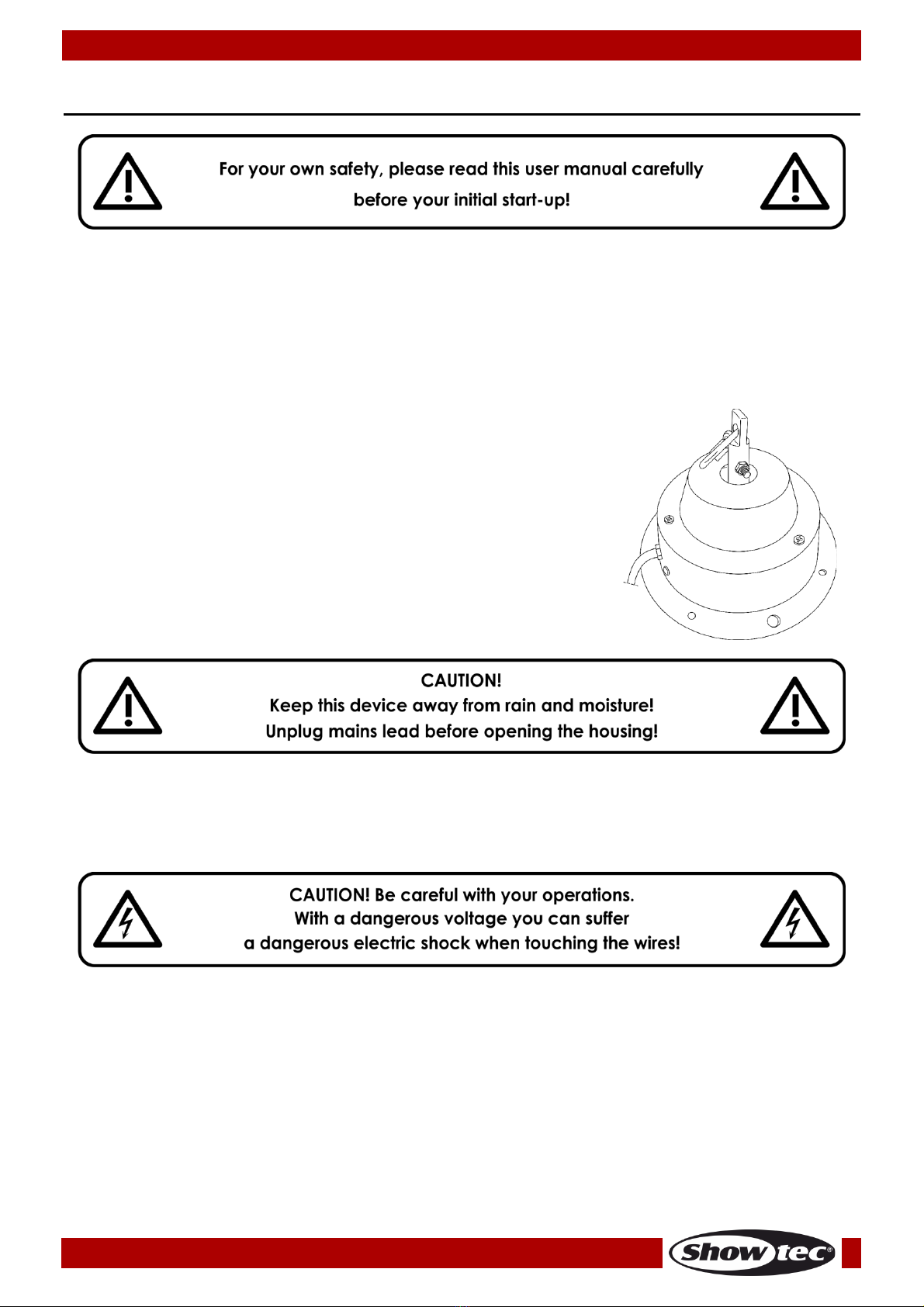

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

●Showtec Mirrorball Motor 50 cm with a power cable (1 m)

●User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

●be qualified

●follow the instructions of this manual

Before the initial start-up, please make sure that there is no damage caused by transportation.

Should there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes contained in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

Ordercode: 60411

Mirrorball Motor until 50 cm

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

●Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

●Never remove warning or informative labels from the unit.

●Do not open the device and do not modify the device.

●Do not connect this device to a dimmer pack.

●Do not shake the device. Avoid brute force when installing or operating the device.

●Never leave any cables lying around.

●Never use the device during thunderstorms, unplug the device immediately.

●Do not touch the device’s housing bare-handed during its operation (housing becomes hot).

●Only use device indoors, avoid contact with water or other liquids.

●Avoid flames and do not put close to flammable liquids or gases.

●Only operate the device after having familiarized with its functions.

●Always keep case closed while operating.

●Always allow free air space of at least 50 cm around the unit for ventilation.

●Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power cord by the plug. Never pull out the plug by tugging the power cord.

●Make sure that the device is not exposed to extreme heat, moisture or dust.

●Make sure that the available voltage is not higher than stated on the rear panel.

●Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

●Make sure that the rotation of the mirror ball is not interrupted in any way by decoration parts, etc.

●Make sure that the mirror ball cannot start swinging due to air streams, etc. The mirror ball and the

motor should be hung and operated absolutely vibration-free.

●Regularly examine whether the keyring and the chain have any deformations. If they do,

immediately detach the mirror ball.

●The length of the chain (with the mirror ball) may never exceed 100 cm.

●If the external cable is damaged, it has to be replaced by a qualified technician.

●If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

●If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

●If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

●For adult use only. The mirror ball must be installed out of the reach of children. Never leave the unit

running unattended.

●The user is responsible for correct positioning and operating of the Mirrorball Motor. The manufacturer

will not accept liability for damages caused by the misuse or incorrect installation of the device.

●This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

●Repairs, servicing and electric connection must be carried out by a qualified technician.

●WARRANTY: Till one year after date of purchase.

Ordercode: 60411

Mirrorball Motor until 50 cm

Operating Determinations

●This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

●The maximum ambient temperature ta= 25 °C must never be exceeded.

●The relative humidity must not exceed 50 % with an ambient temperature of 25 °C.

●In order to eliminate wear and improve the device’s lifespan, during periods of non-use, completely

disconnect from power source via breaker or by unplugging.

●If this device is operated in any other way than the one described in this manual, the product may

suffer damages and the warranty becomes void.

●Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.

You endanger your own safety and the safety of others

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all

other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

●If the mirror ball or motor is lowered from the ceiling or high joists, professional trussing systems have to

be used.

●The motor must never be fixed swinging freely in the room.

●The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

a safety cable.

●Make sure that the installation area can hold a minimum point load of 10 times the device’s load

(e.g. maximum load: 3 kg = point load: 30 kg).

●When rigging, derigging or servicing the device, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious injuries and/or damage of property!

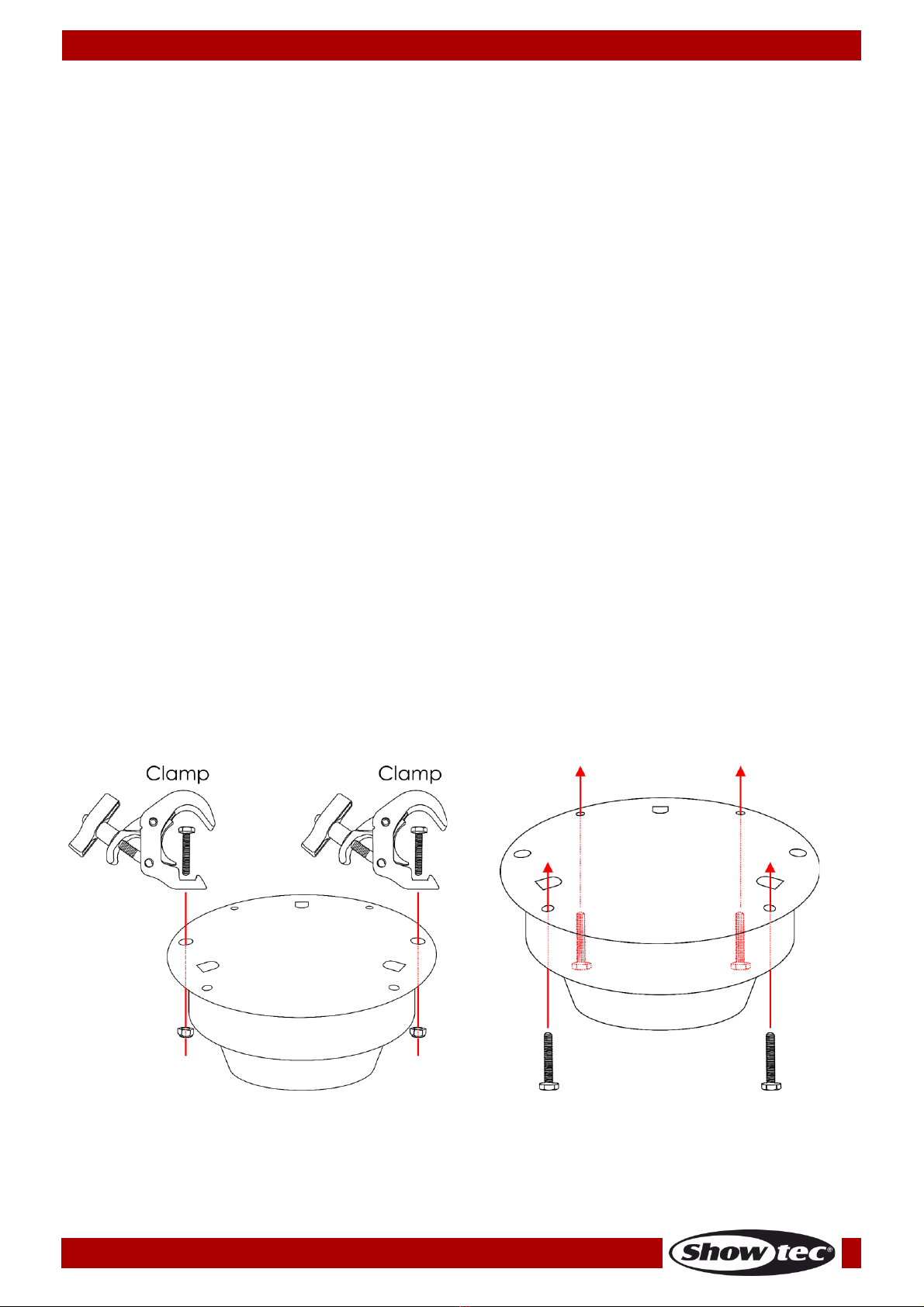

The Mirrorball Motor can be mounted to any kind of truss with clamps or to a ceiling with bolts.

Ordercode: 60411

Mirrorball Motor until 50 cm

Connection with the mains

Connect the device to the mains with the power-plug.

Always check if the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE GROUND

Make sure that the device is always properly connected to the earth!

Improper installation can cause serious injuries and/or damage of property!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the

fixture. Be prepared to provide the model number, serial number and a brief description of the cause of

the return. Be sure to properly pack fixture as any shipping damage resulting from inadequate packaging

is the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to report and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

agreed otherwise in writing.

Complaints against us must be prepared in writing or sent by fax within 10 working days after receipt of

the invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement from which the obligation is resulting.

Ordercode: 60411

Mirrorball Motor until 50 cm

Description of the device

Features

The Showtec Mirrorball Motor until 50 cm is a mirror ball control system.

●Input voltage: 240 V AC, 50 Hz

●Power consumption: 10 W

●Max. rotation speed: ± 1 RPM

●Mirror ball max. size: 50 cm/10 kg

●Housing: Steel

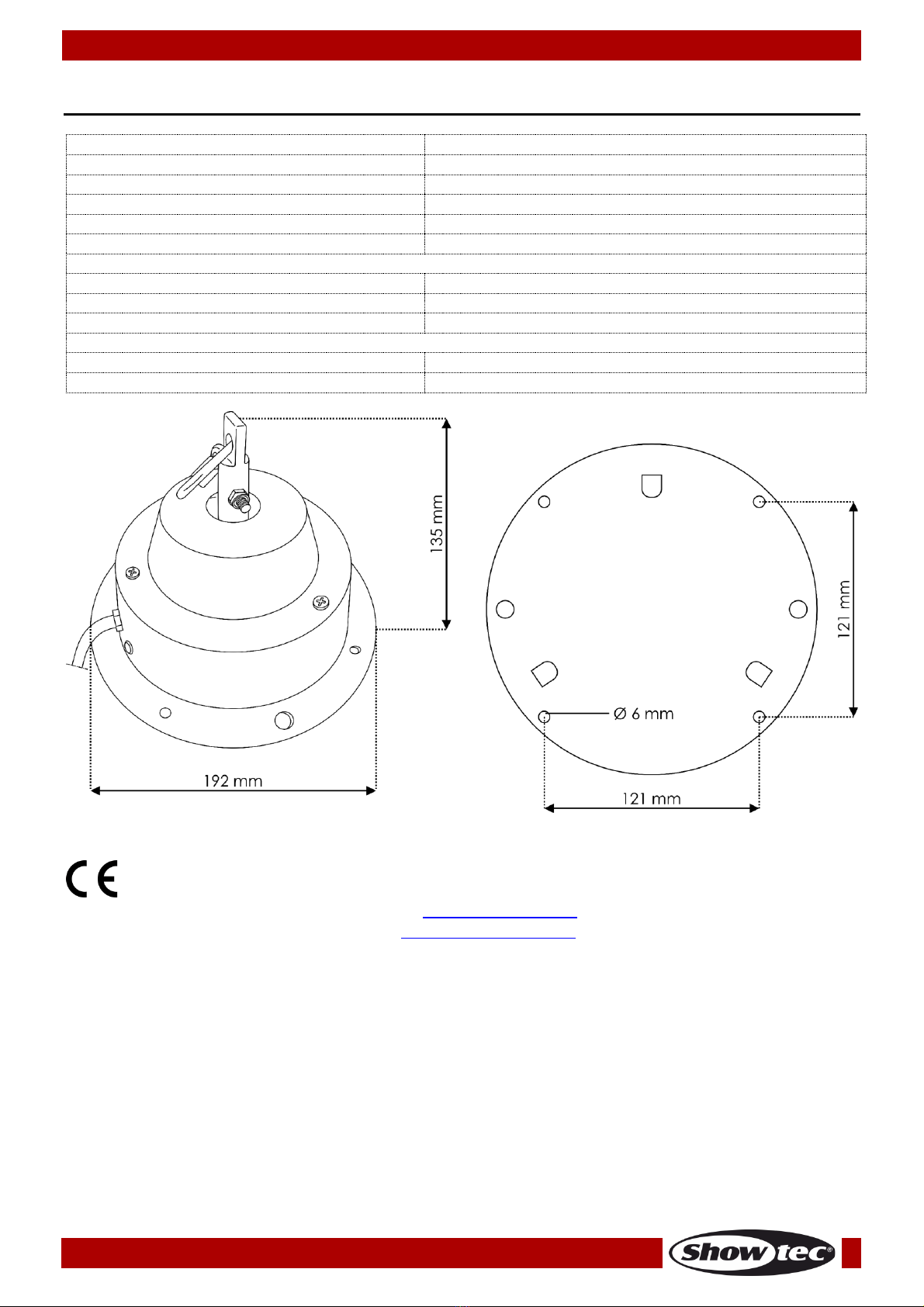

●Dimensions: 192 x 135 mm (WxH)

●Weight: 1 kg

Optional accessories

60404 –Mirrorball 20 cm

60405 –Mirrorball 30 cm

60406 –Mirrorball 40 cm

60407 –Mirrorball 50 cm

60412 –Mirrorball 5 cm

60413 –Mirrorball 10 cm

60414 –Mirrorball 15 cm

60430 –Professional Mirrorball 30 cm

60431 –Professional Mirrorball 40 cm

60432 –Professional Mirrorball 50 cm

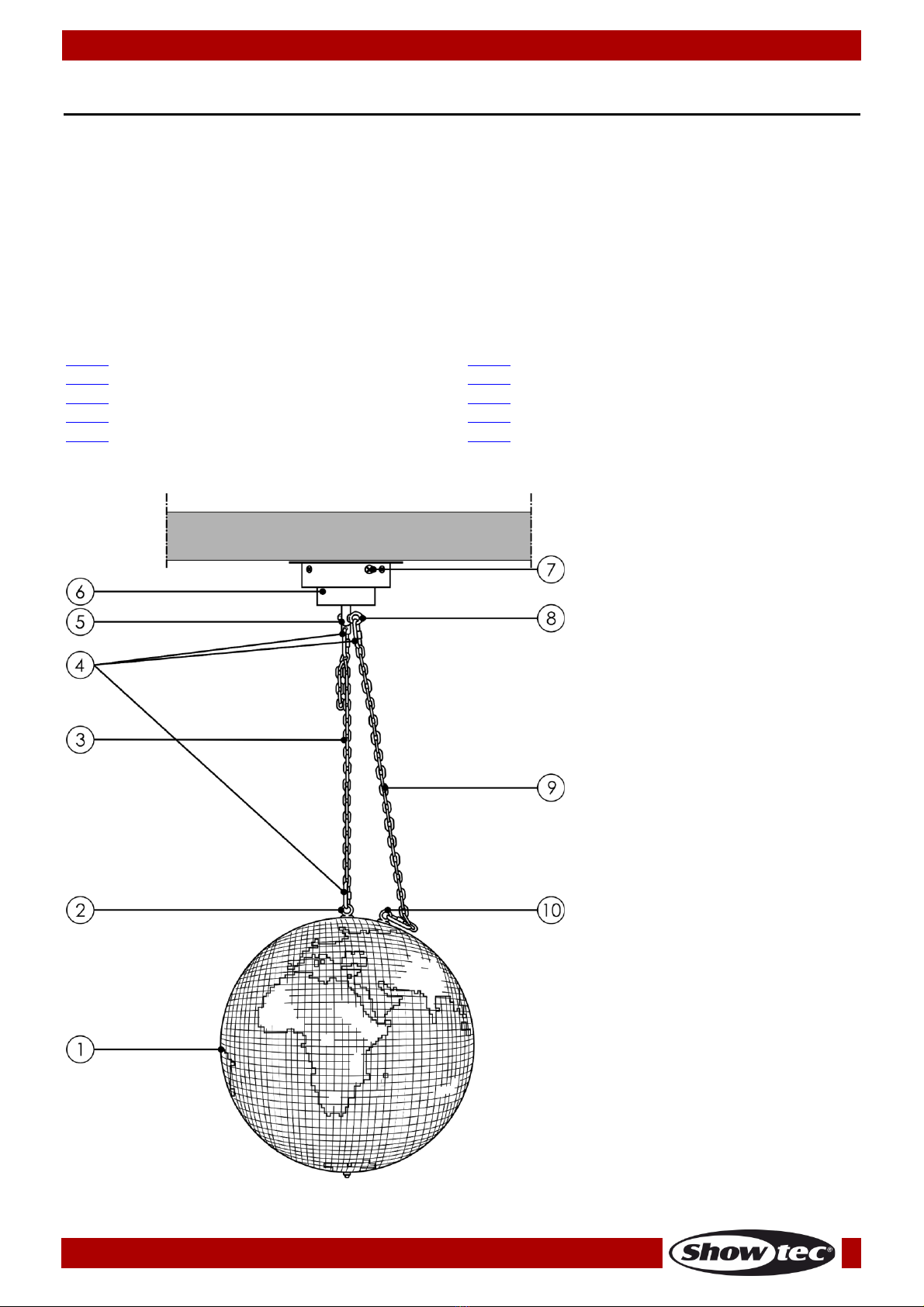

Overview

01) Mirror ball

02) Installation eyelet

03) Mirror ball chain

04) Screw-on chain link

05) Motor axle

06) Mirrorball Motor until 50 cm

07) Ground/earth connection

08) Safety eyelet

09) Safety chain

10) Safety eyelet

Fig. 01

Ordercode: 60411

Mirrorball Motor until 50 cm

Installation

Remove all packing materials from the Mirrorball Motor until 50 cm. Check if all foam and plastic padding

is removed. Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Installing the Mirrorball Motor

●Install the mirror ball chain with the screw-on chain link at the installation eyelet of the mirror ball and

tighten the fixation screw.

●Insert the fourth chain link of the mirror ball chain with the mirror ball in the screw-on chain link and

tighten the fixation screw.

●Always install a safety chain that can hold at least 12 times the weight of the installation. The safety

chain must be slightly longer than the mirror ball chain, so that the safety chain will remain tension-

free. Pull the safety chain through the safety eyelet of the mirror ball and through the safety eyelet of

the motor.

●Make sure that the chain’s length is not longer than 100 cm.

●Make sure that the maximum drop distance never exceeds 20 cm.

●Replace a safety chain which already held the strain of a crash or which is defective.

●Never hang a mirror ball or other load at the safety eyelet. Loads must only be hanged at the quick

link of the installation eyelet, at the motor axle. If, for any reason, a mirror ball hangs at the safety

eyelet, immediately take the motor out of operation and uninstall the mirror ball. Have an expert

check the whole installation for defects.

●Make sure that the rotation of the mirror ball is never obstructed by decoration material etc.

●Make sure that the mirror ball cannot be affected by air streams. The mirror ball and the motor must

be installed and operated absolutely swivel-free.

●Please check for safety in regular intervals. If the installation material (e. g. key ring, shackles or

screw-on chain links) or chain links have been deformed, uninstall the mirror ball immediately.

The fixation holes are located on the baseplate.

01) Hold the baseplate onto the location where the device is to be installed.

02) Mark the holes with a pen or a suitable tool.

03) Drill the holes.

04) Hold the baseplate in the desired position and tighten the screws.

Ordercode: 60411

Mirrorball Motor until 50 cm

Setup and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 110 V specification product on 240 V power, or vice versa.

Connect the device to the main power supply.

Power On

01) Plug the Schuko power cable into the appropriate power supply. The motor will start rotating. The

rotation direction is random.

Maintenance

The operator has to make sure that safety-related and machine-technical installations are to be

inspected by an expert after every year in the course of an acceptance test.

The operator has to make sure that safety-related and machine-technical installations are to be

inspected by a skilled person once a year.

The following points have to be considered during the inspection:

01) All screws used for installing the device or parts of the device have to be tightly connected and

must not be corroded.

02) There may not be any deformations on housings, fixations and installation spots.

03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.

04) The electric power supply cables must not show any damages or material fatigue.

The Mirrorball Motor until 50 cm requires almost no maintenance. However, you should keep the unit

clean.

Please clean internal components once a year with a light brush and vacuum cleaner.

Keep connections clean. Disconnect electric power, and then wipe the connections with a damp cloth.

Make sure connections are thoroughly dry before supplying electric power.

Troubleshooting

This troubleshooting guide is meant to help solve simple problems.

If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit

operates properly, do not carry out following steps.

If the mirror ball control system does not operate properly, refer servicing to a technician.

Suspect two potential problem areas as: the power supply and the motor.

01) Power supply. Check if the unit is plugged into an appropriate power supply.

02) The motor. Return the device to your Showtec dealer.

03) If both of the above appear to be O.K., plug the unit in again.

04) If you are unable to determine the cause of the problem, do not open the Mirrorball Motor, as this

may damage the unit and the warranty will become void.

05) Return the device to your Showtec dealer.

Ordercode: 60411

Mirrorball Motor until 50 cm

Product Specifications

Model:

Showtec Mirrorball Motor until 50 cm

Input voltage:

240 V AC, 50 Hz

Power consumption:

10 W

Dimensions:

192 x 135 mm (WxH)

Weight:

1 kg

Electro-mechanical effects:

Max. rotation speed:

± 1 RPM

Mirror ball max. size:

50 cm/10 kg

Housing:

Steel

Max. ambient temperature ta:

25 °C

Max. housing temperature tB:

30 °C

Design and product specifications are subject to change without prior notice.

Website: www.Showtec.info

Email: [email protected]m

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Show Tec DJ-Equipment Handbücher

Show Tec

Show Tec Solaris 5.5 incl. FB4 Bedienungsanleitung

Show Tec

Show Tec LED City Painter 45 Bedienungsanleitung

Show Tec

Show Tec Performer 2000 Fresnel DDT MKII V1 Bedienungsanleitung

Show Tec

Show Tec SHARK SPOT ONE Bedienungsanleitung

Show Tec

Show Tec EventDOT 15 Q4 Bedienungsanleitung

Show Tec

Show Tec EventSpot 1600 Q4 Bedienungsanleitung

Show Tec

Show Tec 51329 Bedienungsanleitung

Show Tec

Show Tec Indigo 5500 Bedienungsanleitung

Show Tec

Show Tec Stellar FZ-1000 Fazer Bedienungsanleitung

Show Tec

Show Tec The Moustache Bedienungsanleitung

Show Tec

Show Tec Sunstrip Active MKII 110V V1 Bedienungsanleitung

Show Tec

Show Tec Performer 1500 Fresnel Daylight Bedienungsanleitung

Show Tec

Show Tec Star Sky Pro Bedienungsanleitung

Show Tec

Show Tec Spectral PC 1800Z IP Bedienungsanleitung

Show Tec

Show Tec Easy 16 V3 Bedienungsanleitung

Show Tec

Show Tec Spectral M400 IP67 Bedienungsanleitung

Show Tec

Show Tec Compact Par 60 COB RGBW V1 Bedienungsanleitung

Show Tec

Show Tec Sustrip II Stageblinder Bedienungsanleitung

Show Tec

Show Tec Galactic RGB300 Bedienungsanleitung

Show Tec

Show Tec Data Flash Strobe Bedienungsanleitung

Show Tec

Show Tec EVENTSPOT 60 Q7 Bedienungsanleitung

Show Tec

Show Tec Pixelbar 16 Q6 Bedienungsanleitung

Show Tec

Show Tec Mirrorball 20 Sm V1 Bedienungsanleitung

Show Tec

Show Tec Shogun Pro-2000 Bedienungsanleitung

Beliebte DJ-Equipment Handbücher anderer Marken

ALPHA LITE

ALPHA LITE ALPHA 1500 Betriebsanleitung

Chauvet

Chauvet OVATION E-930VW Bedienungsanleitung

Zumtobel

Zumtobel APHRODITE Home Bedienungsanleitung

Snow Masters

Snow Masters Zig Oscillator Bedienungsanleitung

EuroLite

EuroLite 50530554 Bedienungsanleitung

Beamz

Beamz BUV243 Bedienungsanleitung

thomann

thomann Stairville DJ Lase 40-G MK-III Bedienungsanleitung

Eagletone

Eagletone 6 Eyes Flower Bedienungsanleitung

EuroLite

EuroLite FLD-1508 Bedienungsanleitung

Technical Pro

Technical Pro LG8xSEA Bedienungsanleitung

JB Systems

JB Systems Lounge Laser DMX Bedienungsanleitung

Lightmaxx

Lightmaxx Vega Halo 90 Bedienungsanleitung

Elation

Elation FUZE WASH Z350 Bedienungsanleitung

Maverick

Maverick MK3 WASH Bedienungsanleitung

Infinity

Infinity TF-260C7 Fresnel Bedienungsanleitung

Chauvet

Chauvet EVE E-50Z Bedienungsanleitung

Eliminator Lighting

Eliminator Lighting E 138 Bedienungsanleitung

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Bedienungsanleitung
