Show Tec Studio Beam 575 Bedienungsanleitung

Studio Beam 575 V1

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Ordercode: 30657/30658

MANUAL

ENGLISH

Ordercode: 30657/30658

Studio Beam 575

Table of contents

Warning ...............................................................................................................................................................................2

Safety Instructions .........................................................................................................................................................2

Operating Determinations ..........................................................................................................................................4

Rigging ............................................................................................................................................................................4

Connection with the mains.........................................................................................................................................5

Return Procedure..........................................................................................................................................................6

Claims..............................................................................................................................................................................6

Description of the device.................................................................................................................................................7

Optional accessories....................................................................................................................................................7

Overview ........................................................................................................................................................................7

Lamp housing ................................................................................................................................................................8

Installation...........................................................................................................................................................................8

Installing the Lamp........................................................................................................................................................9

Set Up and Operation .....................................................................................................................................................10

Filter frame retaining clip...........................................................................................................................................10

Included lenses............................................................................................................................................................10

Changing the lens ......................................................................................................................................................11

Removing the lens ......................................................................................................................................................11

Maintenance....................................................................................................................................................................11

Changing the Lamp...................................................................................................................................................12

Cleaning VNSP, NSP, MFL and WFL glass lenses....................................................................................................12

Troubleshooting ...............................................................................................................................................................12

No Light.........................................................................................................................................................................12

Product Specifications....................................................................................................................................................13

Dimensions........................................................................................................................................................................14

Ordercode: 30657/30658

Studio Beam 575

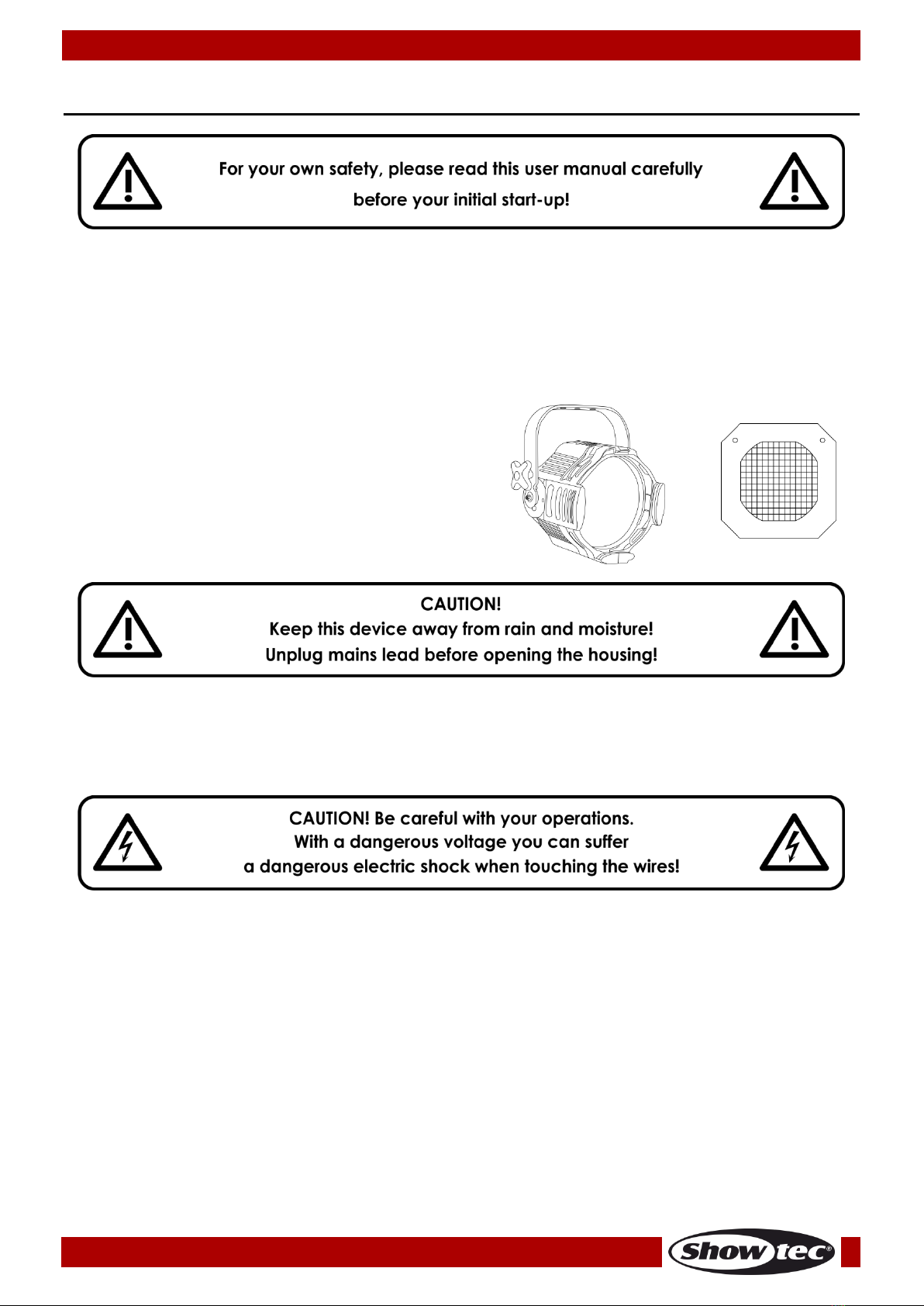

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear to be damaged from shipping or the carton

itself shows signs of mishandling. Save the carton and all packing materials. In the event that the fixture

must be returned to the factory, it is important that the fixture be returned in the original factory box and

packing.

Your shipment includes:

●Showtec Studio Beam 575 with 0,9m power cable

●1x Filter frame

●4 lenses: VNSP/NSP/MFL/WFL

●User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

●be qualified

●follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

Ordercode: 30657/30658

Studio Beam 575

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Never lift the fixture holding it by the projector-head, as the mechanics may be damaged. Always

hold the fixture by the transport handles.

Never place any material over the lens.

Never look directly into the light source.

Never leave any cables lying around.

Do not insert objects into air vents.

Do not switch the device on and off in short intervals, as this would reduce the device’s lifespan.

Do not touch the device’s housing bare-handed during its operation. Allow the fixture to cool for at

least 5 minutes before handling.

Do not shake the device. Avoid brute force when installing or operating the device.

Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always keep case closed while operating.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power cord by the plug. Never pull out the plug by tugging the power cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

If the lens is obviously damaged, it has to be replaced to prevent its functions from being impaired,

due to cracks or deep scratches.

If device was dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. Device must be installed out of reach of children. Never leave the unit running

unattended.

Never attempt to bypass the thermostatic switch or fuses.

For replacement, use fuses of same type and rating only.

The user is responsible for correct positioning and operating of the Studio Beam 575.

The manufacturer will not accept liability for damages caused by the misuse or incorrect installation

of this device.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

During the initial start-up, some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

Repairs, servicing and electrical connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

Ordercode: 30657/30658

Studio Beam 575

Operating Determinations

●This device is not designed for permanent operation. Regular operation breaks will ensure that the

device will serve you for a long time without defects.

●The minimum distance between light-output and the illuminated surface must be bigger than 0,5

meter.

●The maximum ambient temperature ta = 40°C must never be exceeded.

●The relative humidity must not exceed 50 % with an ambient temperature of 40° C.

●If this device is operated in any other way than the one described in this manual, the product may

suffer damages and the warranty becomes void.

●Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all

other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If the Studio Beam is lowered from the ceiling or high joists, professional trussing systems can be

used.

Use a clamp to mount the Studio Beam, with the mounting-bracket, to the trussing system.

The Studio Beam must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net

or safety-cable.

When rigging, derigging or servicing the Studio Beam, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Ordercode: 30657/30658

Studio Beam 575

Improper installation can cause serious injuries and/or damage of property!

Connection with the mains

Connect the device to the mains with the power plug.

Always check if the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE GROUND

Make sure that the device is always connected properly to the earth!

Improper installation can cause serious damage to people and property!

Ordercode: 30657/30658

Studio Beam 575

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause of the

return. Be sure to properly pack fixture as any shipping damage resulting from inadequate packaging is

the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name.

02) Your address.

03) Your phone number.

04) A brief description of the symptoms.

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that the fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

agreed otherwise in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period, complaints will not be handled anymore.

Complaints will only be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Ordercode: 30657/30658

Studio Beam 575

Description of the device

Features

The Showtec Studio Beam 575 is a parcan with high output and great effects.

•Lamp: HPL-575

•Lamp socket: G9,5

•Capacity: max 600W

•Input voltage: 230V, 50Hz

•Power cable 0,9m

•Filter frame: Included

•Housing: Metal & flame retardant plastic

•Reflector: aluminum

•IP rating: IP20

•Included 4 lenses: VNSP/NSP/MFL/WFL

•Dimensions: 260 x 220 x 290 mm (LxWxH)

•Weight: 2,90 kg

Optional accessories

30696 Filter frame for Studio Beam

30698 Barndoor for Studio Beam

80812G HPL-575 GE

80812O HPL-575 Osram

Overview

Fig. 01

01) Mountingbracket with inclination screw

02) Filter frame retaining clip

03) Filter frame holder

Ordercode: 30657/30658

Studio Beam 575

Lamp housing

Fig. 02

04) Lamp socket G9,5

05) Power cable 0,9m

Side

Fig. 03

06) Safety Eye

Installation

Remove all packing materials from the Studio Beam 575. Check that all foam and plastic padding is

removed. Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Ordercode: 30657/30658

Studio Beam 575

Installing the Lamp

The Showtec Studio Beam 575 uses the HPL-575 (ordercode 80812G /80812O) as manufactured by all

popular manufacturers. Use only the appropriate lamp for your unit.

Note that, product versions that use other lamps, may be offered in the future. Check your product

specification label for information.

Always disconnect from electric mains power supply before changing lamps.

The lamp has to be replaced when it is damaged or deformed due to the heat.

Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the

device was not designed for.

Damages caused by non-observance are not subject to warranty.

Procedure:

01) Disconnect the Studio Beam 575 from power before installing the lamp.

02) Loosen the knurled bolt and remove the lamp housing (Fig.04).

03) Remove the lamp from the box and hold it by the base. Read lamp instructions. Do not touch the

lamp bulb glass. Oil on hands shortens the lamp’s lifespan. If you touch the bulb glass, wipe it off with

a clean, lint free towel and rubbing alcohol.

04) Insert the lamp and fit it firmly within the lamp brackets (Fig.05).

05) Replace the lamp housing (Fig.06).

06) The Studio Beam 575 is now ready to use.

Fig. 04

Fig. 05

Fig. 06

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Show Tec DJ-Equipment Handbücher

Show Tec

Show Tec Polar 300 Hybryd Bedienungsanleitung

Show Tec

Show Tec Solar FL-280 V1 Bedienungsanleitung

Show Tec

Show Tec STAGEBEAM MKII 2000W FRESNEL V1 Bedienungsanleitung

Show Tec

Show Tec Polar 1920 Wash Bedienungsanleitung

Show Tec

Show Tec LED Wash Ultra Bright Compact RGB Bedienungsanleitung

Show Tec

Show Tec Performer Pendant 75 Q6 Bedienungsanleitung

Show Tec

Show Tec Dancefloor Sparkle RGB V1 Bedienungsanleitung

Show Tec

Show Tec Easy 16 V3 Bedienungsanleitung

Show Tec

Show Tec Mistique Bedienungsanleitung

Show Tec

Show Tec Performer 2000 Fresnel DDT MKII V2 Bedienungsanleitung

Show Tec

Show Tec 50787 Bedienungsanleitung

Show Tec

Show Tec Stage Blinder 2 Blaze Bedienungsanleitung

Show Tec

Show Tec Hydrogen DMX MKII Bedienungsanleitung

Show Tec

Show Tec Airstrike V2 Bedienungsanleitung

Show Tec

Show Tec Cameleon Spot 7 Q6 V1 Bedienungsanleitung

Show Tec

Show Tec Edison Bar E6 Bedienungsanleitung

Show Tec

Show Tec ACT Flood 80 RGBW Bedienungsanleitung

Show Tec

Show Tec FX Blaster XL V1 Bedienungsanleitung

Show Tec

Show Tec Marquees Uplighter RGB LED Bedienungsanleitung

Show Tec

Show Tec QubiQ S1000 Bedienungsanleitung

Show Tec

Show Tec QubiQ S2500 Bedienungsanleitung

Show Tec

Show Tec FX Drop Bedienungsanleitung

Show Tec

Show Tec Quick DMX Rack 1024 Bedienungsanleitung

Show Tec

Show Tec Spectral D5000 Bedienungsanleitung

Beliebte DJ-Equipment Handbücher anderer Marken

ALPHA LITE

ALPHA LITE ALPHA 1500 Betriebsanleitung

Chauvet

Chauvet OVATION E-930VW Bedienungsanleitung

Zumtobel

Zumtobel APHRODITE Home Bedienungsanleitung

Snow Masters

Snow Masters Zig Oscillator Bedienungsanleitung

EuroLite

EuroLite 50530554 Bedienungsanleitung

Beamz

Beamz BUV243 Bedienungsanleitung

thomann

thomann Stairville DJ Lase 40-G MK-III Bedienungsanleitung

Eagletone

Eagletone 6 Eyes Flower Bedienungsanleitung

EuroLite

EuroLite FLD-1508 Bedienungsanleitung

Technical Pro

Technical Pro LG8xSEA Bedienungsanleitung

JB Systems

JB Systems Lounge Laser DMX Bedienungsanleitung

Lightmaxx

Lightmaxx Vega Halo 90 Bedienungsanleitung

Elation

Elation FUZE WASH Z350 Bedienungsanleitung

Maverick

Maverick MK3 WASH Bedienungsanleitung

Infinity

Infinity TF-260C7 Fresnel Bedienungsanleitung

Chauvet

Chauvet EVE E-50Z Bedienungsanleitung

Eliminator Lighting

Eliminator Lighting E 138 Bedienungsanleitung

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Bedienungsanleitung
