Show Tec Chaotic LED Bedienungsanleitung

Chaotic LED

ORDERCODE 43051

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Chaotic LED brings excitement to any venue. Whether you want simple plug-&-play action

or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Chaotic LED™Product Guide

Warning.................................................................................…...……………..…………………………….…………

Safety-instructions………………………………………………………………………………………………………

Operating Determinations.…………………………………………………………………………………………..

Rigging.…………………………………………………………………………………………………………………..

Return Procedure……………………………………………………………………...............................................

Claims……………………………………………………………………..................................................................

Description...............................................................................…...………………………………………….………..

Features and Overview ………………………………...….……………….………….……….……….…………..

Backside…………………………………………………...…...….……………….…………………...….…………..

Installation...............................................................................…...…………………………………….……………..

Set Up and Operation.....................................................................……..…………………………………………..

Control Modes………………………………………………………………………………………………………….

Built-in Programs ………………..………………………………………………………………………………..

Sound Control Mode….…………………………………………………………………………………………

Master/Slave Mode…….………………………………………………………………………………………..

DMX Mode………….……………………………………………………………………………………………..

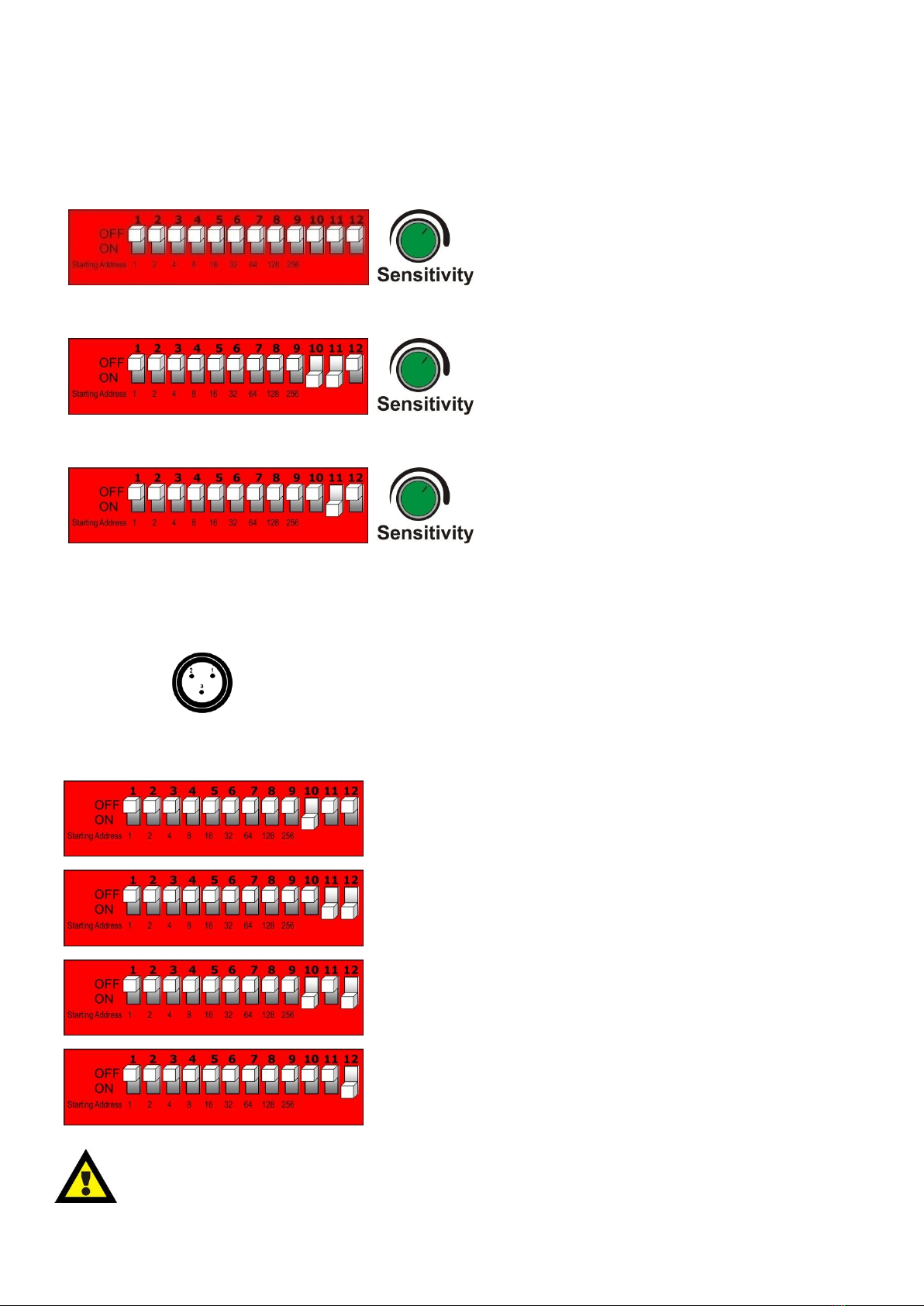

Dipswitch setting for DMX Mode…..……………..…………………………………………………………………

DMX Quick Reference Chart………………………………………………………………………………………..

DMX Channels.........................……………………………………………………………………………………….

Maintenance...................................................................................………..………….…….……………………….

Replacing the Fuse........................................................................…………………….…………………………

Troubleshooting............................................................................………………….………………….……………..

No Light……………………………………............................................………………….…………………………

No Response to DMX ....................................................................………………….………………………..….

Product Specifications.................................................................……………….…….……………………………..

WARNING

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

• Chaotic LED with cable 1,5m and hanging-bracket.

•User manual

LED Expected Lifespan

LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration

of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular

optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is

significantly reduced. It is estimated that a viable lifespan of 40,000 to 50,000 hours will be achieved

under normal operational conditions. If improving on this lifespan expectancy is of a higher priority, place

care in providing for lower operational temperatures. This may include climatic-environmental and the

reduction of overall projection intensity.

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

CAUTION!

Keep this device away from rain and moisture!

indoor use only!

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Never look directly into the light source.

Never leave any cables lying around.

Never use the device during thunderstorms, unplug the device immediately.

Never leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within

children’s reach, as they are potential sources of danger.

Never use the device during thunderstorms, unplug the device immediately.

Do not insert objects into air vents.

Do not open the device and do not modify the device.

Do not connect this device to a dimmerpack.

Do not shake the device. Avoid brute force when installing or operating the device.

Do not switch the device on and off in short intervals, as this would reduce the system’s life.

Only use device indoor, avoid contact with water or other liquids.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only

handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

Make sure that no side forces can impact on the truss system.

The cable insert or the female part in the device must never be strained. There must always be

sufficient cable to the device. Otherwise, the cable may be damaged which may lead to deadly

electrical shocks.

If the external cable is damaged, it has to be replaced by a qualified technician.

If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due

to cracks or deep scratches.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. The device must be installed out of the reach of children. Never leave the unit

running unattended.

For replacement use fuses of same type and rating only.

The user is responsible for correct positioning and operating of the Chaotic LED. The manufacturer

will not accept liability for damages caused by the misuse or incorrect installation of this device.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

For replacement use fuses of same type and rating only.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

• This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

• The minimum distance between light-output and the illuminated surface must be more than 0,5 meters.

• The maximum ambient temperature ta= 45°C must never be exceeded.

• The relative humidity must not exceed 50 % with an ambient temperature of 45° C.

• If this device is operated in any other way, than the one described in this manual, the product may

suffer damages and the warranty becomes void.

• Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If the Chaotic LED is lowered from the ceiling or high joists, professional trussing systems have to be

used.

Use a clamp to mount the Chaotic LED, with the mounting-bracket, to the trussing system.

The Chaotic LED must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net

or safety-cable.

When rigging, derigging or servicing the device, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

1) Your name

2) Your address

3) Your phone number

4) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Description of the device

Features

The Showtec Chaotic LED is a light effect with high output and great effects.

• Plug & Play

• LED system: 3x 1 Watt RGB

• DMX-512 controlled

• Channels: 5

• Signal connector XLR 3-pole Male/ Female

• Power consumption: 15W

• Mode: DMX512, Stand-alone and Music controlled, Master/Slave

• Sound-controlled via built-in microphone

• Fuse 1A / 250V

Overview 1

Fig. 1

Backside

Fig. 2

1) Mountingbracket 6) Audio Sensitivity

2) Earth 7) Built-in Microphone

3) IEC Power + Fuse 1A/250V 8) DMX LED

4) 3-pin DMX In 9) DMX Dipswitches

5) 3-pin DMX Out

Installation

Remove all packing materials from the Chaotic LED. Check that all foam and plastic padding is

removed. Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Remove all packing materials from the Chaotic LED. Check that all foam and plastic padding is

removed.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Control Modes

There are 4 Modes: 1) Built-in Programs

2) Sound-controlled

3) Master/Slave

4) DMX512

One Chaotic LED (Built-in Programs)

1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

2. When the Chaotic LED is not connected by a DMX-cable, it functions as a stand-alone device.

This device has 3 built-in programs : A. Auto Color changing

B. Auto Color changing with slow strobe

C. Auto Color changing with strobe (1-20 Hz)

Auto Color changing

Program 1 : Dipswitch #11 and #12 set to ON

Auto Color changing with slow strobe

Program 2 : Dipswitch #10 and #12 set to ON

Auto Color changing with strobe (1-20 Hz)

Program 3 : Dipswitch #12 set to ON

One Chaotic LED (Sound control)

1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

2. When the Chaotic LED is not connected by a DMX-cable, it functions as a stand-alone device.

The Chaotic LED will automatically change its color to the beat of the music. With the Audio

sensitivity control you can adjust its music-sensitivity.

Sound-activated

Music Control 1 : All Dipswitches set to OFF

Sound-activated with strobe (1-20 Hz)

Music Control 2 : Dipswitch #10 and #11 set to ON

Sound-activated with Auto Color changing

Music Control 3 : Dipswitch #11 set to ON

Multiple Chaotic LEDs (Master/Slave control)

1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

2. Use a 3-p XLR cable to connect the Chaotic LED.

The pins: 1. Earth

2. Signal -

3. Signal +

3. Link the units as shown in (Fig. 3), Connect a DMX signal cable from the first unit's DMX "out"

socket to the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.

4. There are 4 options to setup a master-slave chain:

Sound-active Master Control:Dipswitch #10 should be set to ON

Slave Control:Dipswitch #1 should be set to ON

Auto 1 Master Control:Dipswitch #11+12 should be set to ON

Slave Control:Dipswitch #1 should be set to ON

Auto 2 Master Control:Dipswitch #10+12 should be set to ON

Slave Control:Dipswitch #1 should be set to ON

Auto 3 Master Control:Dipswitch #12 should be set to ON

Slave Control:Dipswitch #1 should be set to ON

You can use the same functions on the master device as described on page 7+8 (Built-in

Programs 1-3, and Music control). This means on the master device you can use your desired

operation Mode and all slave devices will react the same as the master device.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Show Tec Leuchte Handbücher

Show Tec

Show Tec ACT PC 60 RGBW Bedienungsanleitung

Show Tec

Show Tec LED Par 64 Short DMX Bedienungsanleitung

Show Tec

Show Tec shooter 360 Bedienungsanleitung

Show Tec

Show Tec 60421 Bedienungsanleitung

Show Tec

Show Tec Indigo 4600 Bedienungsanleitung

Show Tec

Show Tec Phantom 50 LED Spot Bedienungsanleitung

Show Tec

Show Tec led spere direct control 30 Bedienungsanleitung

Show Tec

Show Tec IW-720 Bedienungsanleitung

Show Tec

Show Tec tracker q4 Bedienungsanleitung

Show Tec

Show Tec Kanjo Spot 10 V2 Bedienungsanleitung

Show Tec

Show Tec Colorburst V1 Bedienungsanleitung

Show Tec

Show Tec Infinity iB-2R Bedienungsanleitung

Show Tec

Show Tec Infinity iB-5R Bedienungsanleitung

Show Tec

Show Tec EventSpot 1600 Q4 Bedienungsanleitung

Show Tec

Show Tec Indigo 6500 Bedienungsanleitung

Show Tec

Show Tec 40072 Bedienungsanleitung

Show Tec

Show Tec Sunstrip LED V1 Bedienungsanleitung

Show Tec

Show Tec Infinity iW-1915 RGBW Wash Bedienungsanleitung

Show Tec

Show Tec Stage Blinder 1 LED Bedienungsanleitung

Show Tec

Show Tec ACT Fresnel 50 WW Bedienungsanleitung

Show Tec

Show Tec Moving Par 64 Bedienungsanleitung

Show Tec

Show Tec indiniti iw-715 Bedienungsanleitung

Show Tec

Show Tec Magic Icecycle Bedienungsanleitung

Show Tec

Show Tec MiniMax 250 Bedienungsanleitung

Beliebte Leuchte Handbücher anderer Marken

Emos

Emos CLASSIC ZY1431T Bedienungsanleitung

Westinghouse

Westinghouse Outdoor Lighting Fixture Bedienungsanleitung

Hedler

Hedler C 12 silent Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Puck: CSI Bedienungsanleitung

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Bedienungsanleitung

Lightmaxx

Lightmaxx Shaft 5R Bedienungsanleitung

Triarch

Triarch 31083 Bedienungsanleitung

Philips

Philips 32614 Series Bedienungsanleitung

IKEA

IKEA TIVED Bedienungsanleitung

Lightolier

Lightolier LP200 Bedienungsanleitung

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Bedienungsanleitung

Martin

Martin MAC 250 Krypton Bedienungsanleitung

Cooper Lighting

Cooper Lighting Halo L3232E Bedienungsanleitung

Stageline

Stageline ODW-2410RGBW Bedienungsanleitung

Light Sky

Light Sky Tornado Series Bedienungsanleitung

Lightolier

Lightolier Paralyte 2424 PLA2G9LS26U Bedienungsanleitung

Lightolier

Lightolier Lytespan 83ED17S Bedienungsanleitung

Lightolier

Lightolier Calculite CS8226 Bedienungsanleitung
