ShowTex EASYDRAPE Bedienungsanleitung
EASYDRAPE

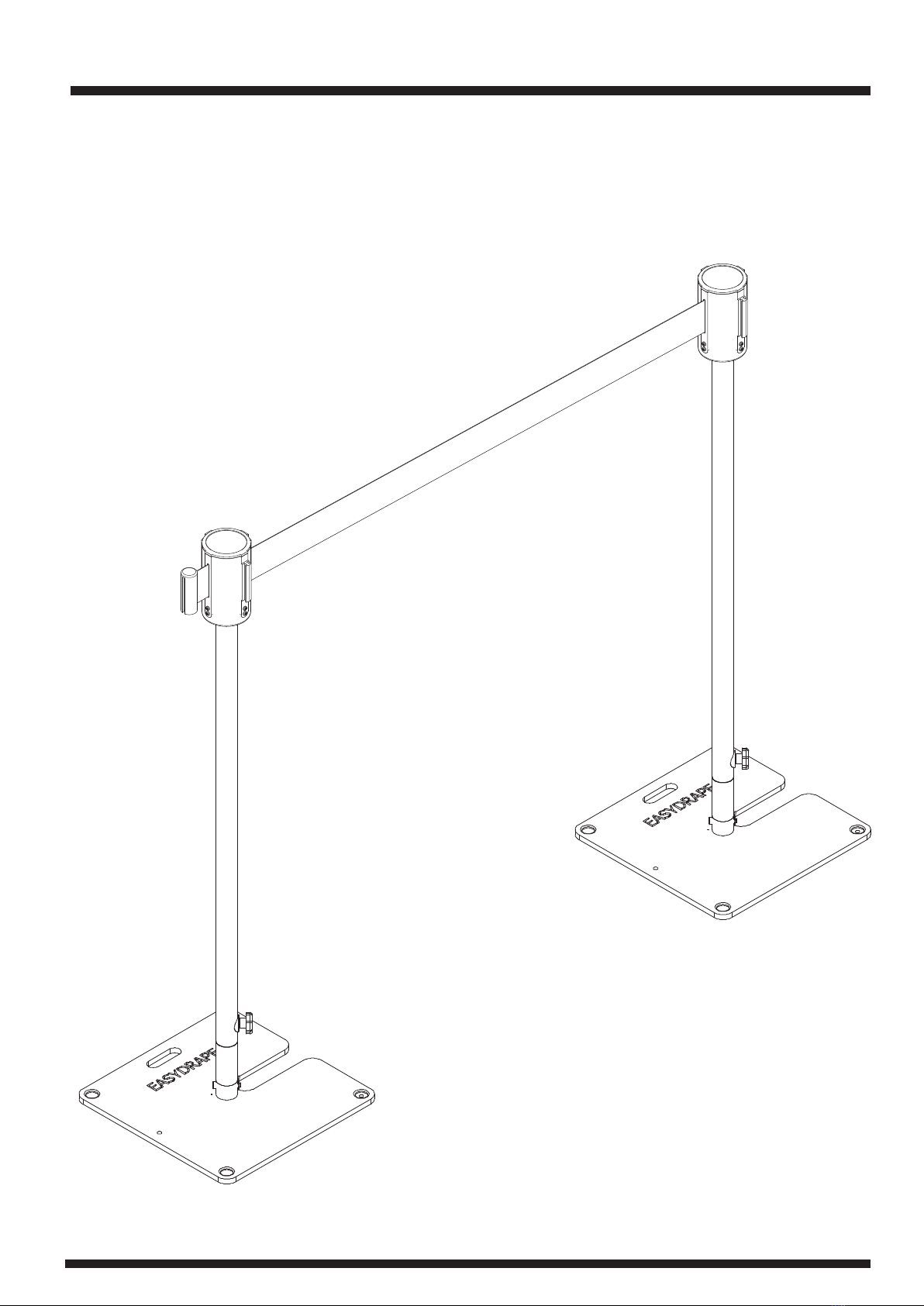

RETRACTABLE BELT BARRIER
Create unlimited EasyDrape congurations using these dierent parts.
COMPONENTS
EasyDrape Installation Manual47
2X
2X
4X
2X 1X
4X 4X
[1] Place 2 base plates and attach the base plate connectors to the plates (page 7)
[2] Attach the Uprights to the plates (page 8)
[3] Secure the Uprights to the base plates (page 9)
48EasyDrape Installation Manual
ASSEMBLY
[4] Attach the Retractable Belt Barrier to the Upright using a half conical coupler.
Hammer the pin into the larger of the two holes of the coupler. Use safety R-springs to secure
the Retractable Belt Barrier to the Upright.
Repeat this for the other Upright.
EasyDrape Installation Manual49
ASSEMBLY
ASSEMBLY
[5] Attach the belt to another Retractable Belt Barrier and you’re ready to roll!
50EasyDrape Installation Manual
